QUICK REFERENCE
TURN SYSTEM ON
.Check to make sure the system is READY -Green ready hght is lit+
.Enter your 4-digit user codem rlrln
. The On/Off (Arm) light will tight
*Exit through adoor designated by your installer as an exiffentry door
TURN SYSTEM OFF
.Enter through adoor designated by your installer as an exitientry door
.Enter your 4-digit user cod~l m m ~
. The System On (Arm) hght will go out
TURN SYSTEM ON AND STAY INSIDE
.Check to make sure the system is READY -Green ready light is lit+
-Followed by your user code m m m m
. The OtiOff (arm) light and the Stay light will both light
REMEMBER: You must turn the syetem off if you want to open the door or leave
the premises after the exit tima has passed.
TURNTHESYSTEM ON: PERIMETERSENSORS INSTANTMODEAND STAY INSIDE
.Check to make sure the system is READY -Green ready tight is lit+
-‘“’lowedby
-Followed by your user code ~rl m❑
. The On/Off Hght, the Instant tight and the Stay light will all be on
SMOKE DETECTOR RESET
.Enter your 4-digit user code [1 rl n~
tready tight not available on all keypads
Page 3

INTRODUCTION
Congratulations on your decision to protect your home or business with the
XL-2T security system. You have chosen areliable, state of the art security
system that is remarkably easy to operate. Your eystem has been professionally
installed by your local Security Company who can explain the specifice of your
system.
The keypad is the input and dsplay device for your security system. The
following keypad models can interact with your system. Your Security Company
will suggest the model most appropriate for your premises and your needs.
XL4600SM -A sutiace mount keypad containing indicator lights for each of the 8
zones (areas of protection). The door covering the buttons is optional and can be
removed.
6615- Asurface mount keypad containing indcator lights for each of the 8
possible zones (areas of protection).
The XL-2T is listed by Underwriters Laboratories for Household Hre and Burglary
appkcations.
Throughout this manual, the following conventions are used to display the
keystrokes required to perform the functions.
mButton labeled STAY
mButton labeled BYPASS
mButton labeled INSTANT
mButton labeled CODE
❑O•04-~git user coda
Please keep your manual in aconvenient location so you can refer to it if
needed.
Page 4

SYSTEM REFERENCE
ZONE DESCRIPTION
1
2
3
4
5
6
7
Entry time Door Exit time
EntW time Door
Exit time is the same for all designated Entry/Exit doors.
The following SEND HELP ALERTS are programmed into my system. Both
Buttons must be pressed st the same time to sctivate the aleti. The buttons
you press depend on which type of keypad you have. Your installer will show you
how to activate these emergency keys. The keys for LED style keypads are
shown below
BUTTONS DESCRIPTION
[#]&~] (Right+) _
[~&[9](Lefi+) _
[l]&[3](Cente+) _
tButtons on XL-4600SM keypad only
Page 5
—

SYSTEM REFERENCE
USER ID ASSIGNED TO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
(MASTER USER ‘)
(MASTER USER ‘)
Door Sttike-Yes No If No
of user 13 is not assigned for door strike, then any user can ativate the door stdke)
Only Turns System On -Yes If No
Ambush/Duress Code -Yes If No
‘Master Users mn Add, Change, or Erase other user codes.
Monitoring Station Information
Awount #
Telephone #
Page 6

TURNING THE SYSTEM ON
SYSTEM READY
You can turn the Burglar portion of your security system on and off. Before you
can turn the system on, it must be “reedy; If you hsve aprotected door open, or
someone is moving in view of amotion detector, the system will not dsplay
“ready.”
The system is ready If the ready light Is on or if the display ahowe:
m
TURN THE SYSTEM ON AND LEAVE
Enter your 4-@git user code ❑oon
The System On (Arm) tight will go on or the display will show
m
Exit through adoor designated by your installer as an exitientry door. You must
leave within the exit time programmed by your installer. Refer to the reference
sheet for the time that has been set for your system.
NOT READY If the system is not ready to be armed, the READY light will be off and the Zone
lights will show which zone or zones are not ready. The zone fights indicate the
following conditions, or the display will show as follows:
Faat Blink Alarm
Slow BlinWLow Intensity Bypass
Slow Pulse Trouble
Solid On Not Ready
Example If the Ready fight is not tit and the zone one light ia solid on. An
alarm sensor on zone one ia faulted. This might mean that awindow is open or
someone is walking in view of amotion sensor. Check all sensors on zone one
and resolve the problem. When all sensors are restored, the Ready light will
come on and the zone tight will go out. In this example, the display shows:
SYSTEM NOT READY
Page 7
—

TURNING THE SYSTEM ON
TO TURN THE SYSTEM ON -NOT READY
Determine which zone or zones is not ready, resolve the problem, and turn the
system on normally. If the problem cannot be resolved, you may bypaaa the
zone that is not ready. Bypassing should only be done if the problem on the zone
cannot be resolved, OR if you intentionally wish to leave the zone off, Example
you wish to keep the window open for ventilation, Zones that are bypassed are
not protacted when the systam ia on. See Bypass for the procedure.
TURN SYSTEM ON AND STAY fNSIDE
To turn the perimeter potion of your burglar alarm on and move around freely
inside the premises, use the STAY mode.
Check to make sure the system is ready when raady press:
mFollowed by your user code ❑unn
If successful, the OtiOff (arm) light and the Stay tight will be lit, or the” display
shows
~
REMEMBER: You must turn the system off if you want to open the door or leave
the premises after the exit time haa passed.
TURN THE SYSTEM ON: PERIMETER SENSORS INSTANT MODE AND STAY fNSIDE
In fNSTANT STAY mode, the parimeter potiion of your burglar alarm system is
on and the time delays are eliminated from your normal ent~/exit door(s), All
interior protection is off so you are free to move around inside.
Check to make sure the system is READY, when ready press
m‘“’’owed by
mFollowed by your user code mmmrl
If successful, the OtiOff fight, the Instant light and the Stay light will all be on, or
the dsplay ahowa:
ON: STAY INSTANT [
Psgs s

T(VRNING THE SYSTEM ON
TURN THE SYSTEM ON WITH ALL SENSORS IN INSTANT RESPONSE MODE
In INSTANT mode, all alarm sensors will repoti an alarm immediately if
activated, including the doors that normally have adelayto allow youto turn the
system oti. Chackto make eurethe system is ready when ready press
ED Followed byyour usercode mmmrl
If successful, the On/Off light and the Inetant light will be on, or the display
shows.
BYPASS Bypass excludes azone of protection from the security system until it is
unbypsssed (either by using the unbypaes procedure or when you turn the
eystem off). Bypassing can only be done while the system is turned off.
Press the Bypass Button followed by your user code and then the zone number
(l-7) to be bypassed.
mFollowed byyour usercode+ rlmmr{ +ZONE#
+If the “Quick Bypass” feature has been enabled by the installer, the user code is
not required when bypassing zones.
NOTE: Bypassed zones are not protected when the system is turned on. After
the bypass command has been accepted, the keypad will sound one long beep,
and the zonetight of the zone(s) bypassed will slowly blink, or the display shows:
IMPORTANT: Temporary users ~.e, baby sifters, housekeepers, etc.) should not
be shown the Bypass procedure.
UNBYPASS Unbypass returns abypassed zone to normal operation. To unbypass azone(s),
repeat the bypass function.
mFollowed byyourusercode rlnrlrl+ZONES
After unbypassing the zone display will show the state of the zones.
Pages
—

TURNING THE SYSTEM OFF
When you turn off the system, you turn off only the burglar portion of your
system; any smoke or heat detators and panic buttons will remain on. You must
enter through adesignated entry door and turn off the system within the time
allowed. You can have different amounts of time for dfferent entry points. See
your system reference sheet for the times established for your system.
To turn yuour system off
Enter your 4-digit user code L—lr] rl rj
If no alarms have teken place, the On/Off tight (labeled arm) will go off, or the
display shows
If alarms occurred when the system was on, or if atrouble condition exists, they
will display on the zone indcator lights as follows
Faat Btink Alarm
Slow BlinWLow Intensity Bypass
slow Pulse Trouble
Solid On Not Ready
or the display shows
Burgla~ Alarms will sound asteady sound at tha keypad(s), and fire alarms will
generate apulsing sound.
Important If an intrusion has taken place while you were away, do not enter
until the location has been checked. Call for help from aneighbor’s house and
wait for the potice,
After you have turned the system off with your user code, the message on
display keypads will show
m
To clear the display of the alarm or trouble conditions and silence the audible
alert :
Enter your 4-digit user code n~r! rj again.
Page 10

USERCODES
ADDORCHANGE AUSERCODE
Users csn be added or changed directly at the keypad. Your system can have up
to 15 different user codes. Users #1 and #2 are the only users allowed to add or
delete other users.
Press the Code button followed by user #1 or user #2 ~digit user code, then the
new user’s user number and the new 4-digit user code. The keypad will beep
after each dgit is pressed.
User #1 or #2 Ctie User ID New User Code
=1 ❑UUU nn nnnn
Use the system reference sheet to record system users. On this sheet your
installer will indicate if you heve chosen to dedicate auser code to send an
emergency signal in the case of Ambush or Duress, You may also have chosen
to resewe one user code that is only allowed to turn the system on. This code
will not be able to turn the system off.
DELETE AUSER CODE
To delete auser, press the Code button followed by the 4-digit master user code,
then the user number, then press [#] to delete. For example, to delete user 3, do
the following
Master User C@e User 10 #to delete
NOTE: User #1, the master usar, cannot be deleted but it can be changed using
the ADD OR CHANGE user procedure.
TURN SYSTEM ON ONLY (Maid Code)
If you choose to have acode thet cannot turn the system off, but can turn the
system on, have your installer program this festure. If programmed, user code
14 will have System On capabihty only, and you can issue this code to a
temporary ueer ao they can secure the premises when they leave.
Page 11
—

MISCELLANEOUS COMMANDS
KEYPAD, SEND HELP CONDITIONS
Your system can be programmed for 3separate “Send Help” alerts which would
send an emergency signal to your central station. See the System Reference
sheet to see which have been programmed for your system.
DURESS Your system can be programmed to send anemergency signal to the Central
Station if you are forced to enter the premises. If you choose to include this
feature, User Code number 15 is dedicated to this function and must only be
used under adureaa circumstance.
QUICK ON -(QUICK ARMING)
If programmed by your installer, Quick On, or Quick Arming, allows you to turn
the system onto the away mode without user code. NOTE: Turning your system
Off always requires avatid User Code.
Press [#] then [1]
QUICK FORCED ON
If programmed by your installer, Quick Forced On allows you to turn the bu’rglar
portion of your alarm system on to the away mode, bypassing all zones that are
not ready.
Press [#] then [2]
NOTE: Ava~d user code ia still required to turn the system off.
NOTE TMs feature is disabled on UL installations.
QUICK BYPASS If you hava quick bypass programmed for your system, you will not have to use
your user code to bypass zones. The quick bypass procedure is
ZONE (l-7)
NOTE: Bypassed zones are not protected when the system is turned on. After the
bypass command has been accepted, the keypad sounds one long beep, and tha
zone tight of the zone(s) bypaaaed will slowly bhnk, or the display will show:
=“-
NOTE: Temporary users fi.e. baby sitters, housekeepers, etc.) should not be shown the Bypass
procedure. Page12

MISCELLANEOUS COMMANDS
TURN CHIME OWOFF
Chime is an optional feature that causes tha keypad to chime when selected
doors are opened while the burglary protection is off or disarmed.
Only your installer can program azone for the chime feature, but once
programmed, you can turn chime on or off to meet your daily needs, To turn
chime on or off: Press [#] then [6]
SET AUTO ON TIME
Set Auto On Time lets you set the time your system will automatically turn on.
Press [#] then [5] [user 1or 2code] [hr] [hrJ [mini [rein,]
The English read out keypad will prompt you for the required entries.
(user code is not required if so programmed by installer)
DOOR STRIKE
VIEW TIME
SET TIME
To acfiiate door strikes
Press [#] then [9] [user code] [Door #]
where the door number is as follows
1
2
[#l [m
(Note that ths installer may have
aeaigned user 13 as the only user that
can perform the door etrike function.)
[#] [3] [user 1or 2code] [hr,] [hr,] [mini,] [min,l [mnth,l [mnth,l [day,] [dayJ
[year,] [year,]
(user code is not required if so programmed by installer)
VIEW AUTOARM .TIME
[#] .[8] [user 1or 2code]
m
(user code is not required if so programmed by installer)
Page 13

TESTING THE SYSTEM
SYSTEM TEST
It is recommended that you teet your system once aweek using the following procedure
NOTE: If your system is monitored, contact your Central Station before you perform this test.
1. Turn your Security System on.
2. Wait until your exit time is over and them activate the system by opening aprotected zone.
(For example awindow or door).
3. Confirm that the alarm sounding device (bell or siren) sounds. If your system is connected to
acentral station the keypad will sound the ringback tone to confirm that the signal was
received.
4. Turn the Security System off.
5. Call the Central Station to tell them you are done testing.
BA~ERY TEST
It is recommended that you test your Battery once amonth. In order to teat your backup/standby
battery, the following procedure should be followed
1. Unplug the transformer from the AC outlet by removing the restraining screw which secures
the transformer to the wall, (Note the screw is not present on the models sold in Canada.)
2. Obsewe that the AC indicator fight on the keypad goes off.
3. Activate your alarm by performing the above SYSTEM TEST. Remember to contact your
Central Station if your system is monitored.
4. Plug the transformer into the AC outlet and secure with the restraining screw. (Note the screw
is not present on the models sold in Canada.)
The National Fire Protective Association publishes astandard for fire warning equipment (NFPA
pub~cafion #74). Further information can be obtained by contacting: NFPA Pubtic Affairs Dept.,
Batfe~march Park, Quincy, MA 02269.
If you have any further questions about the operation of your system, please contact your alarm
company.
Page 14

RECOMMENDATIONS ON SMOKE DETECTORS
With regard to the numbar and placement of amoktieat detectors, we aubacribe to the
recommendations containad in the Netional Fire Protection Association’s (NFPA)
Standard #74 notad below.
Early warning fire detection ia beat achieved by tha installation of fire detection
equipment in all rooms and area of the household aa follows: Asmoke detactor installsd
outside of each separate alaaping area, in the immediate vicinity of the bedrooms and on
each additional story of the family living unit, including basements and excluding crawl
epacea and unfiniahad attics.
In addition, the NFPA recommends that you install heat or smoka detectors in the living
room, dining room, bedroom(s), kitchen, hallway(s), attic, furnace room, utility and
storage rooms, basemerlta and attached garagea.
o0
LIVINGROOM BEDRWM
a
o
BEDROOM
L4
❑Smoke Det@om for Mnimum Protection
OSmoke Datetiom for Additional Protection
BEOROOM AHeat-Activated Detectom
LVNGRM ❑
BASEMENT
Page 15
—

EMERGENCY EVACUATION
Establish and regularly practice aplan of escape in the event of fire. The following steps are
recommended by the National Rre Protection Association:
1.
2.
3.
4.
5.
6.
7.
6.
Position you; detector or your interior and/or esterior sounders so that they can be heard by
all occupants.
Determine two means of escape from each room. One path of escape should lead to the
door that permits normal exit from the building. The other may be a window, should your
path be unpassable. Station an escape ladder at such windows if there is along drop to the
ground,
Sketch afloor pan of the buil~ng. Show windows, doors, stairs and rooftops that can be
used to escape. Indcate escape routes for each room. Keep these routes free from
obstruction and post copies of the escape routes in every room.
Assure that all bedroom doors are shut while you are asleep. This will prevent deadly smoka
from entering while you escape.
Try the door. If the door is hot, chack your alternate escape route. If the door is cool, open it
cautiously. Be prepared to slam the door shut if smoka or heat rushes in.
When smoke is present, crawl on tha ground, Do not walk upright, since smoke rises and
may overcome you. Clearer air is near the floor.
Escape quickly don’t panic.
Establish acommon meeting place outdoors, away from your house, where eve~one can
meet and then take ataps to contact the authorities and account for those missing. Chooses
someone to assure that nobody returns to the house —many die going back.
Page 16

GLOSSARY
AC INDICATOR: Small green light between the center buttons on the keypad. When lit, the
eystem is running on electricity when not lit, the system is running on the backup batte~.
ALARM: Sound from keypad or other horn/siren indicates aburglar alarm, fire alarm or other
cond!tion you should be alerted to.
ARMED See ON/OFF
AWAY Asystem setting that protects the premises while it is unoccupied. All burglary sensors
are active.
BURGLARY/FIRE: Thetwomajor functions of aSecufity System. Fire protection is always on
and cannot be turned off The Burglary sensors protect against unauthorized entry into your
premises. The Burgla~ protection can be turned on and off and programmed for special levels of
access and notification.
BYPASS FEATURE The Bypass Feature allows you to exclude aselected zone or zones from
the burglar alarm protection.
BYPASS BU~ON: Abutton on the keypad used to activate the Bypass Feature.
CENTRAL STATION: Signal Monitoring Center contacted by your Security System over the
telephone and/or other communication channels when alarms are activated if your system is
programmed to communicate alarms off site. The Central Station will follow their procedures and
your instructions for contacting the proper authorities when asignal is received.
CHIME FEATURE An optional feature that causes the keypad to chime for one second when
selected doors are opaned when the burglary protection is off or disarmed. Once programmed by
your installer you can turn chime on and off with #6.
DISARMED See ON/OFF.
DURESS: Duress is asystem feature the you may have programmed into your system. If
someone should force you to turn your system off, you would use the special Duress user code
and the system would turn off and it would also send asilent duress emergency to the Central
Station so they could respond appropriately.
ENTRY DELAY: The pefiod of time allowed between opening adesignated enty/exit door and
turning off the alarm system before the system will register an alarm condition. This is determined
at the time of installation. Your system suppotis two entry times allowing you to have adifferent
length of time for different doors.
EXIT DELAY The period of time allowed between turning the system on and leaving through a
designated exitient~ door. This is determined at the time of installation.
INTERIOR ZONE: An interior zone is agroup of points that protect the interior of your premises.
You may want to turn the perimeter portion of your system on while leaving the interior zones off
allowing you to move freely inside, opening interior doors and passing by motion detectors
without causing an alarm.
KEYPAD AKeypad is your link into your system. It dsplays alarm and trouble messages, shows
faulted zones and allows you to turn the system on/off by using the buttons. Your system will
have one or more keypads.
Psgs 17

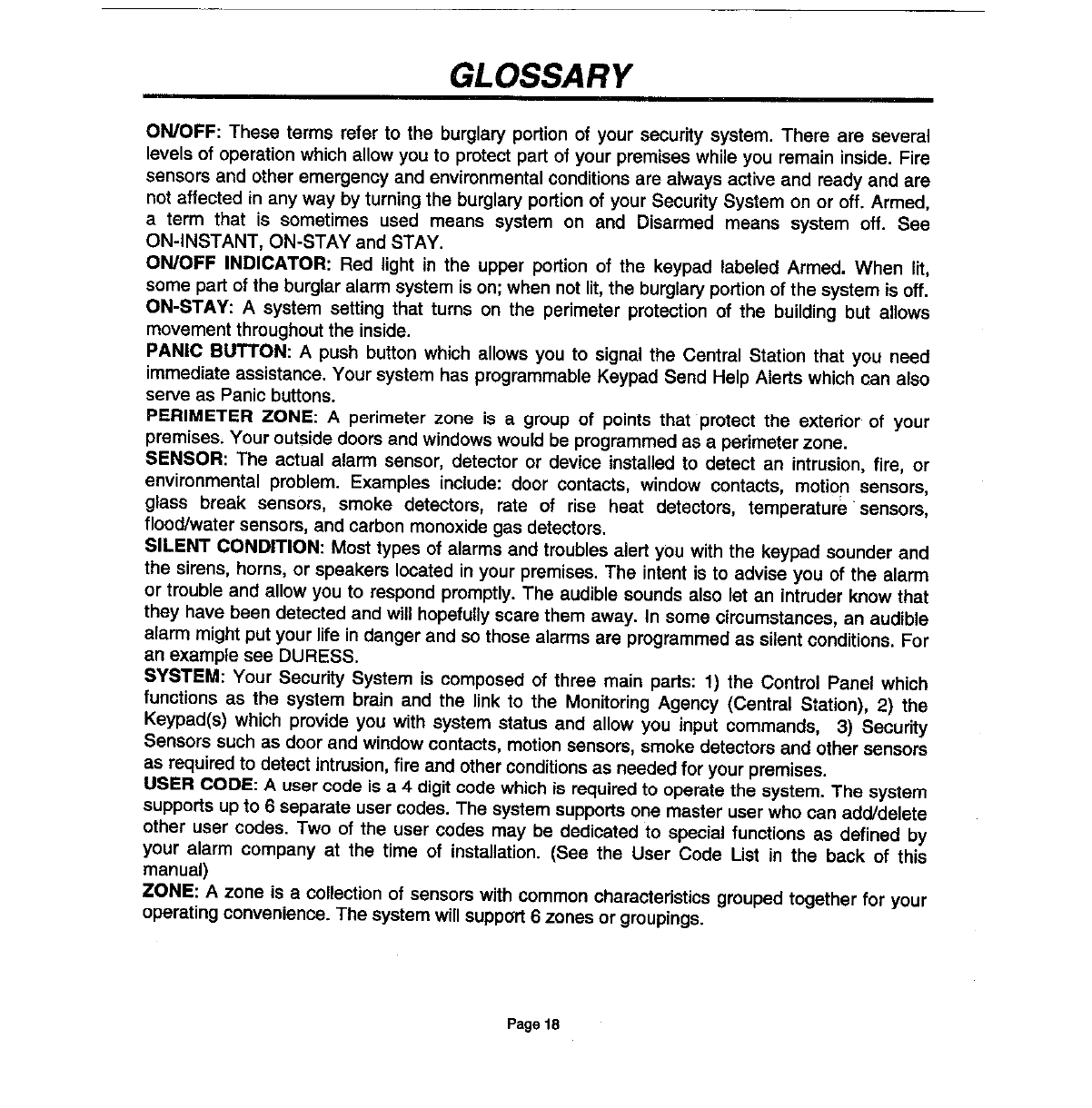

GLOSSARY
OWOFF: These terms refer to the burglary portion of your security system. There are several
levels of operation which allow you to protect part of your premises while you remain inside. Fire
sensors and other emergency and environmental conditions are always active and ready and are
not affected in any way by turning the burglary portion of your Security System on or off. Armed,
s term that is sometimes used meana system on and Disarmed means system off. See
ON-INSTANT, ON-STAY and STAY.
OWOFF INDICATOR Red tight in the upper portion of the keypad labeled Armed. When tit,
some part of the burglar alarm system is on; when not lit, the burglary potion of the system is off.
ON-STAY Asystem setting that turns on the perimeter protection of the building but allows
movement throughout the inside.
PANIC BUTTON: Apush button which allows you to signal the Central Station that you need
immediate asaiatance. Your system has programmable Keypad Send Help Alefls which can also
sewe as Panic buffona.
PERIMETER ZONE: Aperimeter zone is agroup of points that” protect the exterior of your
premises. Your outside doors and windows would be programmed as aperimeter zone.
SENSOR: The actual alarm sensor, detector or device installed to detect an intrusion, fire, or
environmental problem. Examplea include door contacts, window contacts, motion sensors,
glass break sensors, smoke detectors, rate of rise heat detectors, temperature sensors,
floo~water sensors, and carbon monoxide gas detectors.
SILENT CONDITION: Most types of alarms and troubles alert you with the keypad sounder and
the sirens, horns, or speakers located in your premises. The intent is to advise you of the alarm
or trouble and allow you to respond promptly. The audible sounds also let an intruder know that
they have baen detected and will hopefully scare them away. In some circumstances, an audible
alarm might put your life in danger and so those alarms are programmed as silent conditions. For
an example see DURESS.
SYSTEM: Your Security System ia composed of three main parts 1) the Control Panel which
functions as the system brain end the link to the Monitoring Agency (Central Station), 2) the
Keypad(s) which provide you with system status and allow you input commands, 3) Security
Sensors such as door and window contacts, motion sensors, smoke detectors and other sensors
as required to detect intrusion, fire and other conditions as needed for your premises.
USER CODE: Auser code is a4digit code which ia required to operate the system. The system
supports up to 6separate user codes. The system supports one master user who can adddelete
other user codes. Two of the user codes may be dedicated to special functions as defined by
your alarm company at the time of installation. (See the User Code Ust in the back of this
manual)
ZONE: Azone is acollection of aensora with common characteristics grouped together for your
operating convenience. The system will support 6zones or groupings.
Page 18

NOTES
Page19

NOTES
Page 20
