Design Studio™
Decorative Drapery Hardware
Installation • Operation • Care

CONTENTS
Questions?
Call the Hunter Douglas Consumer Support Center at 1-888-501-8364.
© 2019 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or
their respective owners.
GETTING STARTED
Product View—Decorative Drapery Hardware
Pleated Style Side Panel or Drapery............................................................1
Product View—Decorative Drapery Hardware
Grommet Side Panels ..................................................................................2
Tools and Fasteners Needed .......................................................................3
INSTALLATION
Install the Brackets — Wall Mount............................................................4
Install the Brackets — Ceiling Mount ........................................................5
Install the Bracket Arms ..............................................................................6
Connect Spliced Rod (If Applicable) ............................................................6
Install Rings ................................................................................................7
Install Pleated Style Side Panels or Drapery...............................................8
Install Grommet Style Side Panels..............................................................9
Install Return to the Wall ............................................................................9
OPERATION
Operation (Drapery Only) ...........................................................................10
Troubleshooting ........................................................................................10
CARE
Remove Drapery (If Necessary) .................................................................11
Remove Rod and Side Panels (If Necessary).............................................11
Cleaning Procedures .................................................................................11
WARRANTY.................................................................................Back Cover

1
GETTING STARTED

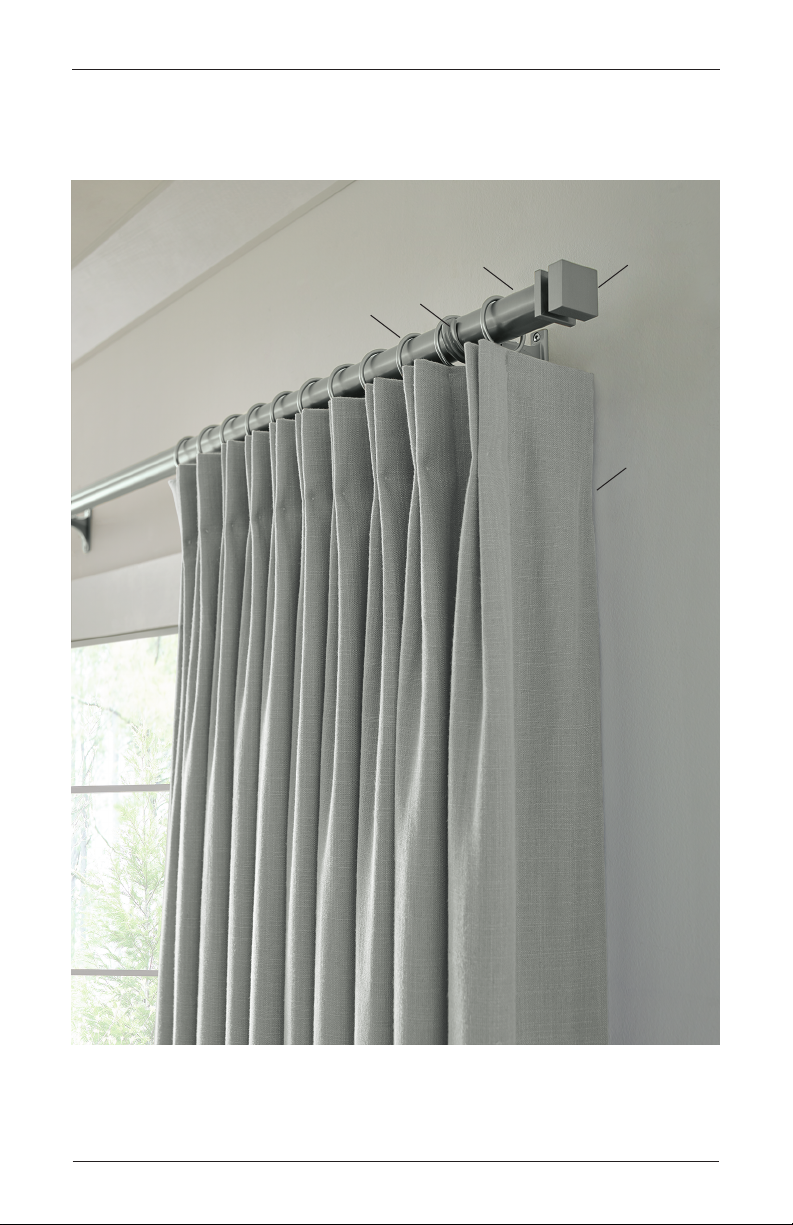

Product View—Decorative Drapery Hardware
Pleated Style Side Panel or Drapery
Finial
Bracket
Drapery
Rod
Ring

2
GETTING STARTED
Product View—Decorative Drapery Hardware
Grommet Side Panels
Finial
Bracket
Side
Panel
Rod
Grommet

3
GETTING STARTED
Thank you for purchasing Hunter Douglas Design Studio™Decorative Drapery Hardware. With
proper installation, operation and care, your new drapery/side panels will provide years of
beauty and performance.
Please thoroughly review this instruction booklet and enclosed packing list before beginning
the installation.
Tools and Fasteners Needed
■ Phillips screwdriver
■ Level (laser level is recommended)
■ Measuring tape and pencil
■ Power drill,
1
∕ 8 " drill bit, and a Phillips driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■ Wall/Ceiling Mount Brackets. Two #10 1
1
∕ 2 " Phillips head screws are provided
per bracket.
Refer to the appropriate page below based on your order:
➤ “Install the Brackets — Wall Mount” on page 4.
➤ “Install the Brackets — Ceiling Mount” on page 5.

4
INSTALLATION
Install the Brackets — Wall Mount
■ Measure the width of the rod and use this measurement to determine where the ends of
the rod will be located. Use a pencil to lightly mark where its ends are located.
■ Use the figure below to mark the locations on the wall for each of the brackets. These
marks will be for the top hole position of the wall bracket. Keep in mind the following:
➤ A minimum of 3" flat vertical surface is required to mount the installation brackets.
➤ For drapery panel(s), mark 2" above where you want the top of the drapery header to
be positioned. For side panel(s), mark 1" above where you want the top of the drapery
header to be positioned.
➤ Mount the end installation brackets 2" in from end marks.
➤ Drapery. Drapery panel(s) come with two brackets and may come with a bypass
bracket(s) to be used as intermediate brackets. Space bypass bracket(s) evenly
between the two end brackets and mark their location. Use all brackets provided for
secure attachment. Mount into wood whenever possible.
➤ Side panel(s). If more than two installation brackets came with your order, space
additional bracket(s) evenly between the two end brackets and mark their location. Use
all brackets provided for secure attachment. Mount into wood whenever possible.
➤ If the rod is spliced, place an intermediate bracket at the splice. See “Connect Spliced
Rod (If Applicable)” on page 6 to connect the rod then hold it up to find the position
for this intermediate bracket.
IMPORTANT: The installation brackets must be level and aligned after mounting.
■ Unscrew the set screw from the bracket base to remove
the bracket arm.
■ Place the top hole of each bracket base on the
previously made marks and mark the bottom
screw hole.
■ Drill the screw holes using a
1
∕ 8 " drill bit.
■ Attach the brackets using the screws provided.
➤ Check that the mounting surface is level and the brackets are aligned. If mounting to a
heavily textured surface, shim the brackets, if needed.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete
with concrete anchors. Drywall anchors may be used when wall studs are not
present, choose appropriate anchors for install.
Proceed to “Install the Bracket Arms” on page 6.
2"
End of Track Marks
Evenly Spaced Evenly Spaced Evenly Spaced
2"

5
INSTALLATION
Install the Brackets — Ceiling Mount
■ Measure the width of the rod and use this measurement to determine where the ends of
the rod will be located. Use a pencil to lightly mark where its ends are located.
■ Use the figure below to mark the locations on the ceiling for each of the brackets. These
marks will be the front hole position of the ceiling bracket. Keep in mind the following:
➤ Refer to the table for the exact distance from the wall
to mark for the front hole of the bracket.
➤ Mount the end installation brackets 2" in from
end marks.
➤ If the rod is spliced, place an intermediate bracket at
the splice.
➤ Drapery. Drapery panel(s) come with two brackets and may come with a bypass
bracket(s) to be used as intermediate brackets. Space bypass bracket(s) evenly
between the two end brackets and mark their location. Mount into wood whenever
possible.
➤ Side panel(s). If more than two installation brackets came with your order, space
additional bracket(s) evenly between the two end brackets and mark their location.
Mount into wood whenever possible.
IMPORTANT: The front edges of the installation brackets must be level and aligned
after mounting.
■ Unscrew the set screw from the bracket base to remove
the bracket arm.
■ Place the front hole of each bracket base on the previously
made marks and mark the back screw hole.
■ Drill the screw holes using a
1
∕ 8 " drill bit.
■ Secure the bracket base to the ceiling using the two
screws provided.
➤ Check that the mounting surface is level and the brackets are aligned.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete
with concrete anchors. Drywall anchors may be used when wall studs are not
present, choose appropriate anchors for install.
Proceed to “Install the Bracket Arms” on page 6.
Distance from
the Wall
Return
Size
2
3
⁄ 4 "3.5"
5
1
⁄ 4 "6"
7
1
⁄ 4 "8"
2"
End of Track Marks
Evenly Spaced Evenly Spaced Evenly Spaced
2"
Wall

6
INSTALLATION
Install the Bracket Arms
■ Ceiling and Wall Mount with 3" Returns. Install the
bracket arms by sliding it completely into the base and
tightening the screw to secure it. A ceiling mount bracket
is shown, but the process for wall mount bracket is the
same.
■ Wall Mount with 6" or 8.5" Returns. Extension
pieces are used on brackets for 6" and 8.5" returns.
Slide the extension pieces onto the bracket arms
and tighten the set screws. This enables the
placement of the bracket arms to be adjusted as
necessary to allow the returns to lay flat once
connected to
the wall.
Connect Spliced Rod (If Applicable)
For rods over 8’ you will receive two same size rods and a rod splice.
■ Insert the non-finial end of the rods into each end of the
rod splice to join the rods together.
➤ Ensure an intermediate bracket is installed underneath
the rod splice.
For Grommet Style Side Panels proceed to “Install Grommet Style Side
Panels” on page 9. For Pleated Style Side Panels or Drapery continue to
the next page.
Tighten
Screw
to Secure
Tighten Set Screws
Slide the
Extension
onto the Arm



7
INSTALLATION

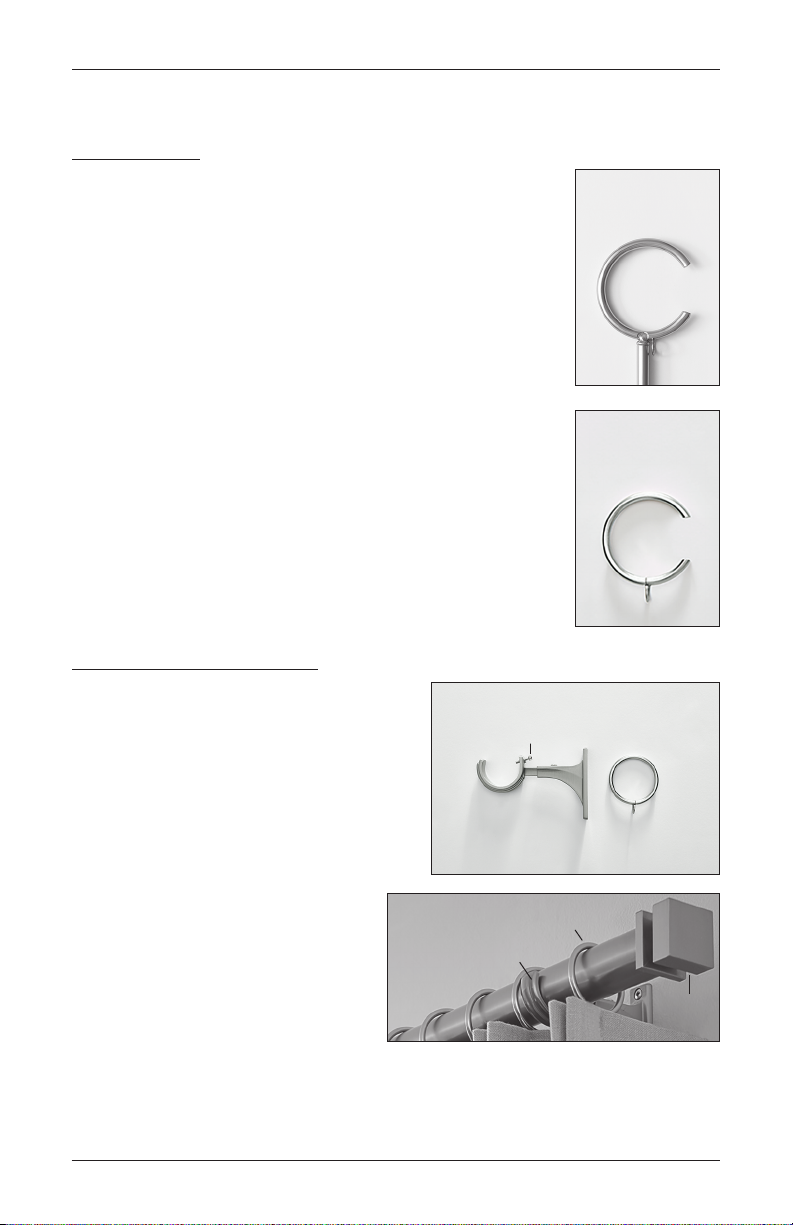

Install Rings
Drapery Only
Draperies come with bypass rings to allow the drapery to glide over
the bypass brackets.
■ Install the wand bypass ring(s) first. Ensuring the wand(s) are
positioned where the leading end(s) will be positioned.
■ Slide the remaining bypass rings onto the rod.
■ Place the rod into the brackets.
➤ Ensure the rod is level and is seated into the arm evenly.
■ Tighten the securing screws on the end brackets to secure the rod.
■ Screw a finial into each end of the rod.
Pleated Style Side Panels
■ Slide the rings onto the rod.
■ Place the rod into the brackets.
➤ Place the outside ring(s) between the
outside brackets and the ends of the rod
where the finials will be placed.
➤ Ensure the rod is level and is seated into
the arm evenly.
■ Tighten the securing screws on the end
brackets to secure the rod.
■ Screw a finial into each end of the rod.
Wand Bypass
Ring
Bypass Ring
Standard Bracket and Ring for Side Panels
Securing Screw
Finial
Ring
Bracket

8
INSTALLATION

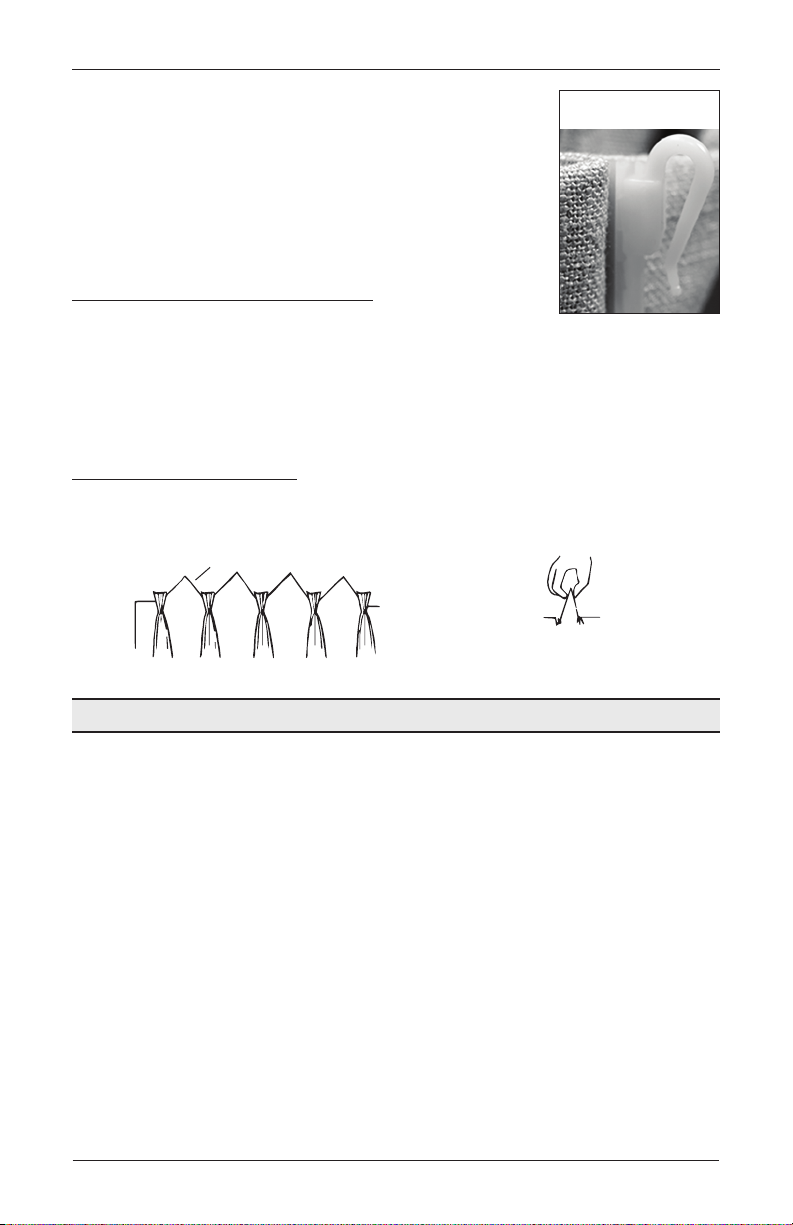

Install Pleated Style Side Panels or Drapery
■ Ensure all adjustable drapery pins are in the top position.
➤ If the pin is not in the top position, slide the pin down and out
of the channel then insert the pin into the channel from the
top and you hear a click.
■ Install the pins into the eyelet of each ring.
Adjust the Top Header Position
■ Adjust the top header to just touch bottom of rings by changing
the height of the adjustable pins.
➤ Push the pins down until you hear a click to lower the pin position. After the last
position the pin will come out of the channel and can be inserted into the channel from
the top. You will hear a click once it is locked into the highest position.
Breaking the Buckrams
■ Buckram is the stiffener sewn at the top of the drapery behind the pleats. Break the
buckram by pinching them will allow the drapery to stack properly.
Proceed to “Install Return to the Wall” on page 9.
Adjustable Pin in
Top Position
Buckram
Pinch the Buckram
to Break

9
INSTALLATION
Install Grommet Style Side Panels
■ Place the rod into the brackets.
➤ Ensure the rod is level and is seated into the arms evenly.
■ Gather the side panel and lift one end of the rod and slide the side
panel onto the rod. If split panels, repeat on the other end
of the rod.
■ Tighten the securing screws on the end brackets to secure the rod.
■ Screw a finial into each end of the rod.
Install Return to the Wall
Screw the brass eyelet(s) (provided) into the wall on the
return end to anchor the return(s) at the same height as the
drapery.
■ Place the return pin(s) into the eyelet(s) attached to
the wall.
End
Securing
Screw
Eyelet
Return Pin

10
OPERATION

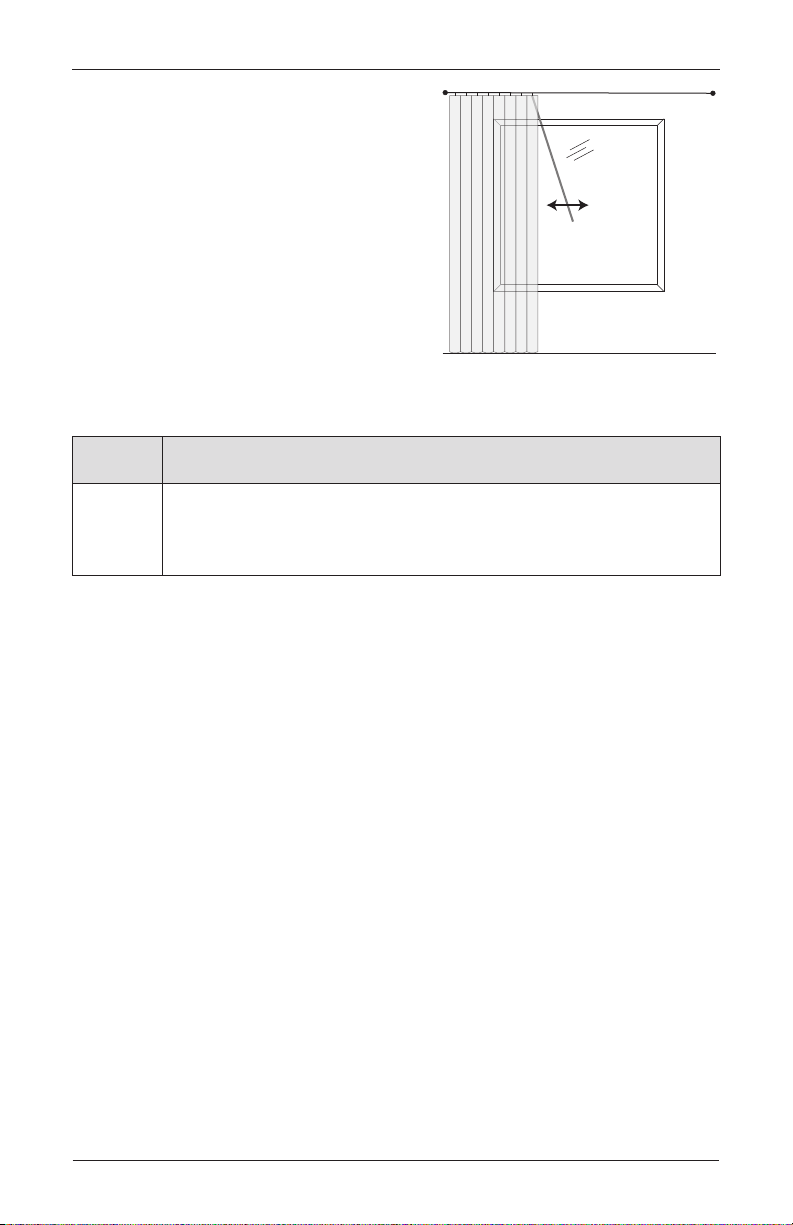

Operation (Drapery Only)
■ Pull/push the wand to move the drapery to the
desired position.
Troubleshooting
Problem
Drapery height is too high or too low on the drapery rod.
Solution Pins are adjustable, refer to “Adjust the Drapery Position” on page 8 to
adjust drapery higher or lower. To go lower than lowest position of adjustable
pins, brackets will have to be lowered.
Pull or Push
Wand to Move

11
CARE
Remove Drapery (If Necessary)
■ Unscrew the finials from each end of the rod.
■ Unhook the returns from the eyelets on the wall.
■ Start at the center of the rod and gently remove the drapery pins from eyelets on each
ring. Be aware some of the adjustable pins may slide off drapery.
■ Place the drapery on a flat clean surface to avoid wrinkling and soiling the fabric.
■ Loosen the securing screws from the end brackets to release the rod.
■ Hold the rings and lift one end of the rod and slide the rings from
the rod.
■ Remove the rod from the brackets.
Remove Rod and Side Panels (If Necessary)
■ Unscrew the finials from each end of the rod.
■ Loosen the securing screws on the brackets to release the rod.
■ Lift each end of the rod to remove the side panel(s).
■ Place the side panels on a flat clean surface to avoid wrinkling and soiling the fabric.
■ Remove the rod from the brackets.
Cleaning Procedures
Dress the Side Panel or Drapery
■ Most wrinkles and folds will hang out on their own. You may also use a
garment/commercial steamer to help eliminate wrinkles. Please keep in mind linens will
characteristically have wrinkles regardless of steaming or pressing.
Dusting
■ Regular light dusting with a feather duster is all the cleaning needed in most
circumstances.
Vacuuming
■ Use hand-held vacuum with upholstery attachment on low suction, for more thorough dust
removal.

Notes

8/191010052
The Hunter Douglas®Lifetime Guarantee is an expression of our desire to provide a thoroughly satisfying
experience when selecting, purchasing and living with your window fashion products. If you are not
thoroughly satisfied, simply contact Hunter Douglas at [phone] or visit hunterdouglas.com. In support
of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
Hunter Douglas (or its licensed fabricator/distributor) will repair or replace the
window fashion product or components found to be defective.
COVERED
BY A LIFETIME LIMITED WARRANTY
TO OBTAIN WARRANTY SERVICE
NOT COVERED
BY A LIFETIME LIMITED WARRANTY
• Hunter Douglas window fashion products are
covered for defects in materials, workmanship or
failure to operate for as long as the original retail
purchaser owns the product (unless shorter
periods are provided below).
• All internal mechanisms.
• Components and brackets.
• Fabric delamination.
• Operational cords for a full 7 years from the date
of purchase.
• Repairs and/or replacements will be made with
like or similar parts or products.
• Hunter Douglas motorization components are
covered for 5 years from the date of purchase.
1. Contact your original dealer (place of purchase) for warranty assistance.
2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to
service locations.
3. Contact Hunter Douglas at [phone] for technical support, certain parts free of charge, for
assistance in obtaining warranty service or for further explanation of our warranty.
NOTE: In no event shall Hunter Douglas or its licensed fabricators/distributors be liable or responsible for
incidental or consequential damages or for any other indirect damage, loss, cost or expense. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or
limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Different warranty periods and terms apply for commercial products and applications.
• Any conditions caused by normal wear and tear.
• Abuse, accidents, misuse or alterations to the
product.
• Exposure to the elements (sun damage, wind,
water/moisture) and discoloration or fading over
time.
• Failure to follow our instructions with respect to
measurement, proper installation, cleaning or
maintenance.
• Shipping charges, cost of removal and
reinstallation.
QTY:
1
