HunterDouglas Silhouette Installation manual

Installation and Care
Silhouette®and Nantucket™
Window Shadings
Privacy Arches and Angles

CONTENTS
© 2017 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas
or their respective owners.
Getting Started:
Product View ................................................................ 1
Tools and Fasteners Needed .......................................... 2
Installation:
Installation Overview ..................................................... 3
Privacy Arch Shadings.................................................. 4
Install the Keyhole Fabric Clips................................... 4
Install the Mounting Screws....................................... 4
Install the Privacy Arch .............................................. 5
Adjust the Privacy Arch.............................................. 6
Privacy Angle Shadings................................................ 8
Mount the Installation Brackets .................................. 8
Install the Headrail ................................................... 8
Install the Privacy Angle Shading................................ 9
All Shadings............................................................... 10
Troubleshooting....................................................... 10
Care:
Remove the Shading ................................................... 12
Cleaning Procedures ................................................... 12
Warranty.........................................................Back Cover
Questions?
Call Hunter Douglas Consumer Support at 1-888-501-8364.

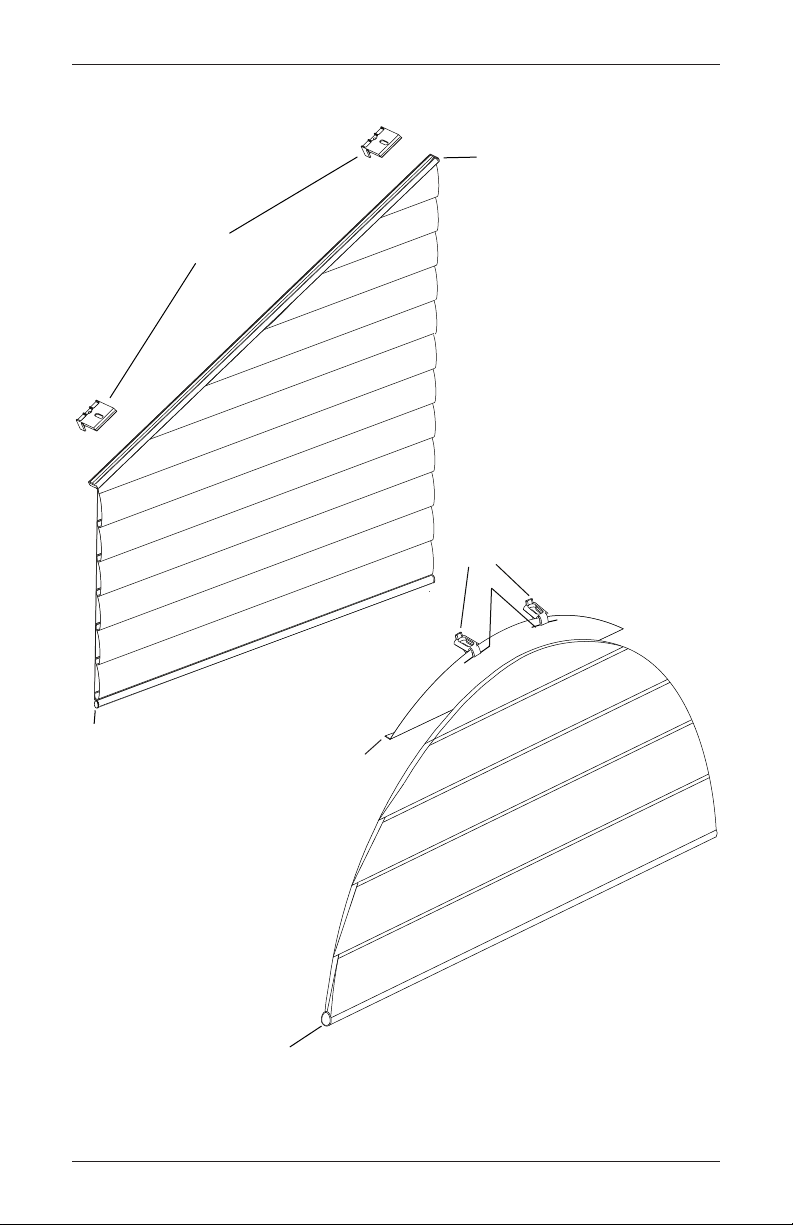

GETTING STARTED
1
Installation Brackets
Bottom Rail
Keyhole
Fabric Clips
Slots
Plastic
Support
Bottom Rail
Not Shown: Privacy Extended Arch
Headrail
Privacy
Angle
Privacy
Arch
Product View

GETTING STARTED
2
Thank you for purchasing Hunter Douglas Silhouette®or Nantucket™window shadings. With
proper installation and care, your new shadings will provide years of beauty.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation.
Tools and Fasteners Needed
■Level (laser level is recommended)
■Mallet
■Measuring tape and pencil
■Phillips screwdriver
■Power drill,
3
/ 32 " drill bit, and
1
/ 4 " hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). One 1
1
/ 2 " screw is provided per installation bracket,
keyhole fabric clip, or arch support clip.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)
#6 Flat Head Screw
for Use with Common
Headrail End Mounts
(Provided)

INSTALLATION
3

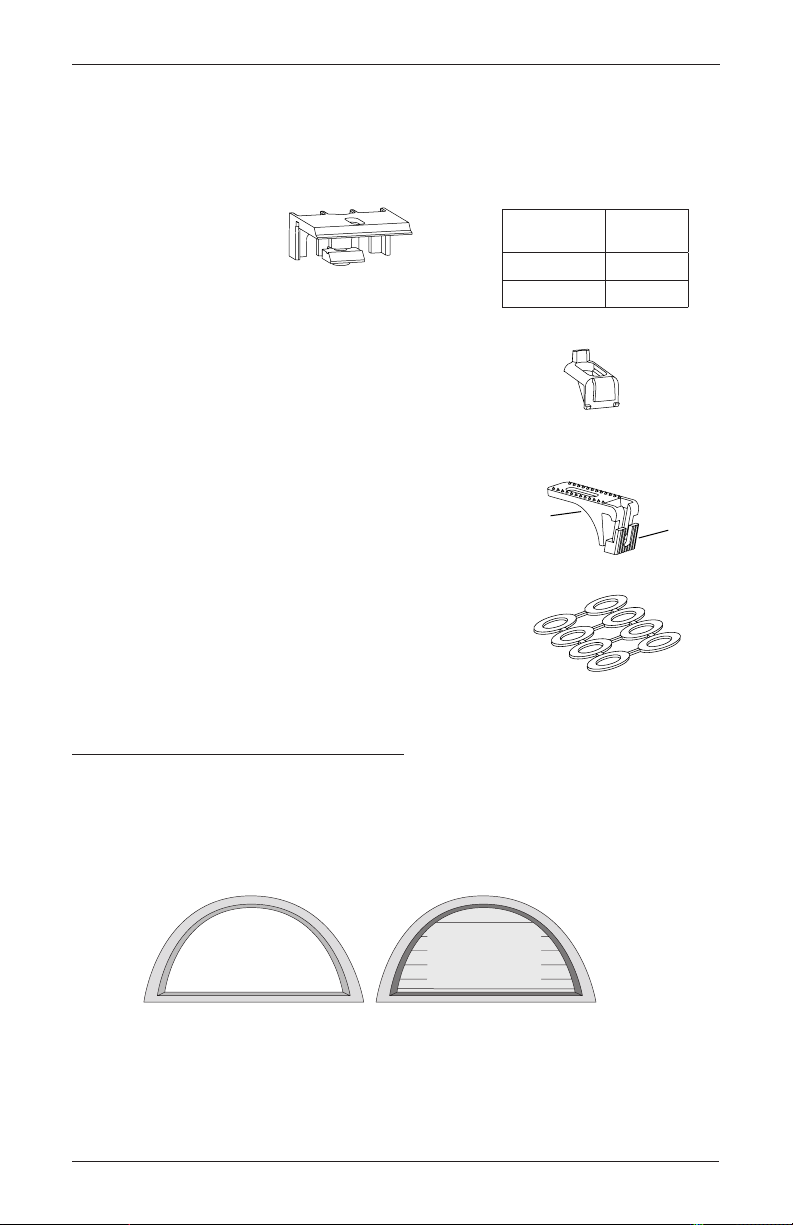

Installation Overview
■Installation Brackets. For angle shadings, your order will include the correct number of
installation brackets for your shading width, as shown in the table below.
■Keyhole Fabric Clips. For shapes without a headrail, two
keyhole fabric clips are required.
■Arch, Extended Arch Support Clips (Optional). Some
shadings may need additional support on the edges.
■Shims (Optional). If necessary, use one or
more shims to level the installation brackets.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to appropriate page below based on your order:
➤Privacy Arch Shadings — Page 4
➤Privacy Angle Shadings — Page 8
Keyhole Fabric Clip
Angle
Installation Bracket
Keyhole Fabric Clip
Angle
Installation Bracket
Support Clip
Slider
Shims
(Optional)
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb Inside Mount
Shade fits within
window opening.
Molding
Sill
JambJamb
Inside Mount
Shade fits within
window opening.
Specialty Shapes
Angles
Headrail
Width
Brackets
Required
12" – 40" 2
40
1
/ 8 " – 84" 3

INSTALLATION — PRIVACY ARCH SHADINGS
4
Install the Keyhole Fabric Clips
Privacy Arch window shadings can only be mounted on the inside of the window casement.
CAUTION: Handle the fabric carefully throughout the installation process.
■Clear a flat, clean workspace.
■Insert and center both keyhole fabric
clips into the slots of the plastic
support. The plastic support is located
rear of the top vane.
■Put the shading aside with the front
side of the fabric facing up.
Install the Mounting Screws
■Locate and mark the top center of the window casement.
One method is to use a plumb line, as shown.
➤Measure the sill and divide in two to locate
center and mark the location.
➤Move the plumb line until the bob aligns with
the center mark on the sill, then mark the
location on the top of the window casement.
IMPORTANT: Locating the exact center is very
important for the shading to hang level and
evenly in the window.
■Mark the screw holes.
➤The minimum mounting
depth for screw placement
is
1
/ 2 ".
Top
View
Keyhole
Fabric Clip
Plastic
Support
Slot
First, measure
and mark the
center of the sill.
Then, line up
the plumb line.
Mark
Center
Center
Center Mark
(Back)
Privacy Arch
Minimum
1/2"
Minimum
1/2"

INSTALLATION — PRIVACY ARCH SHADINGS
5
■Install the screws where marked.
➤Drill the screw holes using a
3
/ 32 " drill bit.
➤Install the screws at an angle perpendicular
to the mounting surface. Leave the
screw head partially unscrewed,
approximately
5
/ 16 ".
Install the Privacy Arch
■Install the shading onto the mounting screws.
➤Hold the shading up to the window
casement with the keyhole on the fabric
clips to the back.
➤Slide the keyhole of each fabric clip over
the adjacent screw head.
➤Slide the shading back until secure.
➤Allow the front plastic support to hang
down and dress the front of the fabric
panel in a downward motion.
Keyhole
Mounting
Screw
Front of Casement
Mounting Screws
Back of Casement (Window)
Keyhole
Fabric Clip

INSTALLATION — PRIVACY ARCH SHADINGS
6

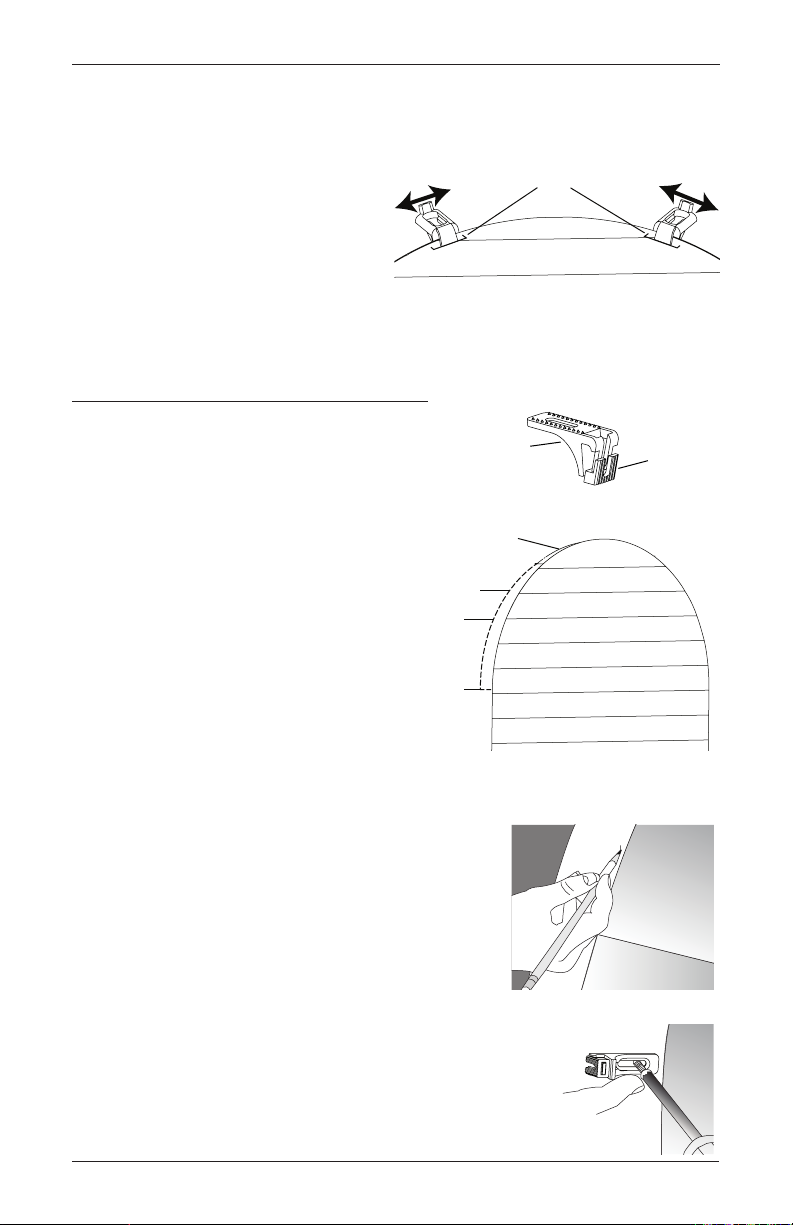

Adjust the Privacy Arch
The shading should be level and hang straight forthe best appearance.
To Level or Straighten
■Slide the fabric clips in the slots to
straighten the shading. Be careful not
to detach the shading from the clips.
■Adjust the mounting screw to raise or
lower the corresponding side of the
shading.
Arch, Extended Arch Support Clips (Optional)
Some shadings may need additional support on the
edges. Use the support clips, as needed.
■Mark the location.
➤The support clip needs to be located
1
/ 2
to
2
/ 3 of the distance between the
plastic support and the bottom of the
arched portion of the shading, as
illustrated.
➤Mark this location on the window casement.
■Mount the support clip.
➤Mount the support clip on the mark using one screw. Adjust
the position so the flat front of the support clip (behind the
slider portion) aligns with the front fabricfacing.
Slots
Support Clip
Slider
Plastic Support
1
/ 2
Bottom
of Arch
2
/ 3
Mark the
Location on
the Window
Casement
Mount
Clip

INSTALLATION — PRIVACY ARCH SHADINGS
7

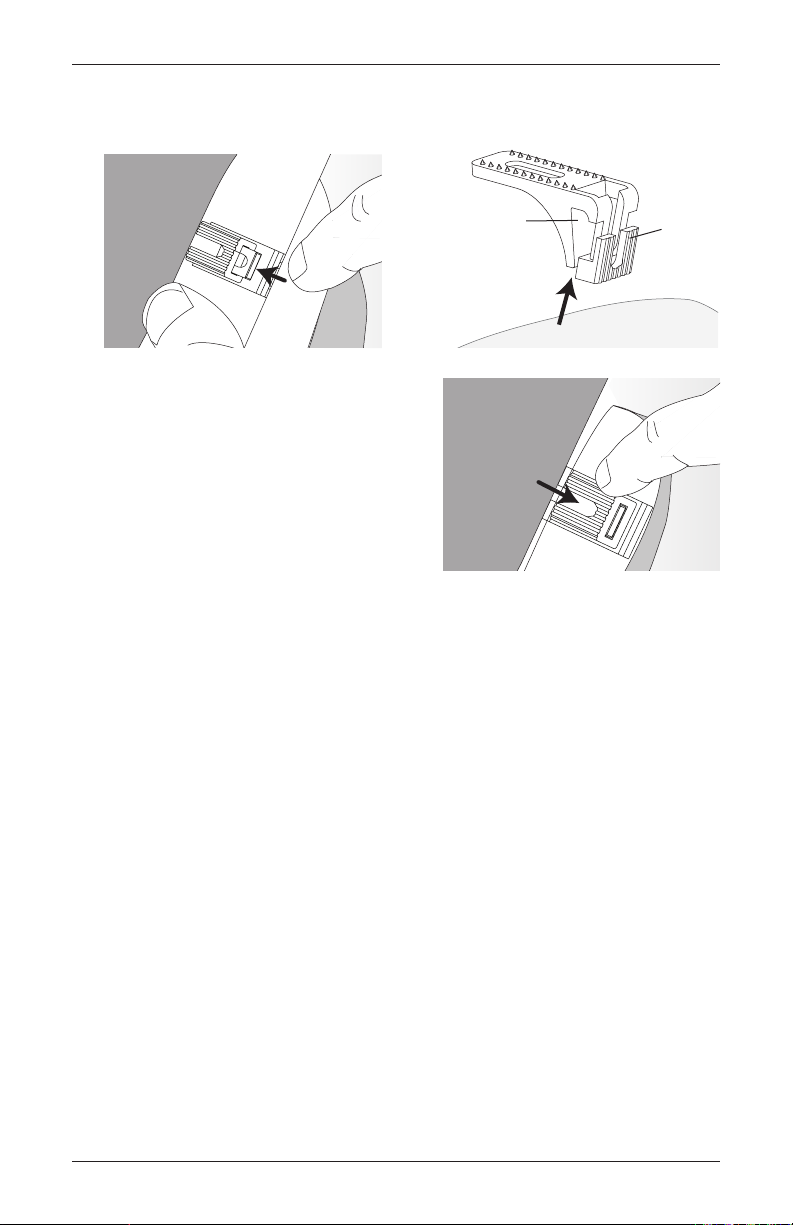

■Raise the slider on the end of the support clip and place both fabric facings into the opening
on the end of the clip.
■While still holding the fabric in position, lower
the slider to lock the fabric in place.
Slider
Fabric
Line up Fabric
with Flat Front
Insert Back
Fabric only
Window Casement
Fabric
Push
Slider

INSTALLATION — PRIVACY ANGLE SHADINGS
8
Mount the Installation Brackets
Privacy angle window shadings can only be mounted on the inside of the window casement.
■Mark 3" from each jamb for installation bracket location.
➤If three installation brackets came with your order, space the additional bracket evenly
between the two end brackets. Mount into wood whenever possible.
■Center the brackets on your marks and mark the screw hole locations.
➤The minimum mounting depth for bracket
attachment is 1
5
/ 8 ".
IMPORTANT: The front edges of the installation
brackets must be level and aligned to eachother.
■Drill the screw holes using a
3
/ 32 " drill bit.
■Attach the installation brackets using the screws
provided.
Install the Headrail
■Fold the top of the fabric over and insert into the channels
of the headrail as shown.
Space Evenly
Jamb
Jamb
3"
Space Evenly
3"
Minimum
15/8"
3"

INSTALLATION — PRIVACY ANGLE SHADINGS
9
■Slide the headrail on from the lower side of the angle up
to the top of the angle.
CAUTION: Gently slide the headrail to avoid ripping or
tearing the fabric.
■Insert end caps and gently tap them onto the end of
the headrail with a mallet.
Install the Privacy Angle Shading
■Position the shading so that the front faces you.
■Slip the headrail into the installation brackets so the
front of the bracket slides under the front groove on
the top of the headrail.
■Gently roll the back of the headrail up and push back
to snap into place.
■Tighten the tab screw on each bracket until snug.
Do not overtighten. Tab
Screw
Headrail

10
INSTALLATION
Troubleshooting
Problem The Privacy Arch will not fit into the screws.
Solution Verify that the screw placement is accurate. Adjust if necessary. See “Install the
Keyhole Fabric Clips” on page 4.
Problem The Privacy Arch is puckering or sagging.
Solution Slide the fabric clips in the plastic support. See “Adjust the Privacy Arch” on
page 6.
Install or adjust the support clips, if needed. See “Adjust the Privacy Arch” on
page 6.
Problem The bottom of the Privacy Arch does not appear straight.
Solution Verify that the screw placement is accurate. Adjust if necessary. See “Install the
Keyhole Fabric Clips” on page 4.
Slide the fabric clips in the plastic support. See “Adjust the Privacy Arch” on
page 6.
If the window casement is uneven, adjust the screw height.
Problem The Privacy Arch is not centered within the window.
Solution Verify the center of the window and check that the screws were accurately
mounted. Reinstall screws, if necessary.
Adjust the screw placement or height to compensate. See “Install the Keyhole
Fabric Clips” on page 4.

INSTALLATION
11
Problem The Privacy Angle will not fit into the installation brackets.
Solution Loosen the tab screw on the installation brackets.
Check that the brackets are aligned. Shim the brackets, if necessary.
Check that the headrail is completely inserted into the brackets. See “Install the
Privacy Angle Shading” on page 9.
Problem The Privacy Angle bottom rail does not appear straight.
Solution Verify that the screw placement for the installation bracket is accurate. See
“Mount the Installation Brackets” on page 8.
If the window casement is uneven, shim the installation bracket to compensate.
Problem The Privacy Angle is not centered within the window.
Solution Loosen the tab screw on the installation brackets slightly and adjust the headrail
by sliding it in the installation brackets. See “Install the Privacy Angle Shading”
on page 9.

CARE
12
Remove the Shading
For Privacy Arch shapes
■Keyhole Fabric Clips. Slide the shading forward at the
keyhole fabric clips.
■Arch, Extended Arch Support Clips (Optional).
Raise the slider on the end of the support clip and
remove the fabric.
For Privacy Angle shapes
■Unscrew the tab screw on each bracket to release
theheadrail.
Cleaning Procedures
Silhouette®and Nantucket™window shadings are made of 100% polyester, which means they
are inherently durable and resilient. However, care must be taken to avoid wrinkling the fabric,
particularly where the vanes meet the facings.
Dusting
■Regular light dusting with a feather duster is all the cleaning needed in most circumstances.
Keyhole
Fabric Clip
Window
Casement
Side View
Insert Back
Fabric only
Fabric
Slider
Tab
Screw
Headrail

CARE
13
Vacuuming
■Use a low suction, hand-held vacuum for more thorough dust removal.
Forced Air
■Blow away dirt and debris between the vanes using clean compressed air.
Spot-Cleaning
Do not spot-clean any Silhouette®or Nantucket™window shadings.
Ultrasonic Cleaning
Silhouette and Nantucket window shadings can be ultrasonically cleaned by a professional,
with the exception of Boardwalk™, all Bon Soir™fabrics, Brio™, Brant Point™,
ClearView™Originale™, ClearView Tapestry™, East Bay™, India Silk,
The Matisse Collection®, Misty Harbor™, Mystere, Sankaty™, Sun Porch™, and
Traditions™Light Dimming.
■Specify that a mild detergent solution be used.
■Dry the shading completely.
Injection/Extraction
Silhouette and Nantucket window shadings can be professionally cleaned using the injection/
extraction method.
■Use only the dry method of injection/extraction for all Bon Soir fabrics, Misty Harbor, and
Traditions Light Dimming.
Electrostatic Cleaning
Do not use electrostatic cleaning wipes on any Silhouette shading.
A Note About Hardware for The Alustra®Collection
Gold Radiance™,Silver Reflection™, Bronze Shimmer™, and Champagne Shine™hardware
finishes can be spot-cleaned with luke warm water and a gentle soap. Do not use alcohol, baby
wipes or alkaline cleansers. These may stain or destroy the finish.
A Note About Silhouette and Nantucket Fabrics
As with all textiles, Silhouette and Nantucket fabrics are subject to some variations. Slight
wrinkling, puckering, or bowing is inherent to this textile product and should be considered
normal, acceptable quality. These characteristics are not usually visible from the front or rear
butmay be visible from a sideangle.
Precautions should be taken to reduce exposure to harsh environmental elements, such as
salt air. Continuous exposure through open windows and doors will accelerate the fabric
deterioration.

The Hunter Douglas®Lifetime Guarantee is an expression of our desire to provide a thoroughly satisfying
experience when selecting, purchasing and living with your window fashion products. If you are not thoroughly
satisfied, simply contact Hunter Douglas at [phone] or visit hunterdouglas.com. In support of this policy
of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
NOTE:In no event shall Hunter Douglas or its licensed fabricators/distributors be liable or responsible for incidental
or consequential damages or for any other indirect damage, loss, cost or expense. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state.
Different warranty periods and terms apply for commercial products and applications.
Hunter Douglas (or its licensed fabricator/distributor) will repair or replace the
window fashion product or components found to be defective.
COVERED
BY ALIFETIME LIMITEDWA RRANTY
• Hunter Douglas window fashion products are
covered for defects in materials, workmanship
or failure to operate for as long as the original
retail purchaser owns the product (unless shorter
periods are provided below).
• All internal mechanisms.
• Components and brackets.
• Fabric delamination.
• Operational cords for a full 7 years from the
date of purchase.
• Repairs and/or replacements will be made with
like or similar parts or products.
• Hunter Douglas motorization components are
covered for 5 years from the date of purchase.
NOT COVERED
BY ALIFETIME LIMITEDWA RRANTY
• Any conditions caused by normal wear and tear.
• Abuse, accidents, misuse or alterations to the
product.
• Exposure to the elements (sun damage, wind,
water/moisture) and discoloration or fading
over time.
• Failure to follow our instructions with respect
to measurement, proper installation, cleaning
or maintenance.
• Shipping charges, cost of removal and reinstallation.
TO OBTAIN WARRANTY SERV ICE
1. Contact your original dealer (place of purchase) for warranty assistance.
2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations.
3. Contact Hunter Douglas at [phone] for technical support, certain parts free of charge, for assistance in obtaining
warranty service or for further explanation of our warranty.
5107442037 5/17
