LiteRise®
UltraGlide®
EasyRise™
Vignette®Modern Roman Shades
Traditional™Style
EasyRise, LiteRise, and UltraGlide
Operating Systems
Installation •Operation •Care

CONTENTS
Questions?
Call Hunter Douglas Consumer Support at
1-888-501-8364.
Getting Started:
Product View — Traditional™Style EasyRise™Shades................... 1
Product View — Traditional Style UltraGlide®Shades..................... 2
Product View — Traditional Style LiteRise®Shades ....................... 3
Tools and Fasteners Needed ........................................................ 4
Installation:
Installation Overview ................................................................... 5
Mount the Installation Brackets — Inside Mount........................... 6
Mount the Installation Brackets — Outside Mount ........................ 7
Mount the Installation Brackets — EndMount .............................. 8
Install the Shade ......................................................................... 9
Attach the Universal Cord Tensioner — EasyRise Shades Only ... 10
Cord Adjustment — UltraGlide Shades Only ............................... 11
Attach the Magnetic Hold-Down Brackets (Optional) ................... 12
Operation:
Operate the Shade .................................................................... 13
Troubleshooting ........................................................................ 15
Care:
Removing the Shade (If Necessary) ............................................ 17
Cleaning Procedures ................................................................. 17
Child Safety:
Warning ................................................................................... 19
Cord Loop Shades..................................................................... 19
© 2016 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas
or their respective owners.

GETTING STARTED
1

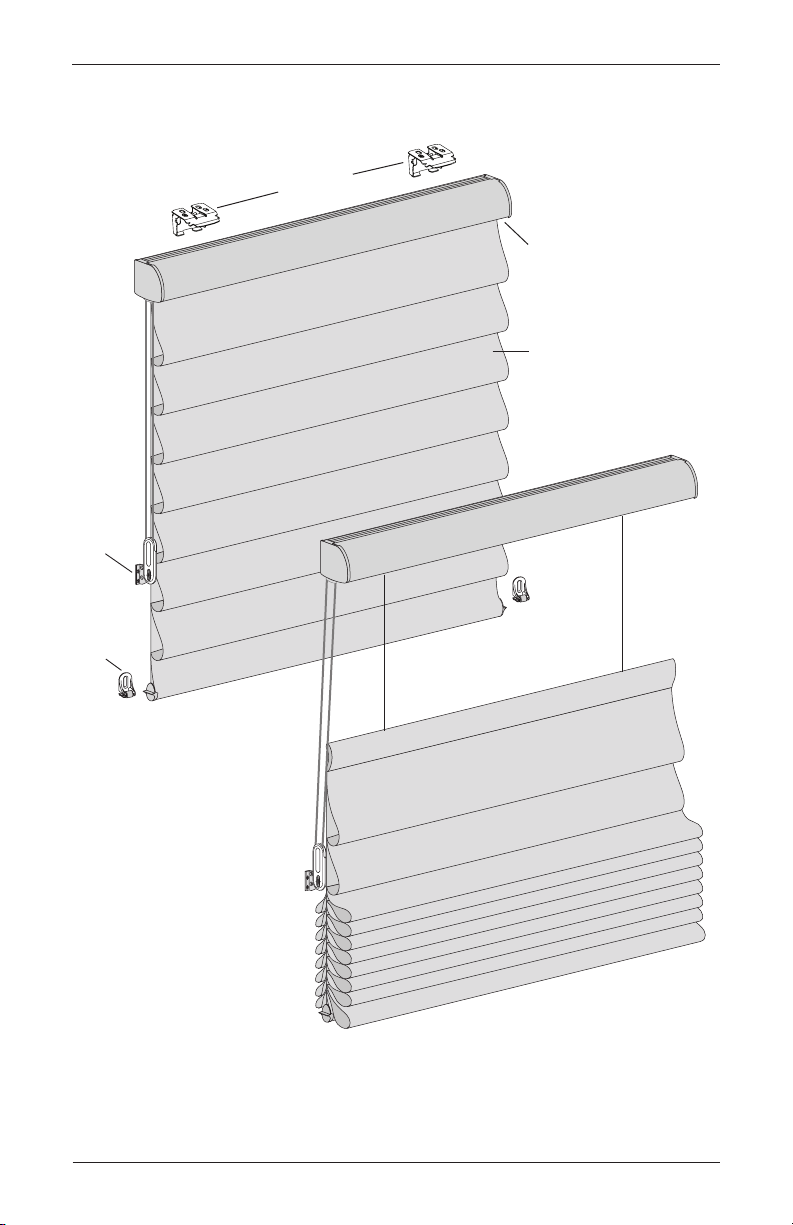

Product View — Traditional™Style EasyRise™Shades
Not Shown: 6"Flat Fold and Two-on-One Headrail Shades
Magnetic
Hold-Down
Bracket
(Optional)
Installation
Brackets
Middle
Rail
Headrail
Universal
Cord
Tensioner
and
Bracket
Standard
Shade
Top-Down/Bottom-Up
Shade
4"Full
Fold Fabric

2
GETTING STARTED
Product View — Traditional™Style UltraGlide®Shades
Not Shown: 6"Flat Fold and Two-on-One Headrail Shades
Tassel
Retractable
Cord
Magnetic
Hold-Down
Bracket
(Optional)
Installation
Brackets
Middle
Rail
Headrail
Standard
Shade
Top-Down/Bottom-Up
Shade
4"Full
Fold Fabric

GETTING STARTED
3

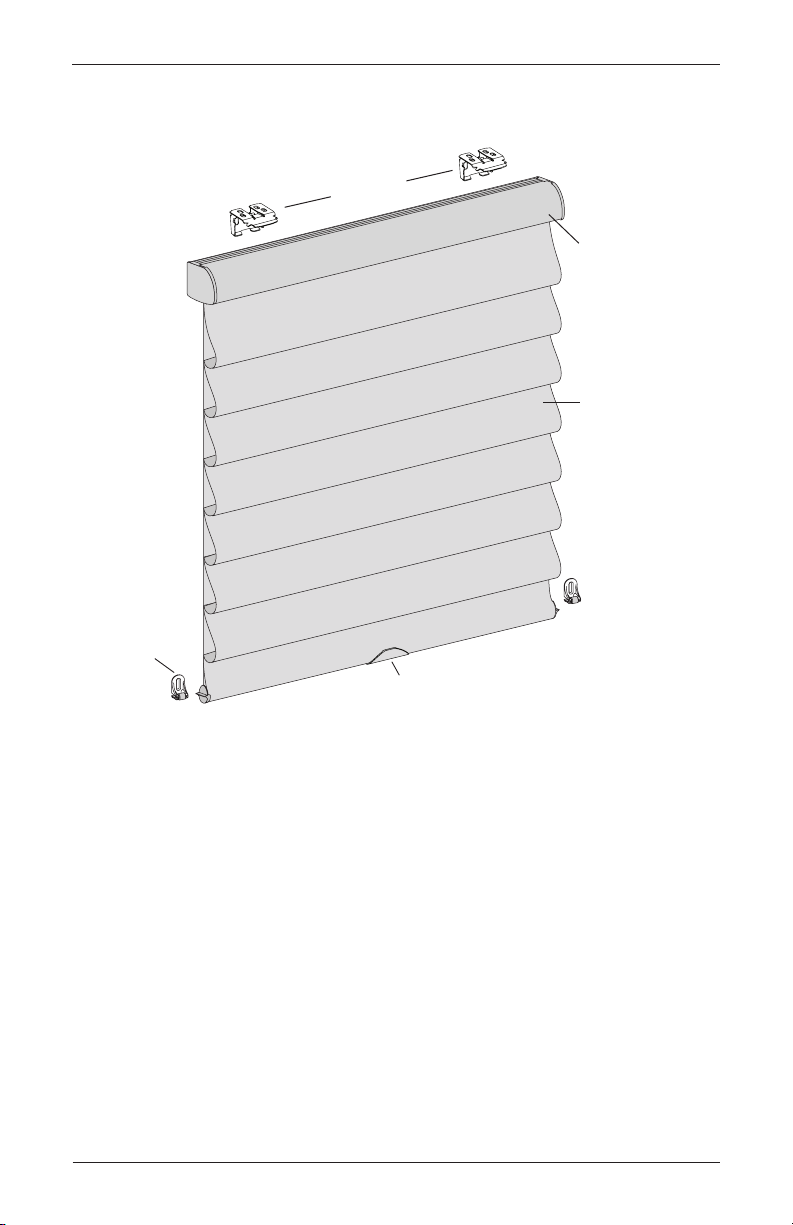

Product View — Traditional™Style LiteRise®Shades
Not Shown: 6"Flat Fold and Two-on-One Headrail Shades
Magnetic
Hold-Down
Bracket
(Optional)
Installation
Brackets
Headrail
Standard
Shade
Handle
4"Full
Fold F
abric

4
GETTING STARTED
Thank you for purchasing Hunter Douglas Vignette®Modern Roman Shades. With proper
installation, operation and care, your new shades will provide years of beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation. If your shade has a protective plastic cover on the fabric-covered headrail, keep
the plastic in place until the shade is installed.
Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers
■Level (laser level is recommended)
■Measuring tape and pencil
■Needlenose pliers
■Power drill,
3
/ 32 " drill bit, and
1
/ 4 " hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per installation bracket.
■Longer Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment. Add
1
/ 2 " length for each spacer block.
■Speed Nuts and Screws (Provided). Extension brackets (for end mounts only) come with
screws and speed nuts.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)

INSTALLATION
5

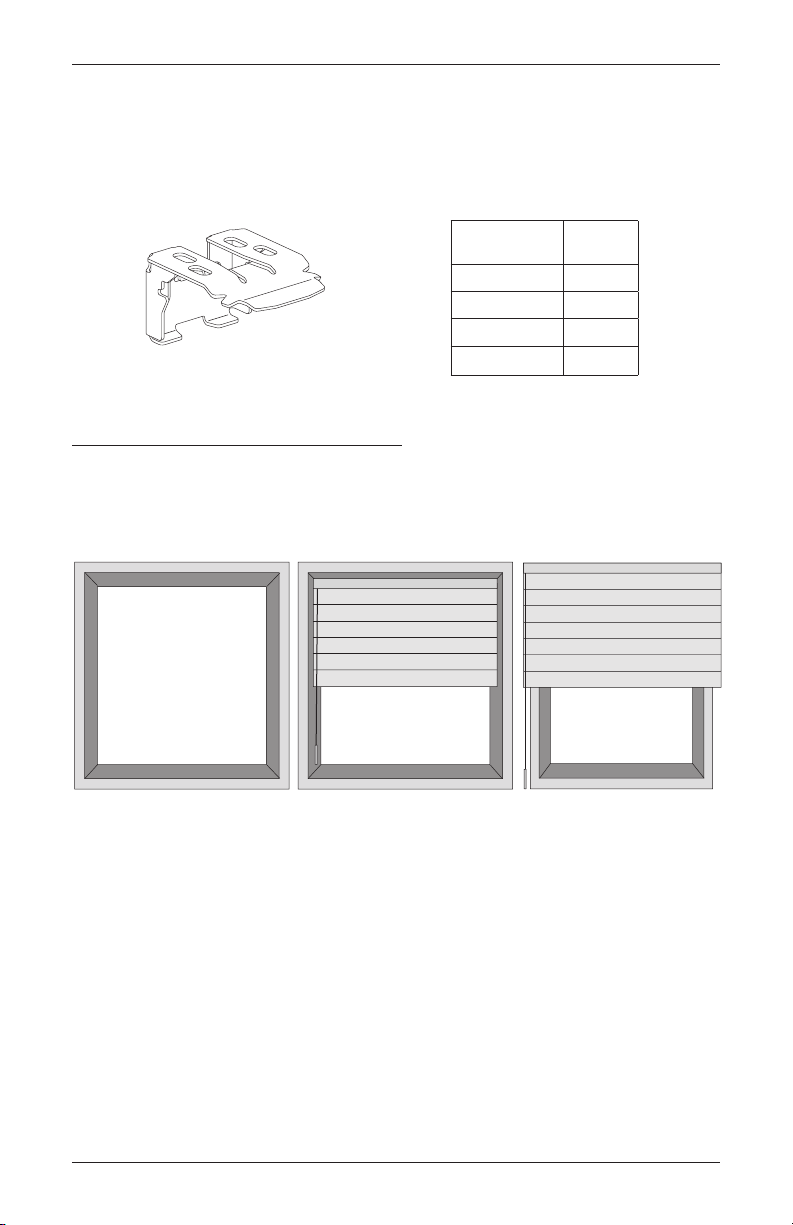

Installation Overview
■Your order will include installation brackets specific to your shade.
➤The number of installation brackets required varies with shade width, as shown in
the table below.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Inside Mount — Page6
➤Outside Mount — Page7
➤End Mount — Page8
Shade
Width
Brackets
Required
12" – 36" 2
36
1
/ 8 " – 72" 3
72
1
/ 8 " – 108" 4
108
1
/ 8 " – 140" 5
Installation
Bracket
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

INSTALLATION
6

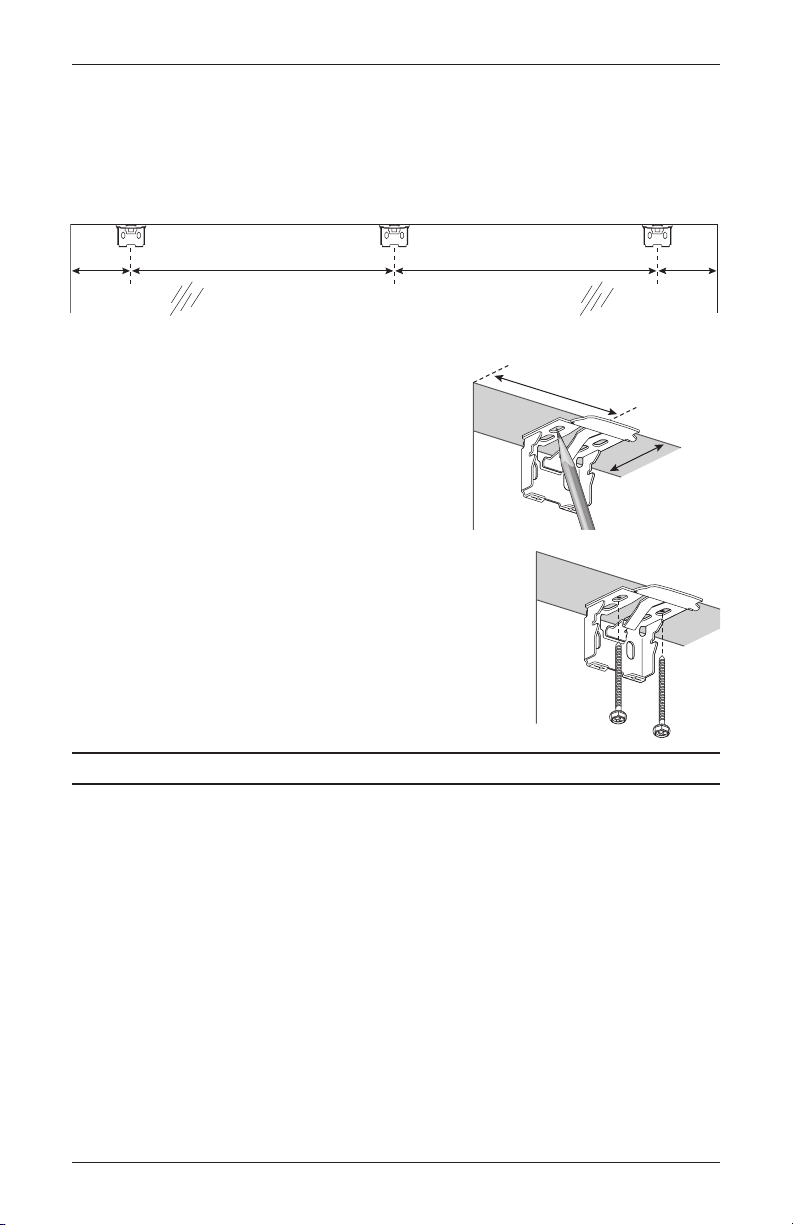

Mount the Installation Brackets — Inside Mount
■Mark 3" from each jamb for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets. Mount into wood whenever possible.
■Center the brackets on your marks and mark each of the screwholes.
➤Minimum mounting depth for bracket attachment
is 1". Fully recessed mounting depth is 3
7
/ 8 ".
IMPORTANT: The front edges of the installation
brackets must be aligned to eachother.
■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting
into drywall.
■Use a level to check that the mounting surface is level.
Shim the brackets if necessary.
■Attach the installation brackets using the screws provided.
Proceed to “Install the Shade” on page9.
Jamb Jamb
Window Opening
Space Evenly Space Evenly3" 3"
3"
Casement
Depth
3"
Casement
Depth

INSTALLATION
7

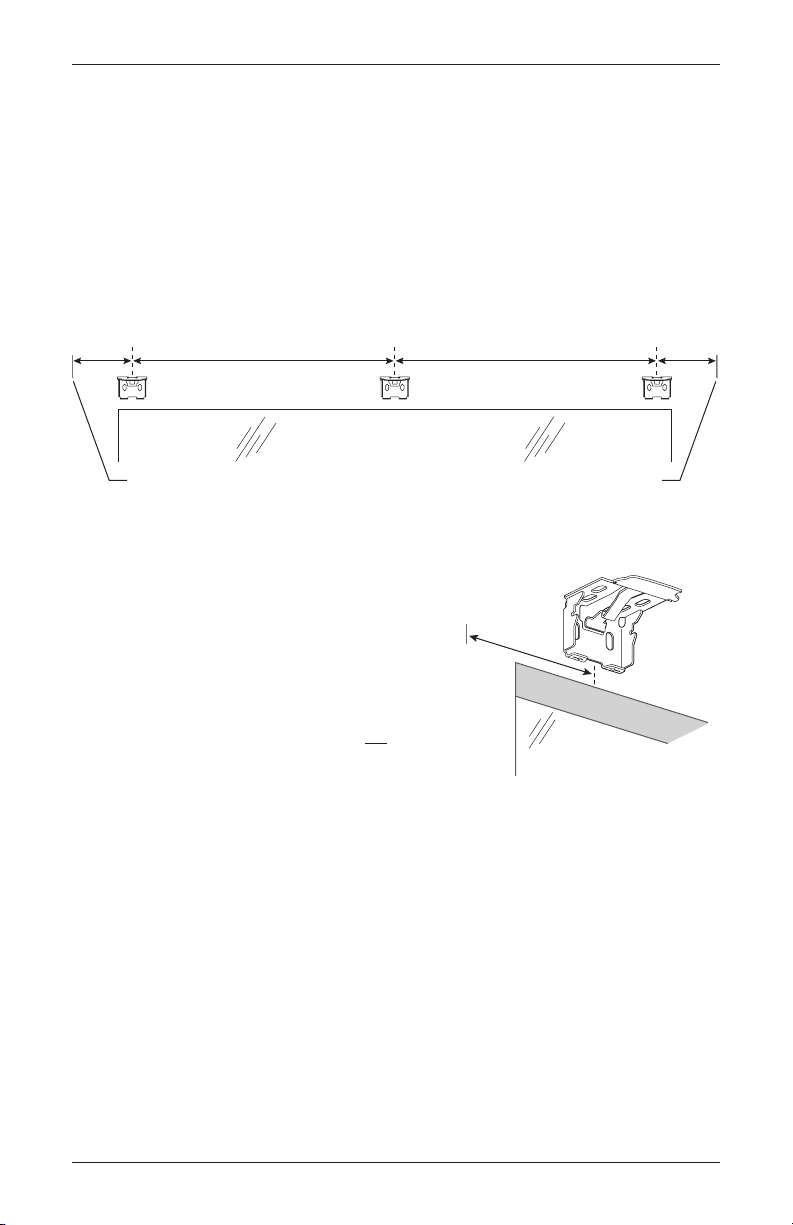

Mount the Installation Brackets — Outside Mount
■Center the shade over the window opening at the desired height. Use a pencil to lightly mark
each end of the headrail on the mounting surface.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
■Mark 3" from each end of the headrail.
➤If more than two installation brackets came with your order, space them evenly between
the two end brackets and mark their location. Mount into wood whenever possible.
■Center the brackets on your marks and mark each of the screwholes.
➤A minimum 1" flat vertical surface is required to
mount the brackets.
➤The top of the installation brackets should be at
the desired shade height. The brackets should be
level and aligned.
CAUTION: The rear of the brackets must be flush
against a flat mounting surface. Do not mount
brackets oncurved molding.
Window Opening
Space Evenly Space Evenly3" 3"
Headrail End Mark Headrail End Mark
3"

INSTALLATION
8
■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting
into drywall.
■Attach the installation bracket using the screws
provided.
IMPORTANT: The front edges of the installation
bracketsmust be level and aligned to each other.
■If using spacer blocks, attach the spacer
block(s) and installation bracket to a flat vertical
mounting surface with #6mounting screws long
enough for asecure installation.
➤A maximum of 1
1
/ 2 " of spacer blocks per
installation bracket is recommended.
Proceed to “Install the Shade” on page9.
Mount the Installation Brackets — EndMount
End mount the headrail when conventional mounting
techniques will not work — for example, in an
arched window.
■Mount the extension brackets on a surface at
least 1
1
/ 2 "wide.
➤The top of the extension brackets should be
at the desired shade height. The brackets
should be level and aligned.
CAUTION: The rear of the extension
brackets must be flush against a flat
mounting surface. Do not mount the
extension brackets onthe curve of the
arch opening.
■Attach the installation brackets to the underside of the extension brackets using the
provided screws and speednuts.
CAUTION: Both brackets must be installed at the same depth and height.
Proceed to “Install the Shade” on page9.
3"
Spacer
Blocks Longer
Screws
1
1
/ 2 "
Minimum
Speed Nuts
Screws

INSTALLATION
9
Install the Shade
■Hold the headrail so the front
(curvedside) faces you.
■Push the top edge of the headrail
into the installation brackets.
■Rotate the headrail back and push
up until it snaps into place. You
will hear a click when the shade is
securely seated into the bracket.
WARNING: Failure to snap
the headrail securely into the
installation brackets may
cause the shade to release
unexpectedly.
■Gently pull on the front of the
headrail to ensure that the shade is
locked into the brackets.
■Remove the protective covering on
the front of the headrail.
Headrail
Installation Bracket
Fabric Guard
Bracket seated
➊
➋

INSTALLATION
10
Attach the Universal Cord Tensioner — EasyRise™Shades Only
Before you proceed, you must first slide the cord tensioner(s) to the bottom of the cordloop.
■Insert a small screwdriver, punch, or awl through the screw hole at the bottom
of the cord tensioner.
■Move the screw hole down to the indicator line to release the safety
mechanism.
■Slide the cord tensioner down to the bottom of the cordloop.
■Attach the cord tensioner(s) according to the instructions
provided with the Universal Cord Tensioner Installation Kit.
WARNING: It is imperative that the cord tensioner(s) be properly secured to
the wall or window frame to reduce children’s access to the cord loop.
Young children can strangle in cord loops. They can also wrap cords around
their necks and strangle.
CAUTION: The shade will not operate properly unless the cord tensioner(s)
is secured. A Universal Cord Tensioner Installation Kit has been included
with your shade. Follow the instructions in the kit to correctly secure the
cordtensioner(s).
Screw
Hole
Indicator
Line

INSTALLATION
11
Cord Adjustment — UltraGlide®Shades Only
Adjusting the tassel to eye level will decrease the amount of pulls needed to raise and lower
theshade. This will also enhance child and pet safety.

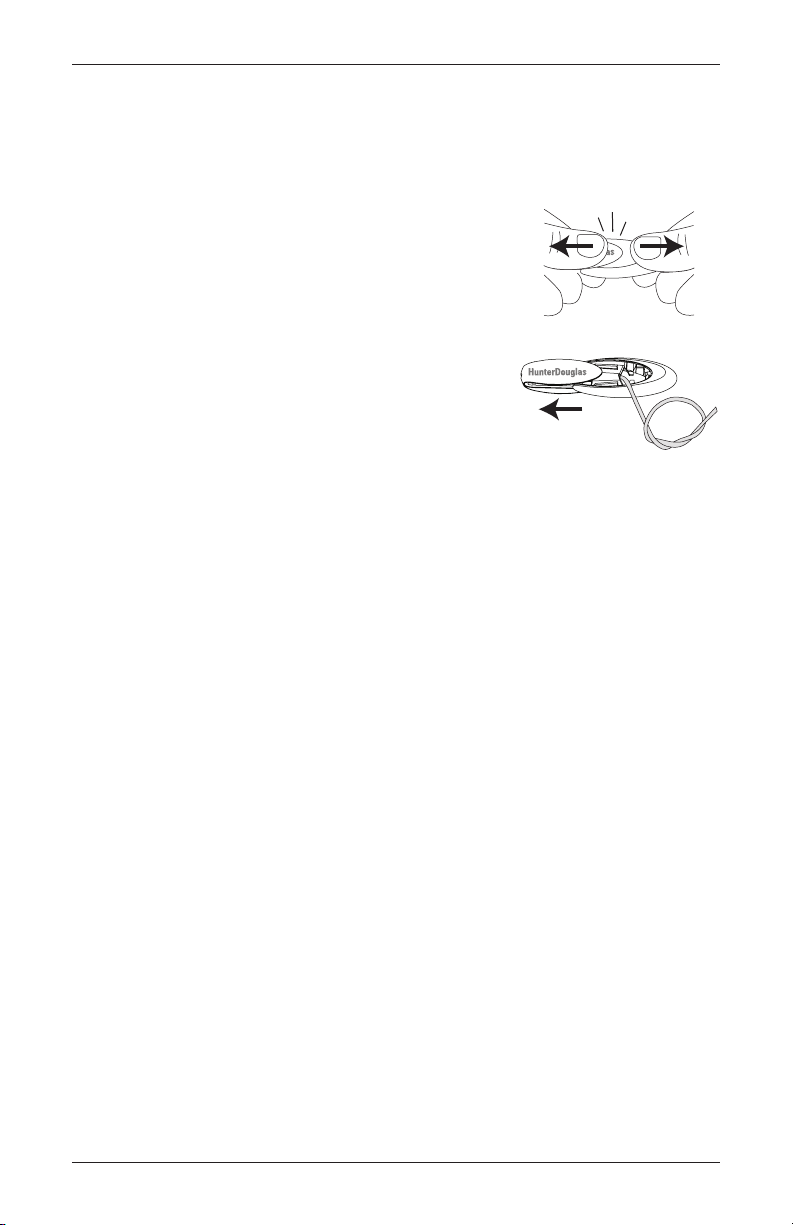

To Shorten the tassel cord:
■Grasp both parts of the tassel (the colored cover and the
frosted body).
■Squeeze the tassel cover with your thumb and forefinger,
as shown.
■Separate and slide the tassel cover off from the tassel body.
■Pull out the knotted end of the tasselcord.
■Tie the cord at the desired shorter length, using a double knot.
■Trim the tassel cord below the knot.
■Pull the trimmed knot up inside the tassel.
■Squeeze the tassel cover while sliding it back onto the tassel body.
IMPORTANT: After reassembling, be sure that there are no gaps between the two
components. Check that they do not pull apart easily. The tassel cover should be securely
seated into the tassel body.
Tassel
Cover
Tassel
Cord
Tassel
Body

OPERATION
12

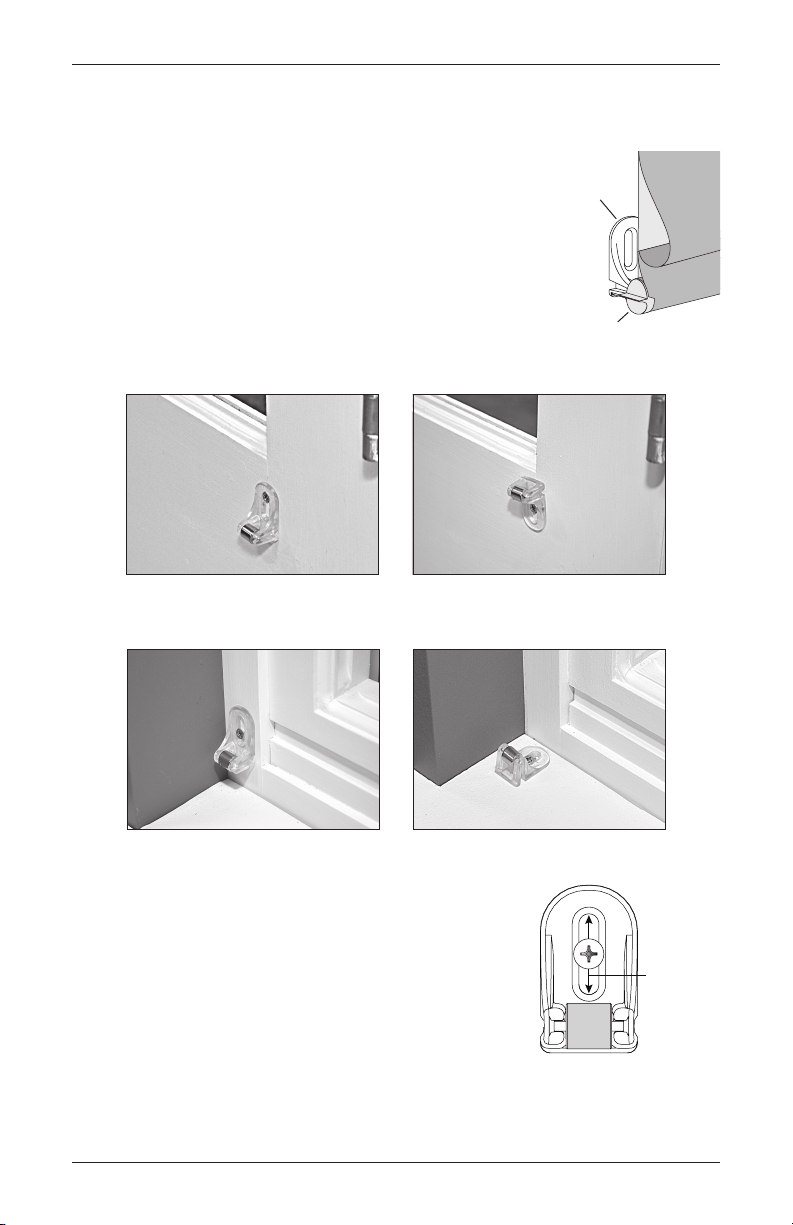

Attach the Magnetic Hold-Down Brackets (Optional)
■Lower the shade until it is fully lowered and rotated back
toward the window.
■Attach the magnetic hold-down brackets onto the bottom rail
just inside the end caps, oriented as shown.
■Mark the screw locations using one of the mounting options
shown below.
➤The screw should be placed in the middle of the channel.
This will allow for adjustment.
■Drill the screw holes using a
3
/ 32 " drill bit.
■Attach the hold-down brackets to the mounting surface using
the screws provided.
■If necessary, adjust the bracket height by loosening the screw
and sliding the bracket up or down.
Magnetic
Hold-Down
Bracket
End
Cap
Outside Mount
Preferred Alternate
Inside Mount
Preferred Alternate
Adjust the
bracket
up or down
using the
channel.

OPERATION
13

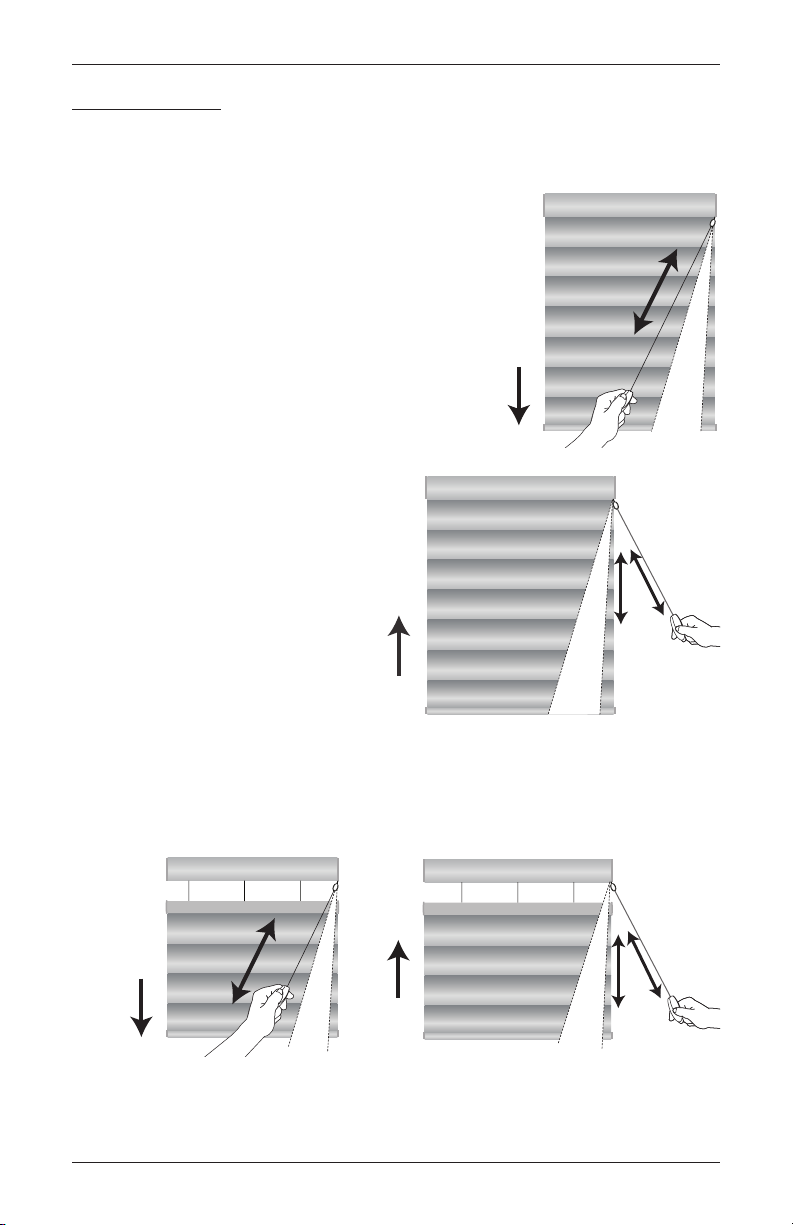

Operate the Shade
EasyRise™Shades
IMPORTANT: If the cord tensioner moves with the cord, you have not secured it to the wall
or window frame. You must do so for the shade to operate properly. See the Universal Cord
Tensioner Installation Instructions in the kit included with yourshade.
To Lower the Shade:
■Pull the front cord of the cord loop to lower the
shade from the top. Continue to pull until the
shade is fully lowered and rotated back toward
the window.
To Raise the Shade:
■Pull the rear cord of the cord loop to raise the
shade. Continue to pull the rear cord to raise
the shade into theheadrail.
Top-Down/Bottom-Up Shades:
■Raise or lower the middle rail by continuing
to pull the rear or front cord of the cord loop.
The fabric folds will stack at the bottom, when
lowered. On inside mount shades, the bottom
rail and folds may rest on the sill.
LiteRise®Shades
For better support and smoother operation, use the handle when raising and lowering the shade.
To Lower the Shade:
■Gently pull down on the
bottom rail handle. The
shade will retract slightly
to the desired position.
To Raise the Shade:
■Gently pull down on the
handle to engage the
shade. Then steadily raise
the shade into the headrail
or retract the shade to the
desired position.
Lower Raise
Raise
First Pull Down
Slightly
Lower

OPERATION
14
UltraGlide®Shades
CAUTION: To avoid damage to the shade or personal injury, do not let go of the cord until it is
fullyretracted.
To Lower the Shade:
■Using long, even strokes, pull the cord toward the center
of the shade.
➤When first lowering from the fully raised position,
it may require two or more gentle pulls to release
theshade.
■Continue to pull until the shade is fully lowered and the
fabric has moved back toward the window.
■To stop the shade at any time, stop pulling the cord
and allow it to fully retract.
To Raise the Shade:
■Using long, even strokes, pull the cord
straight down or to the outside of the
shade to raise the bottom rail.
■To stop the shade at any time, stop
pulling the cord and allow it to
fullyretract.
Top-Down/Bottom-Up Shades:
■Raise or lower the middle rail by continuing to pull the cord using long, even strokes. The
fabric folds will stack at the bottom, when lowered. On inside mount shades, the bottom rail
and folds may rest on the sill.
Non-Operable Zone
Non-Operable Zone
Lower
Shade
Lower
Shade
Non-Operable Zone
Raise
Shade
Or
Or
Non-Operable Zone
Raise
Shade
Non-Operable Zone
Non-Operable Zone
Lower
Shade
Lower
Shade

OPERATION
15
Troubleshooting
Problem The shade is hard to raise or lower, or will not raise or lower.
Solution Check that the headrail and installation brackets are level and aligned in the
window. Level the headrail by shimming the installation brackets, if necessary.
Make sure the fabric is not caught in the installationbrackets.
EasyRise™shades: Check that the cord tensioner is mounted correctly.
See Universal Cord Tensioner Installation Instructions in the kit included with
your shade.
EasyRise shades: Check that cord loop is not pinched or tangled.
UltraGlide®shades: As you pull the cord, check that the cord is clearing the
fabric folds.
LiteRise®shades: Pull down on the handle to engage the shade for operation.
Problem The fabric folds gather unevenly or seem to wrinkle.
Solution Slowly lower the shade and raise the shade again.
NOTE: This is inherent on narrow shades when fully stacked.
Problem The shade will not snap into the installationbrackets.
Solution Check that the installation brackets are aligned andlevel. Level the headrail by
shimming the installation brackets, if necessary.
Check that the headrail is completely inserted into the installation brackets. See
“Install the Shade” on page 9.
Problem The front fabric appears tocling to the backfabric.
Solution Lightly apply a static spray for home furnishings. Follow the manufacturer’s
directions. If necessary, reapply the static spray each time the shade is
professionally cleaned. Allow the shade to dry in the fully lowered position.

OPERATION
16
Problem EasyRise™shades only: The universal cord tensioner has climbed to the
headrail.
Solution Pull down on the spring to relieve tension and pull the
universal cord tensioner to the bottom of the cord loop.
Properly mount the cord tensioner. See “Attach the
Universal Cord Tensioner — EasyRise Shades Only”
on page 10 and/or the instructions included with your
Universal Cord Tensioner Installation Kit.
Problem EasyRise shades only: Shades raise at different rates when the cord is
pulled.
Solution Depending on the size and weight of the shades, the clutch ratios may be
different. More cord travel is required with larger shades than with smaller
shades. This is completely normal, and not a defect of theproduct.
Problem The shade raises or lowers unevenly, or the bottom rail is uneven when
fully raised.
Solution Check that the headrail is level. Level the headrail by shimming the installation
brackets, if necessary.
With Top-Down/Bottom-Up Shades only:Check that the top of the fabric
(middle rail) is level. Adjust byhand.
Adjusting the Bottom Weight:
Access the weight on the back of the bottom rail.
Push up on the weight clips to release.
Slide the weight in 1" increments, toward the side where fabric is gathering.
Lower the shade all the way and check that the bottom rail is level. Adjust the
weight until the fabric winds evenly and does not gather on either side.
After final adjustments, slide the weight clips back into place.
Universal
Cord
Tensioner
Indicator
Line
Move Weight to Adjust
Weight
Clip
Weight Weight
Clip

CARE
17
Removing the Shade (If Necessary)
■Fully raise the shade.
■While holding the headrail, place the
flat blade screwdriver on the installation
bracket’s locking tab.
➤Insert the screwdriver between the
arrows on the bottom tabs.
■Push up to release the shade.
IMPORTANT: On longer shades, you
might need to lower the shade slightly to
access the locking tab.
Cleaning Procedures
Vignette®Modern Roman Shades are made of an anti-static, dust-resistant fabric which repels
dirt and dust. For most fabrics, the options below are available if your shade needs cleaning.
Dusting
■Regular light dusting with a feather duster is all the cleaning needed in most circumstances.
Vacuuming
■Use a hand-held vacuum with low suction for more thorough dust removal.
Compressed Air / Hair Dryer (Cool Setting)
■Blow dirt and debris from within the fabric folds using clean, compressed air.
Spot-Cleaning
■Prepare a solution of warm water and mild detergent.
■Dampen a clean cloth in the solution and wring it out.
■Place a dry, clean cloth behind the spot between the face fabric and the back fabric.
■Dab the spot with the dampened cloth until it is removed. Non-oil-based baby wipes may be
used on more stubborn stains. Do not rub the fabric.
■Allow the shade to dry in the completely lowered position.
Push
Up
Locking
Tab
Arrows

CARE
18
Ultrasonic Cleaning
Vignette®Modern Roman Shades can be ultrasonically cleaned by a professional.
CAUTION: Do not ultrasonically clean the headrail, midrail, bottom rail fabric; or any room-
darkening shades.
■Specify that a mild detergent solution be used.
■Never immerse the fabric-covered headrail or bottom rail into the solution.
■Allow the shade to dry in the completely lowered position.
Injection/Extraction Cleaning
Vignette Modern Roman Shades can be cleaned by a professional using the injection/extraction
method of deep cleaning.
CAUTION: Do not use the injection/extraction method of deep cleaning on the fabric on the
headrail or bottom rail.
■Specify the dry cleaning method only.
■Pretreat heavy stains.
Steaming
CAUTION: Do not steam the fabric on the headrail midrail, or bottom rail.
■Steam the face fabric from the bottom to the top, making sure to get steam under each
fabric fold. Be careful not to saturate the fabric with steam.
■Allow the shade to dry completely before raising it.
A Note on Textiles
As with all textiles, Vignette fabrics are subject to some inherent variations in the fabric weave.
Subtle dye-lot variations, puckering, or wrinkling fall within textile industry standards and should
be considered as normal, acceptable quality. Additionally, there will be slight differences in
pattern alignment from the fabric on the rails to the fabric of the shade, which do not detract
from the product’s appeal.
Variations in color and or pattern are unique characteristics that contribute to the classic beauty
of theshade.
