Designer Roller and
Designer Screen Shades
Standard and Cassette Cordless
Lifting System
Installation • Operation • Care

CONTENTS
Questions?
Call Hunter Douglas Consumer Support at [phone].
GETTING STARTED................................................................................................1
Product View – Standard Cordless.............................................................................. 1
Product View – Cassette Cordless .............................................................................. 2
Tools and Fasteners Needed ...................................................................................... 3
Installation Overview................................................................................................... 3
INSTALLATION .......................................................................................................4
Mount the Installation Brackets — Inside or Ceiling Mount for Standard Shades ... 5
Mount the Installation Brackets — Outside Mount for Standard Shades................. 6
Mount the Installation Brackets — Inside or Ceiling Mount for Cordless Cassette.. 7
Mount the Installation Brackets — Outside Mount for Cordless Cassette ............... 9
Install the Shade.......................................................................................................... 10
Attach the Standard Hold-Down Brackets (Optional) ................................................. 11
Attach the Magnetic Hold-Down Brackets (Optional) ................................................ 12
OPERATION...........................................................................................................13
Operate the Shade....................................................................................................... 13
Shade Adjustment ....................................................................................................... 13
TROUBLESHOOTING ...........................................................................................15
CARE.......................................................................................................................17
Removing the Shade (If Necessary) ............................................................................ 17
Cleaning Procedures.................................................................................................... 17
WARRANTY ..........................................................................................................18
© 2022 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or
their respective owners.

GETTING STARTED
1

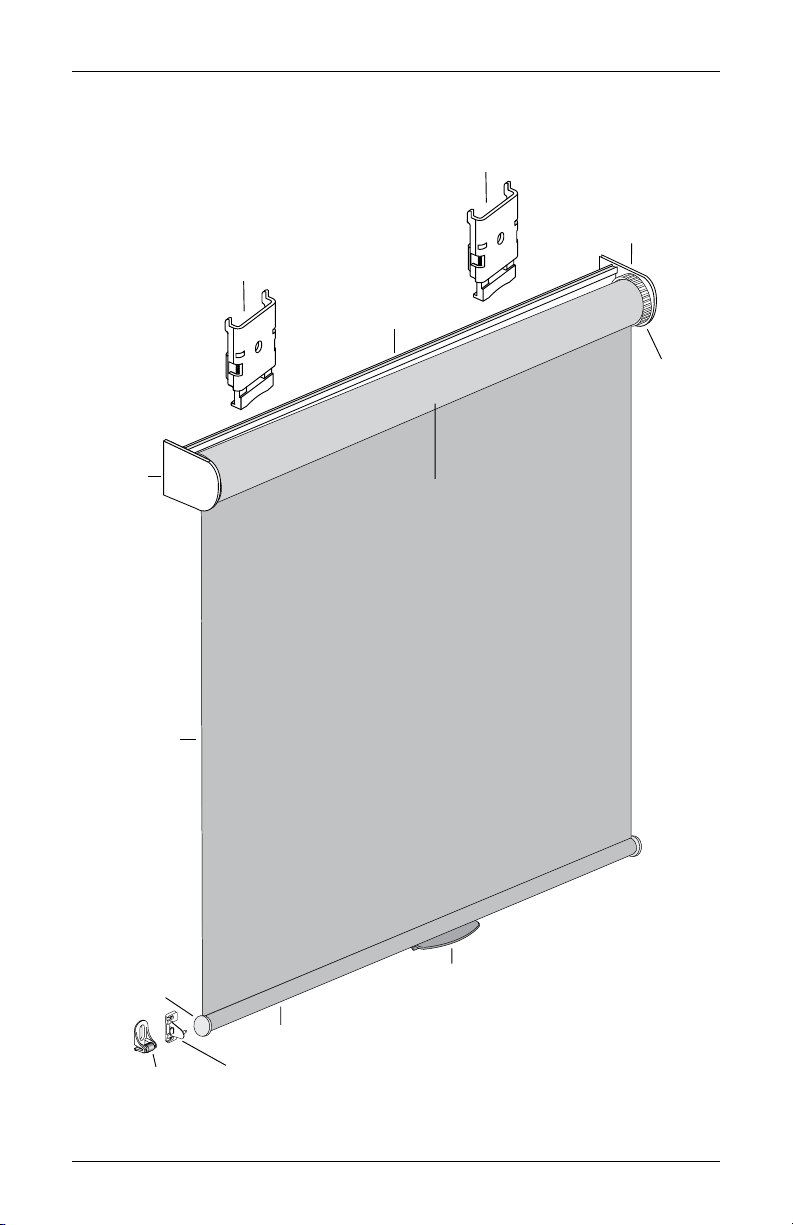

Product View – Standard Cordless
Mounting Profile
Left Side
Holder
Fabric
Bottom Bar
End Cap
Bottom Bar
Right Side
Holder
Stop
Controller
Handle
Roller Tube
Magnetic
Hold-Down
Bracket
(Optional)
Standard
Hold-Down
Bracket
(Optional)
Bracket
Bracket

2
GETTING STARTED

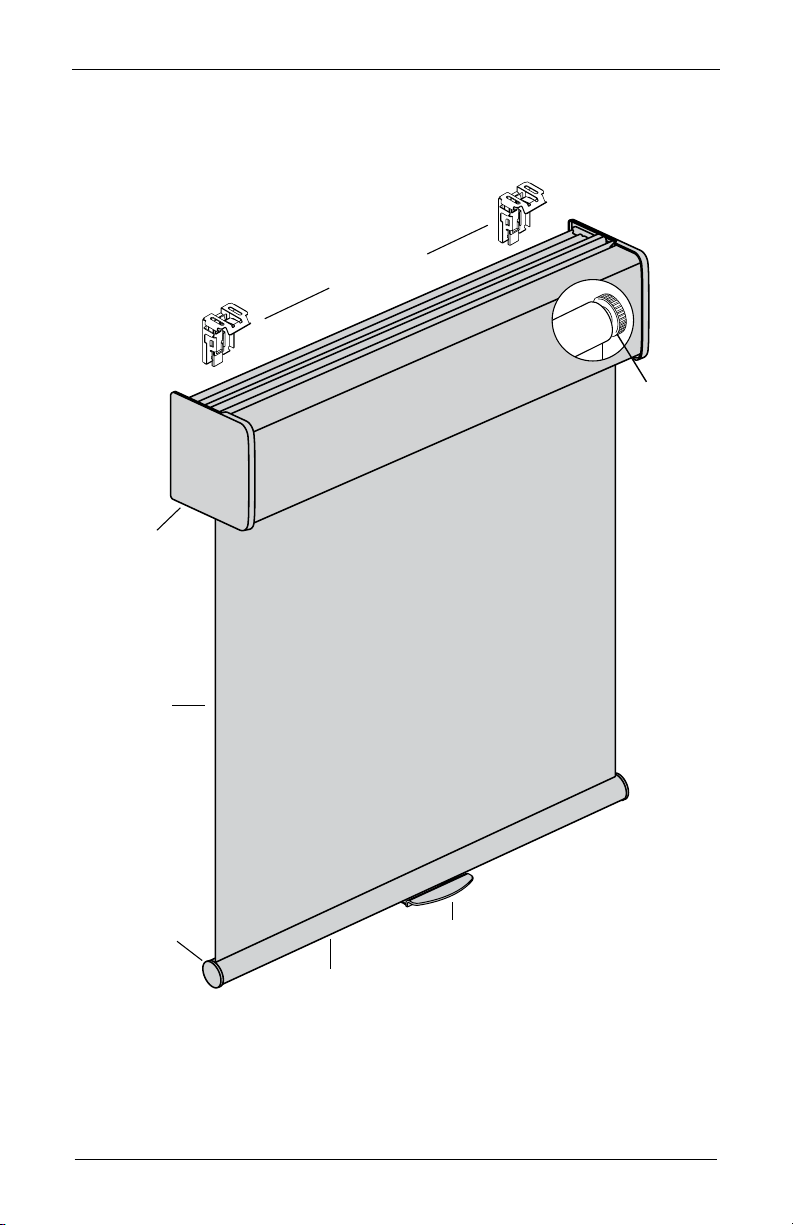

Product View – Cassette Cordless
Handle
Bottom Bar
End Cap
Bottom Bar
Fabric
Cassette
Cassette
Installation
Brackets
Stop
Controller

GETTING STARTED
3
Thank you for purchasing Hunter Douglas Designer Roller and Designer Sceen Shades.
With proper installation, operation, and care, your new shades will provide years of beauty
and performance. Please thoroughly review this instruction booklet before beginning the
installation.

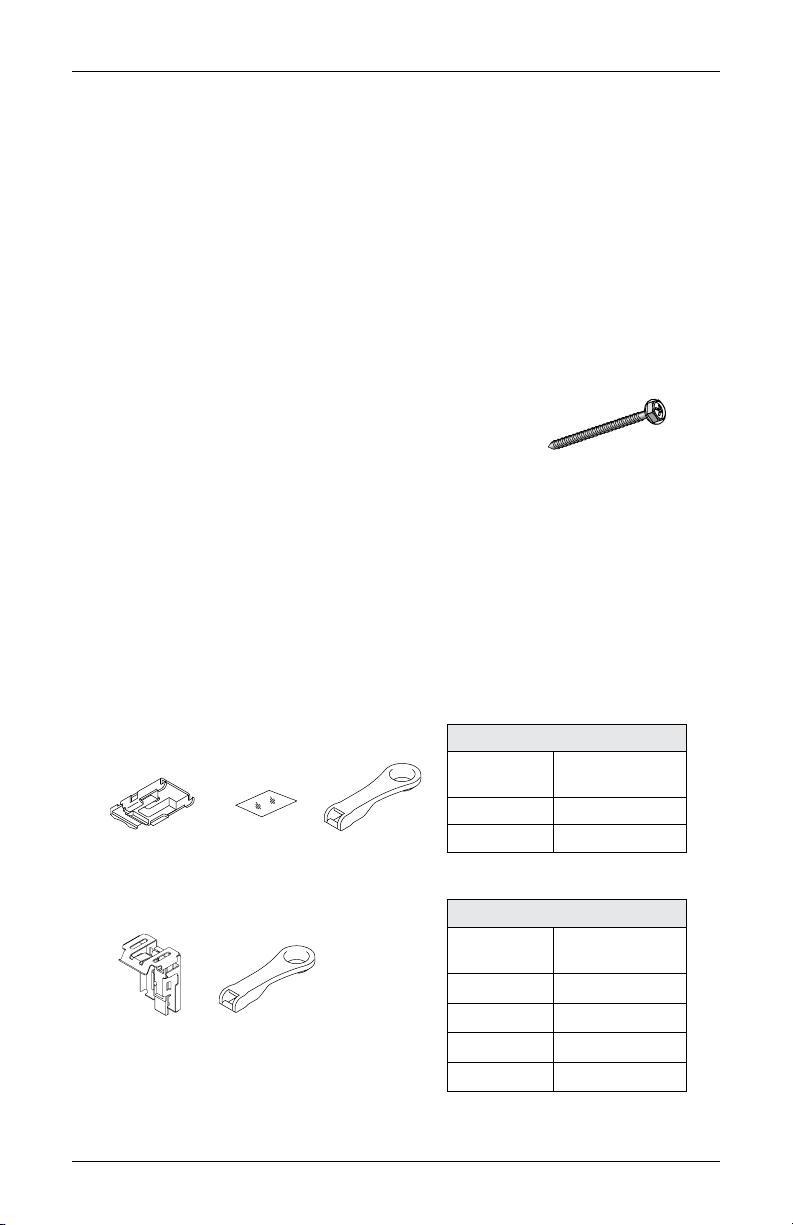

Tools and Fasteners Needed
■Flat blade and Phillips screwdriver
■Level (laser level is recommended)
■Measuring tape and pencil
■Power drill, 3∕32" drill bit and 1∕4" hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 11∕2" screws are
provided per installation bracket.
Installation Overview
■Your order will include installation brackets specific to your shade.
➤The number of installation brackets required varies with shade width, as shown in
the tables below.
CAUTION: Keep the “Do not remove until installation” paper wrap in place, until the
shade is completely installed. These instructions will remind you when to remove
the wrap.
#6 x 1½"
Hex Head Screw
(Provided)
Standard Cordless Shades
Shade
Width
Brackets
Required
12" – 55" 2
551∕8" – 79" 3
Temporary
Positioning Tape Winder
Standard
Installation Bracket
Standard Cordless Shades
WinderCassette
Installation Bracket
Cassette Cordless Shades
Cassette Cordless Shades
Shade
Width
Brackets
Required
Up to 36" 2
361∕8" – 72" 3
721∕8" – 90" 4
901∕8" – 120" 5

INSTALLATION
4

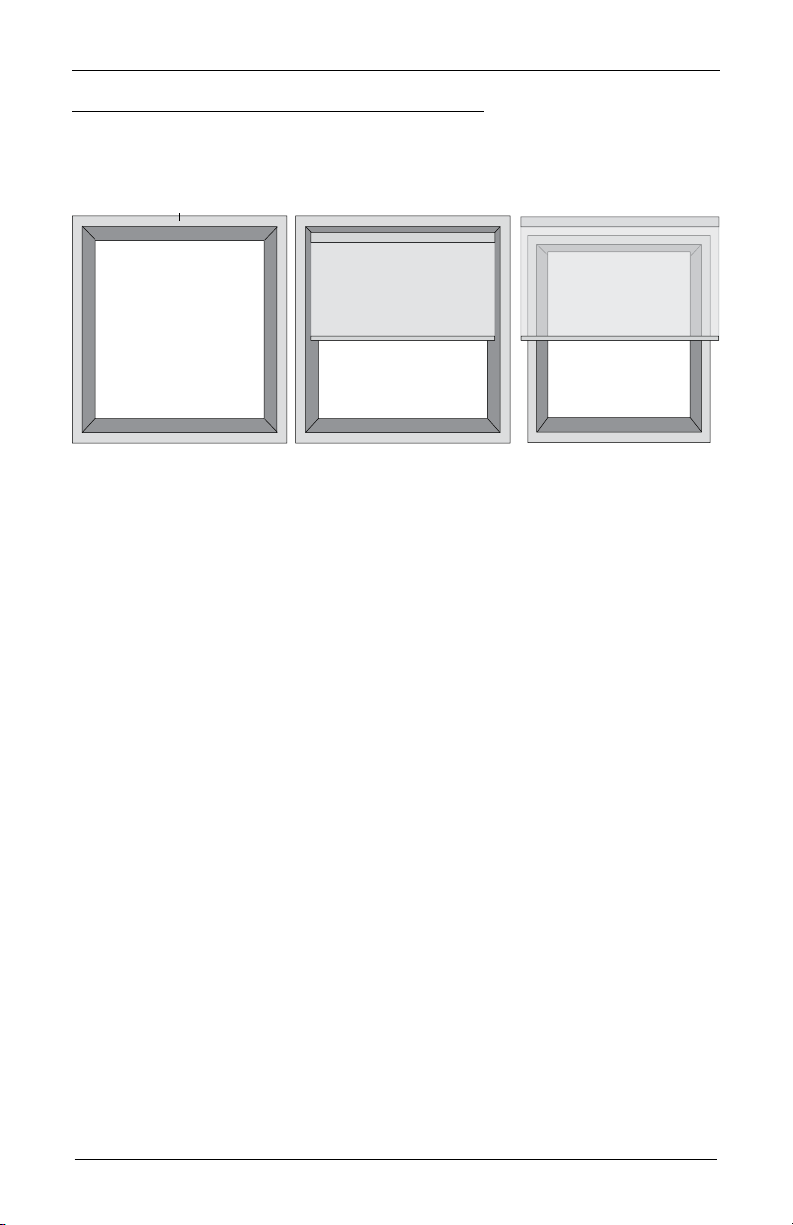

Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process will
follow easily. To prepare for this important first step, review the mounting types and basic
window terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Inside or Ceiling Mount for Standard Shades – page 5
➤Outside Mount for Standard Shades – page 6
➤Inside or Ceiling Mount for Cordless Cassette – page 7
➤Outside Mount for Cordless Cassette – page 9
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

INSTALLATION
5
Mount the Installation Brackets — Inside or Ceiling Mount
for Standard Shades
IMPORTANT: To ensure the bracket is mounted properly, the white tab should be toward
the room.
■Mark 11∕2" – 3" from each jamb for bracket location.
➤If more than two installation brackets came with your order, space additional
bracket(s) evenly between the two end brackets and mark their location. Mount into
wood whenever possible.
■Center the brackets on your marks and mark the screw holes.
➤The minimum depth required for mounting is 15∕8". For fully recessed mounting, the
mounting depth varies with the diameter of the fabric roll when the shade is fully
raised.
■Use a 3∕32" drill bit to drill holes for the mounting screws.
■White positioning tape pieces are provided to adhere to the bracket and assist in
temporarily holding the bracket while securing it with both hands free.
■Attach the installation brackets using the screws provided.
IMPORTANT: The front edges of the installation brackets must be level and aligned
to eachother.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete
with concrete anchors. Drywall anchors are not recommended.
Proceed to “Install the Shade” on page 10.
Installation Brackets Jamb Jamb
11∕2"– 3"
Space Evenly Space Evenly
11∕2"– 3"

INSTALLATION
6
Mount the Installation Brackets — Outside Mount for
Standard Shades
■Center the mounting profile over the window opening at the desired height. Use a pencil
to lightly mark each end of the mounting profile.
➤Alternatively, measure the width of the mounting profile and use that width to mark
the mounting profile end points over the window opening.
■Mark 11∕2" – 3" from each end of themounting profile.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into studs
whenever possible.
■Center the brackets on your marks and mark the screw holes.
IMPORTANT: The rear of the brackets must be flush against a flat mounting surface. Do
not mount brackets oncurved molding.
■Use a 3∕32" drill bit to drill holes for the mounting screws.
■White positioning tape pieces are provided to adhere to the bracket and assist in
temporarily holding the bracket while securing it with both hands free.
■Attach the installation brackets using the screws provided.
IMPORTANT: The front edges of the installation brackets must be level and aligned to
eachother.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete
with concrete anchors. Drywall anchors are not recommended.
Proceed to “Install the Shade” on page 10.
Mounting Profile End Marks
Window Opening
Space EvenlySpace Evenly
11∕2" – 3" 11∕2" – 3"

INSTALLATION
7
Mount the Installation Brackets — Inside or Ceiling Mount
for Cordless Cassette
■Mark 4" in from each jamb for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into studs
whenever possible.
Install the Back Cover Clips (Optional)
■If you ordered shades with the back cover option, snap on each back cover clip that you
received to the back of each installation bracket. This will ensure that the back cover
remains straight and properly secured.
■Align the hooks of the clips to the slots in the bracket and snap down to secure the clip to
the brackets.
■IMPORTANT: Allow an additional
1
/ 4 " spacing between the clip and the window to install
the back cover.
■Center the brackets on your marks and mark the screw holes.
➤The minimum depth required for mounting is 1
1
∕ 4 " or 1
13
/ 16 " with back cover. For fully
recessed mounting, 4
1
/ 16 " is required or 4
5
/ 8 " with back cover is required.
■Use a 3∕32" drill bit to drill holes for the mounting screws.
■Attach the installation brackets using the screws provided.
IMPORTANT: The front edges of the installation brackets
must be level and aligned to eachother.
WARNING: Product is heavy. Mount into wood/
metal studs or into concrete with concrete
anchors. Drywall anchors are not recommended.
Installation BracketsJamb Jamb
Space EvenlySpace Evenly
4" 4"
Back
Cover Clip
Cassette Bracket
4"

INSTALLATION
8
Install the Back Cover (Optional)
NOTE: For shades with the optional back cover, install the back cover onto the clips before
installing the cassette into the brackets.
■Angle the back cover towards
the window to hook the top
feature of the back cover with
the top tab of the clip.
■Rotate the back cover towards
the room until the bottom
feature snaps into the bottom
tab of the clip.
■Check each clip and ensure the
back cover is properly snapped
and secured before proceeding
to install the cassette.
Proceed to “Install the Shade” on page 10.
Back Cover Clip Cassette Bracket
Back
Cover

INSTALLATION
9
Mount the Installation Brackets — Outside Mount for
Cordless Cassette
■Center the cassette over the window opening at the desired height. Use a pencil to lightly
mark each end of the cassette.
➤Alternatively, measure the width of the cassette and use that width to mark the
mounting profile end points over the window opening.
■Mark 4" from each end of thecassette.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into studs
whenever possible.
■Center the brackets on your marks and mark the screw holes.
IMPORTANT: The rear of the brackets must be flush
against a flat mounting surface. Do not mount brackets
oncurved molding.
■Use a 3∕32" drill bit to drill holes for the mounting screws.
■Attach the installation brackets using the screws
provided.
IMPORTANT: The front edges of the installation
brackets must be level and aligned to eachother.
WARNING: Product is heavy. Mount into
wood/metal studs or into concrete with
concrete anchors. Drywall anchors are
not recommended.
Cassette End Marks
Window Opening
Space EvenlySpace Evenly
4" 4"
4"
Outside Mount

INSTALLATION
10
Install the Shade
Standard Installation
The groove on the top of the mounting profile fits into the hooks on the installation brackets.
■Install the shade into the installation brackets.
➤Hold the shade so the bottom bar fabric side faces you.
➤Hook the back groove of the mounting profile onto the hooks of the
installation brackets.
➤Rotate the mounting profile toward the white tabs of the installation brackets. Push
the set bar until tabs lock into place. You will hear a loud click when each bracket is
securely in place.
Cassette Installation
■Install the cassette straight into the bracket as shown to ensure the features on the
bracket align with the open sections in the back of the cassette.
■Push the cassette back to snap the spring tab on the bracket.
Hook
Hook
Bracket Bracket
Mounting
Profile
Mounting
Profile
Inside or Ceiling Mount Outside Mount
Spring
Tab
Bracket
Cassette
Release Tab

INSTALLATION
11

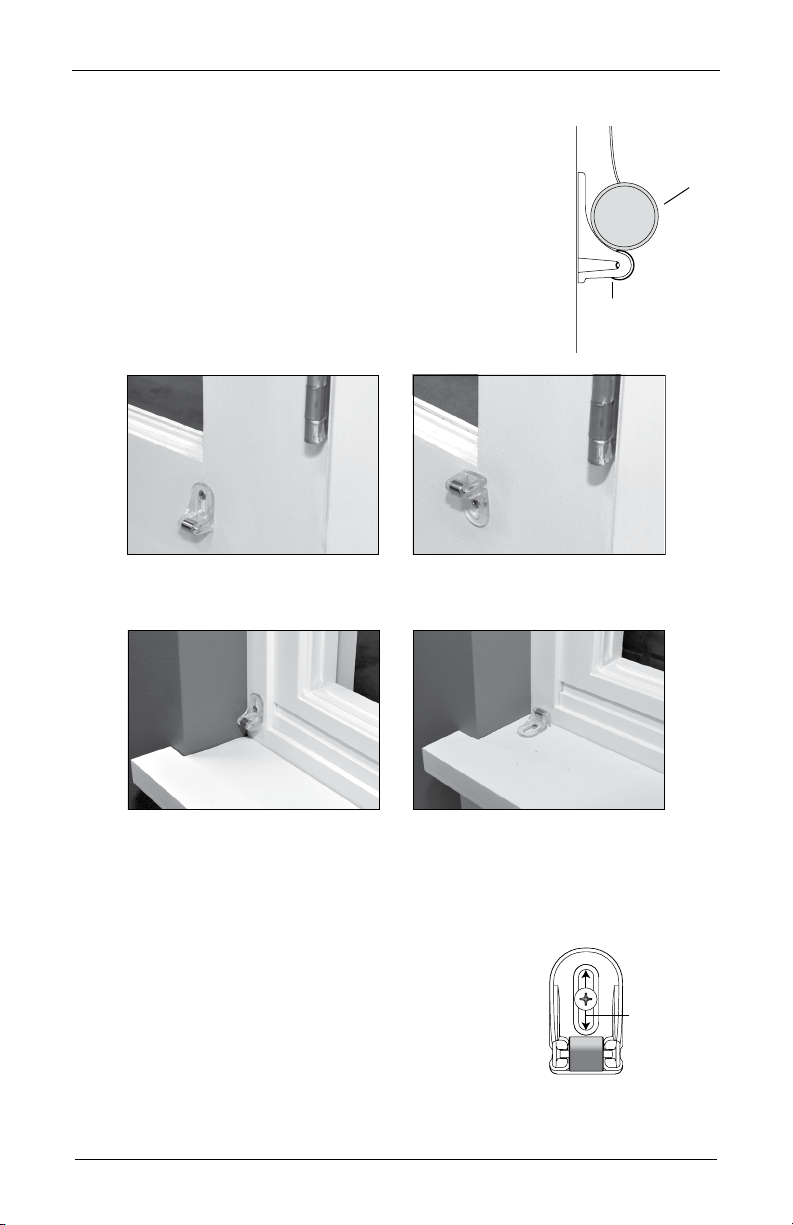

Attach the Standard Hold-Down Brackets (Optional)

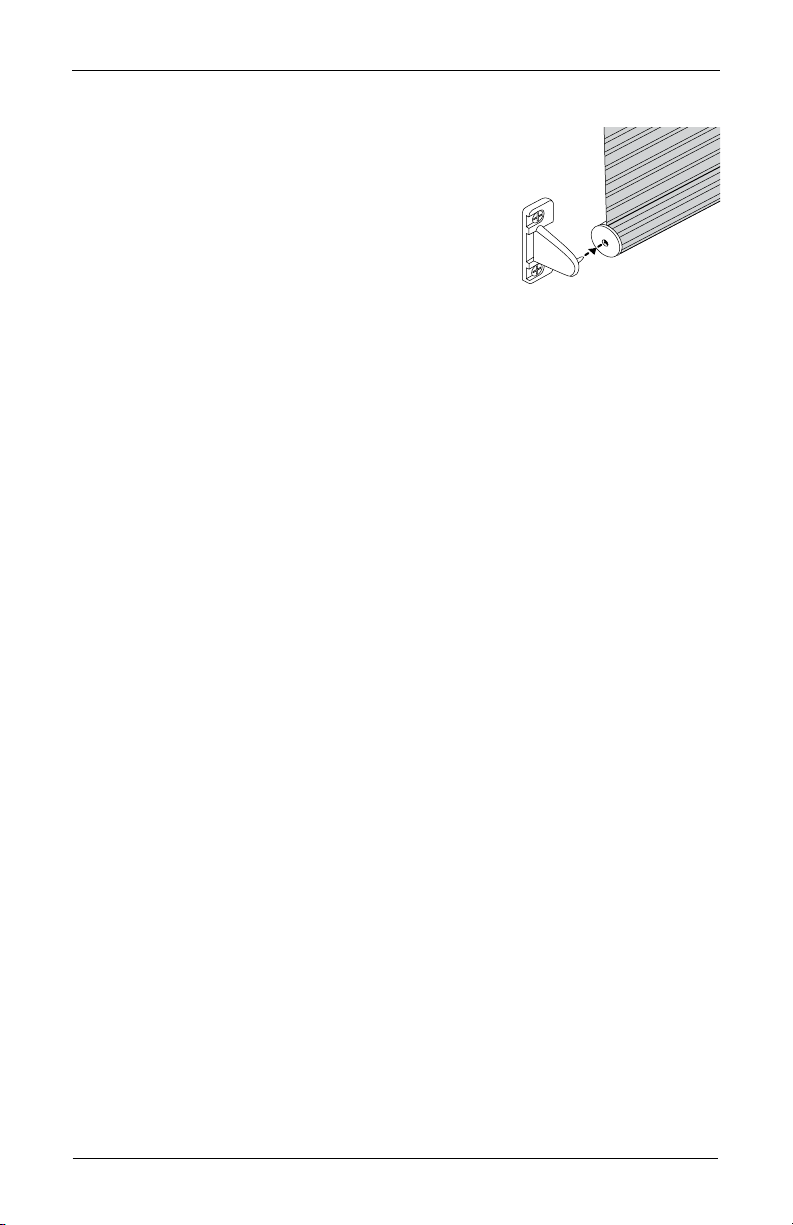

The standard hold-down brackets may be used with outside
mount shades only.
■With the shade fully lowered, insert the pin on the
hold-down bracket into the hole on the bottom rail endcap.
■Mark the hole locations on the mounting surface.
■Center the hold-down brackets over the mounting
hole locations and check their alignment. Attach using
twoscrews.
IMPORTANT: Disconnect the bottom rail from the hold-down brackets to raise the shade.

INSTALLATION
12
Attach the Magnetic Hold-Down Brackets (Optional)
■Lower the shade.
■Place the magnetic hold-down bracket onto the bottom rail just
inside the end cap, oriented as shown.
■Hold the bracket while opening and closing the shade slightly
(it may be necessary to have someone assist you). Adjust the
bracket to the best overall position using the mounting options
shown below.
■Mark the screw location.
➤The screw should be placed in the middle of the channel. This will allow
for adjustment.
■Drill the screw holes using a 3∕32" drill bit.
■Attach the hold-down brackets to the mounting surface using
the screws provided.
■If necessary, adjust the bracket location in the channel for
best operation.
Hold-Down
Bracket
Bottom
Rail
Outside Mount
Preferred Alternate
Inside Mount
Preferred Alternate
If necessary,
adjust the
bracket in the
channel.

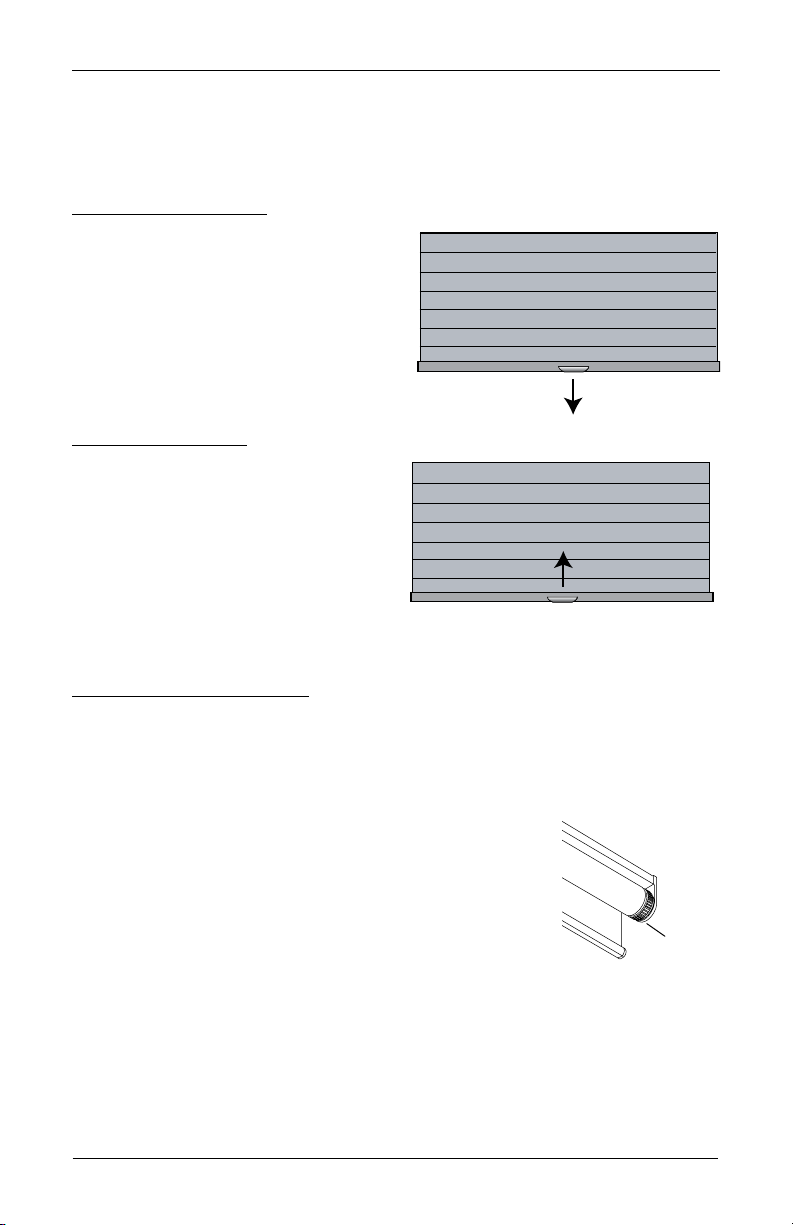

OPERATION
13
Operate the Shade
For better support and smoother operation, use the handle when raising and lowering the
shade.
Lowering the Shade
■Pull down and release. The shade stops
where released,
Raising the Shade
■Pull the shade down about an inch and
release. The shade rises and stops.
Shade Adjustment
Stop Height Adjustment
The upper level stop height can be adjusted on shades wider than 24". Generally, the shade
stops when it is completely rolled up. By using a stop controller, the shade can be adjusted to
stop before reaching the top. The stop controller is also useful for aligning multiple side-by-
sideshades.
■Completely roll up the shade.
■Turn the dial clockwise to lower the fabric level or dial counter-
clockwise to raise the fabric level.
■Lower and raise the shade. Repeat the previous step until the
stop height is at the desiredlevel.
CAUTION: When the shade is pulled too hard, the bottom of the
shade may flip over the top of the roller tube. To fix this, turn the roller tube manually by
hand.
Stop
Controller
Dial

OPERATION
14
Speed Adjustment
If slight changes in the speed are desired:
■Completely raise the shade.
■Turn the left side holder counter-clockwise until it stops.
■Remove the roller from the mounting profile by pulling it out from the right side holder.
IMPORTANT: Remove the shade slowly with both hands.
■Lay shade on a flat surface.
■Place the winder onto the black knob on the left side of the roller.
■For faster roll-up:
➤Turn 1-2 times clockwise as pictured while pulling
the winder.
■For slower roll-up:
➤While pulling the winder, turn a half-turn clockwise,
then turn 1-2 times counter-clockwise.
■Replace the roller by aligning it in the right side holder.
■Slide the left side black knob into the side holder. The red side of the knob should be
facing up.
■Turn the left side holder clockwise until it stops.
WARNING: The winder does not turn if it is not pulled. Do not turn it more than
two turns. Hold the winder securely, otherwise it may slip from the knob and
cause injury.
Detach Roller
Turn Counter-
Clockwise
Pull roller out
from right side
holder.
Turn Clockwise
While Pulling
Winder
Half-Turn Clockwise
While Pulling
While Pulling
Turn Counter-Clockwise

TROUBLESHOOTING
15
Troubleshooting
If your shade is not operating correctly:
■Refer to the following troubleshooting procedures for specific solutions for your shade.
If questions remain, please contact Hunter Douglas Consumer Support at [phone].
Problem
The shade does not roll up, or it rolls too slowly.
Solution ■Check that the mounting brackets are level.
■Roll-up speed can be adjusted. See “Speed Adjustment” on page 14.
Problem
The shade does not lower.
Solution ■Check that the window is square by measuring the diagonals.
■Check that the left side holder dial is closed. The shade will not operate if
it is in the open position.
CAUTION: Do not disassemble or modify the mechanism inside the roll
tube.
Problem
I have several shades, and the side holders are different sizes.
Solution ■Shade holder size is determined by the length of the shade and size of the
roll.
Problem
An opaque fabric panel is wrinkled, creased or is rippling.
Solution ■Apply heat for 30 seconds with a hair dryer 6" away from the shade to
release the creases, wrinkles or ripples in the fabric.

TROUBLESHOOTING
16
Problem
The fabric is skewing as the shade is being raised.
Solution Adding tape to the fabric tube when the shade is
fully lowered will help stop the fabric from skewing.
■Lower the shade to the fully closed position.
■Lift of the fabric slight to place the tape between
the fabric and tube.
■Place the tape on the opposite end of the roll the
fabric is skewing to.
■Raise the shade to check for fabric skew. Repeat steps to add more tape if
fabric skew still occurs.
Lower the Shade.
Place tape between
fabric and fabric roll.
Tape
Fabric
Fabric Roll Travel
Fabric Stair Stepping on
Either End Indicates Skew

CARE
17
Removing the Shade (If Necessary)
Standard Cordless Shade
■Fully raise the shade.
■While holding the shade, push in the white tab on each bracket to release.
Cordless with Cassette Shade
■Fully raise the shade.
■While keeping one hand on the cassette at all times, push up on the plastic release tabs
of the end bracket until you hear it click and see that it stays in place.
NOTE: Push up on the release tabs of the end brackets first and then on the center
bracket(s).
■Place both hands in the middle of the cassette (along the front bottom) and pull straight
out.
Cleaning Procedures
The following options are available if your shade needs cleaning.
Dusting
■Regular light dusting with a feather duster or soft cloth is all the cleaning that is needed
in most circumstances.
Vacuuming
■Use a hand-held vacuum with low suction for more thorough dust removal.
CAUTION: Do not clean with harsh detergents.
For more cleaning methods specific to your roller shade fabric, please consult your
Hunter Douglas dealer.
Bracket
Cassette
Release Tab
Bracket

May 2022
The Hunter Douglas®Lifetime Guarantee is an expression of our desire to provide a thoroughly satisfying
experience when selecting, purchasing and living with your window fashion products. If you are not
thoroughly satisfied, simply contact Hunter Douglas at [phone] or visit hunterdouglas.com. In support
of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
Hunter Douglas (or its licensed fabricator/distributor) will repair or replace the
window fashion product or components found to be defective.
COVERED
BY A LIFETIME LIMITED WARRANTY
TO OBTAIN WARRANTY SERVICE
NOT COVERED
BY A LIFETIME LIMITED WARRANTY
• Hunter Douglas window fashion products are
covered for defects in materials, workmanship or
failure to operate for as long as the original retail
purchaser owns the product (unless shorter
periods are provided below).
• All internal mechanisms.
• Components and brackets.
• Fabric delamination.
• Operational cords for a full 7 years from the date
of purchase.
• Repairs and/or replacements will be made with
like or similar parts or products.
• Hunter Douglas motorization components are
covered for 5 years from the date of purchase.
1. Contact your original dealer (place of purchase) for warranty assistance.
2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to
service locations.
3. Contact Hunter Douglas at [phone] for technical support, certain parts free of charge, for
assistance in obtaining warranty service or for further explanation of our warranty.
NOTE: In no event shall Hunter Douglas or its licensed fabricators/distributors be liable or responsible for
incidental or consequential damages or for any other indirect damage, loss, cost or expense. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or
limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Different warranty periods and terms apply for commercial products and applications.
• Any conditions caused by normal wear and tear.
• Abuse, accidents, misuse or alterations to the
product.
• Exposure to the elements (sun damage, wind,
water/moisture) and discoloration or fading over
time.
• Failure to follow our instructions with respect to
measurement, proper installation, cleaning or
maintenance.
• Shipping charges, cost of removal and
reinstallation.
