HunterDouglas Vignette Traditional User manual

Installation •Operation •Care
Vignette®Modern Roman Shades
Traditional™Style Shades
PowerView™Motorization

CONTENTS
Getting Started:
Product View ................................................................ 1
Tools and Fasteners Needed .......................................... 2
Installation:
Installation Overview ..................................................... 3
STEP 1 — Install the Brackets....................................... 3
STEP 2 — Install the Shade .......................................... 7
STEP 3 — Connect the Power Source............................ 8
Attach Magnetic Hold-Down Brackets (Optional)............ 12
Operation:
Testing the Shade ....................................................... 13
Using the PowerView™Remote .................................... 14
Resetting the Shade.................................................... 15

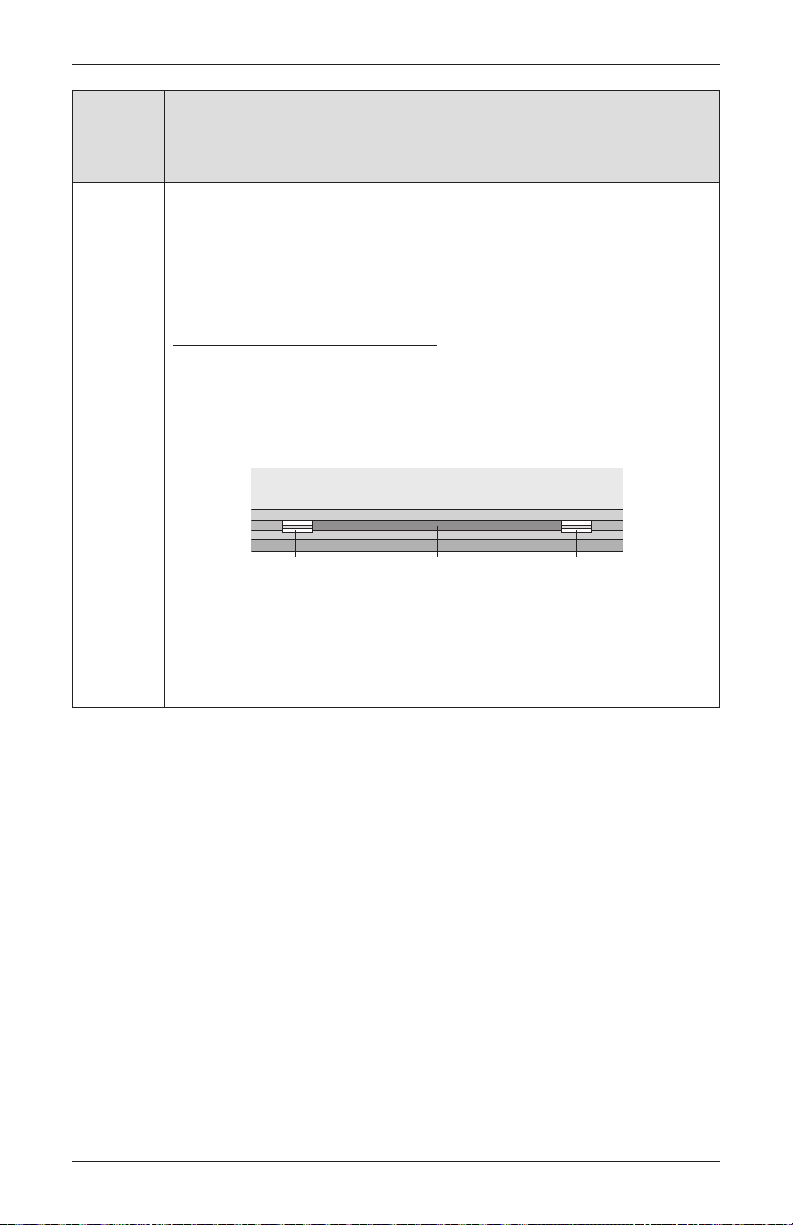

Troubleshooting .......................................................... 16
Care:
Removing the Shade (If Necessary) .............................. 19
Cleaning Procedures ................................................... 19
Declarations ........................................Inside Back Cover
Warranty.........................................................Back Cover
Questions?
Call the Hunter Douglas Customer Information Center at
1-888-501-8364.
© 2016 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or
their respective owners.

GETTING STARTED
1
Product View Battery
Wand
Battery
Wand Clips
Magnetic
Hold-Down
Brackets
(Optional)
Headrail
Installation
Brackets
Power Cable*
Extension Cable
Bottom Rail
Weight
Clips
Balance
Weight
Spacer
Blocks
*The power cable can be located at either end of the headrail, depending on the specified motor placement.

2
GETTING STARTED
Thank you for purchasing Hunter Douglas Vignette®Modern Roman Shades with PowerView™
Motorization. With proper installation, operation, and care, your new shades will provide years of
beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation. For information regarding operation and programming, refer to the guide
included with your remote control.
Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers
■Level (laser level is recommended)
■Measuring tape and pencil
■Power drill,
3
/ 32 " drill bit, and
1
/ 4 " hex driver

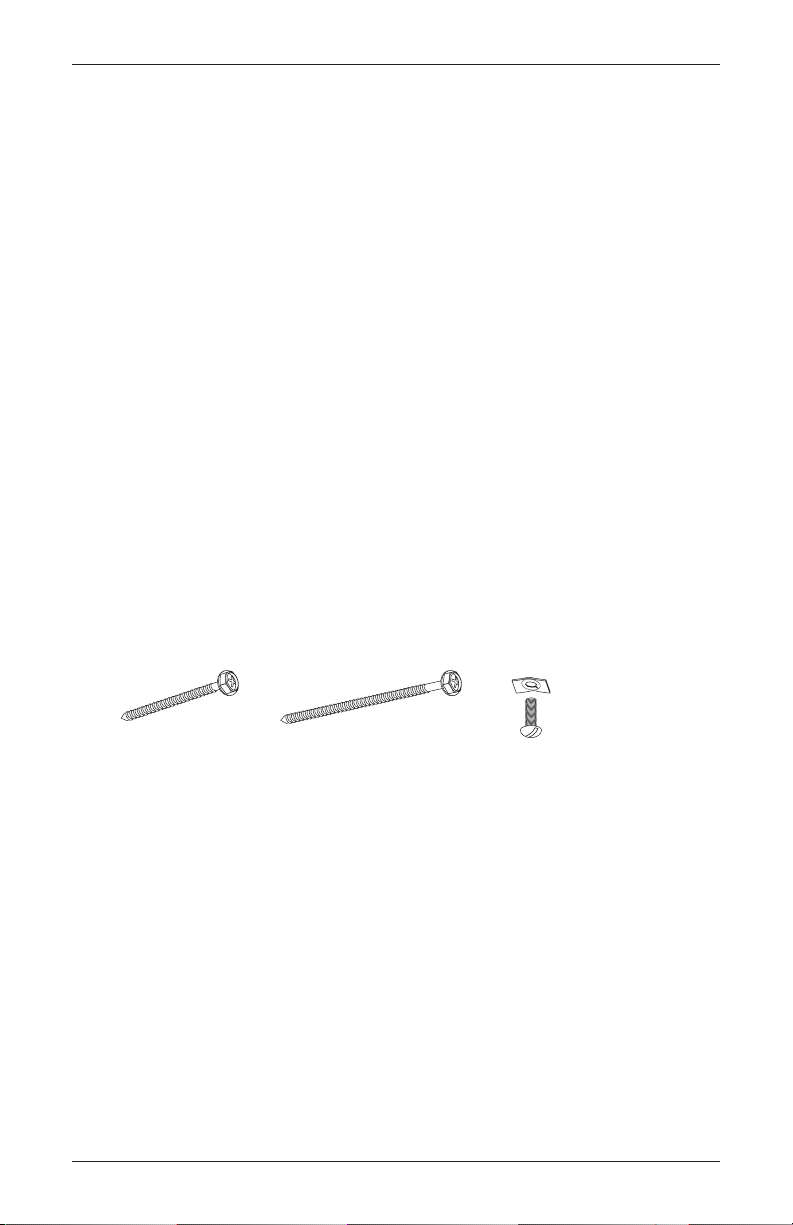

In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per installation bracket.
■Longer Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment.
■Speed Nuts and Screws (Provided). Extension brackets are supplied with screws and
speed nuts.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)

INSTALLATION
3
Installation Overview
To install your shade, you will need to perform the following three steps:
STEP 1: Install the Brackets
STEP 2: Install the Shade
STEP 3: Connect the Power Source
STEP 1 — Install the Brackets
■Your order will include the correct number of installation brackets for your shade width, as
shown in the table below.
■Shade orders will also include spacer blocks if needed for added clearance.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the shade installation process
follows easily. To prepare for this important first step, review the mounting types and basic
window terminology illustrated below.
■Refer to the appropriate page below based on the mounting type chosen for your order:
➤Inside Mount — Page 4
➤Outside Mount — Page 5
➤End Mount — Page 6
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
Shade
Width
Brackets
Required
12" –48" 2
48
1
/ 8 " –84" 3
84
1
/ 8 " –96" 4
Spacer Blocks
Installation Bracket
1
/ 2 "
1
/ 4 "

INSTALLATION
4
3"
Casement
Depth
3"
Casement
Depth

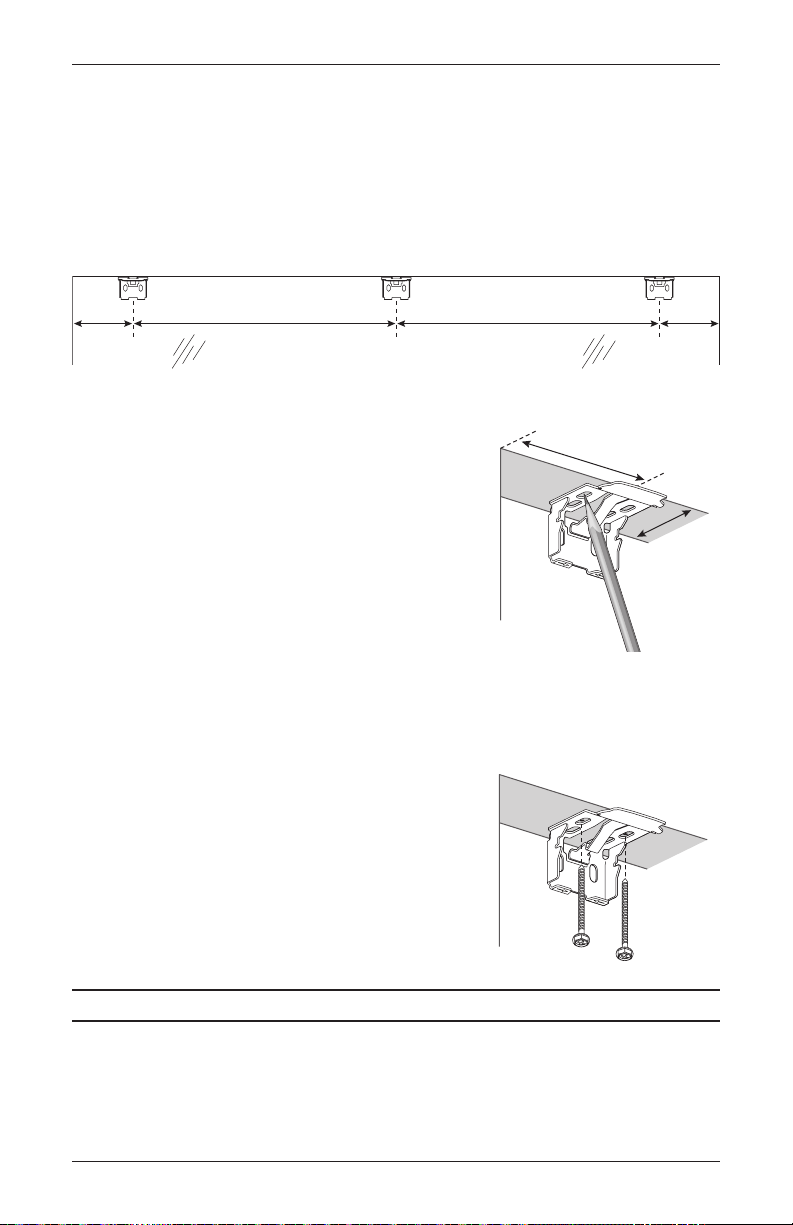

Mount the Installation Brackets — Inside Mount
■Measure and mark 3" in from each jamb for bracket location.
➤If more than two installation brackets came with your order, mark the location of the
additional bracket(s) spaced evenly between the two end brackets. Mount into wood
whenever possible. Allow a minimum of 18" from the motor side for the battery
wand.
■Center the brackets on yourmarks, then mark the screw hole locations.
➤The minimum casement depth for installation
brackets is 1" (1
3
/ 8 " with battery wand). Mark the
rear set of installation bracketholes with shallow
mounting depths.
➤The minimum casement depth for a fully recessed
mount is 3
7
/ 8 " (4
3
/ 8 " with battery wand). Mark the
front set of bracket holes when depth permits.
IMPORTANT: For shades with a battery wand, allow
a minimum of
5
/ 8 " clearance behind the brackets to
accommodate the wand.
■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Use a level to check that the mounting surface is level.
Shim the brackets if necessary.
■Attach the installation brackets using the screws
provided.
IMPORTANT: The front edges of the installation
brackets must align to each other.
Proceed to “STEP 2 — Install the Shade” on page7.
Jamb Jamb
Window Opening
Space Evenly Space Evenly3" 3"

INSTALLATION
5
Mount the Installation Brackets — Outside Mount
■Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
■Measure and mark 3" in from each end of the headrail.
➤If more than two installation brackets came with your order, mark the location of the
additional bracket(s) spaced evenly between the two end brackets. Mount into wood
whenever possible. Allow a minimum of 18" from the motor side for the battery
wand.
■Center the brackets on yourmarks, then mark the screw hole locations.
➤A minimum 1" flat vertical surface is required.
➤The top of the installation brackets should be at
the desired height. The brackets must be level
andaligned.
CAUTION: The rear of the brackets must be flush
against a flat mounting surface. Do not mount brackets
oncurved molding.
■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Attach the installation brackets using the screws provided.
IMPORTANT: If using a battery wand, use a minimum
of one
1
/ 2 " and one
1
/ 4 " spacer blocks per installation
bracket to provide the clearance required for the battery
wand. See the instructions on the following page.
3"
Window Opening
Space Evenly Space Evenly3" 3"
Headrail End Mark Headrail End Mark
3"
Spacer
Blocks
1
/ 2 "
1
/ 4 "

INSTALLATION
6
■If the shade will be powered by a battery wand: Attach the installation brackets with the
1
/ 2 " and
1
/ 4 " spacer blocks. Use 2" #6 hex head screws (not provided).
➤The solid side of the spacer blocks faces the
mounting surface.
➤If using additional spacer blocks for more
clearance, attach the installation brackets and
spacer blocks with #6 screws long enough for
a secure installation.
IMPORTANT: Do not add more than 1
1
/ 2 " of
clearance using spacer blocks.
IMPORTANT: The tops of the installation brackets
must be level with the front edges aligned.
Proceed to “STEP 2 — Install the Shade” on page7.
Mount the Installation Brackets — End Mount
End mount the headrail when conventional
mounting techniques will not work — for example,
in an arched window opening.
■Mount extension brackets to each side of the
opening at the desired height of the shade.
➤The mounting surface must be vertical and
flat, not part of an arched curve.
➤Minimum mounting surface width with a
built-in battery wand is 2".
➤Minimum mounting surface width with a
satellite battery pack, C-size satellite battery
wand, or DC power supply is 1
1
/ 2 ".
■Attach the installation brackets to the extension
brackets using the provided screws and
speednuts.
Proceed to “STEP 2 — Install the Shade” on page7.
Spacer
Blocks
Longer
Screws
Mounting
Surface
Width
Extension
Bracket
Speed Nuts
Screws
Installation
Bracket

INSTALLATION
7
STEP 2 — Install the Shade
Mount the Headrail
CAUTION: Be sure the cables do not become pinched by the installation brackets when
mounting the headrail.
■Hold the headrail so the front (curvedside) faces you.
■Push the top edge of the headrail into the installation brackets.
■Rotate and push the headrail back until it snaps into place. You will hear a click when the
shade is securely installed.
WARNING: Failure to snap the headrail securely into the installation brackets may
cause the shade to release unexpectedly.
■Gently pull on the front of the headrail to ensure that the shade is locked into the brackets.
■Remove the plastic covering on the front of the headrail.
Headrail
Installation Bracket
Fabric Guard

INSTALLATION
8
STEP 3 — Connect the Power Source
NOTE: When power is connected to the motor, a green LED inside the manual control button
housing will flash to indicate the shade is ready for operation.
■Refer to the appropriate page based on the ordered power source.
➤For a battery wand, see below.
➤For a satellite battery pack, see page 9.
➤For an 18V DC power supply, see page10.
➤For an 18V DC power supply with daisy-chain connections, see page11.
➤For a C-size satellite battery wand or large DC power supply, see the instructions that
came with the unit.
If You Have a Battery Wand...

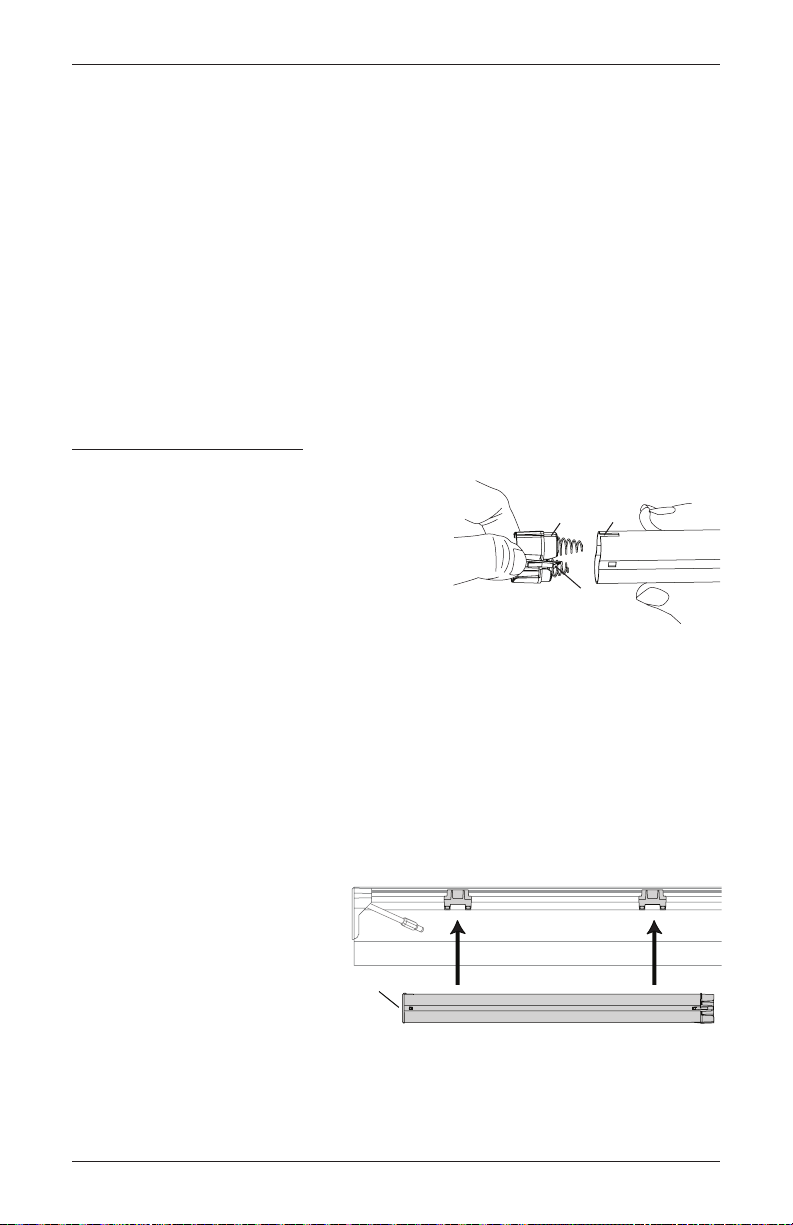

Install Batteries Into the Battery Wand
■Squeeze the cap latch to release thecap.
■Remove the cap from the battery wand.
■Install the batteries according to the
instructions on the battery wand label.
■Hunter Douglas recommends AA alkaline batteries for use with our battery-powered shades.
These will provide approximately one year of operation. Lithium and rechargeable batteries
are not recommended.
■Replace the cap.
➤Align the tab with the end of the wand.
➤Press the cap on until it latches.
Mount the Battery Wand into theBattery Wand Clips
■Align the battery wand with its
socket toward the motor
cartridge end cap on the shade.
■Push the battery wand straight up
into the battery wand clips until it
snaps into place. Check to make
sure the battery wand is secure.
CAUTION: Be sure the cables do not become pinched by the battery wand clips during
installation. Damage or overheating of components could result.
TabSlot
Cap
Latch
Battery Wand
Squeeze
Back of Shade
Socket

INSTALLATION
9

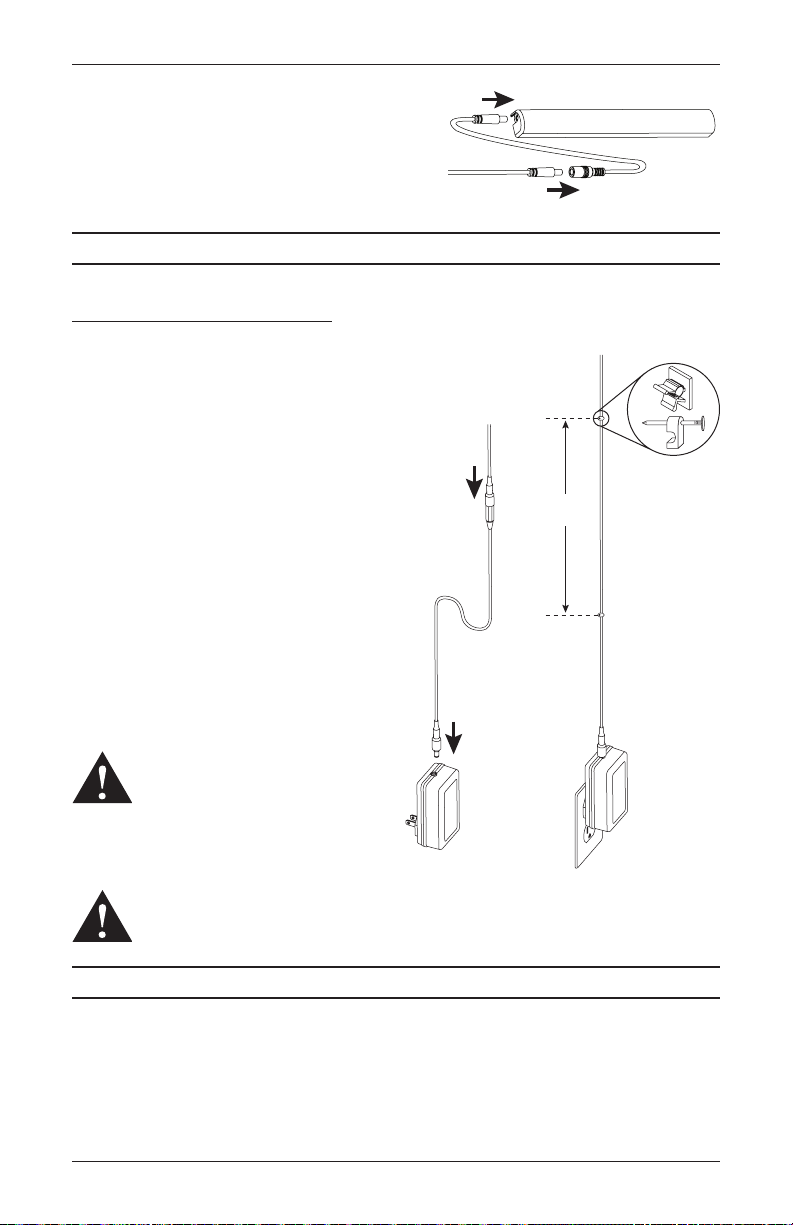

Plug the Power Cable into the Battery Wand
■On the back of the headrail, connect
the power cable from the shade into the
socket on the battery wand.
Proceed to “Attach Magnetic Hold-Down Brackets (Optional)” on page12.
If You Have a Satellite Battery Pack...
Install the Batteries into the Battery Wand
■Refer to the instructions on page 8.
Mount the Satellite Battery Pack
■Decide where you want to attach the wall mount bracket.
A satellite battery pack may be mounted in any orientation.
■Mark the screw holes.
■Drill the screw hole using a
3
/ 32 " drill bit.
■Remove the backing from the double-sided tape. Press the bracket into place.
■Attach the bracket using the screws provided.
■Position the battery wand so the power cable is easily connected to the socket.
■Snap the battery wand into the bracket.
■Replace the cover with the slot aligned to the socket in the battery wand.
Socket
Power
Cable Back of Shade
Wall Mount Bracket
Socket
Battery Wand Cover
Slot
Socket

INSTALLATION
10
■Plug the power cable from the shade into the
extension cable.
■Plug the other end of the extension cable into
the socket in the battery wand.
Proceed to “Attach Magnetic Hold-Down Brackets (Optional)” on page12.
If You Have a DC Power Supply...
Connect the Power Supply
■Plug the power cable from the shade into
the extension cable.
■Plug the other end of the extension cable
into the DC power supply.
■Plug the DC power supply into a standard
outlet.
■Secure the extension cable using wire
retainers (not supplied). If hiding the cable
behind the shade, make sure it does not
impede the operation of theshade.
■Space the wire retainers approximately
15" apart along the power supply wire, as
shown.
WARNING: Keep cords and small
parts out of the reach of children.
They can wrap cords around their
necks and STRANGLE.They can
also put small parts in their mouths
and CHOKE.
WARNING: Electric shock and/or a fire hazard may occur, if not properly installed.
Proceed to “Attach Magnetic Hold-Down Brackets (Optional)” on page12.
Battery Wand Cover
Extension
Cable
Power Cable
from Shade
Power Cable
from Shading
Extension
Cable
DC
Power
Supply
15"
Maximum
Wire Retainers

INSTALLATION
11
If You Have a DC Power Supply with Daisy-Chain Connections...
The daisy-chain feature allows up to three PowerView™motorized shades to be powered
by a single DC power supply. However, each shade has its own RF receiver and can operate
independently. The daisy-chain feature is only available with the DC power supply option.
■Route the power cables from each shade to the connector, using extension cables if
necessary.
■Plug an extension cable into the connector and the DC power supply. A two-shade
configuration is shown below.
■An additional connector and two additional extension cables are used for three shades.
Proceed to “Attach Magnetic Hold-Down Brackets (Optional)” on page12.
Extension
Cable Connector
DC Power
Supply
Power
Cable
from
Shade
Extension
Cable

INSTALLATION
12
Attach Magnetic Hold-Down Brackets (Optional)
■Lower the shade until it is fully lowered and rotated back toward the window.
■Attach the magnetic hold-down brackets onto the bottom
rail just inside the end caps. The brackets will attach into the
channel in the middle of the bottom rail.
■Mark the screw locations using one of the mounting options
shown below.
➤The screw should be placed in the middle of the channel.
This will allow for adjustment.
■Drill the screw holes using a
3
/ 32 " drill bit.
■Attach the hold-down brackets to the mounting surface using
the screws provided.
■If necessary, adjust the bracket location using the channel.
Magnetic
Hold-Down
Bracket
End
Cap
Outside Mount
Preferred Alternate
Inside Mount
Preferred Alternate
Adjust the
bracket
using the
channel.

OPERATION
13
Testing the Shade
Check the Power Cord
■Check the headrail to ensure the power cord is not visible.
➤If it is visible, adhere the wire saddle on the power cord to the back of the shade.
Test the Shade Using the Manual Control Button
Testing the shade with the manual control button will allow you to
ensure that the motor and power source are working correctly.
■Press the manual control button on the bottom of the motor
side end cap to test operation. If the shade does not operate,
refer to “Troubleshooting” on page16.
➤Press the button to alternately lower, stop, and raise
the shade.
CAUTION: When raising the shade for the first time, observe how the fabric rolls up
into the headrail. It should roll up evenly. If the bottom rail is not level or the shade
starts to rub against either window jamb, immediately press the manual control
button to stop the shade. See “Adjusting the Bottom Rail Weight” on page18.
Back of Shade
Visible
Wire
Wire
Saddle
Wire
Saddle
Manual
Control Button

OPERATION
14
Using the PowerView™Remote
First, activate the remote by pulling both plastic tabs from the back battery compartment.
IMPORTANT: If you have more than one remote, see “Adding Additional Remote(s) to the
PowerView™Shade Network” in the PowerView Motorization Remote Control Guide.
Joining a Shade to a Group
IMPORTANT: The shade will not operate using the remote until it has been joined to a group.
1. Press and hold ■STOP for 4 seconds to put the remote in program mode. The lights on the
remote will flash to indicate it is in program mode.
2. Press the desired group number (1 – 6) on the remote. The backlight for the group number
will flash to show it is selected.
3. Press and hold the manual control button on the shade.
4. While continuing to press the manual button, press ▲OPEN on the remote. The shade will
move slightly to indicate it has joined the group. Release the manual control button.
5. Press and hold ■STOP for 4 seconds to exit program mode. The lights will stop flashing.
Basic Operation
1. To wake up the remote, simply pick it up or press ■STOP. The last group(s) selected will be
highlighted and active.
2. Press “all” or groups 1 – 6 to select specific shade(s) to move. Selected group button(s) will
light to show they are selected.
a. Multiple group buttons may be selected at a time.
b. To deselect a group, press the group button again. The backlight for that group button
will go out.
Group 1
Group 2
OPEN
CLOSE
Group 3 Group 4
Group 5
Group 6
Favorite
(Shade position)
LEFT ARROW
No function (only used
for vaned products or
Top-Down/Bottom-Up)
RIGHT ARROW
No function (only used for vaned
products or Top-Down/Bottom-Up)
STOP
(Press and hold for
programming mode)

OPERATION
15
3. Press ▼CLOSE to lower the selected shade(s).
4. Press ▲OPEN to raise the selected shade(s).
5. Press ■STOP to stop shade movement anywhere along its travel.
6. While a shade is in motion, press the opposite of shade motion (▲OPEN or ▼CLOSE) to
reverse direction.
7. Press ♥FAVORITE to send selected shade(s) to your preset “favorite” position. Refer to the
PowerView™Motorization Remote Control Guide on how to set a favorite position.
Further Operation and Programming Information
PowerView Pebble™Remote and/or PowerView Surface Remote Operation
For information regarding operation and programming of the PowerView remote, refer to your
PowerView Motorization Remote Control Guide.
PowerView Scene Controller
For information regarding operation and programming of the PowerView Scene Controller, refer
to your PowerView Motorization Scene Controller Guide.
PowerView App Operation
The PowerView Hub is required for PowerView App operation. For information regarding setup
and operation using the PowerView App, refer to the online PowerView App Software Guide at
hunterdouglas.com/powerview/support.
Resetting the Shade (If Necessary)
Basic Reset
The basic reset is used to reset the shade’s travel limits.
1. Press and hold the manual control button for 6 seconds. The shade will move slightly.
2. Release the manual control button. The shade will raise to its fully open position to set the
upper travel limit, then lower to the fully closed position to set the lower travel limit. The shade
will move slightly one more time to indicate that the travel limits have been reset.
Resetting Shade Programming
This reset erases all shade programming from memory, including group assignments, preventing
any input device from operating the shade. Its primary use is during installation to correct group
and network assignments. This reset does not affect travel limits.
1. Press and hold the manual control button for 12 seconds. The shade will move slightly after 6
seconds, then again after 12 seconds. Release the button.
2. Refer to “Joining a Shade to a Group” on page 14 to program the shade to a group.

OPERATION
16
Troubleshooting
If your shade is not operating correctly:
■First review the guide that came with your control device.
■Refer to the following troubleshooting procedures for specific solutions for your shade.
If questions remain, please contact the Hunter Douglas Customer Information Center at
1-888-501-8364.
Problem The shade will not snap into the installation brackets.
Solution If the shade has a battery wand, check that the wand is not interfering with the
installation brackets.
Check that the installation brackets are level and aligned. Adjust and/or shim to
level, if necessary.
Be sure the heads of the mounting screws are flush against the installation
bracket.
Check that the headrail is completely inserted into the installation brackets. See
“STEP 2 — Install the Shade” on page 7.
Problem The shade does not operate using the manual control button.
Solution Unplug the power cable from the motor, then plug it back in. A green LED inside
the manual control button housing should flash to indicate the motor has power.
Check that the batteries in the battery wand, satellite battery pack, or C-size
satellite battery wand are correctly inserted andarefresh.
Check that the battery wand, satellite battery pack, C-size satellite battery
wand, or DC power supply is securely connected to the power cable and the
cables are not pinched or caught in the headrail or installation brackets.
Problem The shade is not responding to the PowerView™remote.
Solution IMPORTANT: A shade will not operate using the remote until it has been
joined to a group.
Check that the correct group number is selected.
Check that the batteries in the remote are correctly inserted andarefresh. The
LEDs that backlight the remote should come on full bright when ■ STOP is
pressed.

OPERATION
17
Problem The front fabric appears to cling to the back fabric.
Solution Lightly apply a static spray for home furnishings. Follow the manufacturer’s
directions. Allow the shade to dry in the fully lowered position.
If necessary, reapply the static spray each time the shade is professionally
cleaned.
Problem The bottom rail does not raise completely, or lower completely, or its
location when fully lowered has migrated over time.
Solution The batteries may be low in the battery wand, satellite battery pack, or C-size
satellite battery wand. Replace the batteries.
Check that the battery wand, satellite battery pack, C-size satellite battery
wand, or DC power supply is securely connected to the power cable and the
cables are not pinched or caught in the headrail or installation brackets.
Check that there is clearance between the ends of the shade and the window
casement on inside mounts.
Check if the fabric rolls up evenly into the headrail. If not, see “Adjusting the
Bottom Rail Weight” on page18.
The shade may need to be reset. Refer to “Resetting the Shade” on page15.
Problem Adjacent shades do not roll up evenly.
Solution It is considered normal if the roll-up on both shades is within
5
/ 16 " of each
other. If one shade rolls up tighter than another, repeatedly lower and raise both
shades.
Check that the shade fabric is not catching on any brackets or components.
Check that the fabric winds evenly and does not rub against the headrail. If
uneven, see “Adjusting the Bottom Rail Weight” on page18.

OPERATION
18
Problem The shade raises or lowers unevenly, the bottom rail is not level when fully
raised, or the fabric winds unevenly or starts to rub against one end of the
headrail.
Solution Check that the installation brackets are level. Shim to level, if necessary.
Check if the window is out-of-square by measuring the diagonals. Shim the
installation brackets to level, if necessary.
If the headrail is level and the window is square, adjust the bottom rail weight.
Adjusting the Bottom Rail Weight
To adjust, access the bottom rail weight from the back of the shade.
Push up on the weight clips to release.
Slide the weight in 1" increments, toward the side where the fabric is gathering.
Lower the shade all the way and check that the bottom rail is level. Adjust the
weight until the fabric winds evenly and does not gather on either side.
After final adjustments, slide the weight clips back into place.
Move Weight to Adjust
Weight
Clip
Weight Weight
Clip
