GETTING STARTED
1

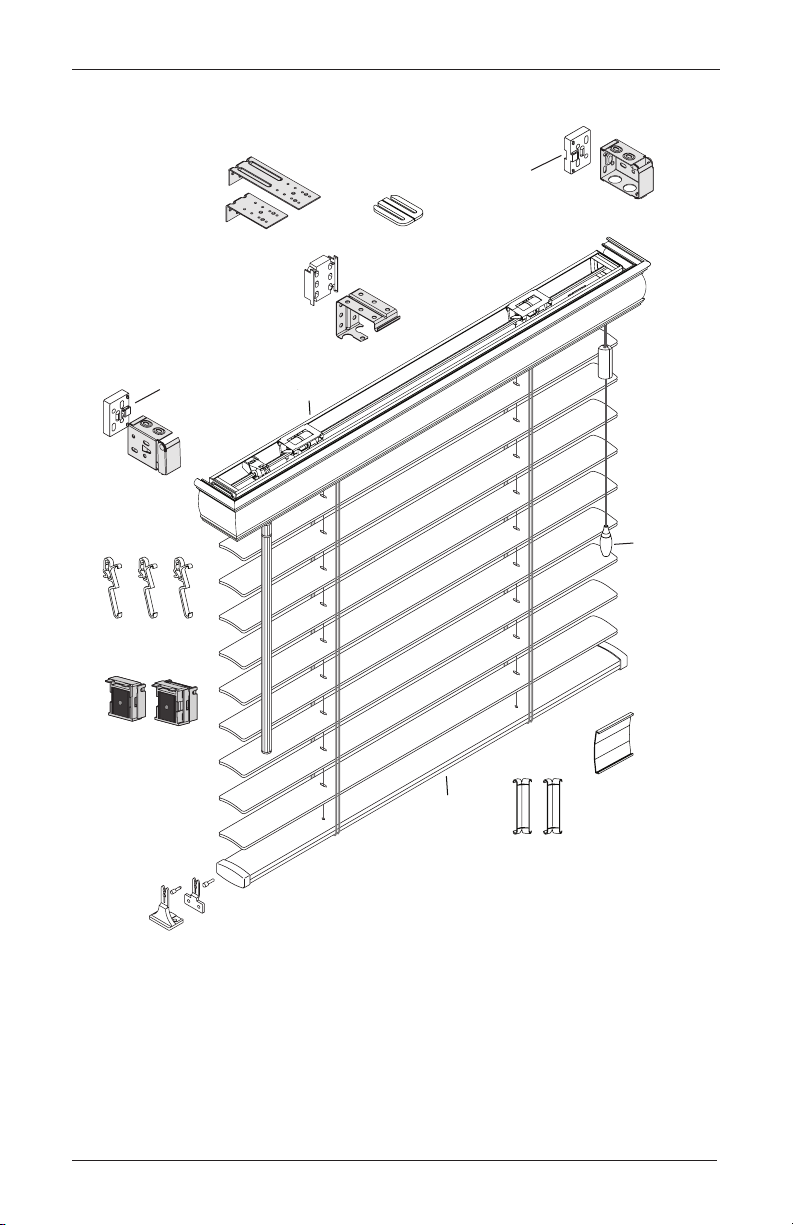

Product View — Reveal®with MagnaView®
End
Bracket
Decorative
Valance
End
Bracket
Intermediate
Bracket
(If Required)
Bracket
Shim
(Optional)
2" or 4" Extension
Brackets (Optional)
Valance Splice
(If Required)
Universal
Valance Clips
Corner Clips for
Valance Returns
(If Required)
End Bracket
Spacer Block
(Optional)
Intermediate
Bracket
Spacer Block
(Optional)
End Bracket
Spacer Block
(Optional)
Magnetic
Valance Clips*
*Magnetic valance clips come standard with the Artemis™wood valance.
Hold-Down
Brackets
and Pin
(Optional)
Tassel
Headrail
Bottom Rail

GETTING STARTED
2
Product View — Natural Elements®with MagnaView®
Bracket
Shim
(Optional)
End
Bracket
Artemis™
Valance
End Bracket
Spacer Block
(Optional)
End Bracket
Spacer Block
(Optional)
Hold-Down
Brackets
and Pin
(Optional)
Intermediate
Bracket
Spacer Block
(Optional)
2" or 4" Extension
Brackets (Optional
)
V
alance Splice
(If Required)
Corner Clips for
Valance Returns
(If Required)
Intermediate
Bracket
(If Required)
End
Bracket
Magnetic
Valance Clips
Bottom
Rail
Headrail

GETTING STARTED
3
Thank you for purchasing Hunter Douglas horizontal blinds. With proper installation,
operation, and care, your new blinds will provide years of beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before
beginning the installation.
Tools and Fasteners Needed
■ Ballpoint pen
■
1
⁄ 4 " hex, flat blade, and Philips screwdrivers
■ Level (laser level is recommended)
■ Measuring tape and pencil
■ Power drill,
3
⁄ 32 " drill bits, and
1
⁄ 4 " hex driver

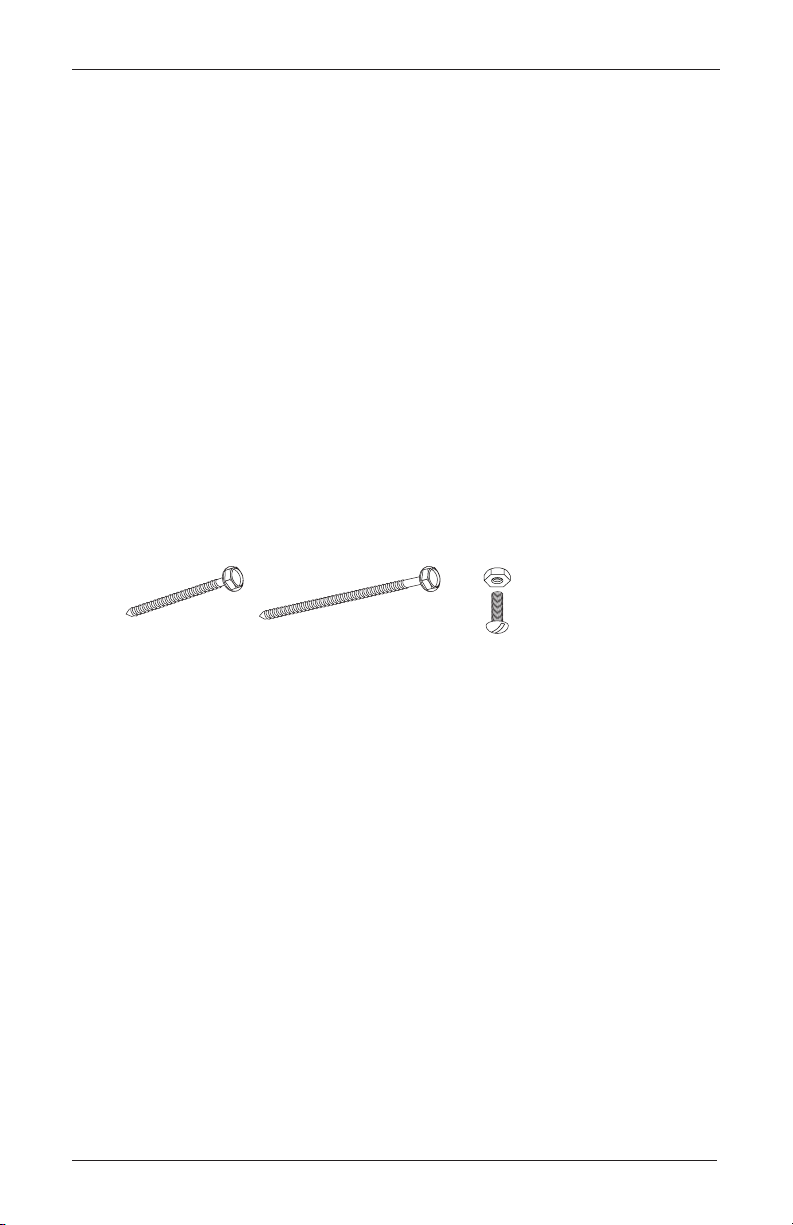

In addition, you will need fasteners designed to work with your specific mounting surface(s).
■ #6 Hex Head Screws (Provided). Two 1
1
⁄ 2 " screws are provided per installation bracket.
■ Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws
long enough for a secure attachment.
■ Nuts and Screws (Provided). Extension brackets come with nuts and screws.
Unpack the Blind
■ Remove the blind from the package. Keep the packaging until the blind operates to your
satisfaction.
■ Refer to the packing list and check for all necessary parts.
■ Contents of your hardware package may vary depending upon the options chosen.
Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 1
1
∕ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)

INSTALLATION
4

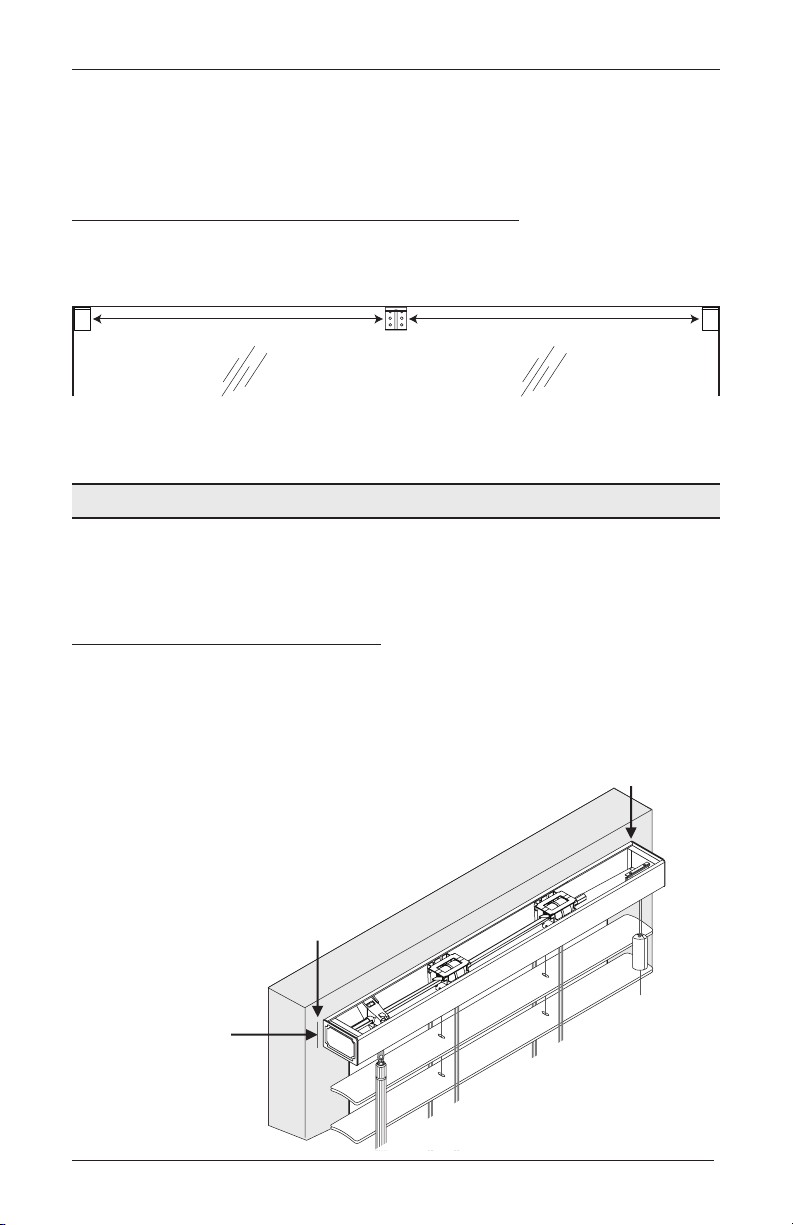

Installation Overview
■ Two end brackets are used to mount horizontal blinds.
Wider blinds also require one or two intermediate
brackets, as shown in the tables below.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■ Refer to the appropriate page below based on your order:
➤ Inside or Ceiling Mount — Page 5
➤ Outside Mount — Page 6
Outside Mount
Blind mounts
outside window
opening.
Inside Mount
Blind fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
Width of Blind
Intermediate
Brackets
Up to 48" 0
48
1
⁄ 8 " – 96" 1
96
1
⁄ 8 " – 122" 2
Reveal®with MagnaView ®
Natural Elements®with MagnaView
Intermediate
Bracket
End
Bracket

INSTALLATION
5
Mount the Installation Brackets — Inside or Ceiling Mount
Bracket Shims (Optional)
Bracket shims are used to gain clearance for valance
clips with inside or ceiling mounts. One shim for each
end bracket and two shims for each intermediate bracket
are included.
■ With each end bracket, first fold the shim and then
position it on top of the end bracket to gain the
required clearance.
■ With each intermediate bracket, stack two
unfolded shims.
NOTE: Bracket shims may also be used to level
the blind whenever the mounting surface is
uneven. The shims can be cut along their fold
line to make them thinner.
Attach the End Brackets
With inside or ceiling mounts, attach the two end brackets flush against the sides of the
window casement or to the ceiling. Choose the most appropriate of the following mounting
methods:
■ Side/Top Mount (Inside mount only): Mount the end brackets with one screw through
a side hole and one screw through a top hole, as shown below left.
■ Side Mount (Inside mount only): Mount the end brackets with two screws through
diagonal side holes.
■ Top Mount (Inside or ceiling mount): Top mount the end brackets with screws through
the two top holes, as shown below right.
■ Ceiling mount only: If the end brackets are flush with the back wall, attach them with
one screw through a top hole and one through a rear hole.
One Shim
Folded Over
Two Shims
Stacked
End
Bracket
Intermediate
Bracket
One Shim
Folded Over
Two Shims
Stacked
End
Bracket
Intermediate
Bracket
Side/Top
Mount
Top Mount

INSTALLATION
6
■ Use a
3
⁄ 32 " drill bit to drill holes for the mounting screws.
■ Attach the end brackets using the screws provided.
IMPORTANT: The front edges of the end brackets must align.
Attach the Intermediate Brackets (If Required)
■ Evenly space the intermediate bracket(s) between the two end brackets.
➤ Adjust spacing if needed to avoid interference with internal headrail mechanisms.
■ Attach the intermediate bracket(s) with two screws through diagonal top holes.
IMPORTANT: The rear of the end brackets and intermediate bracket(s) must align.
Proceed to "Install the Blind" on page 9.
Mount the Installation Brackets — Outside Mount
To attach the end brackets, a flat vertical surface of at least 1
3
⁄ 4 " is required.
Mark the End Bracket Locations
■ Mark where the ends of the headrail will be located.
➤ Center the headrail over the window opening at the desired height.
Use a pencil to lightly mark each end of the headrail.
➤ Alternatively, measure the width of the headrail and use that
width to mark the headrail end points over the window opening.
■ Make a second mark
1
⁄ 4 " to the outside of the headrail
end marks. The outer marks are where the outside edges
of the end brackets will be located.
Mark
Mark
Measure and Mark
1
∕ 4 " Out from
Ends of Headrail
Intermediate
Bracket
End
Bracket
End
Bracket
Space Evenly Space Evenly

INSTALLATION
7
Attach the End Brackets
■ Align the outside edge of each end bracket with the outer marks and mark diagonal screw
holes.
➤ Use a
3
⁄ 32 " drill bit to drill holes for the mounting screws.
■ Attach the end brackets using two screws through diagonal holes.
➤ If using spacer blocks, use #6
screws long enough for a secure
installation (2
1
⁄ 2 " long screw
recommended).
IMPORTANT: The tops of the end
brackets must align.
CAUTION: The rear of the end brackets
or spacer blocks must be flush against a
flat mounting surface. Do not mount end
brackets on acurved molding.
Attach the Intermediate Brackets (If Required)
■ Evenly space the intermediate bracket(s) between the two end brackets.
➤ Adjust spacing if needed to avoid interference with internal headrail mechanisms.
■ Attach the intermediate bracket(s) with
two screws through diagonal holes.
IMPORTANT: The tops of the end brackets
and intermediate bracket(s) must align.
Intermediate
Bracket
End
Bracket
End
Bracket
Space Evenly Space Evenly

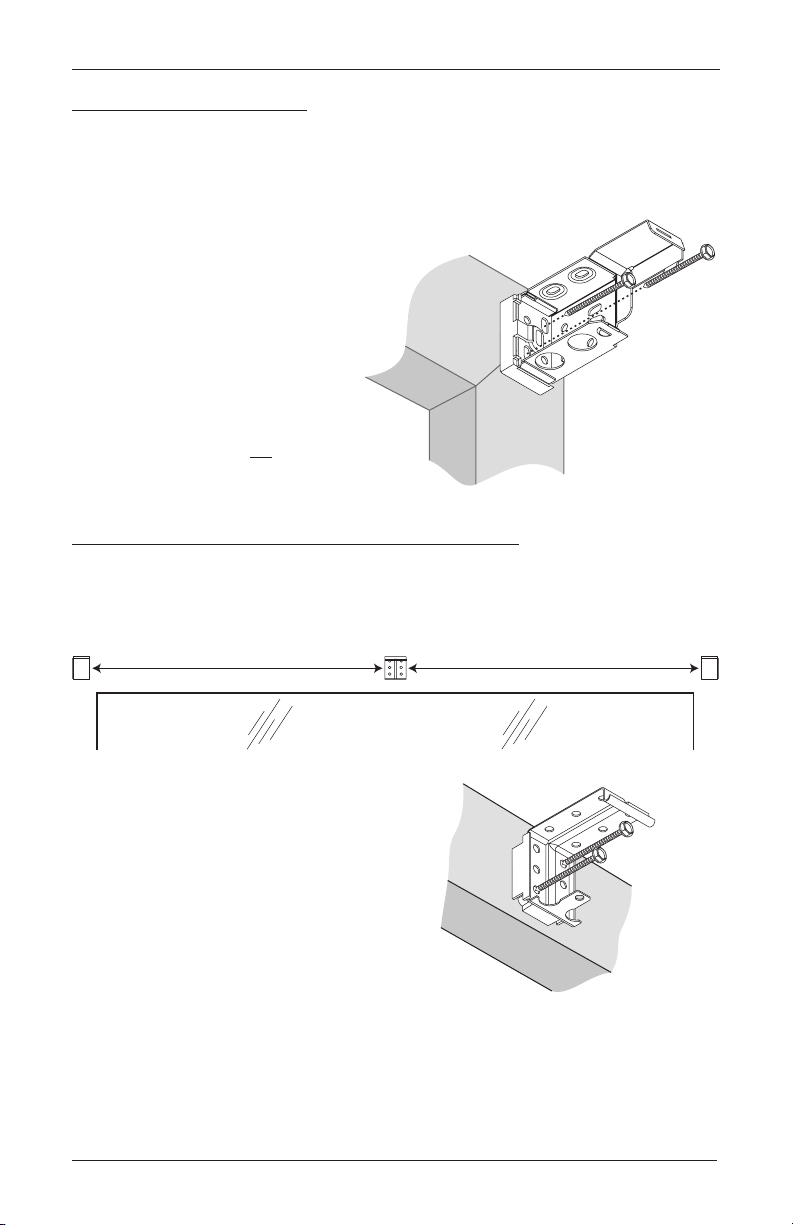

INSTALLATION
8
Extension Brackets (Optional)
Attach 2" or 4" extension brackets to the mounting surface in the same locations where the
end brackets and intermediate brackets would be attached.
■ Use the provided screws to mount each extension bracket.
IMPORTANT: The tops of the end brackets and intermediate bracket(s) must align.
■ Attach the installation brackets to the extension brackets using the screws and nuts
provided, as shown below.
Spacer Blocks (Optional)
Spacer blocks are used when additional
clearance (up to
3
⁄ 8 ") is needed.
■ Attach a spacer block to each of the
two end brackets.
■ If one or more intermediate brackets
is required (see chart on page
4), attach a spacer block to each
intermediate bracket.
■ If extension brackets will be used, it
is not necessary to attach spacer blocks.
Proceed to "Install the Blind" on page 9.
End Bracket
with 2" Extension Bracket
Intermediate Bracket
with 2" Extension Bracket
End and Intermediate Brackets
with 4" Extension Bracket
End Bracket
Intermediate
Bracket

INSTALLATION
9
Install the Blind
Adding Projection to the Valance

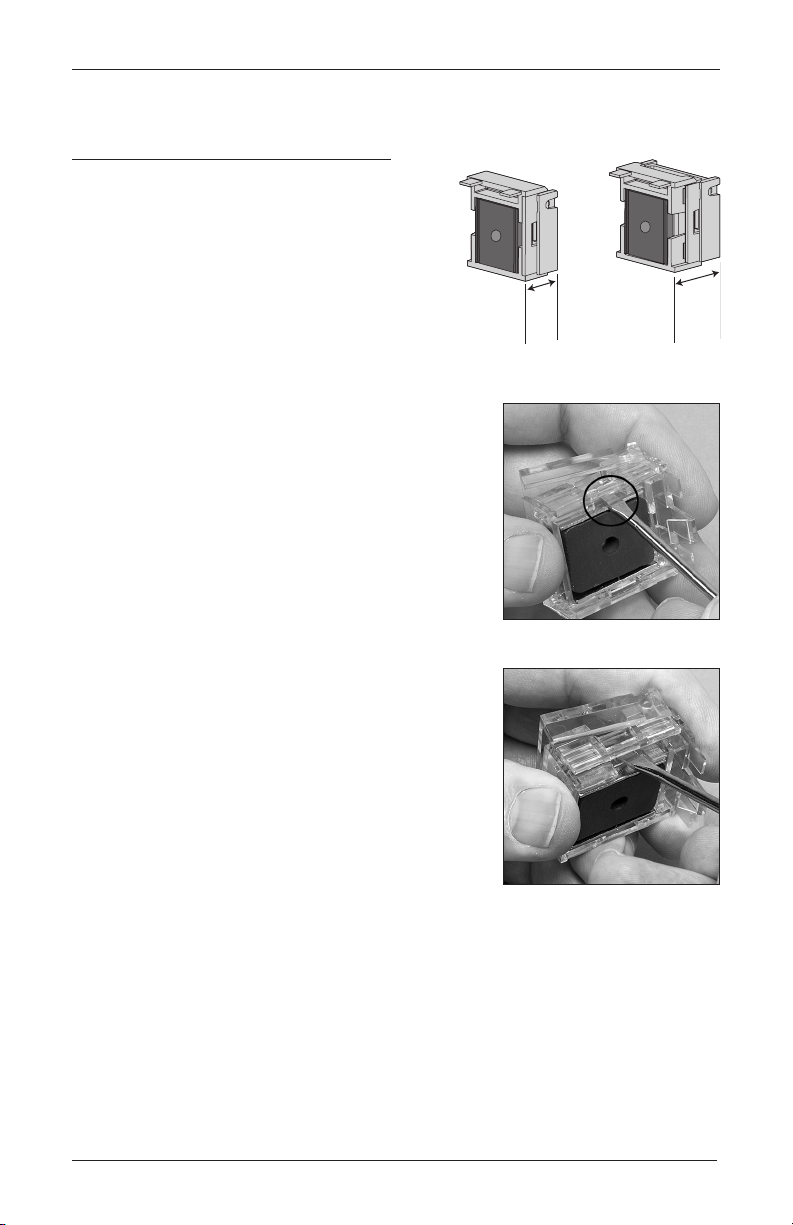

The magnetic valance clips have a projection
adjustment feature. By pulling the clips outward, the
clips can provide an additional
1
⁄ 4 " projection.
The clips offer two projection positions. When the clips
are fully compressed, the narrowest projection is
5
⁄ 8 ".
The widest projection is
7
⁄ 8 " .
■ Insert a small flat blade screwdriver into the slot on
one side of the magnet making sure the screwdriver
is all the way down in the slot.
■ Push the screwdriver in toward the magnet and then
pull out to extend the clip.
■ Repeat on the other side until the magnet is level.
5
∕ 8 "
Narrow Projection
7
∕ 8 "
Wide Projection

INSTALLATION
10

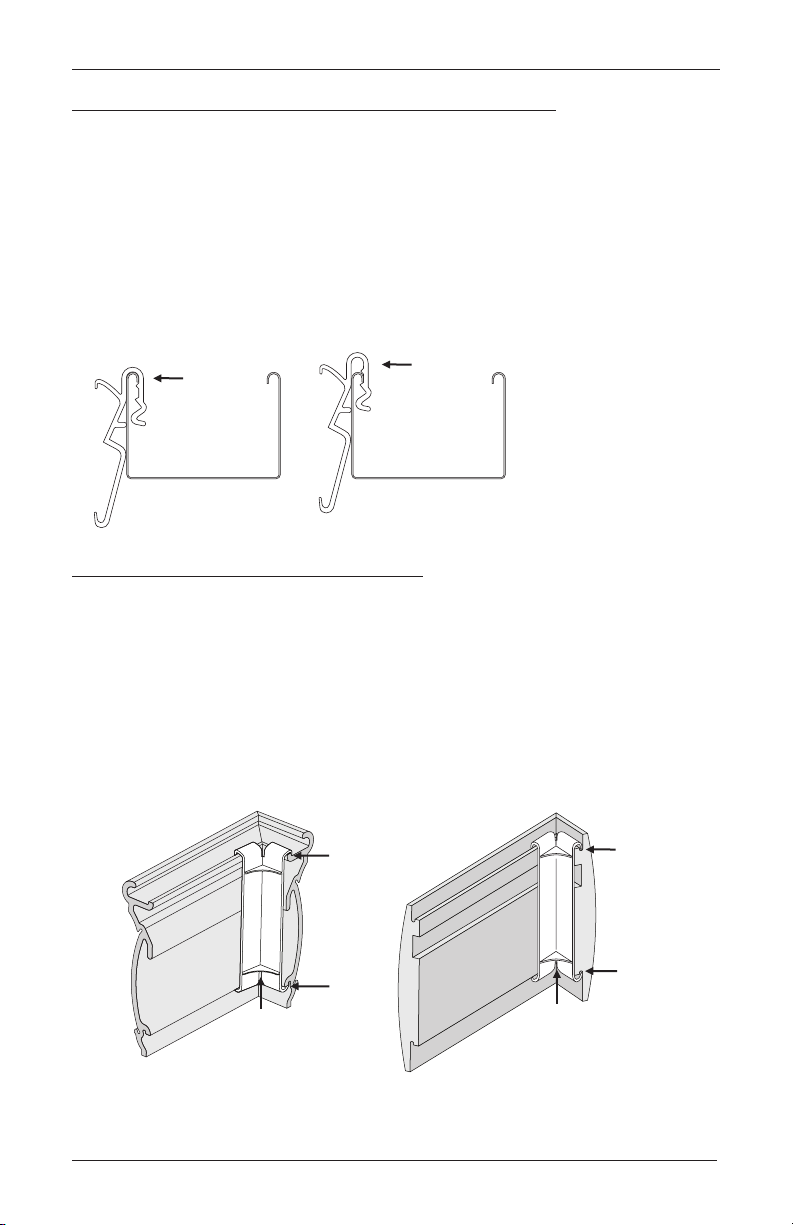

Attach the Magnetic Valance Clips to the Valance
■ Lay the valance face down on a protected
surface with the back side up.
■ Insert the clip dovetail into the valance
groove.
■ Twist the clip until it is straight with the
clear tabs at the top of the valance.
➤ There are at least two clips per valance.
For valances narrower than 36", position
clips 5
1
⁄ 2 " in from the ends of the valance.
For valances 36" or wider, position the
clips 10" in from the ends of the valance.
Additional clips should be spaced evenly
between the two end clips.

INSTALLATION
11
Attach the Universal Valance Clips to the Headrail
With fully recessed inside or ceiling mounts, the universal valance clips must be installed
before mounting the headrail.
■ Attach clips 3" to 6" from each end of the headrail. Avoid any internal components.
■ Space additional clip(s) evenly between the two end clips so that they are no more than
36" apart.
■ Do not place the clips where they could interfere with internal headrail mechanisms.
■ If desired, the valance may be positioned
1
⁄ 4 " higher by raising the clips one notch up, as
shown in the illustration below right.
Attach the Corner Clips (If Required)
If the valance came with returns, connect the returns to the valance using the corner clips
provided.
■ The notches on the back of the valance and valance returns fit into the grooves of the
corner clips.
■ Slide one end of each clip onto the back of the valance until the center of the clip aligns
with the edge of the miter cut at each end.
■ Slide a return onto each corner clip until its miter is flush against the miter on the valance.
Standard
Position
Raised Clip =
Higher Valance
Miters Meet
Valance
Return
(Cross-
Section)
Corner
Clip
Decorative Valance Artemis™Valance
Valance Notch
Notch
Miters Meet
Notch
Valance
Return
(Cross-
Section)
Notch
Valance
Corner
Clip

INSTALLATION
12

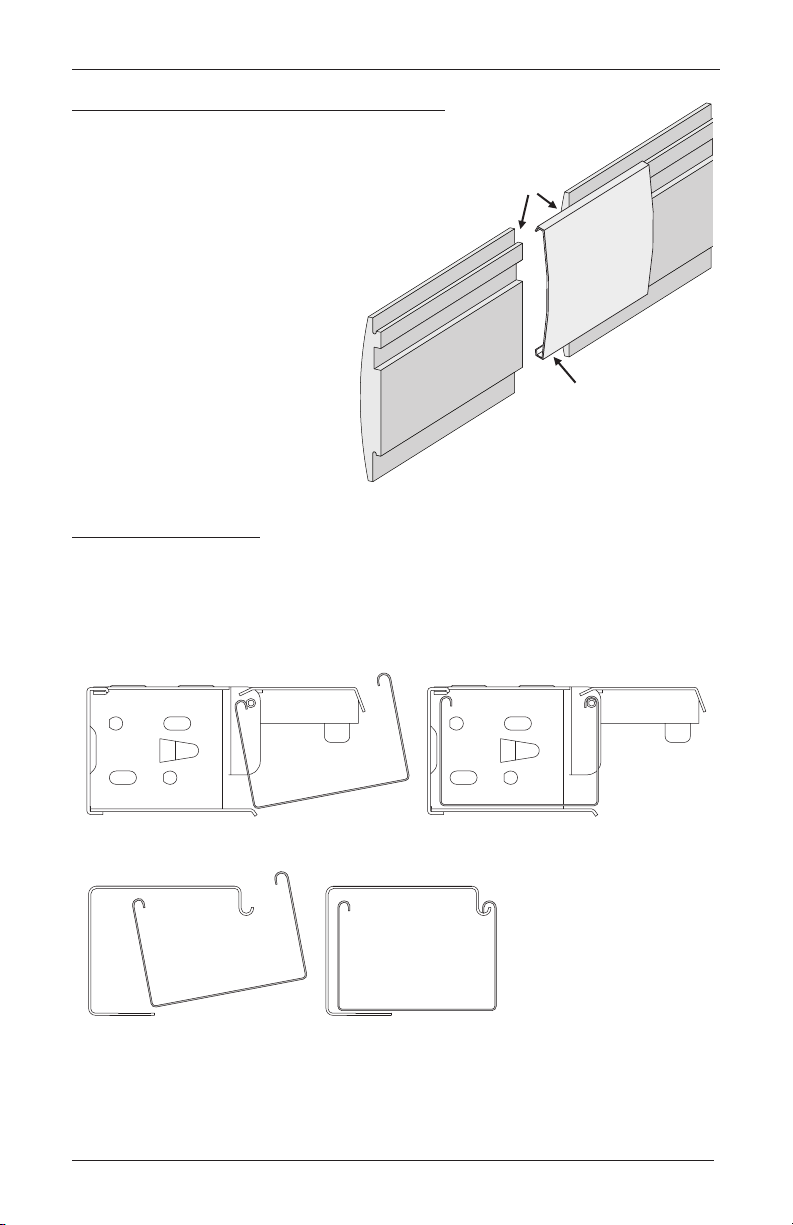

Attach the Valance Splice (If Required)
For valances that are spliced, join the two mitered valance pieces
together by sliding the valance splice clip over the back of the
valance where the two halves meet.
Mount the Headrail
■ Tilt the headrail so that its back lip slides under the front lip of the end brackets and
intermediate bracket(s).
■ Push the headrail against the back of the end brackets.
■ Check that the front lip of the intermediate bracket(s) is under the front lip of the headrail.
Valance
Splice Clip
Miters
End Bracket
Intermediate Bracket

INSTALLATION
13
Adjust the Headrail Tightness
■ If the headrail is loose in the end brackets, bend
the tabs on the end brackets outward.
NOTE: The tabs may also be bent inward if the
headrail is difficult to install into the end brackets.
Close the End Brackets
■ Push the cover down until it snaps over the locking
tab on the bottom of the end bracket.
Open the End Brackets (If Necessary)
■ To open the end brackets, insert a flat blade screwdriver
between the bottom of the cover and the quick release tab,
and twist.
➤ You can also push up on the bottom of the end bracket to
release the locking tab.
Proceed to “Complete the Installation” on page 13.Complete the
Installation

INSTALLATION
14
Attach the Wand (If Ordered)
If the blind was ordered with a wand tilter, attach the wand to the metal shaft.
NOTE: Wands may appear different from the illustration, but assembly is the same.
■ Pull the plastic sleeve from the top of the wand and insert it over the metal shaft.
■ Insert the hook on the wand through the hole in the metal shaft.
■ Slide the plastic sleeve down over the hook until firmly seated.
■ Test the wand tilter.
Attach the Valance with Magnetic Valance Clips to the Headrail
■ Align the valance to the headrail.
■ Hold the valance securely from the front side with both hands.
■ Position the clips to the top-front lip of the headrail until
it is level and in position.
■ Press the valance gently forward, just enough so the clips
adhere to the headrail.
■ The magnetic valance clips allow for limited valance height
adjustments by carefully sliding the clip up or down while the
magnets are adhered to the headrail. The clip’s tabs rest on
the top-front lip of the headrail, keeping the valance level and
preventing the valance from adjusting lower beyond that point.
■ To remove the valance, gently pull the valance up and toward you.
CAUTION: The entire surface area of the magnet inside each clip needs to maintain
clean contact with the front surface area of the headrail at all times.
Plastic
Sleeve
Hook
Metal
Shaft
Slide
Sleeve
Over
Shaft
Hook
Through
Hole
Slide
Sleeve
Over
Hook
W
and

INSTALLATION
15
Attach the Valance with Universal Valance Clips
■ Tilt the valance to insert its bottom notch into the bottom part of the clips.
■ Pulling the valance slightly downward, insert the top notch of the valance into the clips,
as shown.
■ To remove the valance, gently pull the valance downward to release it from the top of the
clips. Rotate the top of the valance toward you. Lift up the valance to release it from the
bottom of the clips.
Attach the Hold-Down Brackets (Optional)
■ For a wood bottom rail, the bottom rail will come with pre-drilled
3
⁄ 32 " holes and
hold-down pins that have been inserted in the center of the bottom rail ends. For an
aluminum bottom rail, push out the perforated pin plug from each bottom rail end cap
using a ballpoint pen or similar pointed object.
NOTE: Bottom rail design varies by product.
■ To mount the hold-down brackets, first fully lower the blind. Align the hold-down brackets
with the pins in the bottom rail.
➤ Align the pins with the second slot.
■ Maintain the second slot alignment as you attach the hold-down brackets to the jamb, sill,
or outside mounting surface.
■ Slide the hold-down pins into the second slot or hole on the hold-down brackets.
■ The first slot of the hold-down brackets may be used in place of a spacer block.
Bottom
Notch
Top
Notch
Bottom
Notch
Top
Notch
Reveal®with MagnaView®Decorative Valances
Aluminum Natural Elements™Blinds Artemis™Valances
Jamb
Mount
Second
Slot
First
Slot
Sill
Mount
Outside Mount

INSTALLATION
16

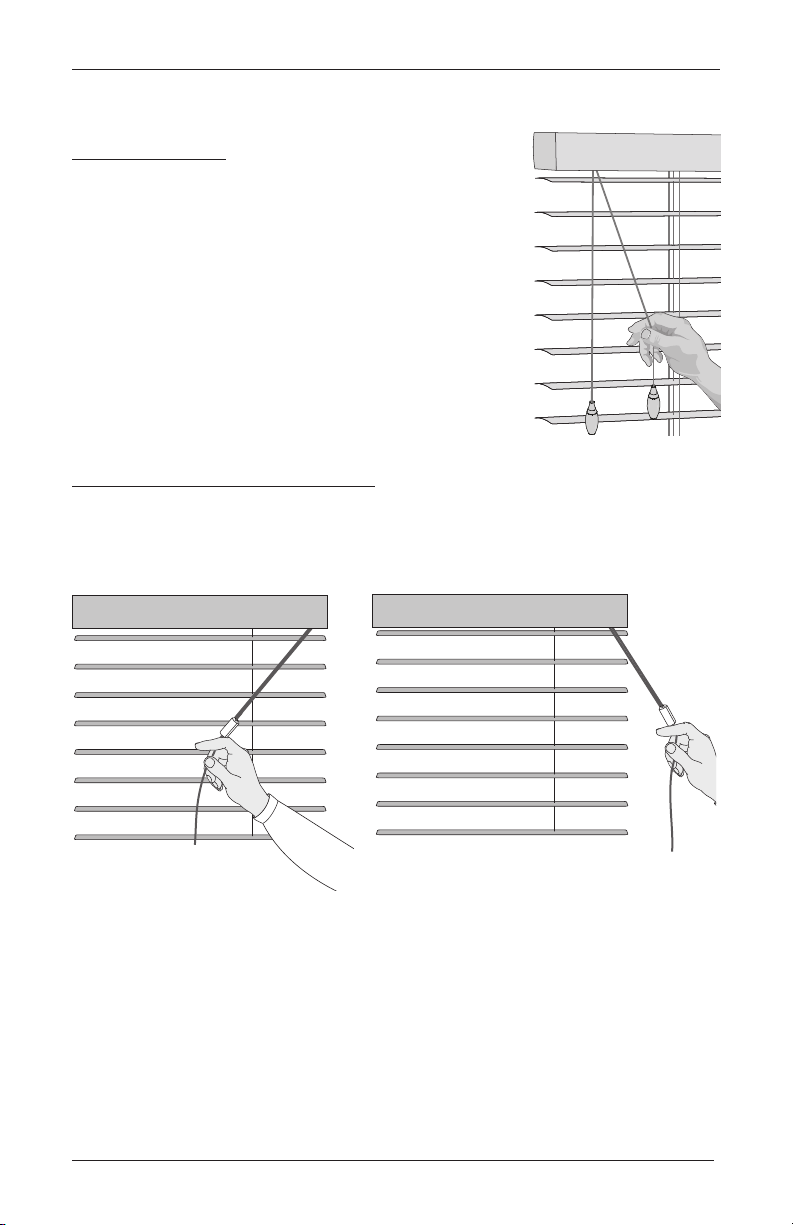

Operate the Blind
Tilting the Slats
After installation, tilt the slats from fully closed in one
direction to fully closed in the other. Repeat three or four times
to calibrate the tilt mechanism to ensure proper stacking.
■ Wand tilt (not shown): Rotate the wand to tilt the slats to
the desired angle.
■ Cord tilt: The two cords with individual tassels are for tilting
the slats. Each cord tilts the slats in an alternate direction.
Raising and Lowering the Blind
IMPORTANT: Whenever raising or lowering the blind, the slats must be in the open position.
■ Pull the single cord down and toward the center to raise and lower.
■ Hold the single cord to the outside to lock the blind in position.
Raise and
Lower
Lock into
Position

OPERATION
17
Troubleshooting
If your blind is not operating correctly:
■ First review the guide that came with your control device.
■ Refer to the following troubleshooting procedures for specific solutions for your blind.
If questions remain, please contact Hunter Douglas Consumer Support at 1-888-501-8364.
Problem
The blind will not fit into the installation brackets.
Solution Check that the installation brackets are level and aligned. Adjust and/or shim
to level, if necessary.
Be sure the heads of the mounting screws are flush against the installation
brackets.
Check that the headrail is completely inserted into the installation brackets.
See “Mount the Headrail” on page 11.
Problem
The blind does not tilt.
Solution Check that the tilt cords are not tangled or knotted.
Check that the cords have not become disengaged from the tape rolls.
Check that the tilt rod in the headrail is fully inserted into the tilt gear.
Problem
The blind does not raise or lower evenly.
Solution Check inside the headrail. Make sure no obstructions keep the mechanism
from turning.
Check that the lift cords are not pinched or tangled.
Problem
Lift cords are bunching by the safety cord connector.
Solution Make sure the slats are in the open position. Raise and lower the blind to
straighten the lift cords.
Problem
Lift cords are stuck or jammed.
Solution Check the cords and the movable pin in the cordlock mechanism inside the
headrail of the blind. Make sure the cords can move freely. If the cords are
jammed, use a screwdriver or needle-nose pliers to move the pin and free
the cords.

OPERATION
18
Problem
When hanging, the slat pack appears to be skewed toward the cordlock
side of the unit, particularly in an inside mount installation.
Solution Slide the headrail in the end brackets in the opposite direction of the skew
and adjust the tabs in the end brackets to maintain the position of the unit.
This will center the slat pack in the window.
