HunterDouglas Vignette Modern Roman Shades Parts list manual

Installation • Operation • Care
Vignette
®
Modern Roman Shades
Rolling Style Duolite
®
Shades
PowerView
®
Gen 3 Automation

CONTENTS
Questions?
Call Hunter Douglas Consumer Support at [phone].
© 2022 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or
their respective owners.
GETTING STARTED...............................................................1
Product View..........................................................................1
Tools and Fasteners Needed ................................................2
INSTALLATION ......................................................................3
Installation Overview.............................................................3
STEP 1 — Mount the Installation Brackets ..........................3
Mount the Installation Brackets — Inside Mount................4
Mount the Installation Brackets — Outside Mount .............5
STEP 2 — Remove the Shipping Clips..................................7
STEP 3 — Install the Shade..................................................8
STEP 4 — Connect the Power Source ................................10
Test the Shade.....................................................................17
OPERATION..........................................................................18
Operate the Shade...............................................................18
Operating the PowerView App and Gen 3 Remote.............18
Resetting the Shade (If Necessary).....................................20
TROUBLESHOOTING ..........................................................21
CARE......................................................................................28
Removing the Shade............................................................28
Cleaning Procedures............................................................28
DECLARATIONS...................................................................30
CHILD SAFETY.....................................................................31
WARRANTY .........................................................................32

GETTING STARTED
1
Product View
Battery
Wand
Battery
Wand Clips
Installation
Brackets
Power Cable*
Front Shade
Bottom Rail Bottom Rail
Weight Clips
Bottom Rail
Weight
Spacer
Blocks
*The power cable, PowerView®Gen 3 motor, and control button are always located on the right side of
the headrail.
Back Panel
Bottom Rail
Front
Shade
Front
Shade
Bottom
Rail
Back Panel
Control
Button*
Headrail
Rear of Front Shade

2
GETTING STARTED
Thank you for purchasing Hunter Douglas Vignette®Modern Roman Shades Duolite®with
PowerView®Gen 3 Automation. With proper installation, operation, and care, your new
shades will provide years of beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before
beginning the installation. For information regarding operation and programming, refer to the
guide included with your remote control.
Tools and Fasteners Needed
■
1
⁄ 4 " Hex and Flat blade screwdrivers
■ Level (laser level is recommended)
■ Measuring tape and pencil
■ Power drill,
3
⁄ 32 " drill bit, and
1
⁄ 4 " hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■ #6 Hex Head Screws (Provided). Two 1
1
⁄ 2 " screws are provided per installation bracket.
■ Longer Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment.
■ Speed Nuts and Screws (Provided). Extension brackets are supplied with screws and
speed nuts.
■ Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 1
1
⁄ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)

INSTALLATION
3
Installation Overview
To install your shade, you will need to perform the following four steps:
STEP 1: Mount the Installation Brackets
STEP 2: Remove the Shipping Clips
STEP 3: Install the Shade
STEP 4: Connect the Power Source
STEP 1 — Mount the Installation Brackets
■ Your order includes the correct number of installation brackets for your shade width, as
shown in the table below.
■ Shade orders will also include spacer blocks if ordered for added clearance.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the shade installation process
follows easily. To prepare for this important first step, review the mounting types and basic
window terminology illustrated below.
■ Refer to the appropriate page below based on the mounting type chosen for your order:
➤ Inside Mount — page4
➤ Outside Mount — page5
Shade
Width
Brackets
Required
18" – 26" 2
26
1
⁄ 8 " – 47" 3
47
1
⁄ 8 " – 68" 4
68
1
⁄ 8 " – 84" 5
Spacer Blocks
Installation Bracket
1
⁄ 2 "
1
⁄ 4 "
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

INSTALLATION
4
Mount the Installation Brackets — Inside Mount

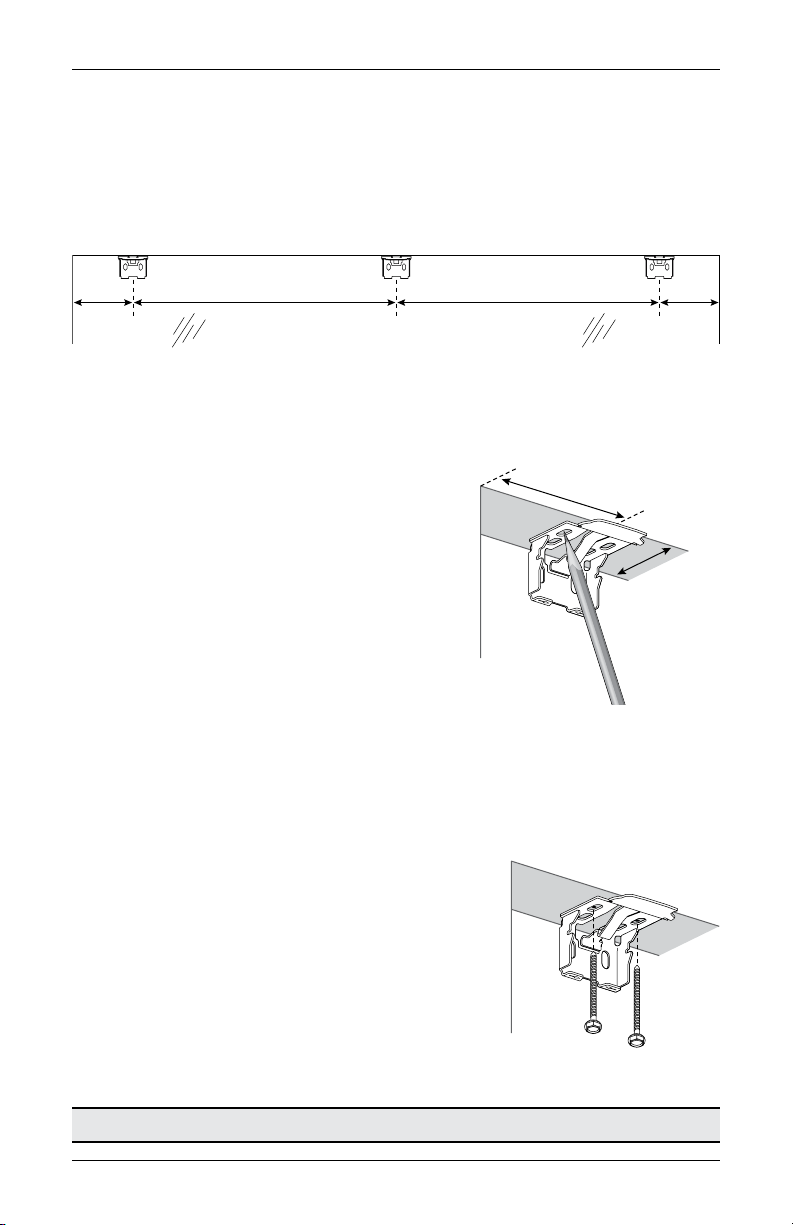

■ Measure and mark 3" in from each jamb (two bracket widths) for bracket location.
➤ If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark the location. Mount into wood
whenever possible. Allow a minimum of 18" between bracket center lines
(motor side) for the battery wand/rechargeable battery wand.
Recommended Best Practice: To enhance ease of installation, position the front edge of
the installation bracket approximately
1
⁄ 4 " into the room.
■ Center the brackets on your marks, then mark the screw hole locations.
➤ The minimum casement depth for installation
brackets is 1" (1
3
⁄ 8 " with battery wand or
headrail-mounted rechargeable battery wand).
Mark the rear set of installation bracket
holes with shallow mounting depths.
➤ The minimum casement depth for a fully
recessed mount is 4" (4
1
⁄ 2 " with battery wand or
headrail-mounted rechargeable battery wand).
Mark the front set of bracket holes when
depth permits.
IMPORTANT: For shades with a battery wand and
rechargeable battery wand, allow a minimum of
3
⁄ 4 "
clearance behind the brackets to accommodate the wand.
■ Predrill the screw holes using a
3
⁄ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■ Use a level to check that the mounting surface is
level. Shim (not provided) the brackets if necessary.
■ Using a 1/4" hex, attach the installation brackets
using the screws provided.
IMPORTANT: The front edges of the installation
brackets must align to each other. For the best
experience, mount the brackets with the front lip
outside the window casement.
Proceed to "STEP 2 — Remove the Shipping Clips" on page7.
Jamb Jamb
Window Opening
Space Evenly Space Evenly3" 3"
3"
Minimum
Casement
Depth 1"
Minimum
1
3
⁄ 8 " with
Battery W
and
3"
Minimum
Casement
Depth 1"
Minimum
1
3
⁄ 8 " with
Battery Wand

INSTALLATION
5
Mount the Installation Brackets — Outside Mount
■ Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail.
➤ Alternatively, measure the width of the headrail and use that width to mark the
headrail end points over the window opening.
■ Measure and mark 3" from each end of the headrail.
➤ If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark the location. Mount into wood
whenever possible. Allow a minimum of 18" between bracket center lines
(motor side) for the battery wand/rechargeable battery wand.
■ Center the brackets on your marks, then mark the screw hole locations.
➤ A minimum 1" flat vertical surface is required.
➤ The top of the installation brackets should be
at the desired height. The brackets must be
level and aligned.
CAUTION: The rear of the brackets must be flush
against a flat mounting surface. Do not mount
brackets oncurved molding.
■ Predrill the screw holes using a
3
⁄ 32 " drill bit.
CAUTION: Use drywall anchors when mounting
into drywall.
Window Opening
Space Evenly Space Evenly3" 3"
Headrail End Mark Headrail End Mark
3"

INSTALLATION
6
■ Attach the installation brackets using the screws provided.
IMPORTANT: If using a battery wand or headrail-
mounted rechargeable battery wand, use a minimum
of one
1
⁄ 2 " and one
1
⁄ 4 " spacer blocks per installation
bracket to provide the clearance required for the
battery wand. See the instructions below.

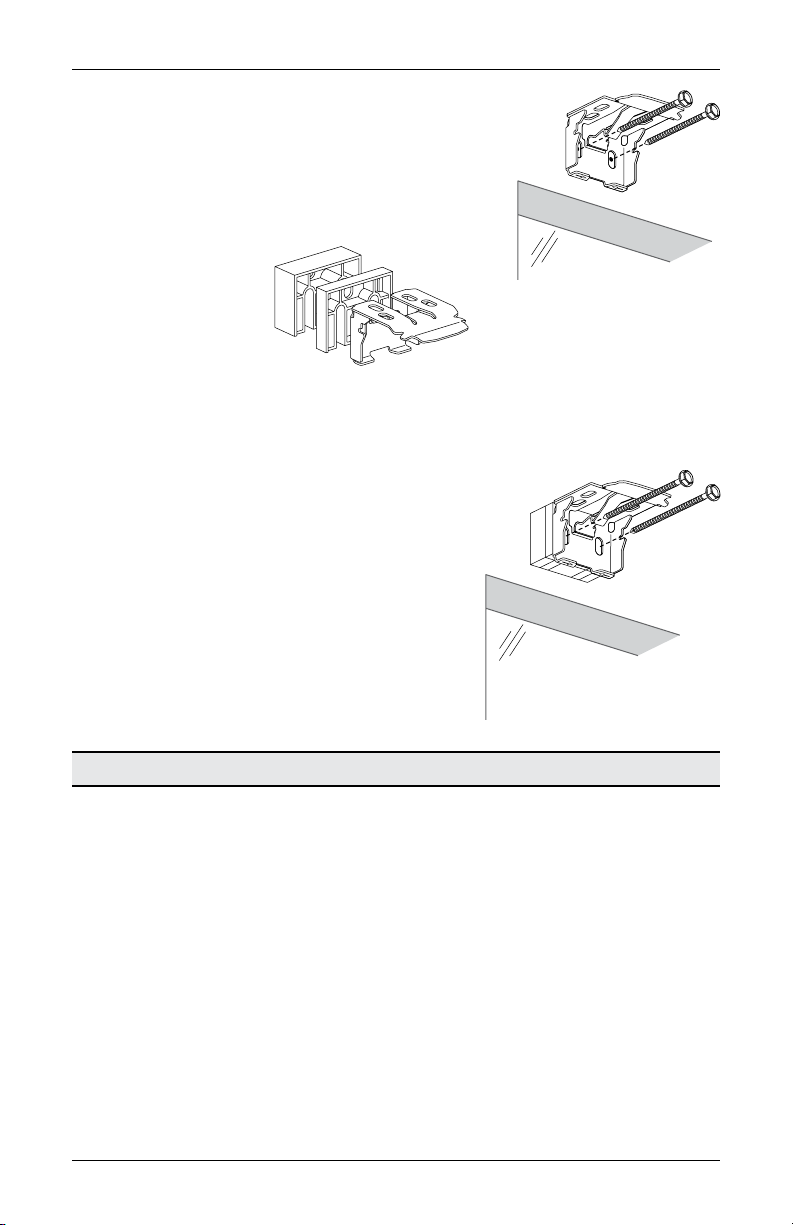

■ If the shade will be powered by a battery wand/rechargeable battery wand:
Attach the installation brackets with both the
1
⁄ 4 " and
1
⁄ 2 " spacer blocks. Use 2" #6 hex
head screws (not provided).
➤ The solid side of the spacer blocks faces the
mounting surface.
➤ If using additional spacer blocks for more
clearance, attach the installation brackets and
spacer blocks with #6 screws long enough for a
secure installation.
IMPORTANT: Do not add more than 1
1
⁄ 2 " of
clearance using spacer blocks.
IMPORTANT: The tops of the installation brackets
must be level with the front edges aligned.
Proceed to "STEP 2 — Remove the Shipping Clips" on page7.
3"
Spacer
Blocks
1
⁄ 2 "
1
⁄
4
"
Spacer
Blocks
Longer
Screws

INSTALLATION
7
STEP 2 — Remove the Shipping Clips
Shipping clips are used to stabilize the back panel
bottom rail during shipping.

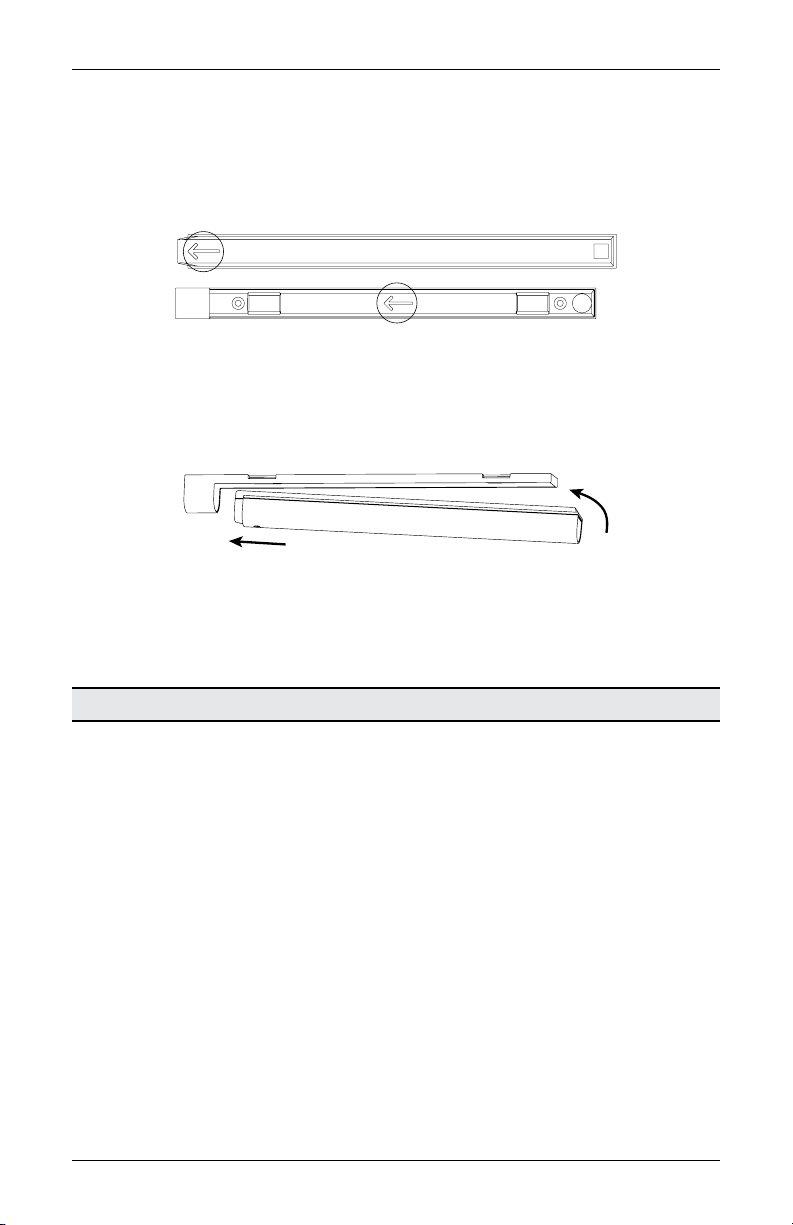

Remove the Top of the Clip
■ Grasp the headrail with one hand and hold the
shipping clip with the other hand.
■ Pull the top of the clip out and up to release it from
the headrail.
Remove the Bottom of the Clip
■ While holding the shipping clip, grasp the back
panel bottom rail with the other hand.
■ Rotate the top of the shipping clip away from the
shade. Gently pull the bottom of the clip down and
away from the bottom rail to remove.

INSTALLATION
8
STEP 3 — Install the Shade
Headrail Attached Battery Wands (If Applicable)
NOTE: Refer to this section only if you have a battery wand that attaches to the headrail.

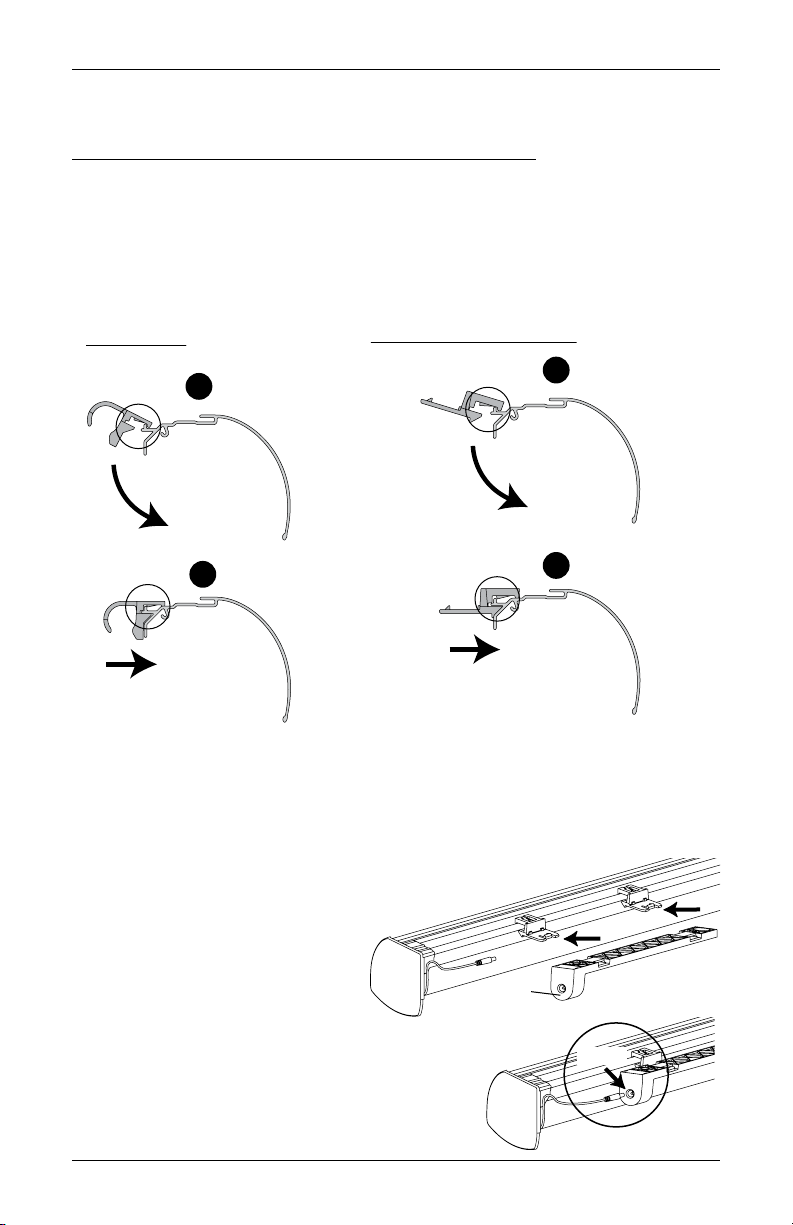

■ Attach each battery wand clip to the rear headrail, avoiding the installation brackets.
NOTE: The battery wand clips can simply slide clear of the installation brackets.

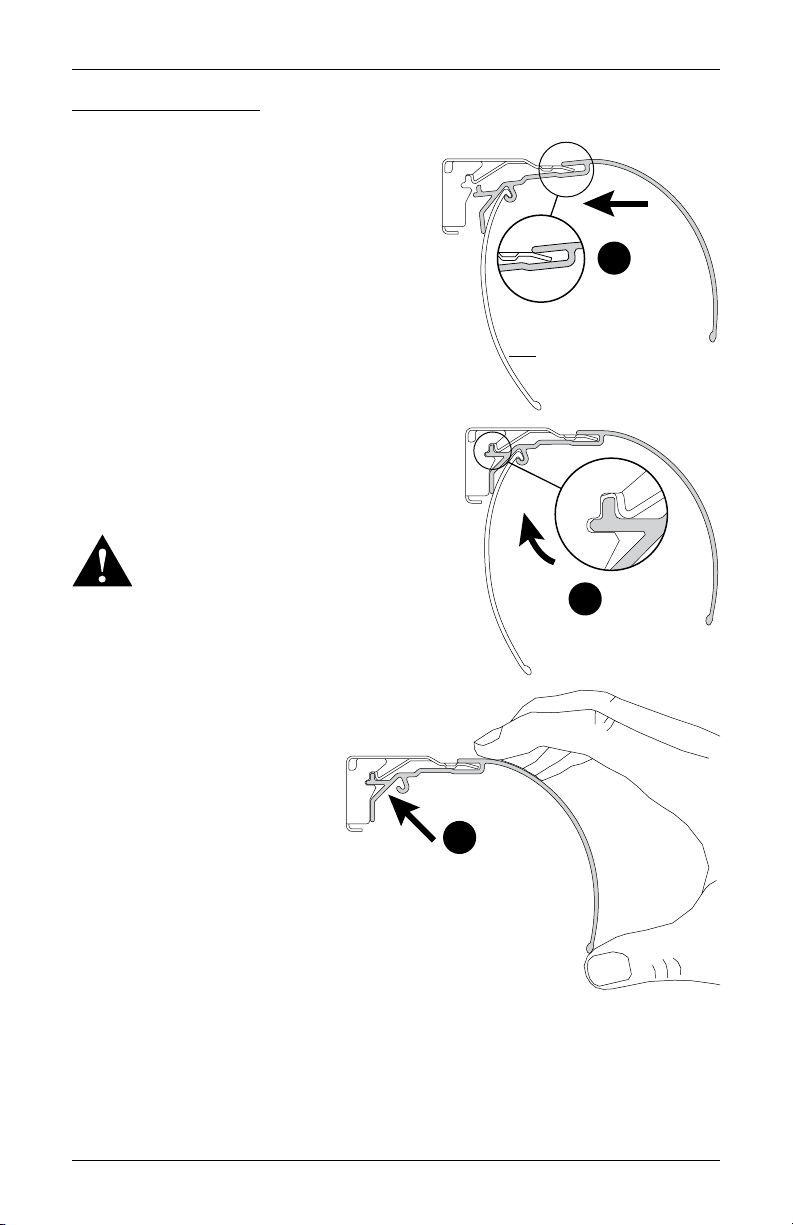

➤ Step 1: Hook the battery wand clip onto the back channel of the headrail.
➤ Step 2: Rotate the clip down until it snaps into place.
CAUTION: Be sure the power cable does not become pinched by the brackets or headrail
during installation; damage or overheating of components could result.
CAUTION: Do not connect the battery wand to the power cable prior to installing
the shade.
Rechargeable Battery Wand (If Applicable)
NOTE: Refer to this section only if you
have a rechargable battery wand.
■ Align the battery mount with the
battery clips, orienting the socket
end towards the right of the shade.
■ Push the battery mount straight
into the battery wand clips until it
snaps into place. Check to make
sure the battery mount is secure.
■ Plug the power cable into the battery mount.
Front of
Headrail
Battery
Wand Clip 1Hook onto
Back Channel
2Snap Clip
into Place
Battery Wand
Front of
Headrail
Rechargeable
Battery W
and
Clip
1Hook onto
Back Channel
Rechargeable Battery Wand
2Snap Clip
into Place
Socket
Back of Shade
Socket

INSTALLATION
9

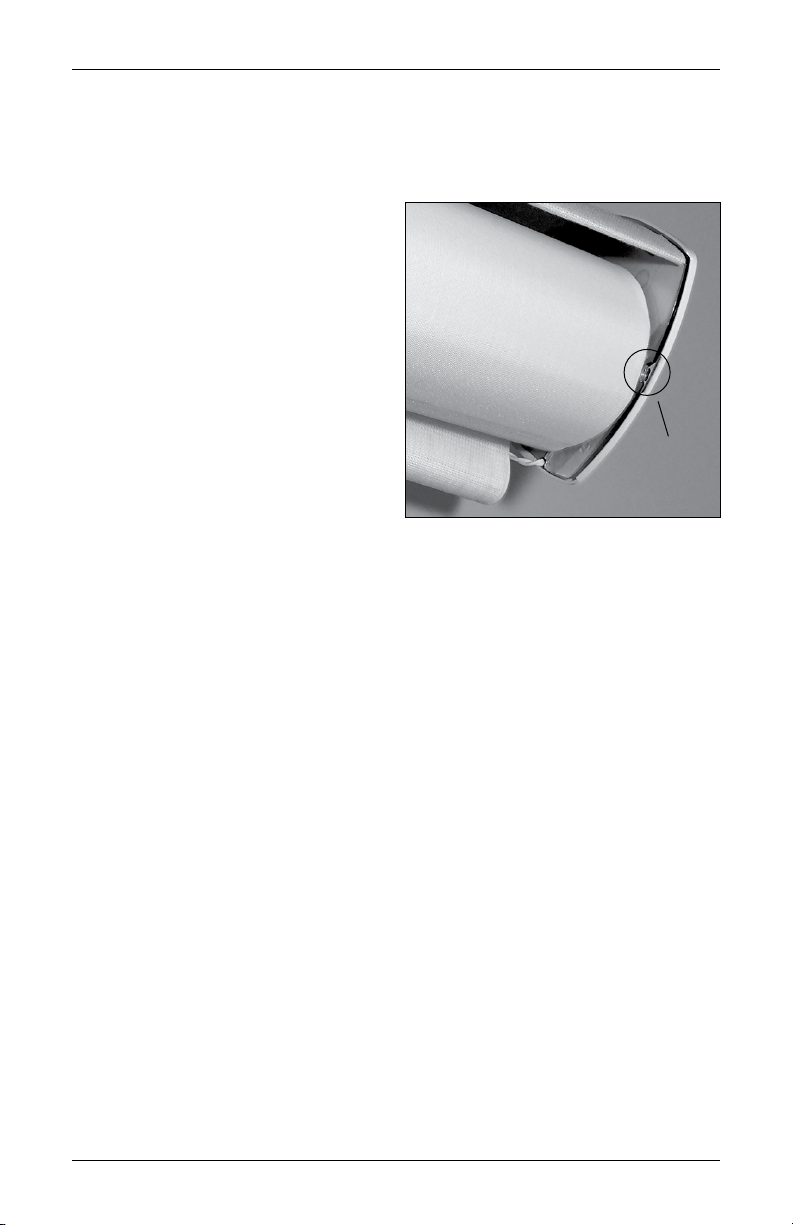

Mount the Headrail
CAUTION: Be sure the cables do not become
pinched by the installation brackets when
mounting the headrail.
■ Peel back the protective covering from the
top of the fabric-covered headrail. Leave
the rest of the protective covering on the
front of the headrail.
■ Hold the headrail so the front (curved side)
faces you.
■ Push the top edge of the headrail into the
installation brackets.
■ Rotate the headrail and push back toward
the window until you hear an audible click.
The click indicates that the back edge of
the headrail is securely seated into the
bracket channel.
WARNING: Failure to snap the
headrail securely into the
installation brackets may cause the
shade to release unexpectedly.
■ Gently pull on the front of
the headrail at each bracket
to ensure that the headrail is
locked into the brackets.
■ Completely remove the
protective covering from the
fabric-covered headrail by
peeling the covering all the way
to one end of the headrail.
Headrail
Installation
Bracket
Fabric Guard
1Front of
Bracket
2Back of
Bracket
3Back of
Bracket

INSTALLATION
10
STEP 4 — Connect the Power Source
NOTE: When power is connected to the motor, a blue LED inside the control button housing
will flash to indicate the shade is ready for operation.
■ Refer to the appropriate page based on the ordered power source.
➤ For a battery wand, see below.
➤ For an optional satellite battery pack, see page10.
➤ For an optional headrail-mounted rechargeable battery wand, see page12.
➤ For an optional satellite-mounted rechargeable battery wand, see page12.
➤ For an optional 18V DC Power Supply, see page15.
➤ For an optional 18V DC Power Supply with daisy-chain connections, see page16.
➤ For an optional C-size satellite battery wand, see the instructions that came with
the unit.
Battery Wand (If Applicable)
NOTE: Refer to this section if your shade includes a battery wand.
Mount the Battery Wand into the Battery Wand Clips
■ Align the battery wand with its
socket toward the motor end on the
shade.
■ Push the battery wand straight up
into the battery wand clips until it
snaps into place. Check to make sure
the battery wand is secure.
CAUTION: Be sure the cable does not become pinched by the battery wand clips during
installation. Damage or overheating of components could result.
Plug the Power Cable into the Battery Wand
■ From the back of the shade headrail,
connect the power cable (from the
motor side) into the socket on the
battery wand.
Proceed to "Operate the Shade" on page18.
Socket
Back of Shade
Socket
Power
Cable
Back of Shade

INSTALLATION
11
Satellite Battery Pack (If Applicable)
NOTE: Refer to this section if your shade includes a battery wand.
Mount the Satellite Battery Pack
■ Decide where you want to attach the wall mount bracket.
A satellite battery pack may be mounted in any orientation.
■ Mark the screw holes.
■ Predrill the screw holes using a
3
⁄ 32 " drill bit.
■ Remove the backing from the double-sided tape on the wall
mount bracket. Press the bracket into place.
■ Attach the bracket using the screws provided.
■ Position the battery wand so the power cable is easily connected to the socket.
■ Snap the battery wand into the bracket.
■ Install the cover with the slot aligned to the socket in the battery wand.
■ Plug the power cable from the shade into the extension cable.
■ Plug the other end of the extension cable into the socket in the battery wand.
Proceed to "Operate the Shade" on page18.
Wall Mount Bracket
Socket
Battery Wand Cover
Slot
Socket
Battery Wand Cover
Extension
Cable
Power Cable
from Shade

INSTALLATION
12
Headrail-Mounted Rechargeable Battery Wand (If Applicable)
NOTE: Refer to this section if your shade includes a battery wand.
Insert the Battery Wand into the Rechargeable Battery Mount
NOTE: The rechargeable battery wand ships fully charged, so it is ready to install out of the
package.
■ Match the direction of the arrow on the underside of the battery wand with the arrow on
the battery mount.
■ Insert the nose of the battery wand into the cavity of the battery.
■ Push the battery wand flush into the mount until the battery snaps into place.
CAUTION: Be sure the cable does not become pinched by the installation bracket or
battery wand clip. Damage or overheating of components could result.
CAUTION: Failing to insert wand properly may cause it to fall out of the mount, posing an
injury risk and potentially damaging the wand. Additionally, when mounting on a door, closing
the door with excess force may cause battery wand to dislodge from the mount, also posing
an injury risk and possibly damaging the wand.
Proceed to "Operate the Shade" on page18.
Back of Shade
Socket

INSTALLATION
13
Satellite-Mounted Rechargeable Battery Wand (If Applicable)
NOTE: Refer to this section if your shade includes a satellite-mounted rechargeable battery
wand.
Install the Rechargeable Battery Mount
■ Decide where you want to attach the rechargeable battery mount. This may be mounted
behind the headrail, or in any desired location near the window covering. A satellite
battery mount may be installed in any orientation.
➤ Make sure the provided cable is long enough to connect the satellite battery mount
and the shade.
CAUTION: The rear of the battery mount must be flush against a flat mounting surface.
Do not install brackets on curved molding.
■ Mark the screw holes.
■ Drill the screw holes using a
3
⁄ 32 ” drill bit.
■ Attach the battery mount using the screws provided.
CAUTION: Only use the screws provided with the battery mount, designed so that the
screws will install flush with the mount. Protrusion of the screws could result in either the
battery wand not attaching properly causing a failure to connect, or the wand falling out
of the mount. Do not over-tighten.
■ Connect the power cable from the motor side into the power socket on the rechargeable
battery mount.
NOTE: With longer cables, wire retainers (not supplied) are recommended to secure the
cable.
2"
Power
Socket
End
Allow 2" at power socket end for the extension cable jack.
Minimum flat mounting area = 15" x 1"
13"
15" Minimum Mounting Length
1"
Battery Mount
Extension
Cable
(If Needed)
Power Cable
from Shade

INSTALLATION
14
Insert the Battery Wand into the Rechargeable Battery Mount
NOTE: The rechargeable battery wand ships fully charged so it is ready to install out of
the package.
■ Match the direction of the arrow on the underside of the battery wand with the arrow on
the battery mount.
■ Insert the nose of the battery wand into the cavity of the battery
■ Push the battery wand flush into the mount until the battery snaps into place.
CAUTION: Be sure the cable does not become pinched by the installation bracket or
battery wand clip. Damage or overheating of components could result.
CAUTION: Failing to insert wand properly may cause it to fall out of the mount, posing an
injury risk and potentially damaging the wand. Additionally, when mounting on a door, closing
the door with excess force may cause battery wand to dislodge from the mount, also posing
an injury risk and possibly damaging the wand.
Proceed to "Operate the Shade" on page18.

INSTALLATION
15

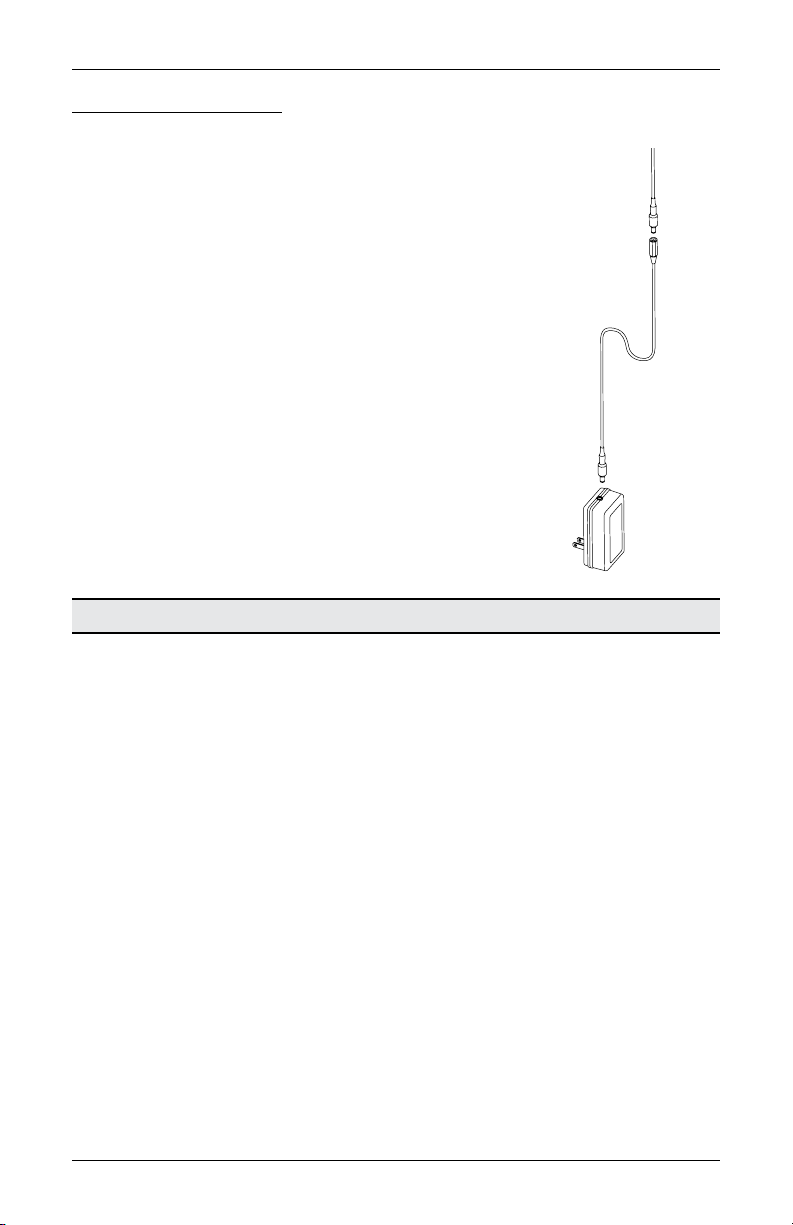

18V DC Power Supply
NOTE: When power is connected to the motor, a blue LED inside
the control button housing will flash to indicate the shade is ready
for operation.
■ Plug the power cable from the shade motor into the extension cable.
■ Plug the other end of the extension cable into the 18V DC power supply.
■ Plug the 18V DC power supply into the power source.
Proceed to "Operate the Shade" on page18.
Power cable
from shade motor
Extension
cable
18V DC
Power
Supply

INSTALLATION
16
18V DC Power Supply with Daisy-Chain Connections
NOTE: The daisy-chain feature is only available with the 18V DC Power Supply option. Refer
to this section if you have an 18V Power Supply with daisy-chain connections.
The daisy-chain feature allows up to three PowerView®Gen 3 automated shades to be
powered by a single 18V DC Power Supply. However, each shade can operate independently.
■ Route the power cables from each shade to the connector, using extension cables if
necessary.
■ Plug an extension cable into the connector and the 18V DC Power Supply. A two-shade
configuration is shown below.
■ Plug the 18V DC Power Supply into a standard outlet.
■ An additional Y Adapter and two additional extension cables are used for three shades.
Proceed to "Operate the Shade" on page18.
Extension
Cable
Y Connector
18V DC Power
Supply
Power
Cable
from
Shade
Extension
Cable

INSTALLATION
17
Test the Shade
Use the control button to test the shade and ensure that the motor and power source are
working correctly. Each press of the control button will initiate one of four shade movements,
in sequential order.
■ The control button can also be used in
combination with the PowerView®App for
control of advanced shade functions and
home access. Open the App, then press
and hold the control button to see a list
of available functions. See "Operating the
PowerView App and Gen 3 Remote" on
page18 for more information.
CAUTION: When raising the shade for the
first time, observe how the fabric rolls up into
the headrail. It should roll up evenly. If the
bottom rail is not level or the shade starts to
rub against either window jamb, immediately
press the control button to stop the shade.
See "Adjusting the Bottom Rail Weight" on
page27.
Control
Button

OPERATION
18
Operate the Shade
The shade can be operated using the control button or the PowerView®Gen 3 remote. A single
control is used to operate both the front shade and the back panel. Operation is sequential.
The front shade must be fully lowered before the back panel can be lowered. Conversely, the
back panel must be fully raised before the front shade can be raised.
Operating the PowerView App and Gen 3 Remote
Syncing and Programming Your Remote
■ Activate the remote by pulling both plastic tabs from the back battery compartment.
■ Download the PowerView®App for your smartphone or tablet at hdpvapp.com.
■ Open the PowerView App and follow the steps to set up your new shades and remote.
■ Use the PowerView App to program and manage your PowerView Gen 3 remote(s)
as accessories.
■ For more details, refer to the digital PowerView Gen 3 Automation Remote Control Guide.
