GETTING STARTED
1
Product View — Cassette Blockout
NOTE: Cassette shades with PowerView®Gen 3 Automation not shown.
Cassette
Installation
Brackets
Cassette
Bottom
Channel
Side
Channel
Side
Channel
Light
Blocker
Wool
Pile
Cord Tensioner
and Mounting
Bracket
(not available in CA)

2
GETTING STARTED
Product View — Fascia Blockout with Custom Clutch
(Not available in CA)
Beaded
Cordloop
Idle-Side
Installation
Bracket
Clutch-Side
Installation
Bracket
Shim
(Outside
Mount
Only)
Idle
Fascia Panel
End Cap
(Optional)
End Cap
(Optional)
Cord
Tensioner
and
Bracket
Top/Rear
Cover
Inside Mount
Top/Rear
Cover
Outside Mount
Shim
(Outside
Mount
Only)
Side
Channel
Bottom
Channel
Wool
Pile

GETTING STARTED
3
Product View — Fascia Blockout with PowerView®Gen 3 Automation
Idler
Assembly
Idle
Bracket
Fascia
Motor
Bracket
Motor
Assembly
End Cap
(Optional)
End
Cap
Bottom Bar
Wool
Pile
Bottom Channel
Side
Channels
End Cap
Tape
Satellite
Battery Pack
Cover
Top/Rear
Cover
Outside
Mount
Top/Rear
Cover
Inside
Mount
Battery
Wand
Extension
Cable
Shim
(Outside
Mount
Only)

4
GETTING STARTED
Thank you for purchasing Hunter Douglas blockout roller shades. With proper installation,
operation and care, your new shades will provide years of beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before
beginning the installation. For information regarding operation and programming, refer to the
guide included with your remote control or wireless wall switch.
Tools and Fasteners Needed
■ Flat blade and Phillips screwdriver
■ Level, (laser level is recommended)
■ Measuring tape and pencil
■ Cassette Shades. Power drill,
3
∕ 32 " drill bit, and
1
∕ 4 " hex driver
■ Fascia Shades. Power drill,
1
∕ 8 " drill bit, and
5
∕ 32 " hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■ Cassette Shades — #6 Hex x 1
1
⁄ 2 "Head Screws (Provided). Two 1
1
⁄ 2 " screws are
provided with each installation bracket.
■ Fascia Shades — #10 Hex x 1
1
⁄ 2 "Head Screws (Provided). Two 1
1
⁄ 2 " screws are
provided with each fascia bracket.
■ Side and Bottom Channels. #6 x 1"Phillips Truss Head Screws (Provided). 1" screws are
provided to secure the side and bottom channels.
Installation Overview
To install your shade, you will need to perform the following three easy steps:
STEP 1: Mount the Installation Brackets
STEP 2: Install the Battery Wand (If Applicable)
STEP 3: Install the Shade
STEP 4: Connect the Power Source

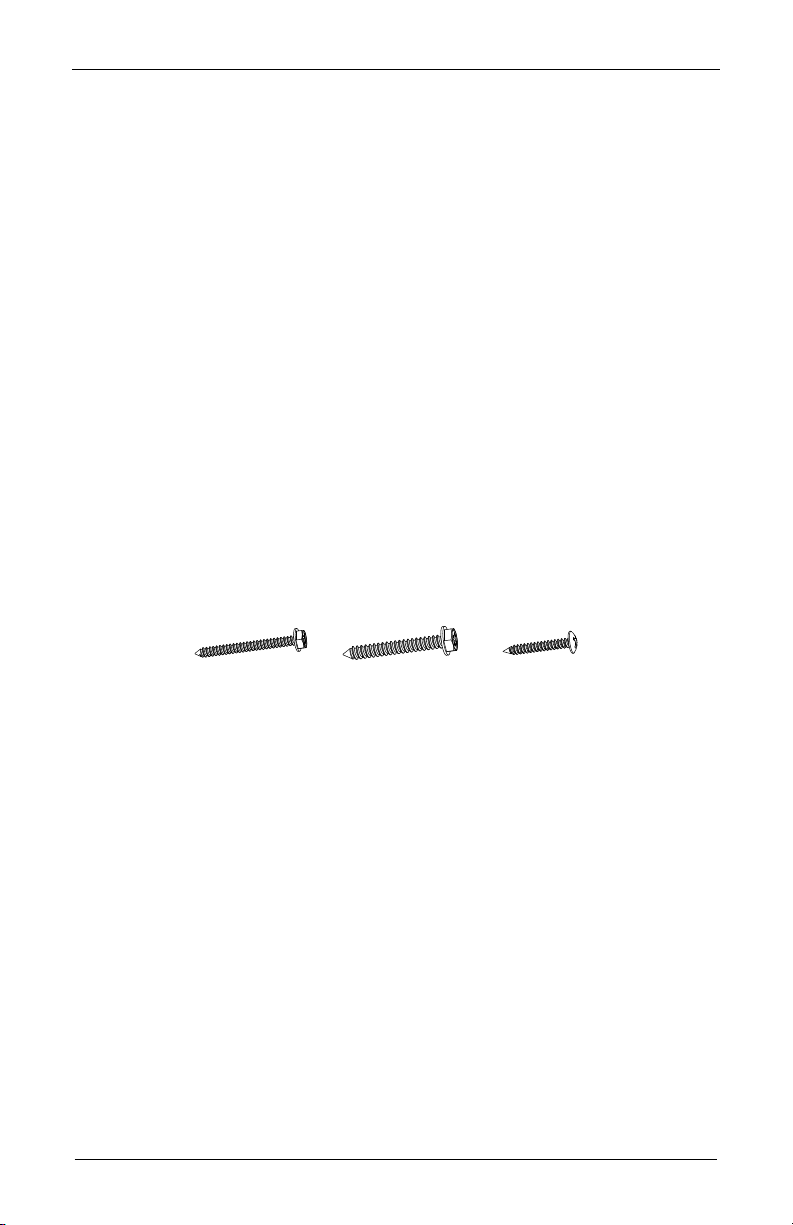

#6 x 1½" Hex
Head Screw
#10 x 1½" Hex
Head Screw
#6 x 1" Truss
Head Screw

INSTALLATION
5
STEP 1: Mount the Installation Brackets
■ Installation Brackets for Cassette Shades. The number of installation brackets
required varies depending on the shade width, as shown in the table.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
very easily. To prepare for this important first step, review the mounting types and basic
window terminology illustrated below.
■ Refer to the appropriate page below based on the mounting type chosen for your order:
➤ Inside Mount for Cassette Shades — page 6
➤ Outside Mount for Cassette Shades — page 7
➤ Inside Mount for Fascia Shades — page 8
➤ Outside Mount for Fascia Shades — page 9
Cassette
Installation
Bracket
Shade
Width
Brackets
Required
Up to 36" 2
36
1
⁄ 8 " – 66" 3
66
1
⁄ 8 " – 90" 4
90
1
⁄ 8 " – 120" 5
Outside Mount
Shade mounts outside
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
Inside Mount
Shade fits within
window opening.

INSTALLATION
6
Inside Mount — Cassette Shades

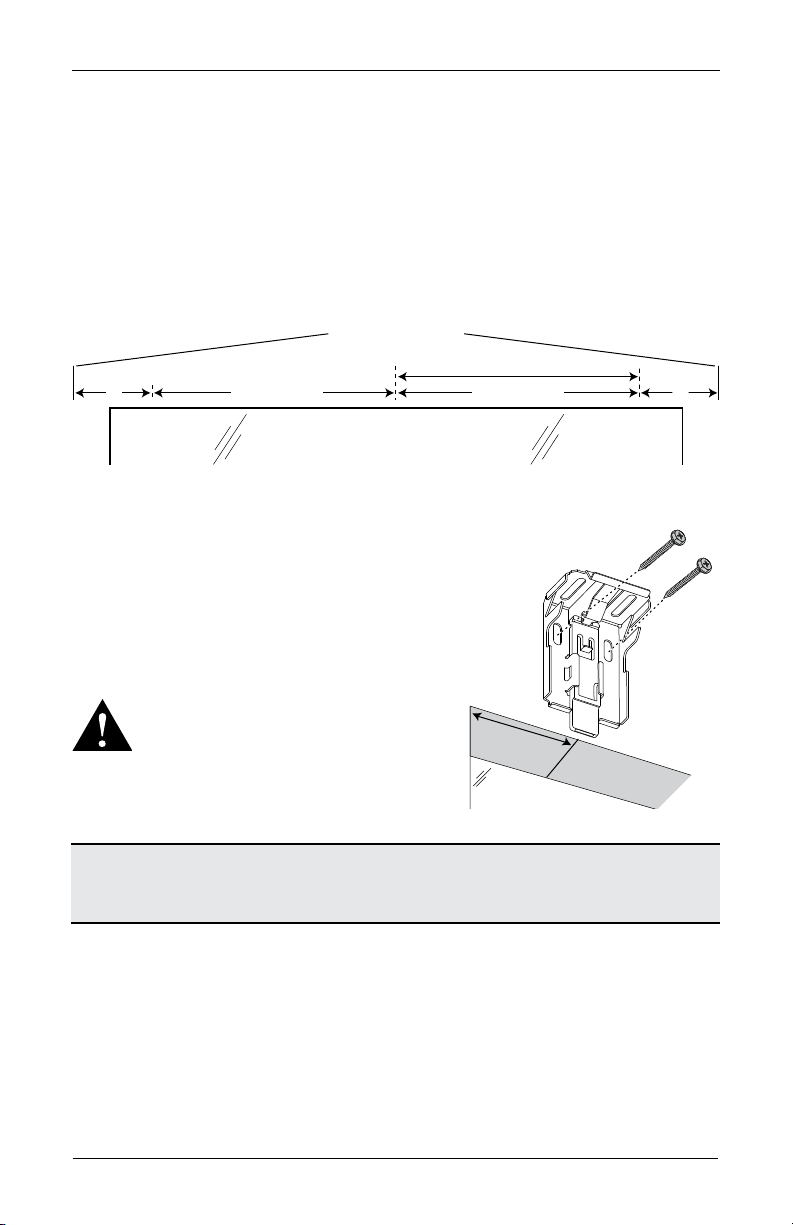

■ Mark 4" from each jamb for bracket location.
➤ If more than two installation brackets came with your order, space additional
bracket(s) evenly between the two end brackets and mark their location. Mount into
wood whenever possible.
NOTE: PowerView®Gen 3 Shades: Allow a minimum of 15
1
⁄ 2 " from the motor end for
the battery wand.
■ The minimum mounting depth for Cassette Blockout shades is 1
1
⁄ 4 ", 1
7
⁄ 8 " with battery wand
and 2
1
⁄ 4 " with rechargeable battery wand.
➤ Fully recessed mounting depth for PowerView Gen 3 shades:
■ Center the brackets on your marks, then mark each of
the screw holes.
IMPORTANT: The front edges of the installation
brackets must be level and aligned to eachother.
■ Drill the screw holes using a
3
∕ 32 " drill bit.
■ Use a level to check that the mounting surface is
level. Shim the brackets if necessary. Shims are not
provided.
■ Attach the installation brackets using the
screws provided.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete with
concrete anchors. Drywall anchors are not recommended
For PowerView Gen 3, proceed to “STEP 2: Install the Battery Wand (If
Applicable)” on page 10.
For custom clutch, proceed to “STEP 3: Install the Shade” on page 12.
Installation BracketsJamb Jamb
Space EvenlySpace Evenly4" 4"
For PowerView Gen 3 Shades:
Minimum 15½" for Battery Wand
Motor
End
Minimum IB Fully Recessed Mounting Depth
Power Supply Small Cassette Large Cassette
Without Battery Wand 3
9
⁄ 16 " 4
1
⁄ 16 "
PowerView Gen 3 with Attached Battery Wand 4
3
⁄ 16 " 4
11
⁄ 16 "
PowerView Gen 3 with Rechargeable Battery Wand 4
9
⁄ 16 " 5
1
⁄ 16 "
4"

INSTALLATION
7
Outside Mount — Cassette Shades
■ Center the cassette over the window opening at the desired height. Use a pencil to lightly
mark each end of the cassette.
■ Mark 4" from each end of the cassette for the bracket location.
➤ If more than two installation brackets came with your order, space additional
bracket(s), between the two end brackets and mark their location. Whenever possible,
mount into wood.
■ Center the brackets on your marks, then mark each of the screw holes.
➤ A minimum 4" flat vertical surface is required to mount the brackets.
■ Drill the screw holes using a
3
∕ 32 " drill bit.
■ Use a level to check that the mounting surface is
level. Shim the brackets if necessary. Shims are
not provided.
■ Attach the installation brackets using the 1
1
⁄ 2 "
screws provided.
WARNING: Product is heavy. Mount into
wood/metal studs or into concrete with
concrete anchors. Drywall anchors are not
recommended.
For PowerView®Gen 3, proceed to “STEP 2: Install the Battery Wand (If
Applicable)” on page 10.
For custom clutch, proceed to “STEP 3: Install the Shade” on page 12.
Headrail End Marks
Window Opening
Space Evenly Space Evenly
Minimum 15½" For Battery Wand
4"
4"
4"
Outside Mount

INSTALLATION
8
Inside Mount — Fascia Shades
Custom Clutch brackets shown below. Shades with PowerView®Gen 3 Automation fascia
brackets follow the same installation procedure with a motor bracket on the right and
idle bracket on the left. See “Product View — Fascia Blockout with PowerView®Gen 3
Automation” on page 3.

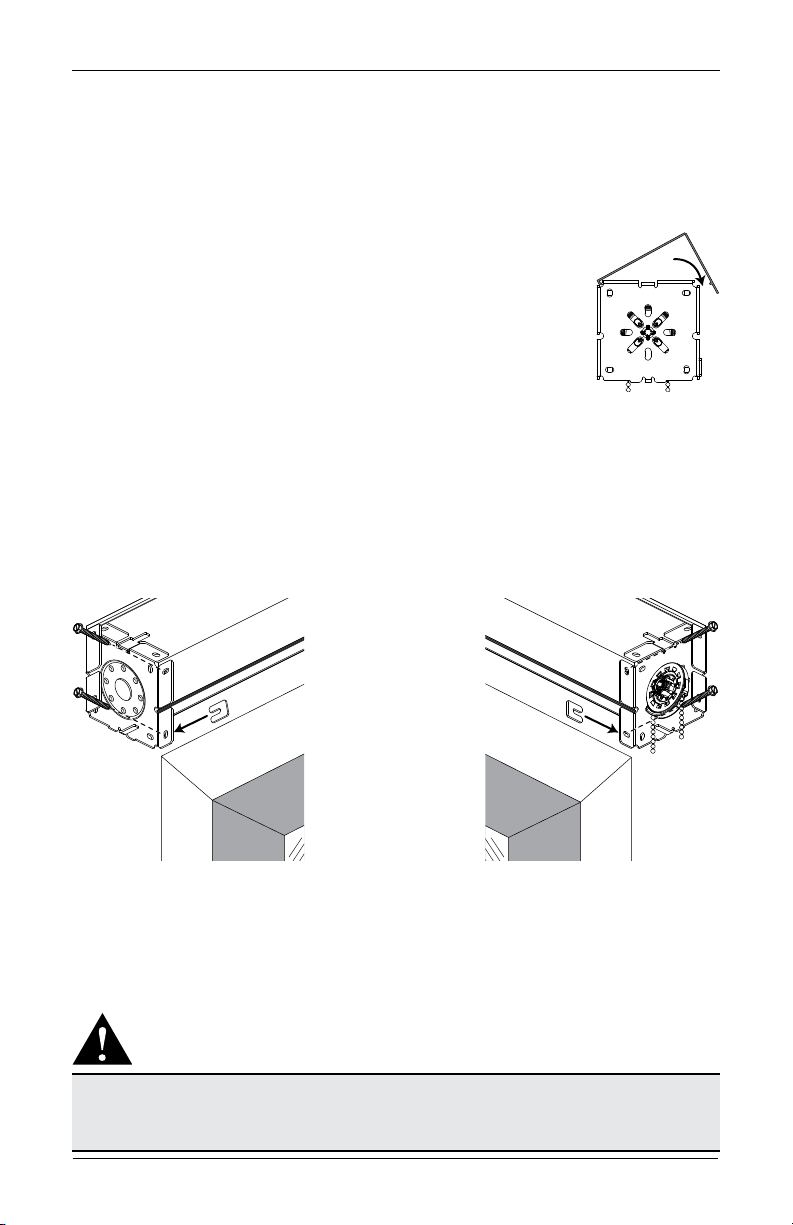

■ Assemble the two end brackets and the top/rear panel.
➤ Place the bottom of the top/rear panel into the bottom
indention of the brackets. Rotate the panel up and snap it
into place.
■ Check that the outer surfaces of the brackets are flush with the
ends of the panel.
■ Hold the bracket and panel assembly centered in place at
the window.
■ Use a level against the bottom edge to make sure the assembly is level. A shim may
require between the brackets and the mountingsurface.
■ Mark the screw holes.
➤ The minimum mounting depth required and fully recessed depth is 4
1
∕ 8 ".
■ Remove the assembly from the window.
■ Drill the screw holes using a
1
∕ 8 " drill bit for shade with Custom Clutch or
5
∕ 32 " drill bit for
shades with PowerView Gen 3 Automation.
■ Attach the bracket and panel assembly to the mounting surface using the screws provided.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete with
concrete anchors. Drywall anchors are not recommended.
For PowerView Gen 3, proceed to “STEP 2: Install the Battery Wand (If
Applicable)” on page 10.
For custom clutch, proceed to “STEP 3: Install the Shade” on page 12.
Clutch Side
Idle Side
Top/Rear
Panel

INSTALLATION
9
Outside Mount — Fascia Shades
Custom Clutch brackets shown below. Shades with PowerView®Gen 3 Automation fascia
brackets follow the same installation procedure with a motor bracket on the right and idle
bracket on the left. See See “Product View — Fascia Blockout with PowerView®Gen 3
Automation” on page 3.
Assemble the two end brackets and the top/rear panel.
➤ Place the top of the top/rear panel into the top indention on the
front of the bracket. Rotate the panel down and snap it
into place.
■ Check that the outer surfaces of the brackets are flush with the ends
of the panel.
■ Hold the bracket and panel assembly centered in place at
the window.
■ Use a level against the bottom edge to make sure the assembly is level. A shim is require
between the brackets and the mountingsurface.
■ Mark the screw holes.
➤ A minimum 4
1
∕ 8 " flat vertical surface is required to mount the brackets.
➤ The top of the installation brackets should be at the desired height. The brackets
should be level and aligned.
■ Remove the assembly from the window.
■ Drill the screw holes using a
1
∕ 8 " drill bit for shade with Custom Clutch or
5
∕ 32 " drill bit for
shades with PowerView Gen 3 Automation.
■ Attach the bracket, shim and panel assembly to the mounting surface using the
screws provided.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete with
concrete anchors. Drywall anchors are not recommended.
For PowerView Gen 3, proceed to “STEP 2: Install the Battery Wand (If
Applicable)” on page 10.
For custom clutch, proceed to “STEP 3: Install the Shade” on page 12.
Top/Rear
Panel
Idle Side
Shim
Clutch Side
Shim

INSTALLATION
10
STEP 2: Install the Battery Wand (If Applicable)
For the headrail-mounted battery wand, battery wand clips and battery wand mount are
installed before the shade is installed. Any other power options, the power source will be
connected after the shade is installed.
Battery Wand
Install the Battery Wand Clips

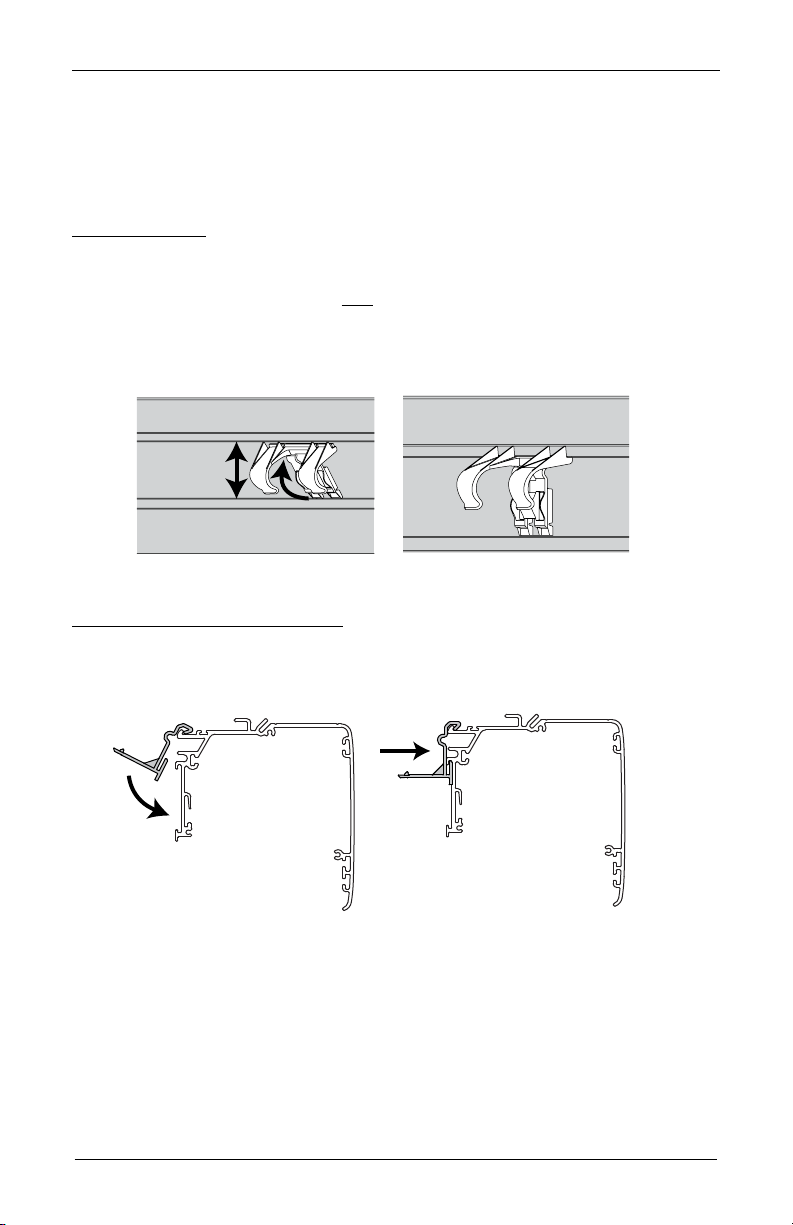

■ Attach the battery wand clip to the back of the cassette approximately 10" from the
motor side.
➤ Place the bottom of the clip into the lip, squeeze to compress the clip then rotate it up
and hook it into the top channel.
Rechargeable Battery Wand
Install the Rechargeable Battery Wand Clips
■ Attach the rechargeable battery wand clip to the cassette.
Squeeze to
Compress
Clip Installed
Correctly
Front of
Cassette
Rechargeable
Clip

INSTALLATION
11

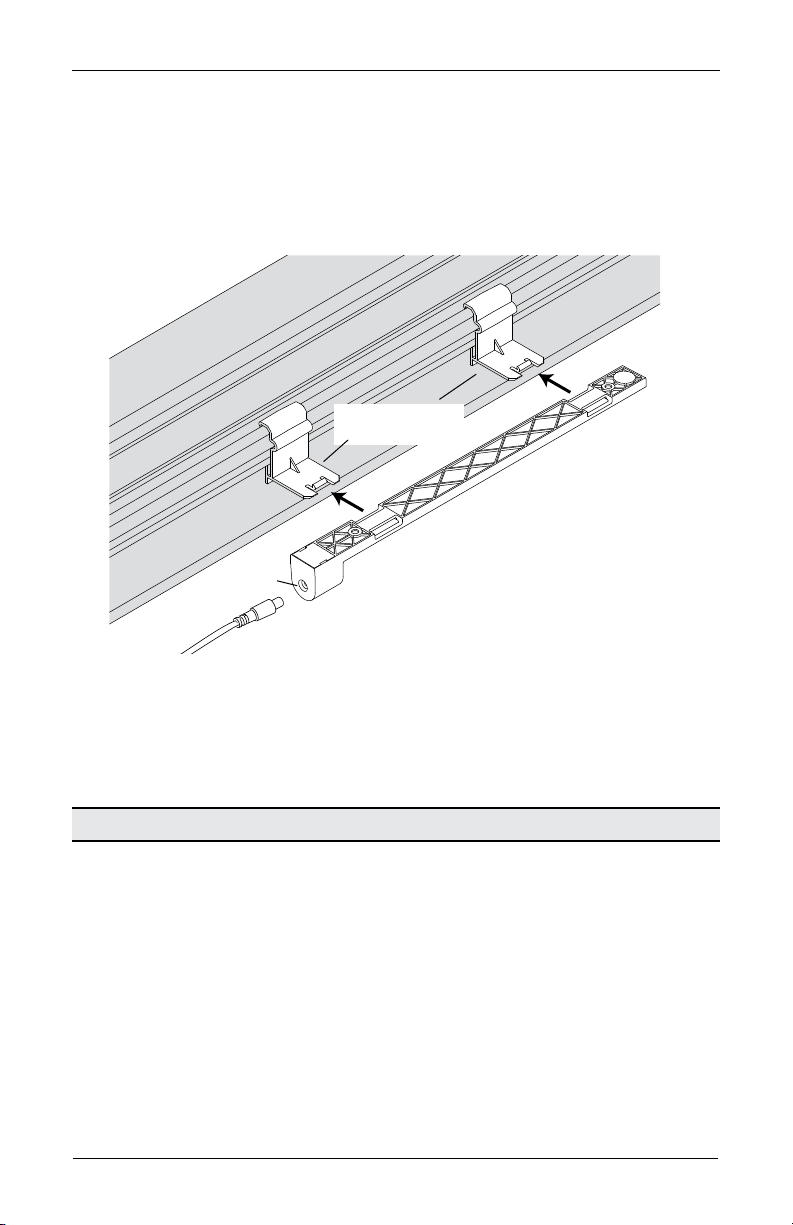

Install the Rechargeable Battery Mount into the Battery Wand Clips
■ From the back of the shade headrail, connect the power cable from the motor side into the
socket on the rechargeable battery mount.
■ Align the slots in the battery mount with the battery wand clips.
■ Push the battery mount onto the battery wand clips until it snaps into place. Check to
make sure the battery mount is secure.
CAUTION: Be sure the cable does not become pinched by the battery wand clips during
installation. Damage or overheating of components could result.
NOTE: Do not install the rechargeable battery wand into the battery mount before
installing the shading. See “STEP 4: Connect the Power Source” on page 20 for
instructions on inserting the battery wand into the battery mount.
Proceed to “STEP 3: Install the Shade” on page 12.
Rechargeable
Battery Wand Clips
Rechargeable
Battery Wand
Mount
Power
Cable
Socket

INSTALLATION
12
STEP 3: Install the Shade
Install the Cassette
■ Install the cassette straight into the bracket as shown to ensure the features on the
bracket align with the open sections in the back of the cassette.
■ Push the cassette back to snap it into the lower lip on the bracket.
Spring
Tab
Bracket
Cassette
Release Tab

INSTALLATION
13

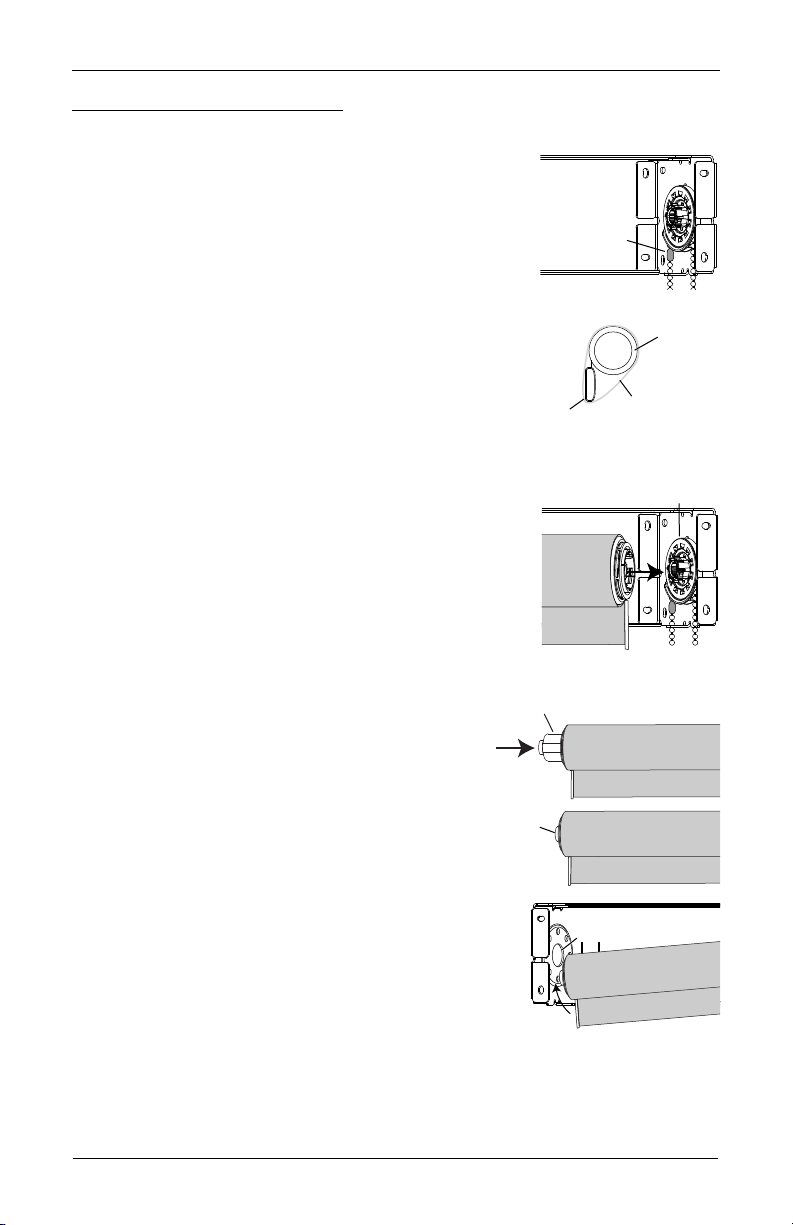

Install Fascia Clutch Shades
(Not available in CA)
Install Clutch End
■ Position the bead chain connector.
➤ Ensure the bead chain connector is pulled to the back of
the chain wheel.
■ The shade should be wrapped tight with the paper banding
in place. The bottom bar should be positioned just below
the fabric.
■ Push the clutch end of the roller with the clutch base on
the bracket.
Install Idler End
■ Push in the spring idler to compress.
■ Slide the idler onto the bracket and slide to the
center hole. Idler will expand and will engage the
bracket to secure the shade into the bracket.
■ After installing the shade, remove the paper
banding that is used to prevent the shade
fromunrolling.
Connector
Bottom
Bar
Paper
Banding
Tube and
Shade
Fabric
Clutch
Base
Idler
Push in
to compress.
Idler
Compressed
Slide Idler until
Seated in Center Hole

INSTALLATION
14

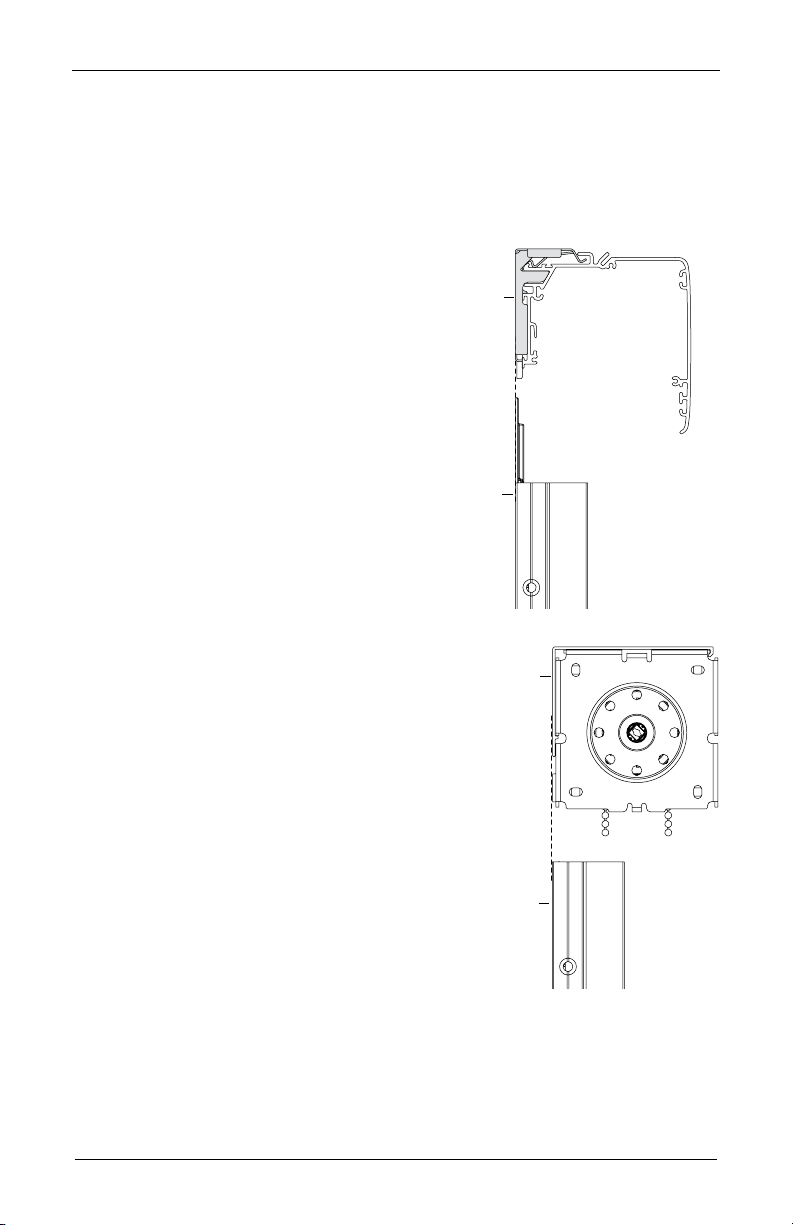

Install Fascia PowerView®Gen 3 Shades
Top/rear cover and screws removed in illustrations below for clarity.
■ Remove the foam insert from the idle end of the shade.
■ Verify the top limit screw is screwed in completely. The screw will
tighten counterclockwise.
■ The shade should be wrapped tight with the paper banding
in place. The bottom bar should be positioned just below
the fabric.
■ Holding the shade to the window, rotate the shade to align
the motor end with the channels on the bracket before installing
the idle end then push the idle end of the shade onto the bracket.
CAUTION: Do not rotate the motor in the tube manually, as it
will damage the motor.
➤ Once motor is aligned, reinstall the idle end of the shade onto
the bracket.
■ Slide the shade into the motor bracket until it clicks
into place. Refer to the images for how to orient your
shade. Gently pull back on the shade to ensure it is
secure.
CAUTION: Be sure the power cables are not pinched
or caught in the brackets.
Remove
Foam
Insert
Top
Limit
Screw
Bottom
Bar
Paper
Banding
Tube and
Shade
Fabric
Motor
End
Fascia Shade
Angle the Shade
Idle
End
Fascia Brackets

INSTALLATION
15

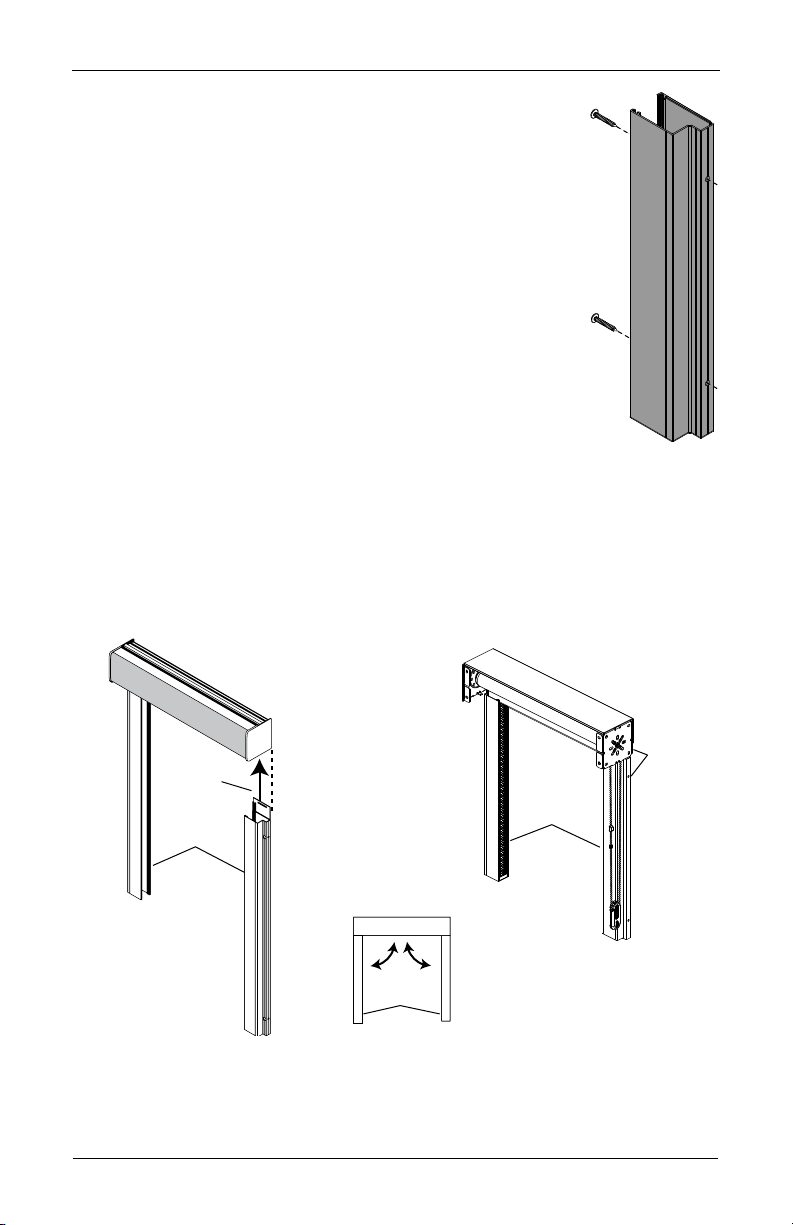

Assemble the Side Channels — Cassette Shades
■ Remove the adhesive from the back of the light blocker.
■ Thread wool pile from channel into the light blocker channel.
■ Slide the light blocker into the top of the side channel.
➤ Press the light blocker into place to secure the adhesive.
■ Outside Mount Only. Push the side channel end caps into the
bottom of the side channels.
Peel
Adhesive
Back
Wool
Pile
Light
Blocker
Installed
Front

INSTALLATION
16
Install the Side Channels — Inside Mount
NOTE: Lower the shade slightly when you mount each side channel to fit the bottom rail into
the top of thechannel.
■ Foam tape has been provided to reduce light seepage. Apply to the jambs and the sill of
the mounting surface, if necessary. Caulk (not provided) can also be used to reduce
light seepage.
■ For Cassette Shades. Slide the light
blocker behind the cassette.
➤ Ensure there isn't a gap between
the side channel and the sill. The
side channel should sit on the sill.
Also, ensure the back of the side
channel is flush with the bracket.
■ For Fascia Shades. Slide the side channel
under the fascia bracket.
➤ Ensure there isn't a gap between the
side channel and the sill. The side
channel should sit on the sill. Also,
ensure the back of the side channel is
flush with the top/rear panel.
Bracket
The back of the side
channel is flush with
the bracket.
Side
Channel
End Cap and Shade
Removed for Clarity
Bracket
The back of the side
channel is flush with
the bracket.
Side
Channel

INSTALLATION
17
■ Drill the screw holes using a
3
∕ 32 " drill bit approximately
3
∕ 8 " deep.
Install the Side Channels — Outside Mount
■ Cassette Shades Only. Slide the light blocker behind the cassette.
■ Abut the side channel flush with the bottom of the cassette end cap or the fascia bracket.
■ Align the outer edge of the side channels with the outside of the cassette end caps or
fascia bracket.
Side
Channels
Top
Side
Channels
90° 90°
Align Outside
Edges of Side
Channel and
Cassette
Cassette
Side
Channels
Align
Fascia
