HunterDouglas Silhouette A Deux Parts list manual

LiteRise®
PowerView®
Motorization
EasyRise™
Installation •Operation •Care
Silhouette®and Nantucket™
A Deux™Window Shadings
EasyRise, LiteRise, and PowerView Motorization
Operating Systems

CONTENTS
Questions?
Call Hunter Douglas Consumer Support at 1-888-501-8364.
© 2018 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or
their respective owners.
Getting Started:
Product Views...........................................................................................1
Tools and Fasteners Needed ......................................................................2
Installation:
Installation Overview .................................................................................3
STEP 1: Mount the Installation Brackets..................................................... 3
Inside Mount.........................................................................................4
Outside Mount ......................................................................................6
STEP 2: PowerView®Only: Connect the Power Cables ...............................8
STEP 3: Install the Shading .......................................................................9
Mount the Headrail................................................................................ 9
Attach the Dust Cover (Optional).............................................................9
EasyRise™Only: Attach the Cord Tensioners......................................... 10
LiteRise®Only: Install Pull Tassels (Optional)......................................... 10
STEP 4: PowerView Only: Connect the Power Source, If Applicable...........11
Operation:
Operate the Shading ............................................................................... 13
EasyRise Shadings ..............................................................................13
LiteRise Shadings................................................................................14
PowerView Shadings...........................................................................15
Troubleshooting ......................................................................................19
Care:
Removing the Shading.............................................................................24
Cleaning Procedures ...............................................................................24
Child Safety:
Warning .................................................................................................26
Cord Loop Shadings................................................................................26
Declarations ..........................................................................................27
Warranty.................................................................................... Back Cover

GETTING STARTED
1
Product Views
Headrail
Optional Dust Cover
Installation Brackets
Cord Loop
Cord Tensioner
Front Shading
Cord Tensioner
Rear Roller Shade
Handle
Pebble®Remote
Roller Shade
Bottom Rail
Battery Wand
Shading
Bottom Rail
Cord Loop
EasyRise™
LiteRise®PowerView®
Motorization

2
GETTING STARTED
Thank you for purchasing Hunter Douglas Silhouette®or Nantucket™window shadings.
With proper installation, operation, and care, your new shadings will provide years of beauty
andperformance.
Please thoroughly review this instruction booklet before beginning the installation. If your
shading has a protective plastic cover on the fabric-covered headrail, keep the plastic in place
until the shading is installed.
Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers ■Level (laser level is recommended)
■Measuring tape and pencil ■Pliers
■Power drill,
3
/ 32 " drill bit,
and
1
/ 4 " hex driver
■Scissors (heavy-duty)
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per installation bracket.
■Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment.
■Speed Nuts and Screws (Provided). Extension brackets come with screws and speed nuts.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Provided with Each
Extension Bracket)
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)

INSTALLATION
3
Installation Overview
To install your shading, you will need to perform the following four steps:
STEP 1: Mount the Installation Brackets
STEP 2: PowerView®Only: Connect the Power Cables
STEP 3: Install the Shading
STEP 4: PowerView Only: Connect the Power Source, If Applicable
STEP 1 — Mount the Installation Brackets
■The number of installation brackets required
varies with shading width, as shown in thetable.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Inside Mount — Page 4
➤Outside Mount — Page 6
Outside Mount
Shading mounts
outside window
opening.
Inside Mount
Shading fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
Width Brackets Required
18" – 36" 2
36
1
/ 8 " – 52" 3
52
1
/ 8 " – 96" 4
Installation
Bracket

INSTALLATION
4
Mount the Installation Brackets — Inside Mount
Prepare the Installation Brackets
The purpose of the back cover bracket is to
provide clearance for the battery wand for
PowerView®shadings.
➤If you have a battery wand, remove the
bottom tab from the back cover bracket.
➤Snap the back cover bracket into the metal
installation bracket. This ensures adequate
space for the battery wand.
➤If you have a satellite battery pack or an
18V DC power supply, it is not necessary
to use the back cover bracket.
■Mark 2" from each jamb for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s)
between the two end brackets and mark their location. Mount into wood whenever
possible.
➤For PowerView®shadings with battery wand, allow a minimum of 17" between bracket
centerlines for the battery wand(s). A shading may have one or two battery wands.
■Review the minimum depth requirements in the table below.
Window OpeningJamb Jamb
2" Space Evenly Space Evenly
Minimum 17" for Battery WandMinimum 17" for Battery Wand
2"
Operating System Type Minimum Mounting Depth Fully Recessed Depth
PowerView with Battery Wand 1
5
/ 8 " 4
3
/ 4 "
All Other Systems 1" 4"
Back Cover Bracket
Remove bottom tab if
using a battery wand.
Top Tab
Bottom
Tab
Back Cover
Slots

INSTALLATION
5
■Center the installation brackets on your marks and mark the location of the screwholes.
➤Allow sufficient rear clearance when positioning the
brackets. The bottom tab provides the necessary clearance
(
1
/ 4 ") for all systems except PowerView with battery wand,
which requires
7
/ 8 " rear clearance. (Rear clearance is the
distance between the back of the installation bracket and
the glass or frame.)
■Use a level to check that the mounting surface is level. Shim
(not provided) the brackets, if necessary.
■Use a
3
/ 32 " drill bit to drill holes for the mounting screws.
CAUTION: Use drywall anchors when mounting into drywall.
■Attach the installation brackets using the screws provided.
NOTE: Do not overtighten the screws. Check to ensure the lever
can be moved easily side to side. If the lever is not moving easily,
loosen the screws one-eighth turn increments until it can be
moved easily.
IMPORTANT: The front edges of the installation brackets must
be level and aligned to each other.
Proceed to “STEP 2 — PowerView®Only: Connect the Power Cables” on page 8 or
“STEP 3 — Install the Shading” on page 9.
Lever

INSTALLATION
6
Mount the Installation Brackets — Outside Mount
■Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
■Mark 2" from each of the headrail end marks for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s)
between the two end brackets and mark their location. Mount into wood whenever
possible.
➤For PowerView®shadings with battery wand, allow a minimum of 17" between bracket
centerlines for the battery wand(s). A shading may have one or two battery wands.
■Center the installation brackets on your marks and mark the location of the screw holes.
➤A minimum 1" flat vertical height is required to mount the
installation brackets.
➤Position the top of the installation brackets at the desired
height of the shading. The brackets must be level and
aligned.
CAUTION: The rear of the blocks/brackets must be flush
against a flat mounting surface. Do not mount brackets on
curved molding.
IMPORTANT: Additional clearance is required for PowerView shadings with battery wand.
See “Additional Clearance with Spacer Blocks” on page 7.
■Use a
3
/ 32 " drill bit to drill holes for the mounting screws.
CAUTION: Use drywall anchors when mounting into drywall.
■If no additional clearance is required, attach the installation
brackets directly to the mounting surface using the screws
provided.
IMPORTANT: The front edges of the installation brackets
must be level and aligned to each other.
Window Opening
2" Space Evenly Space Evenly
Minimum 17" for Battery Wand Minimum 17" for Battery Wand
2"
Headrail End Mark Headrail End Mark

INSTALLATION
7
Additional Clearance with Spacer Blocks
NOTE: A minimum of
3
/ 4 " additional clearance is required for PowerView®shadings with
battery wand.
■If using
1
/ 4 " or
1
/ 2 " spacer blocks, attach the spacer
block(s) and installation bracket to a flat vertical
mounting surface with #6 screws long enough for a
secure installation.
IMPORTANT: The solid side of the spacer blocks
must face toward the mounting surface.
Additional Clearance with Extension Brackets
■If using extension brackets, attach each extension bracket
to the mounting surface using the screws provided.
■Attach an installation bracket to the underside of each
extension bracket using the provided screws and speed
nuts.
NOTE: The maximum amount of added clearance using
extension brackets is 3".
Proceed to “STEP 2 — PowerView®Only: Connect the Power Cables” on page 8 or
“STEP 3 — Install the Shading” on page 9.
Spacer
Blocks
Longer
Screws
1
1
/ 2 " Maximum
Added Clearance
Extension
Bracket
Speed Nuts
Screws

INSTALLATION
8
STEP 2 — PowerView®Only: Connect the Power Cables
■Refer to the appropriate page based on your order.
➤For a battery wand, see below.

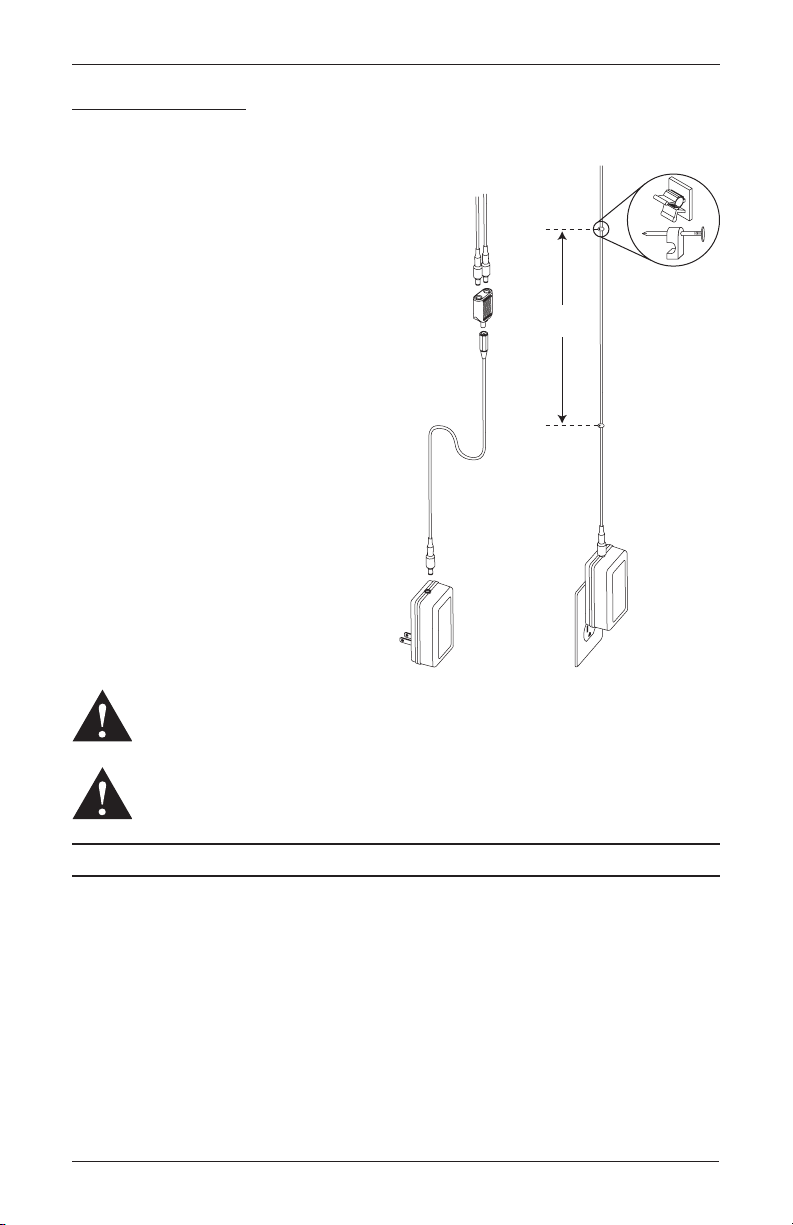

➤For an optional satellite battery pack or 18V DC power supply, see page 11.
Battery Wand
Install the Battery Wand Clips
■Attach the battery wand clips to the headrail.
IMPORTANT: Position the clips close to the power cable.
Mount the Battery Wand into theBattery Wand Clips
■Position the battery wand with its socket toward
the motor end of the shading.
■Push the battery wand straight up into the
battery wand clips until it snaps into place.
Check to make sure the battery wand is secure.
CAUTION: Be sure the cables do not become
pinched by the installation brackets or
battery wand clips. Damage or overheating of
components could result.
Plug the Power Cables into the Battery Wand(s)
NOTE: When power is connected to the motor, a green LED inside the programming button
housing will flash to indicate the shading is ready for operation.
■If there is one battery wand: From the back of the shading headrail, plug the “Y” connector
into the socket on the battery wand. Then plug each power cable into a socket on the “Y”
connector.
■If there are two battery wands: Plug each power cable into the socket on the battery
wands. An extension cable is provided for the second wand.
Place the socket
toward the motor end.
Power
Cables
“Y” Connector
Battery
Wand Battery
Wand
To Second
Wand
Extensio
n
Cable
Two Battery WandsOne Battery Wand
Power
Cables

INSTALLATION
9
STEP 3 — Install the Shading
Mount the Headrail
■Peel back the protective covering
from the top of the Palette®fabric-
covered headrail. Leave the rest
of the protective covering on the
front of the headrail.
■Position the shading so that the front faces you.
■Slide the headrail into the installation brackets so the edge of the headrail is
between the lever and the bracket, asshown.
■Firmly push the headrail into each bracket until it clicks and the lever snaps
to the right side of the bracket.
IMPORTANT: Carefully pull on the headrail at each bracket to ensure it is
installedsecurely.
■Completely remove the protective covering from the Palette fabric-covered headrail.
Attach the Dust Cover (Optional)
The dust cover can be used with outside mounts to protect the top of
the headrail from exposure.
■Cut the dust cover to desired width.
■Remove the paper backing on one side of the hook and loop fastener dots.
■Apply the dots to the installation brackets on each end of the shading.
■Remove the remaining paper backing from the dots.
■Center the dust cover over the top of the shading, above the dots.
■Press the dust cover down onto the dots.
Remove
Paper
Backing
Overhead View
No Dust Cover
Dots
Dust Cover Installed
Headrail
Installation Bracket
Lever
Slide the Headrail
Between the Lever
and the Bracket

INSTALLATION
10
EasyRise™Only: Attach the Cord Tensioners
IMPORTANT: Before you proceed, you must first slide the cord tensioners
to the bottom of the cordloops.
■Insert a small screwdriver, punch, or awl through the screw hole at
the bottom of each cord tensioner.
■Move the screw hole down to the indicator line to release the safety
mechanism.
■Slide each cord tensioner down to the bottom of its
cordloop.
■Attach the cord tensioners according to the instructions
provided with the Universal Cord Tensioner Installation Kit.
WARNING: It is imperative that the cord tensioners be properly secured to the
wall or window frame to reduce children’s access to the cord loops. Young
children can strangle in cord loops. They can also wrap cords around their
necks and strangle.
CAUTION: The shading will not operate properly unless the cord tensioners
are secured. A Universal Cord Tensioner Installation Kit has been included for
each cord loop control. Follow the instructions in the kits to correctly secure
the cordtensioners.
LiteRise®Only: Install Pull Tassels (Optional)
Pull tassels may be installed on the handles for the front shading and rear roller shade. The
procedure is shown below on the shading handle. The roller shade handle looks different, but
the installation procedure is the same.
■Rotate the bottom rail so that you can see the underside of thehandle.
■Push the pull cord loop through the hole at the back of thehandle.
■Thread the pull tassel through theloop.
■Pull the tassel to secure.
Manual shadings only: Proceed to “Operate the Shading” on page 13.
Push cord loop through hole. Thread pull tassel through loop. Pull tassel to secure.
Screw
Hole
Indicator
Line

INSTALLATION
11
STEP 4 — PowerView®Only: Connect the Power Source, If Applicable
■Refer to the appropriate page based on your order.
➤For an optional satellite battery pack, see below.
➤For an optional 18V DC power supply, see page 12.
➤For an optional large DC power supply, see the instructions that came with the unit.
Satellite Battery Packs
Mount the Satellite Battery Packs
■Decide where you want to attach the wall mount bracket for each
satellite battery pack. The battery packs may be installed in any
orientation.
■Mark the screw holes and drill them using a
3
/ 32 " drill bit.
■Remove the backing from the double-sided tape on the wall mount brackets. Press the
brackets into place.
■Attach the brackets using the screws provided.
■Position each battery wand so a power cable can easily be connected to the socket and
snap the wands into the brackets.
■Install the covers with the slot aligned to the socket in the battery wands.
NOTE: When power is connected to the motor, a green LED inside the programming button
housing will flash to indicate the shading is ready for operation.
■Plug each of the power cables from the shading into an extension cable.
■Plug the other end of each extension cable into the socket in the battery wands.
Proceed to “Operate the Shading” on page 13.
Wall Mount Bracket
Socket
Battery Wand Cover
Extension
Cable
Power Cable
from Shading
Battery Wand Cover
Socket
Slot

INSTALLATION
12
18V DC Power Supply
Connect the Power Supply
■Plug the power cables from the shading
and the extension cable into the “Y”
connector.
■Plug the other end of the extension cable
into the 18V DC power supply.
NOTE: When power is connected to the
motor, a green LED inside the programming
button housing will flash to indicate the
shading is ready for operation.
■Plug the 18V DC power supply into a
standard wall outlet. The power supply
may be oriented with the cable at the top
or bottom.
■Secure the extension cable using wire
retainers (not supplied). If hiding the cable
behind the shading, make sure it does not
impede the operation of theshading.
■Space the wire retainers approximately
15" apart along the power supply cable.
WARNING: Keep cords and small parts out of the reach of children. They can wrap
cords around their necks and STRANGLE.They can also put small parts in their
mouths and CHOKE.
WARNING: Electric shock and/or a fire hazard may occur if the 18V DC power
supply and cables are not properly installed.
Proceed to “Operate the Shading” on page 13.
Power Cables
from Shading
Extension
Cable
“Y”
Connector
18V DC
Power
Supply
15"
Maximum
Wire Retainers

OPERATION
13
Operate the Shading
Whatever the lifting system, the front shading and rear roller shade are operated independently
of each other. Shown below are a few examples of possible shading and shade positions.
■For operation instructions, refer to the appropriate page based on your operating system.
➤For the EasyRise™system, see below.
➤For the LiteRise®system, see page 14.
➤For the PowerView®system, see page 15.
EasyRise Shadings
There is a cord loop and cord tensioner on each side of the shading. One operates the front
shading and the other operates the rear roller shade.
IMPORTANT: The cord tensioners must be attached to the wall or casement before operating
the EasyRise shading.
■Pull the rear cord of the cord loop to lower
the shading or shade.
➤If the cord tensioner moves up the cord,
you have not secured it to the wall or
window frame. You must do so for the
shading to operate properly.
■Front shading only: With the shading fully
lowered, continue to pull the rear cord to tilt
the bottom rail and open the vanes.
■Front shading only: Pull on the front cord
of the cord loop to close the vanes.
■Pull the front cord of the cord loop to raise
the shading or shade.
Lower Open
Vanes
Raise
Cord
Tensioner
and
Bracket
Shading lowered with vanes open,
roller shade lowered
Shading lowered with vanes open,
roller shade partly raised
Shading lowered with vanes open,
roller shade raised

OPERATION
14
LiteRise®Shadings
IMPORTANT: With LiteRise®lifting systems, the front shading must be raised before the rear
roller shade can be operated.
■Slowly and steadily pull down on the bottom
rail handle to lower the shading or roller
shade.
■Front shading only: With your thumb on the
front of the handle and fingers on the back,
gently pull the back of handle down and
away from the shading to open the vanes.
➤Use the handle to tilt the vanes to the
desired open/closed position.
➤Push down on the front of the handle to
close the vanes.
■Slowly and steadily push up on the handle to
raise the shading or roller shade.

OPERATION
15
PowerView®Shadings
Test the Shade and Shading Using the Programming Buttons
Testing the shade and shading with the programming buttons will allow you to ensure that the
motor and power source are working correctly.
CAUTION: When raising the shade or shading for the first time, observe how the fabric rolls up
into the headrail. It should roll up evenly. If the bottom rail is not level or the fabric starts to rub
against either window jamb, immediately press the programming button to stop the shade or
shading. See “Adjust the Bottom Rail Weight” on page 21.
■Rear shade: Press the programming button to alternately lower, stop, and raise the shade.
➤The button is located next to the bottom of the motor side end cap, toward the front of
the headrail.
➤If the shade does not operate, refer to “Troubleshooting” on page 19.
■Front shading: Press the programming button to lower the shading.
➤The button is located next to the bottom center of the motor side end cap.
➤If the shading does not operate, see “Troubleshooting” on page 19.
➤Test vane operation by pressing the programming button to open the vanes and then
pressing it again to close the vanes.
➤After the vanes are fully closed, press the programming button to raise the shading.
Programming Buttons
Rear Shade
Front Shading

OPERATION
16
Using the PowerView®Remote
First, activate the remote by pulling both plastic tabs from the back battery compartment.
IMPORTANT: If you have more than one remote, see “Adding Additional Remote(s) to the
PowerView®Shade Network” in the PowerView Motorization Remote Control Guide.
Joining a Shade or Shading to a Group
IMPORTANT: A window covering will not operate using the remote until it has been joined to
a group. If both the rear shade and front shading must be joined to a group, it is recommended
that they be in different groups for individual operation, as well as in the same group for
simultaneous operation. (Note that any window covering can belong to more than one group.)
Both window coverings will also operate simultaneously if both individual group buttons are
selected, or the “all” button is selected.
1. Press and hold ■STOP on the remote until the indicator lights blink (approximately
6 seconds). The remote is now in program mode.
2. Press the desired group number (1 – 6) on the remote. The backlit group number will flash to
show it is selected.
3. While pressing the programming button on the shade or shading, press ▲OPEN on the
remote. The green light flashes once and either the shade or shading will move slightly twice
(up, down, or down, up) to indicate the shade or shading has joined the group. Release the
programming button.
4. Press and hold ■STOP on the remote until the indicator lights stop blinking (approximately
6 seconds).
Group 1
Group 2
OPEN
CLOSE
Group 3
Group 4
Group 5
Group 6
Favorite
(Shade and/or shading position)
LEFT
ARROW
Opens vanes on front
shading; no function
for rear shade
RIGHT ARROW
Opens vanes on front shading;
no function for rear shade
STOP
(Press and hold for
programming mode)

OPERATION
17
Basic Operation
■To wake up the remote, simply pick it up or press ■STOP. The last group(s) selected will be
highlighted and active.
■Press “all” or groups 1 – 6 to select the shade and/or shading to move. Selected group
button(s) will light to show they are selected.
➤Multiple group buttons may be selected at a time.
➤To deselect a group, press the group button again. The backlight for that group button
will go out.
■Press ▼CLOSE to lower the selected shade and/or shading.
■Press ▲OPEN to raise the selected shade and/or shading.
■Press ■STOP to stop shade or shading movement anywhere along its travel.
■While the shade or shading is in motion, press the opposite of shading motion (▲OPEN
or ▼CLOSE) to reverse direction.
■Press ♥FAVORITE to send the selected shade and/or shading to your preset “favorite”
position. Refer to the PowerView®Motorization Remote Control Guide on how to set a
favorite position. The default favorite position is the rear shade raised, the vanes closed, and
the front shading at 50% open.
Front Shading Only
1. Press the right arrow to open the vanes.
2. Press the left arrow to close the vanes.
3. When the shading is raised, pressing the right arrow will first lower the shading and then
open the vanes.
4. When the shading is lowered with the vanes open, pressing ▲OPEN will first close the vanes
and then raise the shading all the way.
Further Operation and Programming Information
PowerView Pebble®Remote and/or PowerView Surface Remote Operation
For information regarding operation and programming of the PowerView remote, refer to your
PowerView Motorization Remote Control Guide or to the online PowerView Step-by-Step Guide at
hunterdouglas.com/operating-systems/motorized/powerview-motorization/manuals.
PowerView Scene Controller
For information regarding operation and programming of the PowerView Scene Controller, refer to
your PowerView Motorization Scene Controller Guide or to the online PowerView Step-by-Step Guide
at hunterdouglas.com/operating-systems/motorized/powerview-motorization/manuals.
PowerView App Operation
PowerView Hub is required for PowerView App operation. For information regarding setup
and operation using the PowerView App, refer to the online PowerView Step-by-Step Guide at
hunterdouglas.com/operating-systems/motorized/powerview-motorization/manuals.

OPERATION
18
Resetting the Shade or Shading (If Necessary)
Basic Reset
The basic reset is used to reset the travel limits of the shade or shading.
1. Press and hold the programming button for approximately 6 seconds. The shade or shading
will move slightly. Release the programming button (the light flashes red).
2. Both the shade and shading will raise to their fully open positions to set the upper travel limit,
then lower to their fully closed positions to set the lower travel limit. The shade or shading will
then move slightly twice (up, then down) to indicate that the travel limits were reset.
Resetting Shade or Shading Programming
The programming reset erases shade or shading programming from memory, including group
assignments, preventing input devices from operating the product. The primary use is to correct
group and network assignments during installation. The reset does not affect travel limits or the
favorite position.
1. Press and hold the programming button for approximately 12 seconds. The shade or shading
will move slightly after 6 seconds, then again after 12 seconds. Release the programming
button (the light flashes red). The light then flashes a series of green and red to indicate that
shade or shading programming is erased from memory.
2. Refer to “Joining a Shade or Shading to a Group” on page 16 to program the shade to a
group.
