GETTING STARTED
Product View...........................................................................................1
Tools and Fasteners Needed ..................................................................2
INSTALLATION
Installation Overview .............................................................................3
STEP 1 — Install the Brackets ...............................................................3
Mount the Installation Brackets – Inside Mount...............................4
Mount the Installation Brackets – Outside Mount ............................6
Mount the Installation Brackets – End Mount...................................8
STEP 2 — Connect the Battery Wand/Mount, If Applicable.................9
STEP 3 — Install the Shading..............................................................11
STEP 4 — Connect the Power Source, If Applicable...........................12
Unpack the Wand and Attach to Activation Arm.................................17
OPERATION
Basic Operation.....................................................................................18
Express Mode .......................................................................................19
Set and Go to a Favorite Position.........................................................19
Troubleshooting ....................................................................................20
CARE
Removing the Shading..........................................................................29
Cleaning Procedures.............................................................................29
WARRANTY............................................................................Back Cover

GETTING STARTED
1
Product View
Installation
Brackets
Headrail
End Cap
Bottom Rail
Activation
Arm
Battery
Wand
Fabric-Covered
Headrail
Wand
Fabric
Not Shown:
Rechargeable Battery Wand, Satellite Battery Pack,
C-Size Satellite Battery Wand, and
18V DC Power Supply
Optional Dust Cover
(For Outside Mount)
Optional Back Cover
(For Inside and End Mount)

2
GETTING STARTED
Thank you for purchasing Hunter Douglas Pirouette®Window Shadings with SoftTouch®
Motorization. With proper installation, operation, and care, your new shadings will provide
years of beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before
beginning the installation.
Tools and Fasteners Needed
■
1
⁄ 4 " hex and flat blade screwdrivers
■ Level (laser level is recommended)
■ Measuring tape and pencil
■ Pliers
■ Power drill,
3
⁄ 32 " drill bit, and
1
⁄ 4 " hex driver (or socket wrench with
1
⁄ 4 " hex socket)
■ Scissors (heavy-duty)
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■ #6 Hex Head Screws (Provided). Two 1
1
⁄ 2 " screws are provided per installation bracket.
■ Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws
long enough for a secure attachment.
■ Speed Nuts and Screws (Provided). Extension brackets come with screws and
speed nuts.
■ Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Provided with
Each Extension Bracket)
#6 x 1
1
∕ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)
Important Operating Note
If a shading has been fully lowered with the vanes open for a long period of time,
the vanes may become “set” — they may not easily close or flatten. This is a normal
characteristic of fabric products.
If this happens, move the shading up and down to coax the vanes as closed as possible.
If necessary, gently pull down on the lowest operable vane. You may also dress the vanes
gently with your hands to help them close. Then roll up the shading slowly to flatten the
vanes. Allow the fabric to remain in the headrail for up to 24 hours.
To prevent vane set, regularly “exercise” the shading by raising and lowering it and
opening and closing the vanes.

INSTALLATION
3
Installation Overview
To install your shading, you will need to perform the following four steps:
STEP 1: Install the Brackets
STEP 2: Connect the Battery Wand, If Applicable
STEP 3: Install the Shading
STEP 4: Connect the Power Source, If Applicable
STEP 1 — Install the Brackets
■ Your order will include the correct number of installation brackets for your shading width,
as shown in the table below.
■ Shading orders may also include spacer blocks or extension brackets, if they were
specified for added clearance.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■ Refer to the appropriate page below based on your order:
➤ Inside Mount — Page 4
➤ Outside Mount — Page 6
➤ End Mount — Page 8
Shading Width Brackets
2
3
4
5
15" – 30"
30
1
∕ 8 " – 60"
60
1
∕ 8 " – 90"
90
1
∕ 8 " – 96"
Installation Bracket For Added Clearance
1
∕ 2 " Spacer
Blocks
Extension
Bracket
Outside Mount
Shadings mount
outside window
opening.
Inside Mount
Shadings fit within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

INSTALLATION
4
Mount the Installation Brackets — Inside Mount

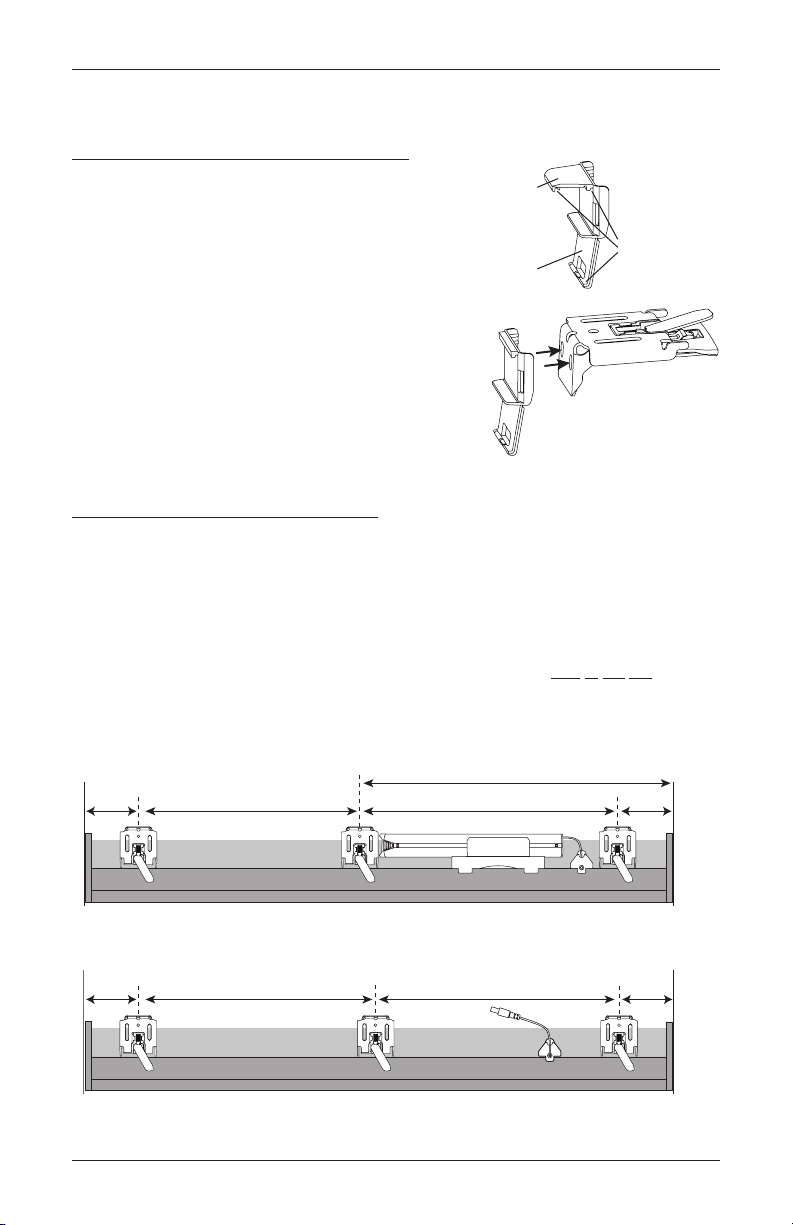

If Using the Optional Back Cover ...
■ Remove the top tab on the back cover brackets.
■ Snap each back cover bracket into a metal
installation bracket.
Mount the Installation Brackets
■ Mark 2" from each jamb for bracket location.
➤ If more than two installation brackets came with your order, space additional
bracket(s) evenly between the two end brackets and mark their location. Mount into
wood whenever possible. Allow a minimum of 20" from the motor side for the
battery wand/rechargeable battery wand.
NOTE: Before the headrail is installed, the bracket levers need to be fully to the left. Once
the headrail is properly in place, the levers automatically click to the right.
Back Cover Bracket
Top Tab
Bottom
Tab
Back Cover
Slots
Shadings with Battery Wand or Rechargeabl Battery Wand
Shadings with Optional Satellite Battery Pack or 18V DC Power Supply
Jamb
Jamb
20" Minimum for Battery Wand or
Rechargeable Battery Wand
Space Evenly Space Evenly
2" 2"
Jamb
Space Evenly Space Evenly
2" 2"
Motor
Side
Motor
Side
Jamb

INSTALLATION
5

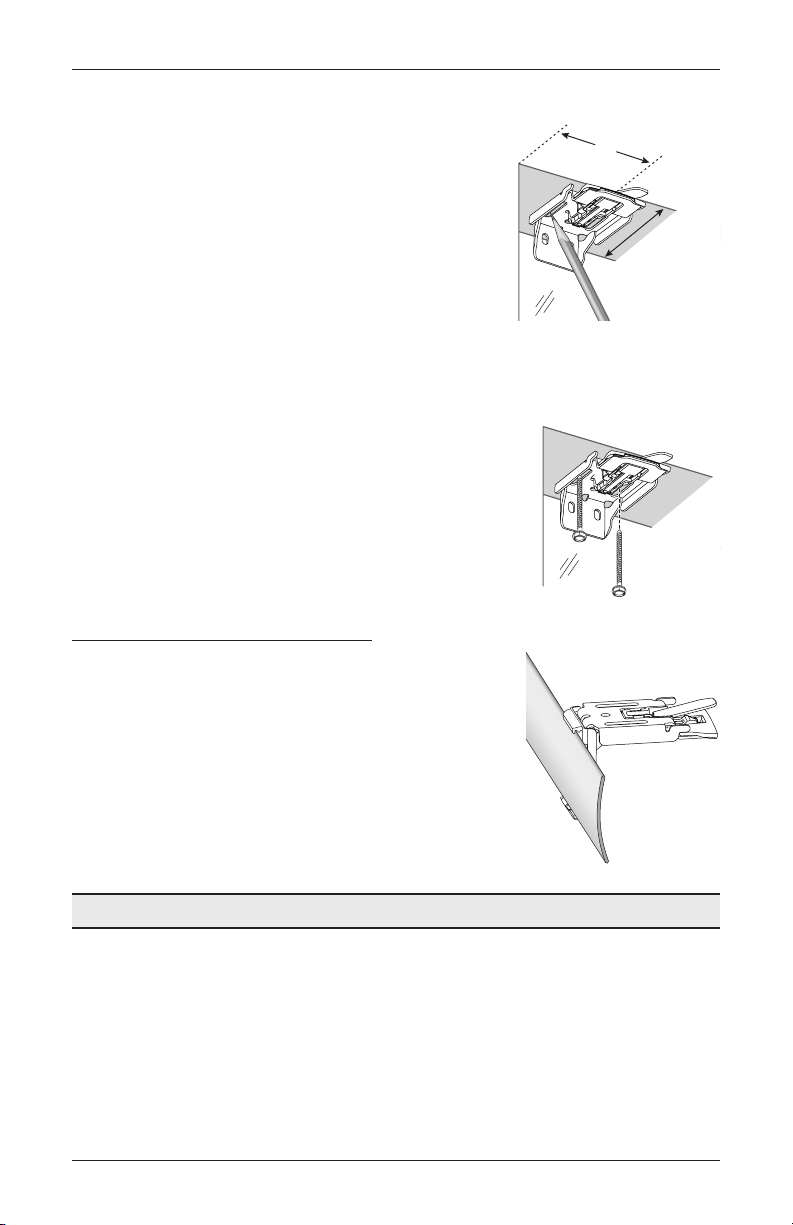

■ Center the brackets on your marks and mark the location of the screw holes.
➤ The minimum casement depth required for
installation brackets is 1" (1
1
⁄ 2 " with a headrail-
mounted rechargeable battery wand).
➤ The minimum casement depth required for a fully
recessed mount is 3
3
⁄ 4 " (4
1
⁄ 4 " with a headrail-
mounted rechargeable battery wand).
■ Use a level to check that the mounting surface is level.
Shim the brackets.
■ Drill the screw holes using a
3
⁄ 32 " drill bit.
CAUTION: Use drywall anchors when mounting
into drywall.
■ Attach the installation brackets using the screws provided.
IMPORTANT: Do not overtighten the screws. Check
to ensure the bracket lever can be moved easily side
to side. If not, loosen the screws in one-eighth turn
increments until the lever can be moved easily.
IMPORTANT: The front edges of the installation
brackets must be level and aligned to each other.
Install the Optional Back Cover
■ Install the cover into the back cover brackets.
■ If necessary, trim the back cover to the desired width.
Proceed to “STEP 2 — Connect the Battery Wand, If Applicable” on page 9.
2"
Casement
Depth
Back
Cover

INSTALLATION
6
Mount the Installation Brackets — Outside Mount
Mount the Installation Brackets
■ Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark the wall at each end of the headrail.
➤ Alternatively, measure the width of the headrail and use that width to mark the
headrail end points over the window opening.
■ Mark 2" from each end of theheadrail.
➤ If more than two installation brackets came with your order, space additional
bracket(s) evenly between the two end brackets and mark their location. Mount into
wood whenever possible. Allow a minimum of 20" from the motor side for the
battery wand/rechargeable battery wand.
NOTE: Before the headrail is installed, the bracket levers need to be fully to the left.
Once the headrail is properly in place, the levers automatically click to the right.
■ Center the installation brackets or extension brackets on your marks and mark where to
drill the screw holes.
➤ A minimum 1" flat vertical surface isrequired for the installation brackets. Extension
brackets require 1
1
⁄ 4 ".
➤ The top of the installation brackets or extension brackets should be at the desired
height. The brackets should be level and aligned to each other.
CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not
mount brackets on curved molding.
Headrail End Marks
Window Opening
Motor
Side
Space EvenlySpace Evenly
2" 2"
20" Minimum for Battery Wand
or Rechargeable Battery Wand
Extension
Bracket
1
1
∕ 4 "
1"

INSTALLATION
7
■ Drill the screw holes using a
3
⁄ 32 " drill bit.
CAUTION: Use drywall anchors
when mounting into drywall.
■ Attach the installation or
extension brackets using the
screws provided.
IMPORTANT: The top of the
installation bracket or extension
brackets must be level with their
front edges aligned.

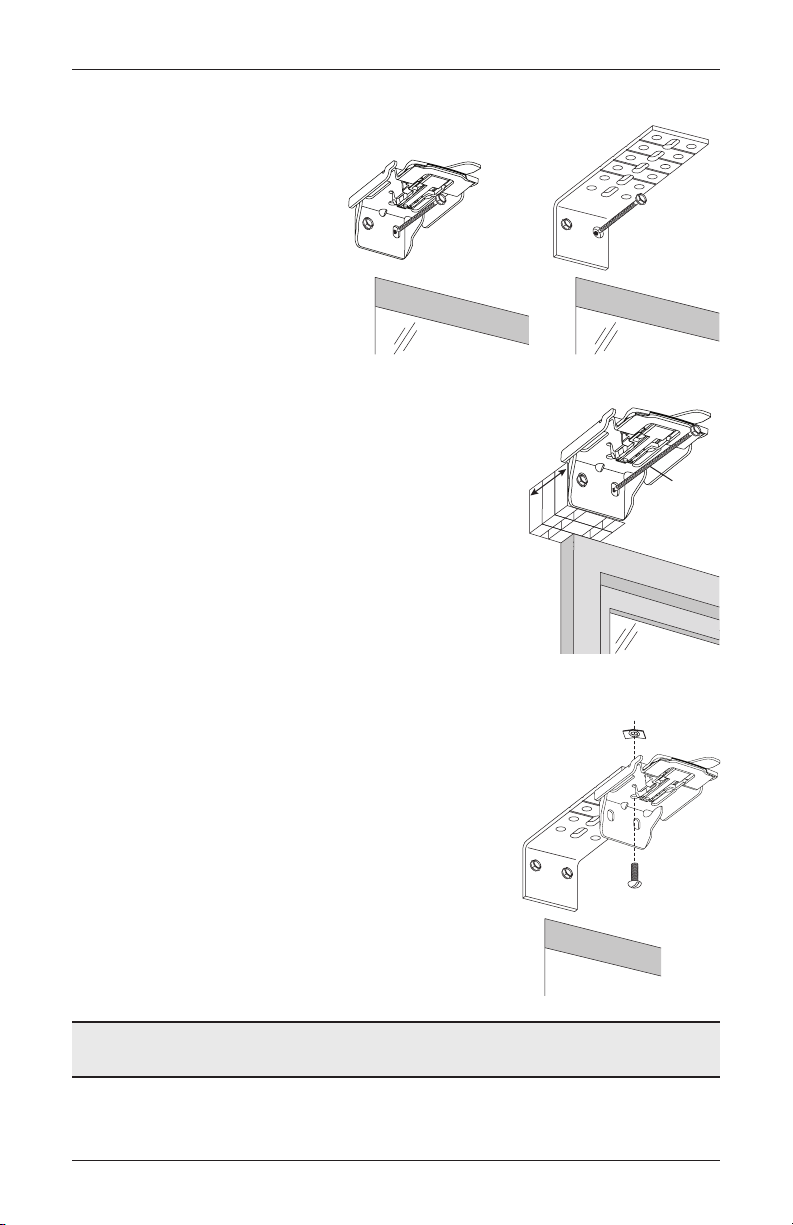

■ If using spacer blocks for added
clearance, attach the spacer
block(s) and installation bracket
to a flat vertical mounting surface
with #6 screws long enough for a
secure installation.
➤ The top of the spacer blocks should be at the
desired shading height.
IMPORTANT: Do not add more than 1
1
⁄ 2 " of
clearance using spacer blocks.
IMPORTANT: The top of the installation brackets
must be level with the front edges aligned.
CAUTION: Use drywall anchors when mounting
into drywall.
■ If using extension brackets, attach an installation
bracket to the underside of each extension bracket
using the speed nuts and screws provided.
Proceed to “STEP 2 — Connect the Battery Wand, If Applicable”
on page 9.
1
1
∕
2
"
Maximum
Spacer
Blocks
Longer
Screw
Speed Nut
Screw

INSTALLATION
8
Mount the Installation Brackets — End Mount
End mount the headrail when conventional mounting techniques will not work — for example,
in an arched window opening.
Mount the Extension and Installation Brackets
■ Mount extension brackets to each side of the opening at the desired height of the shading.
➤ The mounting surface must be vertical and flat, not part of an arched curve.
➤ Minimum mounting surface width with a built-in battery wand is 2
1
⁄ 8 ".
➤ Minimum mounting surface width with a staellite battery pack and 18V DC Power
Supply is 1", and 1
1
⁄ 2 " for rechargeable battery wand.
■ Attach the installation brackets to the extension
brackets using the provided screws and speed nuts.
WARNING: To end mount shadings into a
surface other than a secure wall stud, use
medium to heavy-duty wall anchors (not
provided) matched to the wall thickness.
Failure to mount the brackets securely may
result in injury or property damage.
Install the Optional Back Cover
■ Remove the top tab on the back cover brackets. See
“If Using the Optional Back Cover ...” on page 4.
■ Install the cover into the back cover brackets.
■ If necessary, trim the back cover to the desired width.
Proceed to “STEP 2 — Connect the Battery Wand, If Applicable”
on page 9.
Extension
Bracket
1
1
∕ 2 "
Minimum
Depth
Back
Cover

INSTALLATION
9
STEP 2 — Connect the Battery Wand/Mount, If Applicable
For the headrail-mounted battery wand and rechargeable battery wand, battery wand clips
and battery wand/rechargeable battery mounts are installed before the shading is installed.
Any other power options, the power source will be connected after the shading is installed.
Headrail-Mounted Battery Wand
Plug the Power Cable into the Battery Wand
■ From the back of the shading headrail, connect the power cable from the motor side into
the socket on the battery wand.
NOTE: When power is connected to the motor, a green LED in the bottom of the control
side end cap will flash to indicate the shading is ready for operation.
Mount the Battery Wand into the Battery Wand Clip
■ Push the battery wand into the battery wand clip until it snaps into place. Check to make
sure the battery wand is secure.
CAUTION: Be sure the cable does not become pinched by the battery wand clip during
installation. Damage or overheating of components could result.
Proceed to “STEP 3 — Install the Shading” on page 11.
Power
Cable
Battery
Wand

INSTALLATION
10
Headrail-Mounted Rechargeable Battery Wand
Install the Rechargeable Battery Wand Clips
■ Attach the battery wand clips to the headrail.
■ Hook the battery wand clip onto the back channel of the headrail.
IMPORTANT: Position the clip so that the battery wand will be between
installation brackets.
Install the Rechargeable Battery Mount into the Battery Wand Clips
■ From the back of the shading headrail, connect the power cable from the motor side into
the socket on the rechargeable battery mount.
■ Align the slots in the battery mount with the battery wand clips.
■ Push the battery mount onto the battery wand clips until it snaps into place. Check to
make sure the battery mount is secure.
CAUTION: Be sure the cable does not become pinched by the battery wand clips during
installation. Damage or overheating of components could result.
NOTE: Do not install the rechargeable battery wand into the battery mount before
installing the shading. See "STEP 4: Connect the Power Source — Headrail-Mounted
Rechargeable Battery Wand" on page 13 for instructions on inserting the battery wand
into the battery mount.
Proceed to “STEP 3 — Install the Shading” on page 11.
Front of
Headrail
Rechargeable
Battery Wand Clip
Power
Cable Rechargeable
Battery Wand
Mount
Rechargeable
Battery Wand
Clips

INSTALLATION
11
STEP 3 — Install the Shading
IMPORTANT: Leave the protective film on the fabric-covered headrail until you are satisfied
with the installation and operation of your shading.
■ Ensure that each lever is pushed
to the left side of the bracket
before installing the shading.
■ Position the shading so that
the front faces you.
■ Slide the headrail into the installation
brackets so the edge of the headrail is between
the lever and the bracket, as shown.
■ Firmly push the headrail into each bracket until it clicks and
the lever snaps to the right side of the bracket.
IMPORTANT: Carefully pull on the headrail at each bracket to
ensure it is installed securely.
■ Remove the protective film from the fabric-covered headrail.
Attach the Dust Cover (Optional for Outside Mounts)
The dust cover is used to protect the top of the headrail from exposure on outside mounted
shadings.
■ Cut the dust cover to desired width.
■ Remove the paper backing on one side of the hook and loop
fastener dots.
■ Apply the dots to the installation brackets on each end of the shadings.
■ Remove the remaining paper backing from the dots.
■ Center the dust cover over the top of the shading, above the previously placed dots.
■ Press the dust cover down onto the dots.
Headrail
Installation
Bracket
Lever
Slide Headrail
Between Lever
and Bracket
Remove
Paper
Backing
Overhead View — No Dust Cover
Dots
Dust Cover Installed

INSTALLATION
12
STEP 4 — Connect the Power Source, If Applicable
If you have attached the battery wand in step 2, proceed to “Unpack the Wand and Attach to
Activation Arm” on page 17.
NOTE: When power is connected to the motor, a green LED in the bottom of the control side
end cap will flash to indicate the shading is ready for operation.
■ Refer to the appropriate page based on your order.
➤ For a an optional satellite battery pack, see below.
➤ For an optional headrail-mounted rechargeable battery wand, see page 13.
➤ For an optional satellite-mounted rechargeable battery wand, see page 14.
➤ For an optional 18V DC Power Supply, see page16.
➤ For an optional 18V DC Power Supply with daisy-chain connections, see page17.
➤ For any other Hunter Douglas power options, see the instructions that came with
the unit.
If You Have an Optional Satellite Battery Pack...
Mount the Satellite Battery Pack
■ Decide where you want to mount the satellite battery pack. A satellite battery pack may
be mounted in any orientation.
■ Mark the screw holes for the wall mount bracket.
■ Drill the screw holes using a
3
⁄ 32 " drill bit.
■ Remove the backing from the double-sided tape. Press the
bracket into place.
■ Attach the bracket using the screws provided.
■ Position the battery wand so the power cable is easily connected to the socket.
■ Snap the battery wand into the wall mount bracket.
■ Install the battery wand cover with the slot aligned to the socket in the battery wand.
Wall Mount Bracket
Socket
Socket
Battery Wand Cover
Slot
Socket
Socket
Battery Wand Cover
Slot

INSTALLATION
13

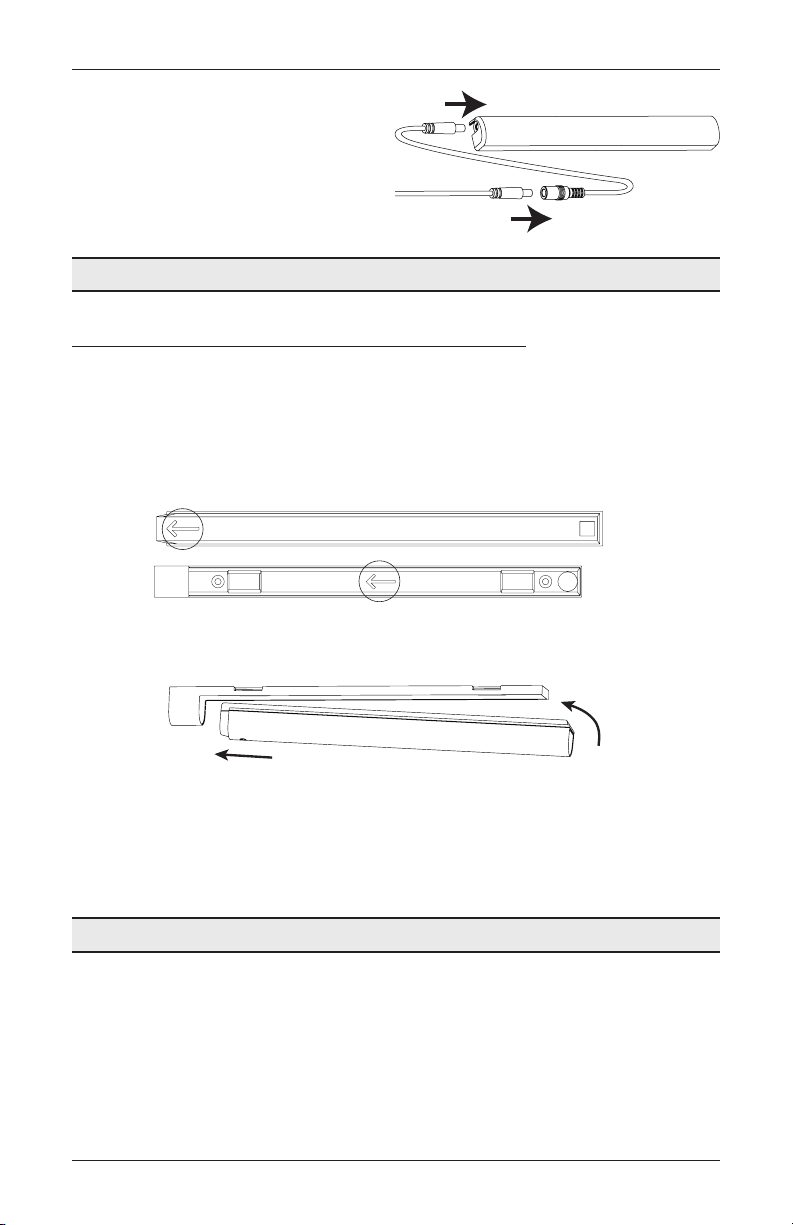

■ Plug the power cable from the shading
into the satellite battery pack cable.
■ Plug the other end of the cable into the
socket in the battery wand.
■ Secure the extension cable using wire
retainers (not supplied).
Proceed to “Unpack the Wand and Attach to Activation Arm” on page 17.
Headrail-Mounted Rechargeable Battery Wand
Insert the Rechargeable Battery Wand into the Battery Mount
NOTE: The rechargeable battery wand ships fully charged so it is ready to install out of the
package.

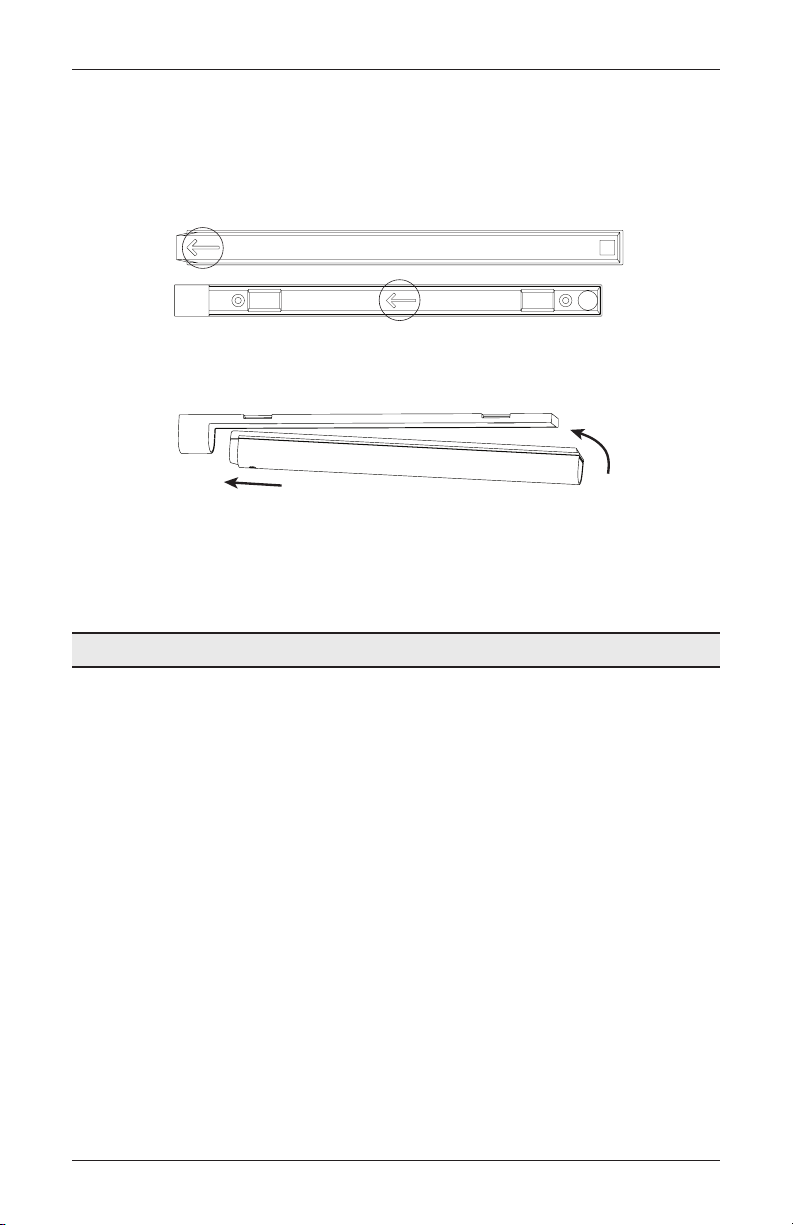

■ Match the direction of the arrow on the underside of the battery wand with the arrow on
the battery mount.
■ Insert the nose of the battery wand into the cavity of the battery mount.
■ Push the battery wand flush into the mount until the battery snaps into place.
CAUTION: Failing to insert wand properly may cause it to fall out of the mount, posing an
injury risk and potentially damaging the wand. Additionally, when mounting on a door, closing
the door with excess force may cause battery wand to dislodge from the mount, also posing
an injury risk and possibly damaging the wand.
Proceed to “Unpack the Wand and Attach to Activation Arm” on page 17.
Battery Wand Cover
Extension
Cable
Power Cable
from Shading

INSTALLATION
14
Satellite-Mounted Rechargeable Battery Wand
Install the Rechargeable Battery Mount
■ Decide where you want to install the rechargeable battery mount. This may be mounted
behind the headrail, or in any desired location near the window covering. A satellite
battery mount may be installed in any orientation.
➤ Make sure the provided cable is long enough to connect the satellite battery mount
and the shading.
CAUTION: The rear of the battery mount must be flush against a flat mounting surface.
Do not install brackets on a curved molding.
■ Mark the screw holes.
■ Drill the screw holes using a
3
⁄ 32 " drill bit.
■ Attach the battery mount using the screws provided.
CAUTION: Only use the screws provided with the battery mount, designed so that the
screws will install flush with the mount. Protrusion of the screws could result in either the
battery wand not attaching properly causing a failure to connect, or the wand falling out
of the mount. Do not over-tighten the screw.
■ Connect the power cable from the motor side into the power socket on the rechargeable
battery mount.

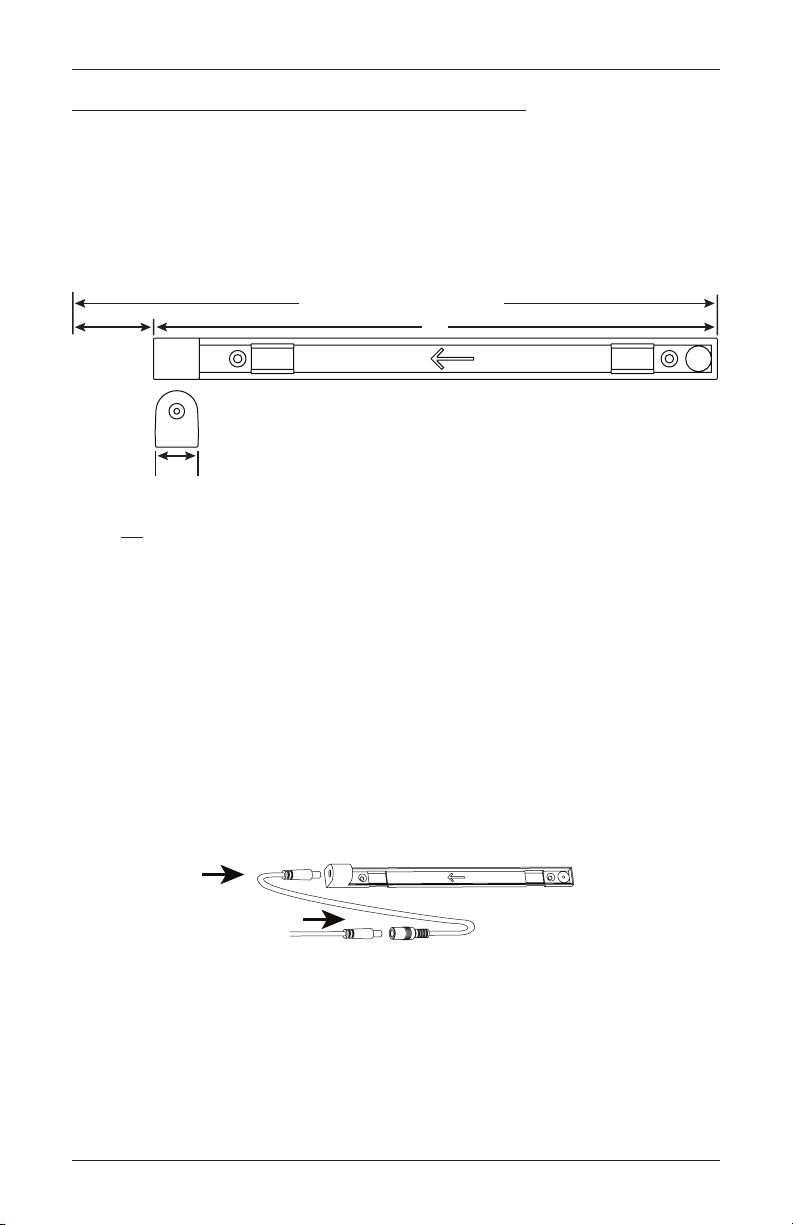

NOTE: With longer cables, wire retainers (not supplied) are recommended to secure the cable.
2"
Power
Socket
End
Allow 2" at power socket end for the extension cable jack.
Minimum flat mounting area = 15" x 1
1
⁄ 4 "
13"
15" Minimum Mounting Length
1"
Battery Mount
Extension
Cable
(If Needed)
Power Cable
from Shading

INSTALLATION
15
Insert the Battery Wand into the Battery Mount
NOTE: The rechargeable battery wand ships fully charged so it is ready to install out of the
package.
■ Match the direction of the arrow on the underside of the battery wand with the arrow on
the battery mount.
■ Insert the nose of the battery wand into the cavity of the battery mount.
■ Push the battery wand flush into the mount until the battery snaps into place.
CAUTION: Failing to insert wand properly may cause it to fall out of the mount, posing an
injury risk and potentially damaging the wand. Additionally, when mounting on a door, closing
the door with excess force may cause battery wand to dislodge from the mount, also posing
an injury risk and possibly damaging the wand.
Proceed to “Unpack the Wand and Attach to Activation Arm” on page 17.

INSTALLATION
16
If You Have an Optional 18V DC Power Supply...
Connect the Power Supply

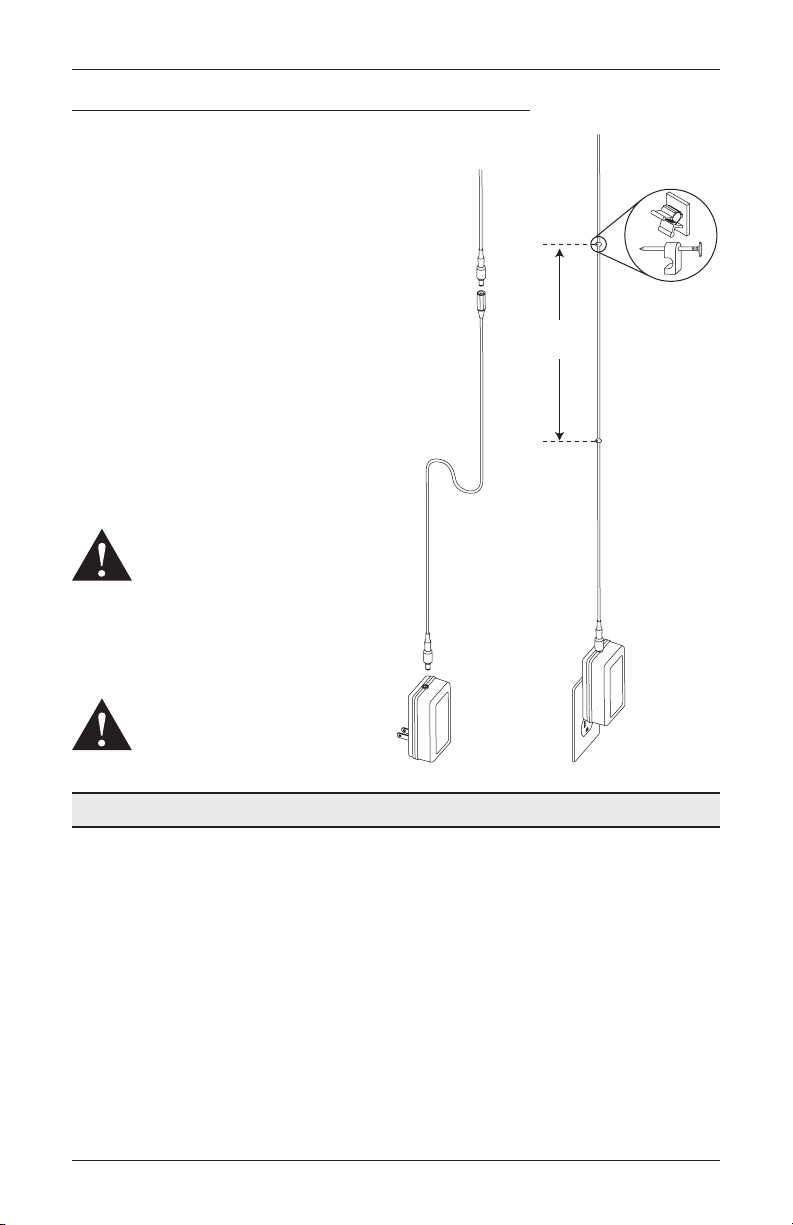

■ Plug the power cable from the shading
into the extension cable.
■ Plug the other end of the extension
cable into the 18V DC Power Supply.
■ Plug the 18V DC Power Supply into a
standard outlet.
■ Secure the extension cable using wire
retainers (not supplied). If hiding the
cable behind the shading, make sure
it does not impede the operation of
theshading.
■ Space the wire retainers approximately
15" apart along the power supply cable,
as shown.
WARNING: Keep cables and
small parts out of the reach
of children. They can wrap
cables around their necks and
STRANGLE. They can also put
small parts in their mouths and
CHOKE.
WARNING: Electric shock and/
or a fire hazard may occur, if not
properly installed.
Proceed to “Unpack the Wand and Attach to Activation Arm” on page 17.
Power Cable
from Shading
Extension
Cable
18V DC
Power
Supply
15"
Maximum
Wire Retainers

INSTALLATION
17

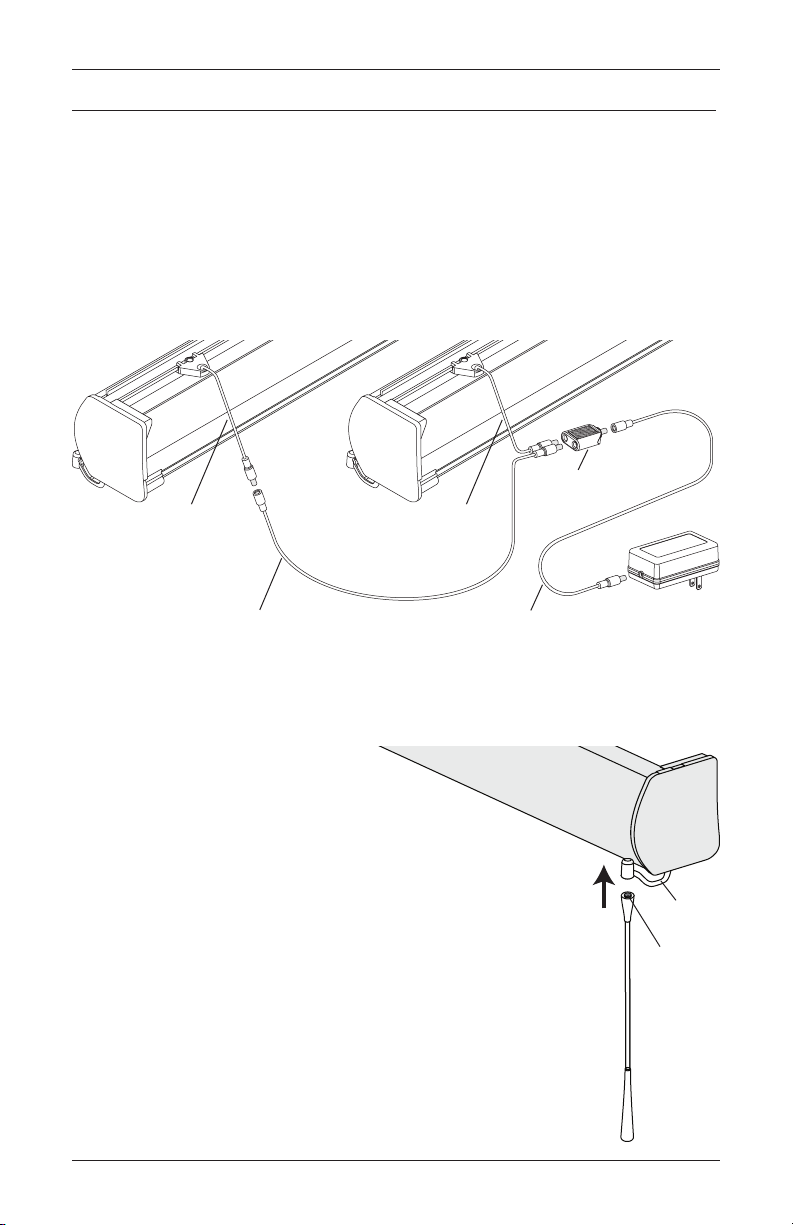

If You Have an Optional 18V DC Power Supply with Daisy-Chain Connections...
The daisy-chain feature allows up to three SoftTouch®Motorization shadings to be powered
by a single 18V DC Power Supply. However, each shading can operate independently. The
daisy-chain feature is only available with the 18V DC Power Supply option.
■ Route the power cables from each shading to the connector. Use extension cables of
appropriate length to connect the power cables.
■ Plug an extension cable into the connector and plug the cable into the 18V DC Power
Supply. Two extension cables and two connectors are used for three shadings.
■ Plug the 18V DC Power Supply into a standard outlet.
Unpack the Wand and Attach to Activation Arm
■ Attach the top of the wand (magnet side) to the activation arm.
Power Cable
from Shading
Power Cable
from Shading
Extension
Cable
Extension
Cable
Connector
18V DC
Power Supply
Activation
Arm
Magnet

OPERATION
18
Basic Operation
To Lower the Shading
■ Briefly pull the wand down to move the shading in the
down/closed direction.
■ The shading will move to the fully closed position.
To Open the Vanes
■ With the shading fully lowered, briefly pull the wand
down to open the vanes.
To Close the Vanes
■ With the shading fully lowered and vanes open,
briefly push the wand up to close the vanes.
To Raise the Shading
■ Briefly push the wand up to move the shading in
the up/open direction.
■ The shading will move to the fully open position.
To Stop the Shading
■ While the shading is motion, pull down (or push
up) the wand and release to stop shading or vane
movement anywhere along its travel.
Close
Vanes
Raise
Shading
Lower
Shading
Open
Vanes
Close
Vanes
Raise
Shading
Lower
Shading
Open
Vanes
