GETTING STARTED
Product View
Back/Dust
Cover
(Optional)
Installation Brackets
Headrail Limit Stops
End Cap Headrail
Cord Loop
and
Tensioner
EasyRise
™
Two-On-One Headrail Shading

2
GETTING STARTED
Thank you for purchasing Hunter Douglas Silhouette®window shadings.
With proper installation, operation, and care, your new shadings will provide years of beauty
andperformance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation. If your shading has a protective plastic cover on the fabric-covered headrail,
keep the plastic in place until the shading is installed.
Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers ■Level (laser level is recommended)
■Measuring tape and pencil ■Pliers
■Power drill,
3
/ 32 " drill bit,
and
1
/ 4 " hex driver
■Scissors (heavy-duty)
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per installation bracket.
■Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment.
■Speed Nuts and Screws (Provided). Extension brackets come with screws and speed nuts.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Provided with Each
Extension Bracket)
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)

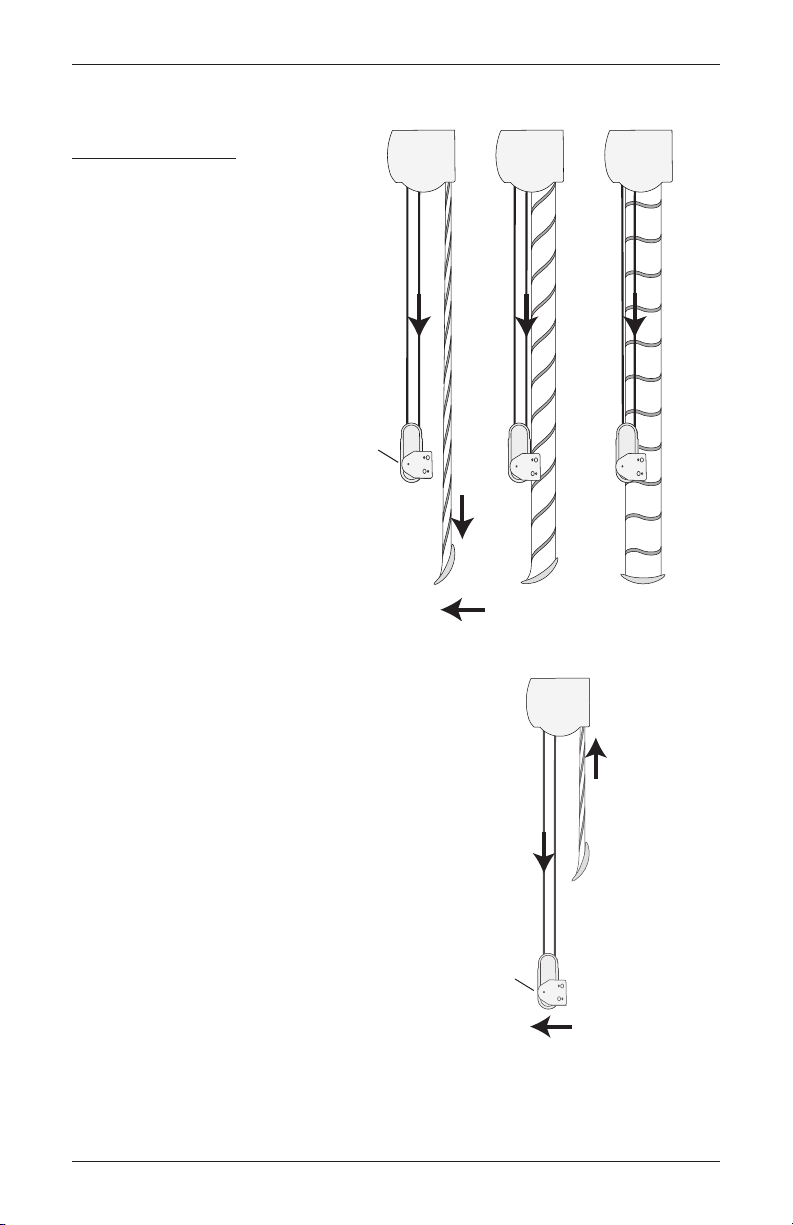

Importance of Limit Stops on Silhouette Window Shadings
Limit stops serve as the upper travel limit for the bottom rail, preventing it from rotating
around the fabric roll. Limit stops are located 6" from the ends of the headrail or are
centered on shadings less than 36" wide.
When a shading is made, the limit stops are adjusted according to the size of the fabric
roll. Occasionally, this adjustment changes during shipping or installation. If this
happens, problems can be fixed by readjusting the limit stops. See page 12in the
Troubleshooting section if shading operation is difficult or if the bottom rail rotates
around the fabric roll. Shown below are the four possible positions of limit stops for large
to small fabric rolls.
Large Fabric Roll Small Fabric Roll

INSTALLATION
3
Installation Overview
■Your order will include the correct number of installation brackets for your shading width, as
shown in the table below.
■Shading orders may also include spacer blocks or extension brackets, if they were specified
for added clearance.
➤Extension brackets are used for end mount shadings, as well.
■Two-On-One Headrail Shadings. The appropriate number of brackets are provided for
each panel.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Inside Mount — Page 4
➤Outside Mount — Page 6
➤End Mount — Page 8
Installation Bracket For Added Clearance
Shading Width Brackets
2
3
4
5Extension
Bracket
1
/ 2 " Spacer
Block
14" – 36"
36
1
/ 8 " – 79"
79
1
/ 8 " – 96"
96
1
/ 8 " – 120"
Outside Mount
Shading mounts
outside window
opening.
Inside Mount
Shading fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

INSTALLATION
4
Mount the Installation Brackets — Inside Mount
Prepare the Installation Brackets

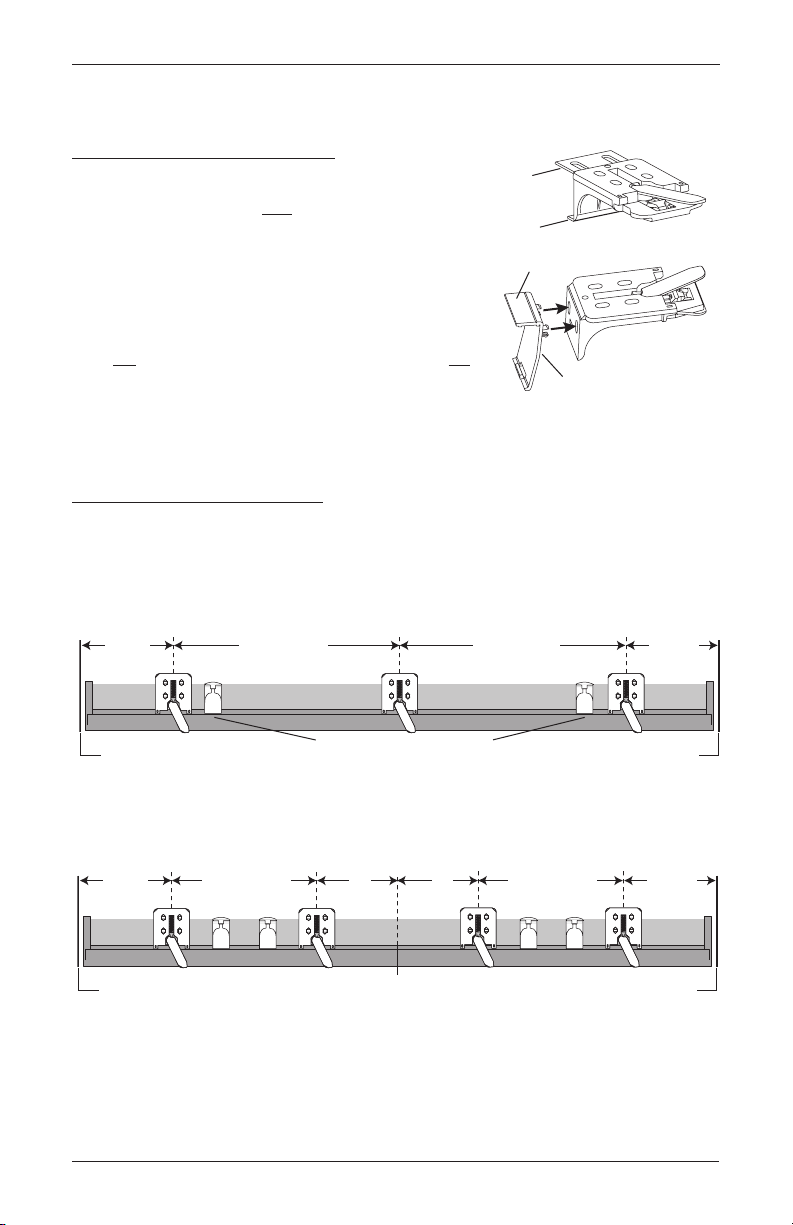

■If using the optional back cover: Use pliers or heavy
duty scissors to remove both the top and bottom tabs on
the installation brackets.
➤Then remove the top tab on the back cover brackets.
➤Snap the prongs on the back cover brackets into the
holes on the back of the installation brackets.
■If not using the optional back cover: Remove the top
tab only on the installation brackets.
NOTE: Save these tabs once removed. They may be used as
shims, if necessary.
Mount the Installation Brackets

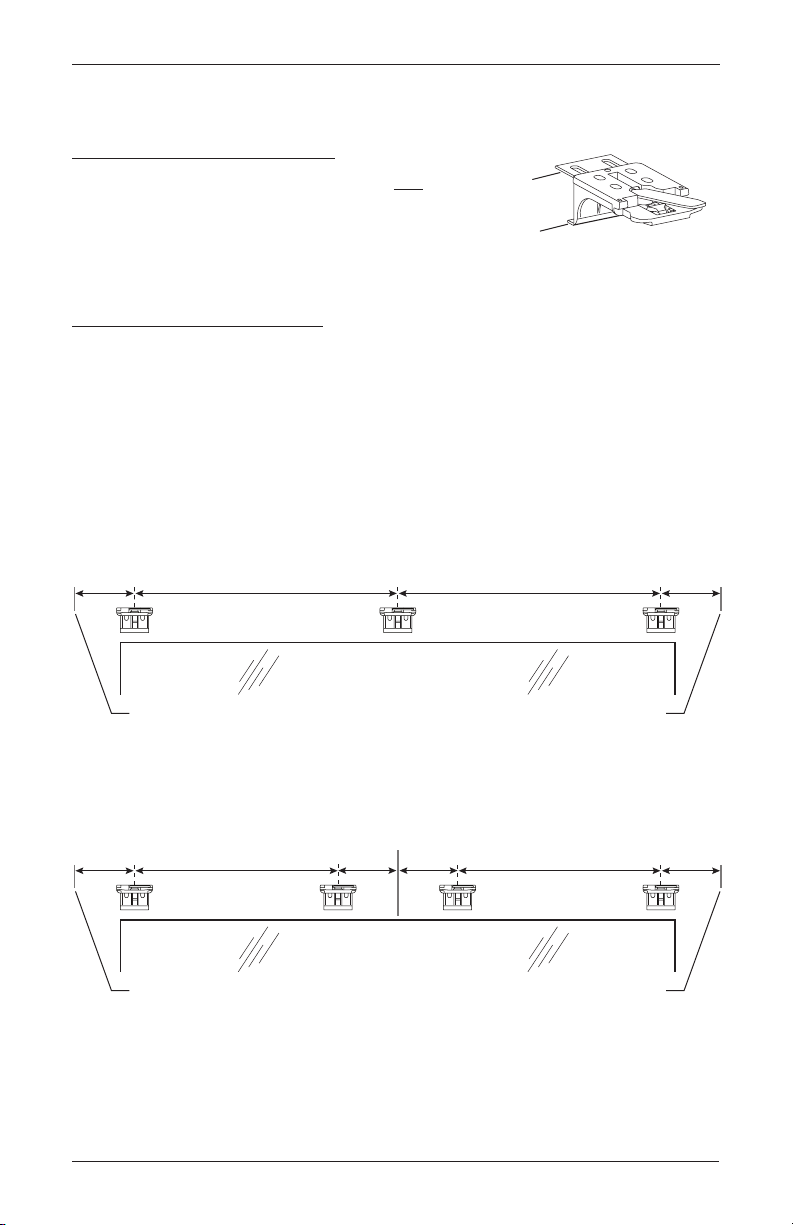

■Mark 2" to 3" from each jamb for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
■Two-On-One Headrail Shadings. Place the installation brackets as shown in the
illustration below.
Top
Tab
Bottom
Tab
Remove Top Tab
Back Cover Bracket
Limit stops should be equal
distance from the ends of headrail.
Space Evenly Space Evenly
2" to 3" 2" to 3"
Jamb Jamb
Space Evenly2" to 3" 2" to 3"
Jamb Jamb
Space Evenly
Panel Split
3" 3"

INSTALLATION
5
■Decide whether the front or back set of installation bracket holes works best in your
application. Mark the location of the screwholes.
➤The depth required for fully recessed mounting will vary
depending on the type of headrail and vane size. Refer
to the chart below for depth requirements.
■Use a level to check that the mounting surface is level. Shim the brackets, if necessary (use
the top tab that was removed from the brackets).
■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Attach the installation brackets using the screws provided.
IMPORTANT: Do not overtighten the screws. Check to ensure
the lever can be moved easily side to side. If not, loosen the
screws
in one-eighth turn increments until the lever can be
moved easily.
IMPORTANT: The front edges of the installation brackets must
be level and aligned to eachother.
■If using the optional back cover: Install the cover into
the back cover brackets. If necessary, trim the back cover
to the desired width.
Proceed to “Install the Shading” on page 9.
2" to 3"
Casement
Depth
Depth Chart for Bracket Placement
Headrail Type Minimum Fully Recessed
Classic 1" 3
5
/ 16 "
Back
Cover
Note: Add
1
/ 4
" to the minimum depth dimensions if the
optional back cover is used for inside mounts.

INSTALLATION
6
Mount the Installation Brackets — Outside Mount
Prepare the Installation Brackets
■Use pliers or heavy duty scissors to remove both the top
and bottom tabs on the installation brackets.
NOTE: Save these tabs once removed. They may be
used as shims, if necessary.
Mount the Installation Brackets
■Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
■Mark 2" to 3" from each end of theheadrail.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
■Two-On-One Headrail Shadings. Place the installation brackets as shown in the
illustration below.
Top
Tab
Bottom
Tab
Remove Top Tab
Back Cover Bracket
Window Opening
Space Evenly Space Evenly
2" to 3" 2" to 3"
Headrail End Mark Headrail End Mark
Window Opening
Space Evenly
Panel Split
Space Evenly
2" to 3" 3" 3" 2" to 3"
Headrail End Mark Headrail End Mark

INSTALLATION
7

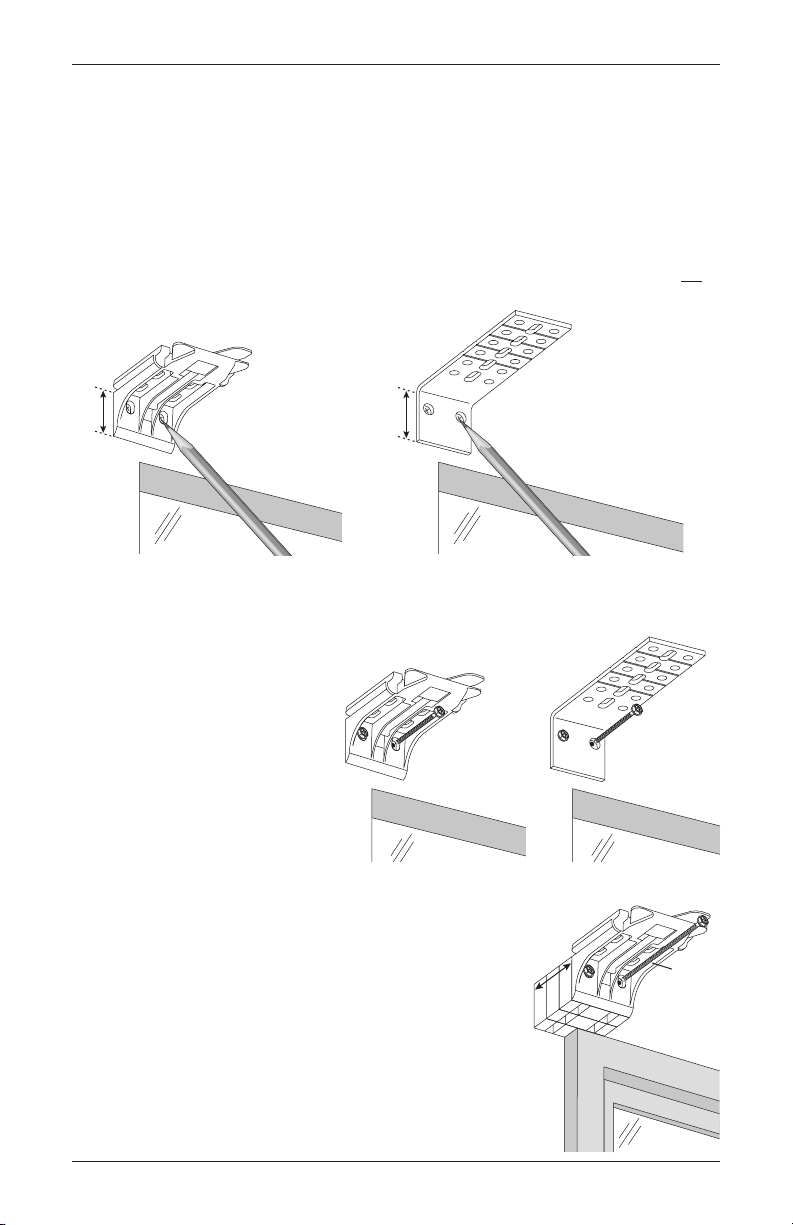

■Center the installation brackets or extension brackets on your marks and mark where to drill
the screw holes.
➤A minimum 1
1
/ 8 " flat vertical surface isrequired for the installation brackets. Extension
brackets require 1
1
/ 4 ".
➤The tops of the installation brackets or extension brackets should be at the desired
height. The brackets should be level andaligned.
CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not
mount brackets oncurved molding.
■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Attach the installation or extension
brackets using the screws provided.
IMPORTANT: The tops of the
installation brackets or extension
brackets must be level with their
front edges aligned.
■If using spacer blocks, attach the spacer block(s) and
installation bracket to a flat vertical mounting surface
with #6screws long enough for asecure installation.
IMPORTANT: Do not add more than 1
1
/ 2 " of clearance
using spacer blocks.
IMPORTANT: The tops of the installation brackets
must be level with the front edges aligned.
1
1
/ 8 "Extension
Bracket
1
1
/ 4 "
1
1
/
2
"
Maximum
Spacer
Blocks
Longer
Screw

INSTALLATION
8

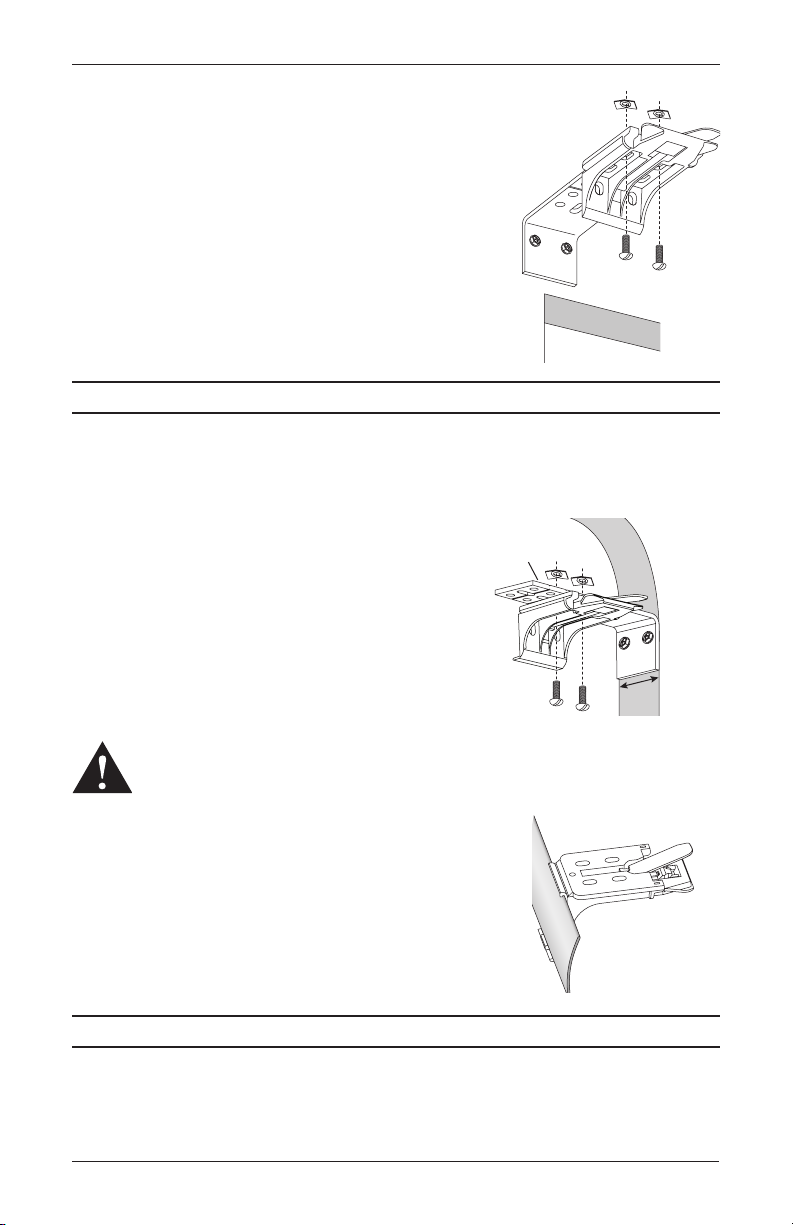

■If using extension brackets, attach an installation bracket
to the underside of each extension bracket using thespeed
nuts and screws provided.
Proceed to “Install the Shading” on page 9.
Mount the Installation Brackets — EndMount
End mount the headrail when conventional mounting techniques will not work — for example, in
an arched window opening.
■Mount the extension brackets on a flat vertical surface
at least 1
1
/ 4 " wide.
➤Add
1
/ 4 " to the minimum depth if using the optional
back cover.
■Attach the installation brackets to the extension
brackets using the provided screws and speed nuts.
WARNING: To end mount shadings into a surface other than a secure wall stud, use
medium to heavy-duty wall anchors (not provided) matched to the wall thickness.
Failure to mount the brackets securely may result in injury or property damage.
■If using the optional back cover: Install the cover into the
back cover brackets. If necessary, trim the back cover to the
desired width.
Proceed to “Install the Shading” on page 9.
Speed Nuts
Screws
Extension
Bracket
1
1
/ 4 "
Minimum
Depth
Back
Cover

INSTALLATION
9
Install the Shading
■Peel back the protective
covering from the top of the
fabric-covered headrail. Leave
the rest of the protective
covering on the front of the
headrail.
■Position the shading so that
the front faces you.
■Slide the headrail into the installation brackets so the edge of the headrail is between the
lever and the bracket, asshown.
■Firmly push the headrail into each bracket until it clicks and the lever snaps to the right side
of the bracket.
IMPORTANT: Carefully pull on the headrail at each bracket to ensure it is installedsecurely.
■Completely remove the protective covering from the fabric-covered headrail.
Attach the Universal Cord Tensioner (UCT) for EasyRise™Only
IMPORTANT: Before you proceed, you must first slide the cord tensioner to the bottom of the
cordloop.
■Insert a small screwdriver, punch, or awl through the
screw hole at the bottom of the cord tensioner.
■Move the screw hole down to the indicator line to
release the safety mechanism.
■Slide the cord tensioner down to the bottom of the
cordloop.
■Attach the cord tensioner according to the
instructions provided with the Universal Cord
Tensioner Installation Kit.
WARNING: It is imperative that the cord tensioner be properly secured to the
wall or window frame to reduce children’s access to the cord loop. Young
children can strangle in cord loops. They can also wrap cords around their
necks and strangle.
CAUTION: The shading will not operate properly unless the cord tensioner
is secured. A Universal Cord Tensioner Installation Kit has been included
with your shading. Follow the instructions in the kit to correctly secure the
cordtensioner.
Headrail
Installation
Bracket
Lever
Slide the Headrail
Between the Lever
and the Bracket.
Screw
Hole
Indicator
Line

INSTALLATION
1
Attach the Dust Cover (Optional for Outside Mounts and End Mounts)
The dust cover is used to protect the top of the headrail from exposure on outside mounted
shadings.
■Cut the dust cover to desired width.
■Remove the paper backing on one side of the hook and loop
fastener dots.
■Apply the dots to the installation brackets on each end of
theshading.
■Remove the remaining paper backing from the dots.
■Center the dust cover over the top of the shading, above the dots.
■Press the dust cover down onto the dots.
Remove
Paper
Backing
Overhead View
No Dust Cover
Dots
Dust Cover Installed

OPERATION
1
Operate the Shading
EasyRise™Shadings
To Lower the Shading and
Openthe Vanes
■Pull the rear cord of the
cord loop down to lower
the shading.
■With the shading fully
lowered, continue to pull the
rear cord to tilt the bottom
rail and open the vanes.
■If the cord tensioner moves
up the cord, you have not
secured it to the wall or
window frame. You must do
so for the shading to operate
properly.
To Close the Vanes and Raise theShading
■Pull the front cord of the cord loop down to close
the vanes and raise the shading.
■If the cord tensioner moves up the cord, you
have not secured it to the wall or window frame.
You must do so for the shading to operate
properly.
IMPORTANT: If the shading raises or lowers
unevenly, the fabric rubs against one end ofthe
headrail, or the bottom rail is uneven whenfully
raised, the bottom rail weight needs to be
adjusted. See “Adjusting the Bottom Rail Weight”
on page 1.
Front Side of Shading
To Lower and Open the Vanes of the Shading
Cord
Tensioner
and Bracket
Front Side of Shading
To Close Vanes and Raise the Shading
Cord
Tensioner
and Bracket

OPERATION
12
Troubleshooting
Problem The shading will not snap into the installation brackets.
Solution Check that the installation brackets are aligned andlevel.
Check that the locking tab on the installation bracket slides over the headrail.
Problem The shading is hard to raise or lower, or will not raise or lower.
Solution Shadings cannot be forced into tight inside mount window openings. If an inside
mount, make sure there is clearance between the ends of the shading and the
window casement.
For EasyRise™only: Check that the universal cord tensioner is mounted
correctly.
■Pull down on the spring to relieve tension and pull the universal cord
tensioner to the bottom of the cord loop. Properly mount the cord tensioner.
See the Universal Cord Tensioner Installation Instructions included with
yourshading.
Check that the installation brackets are level. Shim to level, if necessary.
Problem EasyRise shadings only: The universal cord tensioner has climbed to the
headrail.
Solution Pull down on the spring to relieve tension and pull the universal cord tensioner
to the bottom of the cord loop. Properly mount the cord tensioner. See the
Universal Cord Tensioner Installation Instructions included with your shading.
Problem EasyRise shadings only: The universal cord tensioner grabs onto the cord
upon operation.
Solution Check that the universal cord tensioner is mounted properly. Reinstall, if
necessary.

OPERATION
1
Problem The shading is hard to raise or lower, or the bottom rail does not stop at the
top limit.

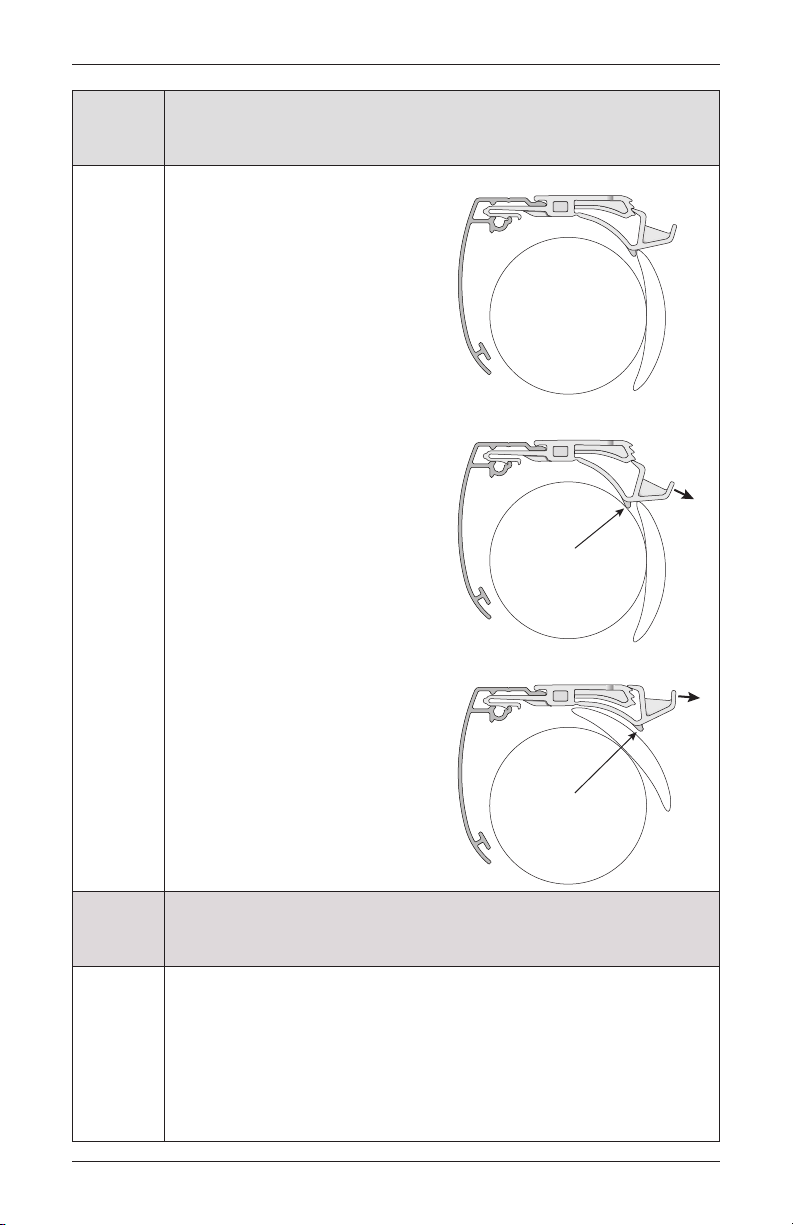

Solution Check the adjustment position of
both limit stops. The top illustration
shows the correct adjustment. The
limit stop catches the bottom rail,
and the bottom of the limit stop is
slightly above or barely touching the
fabric roll.
In the second illustration, the limit
stop adjustment is too tight. The
fabric may not drop freely and could
even be damaged when the shading
is raised. To correct this, the limit
stop should be adjusted one step up.
Simply pull back on the rear of the
limit stop to adjust its position.
In the bottom illustration, the
adjustment is too loose. The bottom
rail can slip under the limit stop.
If the bottom rail rotates through
the headrail, it must be backed out
before adjusting the limit stop.
IMPORTANT: Both limit stops must
be adjusted to the same position or
else skewing may occur.
Problem The shading raises or lowers unevenly or the bottom rail is uneven when
fully raised.
Solution Check that the window is square by measuring the diagonals.
Check that the installation brackets are level. Shim to level, ifnecessary.
Pull Back
to Adjust
Fabric Roll
Bottom
Rail
Limit StopHeadrail
Pull Back
to Adjust
Too Tight —
Adjust One Step Up
Too Loose —
Adjust One Step Down

OPERATION
1
Problem The shading raises or lowers unevenly, the fabric rubs against one end of
the headrail, or the bottom rail is uneven when fullyraised.
Solution Check that the window is square by measuring the diagonals.
Check that the installation brackets are level. Shim to level, if necessary.
Adjust the bottom rail weight. See below.

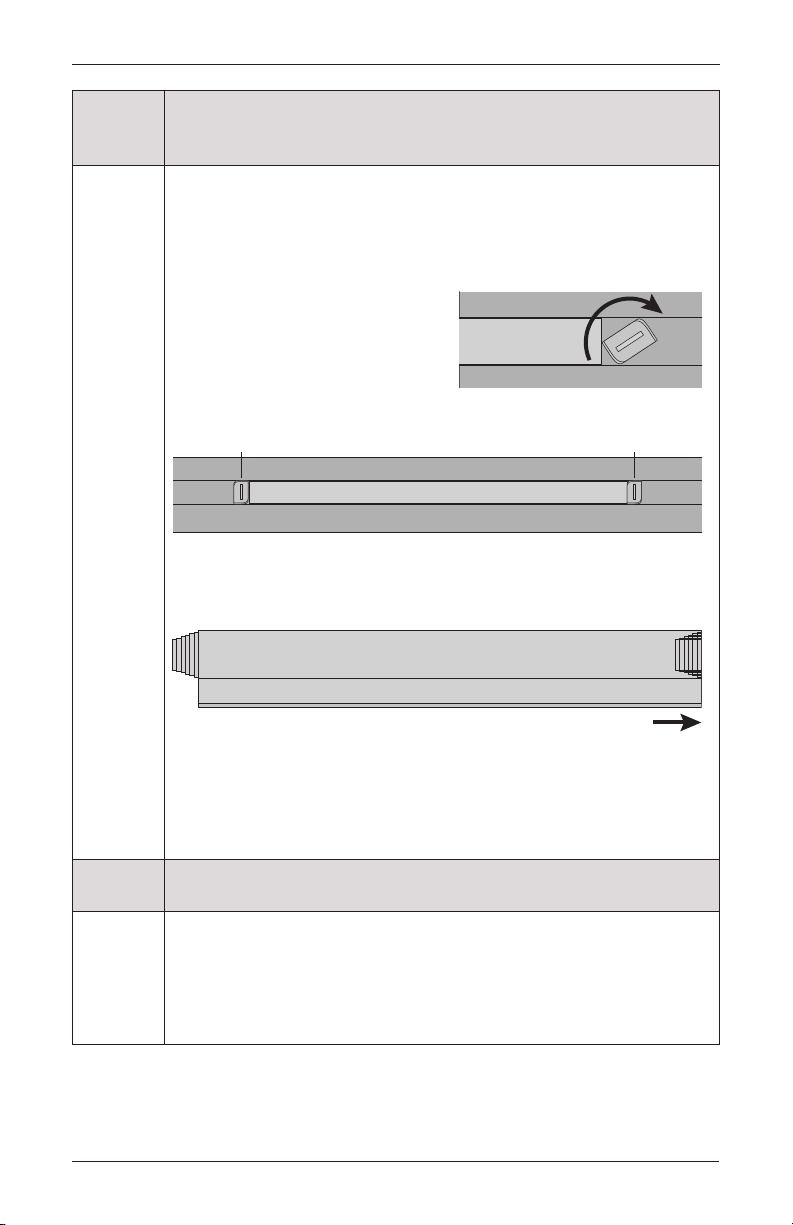

Adjusting the Bottom Rail Weight
■Release the weight clips by inserting
a flat blade screwdriver into the
weight clip and turning clockwise.
■Move the weight in 1" increments toward the side where the fabric is
gathering.
■Secure the weight clips in position by turning them counterclockwise after
making the adjustment.
■Test and, if necessary, adjust again.
Problem Vanes do not align on side-by-side shadings.
Solution Vane alignment is only guaranteed within
1
/ 4 " when shadings are ordered at
the same time, at the same height, with the same color and fabric, and when
specified on the order form.
Check that the windows are square and the sameheight.
Weight
Bottom Rail
Weight
Clip
Weight
Clip
Fabric Roll
Gathered
Fabric
Move Weight

OPERATION
1
Problem Two-On-One Headrail Shadings Only:The center gap is not even from the
top to the bottom of the shading, interfering with the function of theshading.
Solution Ensure the entire length of the headrail is straight and level. If the center portion
of the headrail is higher than the ends, the center gap will close together. If the
center portion of the headrail is lower than the ends, the center gap increases.
If necessary, adjust the height of each bracket by moving it within the screw
slots or by using shims.

CARE

Removing the Shading (If Necessary)
■Move each lever of the installation brackets to the left to release
the shading.
➤A flat blade screwdriver can be used to move the lever.
CAUTION: Be very careful not to tear or damage thefabric.
➤If the lever is inaccessible or
inoperable, lower the shading until
you can see the underside of the
bracket. Carefully reach a small
flat blade screwdriver behind the
shading to the tab on bottom of the
bracket between the screw holes.
➤Push the tab away from the
shading and pull the headrail to
release it from the bracket.
■Carefully pull the shading to remove it
from the brackets.
Cleaning Procedures
Silhouette®window shadings are made of 100% polyester, which means they are inherently
durable and resilient. However, care must be taken to avoid wrinkling the fabric, particularly
where the vanes meet the facings.
The Palette®Fabric-Covered Headrail
■Spot-clean the headrail using a sponge or delicate cloth, cool distilled water and a mild soap
solution; handle with care as you would any fine fabric.
Dusting
■Regular light dusting with a feather duster is all the cleaning needed in most circumstances.
Vacuuming
■Use hand-held vacuum with low suction, for more thorough dust removal.
Forced Air
■Blow away dirt and debris between the vanes using clean compressed air.
Move Lever to Left
Top View
Tab
Installation Bracket
Underside of
Bracket
End Cap

CARE


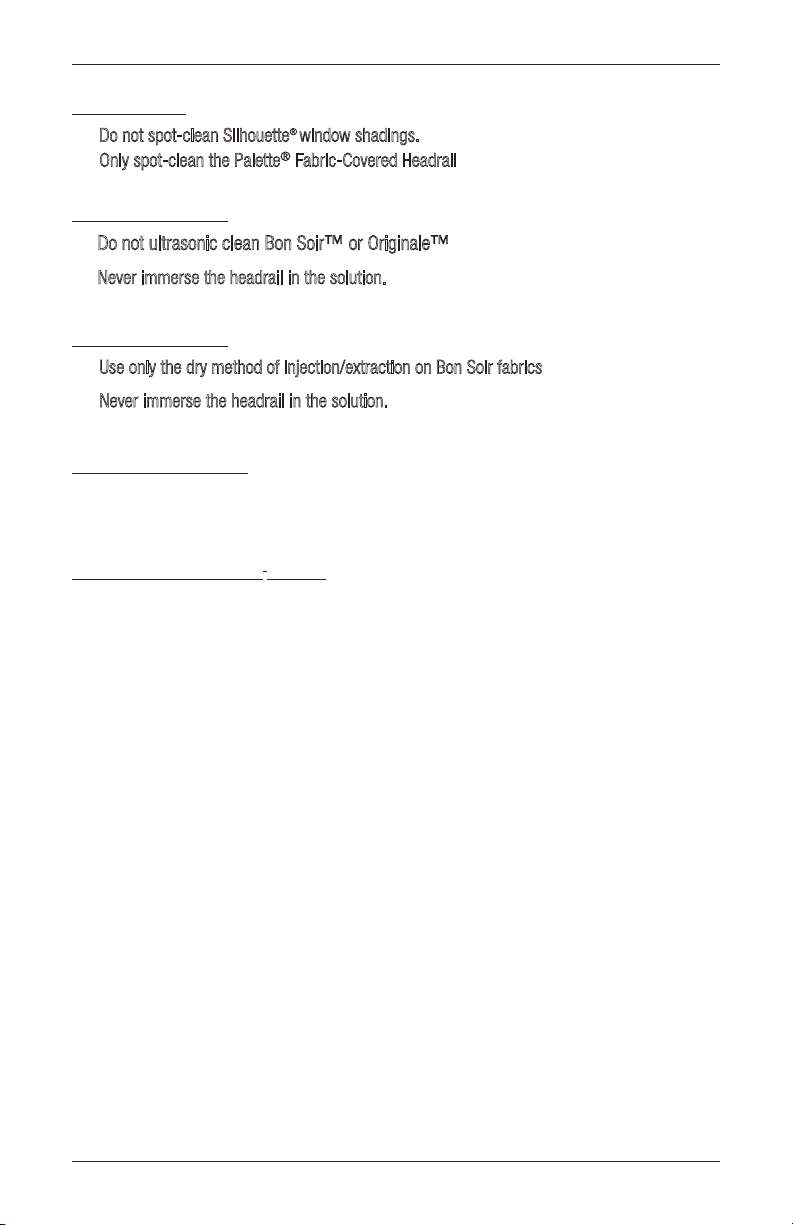

Spot-Cleaning
■
■
Ultrasonic Cleaning
■
■
Injection/Extraction
■
■
Electrostatic Cleaning
Do not use electrostatic cleaning wipes on any Silhouette or Nantucket window
shadings.
A Note About Silhouette Fabrics
As with all textiles, Silhouette fabrics are subject to some variations. Slight wrinkling,
puckering, or bowing is inherent to this textile product and should be considered normal,
acceptable quality. These characteristics are not usually visible from the front or rear butmay
be visible from a sideangle.
Precautions should be taken to reduce exposure to harsh environmental elements, such as salt
air. Continuous exposure through open windows and doors will accelerate the fabric
deterioration.

CHILD SAFETY

For more safety information call 1-888-501-8364
in the U.S. or 1-800-265-8000 in Canada.
WARNING
■Young children can STRANGLE in cord loops. They can also wrap cords around their
necks and STRANGLE.
■Always keep cords out of the reach of children.
■Move cribs, playpens and other furniture away from cords. Children can climb
furniture to get to cords.
Cord Loop Shadings

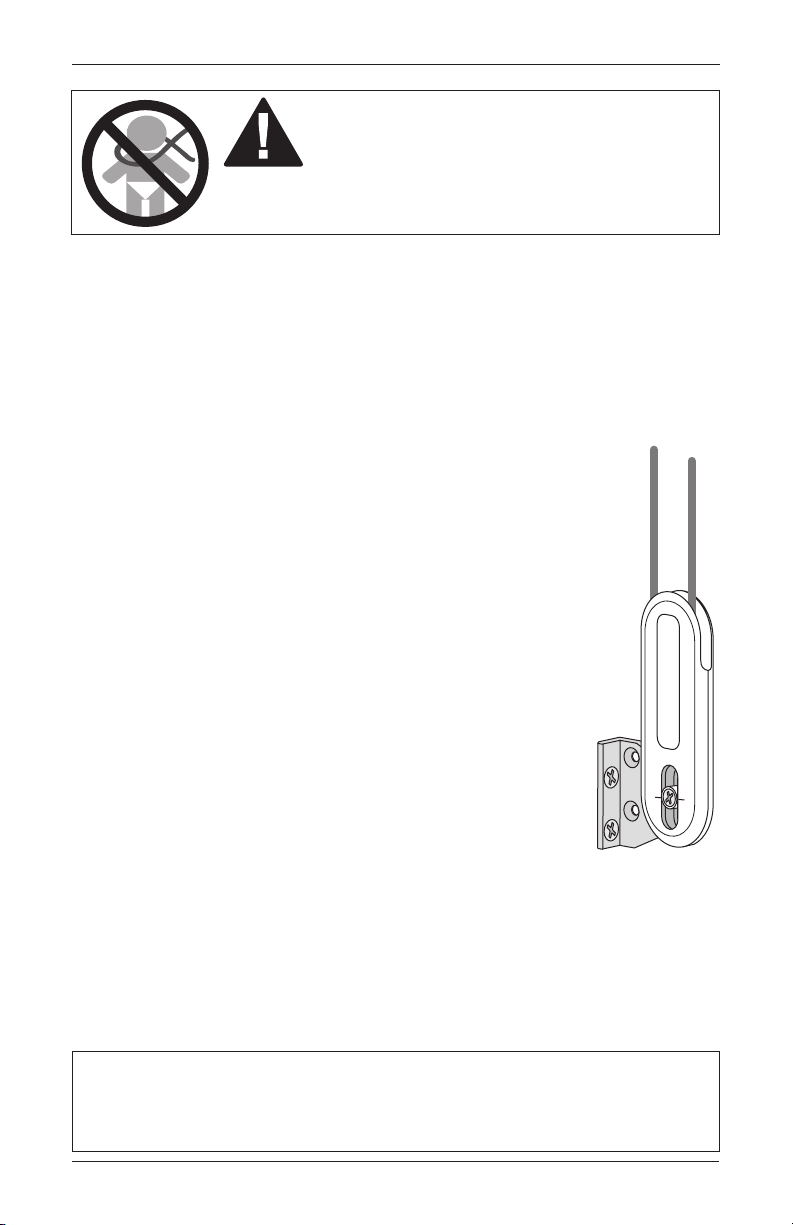

■Attach the cord tensioner on the cord loop to the wall or window
casement. See Attach the Universal Cord Tensioner (UCT) on
page9. This can prevent children from pulling cord loops around
their necks.
■Hunter Douglas provides a cord tensioner installation kit with
instructions for attaching the cord tensioner. For the shading to
operate properly, the cord tensioner must be correctly mounted
andsecured.
■Fasteners provided in this kit may not be appropriate for all
mounting surfaces. Use appropriate anchors for the mounting
surface conditions.
■Only Hunter Douglas supplied cord tensioners and hardware
should be used. Replacement parts may be obtained by
contacting Hunter Douglas Consumer support at
1-888-501-8364.
NOTE: The warning labels on the bottom rails of corded window coverings contain
important safety information. These warning labels are designed to be permanent, in
accordance with the industry’s safety standards, and must not be removed.
