Product Instruction Manual
Accona
AN1000, AN1000T,
AN1500, AN1500T
AN2000, AN2000T
Panel heater
Version 3.2 Jan 2015
v15.5/4
Accona_Layout 1 18/05/2015 08:24 Page 1

Contents
1. Important safety points
2. Installation
2.1. Wall mounting
2.2 Electrical
3. Operation - Non-timer models
4. Operation – 7-day timer models
4.1 How to set the date and time on your heater
4.2 Setting the target temperatures
4.3 Selecting a pre-loaded schedule
4.4 Programming your own customised schedule
5. Advanced features (7-day timer models)
5.1 Copy and paste programming
5.2 Activating the child lock
5.3 Centigrade / Fahrenheit display
5.4 Delayed start and shut down mode
6. Maintenance
7. Specifications
8. Guarantee and service policy
2
Accona_Layout 1 18/05/2015 08:24 Page 2

Thank you for purchasing a Hyco Accona panel heater. The Accona is ideal
for a wide range of fixed installation heating applications in the home and
office environment. The Accona panel heater range is available in 3 power
outputs and with 7-day CD timer and non-timer options. Please read and
understand these instructions before commencing installation, and leave
them with the user when installation is complete.
1. Important safety points
The Electrical installation must be carried out by a qualified electrician in
accordance with the current edition of the I.E.E. Wiring Regulations.
Only connect the unit to a single phase supply with a mains voltage as
specified on the rating plate.
The supply cord cannot be replaced by the user. If the cord is damaged the
appliance should be returned to the manufacturer or an authorised service
agent for replacement.
Do not carry the appliance by the power cord.
Do not let the power cord hang over the appliance.
The heater must not be located immediately below or above an electrical
socket outlet.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards involved.
Children of less than 3 years should be kept away unless continuously supervised
Children aged from 3 years and less than 8 years shall only switch on/off the
appliance provided that it has been placed or installed in its intended normal
operating position and they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years shall not plug in,
regulate and clean the appliance or perform user maintenance.
3
Accona_Layout 1 18/05/2015 08:24 Page 3

Some parts of this product can become very hot and cause burns. Particular
attention has to be given where children and vulnerable people are present.
Only use the mounting bracket supplied and do not modify the bracket.
In order to avoid overheating, do not cover the heater.
Fixed heaters likely to be used in bathrooms are to be installed so that switches
and other controls cannot be touched by a person in the bath or shower.
2. Installation
all Mounting
The heater must not be located immediately below or above an electrical
socket outlet.
Only use the mounting bracket supplied and do not modify the bracket.
Fixed heaters likely to be used in bathrooms are to be installed so that switches
and other controls cannot be touched by a person in the bath or shower.

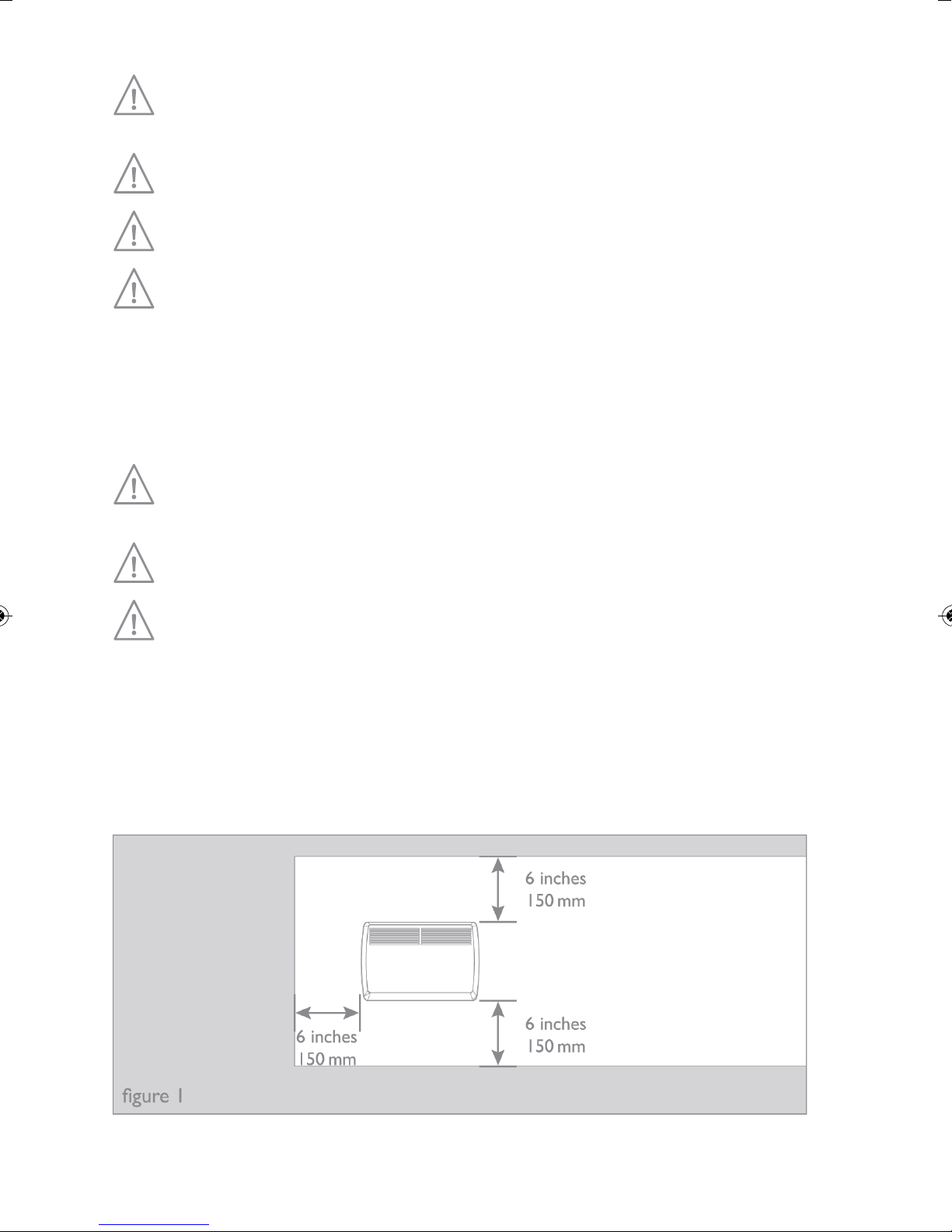

Step 1:
Choose a suitable location for the mounting of the heater ensuring that the surface will
be strong enough to gold the weight of the product. The heater must not be mounted
closer than 150mm to any horizontal or vertical surface, as detailed in figure 1.
4
Accona_Layout 1 18/05/2015 08:24 Page 4

Step 2:
Hold the bracket up against the mounting surface, ensuring it is horizontal, and
mark the outer holes through the bracket onto the surface of the mounting wall.
Drill and fit wall plugs and then fix the bracket to the mounting surface.
Step 3:
Offer up the heater to the bracket and attach as per figure 2. Fasten the clips and verify
heater is securely fixed to the wall.
5
Accona_Layout 1 18/05/2015 08:24 Page 5

Electrical
The Electrical installation must be carried out by a qualified electrician in
accordance with the current edition of the I.E.E. Wiring Regulations.
Only connect the unit to a single phase supply with a mains voltage as
specified on the rating plate.
If the heater is to be connected to the fixed wiring of the property then
installation must include a double pole isolating switch with a break contact
distance of at least 3mm.
The power cord should be connected following the colour coding below:
➢Brown:
➢Blue: N
➢Green / Yellow: E

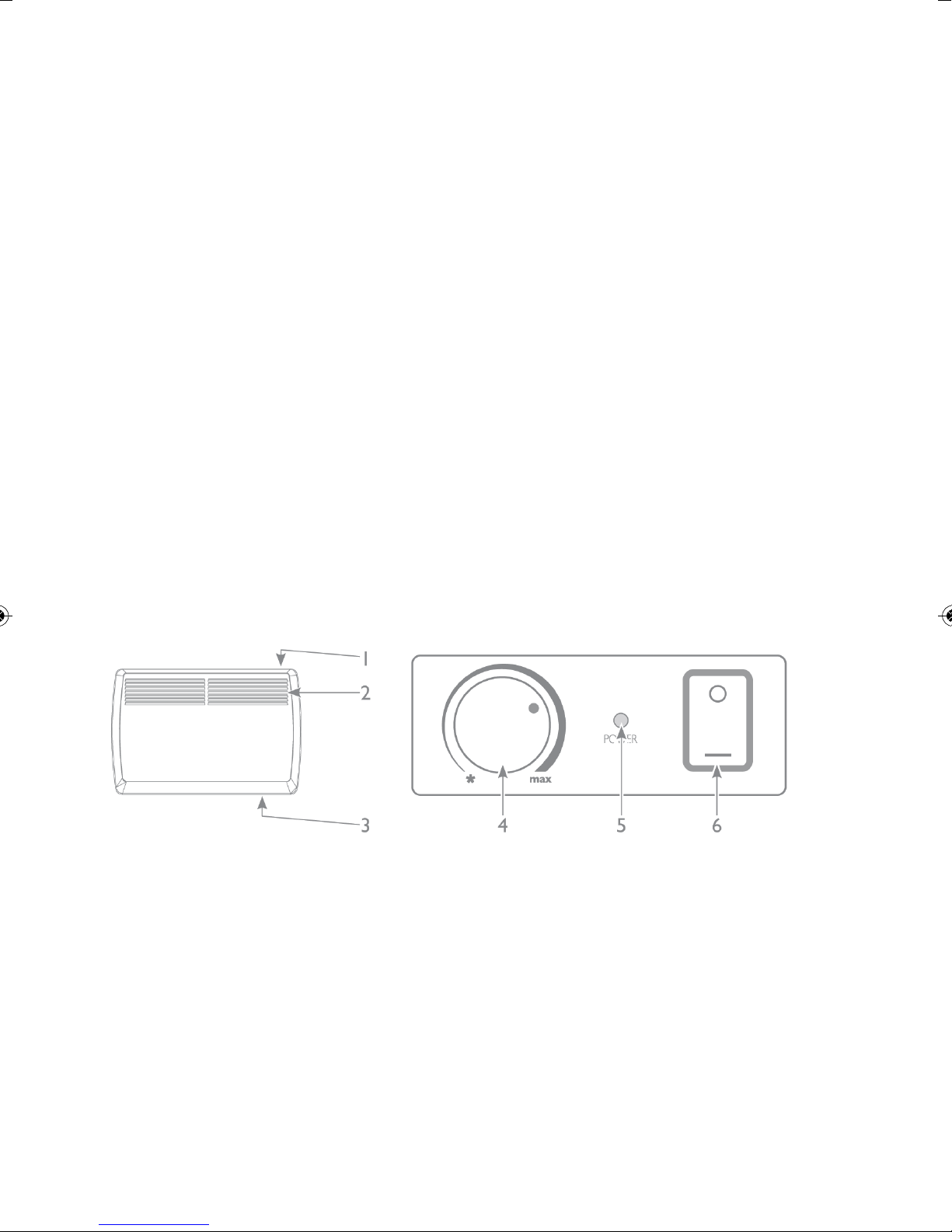

3. Operation: non timer models (AN1000, AN1500 & AN2000)
1. Control Unit 4. Temperature Control Knob
2. Air Outlet 5. Power Indicator
3. Air Inlet 6. Switch (ON: - OFF: O)
• Turn the power switch to the on (-) position.
• Adjust the thermostat to the desired temperature.
6
Accona_Layout 1 18/05/2015 08:24 Page 6

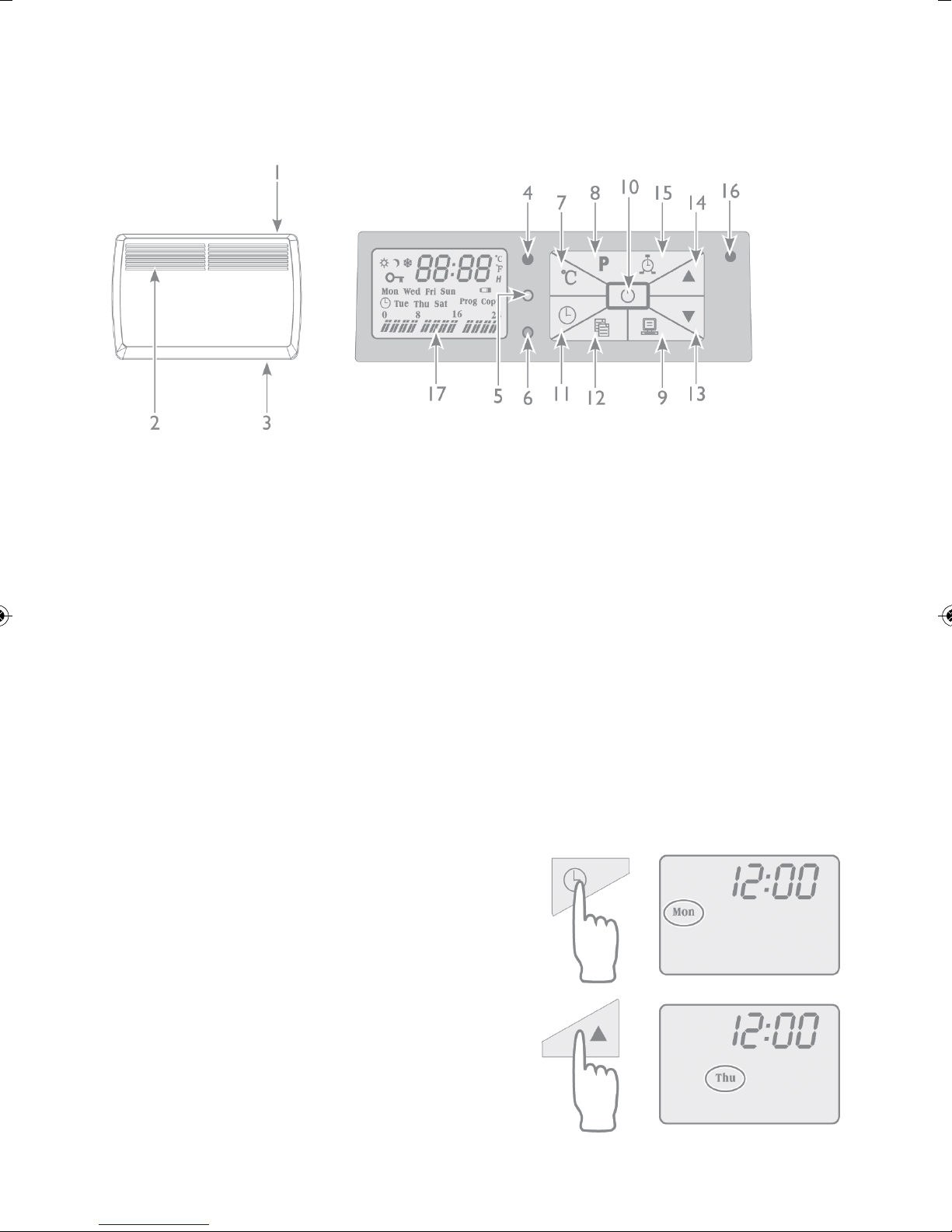

4. Operation: 7-day timer models
(AN1000T, AN1500T & AN2000T)
1. Control Unit 10. Standby Button
2. Air Outlet 11. Date and Time Setting Button
3. Air Inlet 12. Copy and Paste Button
4. Red ‘Peak’ Temperature Indicator 13. Down Select Button
5. Yellow Element ‘On’ Button 14. Up Select Button
6. Green ‘Off Peak’ Temperature Indicator 15. Timer On/Off Button
7. Temperature Setting Button 16. On/Off Indicator
8. Program Select Button 17. CD Display
9. User Program Setting Button
4.1 How to set the date and time on your heater
The below example illustrates how to set the clock to Thursday 3.03PM.
Step 1:
Press the clock icon once, this will cause
the day of the week to start flashing.
Step 2:
Use the up/down icons to cycle through the days.
In this example the up button has been pressed
three times selecting Thursday.
7
Accona_Layout 1 18/05/2015 08:24 Page 7

Step 3:
Press the clock icon again and this will store the day
as well as highlight the next field which is the hour
of the day.
Step 4:
Use the up/down icons to cycle through the hours,
in this example we will press the up button three
times in order to display 15:00
Step 5:
Press the clock icon to save the hour setting and
move on to the minutes setting.
Step 6:
Use the up/down icon to cycle through the minutes,
in this example we will press the up button three
times in order to select 15:03.
Step 7:
Press the clock to finalise the time.
4.2 Setting the target temperatures
The thermostat settings can only be set whilst the unit is turned on (not standby). Unlike
many panel heaters the Accona timer range utilises two temperature ranges. The first is the
temperature the heater will maintain during the ‘Peak’ setting and the second is the ‘Off peak’
setting.
Peak : When you want a ‘comfortable’ temperature whilst occupying the room in which the
heater is located. This can be as high as 30°C.
Off Peak : The Off peak (typically night time) temperature setting ensures the room will not
fall below a user chosen temperature. This can be as low as 5°C (frost protection) and must be
a few degrees cooler than the Peak temperature setting.
8
Accona_Layout 1 18/05/2015 08:24 Page 8

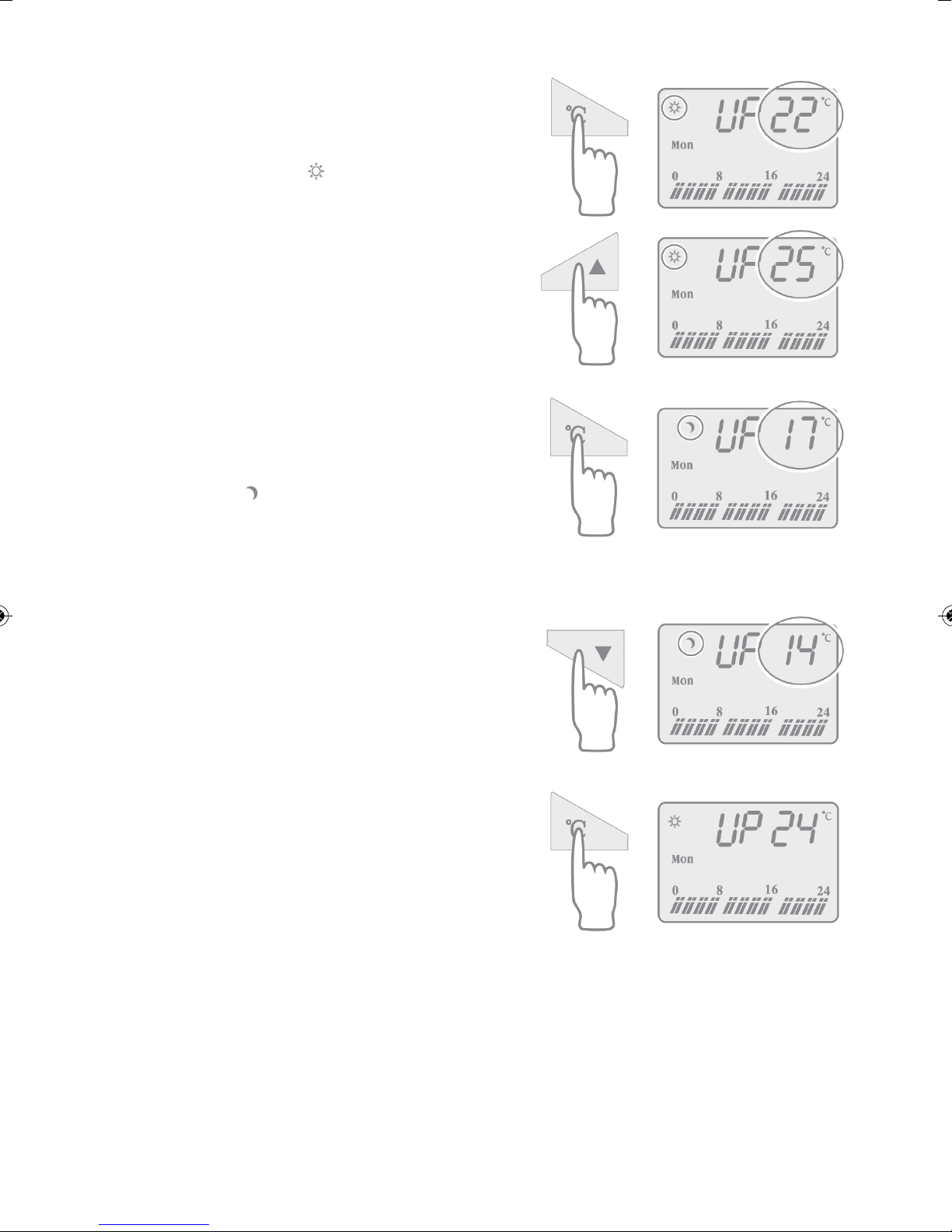

Step 1:
Press the °C icon to enter the ‘Peak’ temperature
setting mode. When selected correctly it will be
indicates by the flashing symbol.
Step 2:
To alter the target temperature, press the up/down
icon the desired number of times. In this example
the up icon had been pressed three times to increase
the set point from 22°C to 25°C.
Step 3:
Press the °C icon to store the ‘Peak’ temperature and
also move onto the ‘Off peak’ setting. ‘Off peak’ is
indicated by the symbol which will flash when
selected.
Step 4:
As with step 2 it is possible to alter the target
temperature for the ‘Off peak’ mode by simply
pressing the up/down symbols the desired
number of times. In this example the down
icon has been pressed three times to change
the target temperature from 17°C to 14°C.
Step 5:
To store the ‘Off peak’ setting simply press the
°C icon once. The display will now return to
the current room temperature display.
9
Accona_Layout 1 18/05/2015 08:24 Page 9

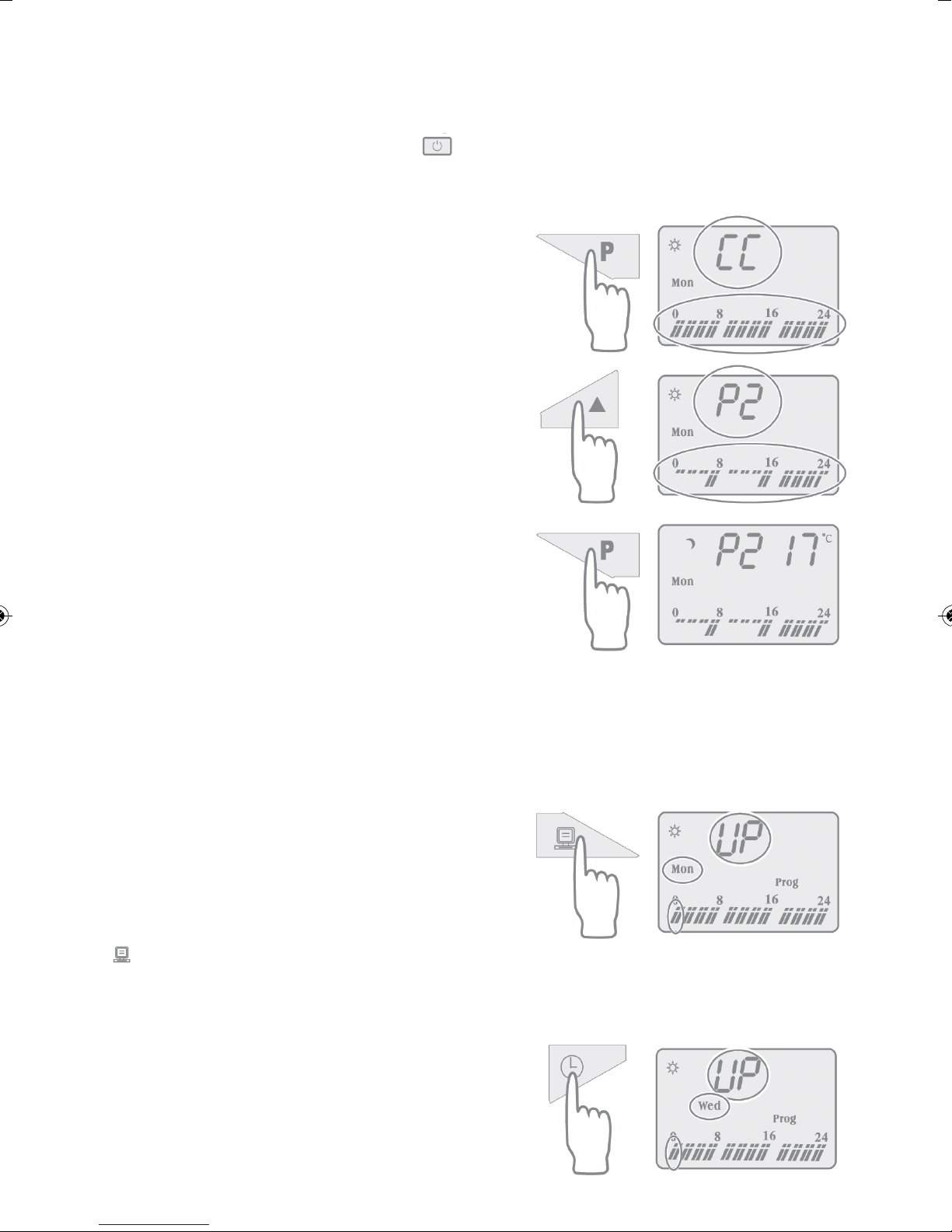

4.3 Selecting a pre-loaded schedule
The heater is supplied with a number of pre-loaded operating schedules already stored in
memory. It will be quicker to choose one of these defaults if it corresponds sufficiently closely
to your requirements, but you can create your own schedule if you wish (see ‘Programming
your own customised schedule’).
The pre-loaded schedules are identified by a two letter code (e.g. “P3” or “CF”) and are as
follows:
Table of Pre-loaded Operating Schedule
NOTE:
1. The number 0,8,16 and 24 represent time on a 24-hour clock and equates to midnight,
8:00am, 4:00pm and midnight respectively.
2. The “ symbol means the heater operates in OFF PEAK MODE during the given time.
3. The i symbol means the heater operates in PEAK MODE during the given time.
4. CF means FROST PROTECTION MODE; the unit will heat only to avoid frost and protect
it when the room temperature is very low. The temperature cannot be adju ted in thi
programme.
5. CE means OFF PEAK MODE all the time.
6. CC means PEAK MODE all the time. This is the factory default setting.
7. UP means USER PROGRAMME; the user can set the programme according to his/her
specific needs. The UP programme factory default is PEAK MODE all day, every day.
10
