USER MANUAL –EN
IN 13903 Elliptical inSPORTline inCondi ET50i

2
CONTENTS
SAFETY INSTRUCTIONS....................................................................................................................... 3
SAFETY NOTICE.................................................................................................................................... 3
PRE-ASSEMBLY NOTES....................................................................................................................... 4
HARDWARE........................................................................................................................................ 4
PRODUCT DESCRIPTION..................................................................................................................... 6
TECHNICAL INFORMATION.................................................................................................................. 7
ASSEMBLY INSTRUCTIONS................................................................................................................. 7
WORKOUT TIPS................................................................................................................................... 11
HALF-EXPLODED DRAWING.............................................................................................................. 12
DRAWING FOR ASSEMBLY................................................................................................................ 14
PART LIST............................................................................................................................................. 16
DISPLAY FUNCTIONS ......................................................................................................................... 18
KEY FUNCTION ................................................................................................................................ 18
OPERATION.......................................................................................................................................... 19
POWER ON....................................................................................................................................... 19
WORKOUT SELECTION................................................................................................................... 19
MANUAL MODE.................................................................................................................................... 20
BEGINNER MODE................................................................................................................................ 20
ADVANCE MODE ................................................................................................................................. 21
SPORTY MODE.................................................................................................................................... 21
CARDIO MODE..................................................................................................................................... 22
WATT MODE......................................................................................................................................... 22
RECOVERY........................................................................................................................................... 22
BODY FAT............................................................................................................................................. 23
APP........................................................................................................................................................ 24
GENERAL FITNESS TIPS.................................................................................................................... 24
WARM-UP/STRETCHING EXERCISES ........................................................................................... 24
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 26

3
SAFETY INSTRUCTIONS
WARNING: This device has been designed and constructed to provide the maximal safety. But no
certification or test can eliminate the risk of possible injury or damage totally. To avoid an injury, pay
attention to following warnings and precautions. Read this manual carefully before first using and
retain it for future reference.
1. It is the owner’s responsibility to inform all other users about the safety precautions. Use this
device only as described in this manual.
2. Keep children and pets away from this device. Don’t let them unsupervised near this device.
3. Check all parts for damage or wearing. Replace worn parts immediately. Do not use damaged
trainer.
4. Place this trainer on a level, clean surface and keep clearance around it (min. 0.6 m). To
protect the floor or carpet use a mat.
5. Keep this trainer indoors and away from moisture and dust. Maintain the using place
ventilation. Don’t use it in an airless place.
6. Don’t put any sharp objects on or around this device.
7. No adjustable part should intrude to obstruct movements of the user.
8. Wear appropriate clothes while before exercising. Do not wear too loose clothes which could
be easily caught. Always wear athletic shoes to protect your feet.
9. Do not put your hands on moving parts to prevent an injury.
10. Always control your pedalling speed.
11. If you see this device doesn’t work normally, don’t use it.
12. Only one person should operate this device at the same time.
13. Consult your health state with a physician before starting any exercising. Don’t use this trainer
if you feel faintly or if you have some other problems. If you fell pain or dizziness while
exercising, stop immediately. Ask your physician for advice.
14. Stride length: 420x200 mm. Flywheel: double way, ø280/9 kg.
15. Weight limit: 150 kg. If you are over this weight, don’t use it.
16. Category: HA (according to EN957 norm) suitable for home using.
17. WARNING! The heart rate frequency monitoring may not be completely accurate.
Overexertion during training can lead to a serious injury or even death. If you start to feel faint,
stop the exercise immediately.
SAFETY NOTICE
If you take any medical care or if you have below symptoms, don’t use this device. If you are not sure,
ask a medicine doctor for advice.
Problems with waist or legs (pain, wound, paralysis).
Anamorphosis, arthritis, rheumatism and gout.
Osteoporosis and other abnormality.
Perfunctory system obstacles (heart disease, blood obstacle, hypertension).
Breath obstacle.
Sarcoma or other oncological disease.
Thrombus or other symptoms.
Diabetes or obstacle caused by diabetes.

4
Skin disease.
Hyperpyrexia caused by sick (38 ℃or over 38 ℃).
Abnormal back bone or back bone bending.
Pregnant women or women during period.
Physical abnormality.
Worsened body condition.
WARNING: Before beginning any exercise program, consult your physician. This is especially
important for persons older than 35 years or persons with pre-existing health problems. To reduce the
risk of serious injury, read all important precautions and instructions in this manual and all warnings on
your elliptical trainer before using your elliptical trainer.
PRE-ASSEMBLY NOTES
HARDWARE
Check if this package contains all described parts and components before assembling. If any parts are
missing, contact the service.

5
No.
Name
Specification
Quantity
26
Allen C.K.S. half thread screw
M10x60x25
6
27
Spring washer
Ø10
8
28
Curved washer
Ø10.5xR100xt2.0
10
29
Allen C.K.S. half thread screw
M8x20
5
30
Spring washer
Ø8
2
31
Flat washer
Ø8.5xØ20xt1.5
6
32
Hex self-locking nut
M10
2
33
Flat washer
Ø10
2
36
Philips pan head full thread screw
M4x16
14
37
Philips pan head full thread screw
M4x10
4
38
Allen C.K.S. hollow screw
Ø10x45xM6x20
2
39
Flat washer
Ø6
2
40
Allen C.K.S. full thread screw
M6x15
2
41
Philips C.K.S. self-tapping screw
ST4x16
2
102
Waved spring washer
Ø17
2
104
Allen full thread screw
M10x20
4
105
Allen full thread screw (L)
M8x20-L
1
Name
Specification
Quantity
L-shaped wrench
5x80x80S (with a cross)
1
L-shaped wrench
5x35x85S (with a cross)
1
L-shaped wrench
6x40x120
1
Open end wrench
15# a 17#
1

6
NOTICE:
Gather the necessary tools and have them at hand.
Make sure that you have enough of free space to assemble it.
Pay attention to avoid an injury.
The finished device put on a clear surface with enough of space for safe and comfortable
using.
Check that all bolts and nuts are well tightened.
Follow assembly steps to assemble it correctly.
PRODUCT DESCRIPTION

7
TECHNICAL INFORMATION
Dimensions
Unfolded: 1660x720x1580 mm
Speed ratio
9
Flywheel
Double way, ø280/9 kg
Resistance level
1 –32
Stride length
420x200 mm
NOTICE: We reserve the right to amend the product without prior notice.
ASSEMBLY INSTRUCTIONS
Step 1
Attach the front stabilizer (2) to the main frame (1) with curved washer (28), spring washer (27) and
Allen C.K.S. half thread screw (26).
Step 2
Attach the rear stabilizer (3) to the main frame (1) with curved washer (28), spring washer (27) and
Allen C.K.S half thread screw (26).

8
Step 3
1. Attach the upright decoration strip (77) to the upper upright post (4). Take the upright post
cover (15) from the main frame (1). Then attach to the upper upright post (4).
2. Connect motor communication wire (11) and console communication wire (12).
3. Attach the upper upright post (4) to the main frame (1) with flat washer (33), spring washer
(27), Allen C.K.S. full thread screw (104) and flat washer (28), spring washer (27), Allen
C.K.S. half thread screw (104) and Allen C.K.S. half thread screw (26), curved washer (28),
Hex self-locking nut (32).
4. Attach the upright post cover (15) and the upright post decoration strip (77) to the main frame
(1). Then install the axle (25).
NOTICE: Do not fully tighten the bolts at this phase. Make sure that all screws are in the hexagonal
hole.

9
Step 4
1. Assemble the waved spring washers (102) to the left and right axle (25). Then attach left body
arm (5) and right body (6) to the left axle (25) and to the right axle (25). Use flat washer (31)
and Allen C.K.S. full thread screw (29).
2. Attach arm cover (16/17) to the left body arm (5) with Philips pan head full thread screw (36).
3. Repeat the last step to attach the cover (16/17) to the right body arm (6).
Step 5
1. Attach the axle sleeve of left rear pedal supporter (7) to the axle of main frame (1). Use flat
washer (31) and Allen C.K.S. full thread screw (105).
2. Attach the axle sleeve of left front pedal supporter (7) to the left body arm (5) wit Allen C.K.S.
hollow screw (38), flat washer (39) and Allen C.K.S. full thread screw (40).
3. Attach the rear cover of pedal supporter (20/21) to left pedal supporter (7) with Philips pan
head full thread screw (36). Attach the front cover of pedal supporter (18/19) to left pedal
supporter (7) with screws (37) and Philips C.K.S. self-tapping screw (41).
4. Use the same way to fix the pedal supporter (R) (8). Put the back side of the pedal supporter
(R) (8) on the axle of the main frame (1). Use the flat washer (31) and Allen full thread screw
(29) to fix it.

10
Step 6
1. Pass the handle pulse connection wire (13) through the upper upright post (4). Attach
handlebars (9) to the upright post (4) with flat washer (31), spring washer (30) and half thread
screw (29).
2. Attach bottle holder (24) to the upper upright post (4) with Philips pan head full thread screw
(36).

11
Step 7
1. Connect console communication wire (12) with the interface of back console. Connect handle
pulse communication wire (13) with console outset (14).
2. Attach the console (10) to the upper upright post (4) with screws (42).
3. Slide the left handlebar cover (22) and the right handlebar cover (23) out of the handlebar (9).
Attach them to the upper upright post (4) with Philips pan head full thread screw (36).
WORKOUT TIPS
User has to put feet completely inside the pedal. He has to adjust the resistance of the magnet
control as he wants.
Due to the double flywheel has this machine a significant moment of inertia. The user should
minimize the resistance and lower his speed to avoid a leg injury.
This machine has to be put in a flat and clear place with enough of space for the workout.

12

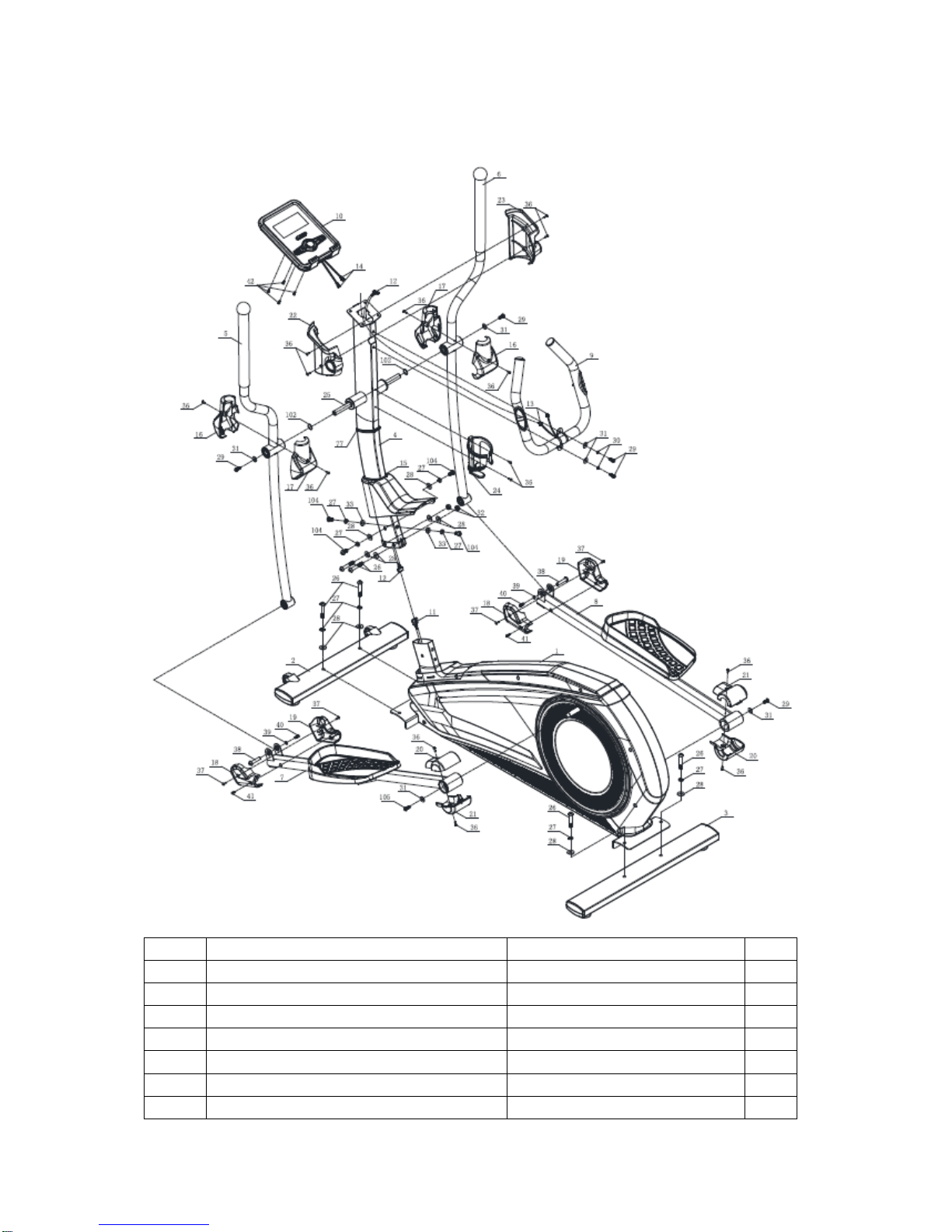

HALF-EXPLODED DRAWING
No.
Name
Description
Qty
1
Main frame
1
2
Front stabilizer
1
3
Rear stabilizer
1
4
Upper upright post
1
5
Body arm L
1
6
Body arm R
1
7
Pedal supporter L
1

13
8
Pedal supporter R
1
9
Handlebars
1
10
Console
1
11
Motor communication wire
1
12
Console communication wire
1
13
Handle pulse connection wire
2
14
Console outset
2
15
Upright post cover
1
16
Body arm cover
2
17
Body arm cover
2
18
Front pedal supporter cover
2
19
Front pedal supporter cover
2
20
Rear pedal supporter cover
2
21
Rear pedal supporter cover
2
22
Handlebar cover L
1
23
Handlebar cover R
1
24
Bottle holder
ø93x150
1
25
Axle
ø17x339.5
1
26
Allen C.K.S. half thread screw
M10x60x25
6
27
Spring washer
ø10
8
28
Curved washer
ø10.5xR100xt2.0
10
29
Allen C.K.S. full thread screw
M8x20
5
30
Spring washer
ø8
2
31
Flat washer
ø8.5xø20xt1.5
6
32
Hex self-locking nut
M10
2
33
Flat washer
ø10
2
36
Philips pan head full thread screw
M4x16
14
37
Philips pan head full thread screw
M4x10
4
38
Allen C.K.S. hollow screw
ø10x45xM6x20
2
39
Flat washer
ø6
2
40
Allen C.K.S. full thread screw
M6x15
2
41
Philips C.K.S. self-tapping screw
ST4x15
2
42
Philips C.K.S. full head screw
M5x10
4
102
Waved spring washer
ø17
2
104
Allen full thread screw
M10x20
4
105
Allen full thread screw L
M8x20-L
1
77
Upright post decoration strip
1

14

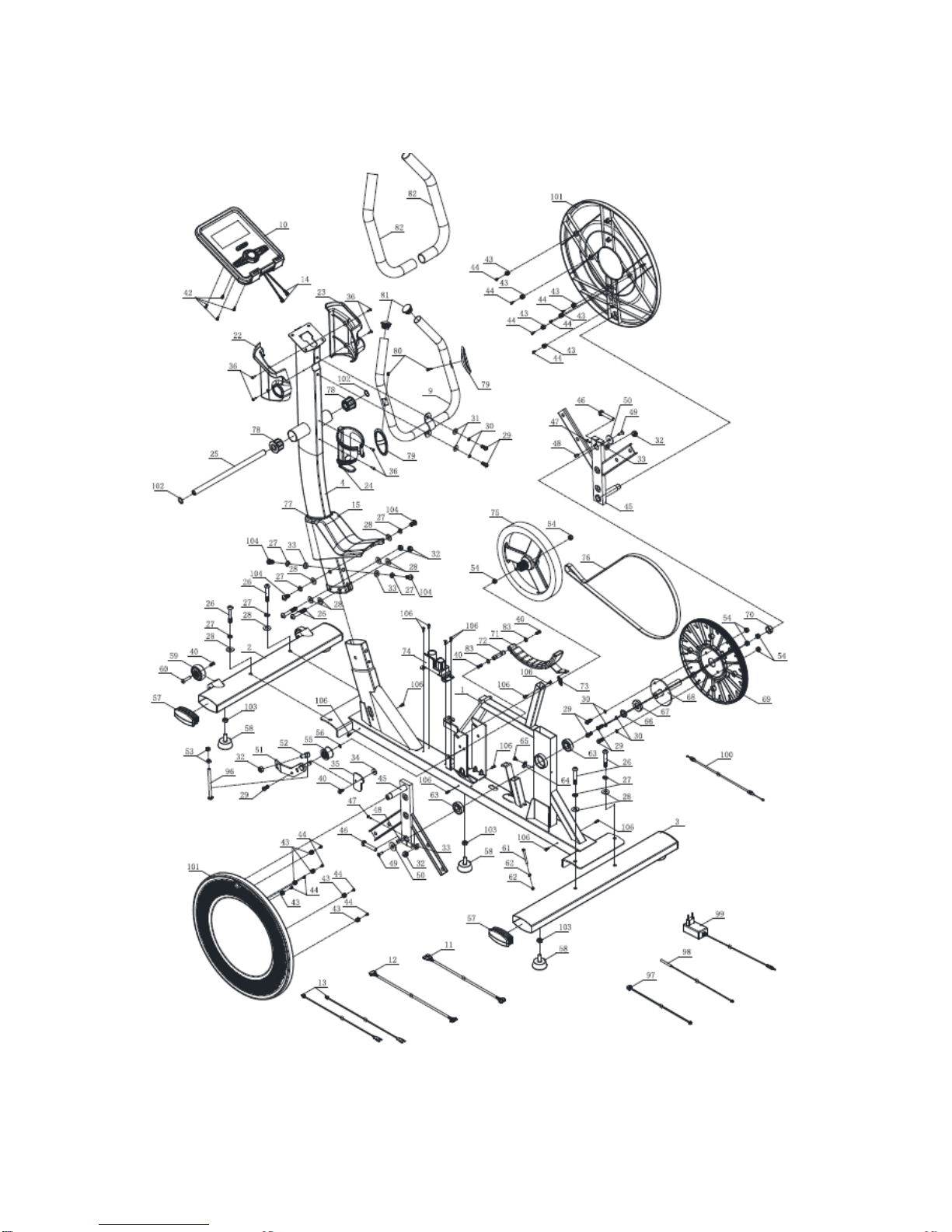

DRAWING FOR ASSEMBLY

15

16
PART LIST
No.
Name
Description
Qty
1
Main frame
1
2
Front stabilizer
1
3
Rear stabilizer
1
4
Upper upright post
1
5
Body arm (left)
1
6
Body arm (right)
1
7
Pedal supporter (left)
1
8
Pedal supporter (right)
1
9
Handlebars
1
10
Console
1
11
Motor communication wire
1
12
Console communication wire
1
13
Handle pulse connection wire
2
14
Console outset
2
15
Upright post cover
1
16
Body arm cover 2
2
17
Body arm cover 1
2
18
Front pedal supporter cover 1
2
19
Front pedal supporter cover 2
2
20
Rear pedal supporter cover 1
2
21
Rear pedal supporter cover 2
2
22
Handlebar cover (left)
1
23
Handlebar cover (right)
1
24
Bottle holder
ø93x150
1
25
Axle
ø17x339.5
1
26
Allen C.K.S. half thread screw
M10x60x25
6
27
Spring washer
ø10
8
28
Curved washer
ø10.5xR100xt2.0
10
29
Allen C.K.S. full thread screw
M8x20
10
30
Spring washer
ø8
6
31
Flat washer
ø8.5xø20xt1.5
6
32
Hex self-locking nut
M10
5
33
Flat washer
ø10
4
34
Limited space plate 1
1
35
Limited space plate 2
1
36
Philips pan head full thread screw
M4x16
14
37
Philips pan head full thread screw
M4x10
4
38
Allen C.K.S. hollow screw
ø10x45xM6x20
2
39
Flat washer
ø6
2
40
Allen C.K.S. full thread screw
M6x15
7
41
Philips C.K.S. self-tapping screw
ST4x15
2
42
Philips C.K.S. full head screw
M5x10
4
43
Disc plastic buckle
ø12.4,13
12
44
Philips C.K.S. end-cutting self-tapping screw
ST4x10
12
45
Crank iron
2
46
Hex half thread screw
M10x55x20
2
47
Hex half thread screw
M4x12
2
48
Flat key
5x5x15
2
49
Allen full thread screw
M6x15
2

17
50
Flat washer
ø8xø30xt3.0
2
51
Fixed idler
1
52
Idler connecting shaft
ø15x30
1
53
Hex nut
M8
2
54
Hex locking nut
M8
6
55
Tension pulley
ø38x22
1
56
Circlip shaft
ø10
1
57
End cap
45x90xt1.5
4
58
Feet pad
5
59
Wheels
2
60
Allen C.K.S. hollow screw
ø8x33xM6x15
2
61
Hex full thread screw
M5x60
1
62
Hex nut
M5
2
63
Deep groove ball bearing
6004-2RS
2
64
Fixed magnetic induction
1
65
Philips washer head end-cutting self-tapping screw
ST4x12
1
66
Crank axle sleeve 1
1
67
Crank axle sleeve 3
1
68
Crank axle
ø20x115
1
69
Belt pulley
ø308x22
1
70
Crank axle sleeve 2
1
71
Fixed magnet set
1
72
Magnetic control fixed axle
ø12x50
1
73
Brake tension spring
1
74
Magnet motor
1
75
Double flywheel
ø280/9kg
1
76
Motor belt
540PJ6
1
77
Upright post decoration strip
1
78
Plastic cover
ø42.5x30
2
79
Handle pulse
2
80
Philips C.K.S. self-tapping screw
ST4x20
2
81
Pipe plug
ø28xt1.5
2
82
Foam grip
ø32xt3.0x480
2
83
Circlip for shaft
ø12
2
84
Pedal (left)
406x187x74
1
85
Pedal (right)
406x187x74
1
86
Allen C.K.S. full thread screw
M6x12
8
87
Deep groove ball bearing
6003-2RS
4
88
Deep groove ball bearing
6200-2RS
4
89
Foam grip
ø36xt3.0x720
2
90
Pipe plug
ø32xt1.5
2
91
Motor cover (left)
1
92
Motor cover (right)
1
93
Philips C.K.S. self-tapping screw
ST4x25
5
94
Circlip for holes
ø40
2
95
Self-aligning ball bearing
2203-2RS
2
96
Hex full thread screw
M8x120
1
97
Power communication wire
1
98
Magnetic sensor
1
99
Power adapter
1
100
Brake line
1
101
Disc
2

18
102
Waved spring washer
ø17
2
103
Hex nut
M10
5
104
Allen full thread screw
M10x20
4
105
Allen full thread screw (L)
M8x20-L
1
106
Philips C.K.S. full head screw
ST4x16
12
DISPLAY FUNCTIONS
Item
Description
TIME
It counts when the target has not been pre-set.
The range is: 00:00 –99:59. Each increment is 1
minute.
Counting down –if the target time has been pre-
set. It counts down from the target value back to
00:00.
Each pre-set increment or decrement is 1 minute
between in the range: 00:00 –99:00.
SPEED
Displays current training speed. Maximum speed
is 99.9 km/h or ml/h.
RPM
Displays the rotation per minute in the range:
0~15~999.
DISTANCE
Displays the total distance from 0.00 to 99.99 km
or ml. The user can pre-set target value using
UP/DOWN button.
Each pre-set increment or decrement is 0.1 km
or ml in the range 0.00 –99.90.
CALORIES
Displays burned calories during training from 0 to
9999 cal. Displayed value is only as a
comparison of different sessions and may not be
considered as medical data.
PULSE
The user can set in target value in range: 0---30
to 230. The buzzer will warn you if the actual
heart rate is over the pre-set target value.
WATTS
Displays current workout in watts. The range is:
0~999.
MANUAL
Manual mode workout.
BEGINNER
4 PROGRAM selection.
ADVANCE
4 PROGRAM selection.
SPORTY
4 PROGRAM selection.
CARDIO
Target HR training mode.
WATT PROGRAM
WATT constant training mode.
KEY FUNCTION
Item
Description
UP (Encoder)
Increasing resistance level. Setting selection.
DOWN (Encoder)
Decrease resistance level. Setting selection.

19
Mode/Enter
Confirm setting or selection.
Reset
Press and hold for 2 seconds. Computer will
reboot and start from user setting. Reverse to the
main menu during pre-set workout value or stop
mode.
Start/Stop
Start or stop the workout.
Recovery
Test the heart rate recovery status.
Body Fat
In STOP mode, press it for body fat measuring.
OPERATION
POWER ON
Plug in the power supply, computer will power on and display all segments on the LCD for 2 seconds
(Pic. 1).
Pic. 1
WORKOUT SELECTION
Use UP or DOWN (Encoder) to select workout Manual (Pic. 2) –Beginner (Pic. 3) –Advance (Pic. 4) –
Sporty (Pic. 5) –Cardio (Pic. 6) –WATT (Pic. 7).
Pic. 2
Pic. 3
Pic. 4
Pic. 5
Pic. 6
Pic. 7

20
MANUAL MODE
Press START in the main menu to start the workout in manual mode.
1. Use UP or DOWN (Encoder) to select workout program, choose MANUAL and push
MODE/ENTER to get into.
2. Use UP or DOWN (Encoder) to set TIME (Pic. 8), DISTANCE (Pic. 9), CALORIES (Pic. 10),
PULSE (Pic. 11) and push MODE/ENTER to confirm it.
3. Press START/STOP key to start the workout. Use UP or DOWN (Encoder) to adjust load
level. If the load level will not be adjusted in 3 seconds, this device will automatically switch to
the WATT displaying (Pic. 12).
4. Press START/STOP to pause the workout. Push RESET to reverse to the main menu.
Pic. 8
Pic. 9
Pic. 10
Pic. 11
Pic. 12
BEGINNER MODE
1. Use UP or DOWN (Encoder) to select workout program. Choose BEGINNER mode and press
MODE/ENTER to get into.
2. Use UP or DOWN (Encoder) to select Beginner program 1~4 (Pic. 13) and press
MODE/ENTER to get into.
3. Use UP or DOWN (Encoder) to set TIME.
4. Press START/STOP key to start workout. Use UP or DOWN (Encoder) to adjust load level.
5. Press START/STOP key to pause workout. Use RESET to reverse to main menu.
