Kenwood CS-5200 Series User manual

OSCILLOSCOPE
CS-5200 SERIES
CS-5270 CS-5275
CS-5260 CS-5265
CS-5230 CS-5235
INSTRUCTION MANUAL
KENWOOD CORPORATION
©PRINTED IN JAPAN B63-0219-00(N)
36511
KENWOOD

SAFETY
Symbol in This lanual
/f\ This symbol indicates where applicablecautionary or other i information istobe found.
Power Source
This equipment operates from a power source that does not apply more than 250V rms
between the supplyconductors or between either supply conductor and ground. A protective
ground connection bywayofthe grounding conductor inthe power cord is essential for
safe operation.
Grounding the Product
This equipment is grounded through the grounding conductor ofthe power cord. To avoid
electrical shock, plug the power cord into a properlywiredreceptaclebeforeconnecting
to the equipment input or output terminals.
Use the Proper Power Cord
Useonly the power cord and connector specified for your product.
Use the Proper Fuse
Toavoid fire hazard, usea fuse ofthe correct type.
Donot Operate in ExpIos i ve Atmospheres
Toavoidexplosion, donot operate this product inan explosive atmosphere.
Donot Remove Cover or Panel
Toavoidpersonal injury, donot remove the cover or panel.Refer servicing to
qualified personnel.
Voltage Conversion
If the power source isnot applied to your product,contact your dealer. To avoid
electrical shock, donot perform the voltageconversion.

CONTENTS
1. GENERAL1
2 . SAFETY AND EQUIPMENT PROTECTIONPRECAUTIONS2
3 . FEATURES4
4 . SPECIFICATIONS 6
5 . PANELEXPLANATION• 1 1
5 - 1 Front Panel 1 1
5-2 Rear Panel 2 0
5-3 Bottom Plate • 2 1
5-4 Readout Display 2 2
1)Displaypositions 2 2
2)Display • • •••2 2
6 . CHECKINGAND ADJUSTMENT PRIORTO MEASUREMENT 2 4
7. OPERATINGPROCEDURES2 7
7 - 1 Single Trace Operation 2 7
1)Alternatingcurrentdisplay • 2 7
2)Trigger • • 2 7
3) Composite video signaldisplay 2 8
7-2Multi-Trace Operation 2 9
1)Switching vertical operation modes 2 9
2)Switchingtrigger sources • 2 9
3)Linetrigger 2 9
7-3 Sweep Magnified Operation 3 0
7-4 Delayed Sweep Operat ion 3 0
7-5 X-Y Operation 3 1
7 - 6 Single Sweep Operation 3 1
7-7 Readout Operation • 3 2
1) Set value (scale factor) display 3 2
2) Cursor measurement 3 2

8 . APPLICATIONS ................o-..eSo,cSe,....,.o 3 4
8 — 1 MeasuringVoltage Between Two Points ona Waveform .....3 4
8 — 2 Elimination of undesired signal components • ••••............ 3 g
8-3Measuring Direct Current (DC) Voltage * • 3 7
8-4MeasuringVoltage Ratio with Cursors 3 9
8 — 5 Measuring Signals with Low Frequency Components • ••••.......... 3 9
8-6Measuring Signals with High Frequency Components 4 0
8-7Measuring Time Between Two Points 4 0
8-8Measuring Time Ratio with Cursors 4 2
8 — 9 MeasuringFrequencies••••••••••••••••••••••••••••••••••••••••••••••••••• 4 2
8—10Measuring Pulse Rise and Fall Times 4 4
8-11Measuring Pulse Jitters 4 5
8-12MeasuringPhase Differences 4 6
8-13 Applications ofX-Y Operation 4 8
9 . FUSE REPLACEMENT, LINE VOLTAGE SELECTION 5 0
10. OPTIONALEQUIPMENT5 1

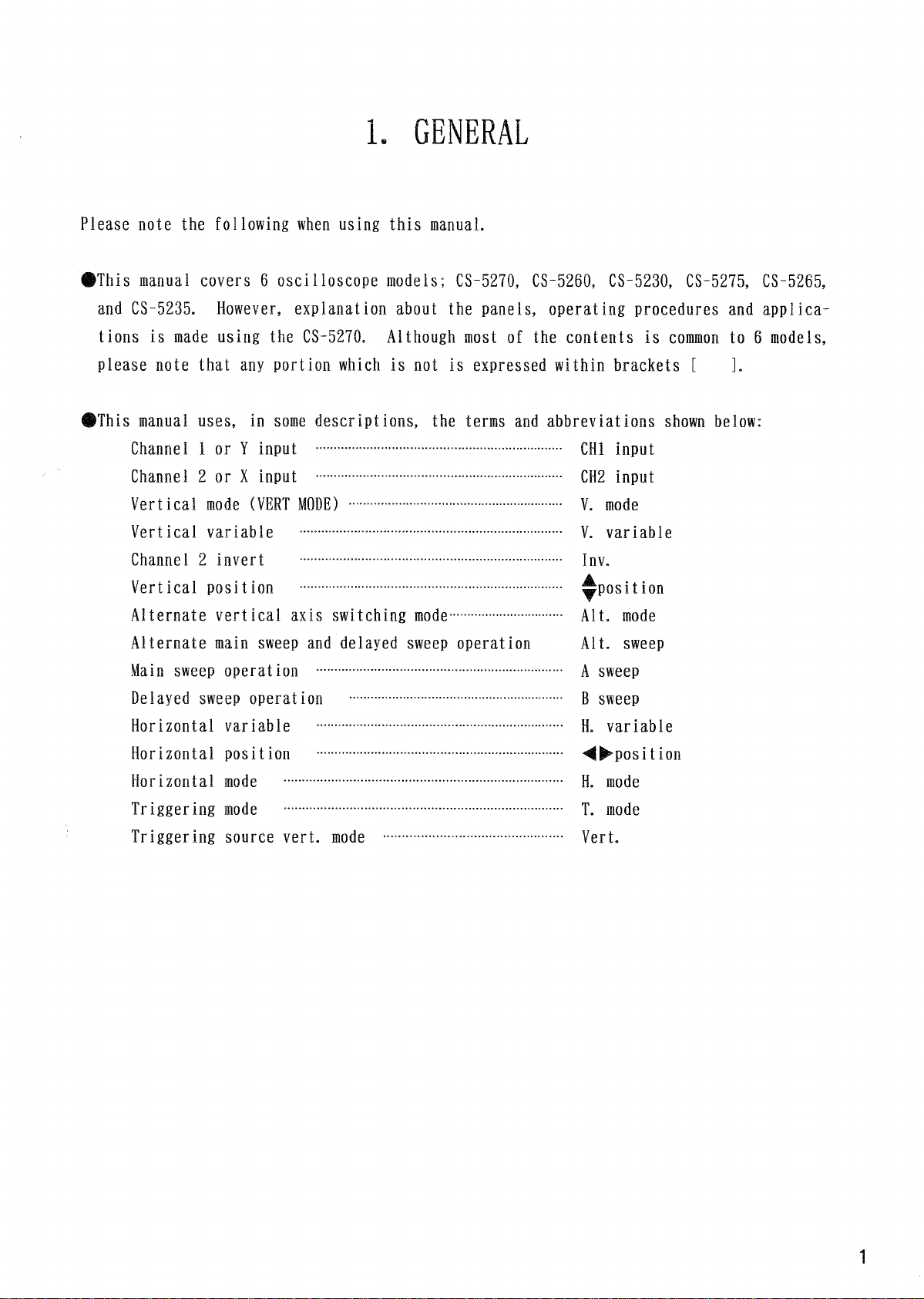

GENERAL
Please note the following when using this manual.
•This manual covers 6 oscilloscope models;CS-5270,CS-5260,CS-5230,CS-5275,CS-5265,
andCS-5235.However, explanation about the panels,operating procedures and applica-
tions is made using the CS-5270. Although most ofthe contents is commonto6 models,
please note that any portion which is not is expressedwithinbrackets [ ].
•This manual uses, in some descriptions, the terms and abbreviations shownbelow:
Channel 1 orY input CHI input
Channel 2 orX input CH2 input
Vertical mode (VERT MODE) V.mode
Vertical variable V. variable
Channel 2 invert ..Inv.
Vertical positionyposition
Alternate vertical axis switching mode Alt. mode
Alternate mainsweep and delayed sweep operation Alt.sweep
Mainsweep operation A sweep
Delayed sweep operation - • • B sweep
Horizontal variable h. variable
Horizontalposition • • ^•position
Horizontal mode
mode
Triggering mode^ mode
Triggering source vert, mode— • Vert.
1

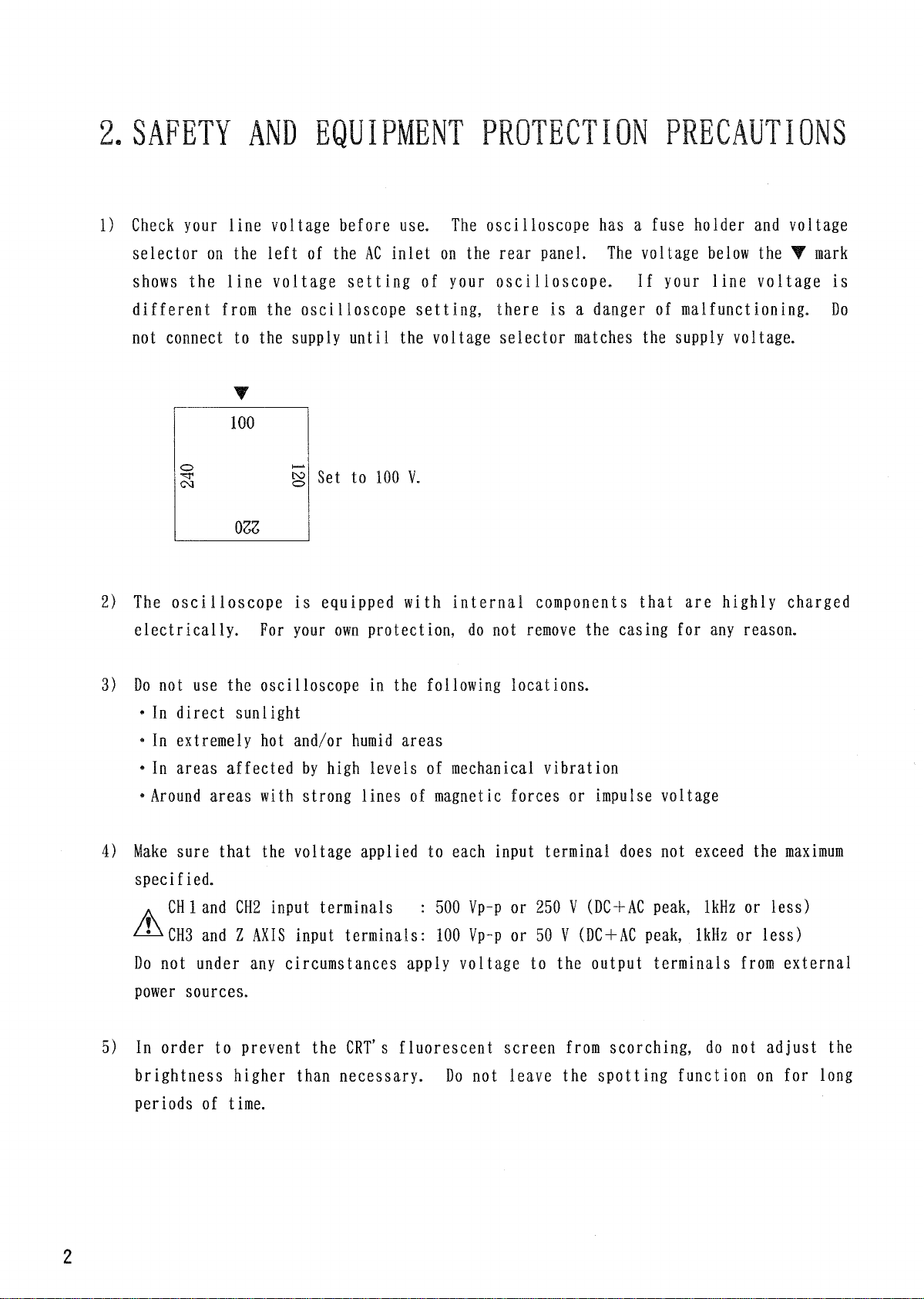

2. SAFETY AND EQUIPMENT PROTECTION PRECAUTIONS
1) Check your line voltagebeforeuse.Theoscilloscopehasa fuseholderandvoltage
selector onthe left oftheAC inlet ontherearpanel.Thevoltage below theW lark
shows the1inevoltage setting of your osci1loscope.If your line voltageis
different from theoscilloscope setting, thereisa danger ofmalfunctioning.Do
not connect tothesupply until thevoltageselector matches thesupplyvoltage.
Setto100V.
2)Theosci1loscopeis equipped with internal components thatarehighly charged
electrically. For your ownprotection,donot remove thecasingforanyreason.
3)Donotusetheoscilloscopeinthefollowing locations.
•In direct sunlight
•Inextremelyhot and/or humid areas
•Inareasaffectedbyhigh levels of mechanical vibration
• Around areaswithstrong lines of magnetic forcesor impulse voltage
4) Make surethatthevoltageappliedto each inputterminal does not exceed the maximum
specified.
a CH1 andCH2inputterminals: 500Vp-por250V (DC+ AC peak, 1kHzor less)
^CH3andZ AXIS inputterminals:100Vp-por50V (DC+ AC peak, 1kHzor less)
Donot under anycircumstancesapplyvoltagetothe output terminals from external
power sources.
5)In order topreventtheCRT's fluorescentscreen from scorching,donotadjustthe
brightnesshigherthannecessary.Donotleavethespottingfunctiononforlong
periodsoftime.

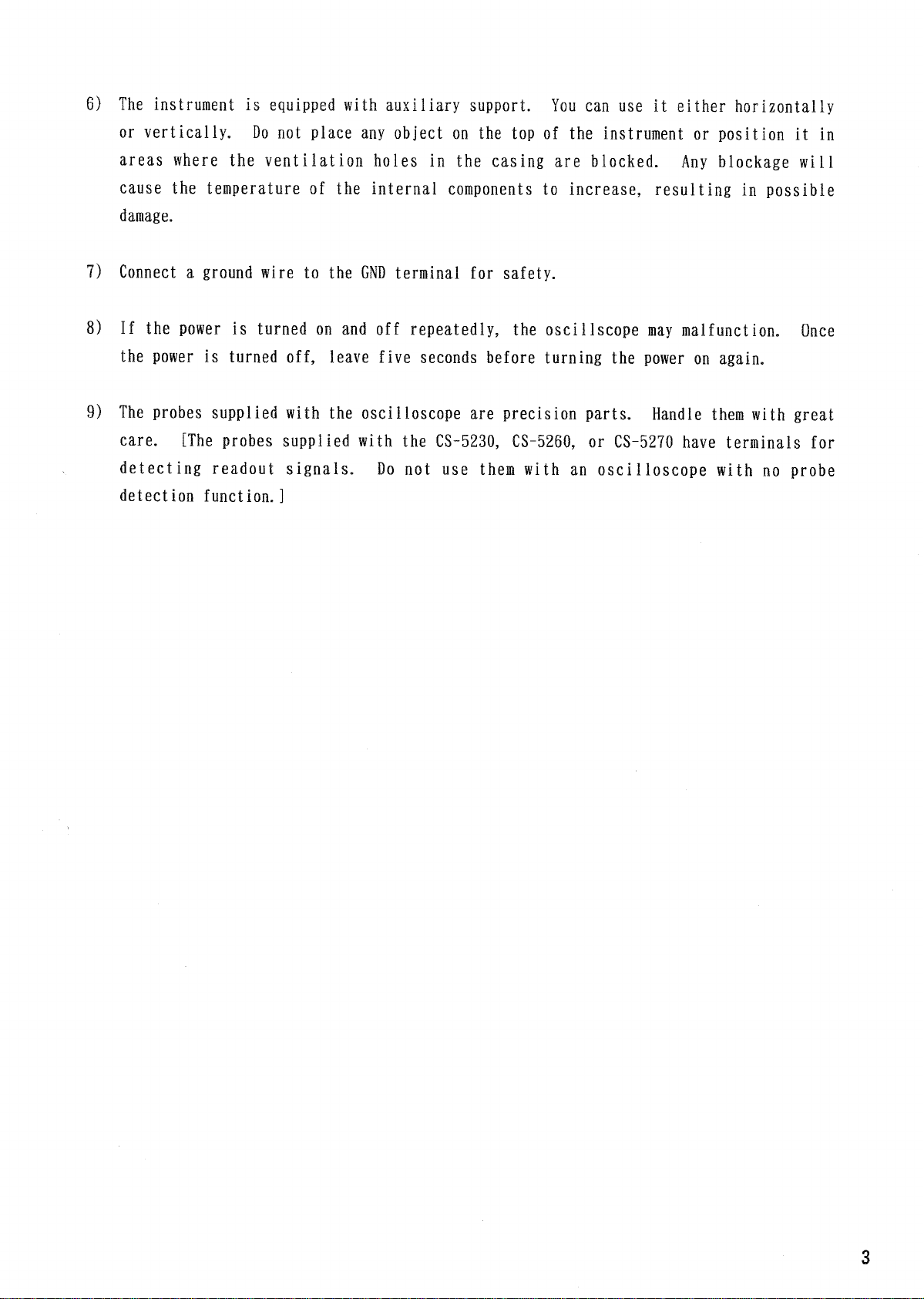

6)TheInstrumentIs equipped with auxiliary support. Youcanuseiteither horizontally
or vertically. Donotplaceanyobjectonthetopoftheinstrumentorpositionitin
areas where the ventilation holesinthecasingareblocked.Any blockage wi11
cause the temperature ofthe internal components toincrease, resulting inpossible
damage.
7) Connect a ground wiretotheGNDterminalfor safety.
8)Ifthe power isturnedonandoffrepeatedly,the oscillscope maymalfunction. Once
the power isturnedoff,leave five seconds beforeturningthe power onagain.
9)The probes suppliedwiththeoscilloscopeareprecision parts. Handle them withgreat
care. [The probes suppliedwiththe CS-5230,CS-5260, or CS-5270 have terminalsfor
detecting readout signals. Donotuse them withanosci1loscopewithno probe
detection function. ]
3

3. FEATURES
4
High Sensitivity : Sensitivity upto1 mV/div.
fide Bands : The frequency range isDCto20MHz(-3dB)at
1 fflV and,2 mV/div range andDCto100MHz[DCto
40 MHzforthe CS-5230 or CS-5235, DCto60MHzfor
the CS-5260 or CS-5265] (-3dB) for 5 mV/div.
HDTV : A specially designed HDTV signal triggering circuit
offers stable and adjustment-freesynchronizationwith
the FRAMEand LINE signals from smal1 to large
amplitudes.
Ease of operation: The osci1loscope does notuse multi-function knobs.
Thus, an inexperienced person mayuse it easily.
Straightfowardswitchlayout onthe panel eliminates
errors even for complicated operations.
Three-channel vertical axis : Trigger signals maybe measured onCH3 withoutusing
thetrigger view function.
Stepless sensitivity control: The vertical axis sensitivity maybe changed from 1
mV/div to5 V/div continuouslywith a rotaryswitch.
High Speed Sweep : High speed sweeping is possible ata time base of5
ns/div(during x10MAG operation)
[10ns/div forthe CS-5230 or CS-5235],
High Accuracy:Accuracy is within 3% for both vertical ax i s
sensitivity and sweep time.
Fixed Synchronization: The fixed synchronizationfunctioneliminatestrouble-
some synchronization.
One Touch X-Y : Switching toX-Y operation is via a single switch.
Automatic TriggerSignalSelection: Triggersignal canbe selectedautomaticallyaccording
to the VERT MODE control sett ing by switching the
SOURCE control to VERT.
CHI OUTPUT : A channel 1 output terminal*is added forCHI input
signal monitoring.
High Stability, High Reliability : Hybrid integrated circuits are employed in al 1
circuits, realizing high standards in stabi1ity and
reliability.
Scale Illumination: The scale illumination function makes it possible to
take photographs of waveform datadisplayed ontheCRT
in a dark room.

Delay Time Position :A delay time position maybeset quickly and accu-
rately with coarse and fine controls.
[Thefollowingfeatures apply totheCS-5230,.CS-5280andCS-5270.]
Readout :The verticalaxis input sensitivity, sweep time and
other scalefactors are displayed in characters onthe
CRT.
Cursor Function :The voltage difference,current ratio, time difference,
time ratio, frequency andphase difference maybe
measured with two cursors. Theyare displayed onthe
CRTfor quick and accurate measurement.
5

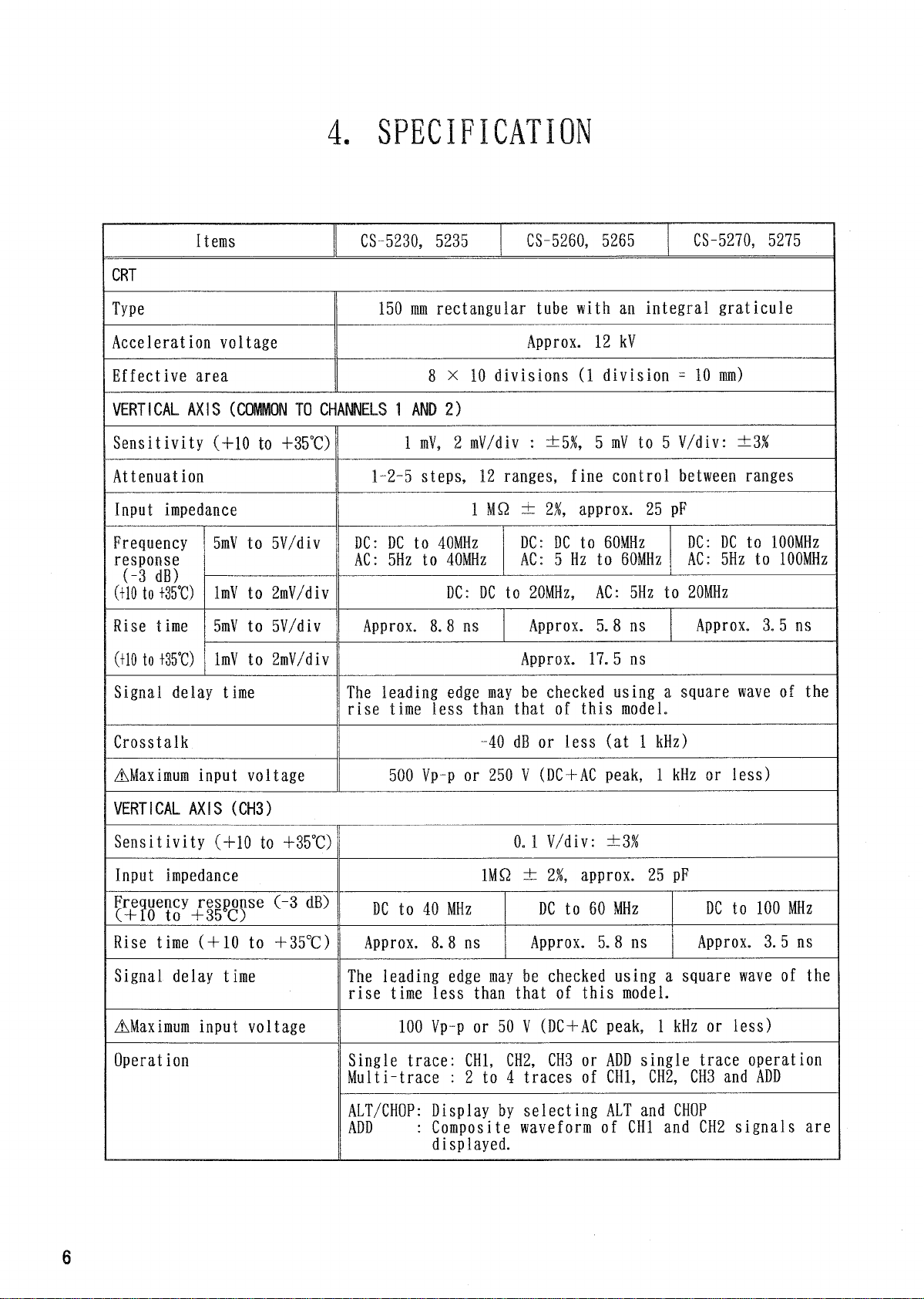

4.SPECIFICATION
Items
CS-5230, 5235
CS-5260, 5265
CS-5270, 5275
CRT
Type
150 mm rectangular tube with an integral graticule
Acceleration voltage
Approx. 12kV
Effective area
8 x 10 divisions (1 division = 10mm)
VERTICAL AXIS (COMMON TOCHANNELS1 AND2)
Sensitivity (+10to +35°C) 1
mV,2 mV/div : ±5X, 5 mVto5 V/div: ±3%
Attenuat ion 1-2-5
steps, 12 ranges, fine control between ranges
Input impedance
1 Mfi± 2%, approx. 25pF
Frequency
response
(-3 dB)
(+10to+35°C)
5mVto 5V/div DC:
DCto40MHz
AC: 5Hzto40MHz
DC: DCto60MHz
AC: 5 Hzto60MHz
DC: DCtolOOMHz
AC: 5HztolOOMHz
Frequency
response
(-3 dB)
(+10to+35°C) ImV
to 2mV/div
DC: DCto20MHz,AC:5Hzto20MHz
Rise time
(+10to+35°C)
5mVto 5V/div
Approx. 8. 8 ns
Approx. 5. 8 ns
Approx. 3. 5 ns
Rise time
(+10to+35°C) ImV
to 2mV/div
Approx. 17. 5 ns
Signal delaytime The
leading edge maybe checked using a square wave ofthe
rise time less than that of this model.
Crosstalk
-40 dBor less (at 1 kHz)
AMaximum input voltage 500
Vp-por250V (DC + AC peak, 1 kHzor less)
VERTICAL AXIS (CH3)
Sensitivity (+10to +35°C) 0.
1 V/div: ±3%
Input impedance
1MQ± 2%, approx. 25pF
Frequencyresponse (-3dB)
( + 10 to+35XO DCto40MHz DCto60MHz DCto100MHz
Rise time ( + 10 to +35°C)
Approx. 8. 8 ns
Approx. 5. 8 ns
Approx. 3. 5 ns
Signal delaytime The
leading edge maybe checked using a square wave ofthe
rise time less than that of this model.
AMaximum input voltage 100
Vp-por50V (DC + AC peak, 1 kHzor less)
Operation
Single trace: CHI, CH2,CH3orADD single trace operation
Multi-trace : 2 to4 traces of CHI, CH2,CH3andADD
Operation
ALT/CHOP: Display by selecting ALTandCHOP
ADD: Composite waveform ofCHIandCH2 signals are
displayed.
6

Items
CS-5230, 5235
CS-5260, 5265 CS-5270, 5275

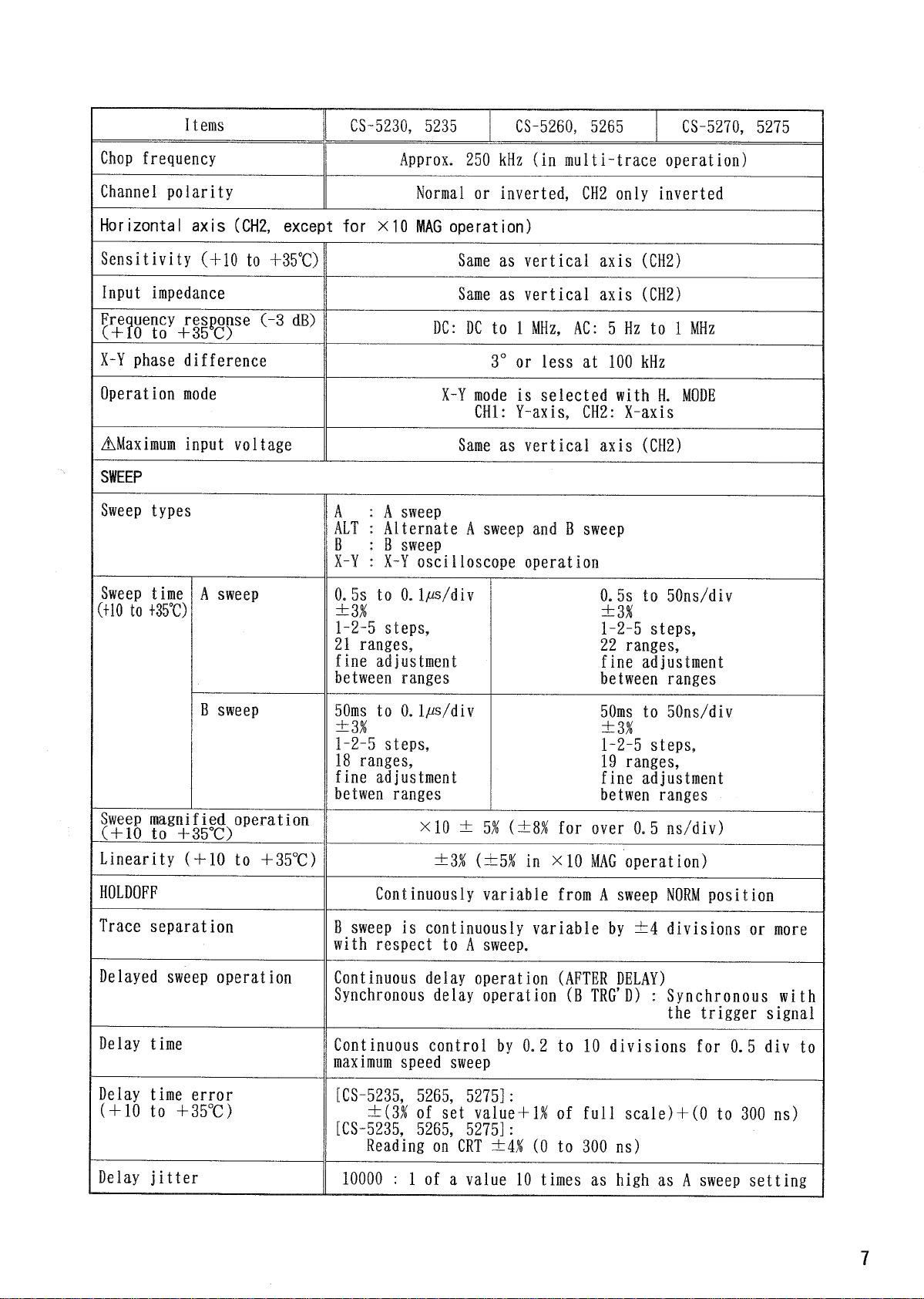

Chop frequency
Approx. 250 kHz (in multi-trace operation)
Channel polarity
Normal or inverted, CH2 only inverted
Horizontal axis (CH2,exceptfor X10MAG operation)
Sensitivity (+10to +35°C)
Same as verticalaxis (CH2)
Input impedance
Same as verticalaxis (CH2)
Frequencyresponse (-3 dB)
(+10 to +35rC)
DC: DCto1 MHz, AC:5 Hzto1 MHz
X-Y phase difference
3° or less at 100 kHz
Operation mode
X-Y mode is selected with H. MODE
CHI: Y-axis, CH2: X-axis
AMaximum input voltage
Same as verticalaxis (CH2)
SWEEP
Sweep types
A :A sweep
ALT : Alternate A sweep and B sweep
B : B sweep
X-Y : X-Y oscilloscope operation
Sweep time
(+10to+35°C)
A sweep
0.5s to 0. l//s/div
±3X
1-2-5 steps,
21ranges,
fine adjustment
between ranges
0.5s to 50ns/div
±3%
1-2-5 steps,
22ranges,
fine adjustment
between ranges
Sweep time
(+10to+35°C)
B sweep
50ms to 0.1/is/div
±3%
1-2-5 steps,
18ranges,
fine adjustment
betwen ranges
50ms to 50ns/div
±3%
1-2-5 steps,
19ranges,
fine adjustment
betwen ranges - •
Sweep magnifiedoperation
( + 10 to +35°C) X10
± 5% (±8Xforover 0.5 ns/div)
Linearity( + 10 to+ 35°C)
±3% (±5% inxlO MAG operation)
H0LD0FF
Continuously variable from A sweep NORM position
Trace separation
B sweep iscontinuously variable by ±4 divisions or more
with respect toA sweep.
Delayed sweep operation Continuousdelayoperation(AFTER
DELAY)
Synchronousdelayoperation (B TRG?D) : Synchronous with
the trigger signal
Delaytime Continuous
control by 0. 2 to10 divisions for0. 5 div to
maximum speed sweep
Delaytime error
( + 10 to +35°C) [CS-5235
5265 5275]:
±(3X of set value + lX of full scale) + (0 to 300ns)
[CS-5235, 5265, 5275]:
Reading onCRT ±41 (0 to 300ns)
Delay jitter
10000 : 1 ofa value 10 times as high asA sweep setting
7

Items
CS-5230,5235 CS-5260,5285 CS-5270,5275

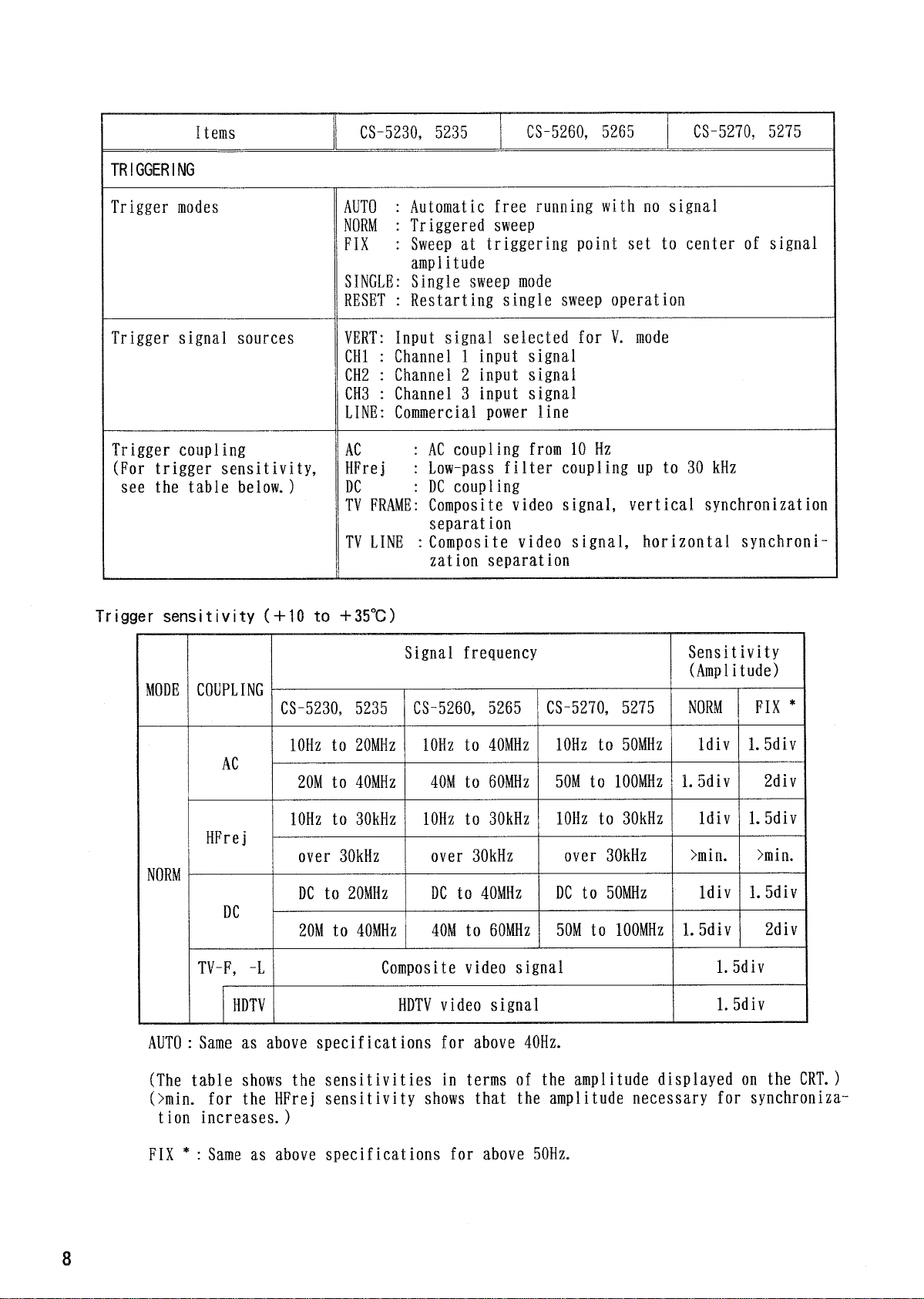

TRIGGERING
Trigger modes
AUTO : Automatic free runningwith no signal
NORM : Triggered sweep
FIX : Sweep at triggering point set to center of signal
amplitude
SINGLE: Single sweep mode
RESET : Restarting single sweep operation
Trigger signalsources
VERT: Inputsignalselected for V.mode
CHI : Channel 1 inputsignal
CH2 : Channel 2 inputsignal
CH3 : Channel 3 inputsignal
LINE: Commercial power line
Trigger coupling
(For trigger sensitivity,
see the table below.)
AC :AC coupling from 10Hz
HFrej : Low-pass filter coupling upto30kHz
DC :DC coupling
TV FRAME: Composite video signal, vertical synchronization
separation
TV LINE : Composite video signal, horizontalsynchroni-
zation separation
Trigger sensitivity ( + 10 to+ 35°C)
MODE
COUPLING
Signal frequency
Sensitivity
(Ampli tude)
MODE
COUPLING
CS-5230,5235 CS-5260,5265 CS-5270,5275
NORM FIX *
AC 10Hz
to 20MHz
10Hz to 40MHz
10Hz to 50MHz ldiv
1.5div
AC
20Mto40MHz 40Mto60MHz 50M
to 100MHz 1.5div 2div
HFrej
10Hz to 30kHz 10Hz
to 30kHz 10Hz
to 30kHz
ldiv
1..5div
NORM
HFrej
over 30kHz
over 30kHz
over 30kHz >min. >min.
NORM
DC DCto20MHz DCto40MHz DC
to 50MHz
ldiv 1.5div
DC 20Mto40MHz 40Mto60MHz 50Mto100MHz
1. 5div 2div
TV-F, -L
Composite videosignal
1. 5div
HDTV HDTV
videosignal
1. 5div
AUTO : Same as above specifications forabove40Hz.
(The table shows the sensitivities in terms of the amplitudedisplayed on the CRT. )
(>min. for the HFrej sensitivity shows that the amplitudenecessary for synchroniza-
tion increases.)
FIX * : Same as above specifications forabove50Hz.
8

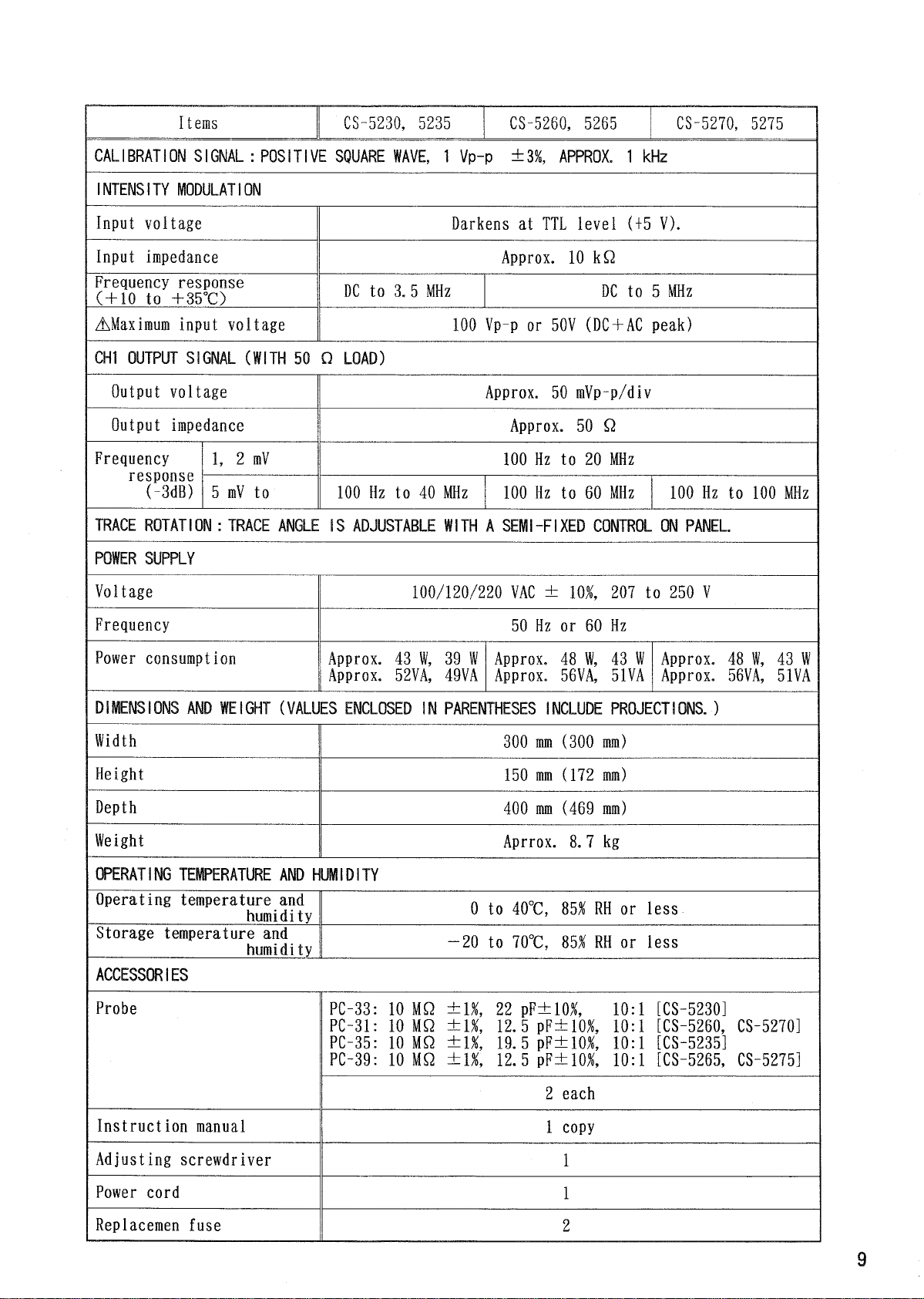

Items CS-5230,5235 CS-5260,5265 CS-5270,5275
CALIBRATION SIGNAL :POSITIVE SQUARE WAVE, 1 Vp-p ±3%, APPROX. 1kHz
INTENSITY MODULATION
Inputvoltage
Darkens atTTL level (+5V).
Input impedance Approx.
10kQ
Frequencyresponse
( + 10 to +35°C)
DC to 3.5 MHz DC to5 MHz
AMaximum inputvoltage
100 Vp-por50V (DC + AC peak)
CHI OUTPUT SIGNAL(WITH 50Q LOAD)
Output voltage
Approx. 50 mVp-p/div
Outputimpedance Approx.
50Q
Frequency
response
(-3dB)
1, 2 mV
100 Hzto20MHz
Frequency
response
(-3dB) 5 mVto 100 Hzto40MHz
100 Hzto60MHz
100 Hzto 100 MHz
TRACE ROTATION : TRACE ANGLE ISADJUSTABLE WITH A SEMI-FIXED CONTROL ON PANEL.
POWER SUPPLY
Voltage
100/120/220 VAC± 10%, 207to250V
Frequency
50 Hzor60Hz
Power consumption Approx.
43W,39W
Approx. 52VA,49VA
Approx. 48W,43W
Approx. 56VA, 51VA
Approx. 48W,43W
Approx. 56VA, 51VA
DIMENSIONS AND WEIGHT (VALUES ENCLOSED IN PARENTHESESINCLUDEPROJECTIONS. )
Width 300
mm (300 mm)
Height
150 mm (172 mm)
Depth 400
mm (469 mm)
Weight
Aprrox.8. 7kg
OPERATING TEMPERATURE AND HUMIDITY
Operating temperature and
humidity
0 to 40°C, 85% RHor less
Storage temperature and
humidity
-20 to 70°C, 85% RHor less
ACCESSORIES
Probe
PC-33
PC-31
PC-35
PC-39
10 m ±1%, 22 pF±10%, 10:1 [CS-5230]
10 MQ ±1%, 12.5 pF±10%, 10:1 [CS-5260, CS-5270]
10 MQ ±1%, 19.5 pF±10%, 10:1 [CS-5235]
10 MQ ±1%, 12.5 pF±10%, 10:1 [CS-5265, CS-5275]
Probe
2each
Instruction manual
1copy
Adjusting screwdriver
1
Power cord
1
Replacemen fuse
2

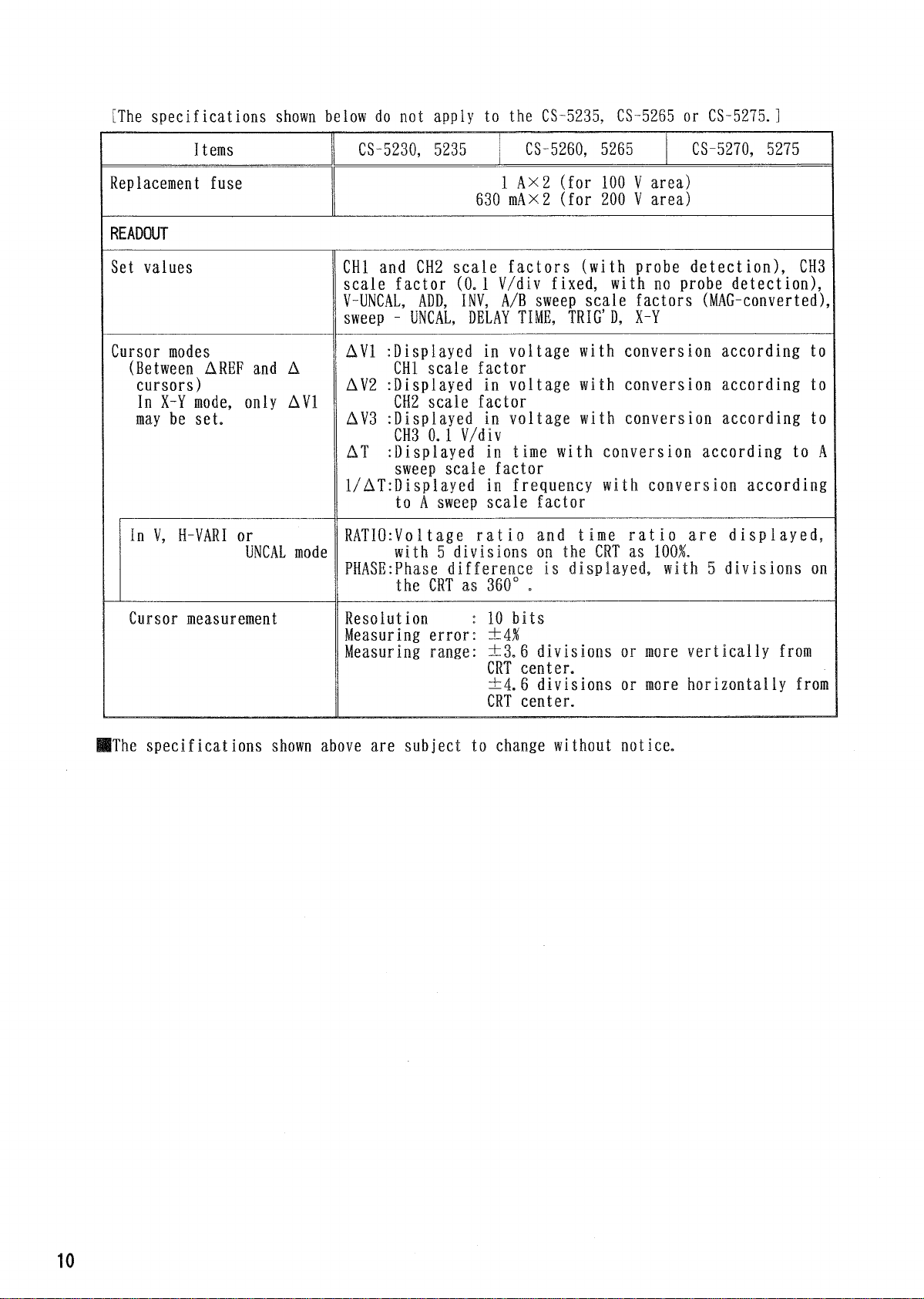

[The specifications shown belowdonot apply totheCS-5235,CS-5265orCS-5275.]
Items
CS-5230,5235 CS-5260,5285 CS-5270,5275
Replacement fuse
1Ax2(for100V area)
830 mAx2 (for 200V area)
READOUT
Setvalues
CHIandCH2 scalefactors(with probe detect ion), CH3
scalefactor (0.1 V/div fixed, with noprobe detection),
V-UNCAL, ADD,INV,A/Bsweep scalefactors (MAG-converted),
sweep- UNCAL, DELAY TIME, TRIG' D,X-Y
Cursor modes
(Between AREFandA
cursors)
In X-Y mode, only AVI
maybeset.
AVI displayed in voltagewithconversionaccording to
CHI scalefactor
AV2 displayed in voltagewithconversionaccording to
CH2 scalefactor
AV3 displayed in voltagewithconversionaccording to
CH30.1 V/div
AT :Displayed in time withconversionaccording toA
sweep scalefactor
l/AT:Displayed in frequencywithconversionaccording
to A sweep scalefactor
In V, H-VARI or
UNCAL mode
RATI0:Vo11age ratio and time ratio are disp1ayed,
with 5 divisions ontheCRTas1001
PHASE:Phase difference is displayed,with 5 divisions on
the CRTas 360° .
Cursor measurement
Resolution : 10 bits
Measuring error: ±4%
Measuring range: ±3. 6 divisions or more vertically fromi
CRT center.
±4. 6 divisions or more horizontally from
CRT center.
•The specifications shown aboveare subject tochange without notice.

5. PANELEXPLANATION

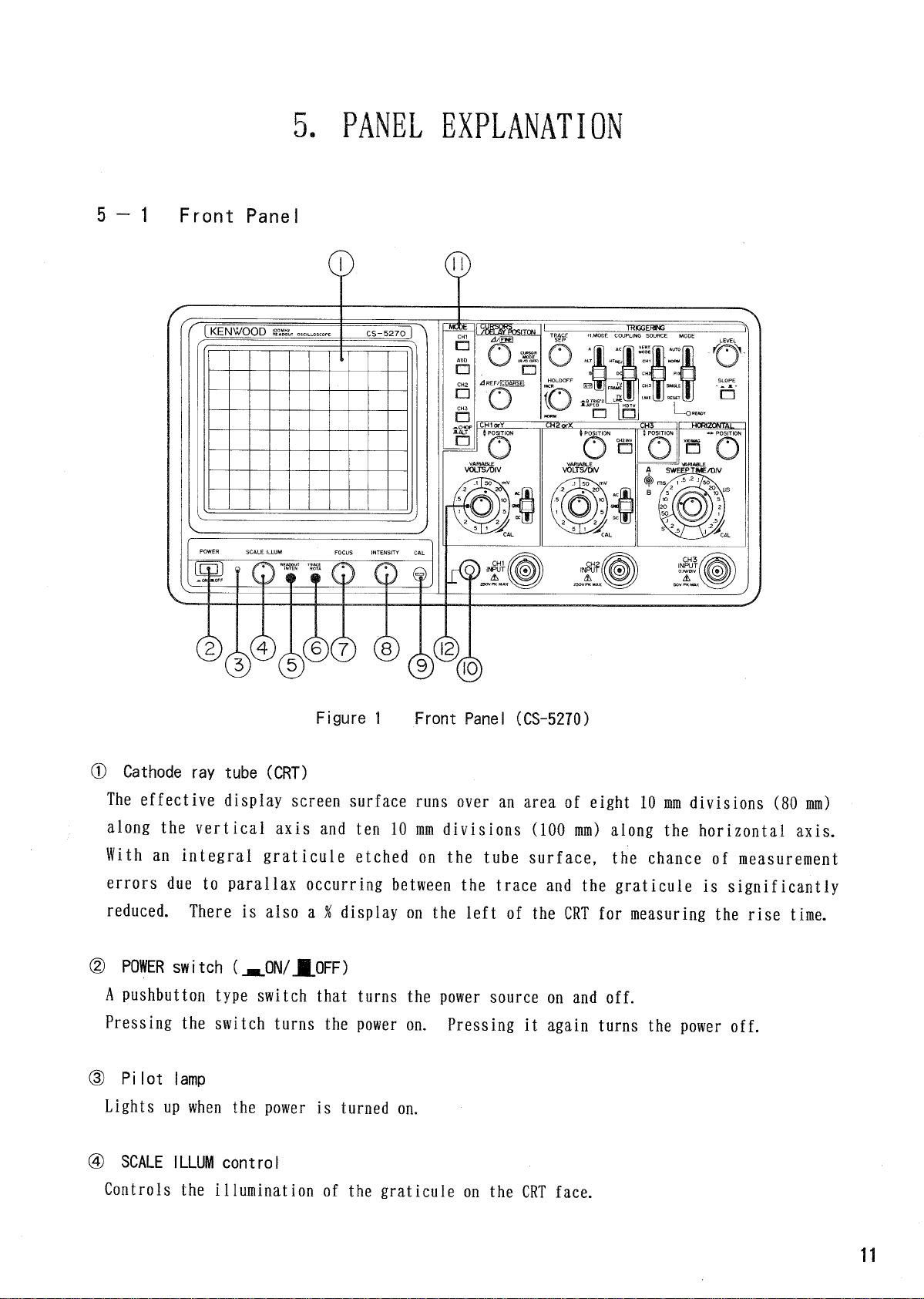

5 — 1 Front Panel
® Cathode ray tube (CRT)
The effective displayscreensurface runsover an area of eight 10mm divisions (80mm)
along the vertical axis andten10mm divisions (100mm) along the horizontal axis.
With an integral graticule etched onthe tube surface, the chance ofmeasurement
errors dueto parallaxoccurring between the trace andthe graticule is significantly
reduced.There is also a % display onthe left oftheCRTfor measuring the rise time.
© POWER switch (j^ON/JLOFF)
A pushbuttontype switchthatturns thepower source onand off.
Pressing the switchturns thepoweron. Pressing it again turns thepower off.
(D Pi lot lamp
Lights upwhenthepoweris turned on.
® SCALEILLUM control
Controls the i1lumination ofthe graticule ontheCRT face.
Figure 1 Front Panel (CS-5270)
11

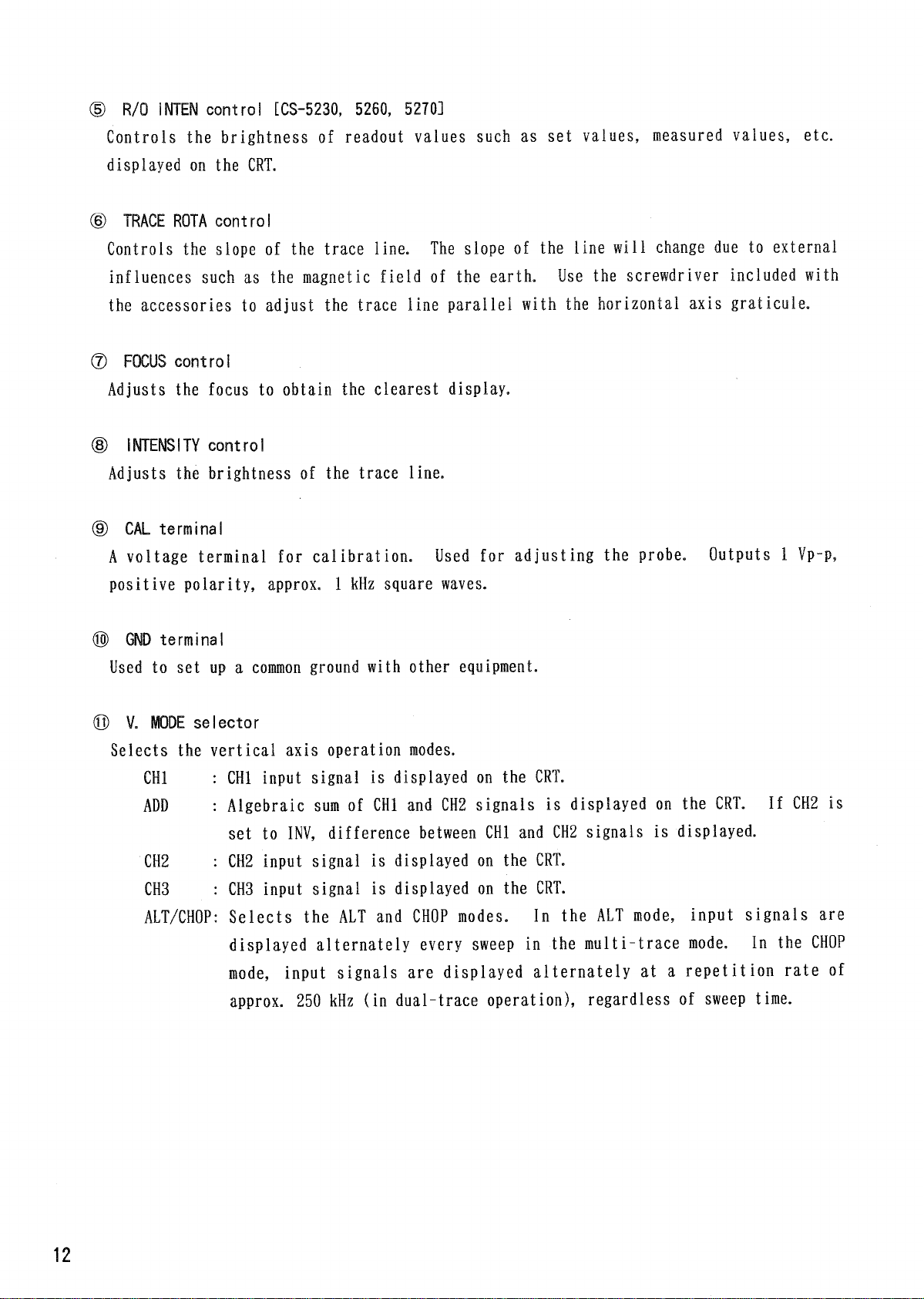

® R/0 INTEN control [CS-5230, 5260, 5270]
Controls the brightness of readout values such asset values, measured values, etc,
displayed ontheCRT.
© TRACE ROTA control
Controls the slope ofthe trace line. The slope ofthe line will change dueto external
influences such asthe magnetic field ofthe earth. Usethe screwdriverincludedwith
theaccessories to adjust the trace line parallel with the horizontal axis graticule.
® FOCUS control
Adjusts the focus to obtain the clearest display.
® INTENSITY control
Adjusts the brightness ofthe trace line.
® CAL terminal
A voltageterminal for calibration. Used for ad just ing the probe. Outputs 1 Vp-p,
positive polarity, approx. 1 kHz square waves.
® GND terminal
Used tosetupa common ground with other equipment.
© V. MODE selector
Selects the vertical axis operation modes.
CHI : CHI inputsignalisdisplayed ontheCRT.
ADD: Algebraic sumofCHIandCH2 signals is displayed ontheCRT. If CH2is
set toINV, difference between CHIandCH2 signals isdisplayed.
CH2: CH2 inputsignalisdisplayed ontheCRT.
CH3 : CH3 Inputsignalisdisplayed ontheCRT.
ALT/CHOP: Selects theALTand CHOP modes. IntheALTmode, input signals are
displayed alternately every sweep inthe multi-trace mode.Inthe CHOP
mode, input signals are displayed alternately ata repetition rate of
approx. 250kHz (indual-traceoperation),regardless of sweep time.
12

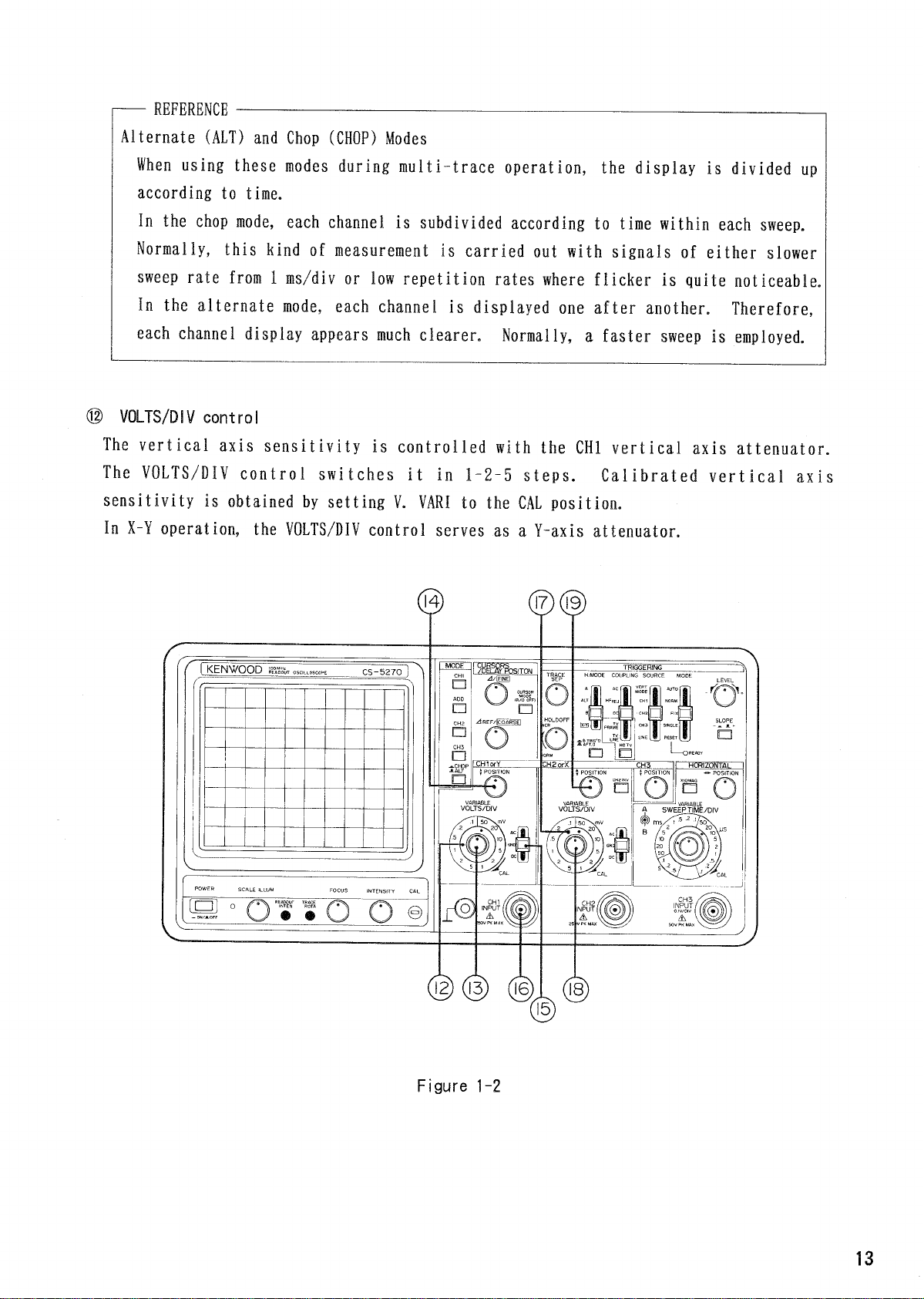

REFERENCE =
Alternate (ALT) andChop (CHOP) Modes
When usingthese modes duringmulti-traceoperation, the display Is divided up
according to time.
In the chop mode, each channel is subdividedaccording to time within each sweep.
Normally, this kind of measurement is carried out with signals of eitherslower
sweep rate from 1 ms/div orlow repetition rates where flicker is quitenoticeable,
In the alternate mode, each channel is displayed one after another.Therefore,
each channel display appears much clearer. Normally, a faster sweep is employed.
© VOLTS/DIV control
The vertical axis sensitivity is controlledwith theCHI vertical axis attenuator.
The VOLTS/DIV controlswitches itin1-2-5 steps.Calibrated vert ical axis
sensitivity is obtained by setting V. VARI totheCAL position.
In X-Y operation, the VOLTS/DIV controlserves asa Y-axisattenuator.
Figure 1-2
13

® VARIABLE (V. VARI) control
Providesfine-control oftheCHI verticalaxissensitivity. Set with the VOLTS/DIV
control. The attenuator is calibrated IfItis fully turned clockwise totheCAL
position.
In X-Y operation, theVARIABLE controlserves asa Y-axis fine attenuator control.
® ^POSITION control
Adjusts the vertical position ofCHIwaveform displayed ontheCRT.
Serves asa Y-axispositioncontrolduring X-Y operation.
® AC-GND-DC switch
Selects theCHI verticalaxis inputsignalcoupling mode.
AC: Input signals areAC coupled, andDCcomponentsareremoved.Low frequency
signal level falls by3 dBor more below5 Hzifthe1 : 1 probeora
coaxial cable is used. It falIs below0.5 Hzifa calibrated 10: 1 probe
is used.
GND: Input ofthe vertical amplifier isgrounded, allowing theground potential
to be checked. The input resistance is1 UQ withrespect totheground.
Input signals will notbegrounded.
DC: Input signals areDC coupled, allowing signals containing DCcomponentsto
be observed.
The switchserves asa Y-axisinputselectorduring X-Y operation.
® CH1 INPUT terminal
CHI verticalaxis inputterminal.
Serves asa Y-axisinputterminalduring X-Y operation.
® VOLTS/DIV control
CH2 verticalaxis attenuator. Hasthe same function astheCHI VOLTS/DIV control.
Serves asan X-axisattenuatorduring X-Y operation.
® VARIABLE (V. VARI)
CH2 verticalaxis attenuator for fine adjustment. Hasthe same function astheCHI
V.VARI control.
Serves asan X-axis fine adjustment attenuatorduring X-Y operation.
® ^ POSITION control
Adjusts the vertical position ofCH2waveform displayed ontheCRT.
14

® AC-GND-DC switch
Selects theCH2 vertical axis inputsignalcoupling modeinthe same wayastheCHI
AC-GND-DC control.
Serves asan X-axisinput selector during X-Y operation.
© CH2 INPUT terminal
CH2 vertical axis inputterminal.
Serves asan X-axisinputterminalduring X-Y operation.
© CH2INV switch
Whenthe switch is pressed, the polarity ofCH2 inputsignal is inverted.
© $ POSITION control
Adjusts the vertical position ofCH3 waveform displayed ontheCRT.
® CH3 INPUT terminal
CH3 vertical axis inputterminal.
® DELAY POSITION(COARSE),AREF CURSOR
Coarsely adjusts the delay time between A sweep andB sweep when H. MODE is set toALT
or B. (COARSE)
Adjusts the position ofthe AREF cursor. [TheCS-5230,CS-5260 and CS-5270have the
cursor functions. ]
Figure 1-3 Front Panel (CS-5270)
15

16

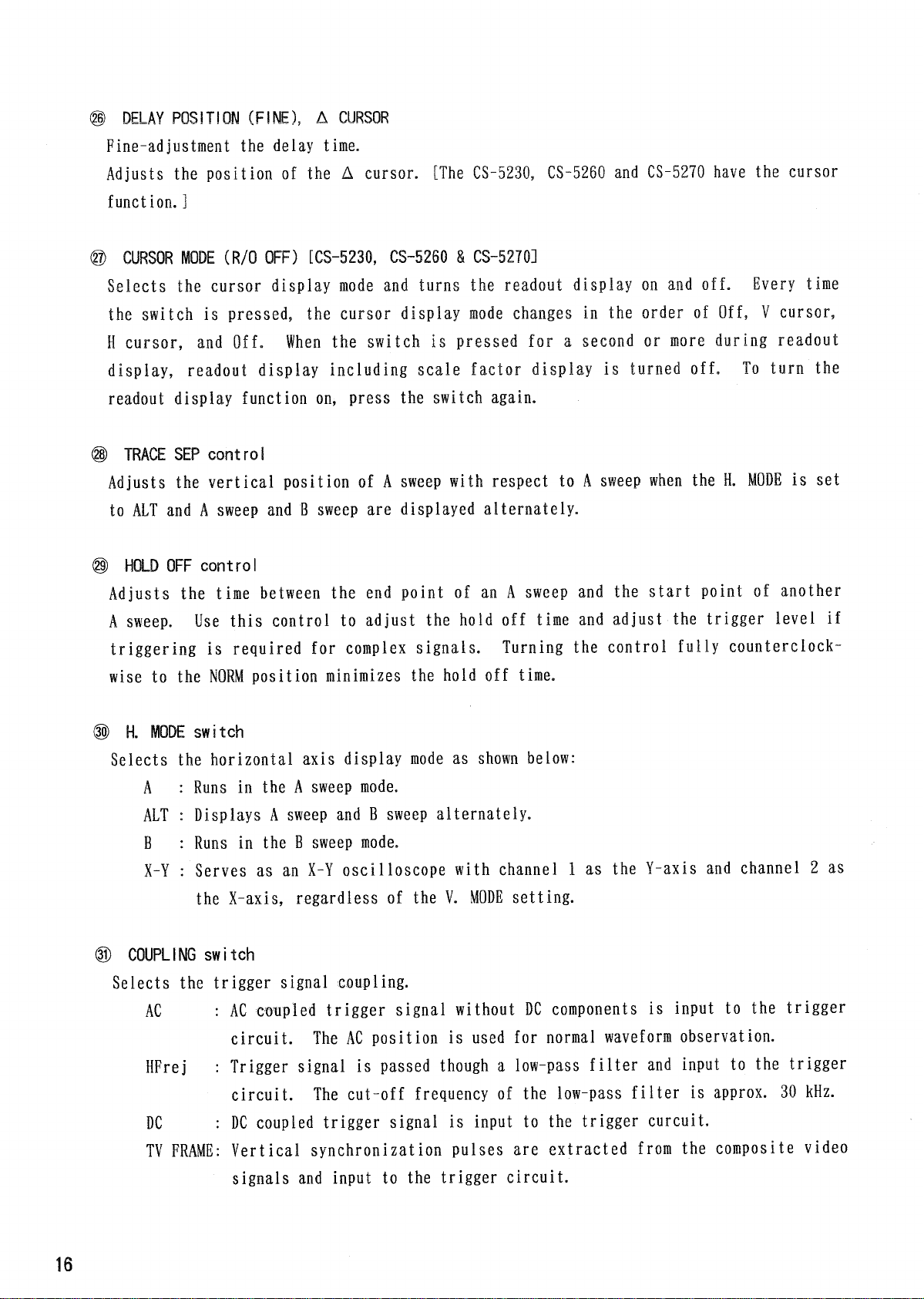

® DELAY POSITION (FINE), A CURSOR
Fine-adjustment the delaytime.
Adjusts the position of the A cursor. [TheCS-5230,CS-5260 and CS-5270have the cursor
function.]
@ CURSOR MODE (R/OOFF) [CS-5230, CS-5260 & CS-5270]
Selects the cursordisplay mode and turns the readout display on and off,Every time
theswitch is pressed, the cursordisplay mode changes inthe order of Off, ¥ cursor,
1 cursor, and Off. Whenthe switch is pressed for a second or more during readout
display, readout displayincludingscalefactordisplay is turnedoff. To turn the
readout displayfunction on, press the switchagain.
® TRACESEP control
Adjusts the vertical position ofA sweep withrespect to A sweep when theH. MODE isset
to ALTand A sweep and B sweep are displayed alternately.
® HOLD OFF control
Adjusts the time between the end point ofanA sweep and the start point of another
A sweep. Use this control to adjust the hold off time and adjust the trigger level if
triggering is required for complex signals. Turning the control fully counterclock-
wise to the NORM position minimizes the hold off time.
© H.MODE switch
Selects the horizontal axis display mode as shown below:
A : Runs inthe A sweep mode.
ALT : Displays A sweep and B sweep alternately.
B : Runs inthe B sweep mode.
X-Y : Serves asanX-Y oscilloscopewith channel 1 as the Y-axis and channel 2 as
theX-axis,regardless of theV. MODE setting.
© COUPLING switch
Selects the trigger signil c&upiing.
AC : AC ctiplei triggersignalwithout DC components is input to the trigger
circuit. The AC position is used fornormalwaveform observation.
HFrej : Triggersignal is passed though a low-pass filter and input to the trigger
circuit. The cut-off frequency of the low-pass filter is approx. 30 kHz.
DC : DC coupled triggersignal is input to the trigger curcuit.
TV FRAME: Vertical synchronizationpulses are extracted from the composite video
signals and input to the trigger circuit.
