Kenwood CAX-AD100 User manual

BEFORE USE
To ensure proper use, please read through this manual before using this product.
It is especially important that you read and observe WARNING and CAUTION in this manual.
Please keep the manual in a safe and accessible place for future reference.
Features of this product
This product measures the concentration of ethanol contained in exhaled breath and displays it as a digital number. You can
check for the presence of alcohol by simply blowing on the sensor part.
IMPORTANT SAFETY INSTRUCTION
#WARNING
●The numerical value displayed on the breath alcohol tester "CAX-AD100" is a guide, it does not judge whether you can
drive a car or work on a machine. It cannot be used intentionally as a tool to help any illegal activity such as drunk driving,
or directly used for finding legal facts in an accident or damage case. Regardless of whether or not this product is used, the
parties involved in manufacturing and sales are not responsible for any acts or damages that are not legally permitted.
●When using this product for operation management and business management, never operate or make a judgment
that depends only on this measurement results. We are not responsible for any damage or trouble caused by using this
product.
●Do not use this product while driving a vehicle. Also, never use this product in games such as compete for the alcohol
concentration in the breath. There is a risk of death or serious injury if you deliberately drink alcohol to increase alcohol
levels.
#CAUTION
●Precautions for use
1. Do not disassemble, modify or wash with water.
2. This product is a precision electronic device. Avoid any strong impact.
3. Do not sit down with this product in your trouser or skirt pocket as it may be damaged.
4. Do not handle with wet hands.
5. When you blow into it, please try not to release saliva from your mouth.
6. When using the hand strap, do not swing the main unit by holding the hand strap. It may cause harm to you or anyone
nearby, or it may cause a malfunction of this product.
7. Do not spray cigarette smoke or spray gas on the sensor. It may cause a malfunction.
8. Do not spray high concentration alcohol (ethanol) continuously. It may cause a malfunction.
9. Be careful not to pinch your fingers when opening or closing the cover or attaching the attachment.
10. Avoid measuring in places with odors, windy places, and hot and humid places.
(Appropriate operating temperature 0 °C to 35 °C)
●Precautions for storage
1. Avoid humidity and direct sunlight, and do not store in a potential hot place such as in a car during a sunny day.
(Storage temperature -10 °C to 60 °C)
2. Do not put perfume, cosmetics, etc. in a bag or case together, or store in a place with a strong odor.
3. Keep out of the reach of children.
4. Do not store near an air conditioner.
5. If you do not use the product for a long time, remove the battery.
Breath Alcohol Tester
CAX-AD100
INSTRUCTION MANUAL
© 2021 JVCKENWOOD Corporation

#CAUTION
●Precautions for cleaning
1. If the display panel becomes dirty, immediately wipe it with a soft, dry cloth.
* Do not use boiling water, water, thinner, etc.
Precautions when using after opening a new product or after long-term storage
Due to its characteristics, this product may be in a kind of standby state at the time of shipment or when it has not been
used for several days. When using this product after opening a new product or storing it for a long period of time, do the
following before measuring:
Slide the sensor cover to the top and shake this product 2-3 times to remove odors and moisture accumulated inside.
Perform "blank measurement" (press the ON / OFF switch to operate once or twice).
Even if it is stored in a bag or case, some odorous components may adhere to the sensor and it may not be possible to
measure accurately. Please use after performing blank measurement as described above.
If the product is used after opening a new product or after long-term storage without performing blank measurement,
an error message may be displayed even if exhaled breath is blown normally. Therefore, perform blank measurement
before use.
For continuous measurement
When measuring continuously, shake the main body lightly 2-3 times to remove the miscellaneous gas accumulated
inside it (Do not shake strongly).
If alcohol is detected, please measure it after a while (Errors are likely to occur until the sensor is in the initial state).
Understanding Breath Alcohol Tester
This product uses a high-sensitivity gas sensor that detects alcohol (ethanol). The gas sensor is a consumable item, not a
permanent one. When using the product daily, any deposits on the surface of the sensor element (saliva, atmospheric gas, dust,
condensation, tobacco tar, etc.) can cause erroneous measurements and measurement errors (no reaction).
In addition, due to the characteristics of the sensor, accuracy cannot be maintained if more than one year has passed since it was
purchased or used, or if it is measured more than 5,000 times. If you want to continue using this product, we recommend that you
replace it with a new one.
There are individual differences in exhalation. Depending on your physical condition, constitution, time of day, etc., this product
may detect alcohol (ethanol) even though you are not drinking alcohol.
Please use it after understanding these things as well.
* Things that may react with something other than alcohol :
1After meals (especially fermented foods) / 2Immediately after ingesting energy drinks and beverages / 3Immediately
after smoking / 4After taking some medicine / 5Immediately after eating gum or tablet / 6After using toothpaste or
mouthwash / 7If you have bad breath / 8Fermentation gas from inside the body.
If you experience any abnormalities such as "alcohol reaction does not occur even though you are drinking" or "alcohol reaction
occurs even though you are not drinking", discontinue use. If the troubleshooting does not help, please contact the store where
you purchased the product or the JVCKENWOOD Customer Support Center.
Information on Disposal of Old electrical and electorinic Equipment and Batteries (applicable for EU countries that
have adopted separate waste collection systems)
Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household wasete.
Old electrical and electorinic equipment and batteries should be recycled at a facility capable of handling
these items and their waste byproducts.
Contact your local authority for details in locating a recycle facility nearest to you.
Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on
our health and the envitonment.

Names of each parts
There are two types of measurement methods for this product.
• "Straw method" using accessory attachments and commercially available straws.
• "Open blow method" that blows directly onto the product.
How to use
⊖⊕541
6
7
2
3
How to attach the strap (accessories)
1Pass the longer string through the strap
port of the product body and tie it.
2Attach the shorter string to the strap
hole of the attachment.
①
②
Strap Attachment Port
How to insert the attachment (accessory)
1Slide the sensor cover upward.
2Insert the attachment into the blowing
part.
Blowing Part ①
②
Slide
Lightly press the Apart
Firmly press the Bpart
How to remove the battery cover
1Turn the product body upside
down and hold it with both hands.
2Lightly press the Apart with
your thumb, and slide it upward
while firmly pressing the Bpart
with your other thumb.
Error Display
If the measurement fails (accurate measurement
was not performed), "---" is displayed
Operational
Indication
LED Display
Digital Display
Notified the sensor
lifetime by blinking.
and red LEDs flash together when the
battery is dead.When the display appears, replace
the battery.
Battery Display
Sensor Exchange
Mark
Display Panel Description
Sensor Cover
ON/OFF Switch
(Reset Switch)
Blow Port
Display Panel
Battery Cover
Atrium
Strap Port
Remove the battery cover and set
the battery. Carefully set ¢¤and
attach the battery cover.
Be sure to set the direction of the
battery ¢¤pole correctly.
Slide the sensor cover upward to
insert the attachment.
• For how to attach the attachment, see
the names of each parts.
• Measurement by direct blowing is also
possible without using an attachment.
Insert a commercially available straw and press
the ON / OFF switch on the side of the main unit to
turn on the power.
The countdown of the digital display starts at the same
time as the "STANDBY" of the operation display blinks.
(14 • 13 • 12 • • •1 or 6 • 5 • 4 • • • 1)
• Only use a straw with a diameter of 4 to 6 mm.
• When measuring by direct blowing, do not attach an
attachment or a commercially available straw, and turn
on the power as it is with the sensor cover slid upward.
Blow your breath into the product.
The "GO" lamp flashes, and at the same
time as the beeping sound, blow into the
inserted straw for "4 seconds". Please
continue blowing until you hear next
beep.
◎Keep blowing stably for about 4
seconds. If you blow all at once, your
breath will not last for 4 seconds. Blow
with strength (expiratory volume) that
keeps you breathing for 4 seconds.
Blow "Fuuuu"
for 4 seconds
In the case of direct injection, use the
following method.
Blow "Huhhhh"
for 4 seconds
1st
BEEP
ON
2nd
BEEP
1cm
When the sensor detects it,
"CHECK" of the operation
display blinks and
measurement starts.
When the measurement is completed, "END"
of the operation display blinks to display the
measured value.
The green LED lights up when the
measured value is 0.00 mg/L.
The red LED lights up when the
measured value is 0.05 mg/L
or more.
After measuring, press the power button to
"OFF".
Remove the attachment and return the
sensor cover to the bottom.
If the power supply is left in the "ON" state, it will
automatically turn the power supply "OFF" after
1 minute.
OFF
In case of
measurement error
If the measurement cannot be performed accurately, an electronic
sound is heard three times, the red LED is lit, and the measurement
display indicates“---".
Press the power button to manually switch "OFF" the power.
Press the power button again to turn the power to "ON" and remeasure.
Red LED
lights up
BEEP
BEEP
BEEP
Commercially
available straw
• Is the sensor cover open?
• Are you blowing for 4 seconds?
• Is the straw inserted firmly?
• Is the measurement conducted in a place
where there is no odor or gas around?
LED
lights up

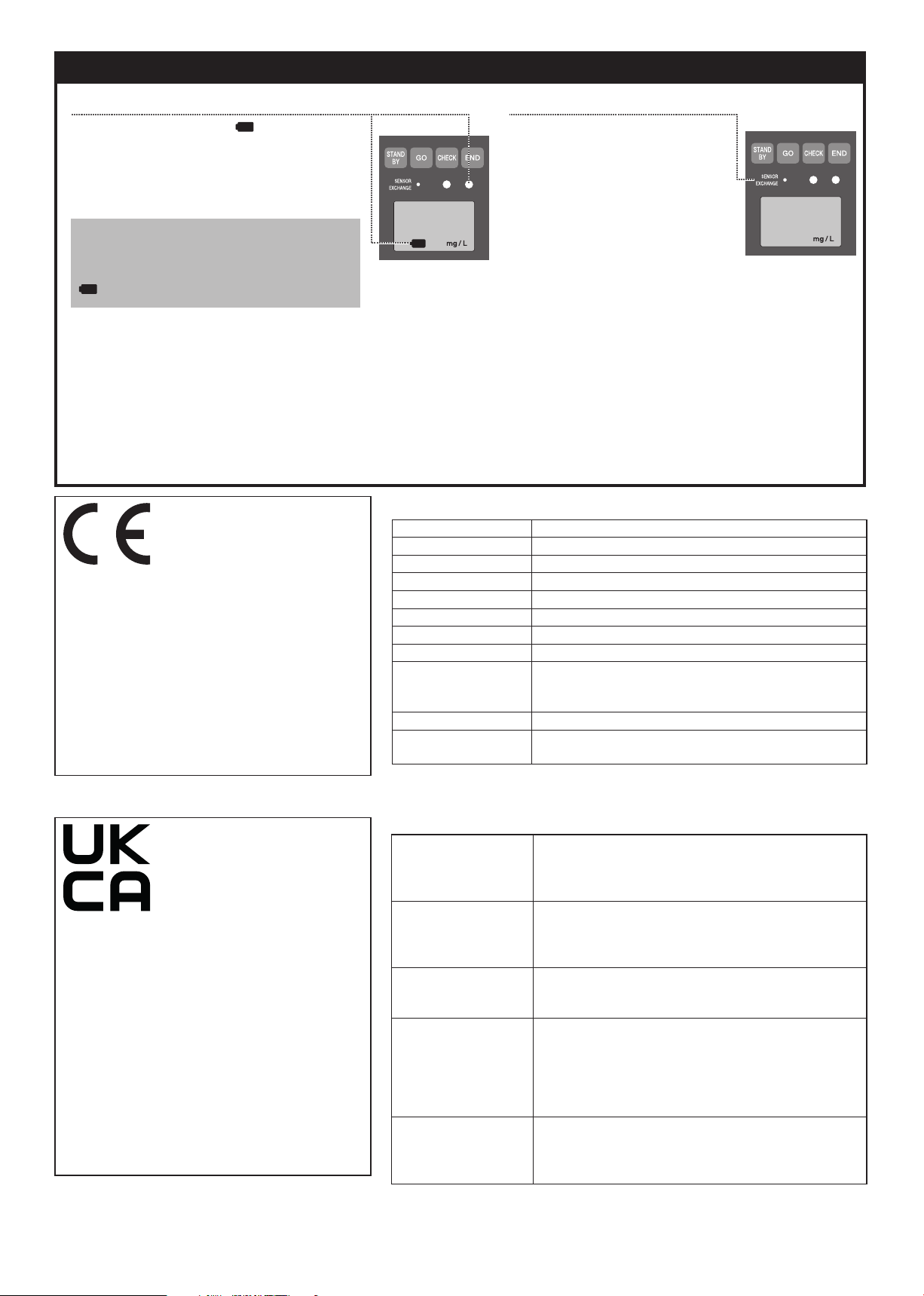

Battery Replacement and Sensor
#CAUTION
• Risk of fire or explosion if the battery is replaced by an incorrect type. Ensure to replace only with the same type.
• Risk of fire, explosion or the leakage of flammable liquid or gas if the battery is left in an extermely high temperature
surrounding environment and/or subjected extremely low air pressure. The battery pack or batteries shall not be exposed to
excessive heat such as sunshine, fire or the like.
• Risk of fire, explosion or the leakage of flammable liquid or gas if the battery is disposed into fire or a hot oven, recharged,
shorted, mechanically crushed or cut of the battery.
• If spilled fluid comes in contact with your eyes or on clothing, immediately rinse with water and consult a physician.
Declaration of Conformity with regard to the EMC
Directive 2014/30/EU
Declaration of Conformity with regard to the
RoHS Directive 2011/65/EU
Manufacturer:
JVCKENWOOD Corporation
3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi,
Kanagawa, 221-0022, JAPAN
EU Representative:
JVCKENWOOD Europe B.V.
Amsterdamseweg 37, 1422 AC Uithoorn,
THE NETHERLANDS
Product Specifications
Power supply DC 3 V two AA alkaline batteries
Battery life About 1,200 times
Operating temperature 0 °C to 35 °C (no condensation)
Storage temperature -10 °C to 60 °C (no condensation)
External dimensions 122 x 45 x 21 mm
Mass / Weight Approximately 92 g (including batteries)
Main materials Body case: ABS resin
Detection method Semiconductor gas sensor
Display method LCD digital display 0.00 mg/L and 0.05 mg/L to 1.00 mg/L
(If less than 0.05 mg/L, 0.00 mg/L will be displayed)
LED 2-stage display (Green/Red)
Sensor life Purchased and used 1 year or 5,000 times
Accessories Instruction manual (warranty), attachment, strap,
Two AA alkaline batteries
* The contents and specifications are subject to change without notice.
Declaration of Conformity with regard to the
Electromagnetic Compatibility Regulations
2016 (S.I. 2016/1091)
Declaration of Conformity with regard to the
Restriction of the Use of Certain Hazardous
Substances in Electrical and Electronic Equipment
Regulations 2012 (S.I. 2012/3032)
Manufacturer:
JVCKENWOOD Corporation
3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi,
Kanagawa, 221-0022, JAPAN
UK Importer:
JVCKENWOOD U.K. Limited
12 Priestley Way, London, NW2 7BA,
UNITED KINGDOM
Troubleshooting
Cannot turn on Are there batteries?
Set two AA alkaline batteries (included) correctly.
Is the plus/minus of the battery set in reverse?
Please set plus and minus correctly.
Error display "---" Are you blowing properly? Is there any odor or gas at the
measurement location?
Please refer to "How to use" in this manual and
measure correctly.
The measured value is
not stable.
Are you using it in a windy place or a place with a strong
odor?
Please change the location and measure.
Getting an alcohol
reaction even though
not drinking.
Is there any odor remain inside the product?
Shake this product lightly 2-3 times.
Are you measuring immediately after using mouthwash
or smoking ?
Please refer to "Understanding Breath Alcohol Tester"
in this manual .
No alcohol reaction
even though drinking.
The blown breath may not have passed through the
sensor part.
Refer to step 4 of "How to use" in this manual, and
blow properly.
When the battery runs out
When replacing the batteries, allow 20
seconds with the batteries removed, and
then insert the new batteries.
symbol will be reset and disappear.
About the “SENSOR EXCHANGE” indicator
When you use this product more
than 5,000 times, the “SENSOR
EXCHANGE” mark blinks.
Since the measurement accuracy of
the sensor will not be maintained,
it is recommended to replace this
product.
• Even if it is used infrequently, it is
recommended to replace it with a
new one after using it for one year.
When the battery runs out, and the red LED
will blink simultaneously. If you see this, replace
the batteries.
[Please use AA alkaline batteries] (Do not use
manganese batteries or rechargeable batteries)
