MITEL STANDARD PRACTICE SECTION
MITL9109-094-106-NA
Issue 1, April 1988
SX-200” DIGITAL
PRIVATE AUTOMATIC BRANCH EXCHANGE
SUPERSET 3TM TELEPHONE DESCRIPTION
@Copyright 1988, MITEL Corporation. All rights reserved.
T”Trademark of MITEL Corporation
@Registered Trademark of MITEL Corporation

SECTION MITL9109-094-106-NA
NOTICE
The information contained in this document is believed to be accurate in all respects but is
not warranted by Mite1 Corporation (MITEL). The information is subject to change without
notice and should not be construed in any way as a commitment by Mite1 or any of its
affiliates or subsidiaries. Mite1 and its affiliates and subsidiaries assume no responsibility
for any errors or omissions in this document. Revisions of this document or new editions of
it may be issued to incorporate such changes.

SUPERSET 3 Telephone Description
CONTENTS
1. INTRODUCTION
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Reason for Issue . . . . . . . , . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2. DESCRIPTION
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. FUNCTIONAL DESCRIPTION
General .............................................
5
Line Select Keys .......................................
5
Line Status LEDs
...................................... 5
Speed Dial Keys .......................................
5
Hold Key ............................................
5
Feature Keys .........................................
5
Speaker Volume ........................................
6
Ringer Volume and Ringer Pitch ...........................
6
4. SHIPPING AND RECEIVING
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Delivery Check . . . . . . . . . . . . . . . . . . , . . . . . , . . . . . . . . . . . . . . . . 9
5. INSTALLATION
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6. TEST PROCEDURES
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . , 13
LIST OF ILLUSTRATIONS
FIGURE TITLE
PAGE
3-l
SUPERSET 31M Electronic Telephone Set ............
7
3-2 SUPERSET 3 Telephone Face Layout ...............
8

SECTION MITL9109-094-106-NA
iv

SUPERSET 3 Telephone Description
1. INTRODUCTION
General
1.Ol
This Section describes the physical and electrical characteris-
tics of the SUPERSET 3TM electronic telephone set. An outline of
installation procedures, set operation and maintenance is also in-
cluded.
Reason for Issue
1.02 This Section is issued to provide information about the SUPER-
SET 3 telephone.
Page 1

SECTION MITL9109-094-106-NA
Page 2

SUPERSET 3 Telephone Description
2. DESCRIPTION
General
2.01 The SUPERSEJ 3 telephone is a microprocessor-controlled
electronic telephone set employing integrated circuitry. Oper-
ational features include, single key activation, handsfree operation, 12
user-programmed Speed dial keys and automatic selection of the
Prime Line. Up to three lines can appear on the SUPERSEJ 3 telephone.
Line appearances can be lines, trunks, or multiple appearances of the
same line.
2.02 The SUPERSEJ 3 telephone is connected to local area wiring by
a modular jack. Power, signal, and voice are carried over a
single pair of wires.
Physical
2.03 The SUPERSEJ 3 telephone consists of the main assembly, the
handset cord, the handset, and the line cord.
2.04 The microphone (for handsfree operation), is located behind an
aperture on the front of the main assembly.
2.05 The speaker is located between the handset recesses. The
speaker volume control is mounted on the left side of the cover
assembly.
Page 3

SECTION MITLSI 09-094-106-NA
Page 4

SUPERSET 3 Telephone Description
3. FUNCTIONAL DESCRIPTION
General
3.01 Figure 3-1 shows the SUPERSET 3 Electronic Telephone Set;
the face layout is shown in Figure 3-2. A description of the
function of each key and display follows. All keys are noninterlocking.
Line Select Keys
3.02 During CDE, the three Line Select keys are programmed to
access lines and/or trunks. The leftmost key will access the
set’s Prime Line. The remaining two keys are available for use as
Speed Dial keys, if they have not been assigned as line appearances.
Line Status LEDs
3.03 Above each Line Select key there is an associated Line Status
LED. The LED lights continuously to indicate the line is in use; it
flashes to indicate a call is on hold at that line.
Speed Dial Keys
3.04 There are 12 Speed Dial keys located on the upper right portion
of the set. The user can program these keys with frequently-
dialed numbers.
Hold Key
3.05 The red Hold key allows the user to place any call at the set on
hold. The Line Status LED associated with the held line, flashes
to remind the user that a call is on hold. The call is retrieved by
pressing the Line Select key.
Feature Keys
3.06 Each of the seven Feature keys are associated with a specific
feature. They are as follows:
SWAP - The SWAP key allows the user to alternate between two
established calls (a Broker’s Call).
TRANS/CONF - This key allows the user to put a call on hold, dial a
new nu-mber and conference the call or transfer the held call (with
privacy) to the new number.
REDIAL - This key causes the last number dialed to be automatically
redialed when the key is pressed.
CANCEL - This key cancels any dialing which had been performed.
PROGRAM/SAVE - This key allows the user to program and save
Page 5

SECTION MITL9109-094-I 06-NA
speed dial numbers on selected speed dial keys.
SPEAKER ON/OFF - This key allows the set user to receive or origi-
nate calls without using the handset. Each time this key is pressed the
set is switched between handset and Handsfree operation.
MHZ/MUTE - While pressed, the MIC/MUTE key disables the micro-
phone during Handsfree operation, either to prevent transmission of
local sound or to improve reception when the set is installed in a noisy
environment.
Speaker Volume
3.07 A sliding lever is provided on the left side of the SUPERSEJ 3
telephone to control speaker volume. Volume is greatest when
the lever is in the up position, and lowest when it is in the down
position.
Ringer Volume and Ringer Pitch
3.08 Ringer volume and pitch controls are located under the line
identification card and are adjustable by hand. Refer to Figure
3-2, SUPERSEJ 3 Telephone Face Layout.
Page 6

SUPERSET 3 Telephone Description
220 mm
(8.66 in.)
- I
WEIGHT: 1 kg.
(2.2 lb)
161 mm
(6.31 in.)
Figure 3-l SUPERSET 3 Electronic Telephone Set
Page 7

SECTION MITL9109-094-106-NA
SWITCHHOOK
\
SPEAKER
VOLUME
CONTROL
SPEAKER -
ASSEMBLY
PITCH
RINGER VOLUME
CONTROL CONTROL
LINE IDENTIFICATION
e
.-\-[I
I
1
\ -
I I I
hold
‘El
trans/conf
swap
no
program/save
on
speaker on/off
IO
mic/mute
00
redial
I 1
- SPEED DIAL
KEYS
/ 3 LlNE
INDICATORS
LINE
SELECT/SPEED
DIAL KEYS
I
MICROPHONE
KEVPAD
INPUT
KA0505EZR2

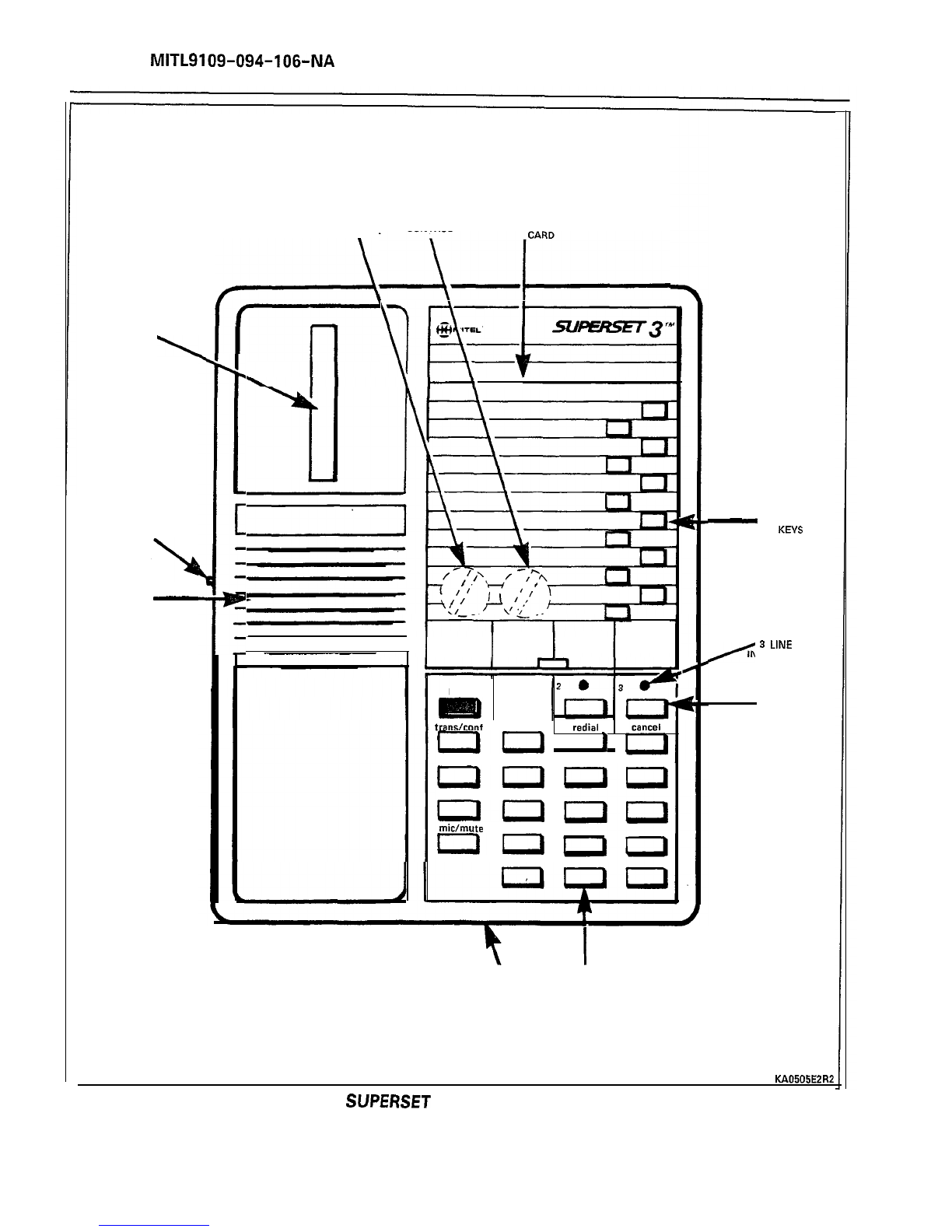

Figure 3-2 SUPERSET 3 Telephone Face Layout
Page 8

SUPERSET 3 Telephone Description
4. SHIPPING AND RECEIVING
General
4.01 The SUPERSET 3 telephone is shipped in a single carton.
4.02 The SUPERSET 3 telephone is disassembled into main assem-
bly, handset, handset cord, and line cord. Additionai items in-
clude identification cards (for telephone numbers and lines), clear
plastic lens for these cards, reference guide, installation guide, and
warranty tag.
Delivery Check
4.03 On delivery at the destination, check that all items are present
and undamaged. Retain one or two sets of packaging material
for reshipment of any damaged or defective items.
Page 9

SECTION MITL9109-094-106-NA
Page 10

SUPERSET 3 Telephone Description
5. INSTALLATION
WARNING
ANY CONNECTION OF THIS SET TO AN OFF PREMISE APPLICATION,
AN OUT OF PLANT APPLICATION, OR TO ANY OTHER EXPOSED
PLANT APPLICATION MAY RESULT IN A SAFETY HAZARD, AND/OR
DEFECTIVE OPERATION, AND/OR EQUIPMENT DAMAGE.
General
5.01 Installers should not use a hand test telephone (butt-in) to
check a SUPERSET 3 telephone line. The interface card for
SUPERSET 3 telephones has no loop detector; set on-hook/off-hook
status is signaled by data transmission.
5.02 Do NOT connect SUPERSET 3 telephones to standard lines, in
parallel, or as Power Fail Transfer extensions.
Installation
Note: Before a SUPERSET 3 telephone can be connected to a PABX,
the PABX must be programmed and equipped to interface
with a SUPERSET 3 telephone.
5.03
0
l
a
l
Install a SUPERSET 3 telephone as follows:
Connect the handset cord to the handset and the main assem-
bly.
Identify the user’s Prime Line number and other lines appearing
at the SUPERSET 3 telephone on the Line Identification Card.
Install the Line Identification Card and protective cover onto the
main assembly.
Connect the line cord to the telephone jack.
Page 11

SECTION MITL9109-094-106-NA
Page 12

SUPERSET 3 Telephone Description
6. TEST PROCEDURES
General
6.01
Perform these test procedures as operational tests when in-
stalling a SUPERSEJ 3 telephone after initial installation of a
system.
6.02 Whenever a SUPERSET 3 telephone is connected to an ‘operat-
ing system, or the system has just been powered up, the test is
run automatically and the following results appear. If any test fails,
verify that the system is installed correctly and is powered up.
SUPERSET 3 TELEPHONE, POWER-ON TEST
TEST
1 on on on
2 flashing off Off
3 off off off
or on Off Off
6.03
LED1 LED2
I
LED3 TIMING
1 second
IO-15 seconds
steady, if set is
on-hook
steady, if set is
off-hook
If all LEDs turn on steady for more than a few seconds there is an error.
Check wiring, then try a known good spare.
If the system is programmed to detect a missing SUPERSEJ 3
telephone, perform the following to verify this feature:
Disconnect the SUPERSEJ 3 modular plug.
Verify that the appropriate alarm has been raised.
Reconnect the modular cord to the SUPERSEJ 3 telephone.
Clear the alarm.
Page 13

MITEL STANDARD PRACTICE SECTION MITL9199-094-107-NA
Issue 1, April 1988
SX-200” DIGITAL
PRIVATE AUTOMATIC BRANCH EXCHANGE (PABX)
SUPERSET 4” TELEPHONE INFORMATION
@Copyright 1988, MITEL Corporation. All rights reserved,
T”Trademark of MITEL Corporation
@Registered Trademark of MITEL Corporation

SECTION MITL9109-094-107-NA
NOTICE
The information contained in this document is believed to be accurate in all respects but is
not warranted by Mite1 Corporation (MITEL). The information is subject to change without
notice and should not be construed in any way as a commitment by Mite1 or any of its
affiliates or subsidiaries. Mite1 and its affiliates and subsidiaries assume no responsibility
for any errors or omissions in this document. Revisions of this document or new editions of
it may be issued to incorporate such changes.
