Mitel 6863i User manual

Mitel Model 6863i SIP IP Phone
User Guide
Release 4.0.0
41-001565-00 REV00 – 10.2014

ii 41-001565-00 REV00 – 10.2014
Software License Agreement
Mitel, hereinafter known as "Seller", grants to Customer a personal, worldwide, non-transferable, non-sublicenseable and
non-exclusive, restricted use license to use Software in object form solely with the Equipment for which the Software
was intended. This Product may integrate programs, licensed to Mitel by third party Suppliers, for distribution under the
terms of this agreement. These programs are confidential and proprietary, and are protected as such by copyright law as
unpublished works and by international treaties to the fullest extent under the applicable law of the jurisdiction of the
Customer. In addition, these confidential and proprietary programs are works conforming to the requirements of Sec-
tion 401 of title 17 of the United States Code. Customer shall not disclose to any third party such confidential and propri-
etary programs and information and shall not export licensed Software to any country except in accordance with United
States Export laws and restrictions.
Customer agrees to not reverse engineer, decompile, disassemble or display Software furnished in object code form.
Customer shall not modify, copy, reproduce, distribute, transcribe, translate or reduce to electronic medium or machine
readable form or language, derive source code without the express written consent of the Seller and its Suppliers, or dis-
seminate or otherwise disclose the Software to third parties. All Software furnished hereunder (whether or not part of
firmware), including all copies thereof, are and shall remain the property of Seller and its Suppliers and are subject to the
terms and conditions of this agreement. All rights reserved.
Customer's use of this software shall be deemed to reflect Customer's agreement to abide by the terms and conditions
contained herein. Removal or modification of trademarks, copyright notices, logos, etc., or the use of Software on any
Equipment other than that for which it is intended, or any other material breach of this Agreement, shall automatically
terminate this license. If this Agreement is terminated for breach, Customer shall immediately discontinue use and
destroy or return to Seller all licensed software and other confidential or proprietary information of Seller. In no event
shall Seller or its suppliers or licensors be liable for any damages whatsoever (including without limitation, damages for
loss of business profits, business interruption, loss of business information, other pecuniary loss, or consequential dam-
ages) arising out of the use of or inability to use the software, even if Seller has been advised of the possibility of such
damages.

41-001565-00 REV00 – 10.2014 iii
Content
Software License Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Phone Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

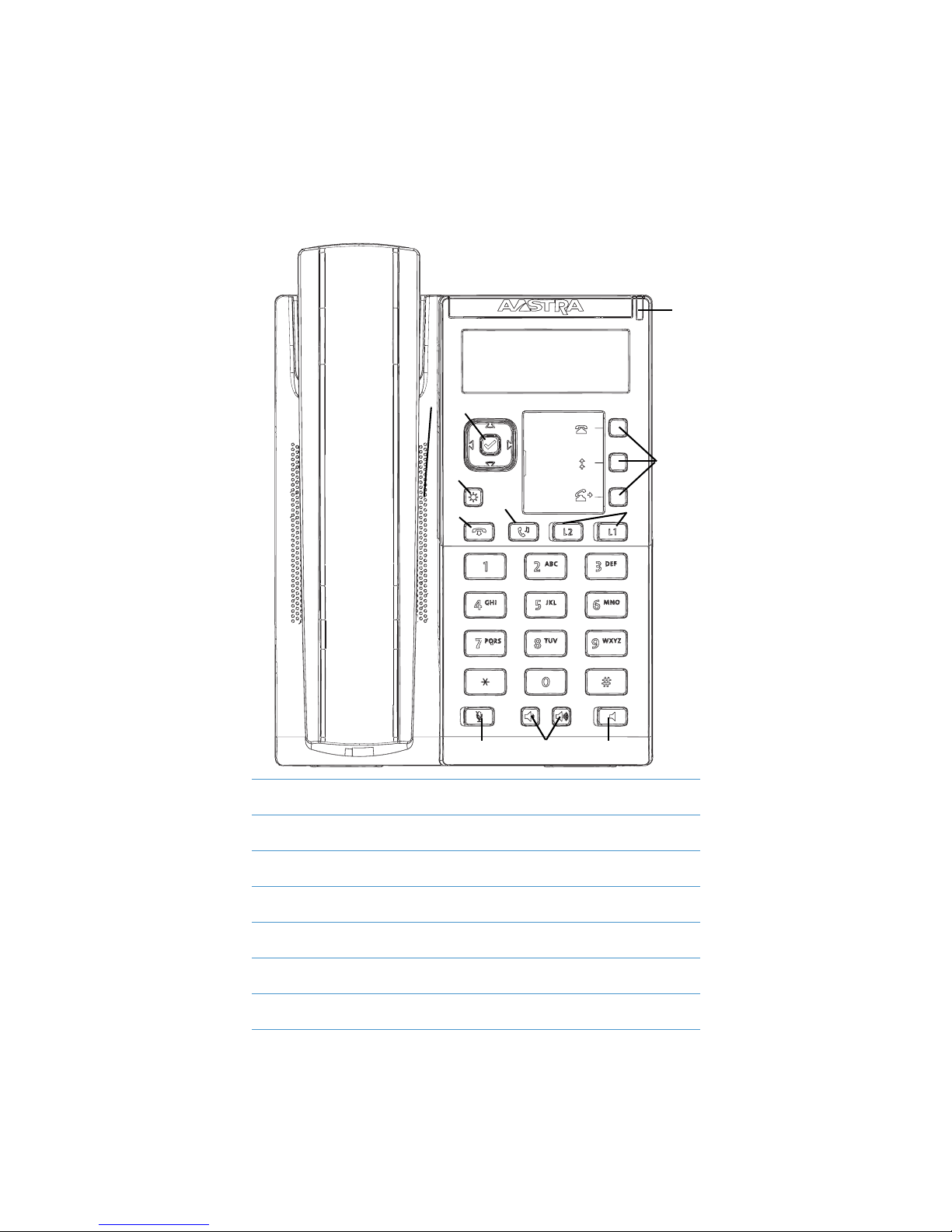

IP Phone Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Key Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Key Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Keypad Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Plugging in and Starting the Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Idle Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Incomplete Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
No Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Methods for Customizing Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Phone Options via the IP Phone UI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Phone Options via the Mitel Web UI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Phone Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Phone Status via IP Phone UI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

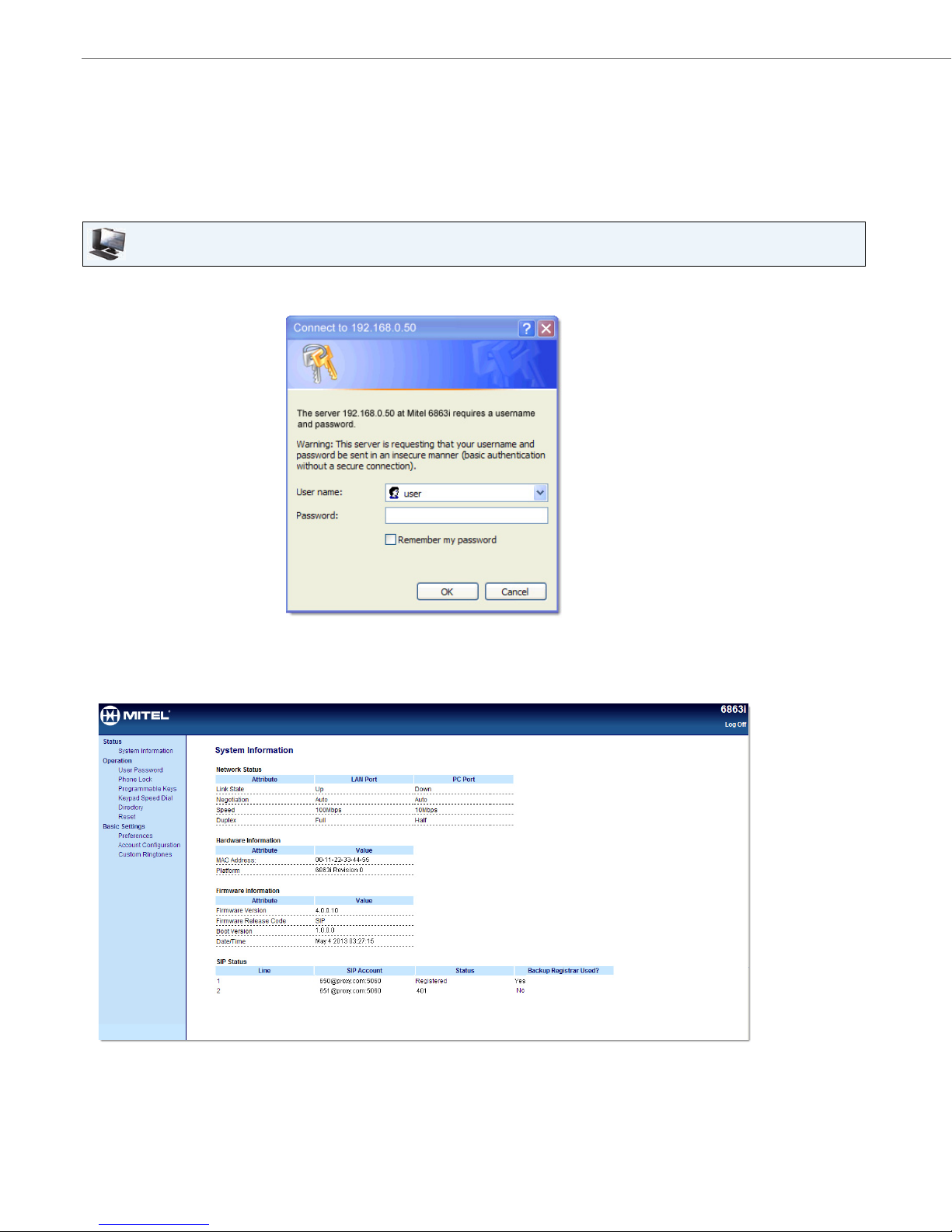

Phone Status via the Mitel Web UI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Customizing Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Ring Tones and Tone Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Live Dialpad*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Set Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Time and Date. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
User Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Resetting a User Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Content
iv 41-001565-00 REV00 – 10.2014
Restarting Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Credentials. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Phone Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Emergency Dial Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Line Keys and Programmable Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Multiple Line and Call Appearance Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Programmable Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Creating a Speed Dial Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Editing Speed Dial Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Do Not Disturb (DND) Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
XML Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Flash Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Sprecode Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Park/Pickup Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Last Call Return Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Call Forward Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Speeddial/Xfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Speeddial/Conf. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Directory Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Callers List Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Redial Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Conference Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Transfer Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Intercom Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Services Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Phone Lock Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Paging Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Save Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Delete Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
None Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Dialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Using Handsfree Speakerphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Content
41-001565-00 REV00 – 10.2014 v
Using a Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Receiving Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Answering an Incoming Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Sending an Incoming Call to Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Handling Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Placing a Call on Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Transferring Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Conferencing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Ending Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Managing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Callers List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
DND and Call Forward. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Additional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Display DTMF Digits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Play Call Waiting Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Stuttered Dial Tone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
XML Beep Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Status Scroll Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Switch UI Focus to Ringing Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Call Hold Reminder During Active Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Call Hold Reminder (on single hold) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Call Waiting Tone Period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Preferred Line and Preferred Line Timeout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Goodbye Key Cancels Incoming Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Message Waiting Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Incoming Intercom Call Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Group RTP Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Star Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Other Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Troubleshooting Solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Content
vi 41-001565-00 REV00 – 10.2014
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Warranty-1
Exclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Warranty-1
Warranty Repair Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Warranty-1
After Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Warranty-1
Limited Warranty (Australia Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Warranty-2
Repair Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Warranty-2
Exclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Warranty-2
Warranty Repair Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Warranty-3
After Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Warranty-3
Appendix A - Time Zone Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Index-1

41-001565-00 REV00 – 10.2014 1
Welcome
The Mitel 6863i delivers exceptional value in an enterprise grade SIP desktop phone. With a sleek and thin modern
design, the 6863i rivals other higher priced SIP products in its class on its features, flexibility and value. This 2-line
SIP phone with its 2.75" 128x48 pixel monochrome LCD display, programmable hard keys, and smaller desktop
footprint is an ideal option for professional workers in business environments that have light telephone use
requirements. Featuring a true HD handset and speakerphone, the 6863i offers remarkable wideband audio
quality. Dual 100 BaseT Ethernet ports with a hardware-based Ethernet switch, advanced XML capabilities for
configuration and custom applications, and a PoE class 1 rating are just some of the many features this very
affordable SIP phone has to offer.
About This Guide
This guide explains how to use your new 6863i phone. Not all features listed are available by default. Contact your System
Administrator to find out which features and services are available on your system. Your System Administrator also has the
ability to customize some features on this phone. For information on more advanced settings and configurations,
administrators should refer to the Mitel SIP IP Phones Administrator Guide.
Documentation
•Mitel 6863i SIP IP Phone Installation Guide – Contains installation and set-up instructions, general features and
functions, and a basic list of configuration options. The Installation Guide can be downloaded from
http://www.miteldocs.com.
•Mitel 6863i SIP IP Phone User Guide – Describes the most commonly used features and functions for an end user. The
User Guide can be downloaded from http://www.miteldocs.com.
•Mitel SIP IP Phones Administrator Guide – Describes how to set up the Mitel SIP IP phones on the network and con-
tains advanced configuration instructions. The Administrator Guide is intended for the System Administrator and can
be downloaded from http://www.miteldocs.com.
Phone Features
•LCD screen
•Built-in-two-port, 10/100 Fast Ethernet switch - lets you share a connection with your computer
•3 programmable keys
•Press-and-hold speeddial key configuration feature
•Supports up to 2 call lines with LEDs
•Wideband handset
•Wideband, full-duplex speakerphone for handsfree calls
•Headset mode support
•AC power adapter (sold separately)
•Set paging*
*Availability of feature dependant on your phone system or service provider.

Welcome
241-001565-00 REV00 – 10.2014
Requirements
•SIP-based IP PBX system or network installed and running with a SIP account created for the 6863i phone.
•Access to a Trivial File Transfer Protocol (TFTP), File Transfer Protocol (FTP), Hypertext Transfer Protocol (HTTP) server,
or Hyper Text Transfer Protocol over Secure Sockets Layer (SSL) (HTTPS).
•Ethernet/Fast Ethernet LAN (10/100 Mbps).
•Category 5/5e straight-through cabling.
•Power source:
–For Ethernet networks that supply inline power to the phone (IEEE 802.3af) use an Ethernet cable to connect from
the phone directly to the network for power (no 48V AC power adapter required if using Power-over-Ethernet
[PoE]).
–For Ethernet networks that DO NOT supply power to the phone:
Use only the GlobTek Inc. Limited Power Source [LPS] adapter model no. GT-41080-1848 (sold separately) to con-
nect from the DC power port on the phone to a power source
or
Use a PoE power injector or a PoE switch.
Installation and Setup
If your System Administrator has not already setup your 6863i phone, please refer to the Mitel 6863i Installation Guide
for basic installation and physical setup. For more advanced administration and configuration information, System
Administrators should refer to the Mitel SIP IP Phones Administrator Guide.

41-001565-00 REV00 – 10.2014 3
IP Phone Keys
Key Panel
The following sections describe the various 6863i phone key functions and how they help you make and manage your
calls and caller information. Images of the symbol keys and the symbol hardware platform are used throughout this
document.
6863i Handset Line/Call Appearance Keys
High Quality Speakerphone Keypad
Message Waiting Lamp Mute Key
Navigation Keys/Select Button Volume Control
Options Key Speaker/Headset Key
Goodbye Key LCD Screen
Hold Key Programmable Keys












IP Phone Keys
441-001565-00 REV00 – 10.2014
Key Description
The following table identifies the keys on the key panel of your 6863i IP phone that you can use for handling calls.
Key Description
Navigation/Select Keys - Pressing the UP and DOWN keys lets you view different status and text messages on the LCD display
(if there is more than 1 line of status/text messages). These buttons also let you scroll through menu selections, such as the
Options List.
Pressing the LEFT and RIGHT keys lets you view the different line/call appearances. While in the Options List, these keys allow
you to exit or enter the current option. When you are editing entries on the display, pressing the LEFT key erases the character
on the left; pressing the RIGHT key sets the option. Alternatively, pressing the center Select key sets the option as well on spe-
cific screens.
Options Key - Accesses services and options to customize your phone. Your System Administrator may have already custom-
ized some of your settings. Check with your System Administrator before changing the administrator-only options.
For more information, see “Phone Options via the IP Phone UI” on page 9.
Goodbye Key - Ends an active call. The Goodbye key also exits an open list, such as the Options List, without saving changes.
Hold Key - Places an active call on hold. To retrieve a held call, press the call appearance button besidethe light that is flashing.
For more information, see “Placing a Call on Hold” on page 79.
Line/Call Appearance Keys - Connects you to a line or call. The Mitel 6863i IP phone supports two line keys, each with LED
indicator lights.
For more information, see “Multiple Line and Call Appearance Keys” on page 43.
Mute Key - Mutes the microphone so that your caller cannot hear you (the light indicator flashes when the microphone is on
mute).
For more information, see “Mute” on page 77.
Volume Controls - Adjusts the volume for the handset, ringer, and handsfree speaker.
Speaker/Headset Key - Transfers the active call to the speaker or headset, allowing handsfree use of the phone.
For more information, see “Using Handsfree Speakerphone” on page 74 and
Programmable Keys - When programmed, allows you to easily perform up to 3 specific functions (e.g. Services, Directory,
Intercom, etc...) and access enhanced services provided by third parties (e.g. XML applications). The programmable keys are
pre-configured as (from top to bottom) Callers, Redial, and Transfer keys.
For more information, see “Programmable Keys” on page 44.

IP Phone Keys
41-001565-00 REV00 – 10.2014 5
Keypad Keys
The 6863i has a keypad with digits from 0 through 9, a * key, and a # key. Keys 2 through 9 contain the letters of the alpha-
bet. The 6863i phone keypad includes the following:
The * is called the star key. The # is called the number sign, pound key, or hash key, depending on one's nationality or per-
sonal preference. These can be used for special functions such as accessing voicemail. The star key and pound key func-
tions are dependant on your country’s feature availability. Contact your System Administrator for more information about
available functions using these keys.
These keypad keys can be used for any of the following on the phone:
•Dialing a phone number to make a call (see “Dialing a Number” on page 74).
•Entering digits or letters in the IP phone user interface.
•Programming a speed dial number (see “Creating a Speed Dial Key” on page 45).
•Pressing a speed dial key (see “Creating a Speed Dial Key” on page 45).
•Pressing the keys associated with a called Interactive Voice Response (IVR) system.
Keypad Key Description
0Dials0
Dials the Operator on a registered phone
1Dials 1
2 ABC Dials 2
When entering text, this key enters Awith one press, Bwith two presses, and Cwith three presses
3 DEF Dials 3
When entering text, this key enters Dwith one press, Ewith two presses, and Fwith three presses
4 GHI Dials 4
When entering text, this key enters Gwith one press, Hwith two presses, and Iwith three presses
5 JKL Dials 5
When entering text, this key enters Jwith one press, Kwith two presses, and Lwith three presses
6 MNO Dials 6
When entering text, this key enters Mwith one press, Nwith two presses, and Owith three presses
7 P QRS Dials 7
When entering text, this key enters Pwith one press, Qwith two presses, Rwith three presses, and Swith four presses.
8 TUV Dials 8
When entering text, this key enters Twith one press, Uwith two presses, and Vwith three presses
9 WXYZ Dials 9
When entering text, this key enters Wwith one press, Xwith two presses, Ywith three presses, and Zwith four presses.

641-001565-00 REV00 – 10.2014
Getting Started
The 6863i must be set up and configured prior to its first use. This section describes phone behavior and start up screens
you may see when the phone is first plugged in, or when it is restarted.
Plugging in and Starting the Phone
The 6863i automatically begins the start up sequence as soon as it is connected. The phone goes through this process
the first time you plug in your phone and every time you restart your phone.
The phone displays the following startup screens:
During the first start up, the 6863i phone attempts to contact the Redirection and Configuration Server for current
server information. No personal information is transmitted from the phone during this process.
The 6863i phone may also look for configuration servers on your local network (press 4Skip to continue without check-
ing for servers).
If appropriate servers are found they are listed for you to select from by scrolling down to view the complete list. (Press
3Skip to continue without selecting a server.).
Note:
Some start up screens only appear the first time you connect your phone, or if your phone has been factory defaulted.
Aastra 6863i
Aastra 6863i
LLDP
Aastra 6863i
DHCP
Initializing
network
Contacting
Redirector
Auto Discovery
Skip
1 Choose Server
<Server Name>
Skip Select

Getting Started
41-001565-00 REV00 – 10.2014 7
The 6863i phone then checks settings and looks for new configuration and firmware updates from a server. If a new
update is found, the phone displays the message Updating Configuration.This may take a few moments while the
phone downloads the latest updates.
If language packs were loaded to your phone by your System Administrator, the following screen displays during startup.
When the configuration update is complete, the phone displays the following screens:
Idle Screens
When the phone has successfully updated the configuration and connected to the network, the phone displays the Idle
State screen:
Note:
New updates to your phone can be automatically scheduled from the server. This is set up on the phone system by your
System Administrator and should be scheduled during non-business hours or slow call periods.
Important!
Do not unplug or remove power to the phone while it is checking or installing firmware and configuration information.
Updating
configuration
Checking for new
firmware
Downloading
Language Packs
Network
DSP
SIP
Done
John Smith
9055550055
Tue Aug 20 2:55pm
L1

Getting Started
841-001565-00 REV00 – 10.2014
The Idle State screen lists your name (SIP screen name), extension (or phone number), and the date and time. This
screen is shown whenever your phone is not in use. The L1 in the upper corner in the above example indicates the idle
screen for the first line appearance. You can use the left and right arrow keys to scroll through the idle screens for both
line appearances on the 6863i.
The second display line shows the following temporary messages if the event occurs:
•No Service
•DHCP Failed
•Restarting
•New IP Obtained
•Network Disconnected/Connected
•The second line can also display the following status messages, listed in order of display priority:
•Call Forward status
•DND (Do Not Disturb) On
•Number of missed calls
When more than one status message displays, the 2is shown after the message to indicate that you can use the 2and 5
navigation keys to scroll through the remaining messages.
Incomplete Configuration
If your phone displays an Incomplete Config message without any extension or user name at the end of the start up
sequence instead of an Idle state screen, this indicates the phone configuration that was downloaded from the configu-
ration server is not complete or correct. Contact your System Administrator for assistance.
No Service
When the phone is not properly connected to the network, or the account has not been configured by the Network
Administrator, the No Service or Network Disconnected prompt appears on the display and the telephone status light
turns ON. Check that the cables are tightly connected to the phone and to the wall jack. The phone should automatically
detect when the connection is reconnected and display the Network Connected prompt temporarily.
If changes have been made to your phone settings, you may need to restart your phone. For more information on
restarting your phone, see “Restarting Your Phone” on page 38.
For more information about connecting your phone, refer to the Mitel 6863i Installation Guide or check with your Sys-
tem Administrator for assistance.
Note:
Since Network Disconnected/Connected displays on two lines, the date and time does not show if this event displays.
John Smith
CFWD All
Tue Aug 20 2:55pm
L1
Network Connected
L1

41-001565-00 REV00 – 10.2014 9
Methods for Customizing Your Phone
There are two ways to customize specific options on your phone:
•Using the Options key on the IP phone.
•Using the Mitel Web UI in an Internet browser window from your PC.
Phone Options via the IP Phone UI
You can customize your phone by pressing the key and accessing the IP phone UI. These options allow you to cus-
tomize the following phone settings.
Option Number Option
1Services
1. Conference
2. Transfer
3. Redial
4. Directory
5. Callers List
6. Voicemail
7. Do No Disturb
2 Call Forward
1. All
2. Busy
3. No Answer
4. All Off
5. All On
The menus that display for Call Forward are dependant on the Call Forward Mode set on the phone. Default is Account mode.
3Preferences
1. Tones
–Ring Tone
–Tone Set
2. Display
–Contrast Level
3. Speed Dial Edit
4. Live Dialpad
5. Set Audio
–Audio Mode
–Headset Mic Vol
6. Time and Date
–Time Format
–Daylight Savings
–Date Format
–Time Zone
–Time Server 1
–Time Server 2
–Time Server 3
–Set Time
–Set Date
7. Language
–Screen Language
–Input Language
4 Phone Status
1. IP&MAC Addresses
2. LAN Port
3. PC Port
4. Firmware Info
5. Error Messages
6. Copyright

Methods for Customizing Your Phone
10 41-001565-00 REV00 – 10.2014
Simplified Options List
Your System Administrator may configure a simplified Options List for your phone. The following table indicates the
options that may appear on your phone if the simplified Options List is applied:
5 Password
6 Admin Menu (Password Protected)*
7RestartPhone
8Credentials(available only if certain features are configured by your Administrator)
9Directory
1. Display Name Order
2. Sorting Preferences
3. External Sources (available only if external directory sources are configured by your Administrator)
8 Phone Lock
Note:
*The Administrator Menu options are Administrator-level functions only, and are not accessible by the user. These
options should only be set up and changed by your System Administrator.
Option Number Option
1Services
1. Conference
2. Transfer
3. Redial
4. Directory
5. Callers List
6. Voicemail
7. Do No Disturb
2 Call Forward
1. All
2. Busy
3. No Ans
4. All Off
5. All On
The menus that display for Call Forward are dependent on the Call Forward Mode set on the phone. Default is Account mode.
3Preferences
1. Tones
–Ring Tone
–Tone Set
2. Display
–Contrast Level
3. Set Audio
–Audio Mode
–Headset Mic Vol
4 Phone Status
1. IP&MAC Addresses
2. LAN Port
3. PC Port
4. Firmware Info
5. Error Messages
6. Restart Phone
7. Copyright
5 Phone Lock
Option Number Option

Methods for Customizing Your Phone
41-001565-00 REV00 – 10.2014 11
Using the IP Phone UI
IP Phone UI
1. Press the key on the phone to enter the Options List.
2. Press the 5and 2keys to view the different options.
3. Press the key, the 4Enter key, or press the number of the corresponding option to select an option.
4. Change the selected option if required.
5. Press the key or the 4Set, or 4Done key to save the change.
6. Press the key, the 3navigation key, or the key at any time to exit without saving changes.
Note:
For more information about customizing your phone using the available options from the IP phone UI, see the section
“Customizing Your Phone” on page 19. For more information about Administrator options, contact your System
Administrator.

Methods for Customizing Your Phone
12 41-001565-00 REV00 – 10.2014
Phone Options via the Mitel Web UI
In addition to the IP phone UI options, you can customize additional options on the IP phone using the Mitel Web UI. In
order to access your phone using the Mitel Web UI, you need to know your phone’s IP address. To find your phone’s IP
address, see “Finding Your Phone’s IP Address” on page 16.
Using the Mitel Web UI
Mitel Web UI
1. Open your web browser, enter the phone’s IP address or host name into the address field and press Enter.
The following logon screen displays:
2. At the prompt, enter your username and password and click OK.
The Status window displays for the IP phone you are accessing.
Note:
For a user, the default username is user and the password field is left blank.
3. You can logout of the Mitel Web UI at any time by clicking Log Off.

Methods for Customizing Your Phone
41-001565-00 REV00 – 10.2014 13
The following categories display in the side menu of the Mitel Web UI: Status, Operation, and Basic Settings.
Headings Descriptions
Status The Status section displays the network status and the MAC address of the IP phone. It also displays hardware and firmware informa-
tion regarding the IP phone, and information about the SIP account(s) currently configured on the phone. The information in the Sta-
tus window is read-only.
Operation User Password - Allows you to change the user password.
Phone Lock - Allows you to assign an emergency dial plan to the phone, lock the phone to prevent any changes to the phone and to
prevent use of the phone, as well as reset the user password.
Programmable Keys - Allows you to configure up to 3 programmable keys with functions identified in the list below.
Keypad Speed Dial - Allows you to assign a speed dial number to a specific digit on the phone’s keypad/dialpad for speed dialing pur-
poses.
Directory - Allows you to copy the Callers List and Local Directory from your IP phone to your PC.
Reset - Allows you to restart the IP phone when required.
•None •Directory
•Speeddial •Callers List
•Do Not Disturb (DND) •Redial
•Extensible Markup Language (XML) •Conference
•Flash •Transfer
•Sprecode •Intercom (Icom)
•Park •Services
•Pickup •Phone Lock
•Last Call Return •Paging
•Call Forward •Save
•Speeddial/Xfer •Delete
•Speeddial/Conf

Methods for Customizing Your Phone
14 41-001565-00 REV00 – 10.2014
Headings Descriptions
Basic Settings Preferences - Allows you to enable/disable the following:
•Display DTMF Digits
•Play Call Waiting Tone
•Stuttered Dial Tone
•XML Beep Support
•Status Scroll Delay (seconds)
•Switch UI Focus to Ringing Line
•Call Hold Reminder During Active Calls
•Call Hold Reminder
•Call Waiting Tone Period
•Preferred line
•Preferred line Timeout (seconds)
•Goodbye Key Cancels Incoming Call
•Message Waiting Indicator Line
•DND Key Mode
•Call Forward Key Mode
This category also allows you to configure:
•Incoming Intercom Call Settings
•Group Paging RTP Settings
•Ring Tones (global and per-line basis)
•Time and Date Settings
•Language Settings
Account Configuration - Allows you to configure DND and Call Forward by account. You can have multiple accounts on the 6863i.
Custom Ringtones - Allows you to upload up to 8 custom WAV file ringtones on the phone that can be used as your incoming
ring tone. For more information on custom ring tones, see “Installing Custom Ring Tones Using the Mitel Web UI” on page 22.
