VAC-6058 (AAK44X501)
MULTI-UNIT CHARGER USER GUIDE
MN004237A01.book Page 0 Friday, August 14, 2020 10:35 PM

MN004237A01.book Page 1 Friday, August 14, 2020 10:35 PM

1
English
Important Safety Instructions
This document contains important safety and operating instructions. Please
read these instructions carefully and save them for future reference.
Before using the battery charger, read all the instructions and cautionary markings
on (1) the charger, (2) the battery, and (3) the radio using the battery.
Operational Safety Guidelines
• This equipment is not suitable for outdoor use. Use only in dry locations and
conditions.
• Maximum ambient temperature around the charger must not exceed 40 °C (104 °F).
• The radio can be in ON only when the radio is transmitting data wirelessly, such
as using Wi-Fi. Otherwise, turn OFF the radio.
• The AC outlet to which the power supply is connected should be close and easily
accessible.
• Make sure the power supply cord to the charger is located where it will not be
stepped on, tripped over, or subjected to water, damage, or stress.
1. To reduce risk of damage to the power supply electric plugs and
cords, pull the plug rather than the cord when disconnecting from
the AC outlet or the charger.
2. An extension cord should not be used unless absolutely
necessary. Use of an improper extension cord could result in risk
of fire and electric shock. If an extension cord must be used, make
sure that the cord size is 18 AWG for lengths of up to 6.5 feet (2.0 m), and 16
AWG for lengths up to 9.8 feet (3.0 m).
3. To reduce risk of fire, electric shock, or injury, do not operate the charger if it
has been broken or damaged in any way. Take it to a qualified Motorola
Solutions service representative.
4. Do not disassemble the charger. It is not repairable and replacement parts are
not available. Disassembly of the charger may result in risk of electric shock or
fire.
5. To reduce risk of electric shock, unplug the charger power supply from the AC
outlet before attempting any maintenance or cleaning.
6. To reduce risk of injury, charge only the rechargeable Motorola Solutions
Authorized Batteries listed in Table 2. Other batteries may explode, causing
personal injury and damage.
7. Use of accessories not recommended by Motorola Solutions may result in risk
of fire, electric shock, or injury.
8. This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
WARNING
English
MN004237A01.book Page 1 Friday, August 14, 2020 10:35 PM

2
English
• Connect the power cord only to an appropriately fused and wired AC outlet with
the correct voltage, as specified on the product.
• Disconnect from line voltage by removing the power cord from the AC outlet.
• Remove the battery pack from the Multi-Unit Charger when charging is
completed.
• This Multi-Unit Charger is designed for charging only and is not designed for
operation (transmit or receive) of the radio. Always turn the radio off when
charging the battery.
• Periodically wipe the charging terminals in the each slot of the Multi-Unit Charger
using a dry cloth to ensure good connections between the charger and battery
pack.
• Ask your Motorola Solutions dealer regarding the usable AC Power Cord in your
area.
• When charging a battery pack alone (not attached to the radio), do not allow any
metal object to short the terminals of the battery pack.
• Do not allow any metal objects to short the terminals in the slot of the Multi-Unit
Charger, as a short-circuit could cause overheating of the charger circuitry and
create an electrical hazard.
Notice to Users (FCC and Industry Canada)
This device complies with Part 15 of the FCC rules and Industry Canada's license-
exempt RSS per the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that
may cause undesired operation.
• Changes or modifications made to this device, not expressly approved by
Motorola Solutions, could void the authority of the user to operate this equipment.
Specifications
Table 1: Specifications
Description Value
Input AC 100-240 V~, 50-60 Hz
Output DC 8.4 V, 1.1 A (Li-ion)
Charging Current 1 A (each slot)
Charge Time 1.5 ~ 3.0 hours (Depends on the battery)
Operating Temperature Range +41 °F to +104 °F (+5 °C to +40 °C)
Case Size (W x H x D) 17.5” x 3.9” x 6.7” (445 x 99.5 x 170 mm)
Weight (approximation):
Charger: 4.2 lbs (1.9 kg)
Mounting Bracket: 1.6 lbs (720 g)
Spacer Plate: 0.3 oz (9 g)
MN004237A01.book Page 2 Friday, August 14, 2020 10:35 PM

3
English
Motorola Solutions Authorized Batteries
What Is In Your Package
• Multi-Unit Charger (1 unit)
• Mounting Bracket (1 unit): RA1536100
• Spacer Plate (6 pieces): RA1465000
• Mounting Hardware Knob Screw (2 pieces): RA1536200
• Pan Head Tapping Screw (6 pieces): U40520107
• Plain Washer (6 pieces): U70005007
• Toothed Lock Washer (6 pieces): U72005007
Mounting Multi-Unit Charger to Wall Bracket
The Multi-Unit Charger comes with wall mount features. Follow the guidelines to
mount the charger:
Table 2: Motorola Solutions Authorized Batteries
Part Number Battery Pack
AAJ67X501 FNB-V133LI-UNI 1380 mAh Li-Ion Battery
AAJ68X501 FNB-V134LI-UNI 2300 mAh Li-Ion Battery
AAK66X501 FNB-V134LIIS 2300 mAh Li-Ion Battery, Intrinsically Safe
AAL01X501 FNB-V136-UNI 1200 mAh Ni-MH Battery
• This wall mount bracket should be installed by a trained and
experienced technician. Having the product installed by a non
specialized technician is very dangerous, and can cause damage or
injury.
• Do not install the product where the weight cannot be supported. If
the strength of the location where the wall mount is installed is not
strong enough, it can fall off and cause an injury.
• Do not install on a structure that is prone to vibration, movement, or
chance of impact.
WARNING
MN004237A01.book Page 3 Friday, August 14, 2020 10:35 PM

4
English

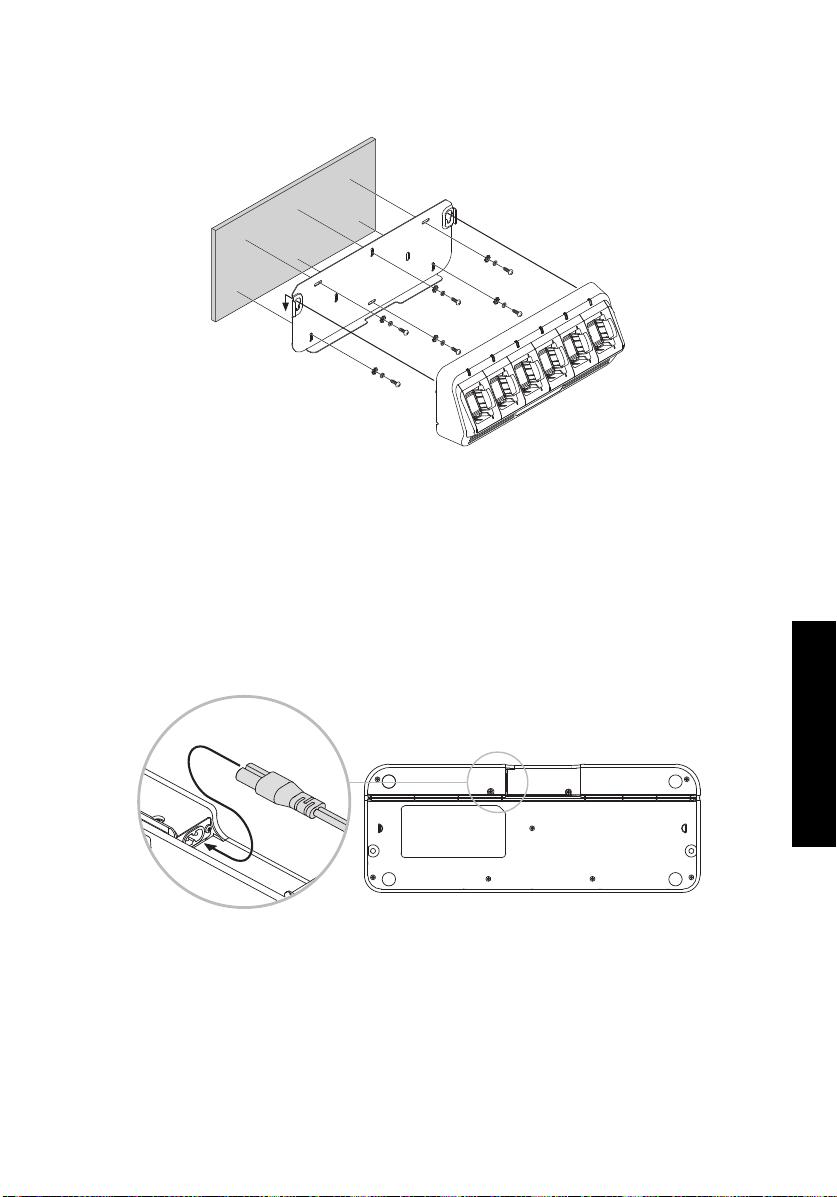

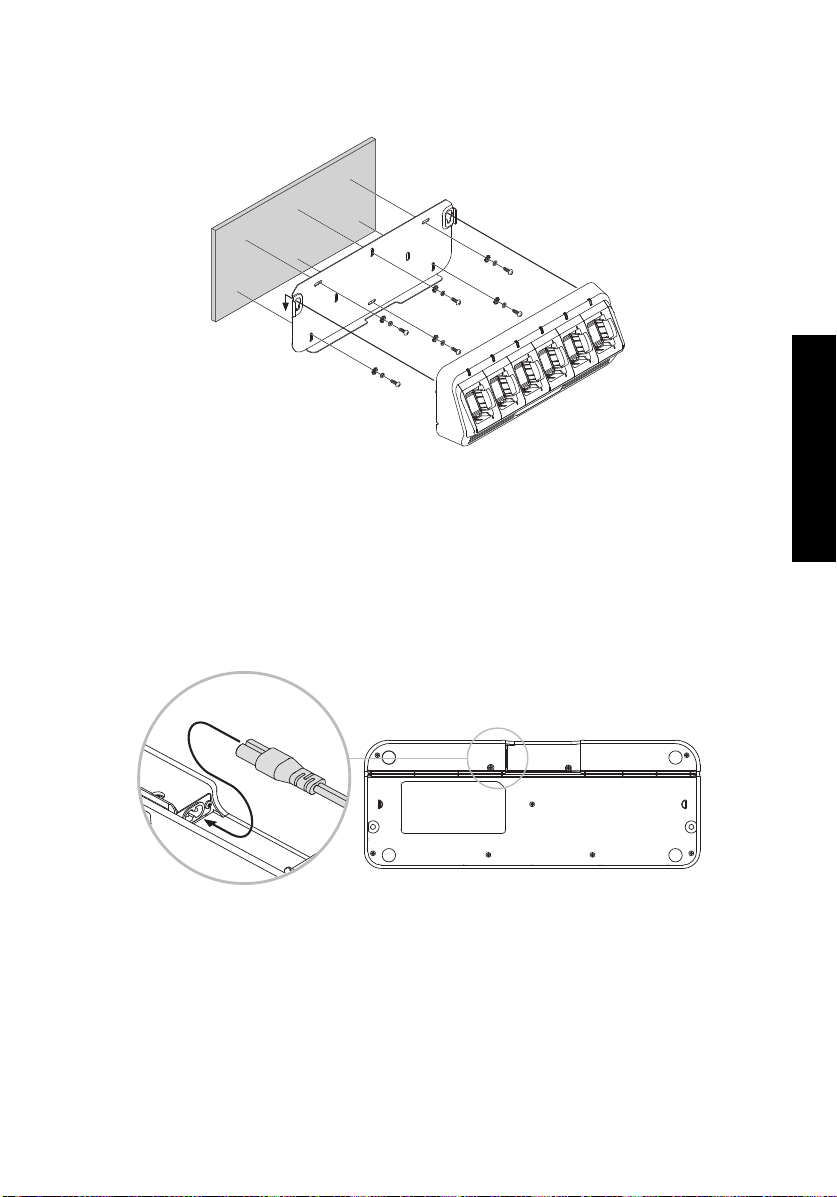

1. Fasten the supplied Knob Screws to the back of the Multi-Unit Charger.
2. Position the wall mount bracket in the desired position, and mark the location of
the mounting holes on the wall surface.
3. Mount bracket to wall using the appropriate mounting hardware required for the
type of wall material fixture it is being mounted to. Drill based on the marked
mounting holes on the wall surfaces.
4. Secure the wall bracket in position by installing mounting hardware over the
mounting holes on the wall bracket tightly.
Note: It is recommended to use the supplied Tapping Screws, Washers, and
Toothed Lock Washers on wood stud and solid-flat concrete or brick wall.
5. Align the Knob Screws with the large mounting holes of the wall mount bracket,
and hang the Multi-Unit Charger securely.
Ensure the area behind the mounting surface is always free of electrical
wires, cables, and pipes before cutting, drilling, or installing the
mounting screws.
C a u t i o n
Ensure the installation direction
of the mounting bracket is in
the correct position.
MN004237A01.book Page 4 Friday, August 14, 2020 10:35 PM

5
English

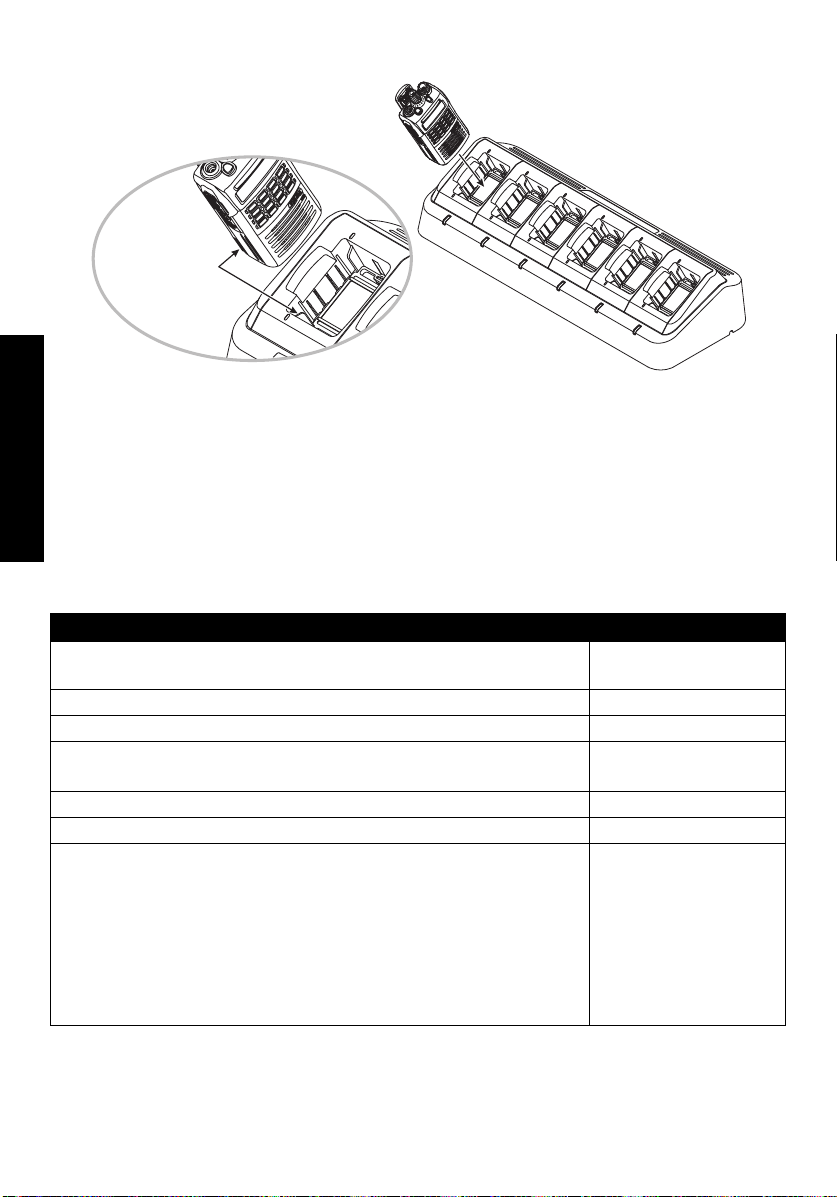

Charging Procedures
1. Place the Multi-Unit charger on a flat surface.
2. Firmly insert the power supply into the charger DC Inlet Socket at the back of the
charger.
3. Plug the power supply power cord into a matching power outlet.
4. Insert the radio with battery or stand-alone battery into an available pocket.
Note: Turn off the radio when charging battery with radio attached.
5. When the radio or stand-alone battery is properly seated in the pocket, the LED
of the Multi-Unit Charger will be Steady Red.
6. The radio or stand-alone battery is ready for use when the Charging status is
Steady Green.
Note: Grip the radio body when inserting, or removing the radio form the charger.
Avoid pulling the radio antenna when removing the radio.
Align the slot
with the guide
MN004237A01.book Page 5 Friday, August 14, 2020 10:35 PM

6
English
LED Indications
Table 3: LED Indications
Status LED Indicator
Charger Powers ON Flash Green once
Battery is inserted correctly. No indication
Rapid Charging Steady Red
Fault
(Connected to invalid, damaged, or over-charged batteries) Flashing Red
Charging Complete Steady Green
Charging nearing Completion Flashing Green
Standby, battery is waiting to rapid charge
• Battery voltage is too low, or battery is too hot or too cold. Battery
will automatically begin charging once condition is corrected.
• New battery or Ultra-High Capacity battery. The LED may go into
flashing Red after several minutes. Remove and reinsert battery
to get another recovery period. This procedure may requires
several repeats.
Flashing Amber
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered
trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are
the property of their respective owners.
© 2017 and 2020 Motorola Solutions, Inc. All rights reserved.
MN004237A01.book Page 6 Friday, August 14, 2020 10:35 PM

1
Español
(Latinoamérica)
Instrucciones de seguridad importantes
Este documento contiene instrucciones de seguridad y funcionamiento
importantes. Lea estas instrucciones atentamente y consérvelas para
referencia futura.
Antes de usar el cargador de la batería, lea todas las instrucciones y las marcas de
advertencia en (1) el cargador, (2) la batería y (3) el radio que utiliza la batería.
Pautas de seguridad operativa
• Este equipo no debe usarse en áreas exteriores. Utilícelo solo en lugares o
condiciones secos.
• La temperatura ambiente máxima alrededor del cargador no debe exceder los
40 °C (104 °F).
• El radio solo puede estar encendido cuando esté transmitiendo datos de forma
inalámbrica, como por ejemplo, mediante la conexión Wi-Fi. De lo contrario,
APAGUE el radio.
• La toma de corriente de CA en la que esté conectada la fuente de alimentación
debe estar cerca y tener fácil acceso.
1. Para reducir el riesgo de daños en los cables y enchufes de la
fuente de alimentación, tire del enchufe en lugar del cable cuando
lo desconecte de la toma de corriente de CA o del cargador.
2. No se debe utilizar una extensión, a menos que sea
completamente necesario. El uso de una extensión no
apropiada podría ocasionar riesgo de incendio y descarga eléctrica. Si se
debe usar una extensión, asegúrese de que el tamaño del cable sea de
18 AWG para longitudes de hasta 2,0 m (6,5 pies) y de 16 AWG para
longitudes de hasta 3,0 m (9,8 pies).
3. Para reducir el riesgo de incendio, descarga eléctrica o lesiones, no opere el
cargador si está roto o dañado. Llévelo a un representante de mantenimiento
calificado de Motorola Solutions.
4. No desarme el cargador. No se puede reparar y no hay piezas de repuesto
disponibles. Desarmar el cargador puede provocar un riesgo de descarga
eléctrica o incendio.
5. Para reducir el riesgo de descarga eléctrica, desconecte la fuente de
alimentación del cargador de la toma de corriente de CA antes de realizar
cualquier mantenimiento o limpieza.
6. Para reducir el riesgo de lesiones, cargue solo las baterías recargables
autorizadas por Motorola Solutions que se indican en la Tabla 2. Otras
baterías pueden explotar, lo que puede causar lesiones personales y daños.
7. El uso de accesorios no recomendados por Motorola Solutions puede
ocasionar un riesgo de incendio, descarga eléctrica o lesiones.
8. Este es un producto clase A. En un entorno doméstico, este producto podría
causar interferencias de radio y es probable que el usuario deba tomar ciertas
medidas al respecto.
ADVERTENCIA
Español
(Latinoamérica)
MN004237A01.book Page 1 Friday, August 14, 2020 10:35 PM

2
Español
(Latinoamérica)
• Asegúrese de que el cable de la fuente de alimentación conectado al cargador
esté ubicado en lugares donde las personas no puedan pisarlo ni tropezarse con
él; o en lugares donde no esté expuesto a agua, daños o tensión.
• Conecte el cable de alimentación solo a una toma de corriente de CA con fusibles
y con cable con el voltaje correcto, tal y como se especifica en el producto.
• Para desconectar el voltaje de línea, retire el cable de alimentación de la toma de
corriente de CA.
• Extraiga la batería del cargador para varias unidades cuando la carga se haya
completado.
• Este cargador para varias unidades está diseñado solo para cargar y no está
diseñado para el funcionamiento (transmitir o recibir) del radio. Siempre apague
el radio mientras se carga la batería.
• Limpie periódicamente los terminales de carga de cada una de las ranuras del
cargador para varias unidades con un paño seco para garantizar una buena
conexión entre el cargador y la batería.
• Consulte a su distribuidor de Motorola Solutions de su zona sobre el cable de
alimentación de CA.
• Cuando cargue una batería de manera independiente (no conectada al radio), no
permita que ningún objeto metálico provoque un cortocircuito en los terminales
de esta.
• No permita que ningún objeto metálico haga corto con los terminales situados en
la ranura del cargador para varias unidades, puesto que un cortocircuito podría
causar el sobrecalentamiento de los circuitos del cargador y provocar un peligro
de descarga eléctrica.
Nota para los usuarios (FCC e Industry Canada)
Este dispositivo cumple con la parte 15 de las Directivas de la FCC y con los
estándares RSS exentos de licencia de Industry Canada conforme a las siguientes
condiciones:
• Este dispositivo no puede provocar interferencia nociva.
• Este dispositivo debe aceptar toda interferencia recibida, incluida aquella
interferencia que pudiera causar un funcionamiento no deseado.
• Los cambios o las modificaciones que se realicen en este dispositivo, no
aprobados expresamente por Motorola Solutions, podrían anular el permiso del
usuario de operar este equipo.
MN004237A01.book Page 2 Friday, August 14, 2020 10:35 PM
