Chapter 1
Motorola Solutions Authorized
Accessories
This section list out authorized accessories to be used with your charger.
1.1
Motorola Solutions Authorized Batteries
Table 1: Motorola Solutions Authorized Battery
Kit Number Description
HKNN4013ASP01 Li-Ion Battery 1800 mAh
1.2
Single-Unit Chargers
Table 2: Motorola Solutions Authorized Single-Unit Charger And Power Supplies
Kit Number Description Power Supplies
PMLN7139_ Single-Unit Charger (SUC)
Tray
None
PMLN7140_ Single-Unit Charger (SUC) Kit
for North America
PS000228A011
PMLN7141_ Single-Unit Charger (SUC) Kit
for EMEA
PS000228A02
PS000228A03
PMLN8034_ Single-Unit Charger (SUC)
Kits for Australia/New Zealand
PS000132A04
Table 3: Motorola Solutions Authorized Optional Power Sources/Power Supplies For Single-Unit
Charger
Kit Number Description
PS000132A05 Power Supply for SUC (Argentina)
PS000132A08 Power Supply for SUC (Brazil)
PS000132A011Power Supply for SUC (Other countries in LACR)
250092980011Switch Mode, Low Noise, W, USB-US/North America
PS000228A011Power Supply for SUC (US/North America) (L6)
PS000132A041Power Supply for SUC (Australia/New Zealand) (L5)
PS000228A02 Power Supply for SUC (Europe)
1Charger only UL approved when shipped with the power supplies
MN007800A01-AA
Motorola Solutions Authorized Accessories
7

Kit Number Description
PS000228A03 Power Supply for SUC (UK/HK)
1.3
Multi-Unit Chargers
Table 4: Motorola Solutions Authorized Multi-Unit Charger And Power Cords
Kit Number Description
PMLN7135_ 12-Pocket Multi-Unit Charger (MUC) Tray
3004209T08 Power Cord for MUC (Argentina)
3004209T16 Power Cord for MUC (Brazil)
3004209T04 Power Cord for MUC (Other countries in LACR
and US/North America)
3004209T07 Power Cord for MUC (Australia/New Zealand)
PMLN7136_ 12-Pocket Multi-Unit Charger (MUC) Kit for
North America
PMLN8035_ 12 Pocket Multi-Unit Charger (MUC) Kits for
Australia/ New Zealand
PMLN8250_ 12-Pocket Multi-Unit Charger (MUC) Kit for Eu-
rope
3004209T01 Power Cord for MUC (Europe)
3004209T02 Power Cord for MUC (UK)
1.4
Authorized Accessories
Table 5: Motorola Solutions Authorized Single-Unit Charger And Power Supplies
Kit Number Description
HKKN4027_ CPS Programming Cable
HKKN4028_ Radio-to-Radio Cloning Cable
MN007800A01-AA
Chapter 1: Motorola Solutions Authorized Accessories
8

Chapter 2
Single-Unit Chargers

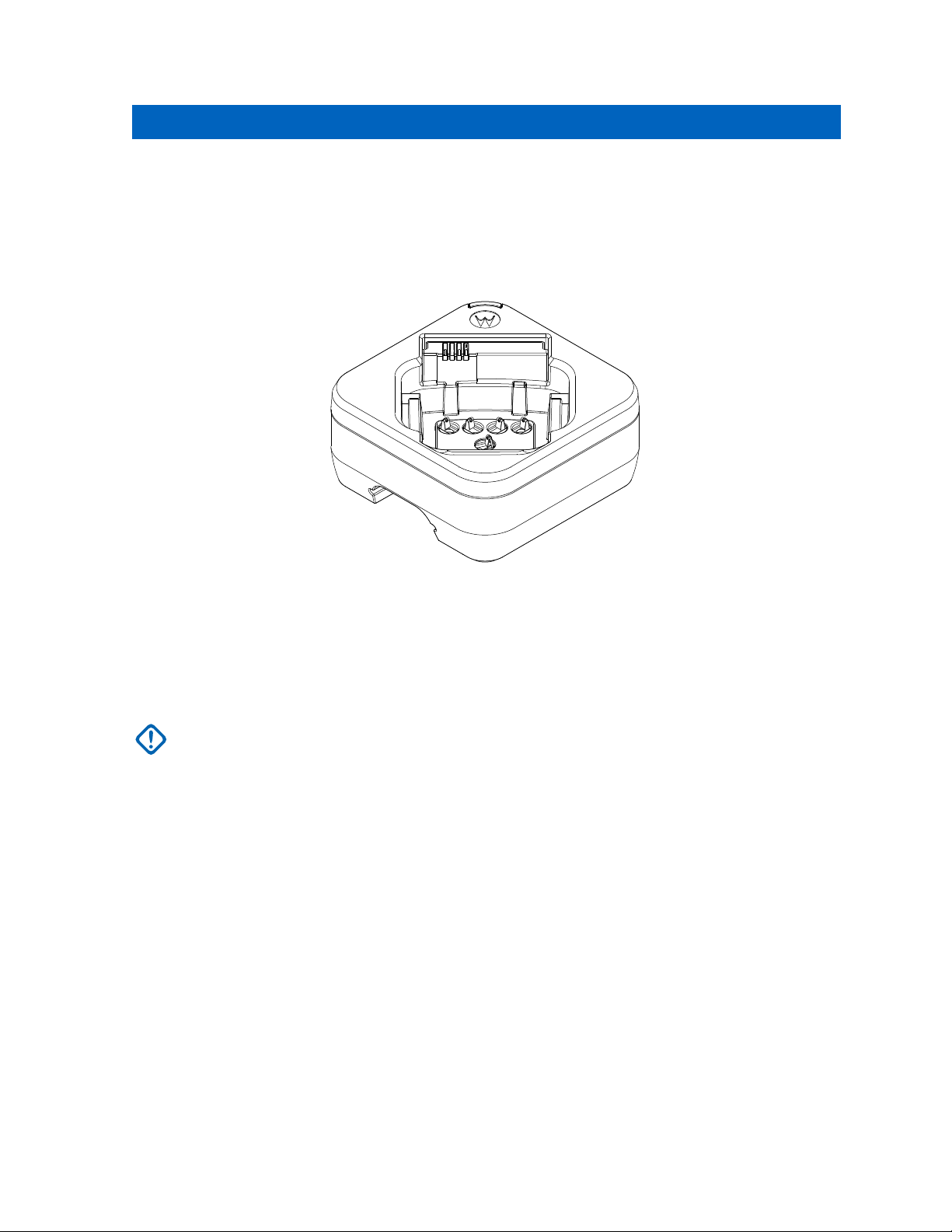

Figure 1: Single-Unit Charger Kit PMLN7140_, PMLN7141_, and PMLN8034_
2.1
Charging a Battery With Radio
When and where to use:
IMPORTANT: Prior to charging a battery with radio, turn the radio off. Batteries charge best at
room temperature.
The Single-Unit Charger (SUC) Kit is able to charge DLR Series radios and CLR Series radios with
batteries or radios with batteries and holsters.
The Single-Unit Charger (SUC) Kit is able to charge stand-alone batteries as listed in Motorola
Solutions Authorized Batteries on page 7.
To charge the battery with the radio attached, place it in a Motorola Solutions approved SUC Tray.
Refer to Table 2: Motorola Solutions Authorized Single-Unit Charger And Power Supplies on page 7
Procedure:
1Place the SUC Tray on a flat surface.
2Insert the connector of the power supply into the port on the side of the drop-in tray charger.
3Plug the AC adapter into a power outlet.
4Turn the radio off.
5Insert the radio into the tray with the front of the radio facing the front of the charger.
MN007800A01-AA
Single-Unit Chargers
9

1
2

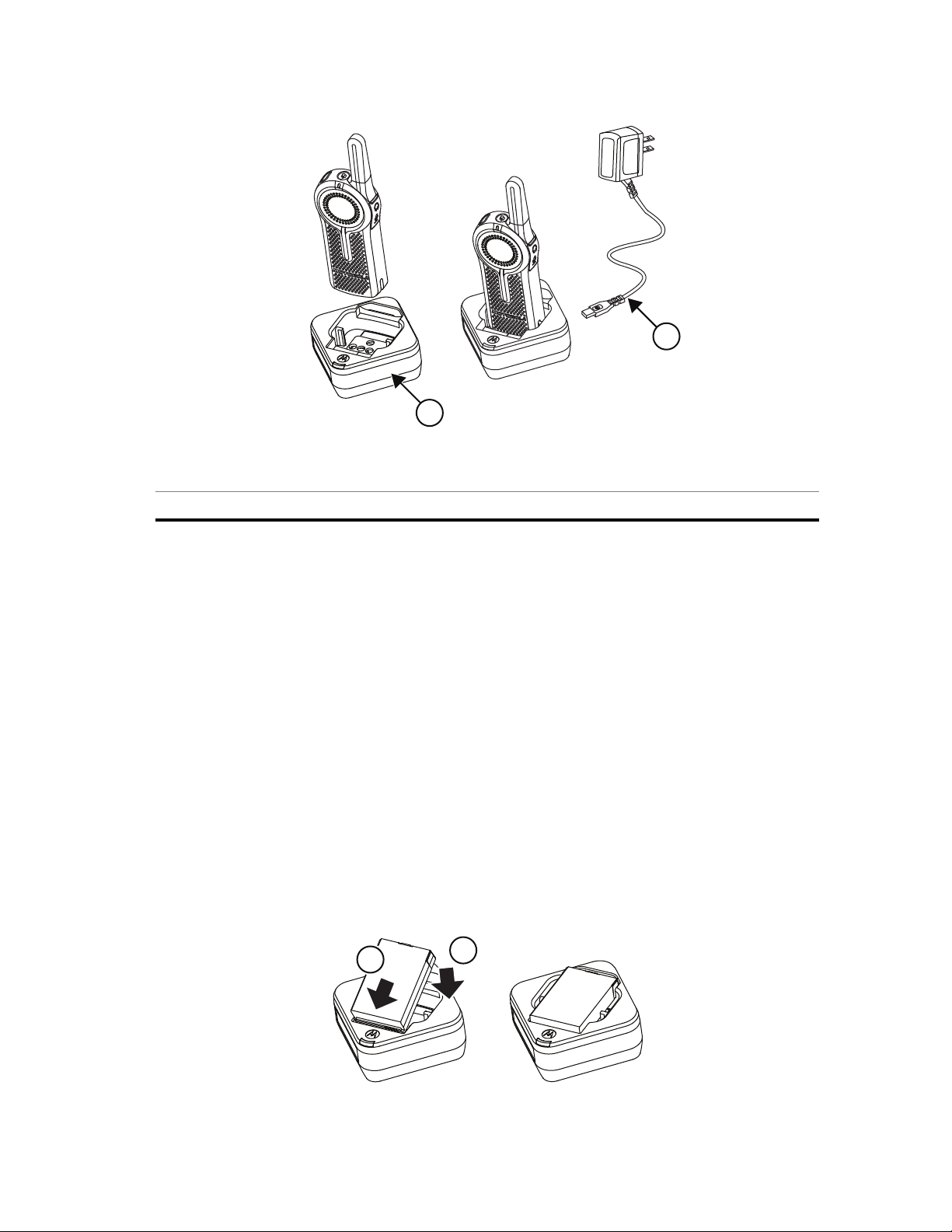

1 SUC Tray
2 Power Supply
2.2
Charging a Stand-Alone Battery
When and where to use:To charge a battery, the followings are steps to insert the battery into the
charger pocket.
Procedure:
1Align the raised tab on each side of the battery with the corresponding groove on each side of
the charger pocket.
2Press the battery toward the rear of the pocket.
3Slide the battery into the charger pocket, ensuring complete contact between the charger and
battery contacts.
When the battery is properly seated in the pocket, the charger indicates the battery level status
as shown in Table 6: Charger LED Indicator on page 15. The red LED illuminates to indicate
that the battery is charging rapidly.
The LED changes to a steady green light to indicate that the battery is nearly or fully charged.
12
MN007800A01-AA
Chapter 2: Single-Unit Chargers
10

Chapter 3
12 Pocket Multi-Unit Chargers
Figure 2: Multi-Unit Charger Kit PMLN7136_, PMLN8035_, and PMLN8250_
3.1
Charging Procedures
The charger pockets 1–6 accommodates a radio with battery attached only. The charger pockets 7–12
accommodates either a radio with battery attached or standalone battery.
When and where to use:
IMPORTANT: Prior to charging a battery with radio, turn the radio off. Batteries charge best at
room temperature.
• The 12-Pocket Multi-Unit Charger (MUC) Kit is able to charge DLR Series radios and CLR Series
radios with batteries, or radios with batteries and holsters.
• This 12-Pocket MUC Kit is able to charge standalone batteries as listed in Motorola Solutions
Authorized Batteries on page 7.
• The total charging time ranges from 3–7 hours depending on the number of radios with batteries or
stand-alone batteries being charged simultaneously.
Procedure:
1Plug the charger end of the power supply cord into the power receptacle located at the bottom of
the charger.
2Plug the wall receptacle end of the power supply cord into appropriate AC outlet.
A successful power-up sequence in indicated by a Single Flash Green on the charger indicator.
MN007800A01-AA
12 Pocket Multi-Unit Chargers
11

3To charge a radio with battery, slide the radio into the charger pocket and align it to the groove
on each side of the radio with the corresponding raised rail on each side of the charger pocket.
NOTICE: Ensure complete contact between the charger and radio contacts.
4To charge a stand-alone battery, the followings are steps to insert the battery into the charger
pocket.
1Align the raised tab on each side of the battery with the corresponding groove on each side
of the charger pocket.
2Press the battery towards the rear of the pocket.
3Slide the battery into the charger pocket, ensuring complete contact between the charger and
battery contacts.
When the radio or stand-alone battery is properly inserted into the charger pocket, the charger
indicates the battery level status as shown in Table 6: Charger LED Indicator on page 15.
The charger indicator illuminates in Steady Red to indicate the radio or stand-alone battery is
charging rapidly. When the battery is nearly or fully charged, charger indicator changes to
Steady Green.
5To remove a radio or stand-alone battery from the charger, use both hands to remove a radio or
battery from the charger pocket. One hand to hold and support the charger while the other hand
removes the radio or battery.
Figure 3: Multi-Unit Charger
5
7
6
4
1
8
3
2
1 Radio Contacts
2 Pocket 1
3 Battery Contacts
MN007800A01-AA
Chapter 3: 12 Pocket Multi-Unit Chargers
12

4 Power Cord
5 Pocket 6
6 Pocket 12
7 Charging Indicator
8 Pocket 7
Figure 4: Charging a Radio
3.2
Cloning Radios
The 12-Pocket Multi-Unit Charger (MUC) Tray allows you to clone up four radios at a time.
You can clone 4 sources and 4 target radios by using pockets 1–2, 4–5, 7–8 and 10–11.
For further details on cloning procedure, refer to the DLR Series and CLR Series radio manual.
MN007800A01-AA
Chapter 3: 12 Pocket Multi-Unit Chargers
13

Figure 5: Cloning Radios
1
6
4
3
5
2
7
8
9
1 Pocket 1
2 CLONE symbol
3 Pocket 2
4 Pocket 4
5 Pocket 5
6 Pocket 7
7 Pocket 8
8 Pocket 10
9 Pocket 11
MN007800A01-AA
Chapter 3: 12 Pocket Multi-Unit Chargers
14

Chapter 4
Troubleshooting
Observe the color of the LED when troubleshooting.
Table 6: Charger LED Indicator
Status LED Status LED Indication Comments
Power On Green for approxi-
mately one second
Charging Steady red
Charged Steady green
Error2Red fast flash
Standby3Amber slow flash
Battery Level Status Flash red 1 time Battery low
Flash amber 2 times Battery medium
Flash green 3 times Battery high
The followings are troubleshooting procedure if there are no LED indication.
1Check that the radio or stand-alone battery is inserted correctly.
2Ensure the power supply is plugged into an appropriate AC outlet. This is applicable to Single-Unit
Charger (SUC) Tray only.
3Ensure the cable is plugged securely into the charger socket. This is applicable to Single-Unit
Charger (SUC) Tray only.
4Ensure the power cord is plugged securely into the charger socket with an appropriate AC outlet
and there is power to the outlet. This is applicable to 12 Pocket Multi-Unit Charger Tray only.
5Confirm that the battery used with the radio is Motorola Solutions authorized batteries listed in
Motorola Solutions Authorized Batteries on page 7.
2Normally, re-positioning the battery pack corrects this issue
3Battery temperature is warm, cold, or wrong power voltage is being used.
MN007800A01-AA
Troubleshooting
15

Warranty
The Charger Kit for North America is covered under the Motorola Solutions one year limited warranty.
If your charger is defective, contact your Motorola Solutions Partner where the unit was purchased.
Order a Replacement Charging Kit if necessary.
• For product-related questions, contact: 1-800-448-6686 (US & Canada).
• For product information, visit: www.motorolasolutions.com/DLR and http://
www.motorolasolutions.com/clr.
MN007800A01-AA
Warranty
16

Table des matières
Droits d’auteur.............................................................................................................3
Notice de sécurité importante....................................................................................4
Directives d'utilisation................................................................................................5
Conventions des icônes.............................................................................................6
Chapitre 1 : Accessoires agréés Motorola Solutions.............................................. 7
1.1 Batteries approuvées par Motorola Solutions..........................................................................7
1.2 Chargeurs individuels.............................................................................................................. 7
1.3 Multichargeurs......................................................................................................................... 8
1.4 Accessoires approuvés............................................................................................................8
Chapitre 2 : Chargeurs individuels..........................................................................10
2.1 Chargement d’une batterie avec radio...................................................................................10
2.2 Charge d'une batterie autonome........................................................................................... 11
Chapitre 3 : Chargeurs multiples à 12 logements..................................................13
3.1 Procédures de charge........................................................................................................... 13
3.2 Clonage de radios..................................................................................................................15
Chapitre 4 : Dépannage............................................................................................ 17
Garantie......................................................................................................................19
MN007800A01-AA
Table des matières
2

Droits d’auteur
Les produits Motorola Solutions décrits dans ce document peuvent inclure des programmes
informatiques protégés par des droits d’auteur de Motorola Solutions. Les lois des États-Unis et
d’autres pays réservent à Motorola Solutions certains droits exclusifs pour les programmes
informatiques protégés par droits d’auteur. Par conséquent, tout programme informatique protégé par
droits d’auteur de Motorola Solutions compris dans les produits Motorola Solutions décrits dans le
présent document ne peut être copié ni reproduit de quelque manière que ce soit sans l’autorisation
écrite expresse de Motorola Solutions.
© 2021 Motorola Solutions, Inc. Tous droits réservés.
Aucune partie du présent document ne peut être reproduite, transmise, stockée dans un système de
recherche documentaire ou traduite dans une autre langue ou dans un langage informatique, sous
quelque forme ou par quelque moyen que ce soit, sans l’autorisation écrite préalable de Motorola
Solutions, Inc.
De plus, l’achat de produits Motorola Solutions ne peut être considéré comme une transaction
octroyant directement, par inférence, estoppel ou autrement une licence en vertu des droits d’auteur,
des droits de brevets ou d’une demande de brevet de Motorola Solutions, à l’exception d’une licence
d’utilisation normale et non exclusive, libre de toute redevance, prévue par la loi lors de la vente d’un
produit.
Avis de non-responsabilité
Veuillez noter que certaines fonctionnalités, installations et capacités décrites dans ce document
pourraient ne pas s’appliquer ou être accordées sous licence pour l’utilisation sur un système
particulier, ou pourraient dépendre des caractéristiques d’une unité mobile d’abonné ou d’une
configuration de certains paramètres. Veuillez consulter votre personne-ressource chez Motorola
Solutions pour en savoir plus.
Marques de commerce
MOTOROLA, MOTO, MOTOROLA SOLUTIONS et le logo au M stylisé sont des marques de
commerce ou des marques déposées de Motorola Trademark Holdings LLC et sont utilisées sous
licence. Toutes les autres marques de commerce sont la propriété de leurs détenteurs respectifs.
Contenu à code source libre
Ce produit contient des logiciels libres utilisés sous licence. Reportez-vous au support d’installation du
produit pour obtenir tous les avis juridiques relatifs aux logiciels libres et aux contenus d’attribution.
Directive sur la mise au rebut des équipements électriques et électroniques de
l’Union européenne (UE) (DEEE)
La directive WEEE de l’Union européenne exige que les produits (ou leur emballage, dans
certains cas) vendus dans les pays de l’UE portent l’étiquette de la poubelle barrée.
Comme le définit la directive DEEE, cette étiquette de poubelle barrée signifie que les clients et les
utilisateurs finaux dans les pays de l'UE ne doivent pas jeter les équipements électriques et
électroniques ou leurs accessoires dans les ordures domestiques.
Les clients ou les utilisateurs finaux dans les pays de l'UE doivent communiquer avec le représentant
ou le centre de service de leur fournisseur d'équipement pour obtenir des renseignements sur le
système de collecte des déchets de leur pays.
MN007800A01-AA
Droits d’auteur
3

Notice de sécurité importante
Ce document contient d’importantes directives relatives à la sécurité et au fonctionnement de
l’appareil.
Avant d’utiliser le chargeur de batterie, lisez toutes les directives et les marques d’avertissement sur le
chargeur et la batterie.
AVERTISSEMENT :
Veuillez lire attentivement cette notice et la conserver pour vous y référer ultérieurement.
• Pour réduire les risques d’endommager le cordon d’alimentation, tirez sur la prise et non sur
le cordon au moment de le débrancher de la prise c.a. ou du chargeur.
• Pour réduire les risques d’incendie ou de décharge électrique, évitez d’utiliser une rallonge
électrique. Si une rallonge doit être utilisée, assurez-vous que le format du cordon est de
calibre 18 lorsque sa longueur est de 2 m (6,5 pi) ou moins et de calibre 16 lorsque sa
longueur est de 3 m (9,8 pi).
•Pour réduire les risques d’incendie, de décharge électrique ou de blessure, n’utilisez pas le
chargeur s’il est brisé ou endommagé de quelque manière que ce soit. Portez-le chez un
représentant de service Motorola Solutions.
• Pour réduire les risques d’incendie ou de décharge électrique, ne démontez pas le chargeur.
Il ne peut pas être réparé et aucune pièce de rechange n’est disponible.
• Pour réduire les risques de décharge électrique, débranchez l’adaptateur d’alimentation du
chargeur de la prise c.a. avant de procéder à une maintenance ou à un nettoyage.
• Pour réduire les risques de blessure, ne chargez que les batteries rechargeables agréées.
Les batteries non approuvées pourraient exploser et causer des blessures corporelles et
d’autres dommages.
• Pour réduire les risques d’incendie, de décharge électrique ou de blessure, n’utilisez que les
accessoires recommandés par Motorola Solutions.
• Toute modification apportée à cet appareil sans l'autorisation explicite de Motorola Solutions
peut annuler l'autorisation d'utiliser cet appareil.
MN007800A01-AA
Notice de sécurité importante
4

Directives d'utilisation
Voici les directives d'utilisation du chargeur.
• Cet équipement n’est pas conçu pour une utilisation à l’extérieur. Ne l’utilisez que dans des
emplacements secs et sous des conditions sans risque d’humidité.
• La température ambiante maximale autour du chargeur ne doit pas dépasser 40 °C (104 °F).
•Éteignez la radio pendant la charge.
• Branchez le chargeur à une prise c.a. uniquement à l'aide d'un bloc d'alimentation agréé par
Motorola Solutions.
• La prise de courant à laquelle le bloc d’alimentation est branché doit se trouver à proximité et être
facilement accessible.
• Assurez-vous que le cordon du bloc d’alimentation est placé à un endroit où il ne sera pas écrasé,
ne gênera pas le passage, ne sera pas tendu de façon anormale et ne sera pas exposé à une
source d’humidité.
• Ne branchez le bloc d’alimentation qu’à une prise c.a. à fusible câblée appropriée, de tension
prescrite telle que spécifiée sur le produit.
• Débranchez le chargeur de la tension de secteur en retirant le cordon d’alimentation de la prise de
courant c.a.
• Les chargeurs multiples peuvent charger les batteries répertoriées dans Tableau 6 :Voyant DEL du
chargeur à la page 17 , lorsqu'ils sont utilisés avec les logements indiqués dans Tableau
4 :Multichargeur agréé Motorola Solutions et cordons d’alimentation à la page 8 . Les batteries
peuvent être branchées à une radio ou autonomes.
MN007800A01-AA
Directives d'utilisation
5
