Nautilus Hyosung MX5600 User manual

Installation Manual
MX5600 System
V01.00.01 (2012.07.18)
© Nautilus Hyosung, Inc. All Rights Reserved.

© Nautilus Hyosung, Inc. All Rights Reserved. I
Revision History
Installation Manual – MX5600 System
No. Version Date Description of Change Chapter
1 V1.0 2010/01/07 New Publication All
2 V01.00.01 2012/07/18 Added the diagram which show the installing and servicing
area of MX5600 with new type of cash dispenser unit (CDU10)
© Nautilus Hyosung All Rights Reserved.
The content of this specification is protected by copyright laws.
2010. 1. 7. 1st Release
2012. 7. 18. 2nd Release

© Nautilus Hyosung, Inc. All Rights Reserved. II
Contents
Chapter1. Preface............................................................................................................................. 1-1
Purpose.........................................................................................................................................................1-1
Audience .......................................................................................................................................................1-1
Support Information .......................................................................................................................................1-1
What is in This Manual...................................................................................................................................1-1
Conventions...................................................................................................................................................1-2
Safety Precautions.........................................................................................................................................1-3
Related Document.........................................................................................................................................1-5
Chapter2. Introduction..................................................................................................................... 2-1
About the MX5600 ........................................................................................................................................2-1
Chapter3. Installation Information.................................................................................................. 3-1
Installation Condition and Space...................................................................................................................3-1
Tools required for installation ........................................................................................................................3-1
Packing Dimensions .....................................................................................................................................3-2
ATM Dimensions ...........................................................................................................................................3-3

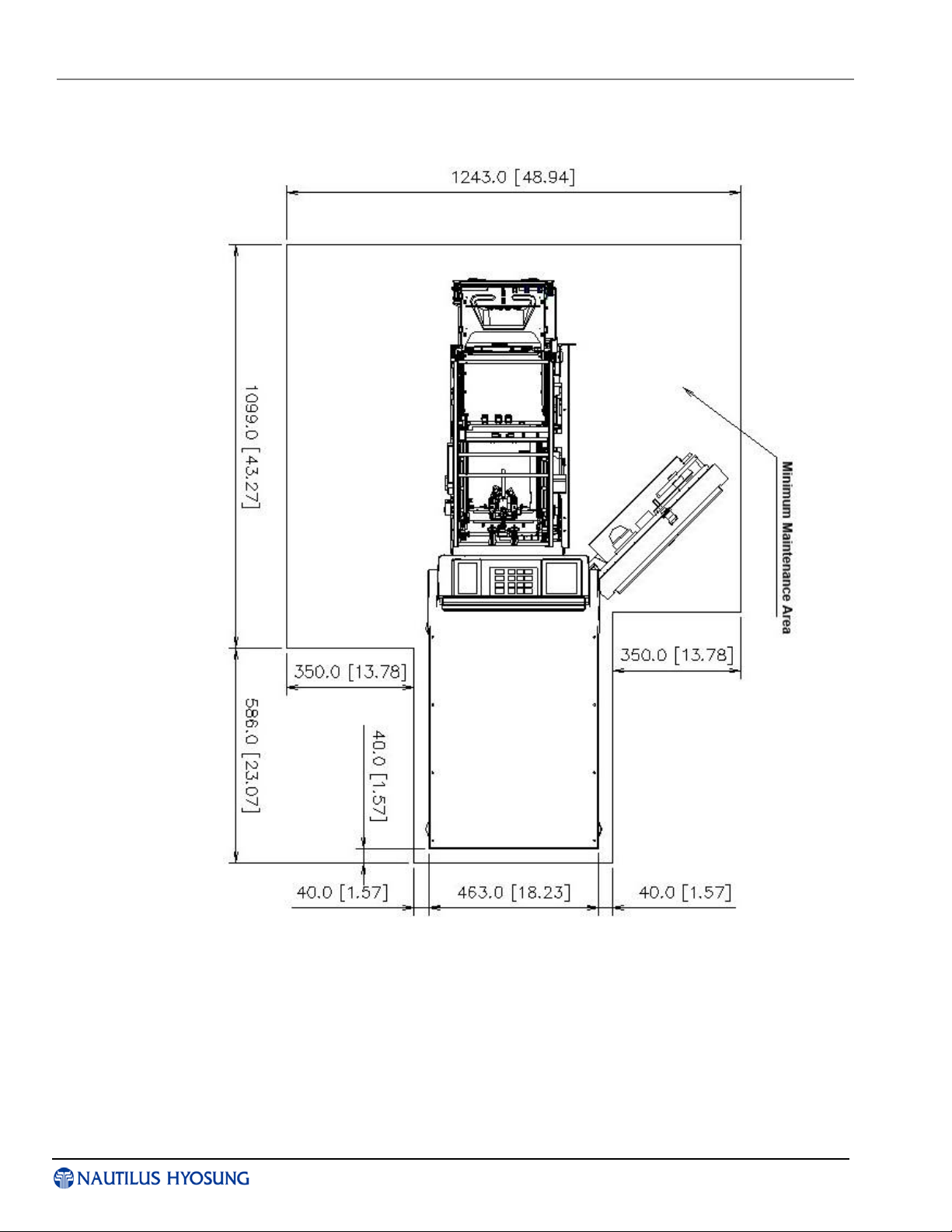

Recommended Installation and Service Clearance......................................................................................3-7
Chapter4. System Information........................................................................................................ 4-1
Unpacking the ATM .......................................................................................................................................4-1
Physical Installation with Anchor Bolts Locate Sheet ...................................................................................4-3
Adjusting the Height......................................................................................................................................4-5
Index...........................................................................................................................................Index-1
Memo.........................................................................................................................................Memo-1

Installation Manual Chapter1.Preface
© Nautilus Hyosung, Inc. All Rights Reserved. 1-1
Chapter1. Preface
Purpose
▶This manual is produced to provide the guidelines for installers to comply with while
installing it.
▶This manual describes how to prepare for and to proceed the installation of MX5600 in
advance.
Audience
▶This manual is for persons related to installing MX5600 in branches of banks, such as
designers and construction workers of the branches and ATM installers, to work
efficiently and conveniently.
Support Information
▶If any question or installation error occurs while preparing for and installing MX5600 in
compliance with this manual, please contact maintenance staffs of Nautilus Hyosung.
For the contact of maintenance staffs of Nautilus Hyosung, see the E-mail addresses
and telephone numbers provided separately.
What is in This Manual
▶This manual is designed to provide the installation guide for the MX5600 and the
detailed description of the following:
▪Important Warnings
▪Information for installation
▶All measurements in this manual are in metric and [ ] is inch scale.
▶All information described in this manual is a licensed product of Nautilus
Hyosung Inc.
Some of the information in this manual may differ according to the network processor
to be connected and may be subsequently updated by the bank’s needs or the
improvement by Nautilus Hyosung Inc.
It is the policy of Nautilus Hyosung Inc to improve products as new technology,
components, software, and firmware become available. Therefore Nautilus Hyosung
Inc. reserves the right to change specifications without notice.

Installation Manual Chapter1.Preface
© Nautilus Hyosung, Inc. All Rights Reserved. 1-2
Conventions
▶Terminologies
In this document the terminology listed below is used as follows:
▪Customer and consumer refer to any person who transacts business through the
ATM.
▪Device and unit refer to the standard and optional ATM equipment, such as monitor,
card reader, printer and dispenser.
▪Fascia refers to the entire front portion of the unit, including the portion where the
customer transacts business.
▪Module refers to a plug-in device that can be serviced or replaced.
▪Note(s) and bill(s) refer to the individual documents loaded into and dispensed from
the dispenser.
▪Servicing and maintenance refer to the supervisor, operator and technician’s tasks
performed to keep the ATM operational.
▪Screen refers to the text appearing on the customer display.

Installation Manual Chapter1.Preface
© Nautilus Hyosung, Inc. All Rights Reserved. 1-3
Safety Precautions
▶Common Safety Precaution
▪Safety Precautions in outlined this manual provide information on safe and proper
handling of the product. Non-compliance of the safety precautions may result in injury
or damage to the product.
▪This precaution symbol with sample term tells you safety warnings during equipment
handlings.
▶Please read the following instructions before operating equipment.
▪Operate equipment in the order outlined in this manual.
▪Follow precautions indicated in this manual, as well as the equipment itself.
Failure to properly address these precautions may lead to injury or damage to the
product.
▪Avoid operations not addressed in this manual.
▪If you cannot remedy system problems using the methods outlined in this manual,
please refer to contact information listed in the manual.
▪Any change or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
<Note!>
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
▶CAUTION
1. To reduce the risk of fire, use only No. 26 AWG OR LARGER Telecommunication
cord
2. Risk of explosion if battery is replaced by an incorrect type.
Dispose used batteries according to the instructions.
3. For pluggable equipment, the socket-outlet shall be installed near the equipment and
shall be easily accessible.
4. The equipment is to be secured to he building structure before operation
5. A security container shall be permitted to optionally be provided with a secondary
lock, but improper use of the secondary lock feature will reduce the security level of
the ATM.

Installation Manual Chapter1.Preface
© Nautilus Hyosung, Inc. All Rights Reserved. 1-4
▶Description of Precaution Symbols
# Symbol Description
1 Electrical Shock Warning
▪Do not remove cover. Only a maintenance engineer is
allowed to open the cover.
▪Do not touch. You may receive electric shock.
▪Make sure to turn off the power when servicing the
equipment.
2 High Temperature Warning
▪Do not touch the equipment when it is running.
▪The equipment can get extremely hot and may cause a
burn.
▪Make sure to close the cover before running the
equipment.
3 Use Precaution when Moving
▪The equipment is heavy. Make sure at least 2 people lift or
move the equipment.
▪Do not attempt to move the equipment alone. You may be
injured from dropping the heavy equipment.
4 Fire Hazard
▪Place the equipment in an area away from any
combustible materials.
▪The equipment may catch on fire from overheating or
short circuit of the power supply unit.
5 Disassembly Warnings
▪Do not disassemble or modify the equipment unless you
are a certified engineer.
▪Contact the service center for maintenance, adjustments
and repairs.
▪Improper disassembly may cause fire or electrical shock.
6 Collapse Precautions
▪Do not place the equipment where the floor cannot sustain
the weight of the equipment, or on slanted or unstable
surface.
▪Equipment may fall and cause injury or damage.
7 Unplug the Equipment
▪Stop using the equipment immediately if it smokes, emits
an unusual smell, makes abnormal sounds, or if liquids or
other foreign materials enter the equipment.
▪If the above-mentioned abnormalities occur, immediately
turn off the power, unplug the equipment and contact the
service center.
▪If you ignore these symptoms, the equipment may catch
on fire or cause electric shock.

Installation Manual Chapter1.Preface
© Nautilus Hyosung, Inc. All Rights Reserved. 1-5
Related Document
▶The related documents are listed as follows. If needed, please contact staffs of our
technical support team and maintenance team.
▪Operator Manual
▪Maintenance Manual
▶For the contact of maintenance staffs of Nautilus Hyosung, see the E-mail addresses
and telephone numbers provided separately.

Installation Manual Chapter2.Introduction
© Nautilus Hyosung, Inc. All Rights Reserved. 2-1
Chapter2. Introduction
About the MX5600
►Monimx5600 ATM machine is a kind of lobby type ATM and is also the most up-to-date
system to perfectly meet various customer’ needs in your site.
►This ATM is designed to satisfy customer’s demands of withdrawal, balance inquiry and
transfer funds for individuals with a compact size to fit in virtually any place.
►This machine is connected to your network to dispense cash, transfer funds and
inquiry balance through the insertion of a customer’s card.
►MX5600 ATM is easy to use, easy to be service and able to support
customer’s demands perfectly.

Installation Manual Chapter3.Installation Information
© Nautilus Hyosung, Inc. All Rights Reserved. 3-1
Chapter3. Installation Information
Installation Condition and Space
►When you determine the location of your MX5600 ATM, ensure that the physical
environment, including the temperature and humidity, meets the requirements. Following
conditions should be met before installing equipment.
1. Avoid locations where intense direct light is reflected off the LCD screen.
2. Avoid locations where strong static electricity can occur.
3. The floor must allow easy wheelchair access from the front or the side.
4. Space required for servicing the machine should be considered before installation.
Tools required for installation
►In order to move the machine and place it in a proper location, you need to get help of
professionals trained in moving heavy equipment.
►Following tools are needed to install the machine.
1 Wire cutter 4 Wrench (Spanner)
2 Lifter 5 Leveling tool
3 Screw driver (Flat, Phillips)

Installation Manual Chapter3.Installation Information
© Nautilus Hyosung, Inc. All Rights Reserved. 3-2

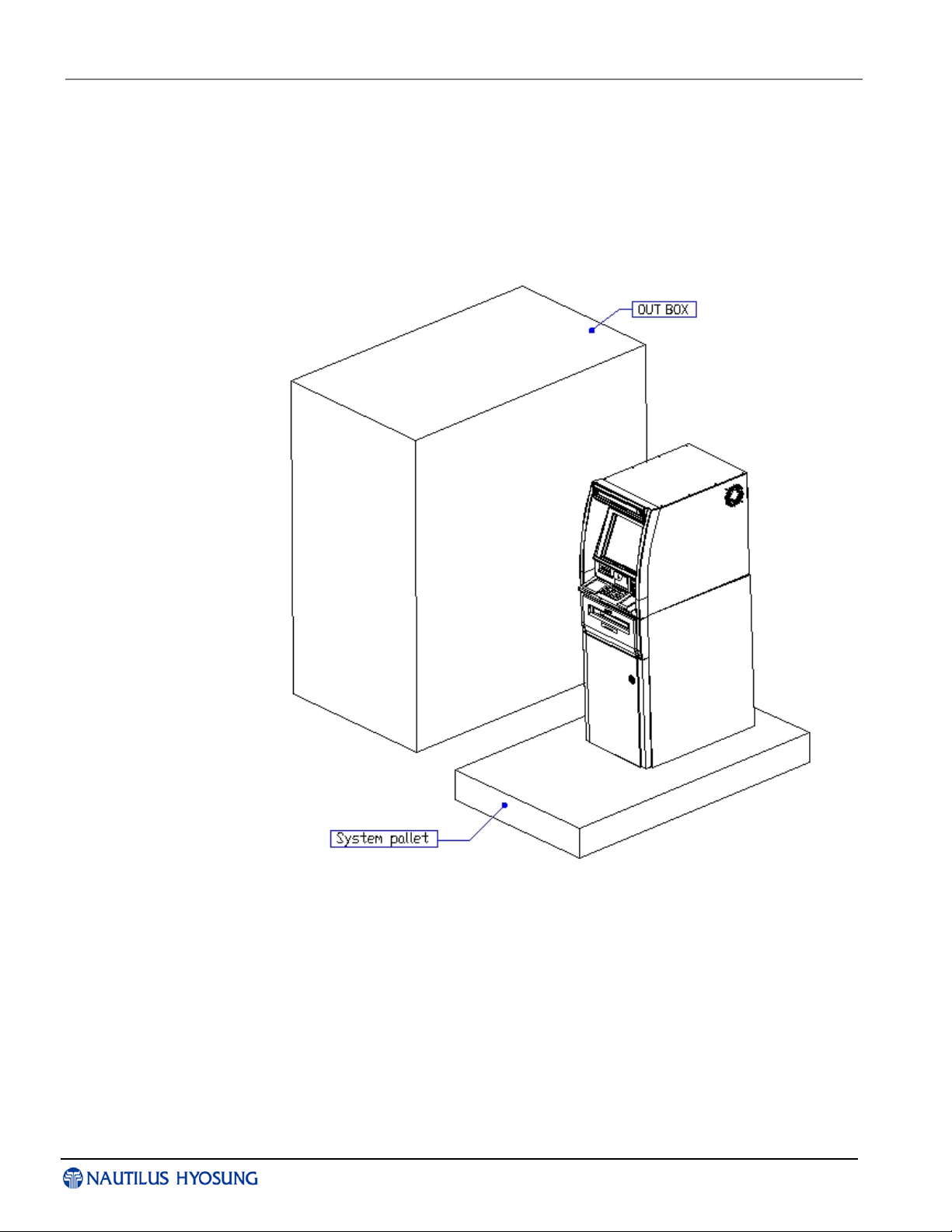

Packing Dimensions
▶On-Site Packaging Dimensions
The design of packing used on picture below is structured for shipping of MX5600 by load
orair/seafreight.
The dimension of the out box is ‘H1890mm / W600mm / D1150mm’.

Installation Manual Chapter3.Installation Information
© Nautilus Hyosung, Inc. All Rights Reserved. 3-3
ATM Dimensions
▶The figure below shows the dimensions of MX5600 ATM viewed from front based on
UL-291 Level-1.

Installation Manual Chapter3.Installation Information
© Nautilus Hyosung, Inc. All Rights Reserved. 3-4

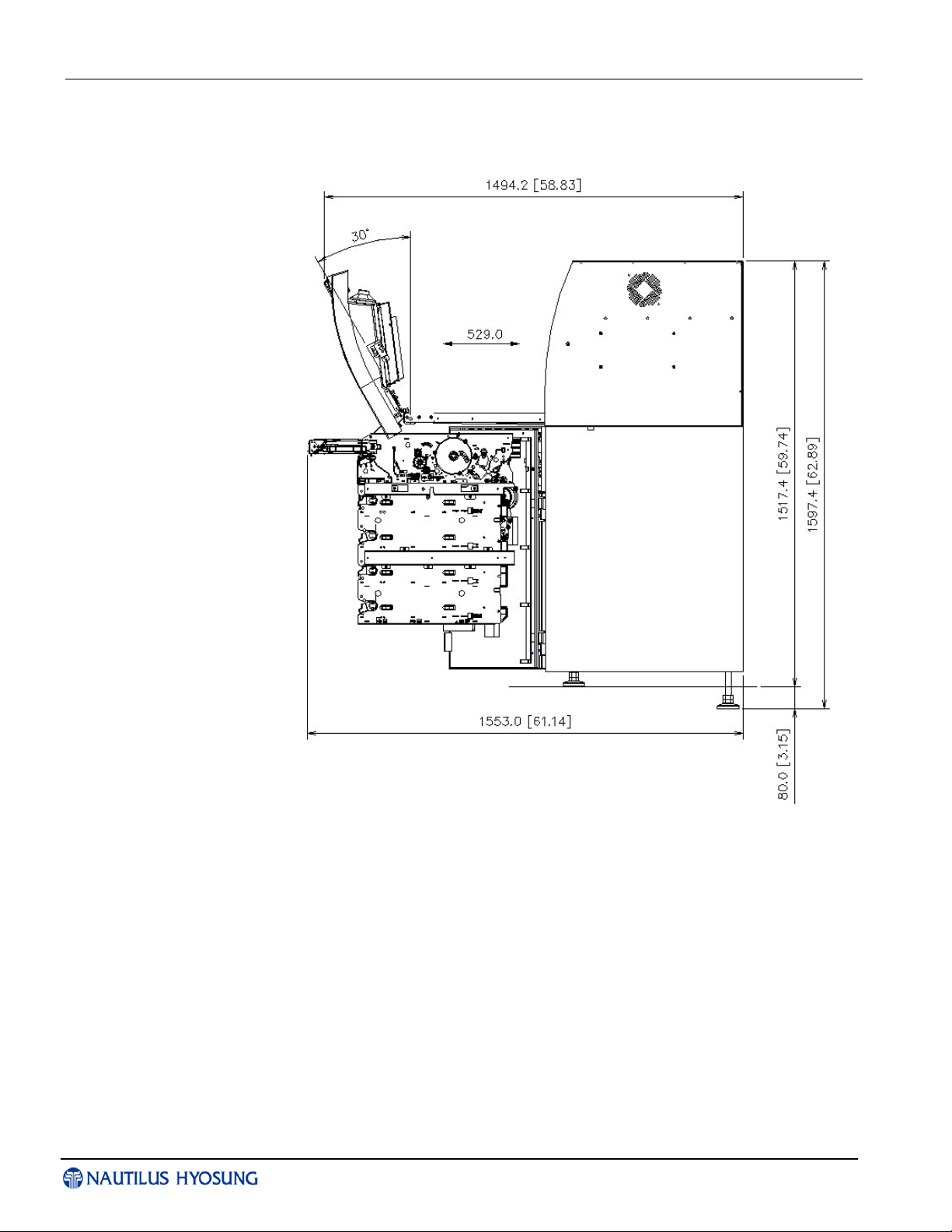

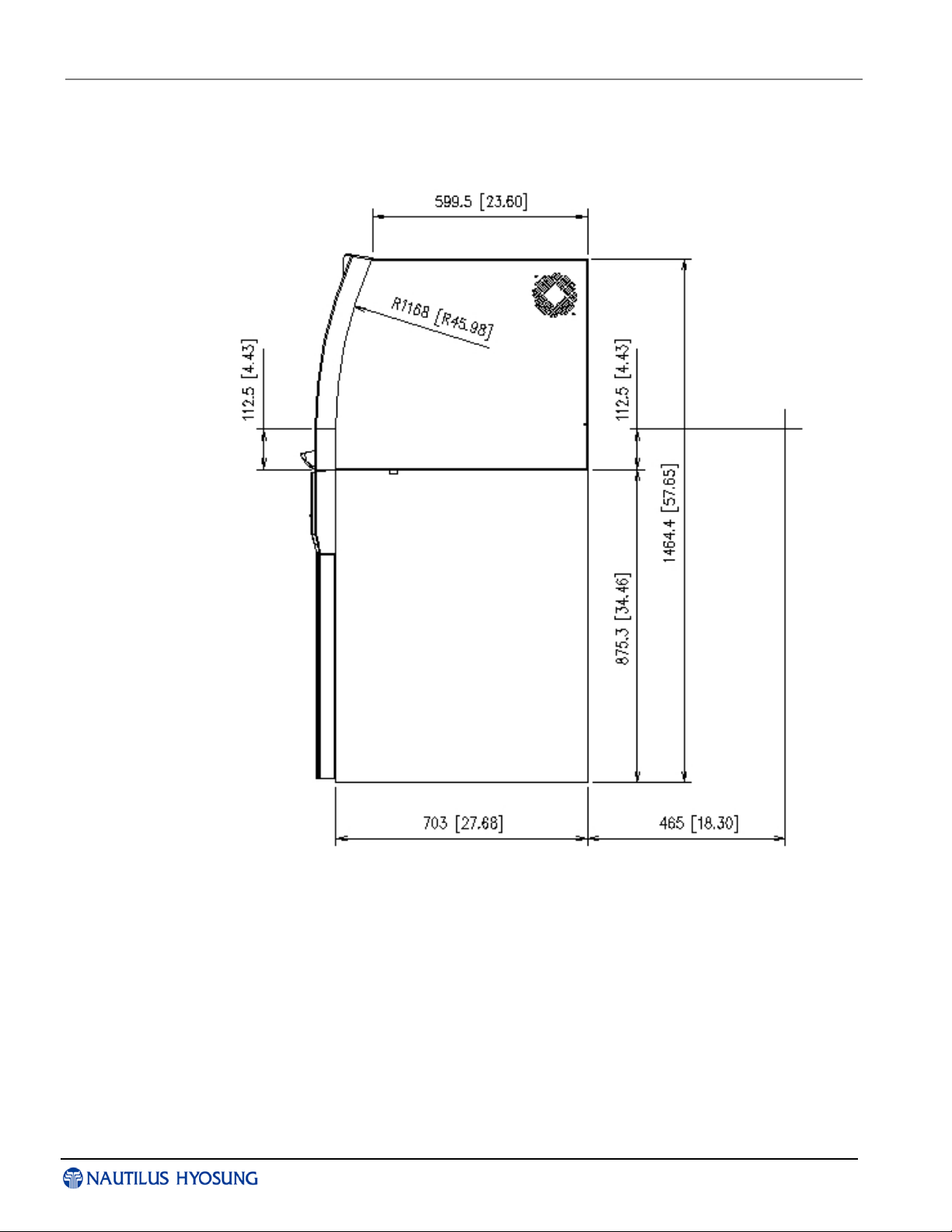

▶The figure below shows the dimensions of MX5600 ATM viewed from side based on
UL-291 Level-1.

Installation Manual Chapter3.Installation Information
© Nautilus Hyosung, Inc. All Rights Reserved. 3-5
▶The figure below shows the dimensions of MX5600 ATM viewed from front based on
UL Business-Hour.
.

Installation Manual Chapter3.Installation Information
© Nautilus Hyosung, Inc. All Rights Reserved. 3-6
▶The figure below shows the dimensions of MX5600 ATM viewed from front based on
UL Business-Hour.

Installation Manual Chapter3.Installation Information
© Nautilus Hyosung, Inc. All Rights Reserved. 3-7
Recommended Installation and Service Clearance
▶Following diagram is describing the recommended areas required for installing and servicing
the MX5600. (Plan View)
Hyousng recommends it is more convenient for your service personnel to have enough
maintenance space as described below to service this ATM machine

Installation Manual Chapter3.Installation Information
© Nautilus Hyosung, Inc. All Rights Reserved. 3-8
▶Following diagram is describing the recommended areas required for installing and servicing
the MX5600. (Side View)

Installation Manual Chapter3.Installation Information
© Nautilus Hyosung, Inc. All Rights Reserved. 3-9
▶Following diagram is describing the recommended areas required for installing and servicing
the MX5600 with new type of cash dispenser unit (CDU10). (Plan View)

Installation Manual Chapter3.Installation Information
© Nautilus Hyosung, Inc. All Rights Reserved. 3-10
▶Following diagram is describing the recommended areas required for installing and
servicing the MX5600 with new type of cash dispenser unit (CDU10). (Side View)

Installation Manual Chapter4.System Installation
© Nautilus Hyosung, Inc. All Rights Reserved. 4-1
Chapter4. System Installation
Unpacking the ATM
▶Unpack the machine on top of the palette.
1. Cut the straps that are fastened around the box with a knife.
(Be careful when cutting the straps. Refer to figure below.)
2. Use an appropriate tool to remove the nails from the palette. (Refer to figure below)
3. Remove the lid, then box from the top. Do not discard the packaging materials until you have
verified any shipping damage claim. Contact your distributor immediately if you see any
shipping damage. Store the box in a safe place to re-use or discard of appropriately.
4. Verify the contents carefully with the packing list to be sure all items listed are included. Notify
your distributor of any shortages.
5. If only the palette needs to be removed, lift the whole machine from the bottom and set it
aside.
