Nautilus Hyosung MONiMAX8200QT User manual

Installation Manual
MONiMAX8200QT System
V01.00.00 (2016.06.15)
© 2016 Nautilus Hyosung Inc. All Rights Reserved.

© 2016 Nautilus Hyosung Inc. All Rights Reserved. I
Revision History
Installation Manual–MX8200QT System
No.
Version
Date
Description of Change
Chapter
1
V01.00.00
2016/06/15
New Publication
All
© 2016 Nautilus Hyosung All Rights Reserved.
The content of this specification is protected by copyright laws.
2016.06.15. 1st Release

II © 2016 Nautilus Hyosung Inc. All Rights Reserved.
Contents
Chapter1. Preface...........................................................................................................................1-1
Purpose............................................................................................................................................................... 1-1
Audience ............................................................................................................................................................. 1-1
Support Information............................................................................................................................................. 1-1
What is in This Manual........................................................................................................................................ 1-1
Terminologies ...................................................................................................................................................... 1-2
Abbreviations of ATM.......................................................................................................................................... 1-2
Safety Precautions.............................................................................................................................................. 1-4
Related Document .............................................................................................................................................. 1-6
Chapter2. Introduction...................................................................................................................2-1
About the MX8200QT......................................................................................................................................... 2-1
System Identification Label................................................................................................................................. 2-2
Chapter3. ATM Dimensions & Installation Information................................................................3-1

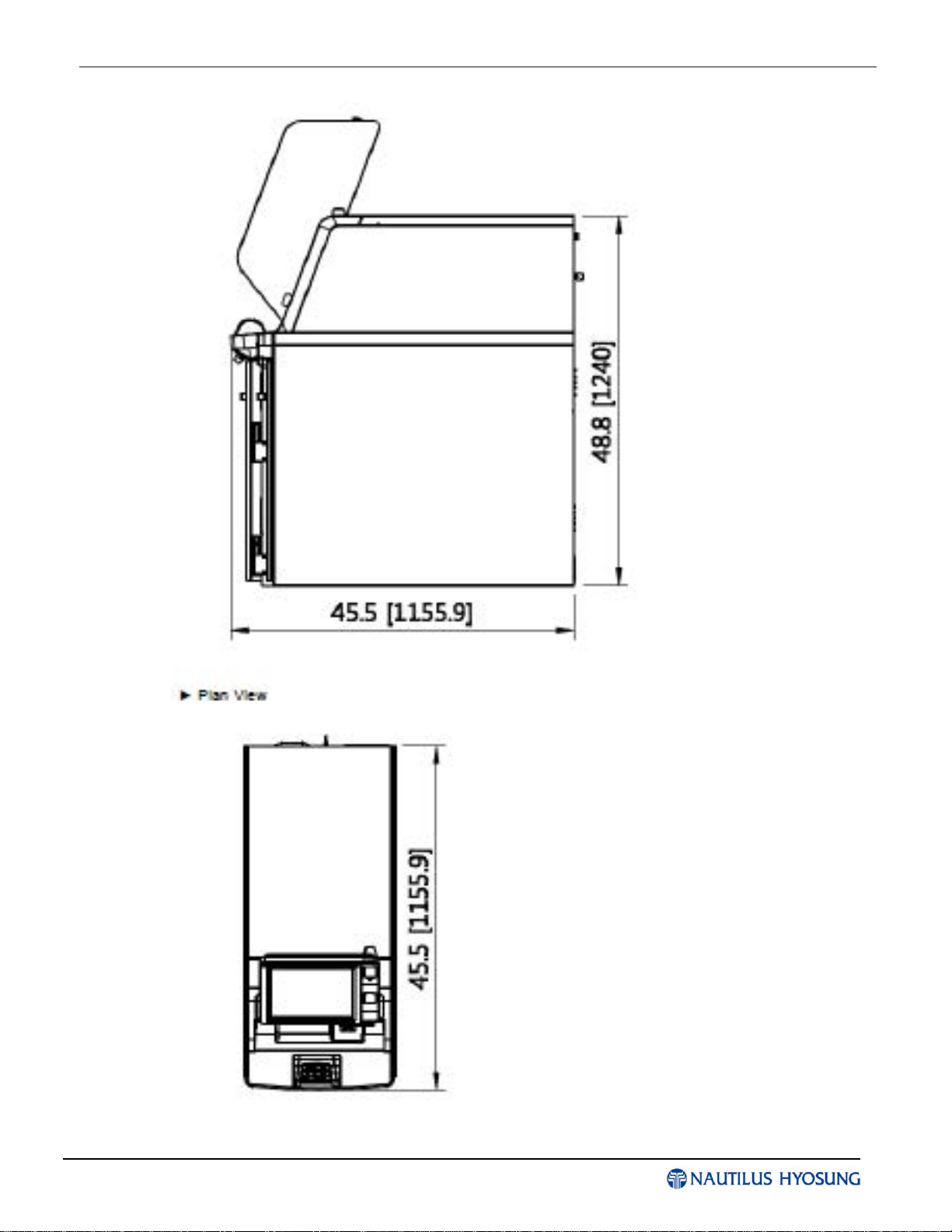

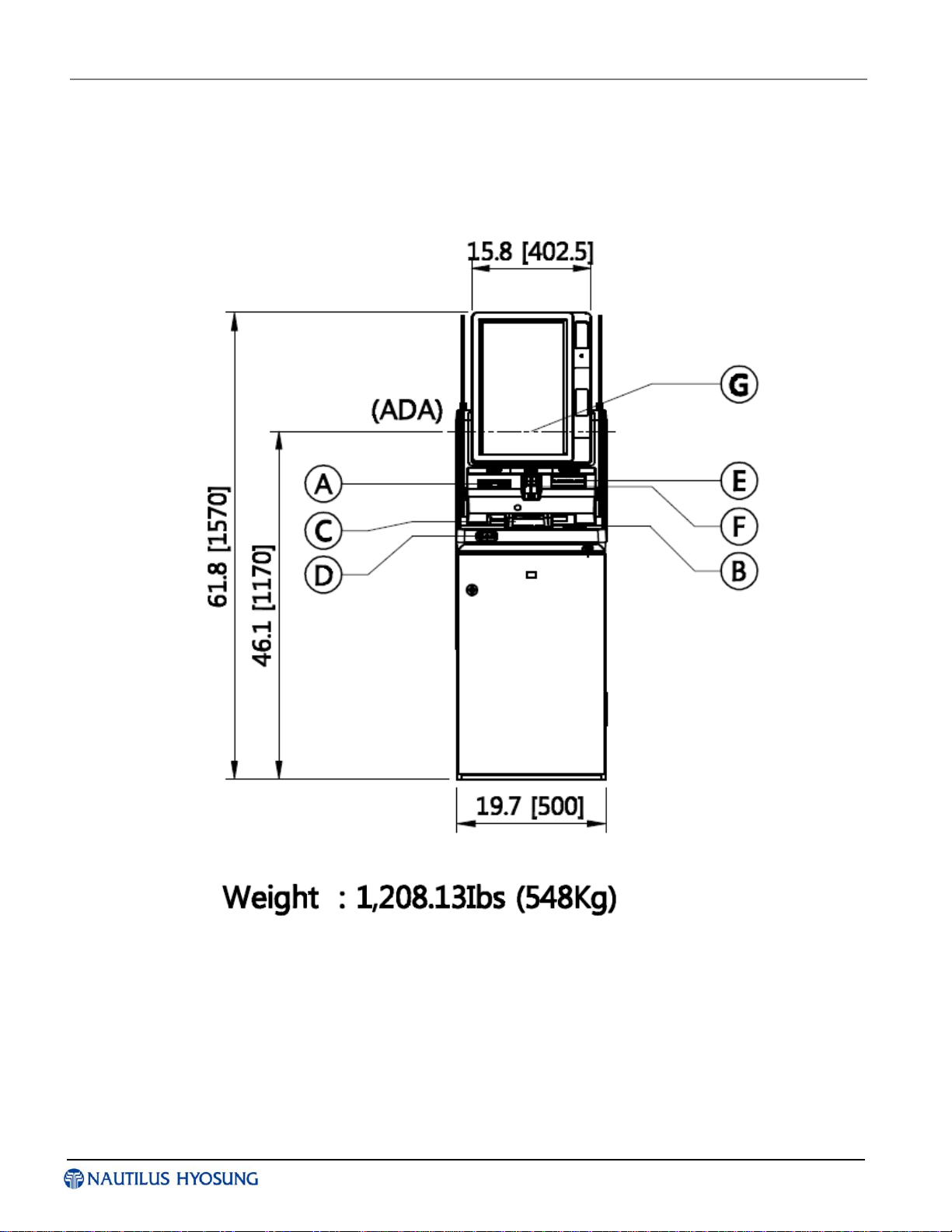

Exterior ................................................................................................................................................................ 3-1
Access for Device ............................................................................................................................................... 3-3
Service area ........................................................................................................................................................ 3-4

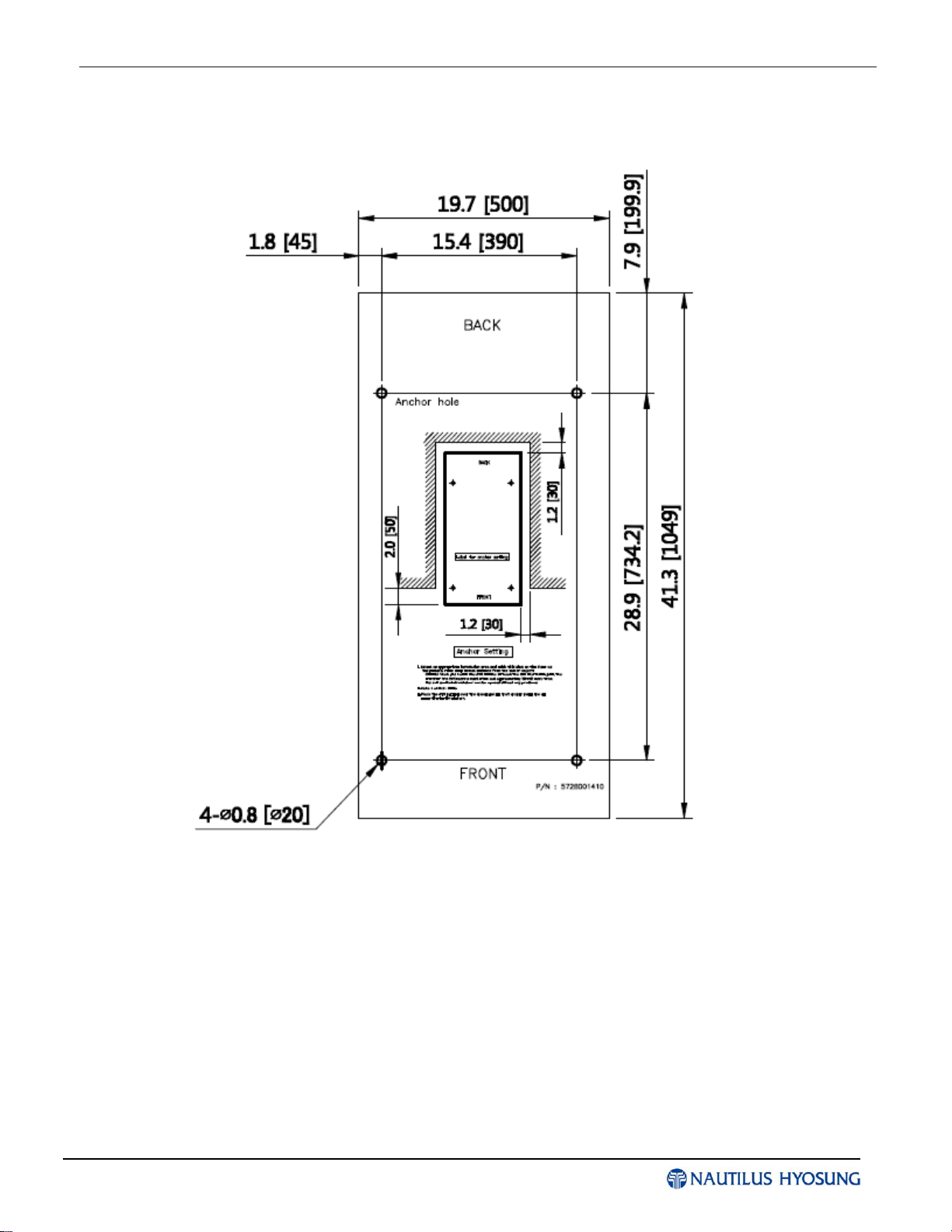

Installation Frame................................................................................................................................................ 3-7
Bolting down the MX8200QT............................................................................................................................ 3-10
Notes.......................................................................................................................................Notes-1

Installation Manual Chapter1.Preface
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 1-1
Chapter1. Preface
Purpose
▶This manual explains how to install the Nautilus Hyosung America’s MX8200QT
hardware.
Audience
▶This manual is for persons related to installing ATM in branches of banks, such as
designers and construction workers of the branches and ATM installers, to work
efficiently and conveniently.
Support Information
▶If any question or installation error occurs while preparing for and installing ATM in
compliance with this manual, please contact maintenance staffs of Nautilus Hyosung.
For the contact of maintenance staffs of Nautilus Hyosung, see the E-mail addresses
and telephone numbers provided separately.
What is in This Manual
▶MONiMAX referred to as “MX”
▶This manual is designed to provide the installation guide for the ATM and the detailed
description of the following:
▪ Important Warnings
▪ Information for installation
▶All measurements in this manual are in inches with metric provided in braces [ ].
▶All information described in this manual is a licensed product of Nautilus
Hyosung.
Some of the information in this manual may differ according to the network processor
to be connected and may be subsequently updated by the bank’s needs or the
improvement by Nautilus Hyosung.
It Is the policy of Nautilus Hyosung to improve products as new technology,
components, software, and firmware become available. Therefore Nautilus Hyosung
reserves the right to change specifications without notice.

Chapter1.Preface Installation Manual
1-2 © 2016 Nautilus Hyosung Inc. All Rights Reserved.
Terminologies
▶In this document the terminology listed below is used as follows:
▪ Customer and consumer refer to any person who transacts business through the ATM.
▪Device and unit refer to the standard and optional ATM equipment, such as monitor,
card reader, printer and dispenser.
▪Fascia refers to the entire front portion of the unit, including the portion where the
customer transacts business.
▪Module refers to a plug-in device that can be serviced or replaced.
▪Note(s) and bill(s) refer to the individual documents loaded into and dispensed from the
dispenser.
▪Servicing and maintenance refer to the supervisor, operator and technician’s tasks
performed to keep the ATM operational.
▪Screen refers to the text appearing on the customer display.
Abbreviations of ATM
▶In this document the abbreviations listed below is used as follows:
#
Abbreviations
Description
1
AD board
Analog Digital Board
2
ADA
The American Disabilities Act
3
AP
Application Program
4
Assy
Assembly
5
BRM
Bill Recycle Module
5-1
BC
Bill Checker
5-2
BMD
Body Module-Down (Lower Body of the Module)
5-3
BMU
Body Module-Up (Upper Body of the Module)
5-4
BRM
Bill Recycling Module
5-5
CSM
Customer Service Module
5-6
DPC
Deposit Cassette
5-7
RBU
Recycling Box Unit
5-8
RC
Recycle Cassette
5-9
RJC
Reject Cassette
5-10
TE
Tape Escrow
5-11
UTC
Utility Cassette
6
BATT S/W
Battery Switch

Installation Manual Chapter1.Preface
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 1-3
#
Abbreviations
Description
7
CAM
Camera Unit
8
CDU
Cash Dispenser Unit
9
CE
Control Electronics
10
CSM 50
Check Single Deposit Module
11
Earphone Jack
Voice Converter for Visually Disabled Persons (ADA)
12
EMV
Europay, Mastercard, Visa
13
EP
Elementary Program
14
EPP
Encryption PIN Pad
15
H/W
Hardware
16
I/F
Interface
17
ISO
International Standard Organization
18
JPR
Journal Printer
19
LCD
Liquid Crystal Display
20
MCU
Magnetic Card Unit
21
OPL
Operation Panel for Customers to Operate
22
OSD board
On Screen Display Board
23
P/S
Power Supply
24
PIN
Encryption PIN Pad
25
PNC
Panel Control Board
26
PTR
Printer (mainly Receipt Printer)
27
S/W
Switch
28
SIU
Sensor and Indications Unit
29
SP
Service Provider
30
SPR
Slip Printer (Receipt Printer)
31
TTU
Text Terminal Unit (OPL or SPL)
32
VFD
Vacuum Fluorescent Display

Chapter1.Preface Installation Manual
1-4 © 2016 Nautilus Hyosung Inc. All Rights Reserved.
Safety Precautions
▶Common Safety Precaution
Safety Precautions in outlined this manual provide information
on safe and proper handling of the product. Non-compliance of
the safety precautions may result in injury or damage to the
product.
This precaution symbol with sample term tells you safety
warnings during equipment handlings.
▶Please read the following instructions before operating equipment.
▪Operate equipment in the order outlined in this manual.
▪Follow precautions indicated in this manual, as well as the equipment itself.
Failure to properly address these precautions may lead to injury or damage to the
product.
▪Avoid operations not addressed in this manual.
▪If you cannot remedy system problems using the methods outlined in this manual, please
refer to contact information listed in the manual.
▪Any change or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
<Note!>
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
▶CAUTION
1. To reduce the risk of fire, use only No. 26 AWG OR LARGER Telecommunication cord
2. Risk of explosion if battery is replaced by an incorrect type.
Dispose used batteries according to the instructions.
3. For pluggable equipment, the socket-outlet shall be installed near the equipment and
shall be easily accessible.
4. The equipment is to be secured to the building structure before operation
5. A security container shall be permitted to optionally be provided with a secondary lock,
but improper use of the secondary lock feature will reduce the security level of the ATM.

Installation Manual Chapter1.Preface
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 1-5
▶Description of Precaution Symbols
Symbol
Description
Electrical Shock Warning
▪Do not remove cover. Only a maintenance engineer is allowed
to open the cover.
▪Do not touch. You may receive electric shock.
▪Make sure to turn off the power when servicing the equipment.
High Temperature Warning
▪Do not touch the equipment when it is running.
▪The equipment can get extremely hot and may cause a burn.
▪Make sure to close the cover beore running the equipment.
Use Precaution when Moving
▪The equipment is heavy. Make sure at least 2 people lift or
move the equipment.
▪Do not attempt to move the equipment alone. You may be
injured from dropping the heavy equipment.
Fire Hazard
▪Place the equipment in an area away from any combustible
materials.
▪The equipment may catch on fire from overheating or short
circuit of the power supply unit.
Disassembly Warnings
▪Do not disassemble or modify the equipment unless you are a
certified engineer.
▪Contact the service center for maintenance, adjustments and
repairs.
▪Improper disassembly may cause fire or electrical shock.
Collapse Precautions
▪Do not place the equipment where the floor cannot sustain the
weight of the equipment, or on slanted or unstable surface.
▪Equipment may fall and cause injury or damage.
Unplug the Equipment
▪Stop using the equipment immediately if it smokes, emits an
unusual smell, makes abnormal sounds, or if liquids or other
foreign materials enter the equipment.
▪If the above-mentioned abnormalities occur, immediately turn
off the power, unplug the equipment and contact the service
center.
▪If you ignore these symptoms, the equipment may catch on fire
or cause electric shock.

Chapter1.Preface Installation Manual
1-6 © 2016 Nautilus Hyosung Inc. All Rights Reserved.
Related Document
▶The related documents are listed as follows. If needed, please contact staffs of our technical
support team and maintenance team.
▪Operator Manual
▪Service Manual
▶For the contact of maintenance staffs of Nautilus Hyosung, see the E-mail addresses and
telephone numbers provided separately.

Installation Manual Chapter2.Introduction
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 2-1
Chapter2. Introduction
About the MX8200QT
►The MX8200QT is a full service ATM. Consumers deposit the cash/check, make the
withdrawal and receive the transaction records through openings in the fascia with
MX8200QT ATM.
The MX8200QT is a versatile, easily maintained delivery system that can be modified to
keep pace with the bank's changing needs.
►The benefits that the new concept MX8200QT provides are as follows.
Removes inconvenience which occurs when bank clerks directly handle cash and checks
with customers and relieves workload upon tellers by processing deposit/ withdrawal
automatically.
Relieves risks and burden of directly handling cash/check by directly keeping cash/ check
deposited in a safe.
Allows tellers to calculate and close amount on hand faster than the existing manual
calculation.
Abank customer and a teller can easily interact on a touch screen, just like talking, through
Nautilus Hyosung’s intuitive and easy UI.
Supports expanded options such as RF (NFC) as well as basic functions of
deposit/withdrawal of cash/check.
Allows easy and quick installation and maintenance.

Chapter2.Introduction Installation Manual
2-2 © 2016 Nautilus Hyosung Inc. All Rights Reserved.
System Identification Label
►The System Label below shows the layout of the product identification label which is fixed
inside the system.

Installation Manual Chapter3. ATM Dimensions & Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-1
Chapter3. ATM Dimensions & Installation Information
Exterior
►Front Elevation

Chapter3. ATM Dimensions & Installation Information Installation Manual
3-2 © 2016 Nautilus Hyosung Inc. All Rights Reserved.
►Side Elevation
►Plan View

Installation Manual Chapter3. ATM Dimensions & Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-3
Access for Device

Chapter3. ATM Dimensions & Installation Information Installation Manual
3-4 © 2016 Nautilus Hyosung Inc. All Rights Reserved.
Service area
►Minimum Installation

Installation Manual Chapter3. ATM Dimensions & Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-5
►Recommended Installation
<Note!>
Hyosung recommends it is more convenient for your service personnel to have enough
maintenance space as described below to service this machine

Chapter3. ATM Dimensions & Installation Information Installation Manual
3-6 © 2016 Nautilus Hyosung Inc. All Rights Reserved.
►Side Elevation

Installation Manual Chapter3. ATM Dimensions & Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-7
Installation Frame
►Bottom of ATM

Chapter3. ATM Dimensions & Installation Information Installation Manual
3-8 © 2016 Nautilus Hyosung Inc. All Rights Reserved.
►Anchor Point

Installation Manual Chapter3. ATM Dimensions & Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-9
►Anchor Detail (Recommendation)
