PROAIM CINEMA P-W5R-GRND User manual

1

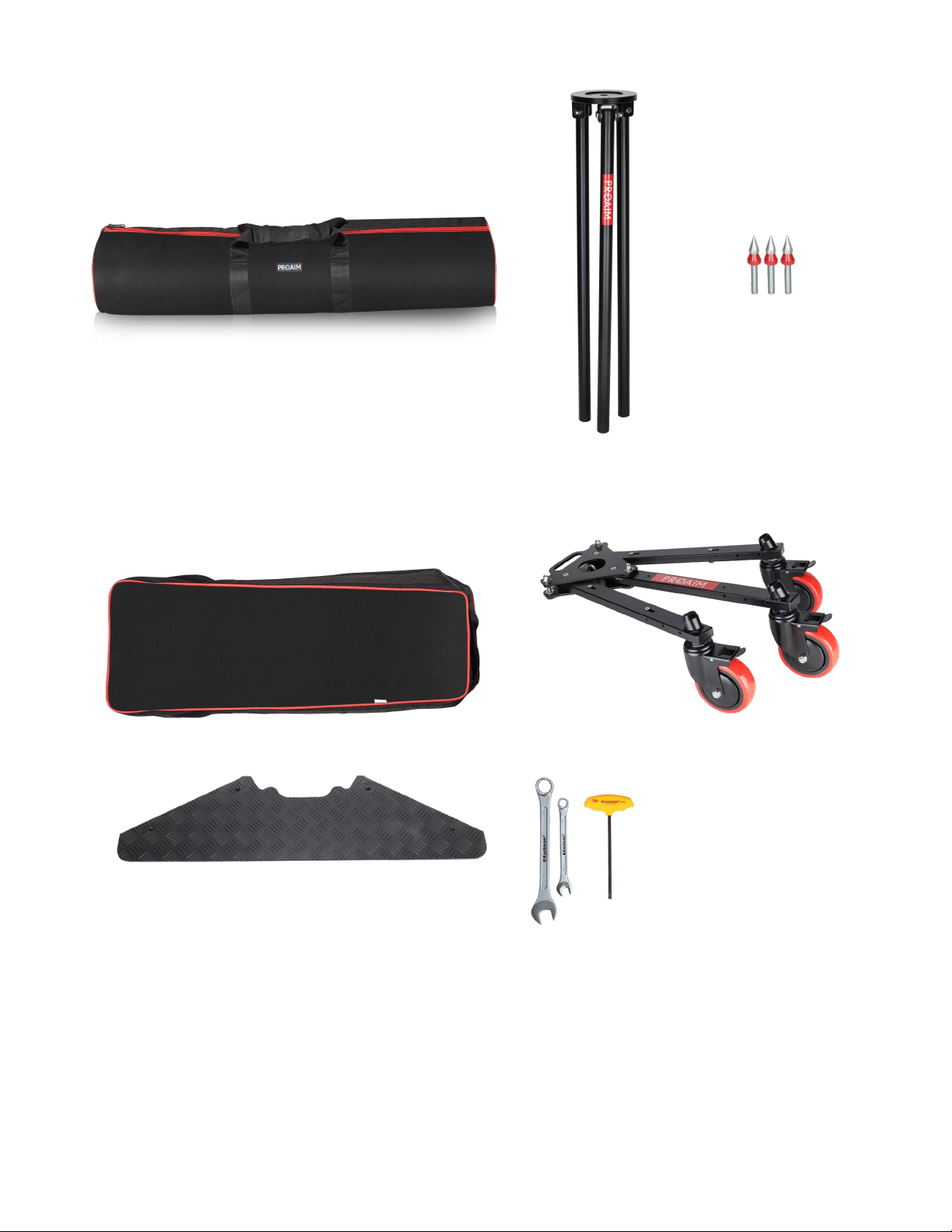

What’s In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.

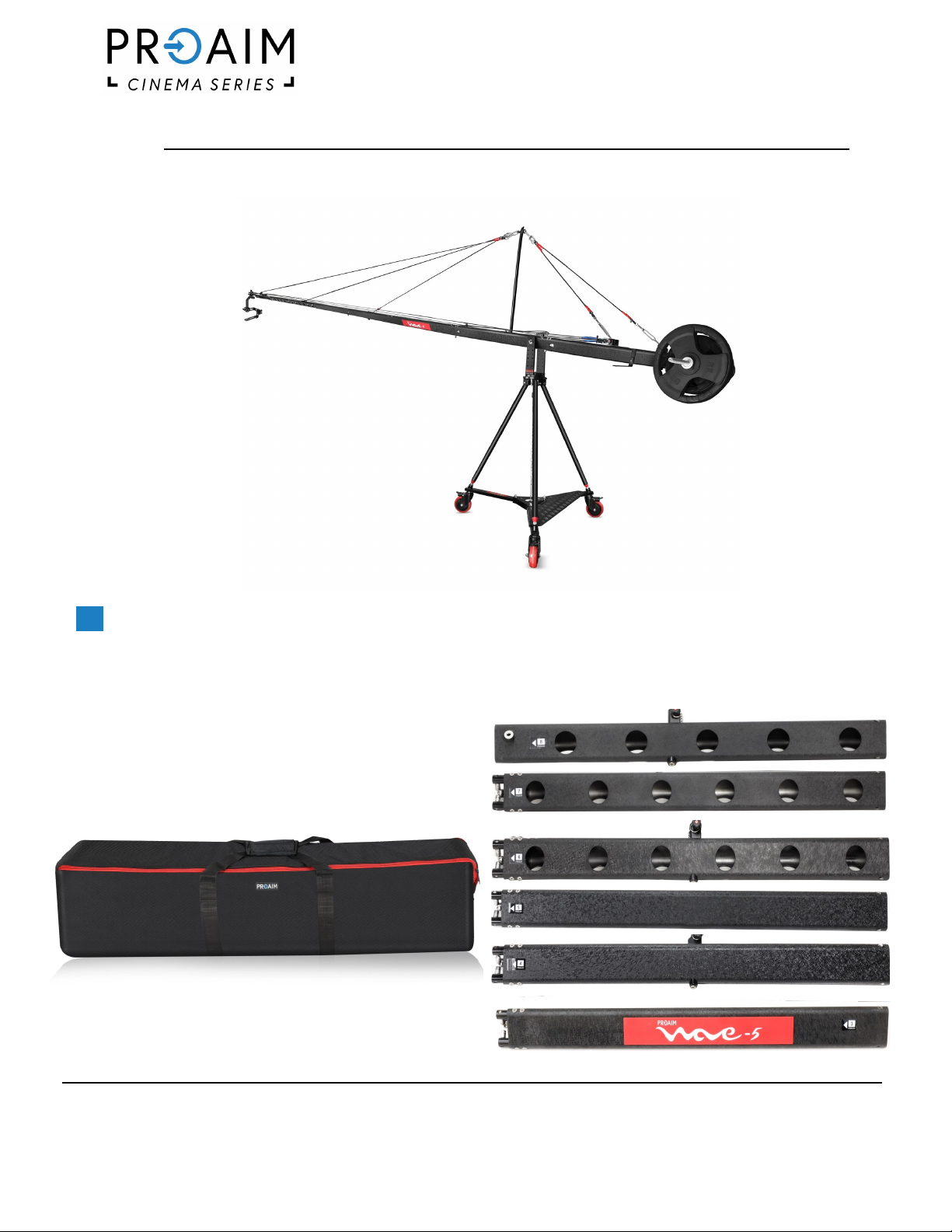

32 Grand Camera Jib/Crane Package (P-W5R-GRND)
Assemb ly Manua l
Bag - 1
Jib Secons 3,4,5,6,7,8
Jib Secons

2
Bag - 2

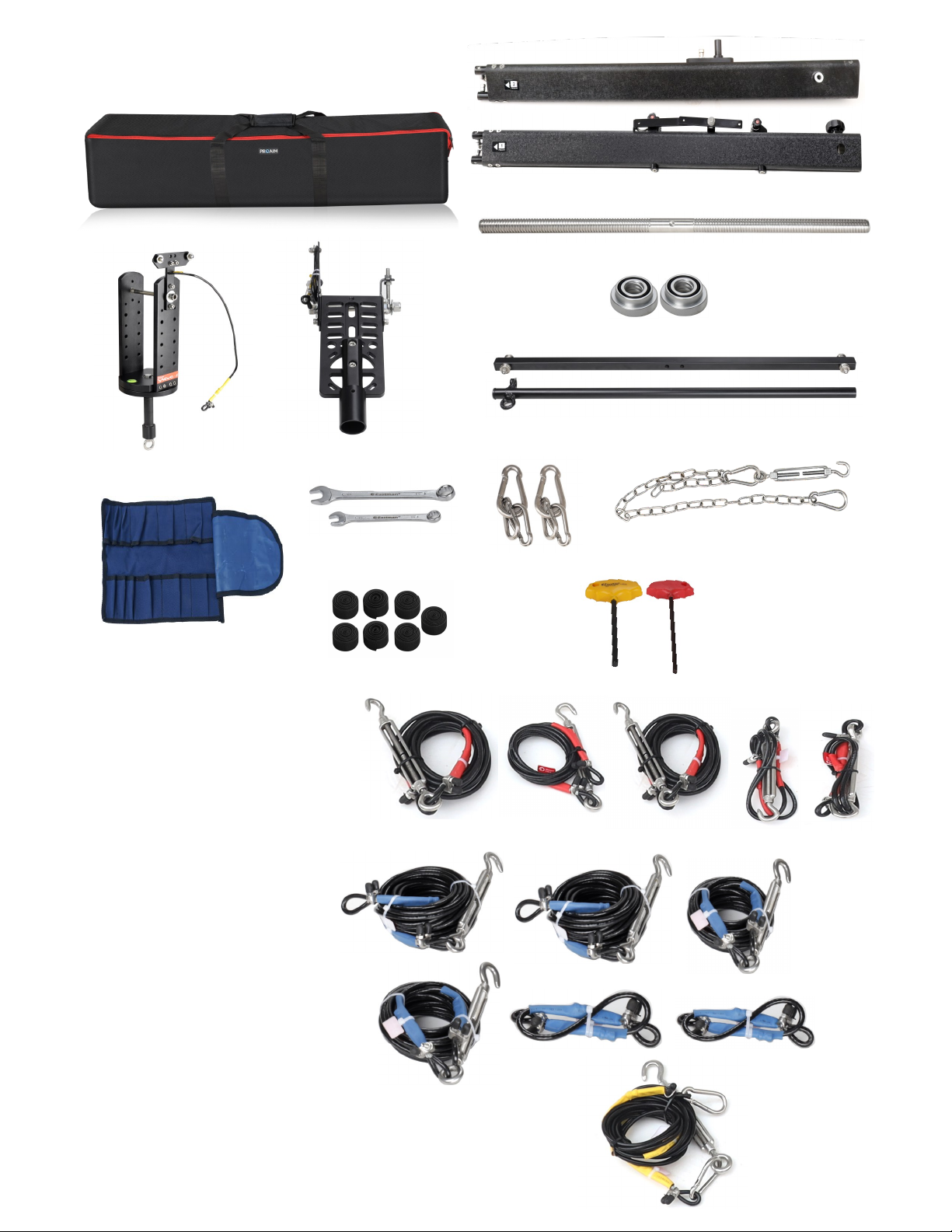

Jib Secons 1 & 2, Accessories & Cables
Central Fork
1 x Weight rod
Blue Cables: 6
1st to 8th Secon: 11' x 4'' x 2
1st to 8th Secon: 11' x 4'' x 2
1st to 8th Secon: 11' x 4'' x 2
1st to 8th Secon: 11' x 4'' x 2
Jib Secons 1st & 2nd
Cable Guide Support Rods
2 x Spanner - 19 & 13
Tool Pouch
7 x Velcro
Wire Tensioner Hook
2 x T-Type Allen keys
5/16mm, 10mm
Red Cables: 5
2nd to 1st Secon: 4' x 2''
2nd to 1st Secon: 3' x 5''
2nd to 3th Secon: 7' x 10''
2nd to 8th Secon: 15' x 6''
2nd to 8th Secon: 15' x 6''
2 x Weight Closers
Head Plaorm
2 x Hooks
Yellow Cables : 1
Central Fork to Head Secon: 15' x 5''

3
Bag—3
D-37 Dolly
Bag - 4
Dolly & Accessories
Tripod stand
Foot
Tripod stand
Dolly Plaorm
2 x Spanner - 17 & 10
1 x T-Type Allen key 4mm

4

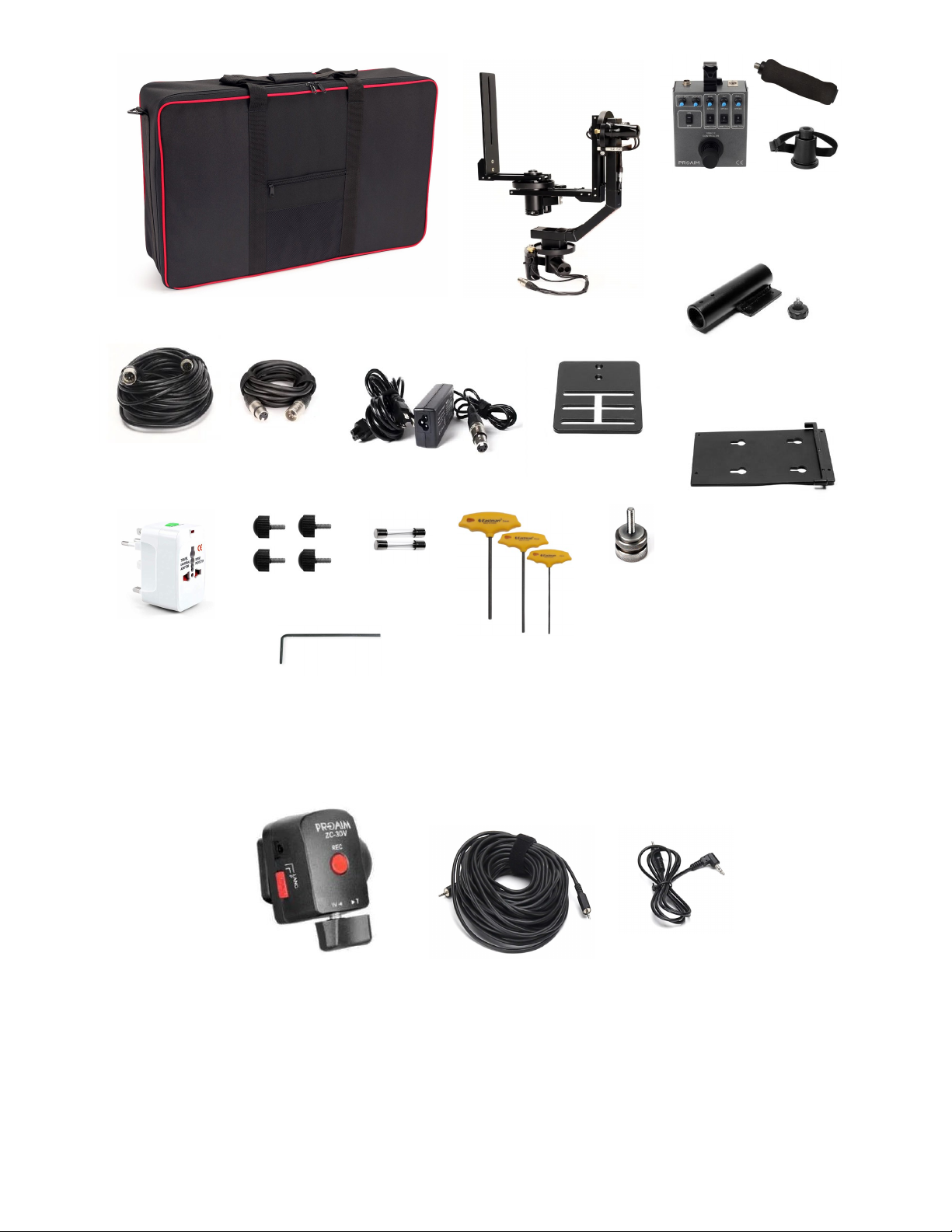

15mtr Control
Cable
Joysck Controller
Plate
Spin-3 Pan-lt Head
Joysck Controller
with Cap & Handle
3mtr XLR
Cable
15 mtr Long wire 1 mtr wire Proaim Lanc Zoom
Controller
(P-ZC-3DV)
12V AC Adapter
Universal
Adapter
Check nut
(Size - 1/4)
2 x 2A Fuse
Pan Tilt Mounng
Plate and knob
Camera Plate
Bag Packing
Proaim Lanc Zoom Controller (P-ZC-3DV)
4 x Knobs
T-Type Allen Keys
5mm, 4mm, 3mm
L-Type extra Long
Allen Key - 1.5mm

5
Sr. No Particulars Page No.
1 Safety Hint of Jib Crane 6
2 D-37 Dolly Setup 7-8
3 Tripod Stand Assembly 8
4 Central Fork Assembly 9
5 Jib Secon Setup 9-10
6 Head Plaorm Setup 11
7 Cable Guide Support Rod Setup 11-12
8 Red, Blue & Yellow Wire Assembly 12-15
9 Weight Rod Assembly 16
10 Spin-3 Pan Tilt Head Setup 16-17
11 3-Axis Joysck Controller Setup 17-18
12 Balancing Points of Pan Tilt Head 18-21
13 Lanc Zoom Controller Setup 22-26
14 Final Setup 27
INDEX

6
Safety Hints of Jib Crane
ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO
EQUIPMENT & OPERATOR!
• The crane may not be assembled or operated under inuence of alcohol, drugs or any other
intoxicang substances. Lack of aenon while connecng the components together can
cause substanal damage to equipment/operator.
• The crane may only be operated on levelled horizontal posion. Make sure that the surface is
stable.
• To prevent any harm or injury, properly join all secons of the crane. It is suggested to use
the support stand while telescoping the complete length.
• Always connect the steel cables properly to provide stability to the system. They should not
negavely impact the movements of crane in any way.
• Aer setup of the crane, the pan-lt head / gimbal head shall be posioned under the cen-
tral pivot secon. In assembled state, when the pan-lt head / gimbal head is higher than
central pivot secon, there should be someone to look aer the crane system.
• The complete panning & liing range around it must be kept free. Avoid anybody standing
under the crane. No loose objects may be stored or placed on it. Be very careful while using
indoors.
• Never operate the crane in the immediate vicinity of high-voltage power cables. It holds
danger to life.
• Parcular care is required when operang the crane in unfavourable weather condions. The
crane must be shut down in sucient me. When it is used in a rainy day, the pan-lt head /
gimbal head and controlling bar shall be protected against rain.
• When you want to transport the crane, lock the Pan & Tilt Axis for safety. Make sure that the
components do not rub together and cause any material wear.
• Before the counterweights are removed, ensure the remote head is resng on the support
stand. Then gradually remove the counterweights before remote head, camera or other
parts.
• In the interest of safe crane operaon, avoid abruptly swivelling or stopping the crane, other-
wise it may cause serious damage to equipment.
FOLLOWING THESE GUIDELINES WILL PROVIDE BETTER SHOTS AND TROUBLE FREE OPERATION.
SHOULD YOU NEED ADDITIONAL INFORMATION, TECHNICAL ASSISTANCE IS AVAILABLE ‘ONLINE’
BY CONTACTING THE SALES REPRESENTATIVE.

7

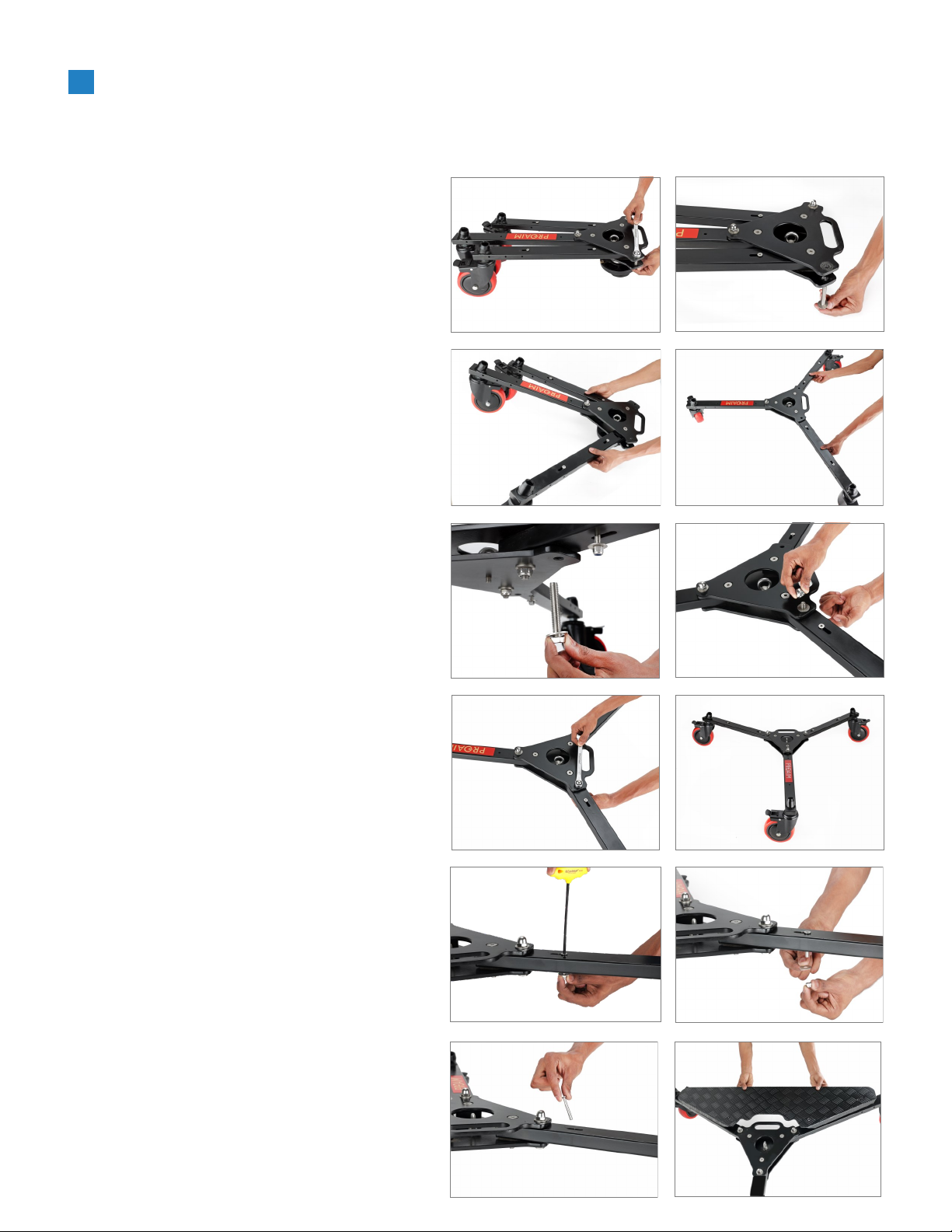

• Aer spreading both the legs of the D-37
Dolly, Insert the bolt with the washer, nut
matching the boom thread of the dolly.
• Properly ghten the bolt and nut using a
spanner.
• Follow the same process for the remaining
legs.
• Now, loosen and remove the bolts, washer
& bolts of the D-37 Dolly leg using the Allen
key, as shown in the image.
• Similarly, remove the bolts of the remaining
leg and place the dolly plaorm on the
Dolly.
• Aer removing the bolt along with the
washer properly pull each leg out unl it
reaches the joining point.
• Loosen and remove the Allen bolts &
Washer from the outer legs of the dolly
using a spanner.
D-37 Dolly Assembly
NOTE: To avoid unwanted accident while assembling the crane, please assemble the dolly with supporng
feet. It also increases the stability.

8

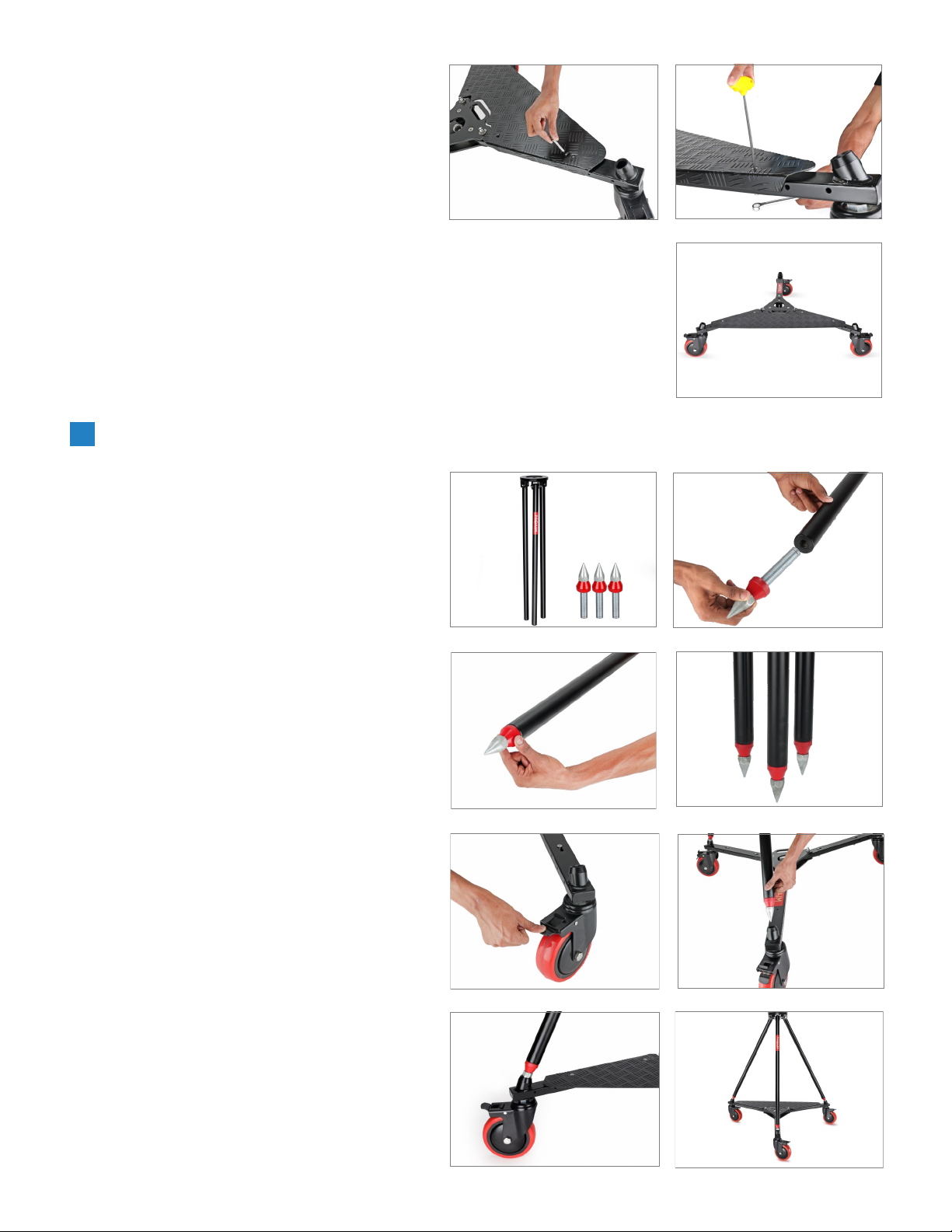

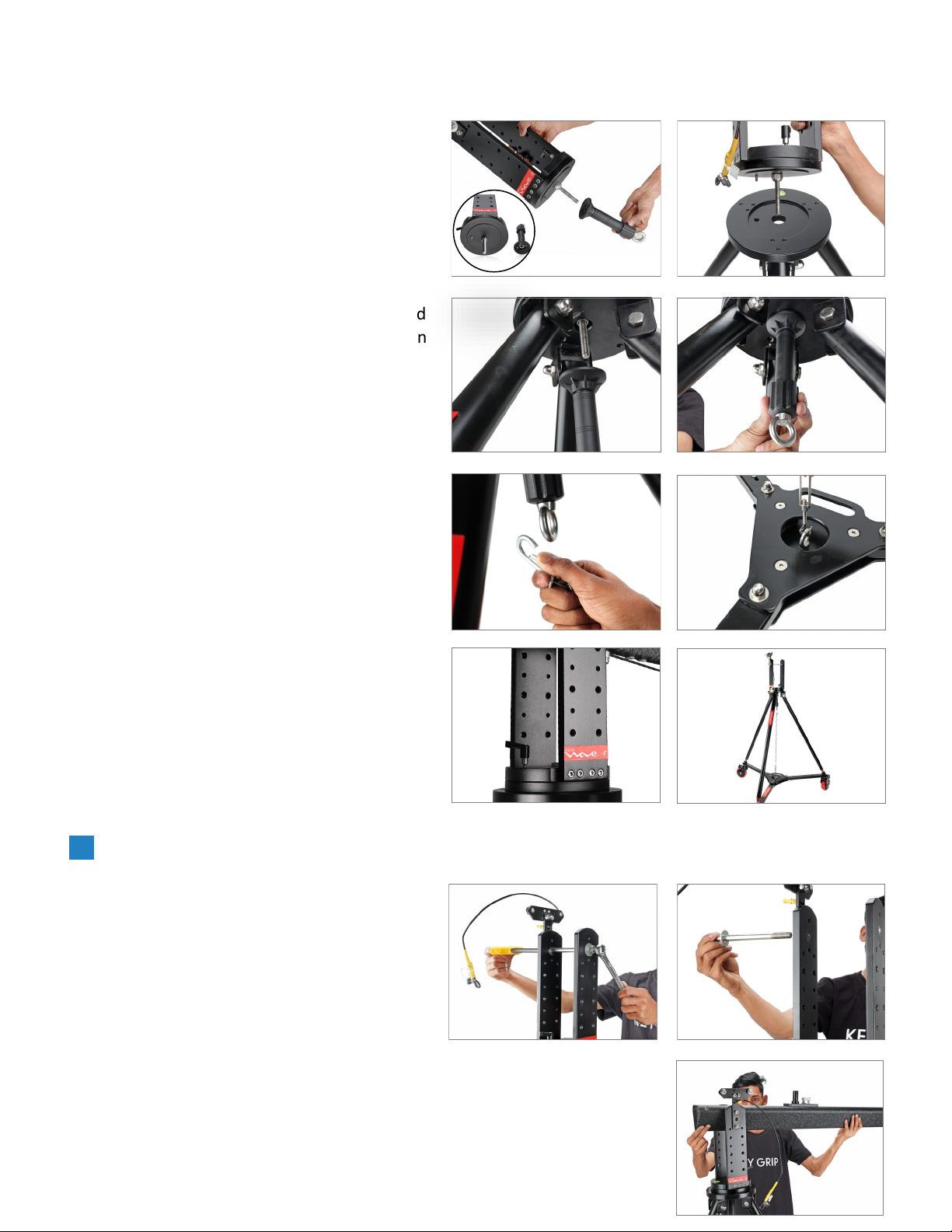

• Aach the stand foot by twisng it into the
leg of the Tripod Stand.
• Similarly, follow the same process for the
remaining legs as shown.
• Aer aaching the dolly plaorm to the
D-37 Dolly, screw in the Allen bolts to
desired posions and ghten all the
connecons with the help of Allen key.
Tripod Stand (W5-STD) Assembly
• The Plaorm Dolly is properly aached as
shown in the image.
• Set the posion of the wheels and lock the
wheels with the provided Lever which allows
you to have stable shoots.
• Aach the legs of tripod stand with D-37
dolly as shown in the image.
• Properly align and aach the legs of the
Tripod Stand on the D-37 Dolly.
Feature: Jib Stand with a versale Dolly
facilitates a sturdy base & impressive payload
in any terrain.

9
• Wire tensioner and safety chain setup
should be properly aligned to ensure
stability.
Feature: Central Fork that oers smooth
pan-lt movements while absorbing unwanted
vibraons or movements.
• Loosen and remove the bolts, washer, nuts
of the Central Fork using the Allen Key and
Spanner.
• To add stability to your Jib, aach the wire
tensioner with the hook on the locking
clamp, then aach the safety chain with the
pin on the D-37 Dolly.
• Mount the second secon by matching it to
the center of the central fork.
Feature: Modularly designed heavy-duty crane
transforms into various sizes with adjustable
arms ranging from 12 to 24.
• Detach the Locking Clamp from the Central
Fork and mount it on the Tripod Bowl.
• Then, re-ghten the locking clamp and
securely aach the Central Fork, as shown
in the image.
Jib Secons Setup
Central Fork Assembly

10
• All the bolts are properly removed, as
shown in the image.

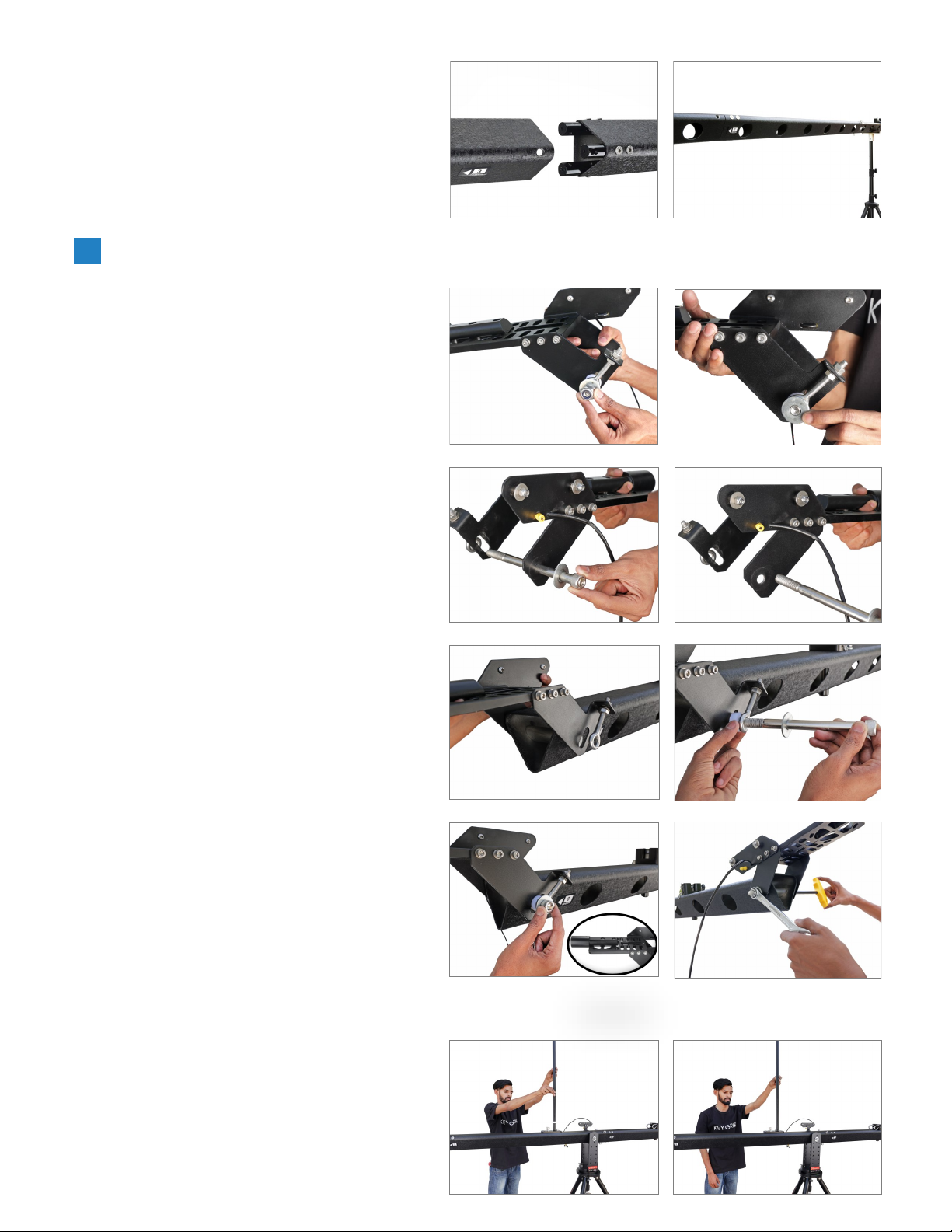

• Now, align both the secons and Install the
Allen screws to the joining holes of both the
secons and ghten.
• Align the 2nd secon with the Central Fork
and insert the bolt and nut into it.
• Now, ghten and secure it using the
Spanner and Allen Key.
• Remove all the bolts with the help of the
Allen key before connecng Secon 1st to
Secon 2nd.
• Now, ghten the all bolts properly to secure
the jib secon together.

11

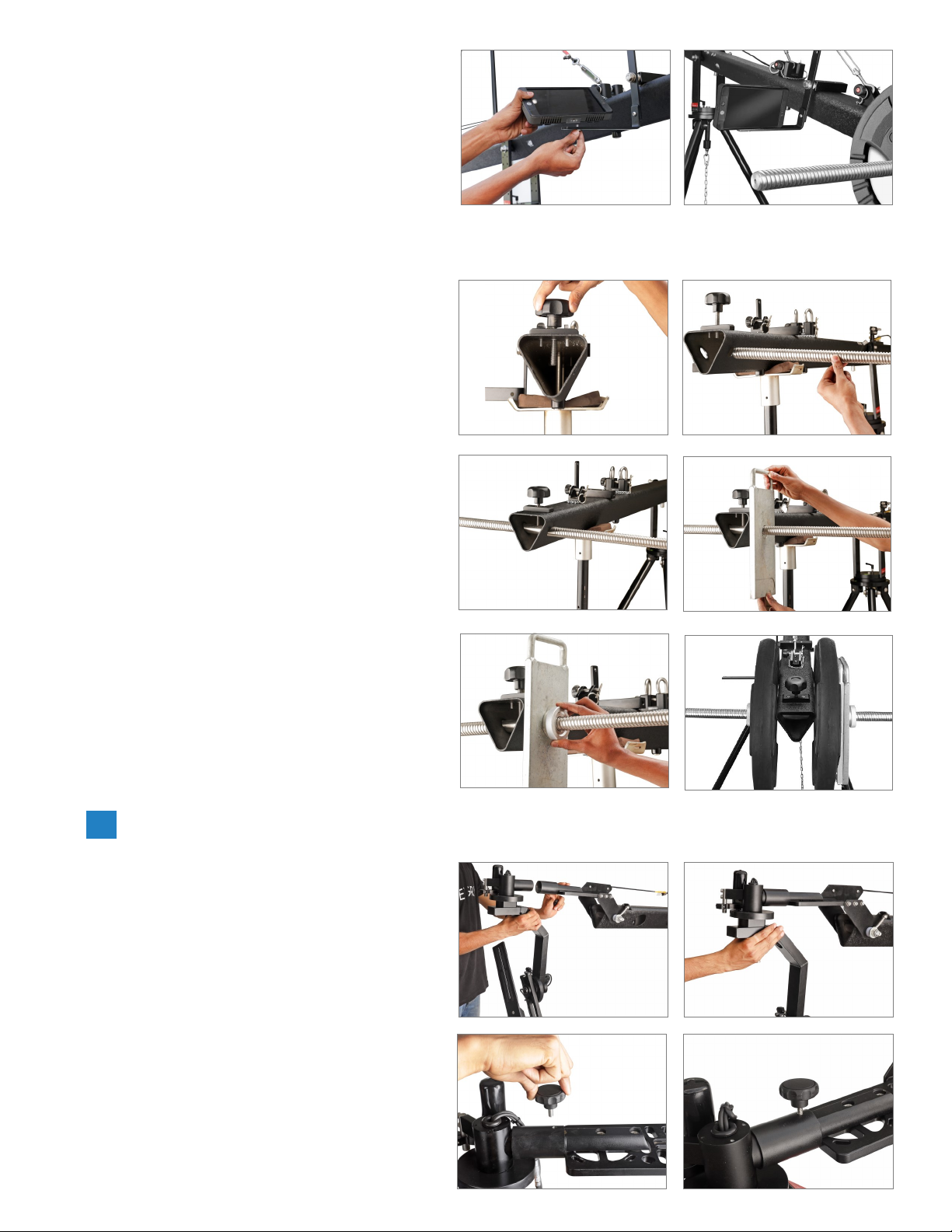

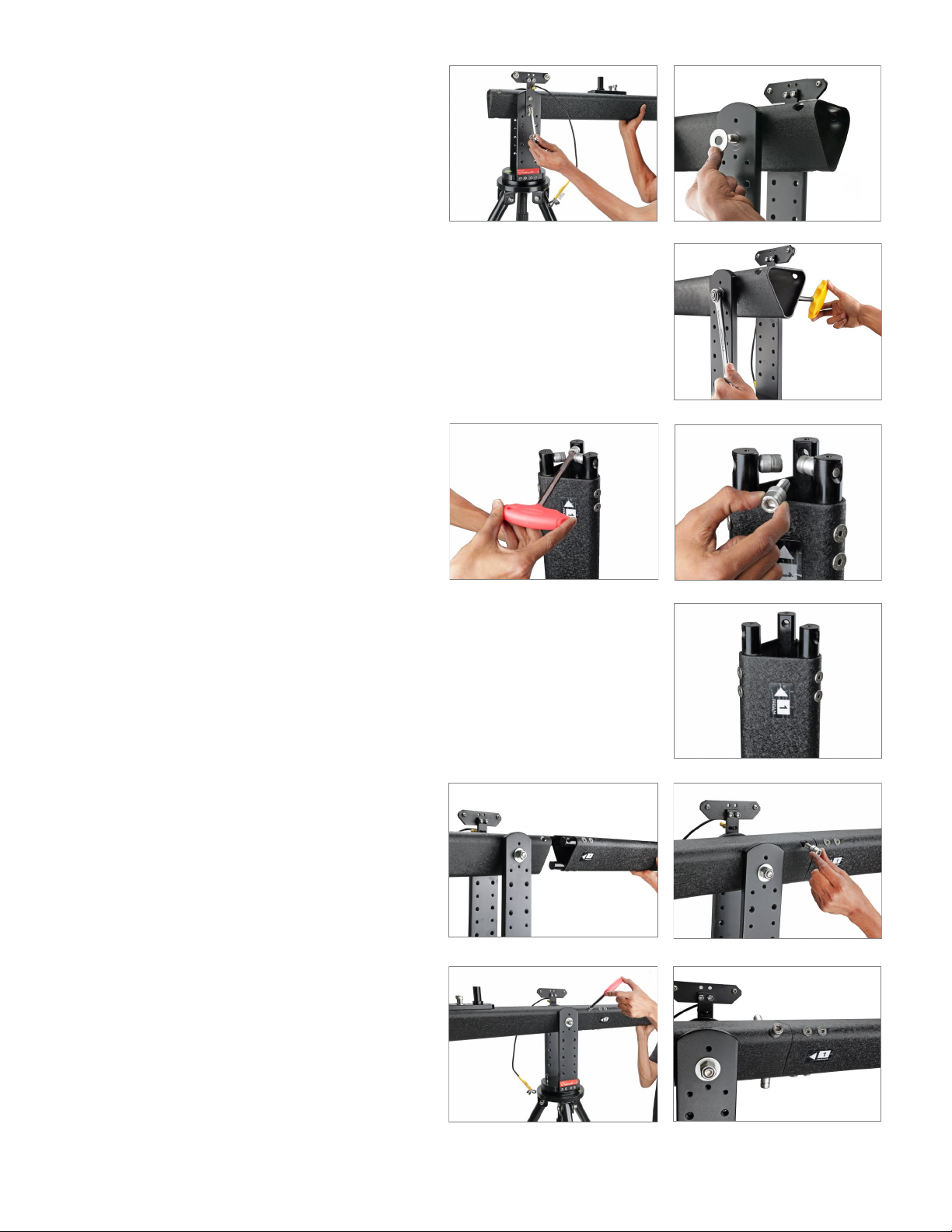

Head Plaorm Setup
• Using the same approach insert 3th, 4rd and
remaining secons to the joints and secure
via bolts, as shown in images.
• Remove the threaded pin from the head
plaorm to install the head plaorm
assembly.
• Install the Head Plaorm assembly
(leveling arm up) to the end of the smallest
secon with the provided bolt, sha collars,
washers, and nut.
• Loosen the bolt of the Head plaorm and
remove the aached nut and washer.
• Tighten all the Allen bolts, nuts with the help
of Allen and wrench to secure them
properly.

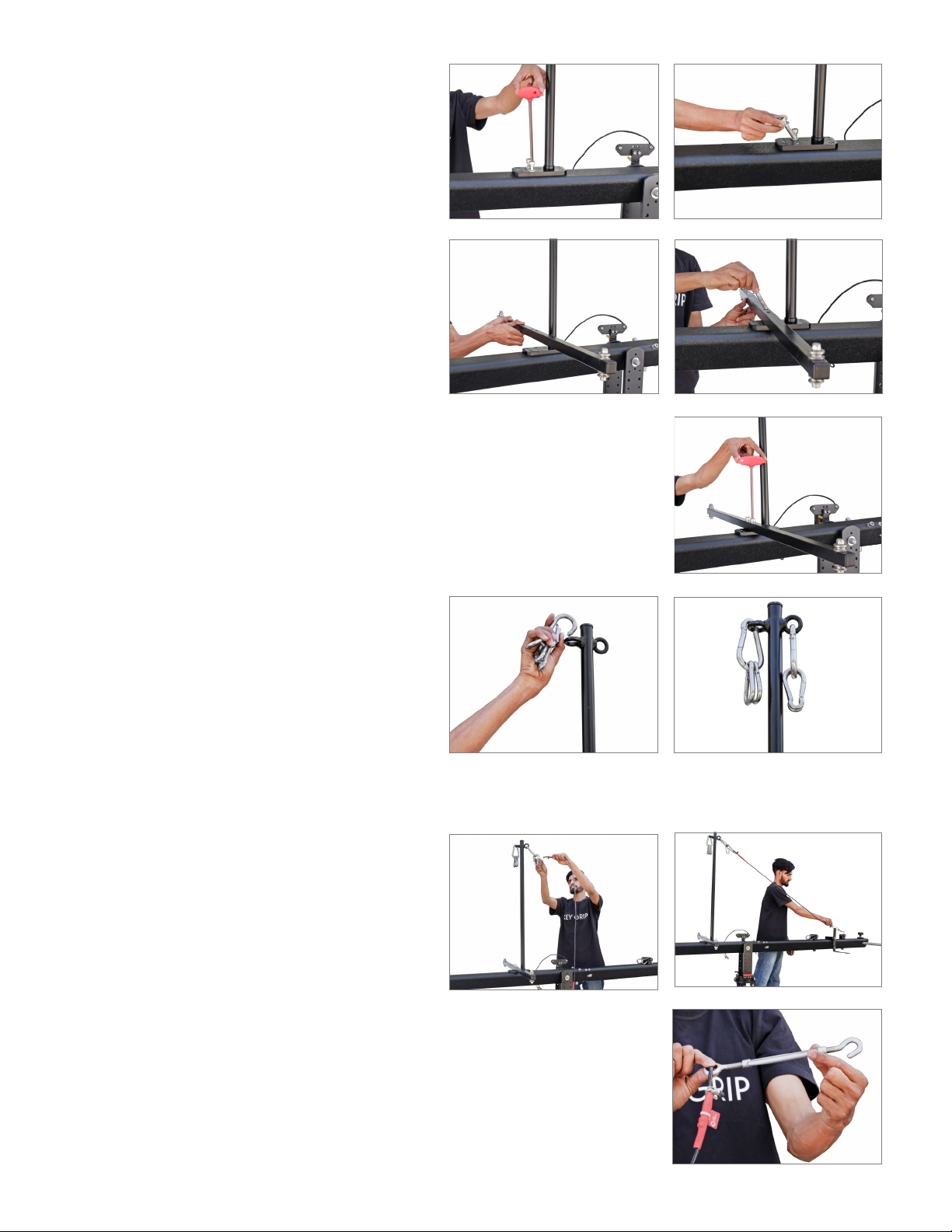

Aaching the Cable Guide Support Rod
• Insert and secure the cable guide support
rods by matching them with the Secon 2
cable guide Clamp.

12
• Align the cable guide support rod on Secon
2 and re-insert the bolt.
• Re-ghten the bolt using an Allen key as
shown in the image.
• Loosen and remove the bolt of Secon 2
using the Allen key.
• Aach 2 big hooks on both slots on cable
guide.
• Follow the same process for the second pair
of hooks.

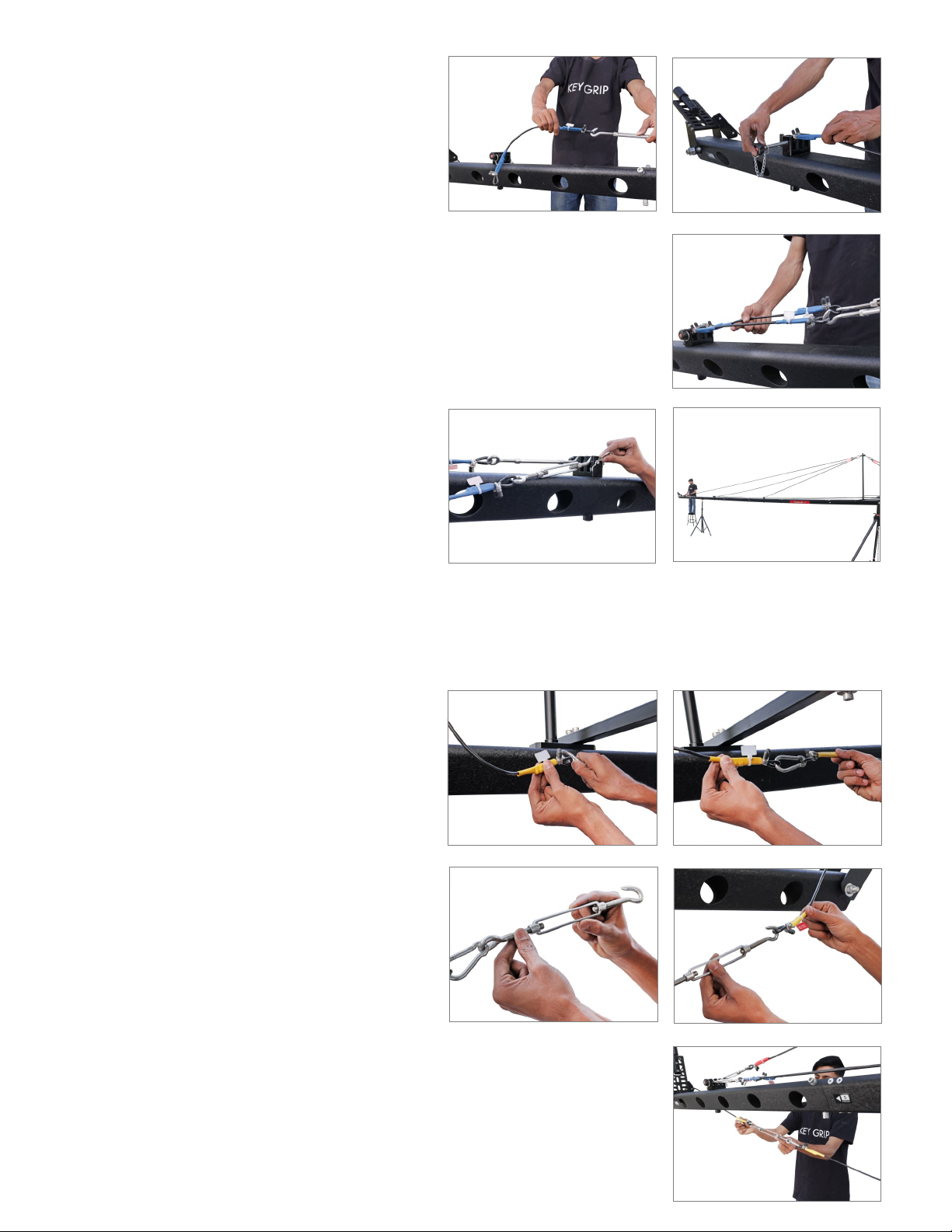

NOTE: Its color-coded suspension cables let
you assemble the enre setup quickly.
• Insert one end of the cable into the hook of
the cable guide rod, then aach the other
end of the cable to the clamp of Secon 1.

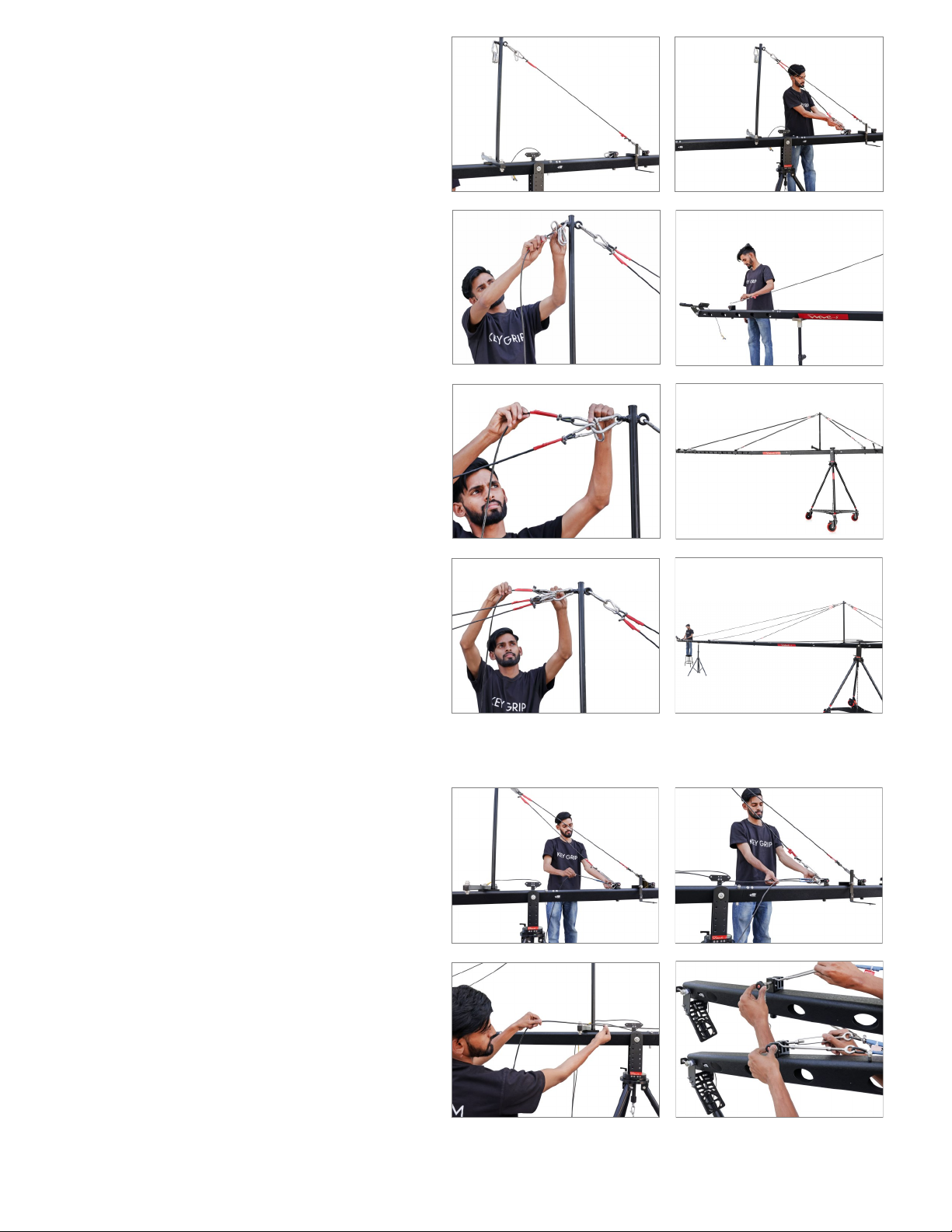

Aaching the Red Stability Cables
NOTE: If the length of the wire is short, loosen
the hook to increase its size.

13
• Insert one end of the cable into the hook of
the cable guide rod, then aach the other
end of the cable to the clamp of Secon 8.
• Follow the same process to aach the
2nd wire with the Jib, as shown in the
image.
• Red wire is properly connected with jib
secon 1.
• Follow the same procedure for the other
short red wire as shown in the image.
• Aach the two Blue cables with the hook of
Secon 1.
NOTE: Align the cable to the cable guide from
side and adjust the cable with help of wire
tensioner. Same approach apply at other side
of jib
• Connect the end of the two blue cables into
the slot of secon 8th with the help of the
knob.
• Connect the other blue wire into the slot of
the same jib secon 8 and adjust the length
of the wire with the help of a wire tensioner.
Aaching the Blue Stability Cables
• Insert one end of the red cable into the hook
of the cable guide rod secon 2nd then
aach the other end of the cable to the
clamp of Secon 8.
Feature: Its color-coded suspension cables let
you assemble the enre setup quickly.

14
NOTE: If the length of the wire is short, loosen
the hook to increase its size.
• Connect the yellow cable to the wire
aached to the head secon.
• Similarly, connect the other hook joint to
the other wire part properly.
NOTE: Join all the yellow cables together, make one long cable, and aach it to the Jib.
• Aer aaching the blue wire, lock the wire
properly with a safety pin.
• The blue wire is properly connected to the
jib secon as shown in the image.
Aaching the Yellow Stability Cables
• Connect the yellow cable to the hook
already aached to the central fork yellow
wire.
• Hook 1 meter blue cable to the wire
tensioner and hook it into the cable slot of
secon 8th of the jib secon then secure the
wire with the help of the locking knob.
NOTE: If the length of the wire is short, loosen
the hook to increase its size.
• Similarly, aach the other hook joint
properly to the other wire part and secure
the wire.

15

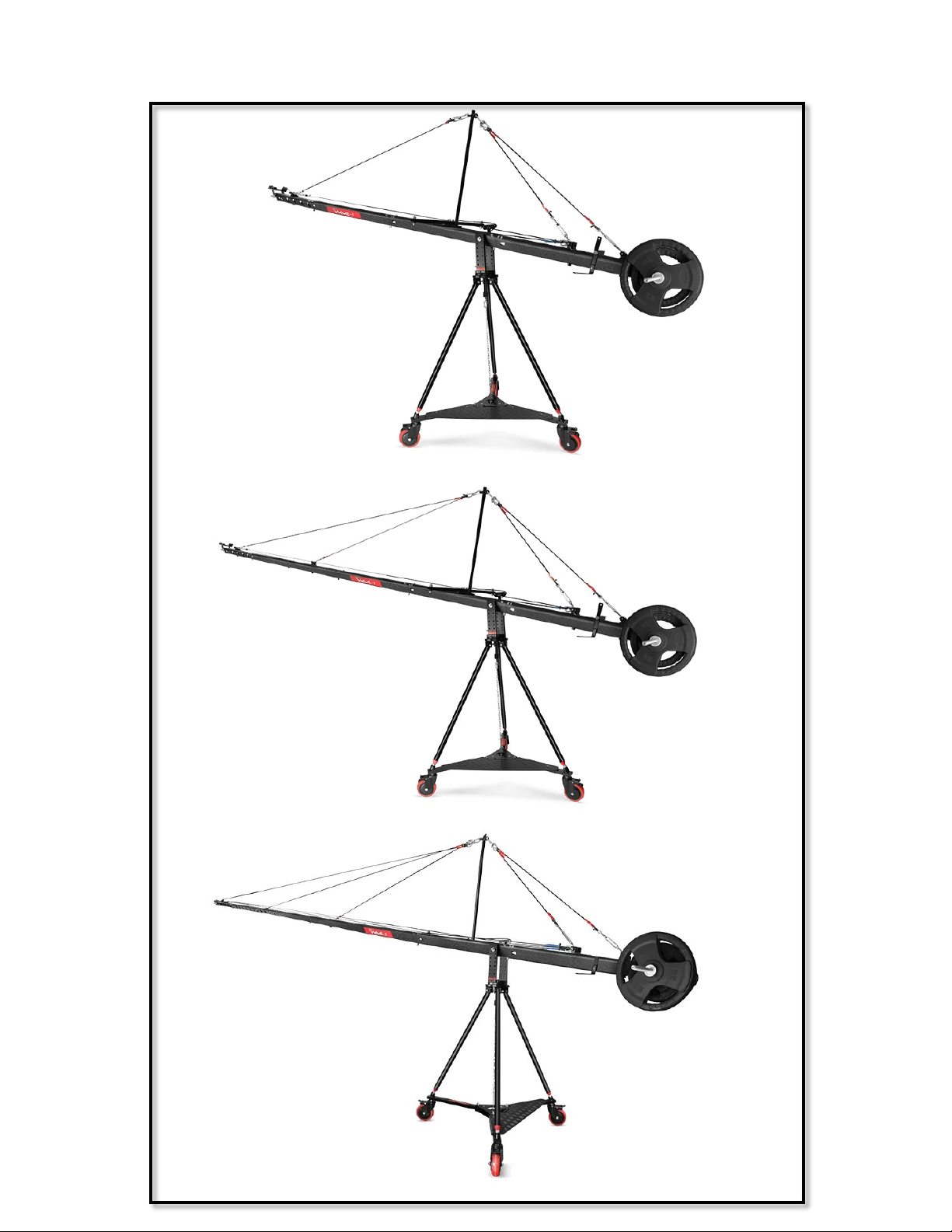

Fits Dierent Shoong Length
16, 24 & 32

16

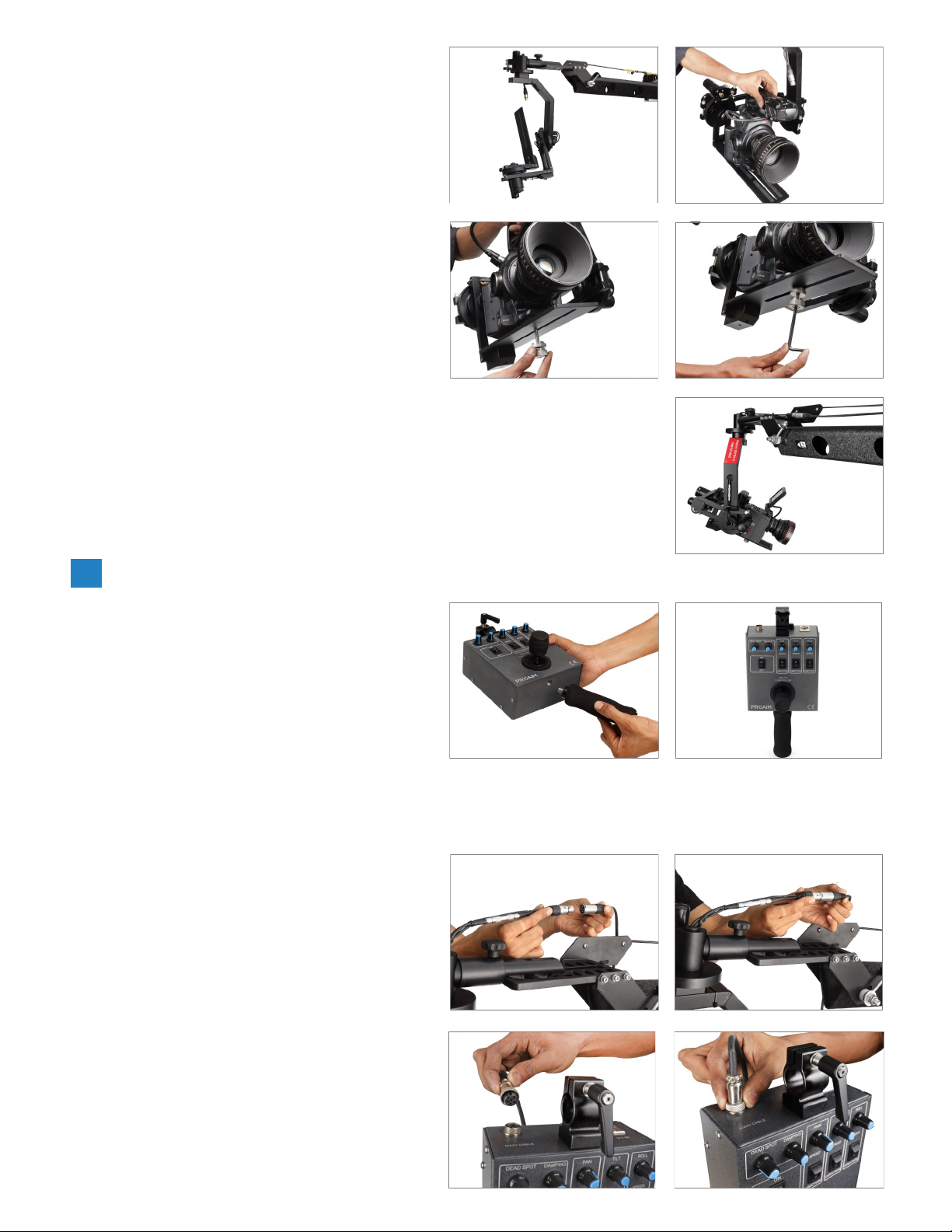

Spin-3 Pan Tilts Head Setup
• Then secure the pan-lt head using the
provided knob, as shown in the image.
• Aach the Spin-3 (3-Axis) Pan Tilt Head into
the head plaorm mounted on the end of
the jib.
• Aer inserng the weight rod, reghten the
knob to ensure slip free connecon. Then
put weight (Not Included) to both ends of
weight bar rod.
Weight Rod Assembly
• Loosen the knob of the jib secon and insert
the weight rod into it.
• Aer adding weight, insert weight closure to
secure the weight properly.
• Aach the LCD (Not Included) to the LCD
mounng arm insert the screws by aligning
the holes with each other then ghten with
the help of Screw Driver.
• LCD is properly assembled with mounng
arm as shown in the image.

17
• Now, PT-SPIN-3 is properly aached to the
front of the Jib secon.
• Mount your camera (Not Included) on
camera mounng plate of Pan Tilt Head.
• Insert the check nut through the boom of
the head and secure the camera with the
help of an Allen key.
• Connect the handle to the joysck
controller as shown in the picture.
3-Axis Joysck Controller Setup
• Install your cable starng at the camera end
and making sure to leave enough slack for
full pan and lt movements.
• Connect 15mtr control cable with motor
cable.
• Camera is properly secured with head
secon as shown in the image.
• Then connect the other cable to the main
cable port on the joysck controller.
The Pan Tilt Head circuitry is built enrely into the Joysck Controller. The only requirement is AC
adapter (Included) or Baery Power (Not included). The AC adapter can handle 100-240 volts. Users will
need the appropriate plug adapter for local use.

18
• Aer inserng the joysck box into the
weight rod, ghten the knob properly to
secure it.
• Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt
Head is properly assembled with jib secon.
• Install 12 volt AC adapter (4 pin XLR) in the
socket of Joysck Box.
NOTE: Any 12 volt baery may operate this
Pan Tilt Head as long as the Connector and the
#1 Negave pin & #4 Posive pin of Cable
meet together.
• (4 pin XLR) and controller cables are both
installed in the sockets of the joysck box.
• Insert the joysck box into the weight rod.
CAUTION: The power specicaon we have
provided is as per 12volt. For this, we provide
a 12volt/3ampere regulated power adapter.
In case you use a voltage higher than 12V, it
will aect the performance and life of the
motor, and there is a high risk of the motor
geng damaged.
Balancing Points
• Find the horizontal balance point of your camera by using 2 ngers of one hand while holding handle.
• Mark this point on the side of the camera with chalk or tape.
• Turn the unit on and move the lt control unl the camera plate is vercal.
• Loosen the two screws holding lt motor.
• Grasp the motor and turn slightly to disengage gears.
• Mount the camera to the camera plate with the screw provided.
• Tighten by threading the nut up to the boom of the camera plate securely.
• Make sure your balance point previously marked with chalk or tape is in the middle of the plate.
• Loosen the knob below the camera plate and slide the camera and plate up or down unl the centre line
of your camera is about in the middle of the large gear. Now ghten knob.
• If the camera is perfectly balanced it will stay in any posion while motor gear is sll unaached.
• Grasp the motor and turn it back unl the gears mesh.
• Gently ghten motor screws.
• Secure the camera.
NOTE: All reducon boxes have a small amount of backlash. The balancing of the camera will reduce the
backlash to a minimum making it felt at the top of the lt.
Follow these steps to Balance the Pan Tilt Head

19
Balancing Tips:
Weights required for balancing only Jib (without camera & Pan Tilt) is: 98 Kg (216 lbs)
For balancing 7 Kg (15.4 lbs), we further need another 45.5 Kg (100.3 lbs), the formula is:
(Weight of Camera + Pan Tilt) x 6.5 = Addional counter weight required to balance the
equipment on the Jib
(e.g. 7Kg x 6.5 = 45.5 Kg)
Total recommended weight: 143.5 Kg (316.3 lbs)
32’ Jib
Weights required for balancing only Jib (without camera & Pan Tilt) is: 67.7 Kg (149.3 lbs)
For balancing 7 Kg (15.4 lbs), we further need another 39.2 Kg (86.4 lbs), the formula is:
(Weight of Camera + Pan Tilt) x 5.6 = Addional counter weight required to balance the
equipment on the Jib
(e.g. 7Kg x 5.6 = 39.2 Kg)
Total recommended weight: 106.9 Kg (235.7 lbs)
28’ Jib
Weights required for balancing only Jib (without camera & Pan Tilt) is: 47.7 Kg (105.2 lbs)
For balancing 7 Kg (15.4 lbs), we further need another 29.4 Kg (64.8 lbs), the formula is:
(Weight of Camera + Pan Tilt) x 4.2 = Addional counter weight required to balance the
equipment on the Jib
(e.g. 7Kg x 4.2 = 29.4 Kg)
Total recommended weight: 77.1 Kg (170 lbs)
24’ Jib

20
Weights required for balancing only Jib (without camera & Pan Tilt) is: 12.7 Kg (28 lbs)
For balancing 7 Kg (15.4 lbs), we further need another 17.5 Kg (38.6 lbs), the formula is:
(Weight of Camera + Pan Tilt) x 2.5 = Addional counter weight required to balance the
equipment on the Jib
(e.g. 7Kg x 2.5 = 17.5 Kg)
Total recommended weight: 30.2 Kg (66.6 lbs)
16’ Jib
Weights required for balancing only Jib (without camera & Pan Tilt) is: 25.3 Kg (55.8 lbs)
For balancing 7 Kg (15.4 lbs), we further need another 25.9 Kg (57 lbs), the formula is:
(Weight of Camera + Pan Tilt) x 3.7 = Addional counter weight required to balance the
equipment on the Jib
(e.g. 7Kg x 3.7 = 25.9 Kg)
Total recommended weight: 51.2 Kg (112.8 lbs)
20’ Jib
Weights required for balancing only Jib (without camera & Pan Tilt) is: 1.7 Kg (3.7 lbs)
For balancing 7 Kg (15.4 lbs), we further need another 10.5 Kg (23.1 lbs), the formula is:
(Weight of Camera + Pan Tilt) x 1.5 = Addional counter weight required to balance the
equipment on the Jib
(e.g. 7Kg x 1.5 = 10.5 Kg)
Total recommended weight: 12.2 Kg (26.8 lbs)
12’ Jib
