Qlight SSEL Series User manual
1
6040
66
Explosion Proof LED Perimeter Light
SSEL
Ex
Ordering Specications
SSEL
-
220
-
R
[Model number] [Voltage] [Color]
| | |
• SSEL
• 12-DC12V
• 24-DC24V
• 110-AC110V
• 220-AC220V
R-Red
A-Amber
G-Green
B-Blue
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Safety Precautions for Explosion Proof Products
1. During wiring or maintenance, please completely turn o-• the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a ¿re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point.
(Failure to follow these instructions may lead to ¿re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to ¿re, electric shock, or product damage.)
5.
When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device.
(Failure to follow this may cause damage to property, ¿re, electric shock and loss of life.)
Precaution for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
Please follow the instruction below to ensure safe and correct use of explosion proof products.
1. Explosion proof products should be managed according to explosion-proof regulations. Do not disassemble, assemble, alter or repair
the product arbitrarily.
2.
The temperature rating of the product is the temperature the product will experience at the applied rated voltage and ambient
temperature indicated.
3. Use cable glands that satisfy the product’s explosion proof grade and temperature grade.
4. Unused cable entries must be ¿lled with material that meets the explosion proof grade and temperature rating.
5. Before installing the product, please make sure all cautions indicated on the labels, packaging, and operation manual of the product are
fully understood.
6. Installation, maintenance and repair of the product must be performed by experts in the explosion proof ¿eld, or persons who have
received relevant training.
7. For safety, the product should be installed and operated in environments that avoid high temperature and high pressure.
8. Please follow general safety precautions and avoid installing the product in locations that may generate excessive heat.
9. When installing the product in places where chemicals are located, please make sure that the environment does not have two or more
incompatible chemicals mixed. For safety, please read the instruction manual carefully and be mindful of the chemical compositions
where the product is used.
10. This product requires grounding.
11. When using NPT cable glands (plugs), it is recommended to use them after applying non-hardening grease to maintain protective
performance.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o-• the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s speci¿cation.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, ¿re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
Please scan the QR code
for more
detailed product information.
www.qlight.com
2
Model number
SSEL
Range of
operating voltage
AC/DC 12V or 24V
AC 110V or 220V
Ex mark
Ex d II C T6
Ambient operating
temperature
–40°C ≤ Ta ≤ 60°C
Explosion proof
Zone
Zone1, Zone2
Protection rating
IP66
Model number Voltage Current Certi¿cates Weight Color
SSEL
DC12V 0.466A
2.54kg R-Red
A-Amber
G-Green
B-Blue
DC24V 0.255A
AC110V 0.040A
AC220V 0.040A
4-Ø8.5
FITTING HOLES
154
134
134
154
172
15
805
CABLE ENTRY 1/2'' NPT
SSEL
Dimensions
(Units : mm)
Product Specications
■
Explosion Proof Specications
■
General Product Specications
Zone
de¿nitions(Gas)
Zone 1
High risk gas/vapour(Gas)
Zone 2
Medium risk gas/vapour(Gas)
Group
de¿nitions(Gas)
GROUP II A
Acetone, Petrol, Methanol, Propane, Toluene
GROUP II B
Ethylene, City gas
GROUP II C
Hydrogen, Acetylene, Carbon sulphide
Maximum surface
temperature of
electrical Equipment
T1
450
°C
T2
300°C
T3
200°C
Zone
de¿nitions(Dust)
T4
135
°C
T5
100
°C
Group
de¿nitions(Dust)
T6
85
°C
Zone 21
High risk powder/dust(Dust)
Zone 22
Medium risk powder/dust(Dust)
Group
de¿nitions(Dust)
GROUP II A
Ignitible ¿bers/yings(more than 0.5mm)
GROUP II B
Non-conductive dusts
GROUP II C
Conductive dusts
Terminal Box Wiring Instructions
• Terminal block is located inside of the product. Unscrew the 4 bolts located in the upper
body to get rid of the upper lighting element of the unit.
• Please apply fork (U-type) or ring (O-type) locking spade terminal at naked tip of the wire
for secure connection.
• Please wire the power line to terminal ①
• For AC type products, wire regardless of polarity.
• For DC type products, wire terminal of black line to (-) polarity.
• External power line -
UL1015 AWG18(0.75sq) x 2C 400mm
①
3
①
■ Installation
4-Ø9 HOLES
134
134
Lens
(Tempered glass)
Housing(Al)
Bolt
Grounding Instructions
M4 ground contact part
• Please use an M4 bolt at the location marked in the diagram above to ground the product.
• When connecting the grounding cable, please use a ring terminal.
• Please use a grounding cable with a diameter greater than 4mm.
•
First, machine taps or holes on the mounting surface
①
.
•
The mounting hole of this product is 8.5mm in diameter.
•
When machining taps, fasten the bolt through the mounting hole of the product.
•
When machining holes, insert the bolt through the hole of the product, and tighten the nut from the opposite side of the mounting surface.
Parts Denition/ Installation/ Mounting Hole Specications
• Machine holes on the mounting surface referring to the
diagram below.
■ Mounting Hole Specications
Installation Environment and Protection Rating
• This product is designed to be explosion proof.
• Please make sure to use the product in an environment that meets the speci¿ed explosion proof rating and regulations.
• For further information, please visit our website (www.qlight.com).
Head O-ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea
Tel. +82-2-2679-6152(Toll free. +82-80-328-2222) Fax. +82-2-2679-6154
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111)
Qlight OverSEAs Sales Dept |
704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100
Qlight Public Relations & Marketing Team O-ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. +82-51-245-0017
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. +1 - 408 - 519 - 5740 Fax. +1 - 408 - 519 - 5739
China Factory/ Shanghai Sales O-ce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. +86
-
21
-
6651
-
7100 Fax. +86
-
21
-
6315
-
3929
China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China
Tel +86
-
513
-
8384
-
9999 Fax +86
-
513
-
8384
-
9910
Product Operation Inquiry / Customer Support +82-51-620-4100
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea ( Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea ( Postal Code : 50805)
For your safety
Speci¿cation and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - SSEL - 2305A
This manual suits for next models
1
Other Qlight Lighting Equipment manuals
Qlight
Qlight QTG50 Series User manual
Qlight
Qlight STA35SL Series User manual
Qlight
Qlight ST45ML-Ex User manual
Qlight
Qlight S60LR User manual
Qlight
Qlight ST45ML Series User manual
Qlight
Qlight S150R User manual
Qlight
Qlight S80L User manual
Qlight
Qlight ST45ML-NEC User manual
Qlight
Qlight EMCL50U Series User manual
Qlight
Qlight STA25SLM Series User manual
Qlight
Qlight S80AS User manual
Qlight
Qlight STNDL-N User manual
Qlight
Qlight SH1S User manual
Qlight
Qlight SH1S User manual
Qlight
Qlight S80RK User manual
Qlight
Qlight QTG50ML User manual
Qlight
Qlight S100D Series User manual
Qlight
Qlight CPK-CAN User manual
Qlight
Qlight SK User manual
Qlight
Qlight Microlectra QTG50 User manual
Popular Lighting Equipment manuals by other brands
impact
impact PCLK-120 instructions
Robus
Robus RHA58405FT-24 instructions
Chauvet Professional

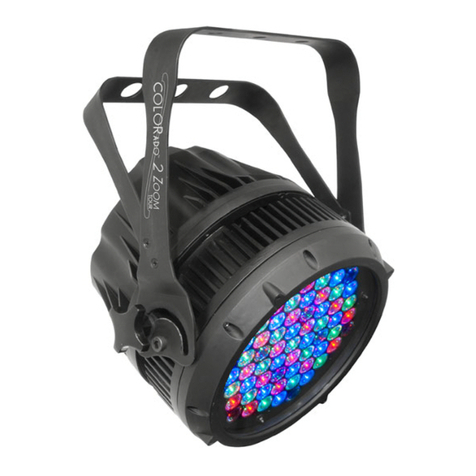

Chauvet Professional COLORado 2 Zoom Tour Quick reference guide
