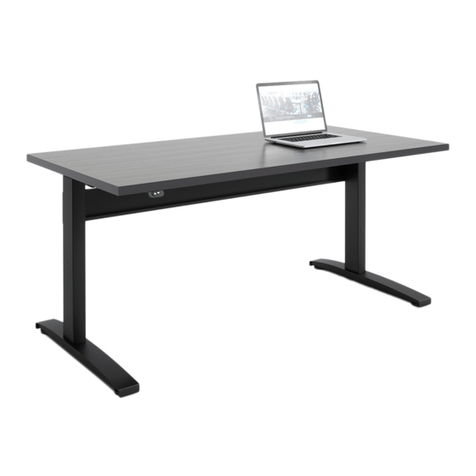

RIGHT ANGLE R-Style Screw Height Adjustable User manual

Instruction #54129 • Dated: 06/6/2018 1 of 4
R-Style Screw Height Adjustable Assembly Instructions
Warranty: raproducts.com/warranty

K&A Manufacturing • 800.298.4351 • www.raproducts.com/install 2 of 4
R-Style Screw Height Adjustable 54129
E. M6 x 1/2” Machine Screw x4
F. M6 x 9/32” Black Machine Screw x2
G. 5/64” x 1 3/8” Plate x2
H. 10 x 5/8” Round Washer Wood Screw x11
Tools Required for Assembly
A. Power Driver with Adjustable Torque
B. #2 Phillips Head Driver Bit
C. Level
D. Tape Measure
A B C
Hardware Included for Assembly (may have extra)
E HF G
D
I. R-Style Right Leg x1
J. R-Style Left Leg x1
K. Stability Panel x1
L. Beam x1
Parts
I J
K L

K&A Manufacturing • 800.298.4351 • www.raproducts.com/install 3 of 4
R-Style Screw Height Adjustable 54129
Step 2
A B
Spread beam to align
holes at top of legs with
inserts in worksurface.
H
F
• Install wood screws.
• Install machine screw and
plate for nal adjustment.
F
G
HF G
Step 1
A
A B
Detail A
• Remove and place beam into
slots on the leg columns.
J
I
L
J
I
L

K&A Manufacturing • 800.298.4351 • www.raproducts.com/install 4 of 4
R-Style Screw Height Adjustable 54129
Step 4
• Install wood screws
and tighten.
A B H
H
Step 3
• Install the machine screws into
the legs and panel hardware.
F
G
A B
B
Detail B
E
E F G
Spread stability panel
to t between legs.
K
K
If you have optional threaded inserts in your worksurface, refer to the insert
instruction #54134.
