SitOnit Seating Switchback User manual

SWITCHBACK
2-LEG 2-STAGE
ASSEMBLY INSTRUCTIONS
Create a smarter workplace solution with Switchback, our number one height-adjustable
table. Known for its classleading anti-collision technology, compact shipping size and instant
installation, it’s the go-to for a dynamic workspace—and it gets even better when you bundle it
with screens, power modules and keyboard trays for a complete, multifunctional workstation.
C6534 Rev. B
T-LegC-Leg

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS
COMPONENT LIST
#2 Phillips Screwdriver
• Column (2)
• Top Support (2)
• Cross-brace (2)
• U-pipe (1)
• Feet (2)
• Control Box (2)
• Hand Control (2)
• M5 × 20 mm Screw
• M10 × 16 mm Screw (8)
• M4 × 22 mm Screw (2)
• M10 × 17 mm Set Screw (2)
• M6 × 16 mm Screw (4)
• M6 × 8 mm Screw (2)
• Small Clip (3)
• Large Clip (1)
REQUIRED TOOLS
COMPONENTS
1:1 SCALE
5 mm Hex L-Key
(Included)
M4 × 22 mm
Screw
M5 × 20 mm
Screw
M6 × 8 mm Screw M6 × 16 mm ScrewM10 × 17 mm
Set Screw
M10 × 16 mm
Screw
Columns Top Supports Cross-braces U-pipe
Feet Control Box Hand Control M5 × 20 mm Screws M10 × 16 mm Screws
M4 × 22 mm Screws M10 × 17 mm Set Screws M6 × 16 mm Screws M6 × 8 mm Screws Small Clips Large Clip
Quantity of M5 x 20 mm screws varies by model. Carton contains extras.
OR
Cordless Drill / Driver
and #2 Phillips Bit
(Do not overtighten screws.)
2

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
STEPS
SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS
1
Column
Cross-brace

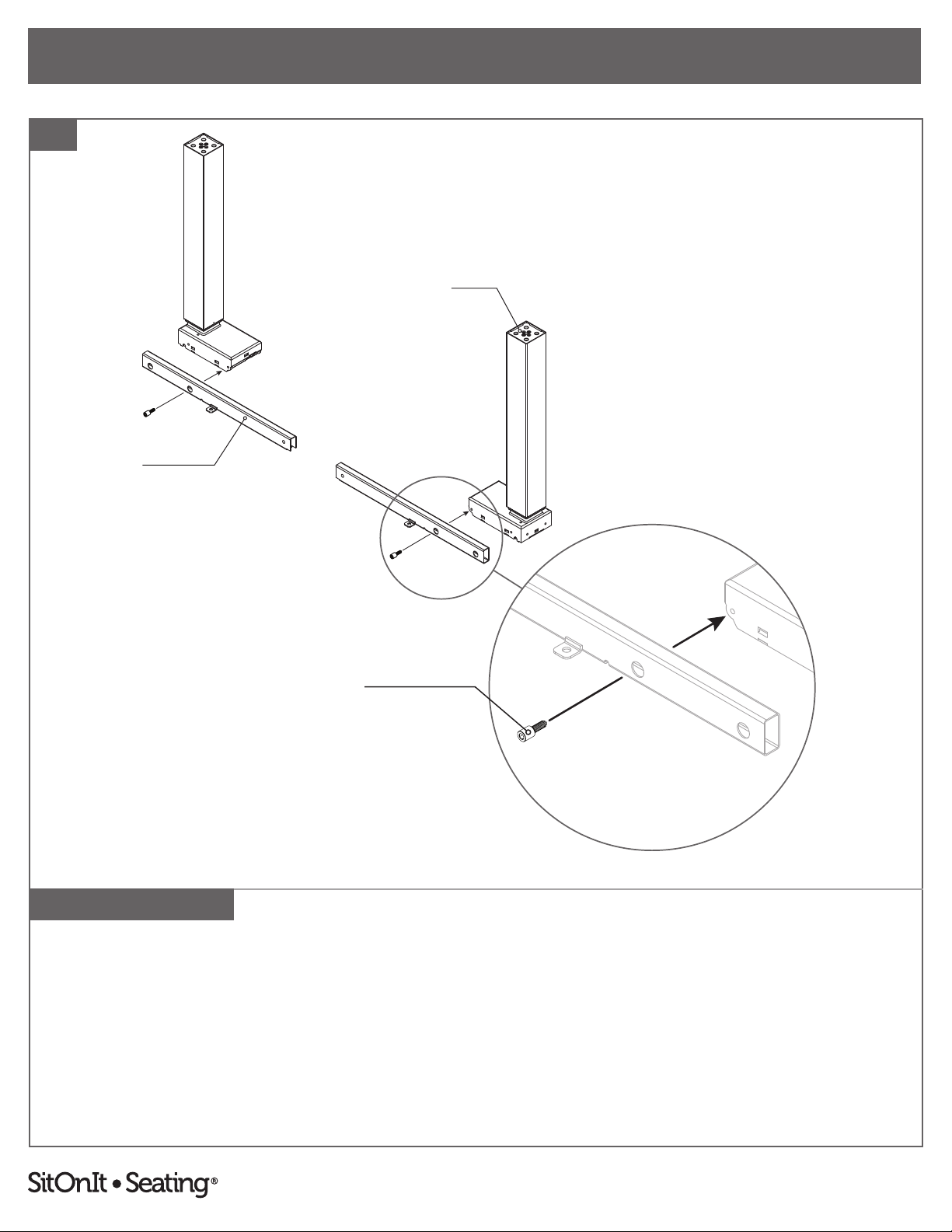

1. Place the columns into an upright position. Using the 5 mm hex L-key, fasten the cross brace to the motor
housing using one M6 × 16 mm screw in the position farthest from the column.
M6 × 16 mm Screw
3

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
STEPS
SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS
2
Top Support
Top Support
T-LEG
C-LEG
2. Place the top supports onto the assembly as shown. The ange on the top supports will be inserted into the
rectangular tube end. Install one M6 × 16 mm screw through each rectangular tube and top support ange into
the motor housing and tighten using the 5 mm hex L-key.
M6 × 16 mm Screw
M6 × 16 mm Screw
Column
Column
Cross-brace
Cross-brace
4

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
STEPS
SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS
3
4

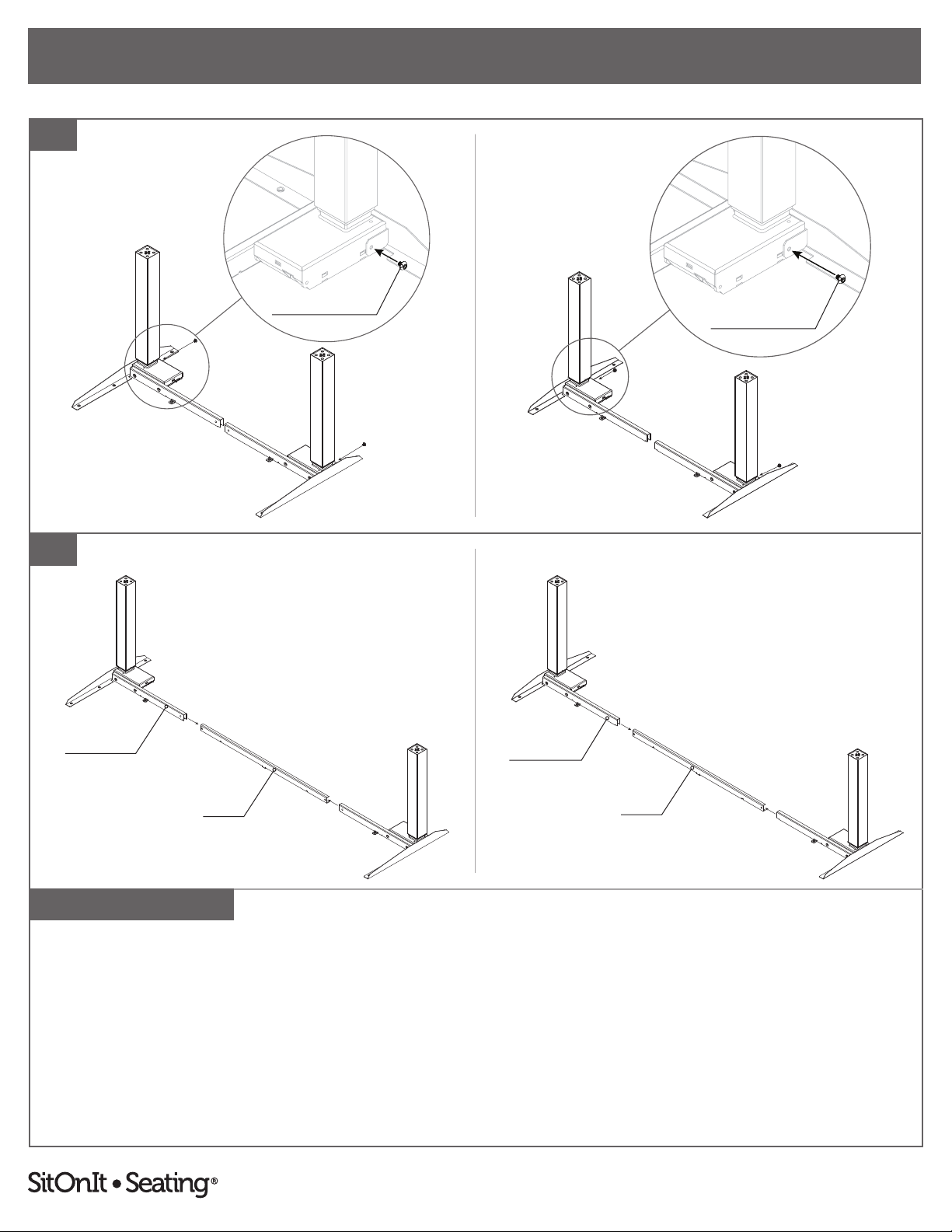

3. Install one M6 × 8 mm screw on the opposite side using the 5 mm hex L-key.
4. Insert U-pipe into cross-braces.
M6 × 8 mm Screw
M6 × 8 mm Screw
Cross-brace Cross-brace
U-pipe U-pipe
T-LEG
T-LEG
C-LEG
C-LEG
5

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
STEPS
SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS
5
6

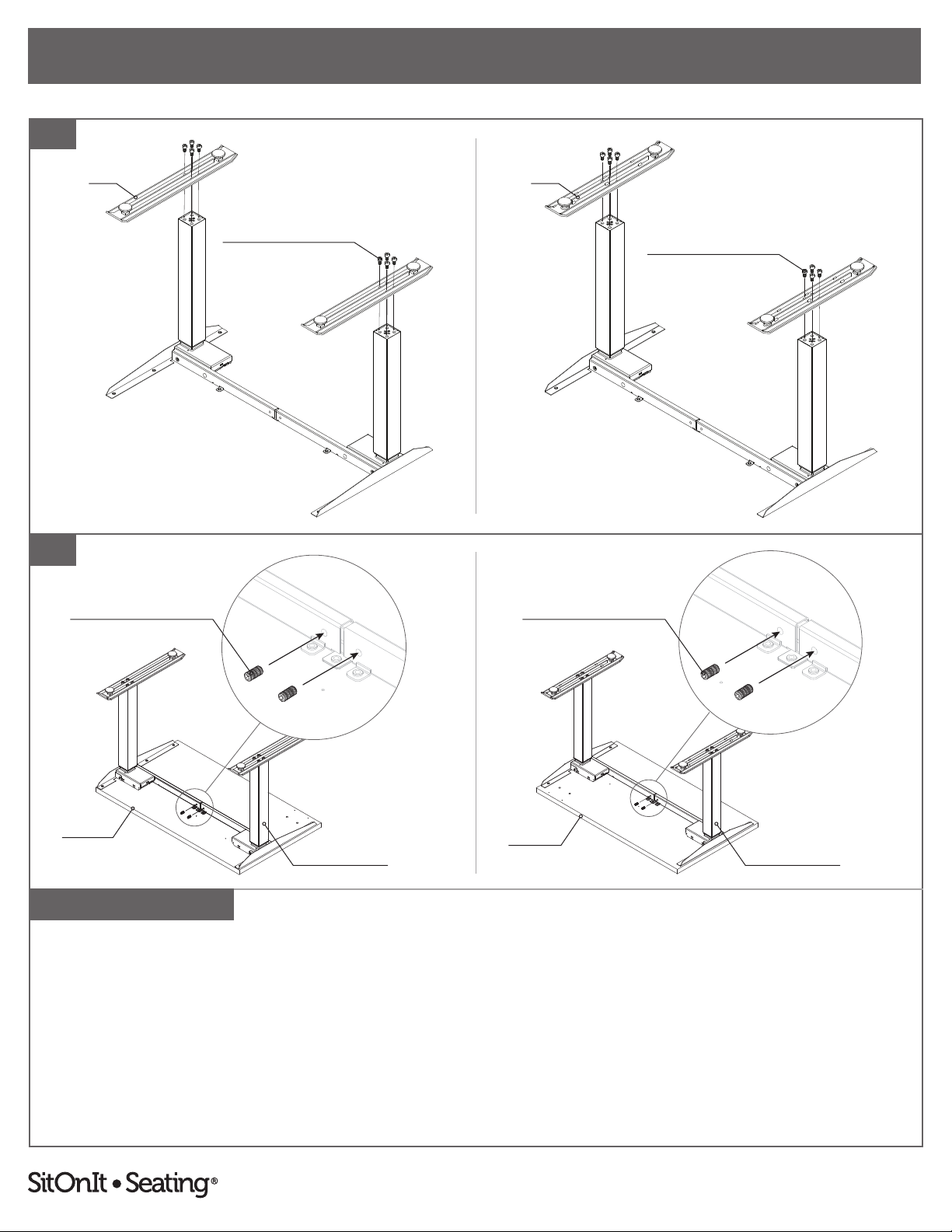

5. Install table feet using four M10 ×16 mm screws per leg using the 5 mm hex L-key.
NOTE: When assembling C style legs, make sure the top supports and feet are extended in the same direction
as illustrated.
6. Place the frame assembly onto the underside of the tabletop and extend the frame to the length indicated by the
pilot holes. Once the legs are located, center the U-pipe and fasten the two M10 × 17 mm set screws as shown.
T-LEG
T-LEG
C-LEG
C-LEG
M10 × 16 mm Screw
M10 × 16 mm Screw
FootFoot
Tabletop
Tabletop
Frame AssemblyFrame Assembly
M10 × 17 mm Set ScrewM10 × 17 mm Set Screw
6

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
STEPS
SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS
C-LEG T-LEG
7

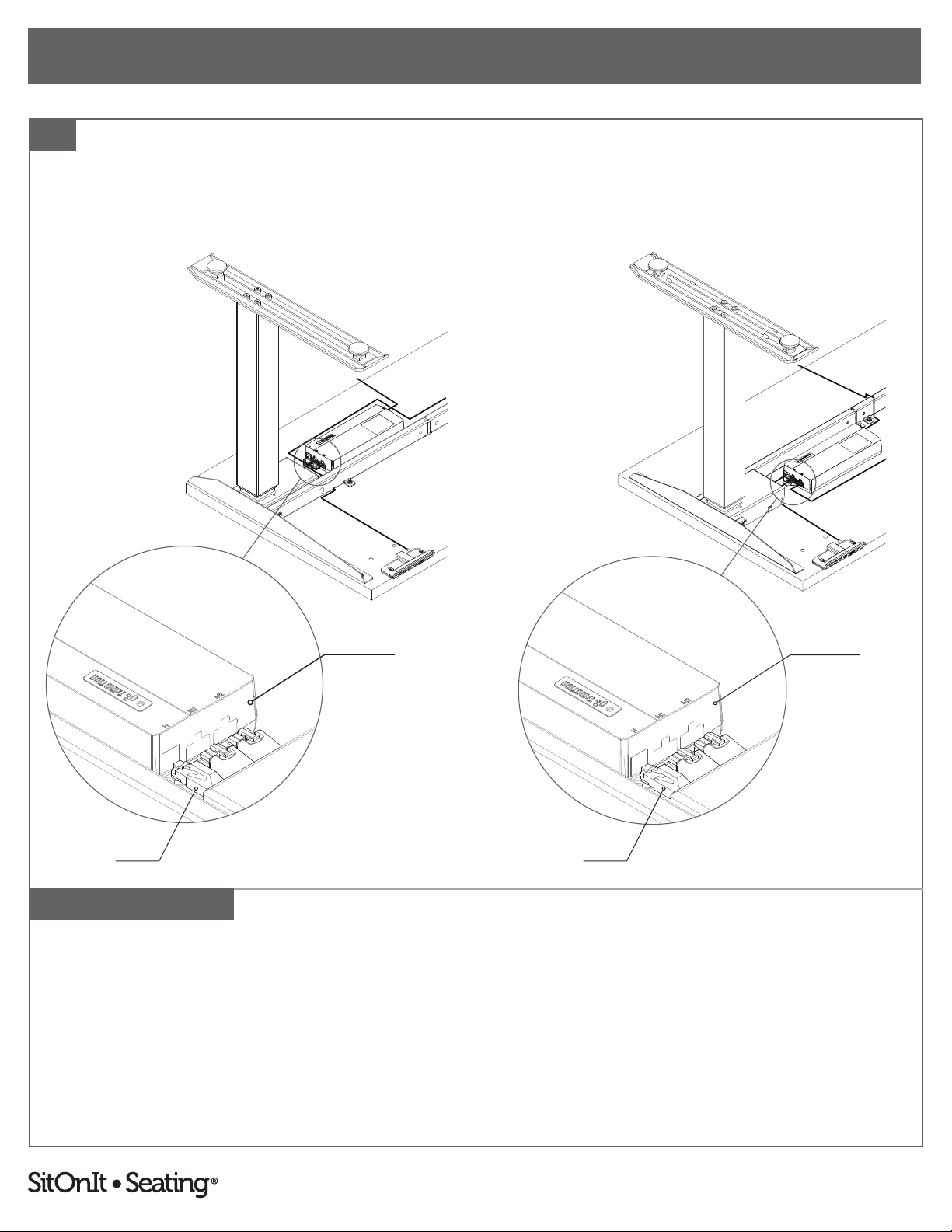

7. Align the hand control and control box on pre-drilled hole patterns with the end of the control box containing
three ports facing the leg it is closest to. Attach all cables to the control box before connecting power cord.
Route and secure cables as illustrated using the included clips and M5 × 20 mm screws.
Cables Cables
Control Box Control Box
7

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
STEPS
SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS
C-Leg Base Attachment Hardware
24" Depth 30" Depth
11 Screws 17 Screws
T-Leg Base Attachment Hardware
24" Depth 30" Depth
9 Screws 9 Screws

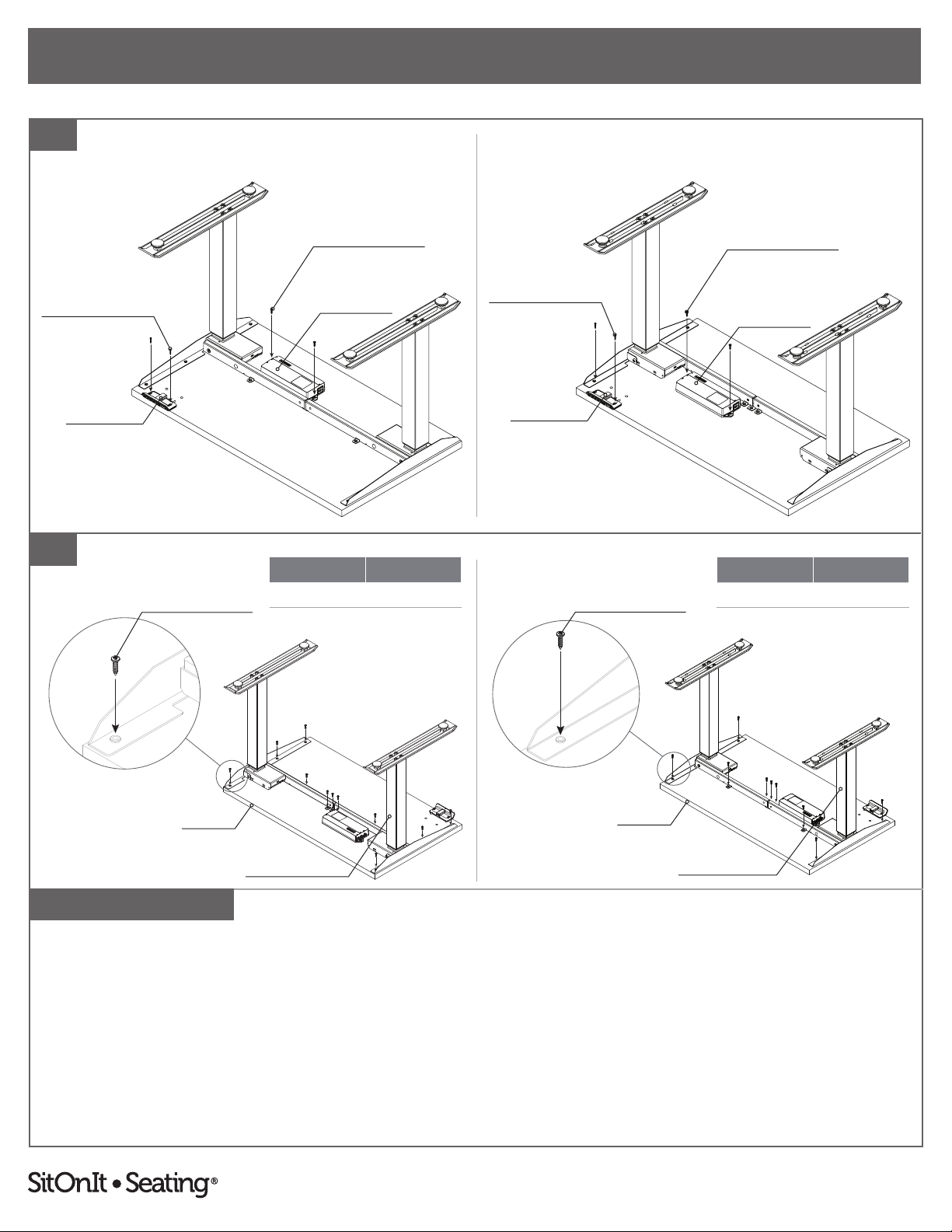

8. Place the control box and hand control in position as shown. For T-leg models, control box should be placed on
side closest to hand control. For C-leg models, control box should be placed on side farthest from hand control.
Attach hand control to tabletop with the two M4 × 22 mm screws provided. Attach the control box to tabletop
with the two M5 × 20 mm screws provided. Tighten using a #2 Phillips screwdriver.
9. Attach the frame assembly onto the underside of the tabletop using M5 × 20 mm screws provided (see
attachment hardware table) using a #2 Phillips screwdriver.
8
9
T-LEGC-LEG
Hand Control Hand Control
M4 × 22 mm Screw
M4 × 22 mm Screw
Control Box
Control Box
M5 × 20 mm Screw M5 × 20 mm Screw
Tabletop Tabletop
Frame Assembly Frame Assembly
C-LEG T-LEG
8
M5 × 20 mm Screw M5 × 20 mm Screw

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
STEPS
SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS

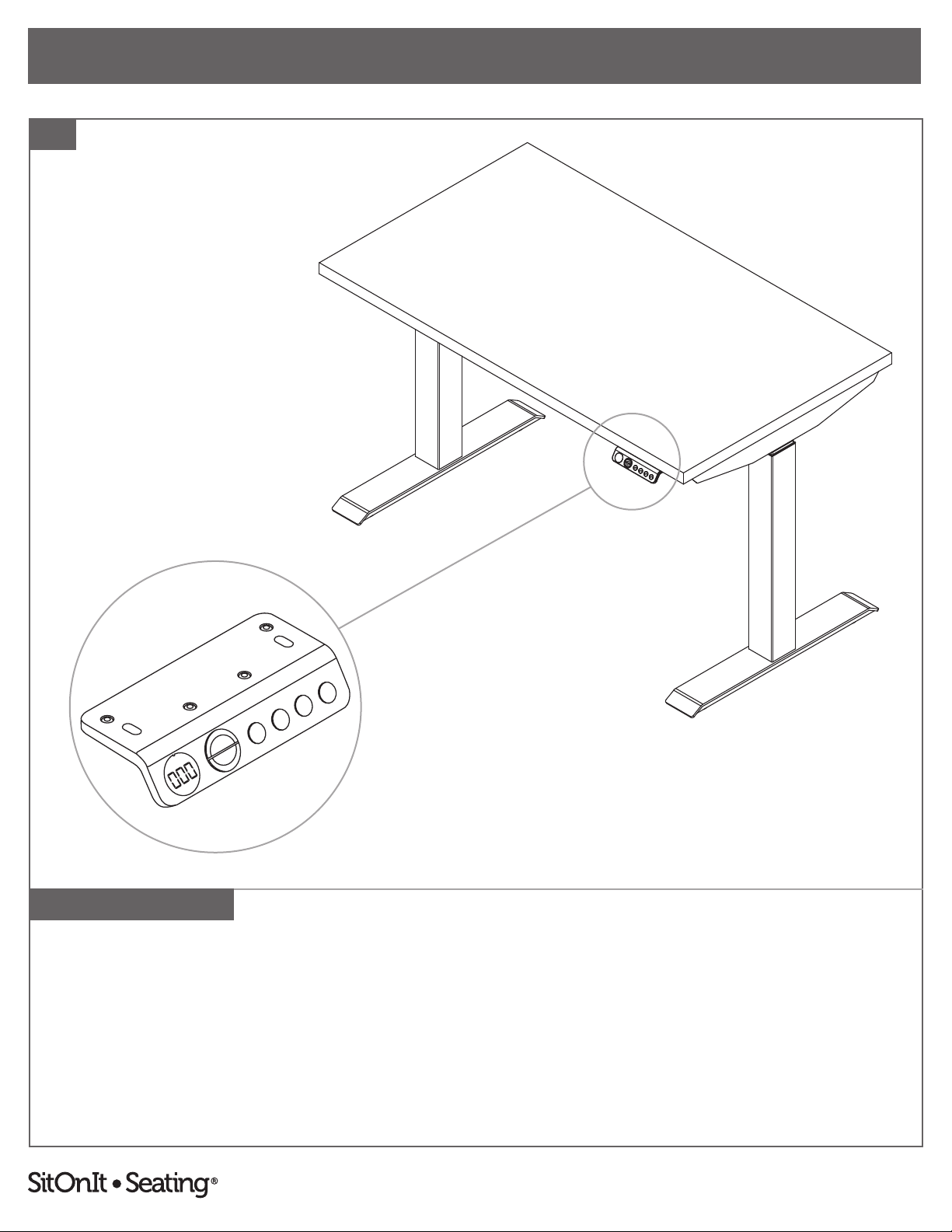

10. Flip the table to the upright position and reset it before the rst use.
To reset the table:
Press and hold the up and down buttons at the same time for three seconds. Continue pressing until the columns
are in the lowest position. When nished resetting, the control box will beep and the buttons can be released.
Now the system is operational.
10
NOTE: To avoid damage,
note the location of the hand
control and make sure that
the process of ipping the
table does not result in the
table weight resting on the
hand control.
9

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS
Bundle Components Layout /
Order of Operation
1. Base
2. Handswitch
3. Power Strip
4. Kbt Adapter Kit / Laptop Tray
5. Wire Management Basket
6. Mini Trackless Keyboard Tray
7. Half Round Pencil Tray
8. Midway Divider
8
267
1
888
4 5 3
NOTE: Diagram is for pattern
denition and general location. Exact
location will vary by size and style.
Some components may require
screwdriver extension.
Back of Table
Back of Table
Front of Table
Front of Table
10

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
SWITCHBACK 2-LEG 2-STAGE SAFETY INSTRUCTIONS
1"
1"
1"
1"
1"
1"
WARNING
KEEP AWAY FROM CHILDREN
This table system is designed for adult use and is not
intended to be used by children. Children should be
supervised to ensure that they do not play with or near the
table system or its controls.
USE CARE AT ALL TIMES TO PREVENT THE
TABLE SYSTEM FROM TIPPING OVER
Before moving the table system, clear all objects and
equipment from the table to reduce the risk of tipping over.
Do not lift the table system by the tabletop. Adjust the table
to its lowest height before moving. In order to avoid risk of
tipping or collapse, make sure corded objects will not be
pulled o the table or cause other objects to fall.

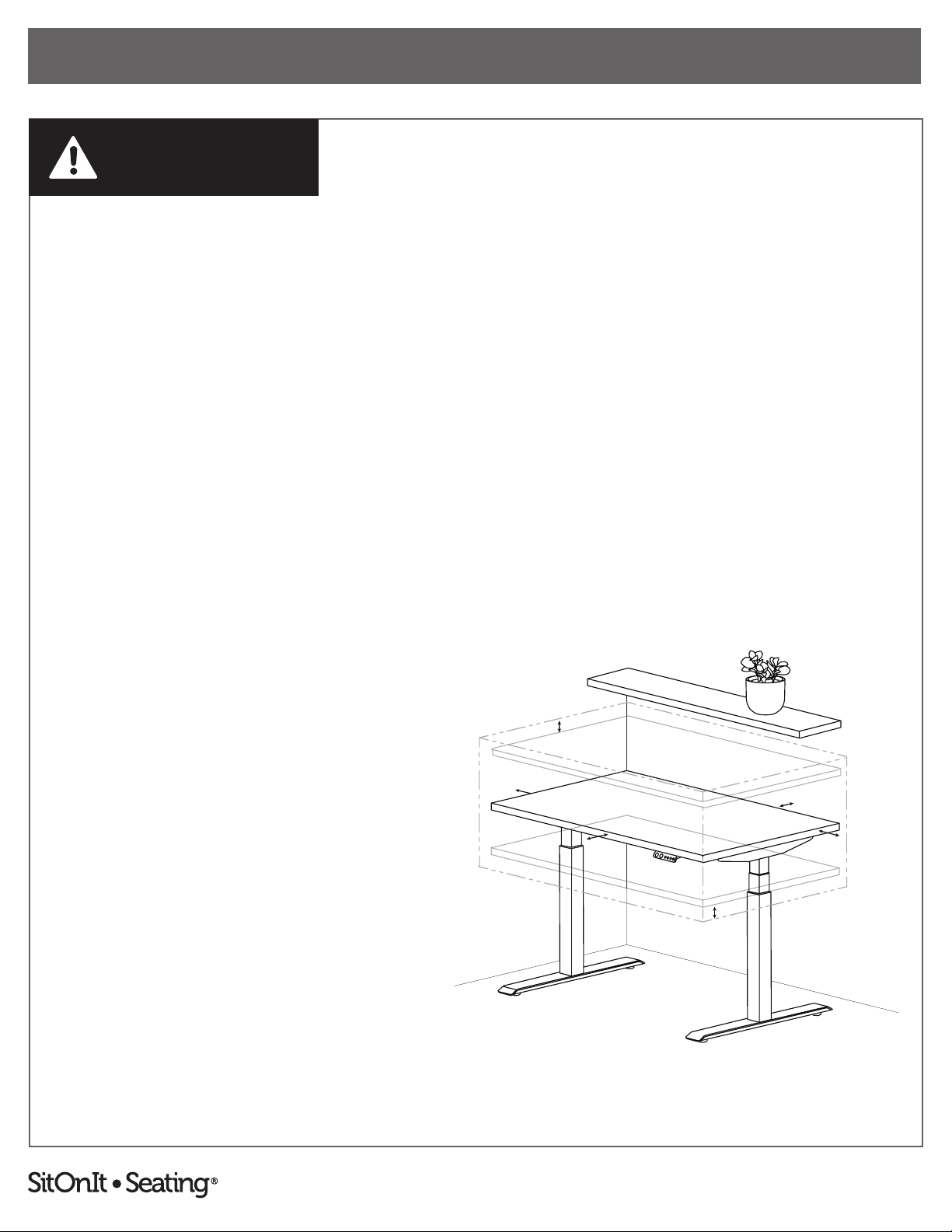

KEEP AT LEAST ONE INCH OF
CLEARANCE AROUND THE DESK TO
ENSURE NOTHING IS IN THE TABLE
SYSTEM'S PATH
In order to avoid risk of serious injury due to
pinch points, conrm that the surroundings on
all sides of the table system are clear.
Body parts and property can be caught
between the moving top and immovable
obstacles such as shelves, furniture,
windowsills, or walls.
Make sure the power cord moves freely as
desk moves up and down. Do not place feet,
legs, or other body parts on objects placed
under table top.
This product has been evaluated by UL for commercial use. it has not been evaluated for environments where children or
others who may not recognize and comprehend the risks inherent with moving parts are unsupervised.
Raising or lowering the table can trap, pinch, or crush body parts or property. Read all
instructions before using this equipment.
RISK OF DEATH AND SERIOUS INJURY
DO NOT OPERATE THIS EQUIPMENT UNLESS
PROPERLY TRAINED
Do not operate this equipment unless properly trained. This
table system is not intended for use by adults with reduced
physical, sensory, or mental capabilities or children.
Only adults who have appropriate understanding of the
operating instructions and warnings should operate this
equipment.
1111

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
SWITCHBACK 2-LEG 2-STAGE SAFETY INSTRUCTIONS
Grounding
Pin
Grounded
Outlet
Grounded Outlet Box
Raising or lowering the table can trap, pinch, or crush body parts or
property. Read all instructions before using this equipment.
RISK OF DEATH AND SERIOUS INJURY
WARNING
DO NOT OVERLOAD TABLE
Make sure the table system is not overloaded by the weight of the tabletop and objects on table. Evenly distribute load;
excess loads near the edges can reduce stability and lead to tip-over. Do not exceed maximum load of 250 lb (including
top). Do not exceed maximum edge load of 25 lb when positioning monitors or mounting accessories. Never sit or stand
on the table.
KEEP BASE DRY
Keep all electrical components away from water and humidity. This equipment is approved for indoor use only and should
not be used outdoors. Always unplug electrical components before cleaning. Follow all cleaning guidelines provided by
the manufacturer.
INSPECT REGULARY
Inspect table system regularly and immediately stop using the product if it is damaged or has loose parts.

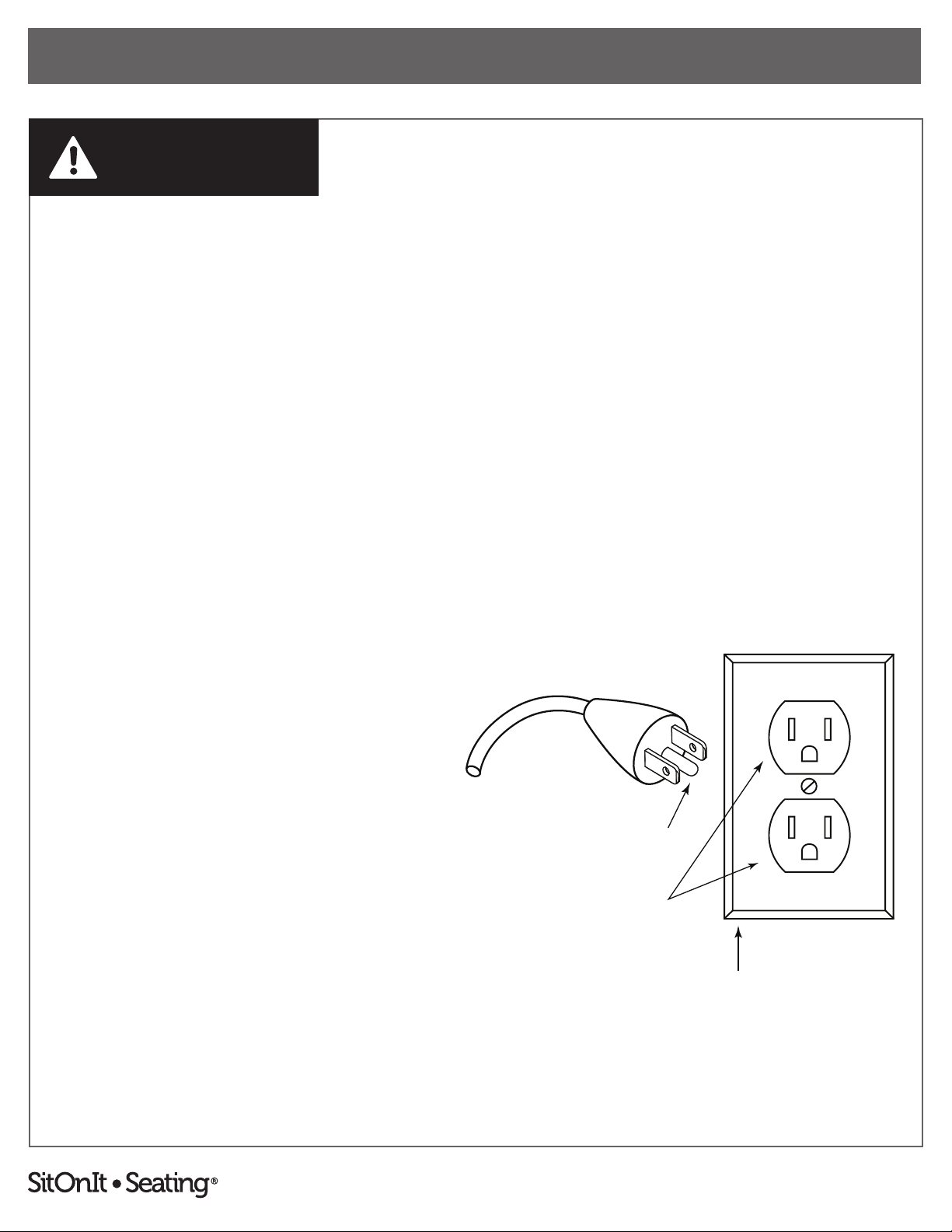

GROUNDING INSTRUCTIONS
This product is equipped with a cord that has an
equipment-grounding conductor and a grounding
plug. Use only the cord provided. Make sure that the
product is connected to an outlet that has the same
conguration as the plug and is properly installed
and grounded in accordance with all local codes
and ordinances.
Do not modify the plug provided with the product.
If it will not t the outlet, have a proper outlet
installed by a qualied electrician.
No adapters are to be used with this product.
Keep cord away from heated surfaces.
1212

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
SETTING THE MEMORIZED POSITION
Swithcback supports, at most, four memory positions.
How to set memorized positions:
Adjust the desk to the desired height.
1. Press the preferred memory button (1 ,2 ,3 or 4), with either or for 2 seconds. Once the display shows P1 or P2 or
P3 or P4, the position is memorized.
2. Press and hold button 1, 2, 3 or 4 to move the desk to memorized position.
CONTROLLER
INITIALIZATION / RESET
Simultaneously press the or buttons for three seconds. Continue pressing until both columns are in the lowest position.
When the reset is nished, the control box makes a beep sound and the buttons can be released.
Reminders:
When reset is being conducted, the display shows “E00” in last 5mm stroke.
• When reset is nished, the display shows starting height.
• Users must conduct reset when the desk is operated at the rst time.
SWITCHING BETWEEN METRIC AND IMPERIAL
3. Press memory buttons 1, 2 and 4 for ve seconds.
4. The digital display will show "C-I" or "C-E". If no other buttons are pushed within ve seconds, the system will return to
normal operation.
5. Press the 3 button for imperial units. The display will show "E" or "I" for inches. Press the 2 button to choose metric units.
The display will show "C" for centimeters.
CONTROLLER OPERATION
Press the or button until the desk reaches the preferred height.
USER INTERFACE GUIDE
SWITCHBACK 2-LEG 2-STAGE USER GUIDE
042
3-digit display
(shows height
of the desk)
memory setting
buttons
1313

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
HEIGHT ADJUSTMENT GUIDE
SWITCHBACK 2-LEG 2-STAGE USER GUIDE
SETTING THE UPPER AND LOWER HEIGHT LIMITS
Setting upper height limit:
1. Adjust the desk to the preferred height of upper limit.
2. Press or buttons together and then release button within 3 seconds.
3. Re-press more than 3 times in a slow pace.
4. A beeping sound will notify you that the process has completed.
PRESETTING THE DESK STARTING HEIGHT
This setting can be used to reset the displayed table height if required. This setting may be helpful if the table base is above or
below oor level.
1. Press button until the desk reaches its lowest position and then release button.
2. Re-press button again for ve seconds and the digital display will start to ash.
3. Adjust the starting height with the or button and release the button when the preferred starting height is reached.
4. After 10 seconds, the display will stop ashing and this will conrm that you have successfully set the starting height.
Disable upper height limit:
1. Move the desk to the upper limit height being set.
2. Repeat steps 2–4 above to disable the upper limit settings.
Disable lower height limit:
1. Move the desk to the lower limit height being set.
2. Repeat steps 2–4 above to disable the lower limit settings.
Setting lower height limit:
1. Adjust the desk to the preferred lower limit height.
2. Press or buttons together and then release button within 3 seconds.
3. Re-press more than three times in a slow pace.
4. A beeping sound will notify you that the process has completed.
1414

To report any issues with this product, please contact our customer service department at [phone].
For more information, visit www.sitonit.net
SWITCHBACK 2-LEG 2-STAGE USER GUIDE
ERROR CODES AND POWER SAVING
The digital display shows the error code below to suggest the issues that users may encounter during the
operation.
Error Code Description
000 Resetting
E00 Not reset completely
E01 Overuse protection
E02 Unbalance protection
E03 Anti-collision
E04 T-touch protection
E11 M1 Motor over-current protection
E12 M2 Motor over-current protection
E13 M3 Motor over-current protection
E21 No hall sensor from M1
E22 No hall sensor from M2
E23 No hall sensor from M3
E31 No current from M1
E32 No current from M2
E33 No current from M3
POWER SAVING FUNCTION
To wake up the control:
• When no button has been pressed for 25 seconds, display goes o. Press any button to light up the display again.
• When no button has been pressed for 30 seconds, the system goes to <0.1W standby mode. Long press any button to
wake the system up. The digital display will show desk height again.
1515
