SXT 500 EEC User manual

Operating instructions
SXT 500 EEC

PLEASE BE SAFE WHEN RIDING
ALWAYS WEAR A HELMET AND
OBEY ALL LAWS!
BATTERY MAINTENANCE and CHARGING
INSTRUCTIONS
1. You MUST charge completely prior to initial use. (Follow char-
ging instructions in your Product Handbook)
2. Charge immediately after each use.
3. Charge before storage. You must charge every 30 days if not
in use.
4. Charge the unit for 6-8 hours or until the light on the charger
turns red & green.
5. DO NOT allow this unit to deep discharge the battery.
6. For safety purposes, DO NOT charge for over 24 hours.
7. Turn the unit OFF when not in use.
Failure to follow these INSTRUCTIONS will
VOID YOUR WARRANTY!
This PRODUCT IS NOT INTENDED FOR EXTREME or
OFF-ROAD Use! Please take care of your SXT!
DO NOT JUMP or ABUSE THIS PRODUCT!
DO NOT RIDE IN WET/ICY CONDITIONS!
Failure to follow these instructions will
VOID YOUR WARRANTY!
BATTERY MAINTENANCE and CHAR-
GING
INSTRUCTIONS

WARNING!
With each scooter comes an europanwide valid street certication (socalled COC)
that makes this scooter street-legal in whole EU. With this document this scooter
model can be insured by an insurance company of your choice and you will get the
neccessary insurance plate number without any problems. Having an valid insurance
and plate number is a „Must-Have“ on this scooter model.
In order to drive this street-legal scooter on public roads you need to have a valid
driving license.
DO NOT operate this product on wet, frozen, oily or unpaved surfaces or under the
inuence of drugs and/or alcohol. Avoid uneven surfaces, potholes, surface cracks
and obstacles.
DO NOT use a water hose to clean this product. See Product Handbook for more
information.
This product is recommended for riders 16 YEARS OF AGE and older.
SAFETY!
• Persons without excellent vision, balance, coordination, reex, muscle and bone
strength and good decision-making capabilities should not use this product.
• Minors without adult supervision should not use this product.
• Persons unwilling or unable to take responsibility for their own actions should not
use this product.
• The user of this product assumes ALL risks associated with its use. To minimize these
RISKS, the user must wear safety helmet, goggles, gloves, elbow and kneepads and
appropriate footwear.
• This product is ELECTRIC! DO NOT ride this product in wet conditions, puddles or
rainy weather.
IMPORTANT
PLEASE READ THIS BEFORE
USING THIS PRODUCT

QUICK REFERENCE
SAFETY GUIDE
SAFETY GUIDE
• The recommended minimum age for riding this scooter is 16 years old.
• To avoid damage to the motor and footplate, do not overload the scooter.
• Never ride with more than one person.
• Inspect your scooter thoroughly before each use for loose or missing parts.
• Avoid unintentional starts by turning the scooter off while not in use.
• To avoid the risk of a short circuit in the electrical parts, do not use your Electric
scooter in the rain and never spray or wash off your scooter with water.
• Do not place the battery near re or heat.
• To avoid damage to the battery, do not use the charger if it has been damaged in
any way.
• Keep hands, face, feet and hair away from all moving parts.
• Do not touch the motor or wheels while they are rotating.
• Brakes are designed to control speed as well as stop the scooter. Practice braking
for proper slowing down and smooth stops.
• Maintain your scooter as recommended in this Product Handbook.
•Use only quality replacement parts as recommended by the manufacturer.
•Inspect the entire scooter prior to each use. Replace any part that is cracked,
chipped or damaged before use.
*NEVER ALLOW CHILDREN TO OPERATE THE SCOOTER WITHOUT ADULT SUPER-
VISION.
*NEVER ATTEMPT TO OPERATE THE SCOOTER WHILE UNDER THE INFLUENCE OF
ALCOHOL.
If a situation arises that is not covered in the manual, proceed with caution and use good judgment.

G e b r a u c h a n w e i s u n G   sxt-scooters1000
3
IMPORTANT INFORMATION 1-2
QUICK REFERENCE 3
TABLE OF CONTENTS 3
GETTING TO KNOW YOUR SCOOTER 5
PACKAGE CONTENTS 6
GETTING STARTED 6
ASSEMBLY 6-7
FUSE INSTALLATION 7
SEAT & SEAT POST INSTALLATION 7
CHARGING 8
RIDING/BRAKING 8
FOLDING AND STORAGE 9
FOLDING AND STORAGE 9
ADJUSTING BRAKES 9
TIRE PRESSURE 10
TURBO- ECO MODE 10
CHARGE INDICATOR, FAULT DIAGNOSIS 10
MAINTENANCE 11
RECOMMENDED TOOLS 11
ADJUSTING THE HEAD UNIT 11
ADJUSTING THE CHAIN 11-12
MAINTENANCE SCHEDULE 12
TROUBLESHOOTING GUIDE 13
TABLE OF CONTENTS
 i n s t u c t i o n s  sxt-scooters
3

Notes
i n s t u c t i o n s  sxt-scooters
4

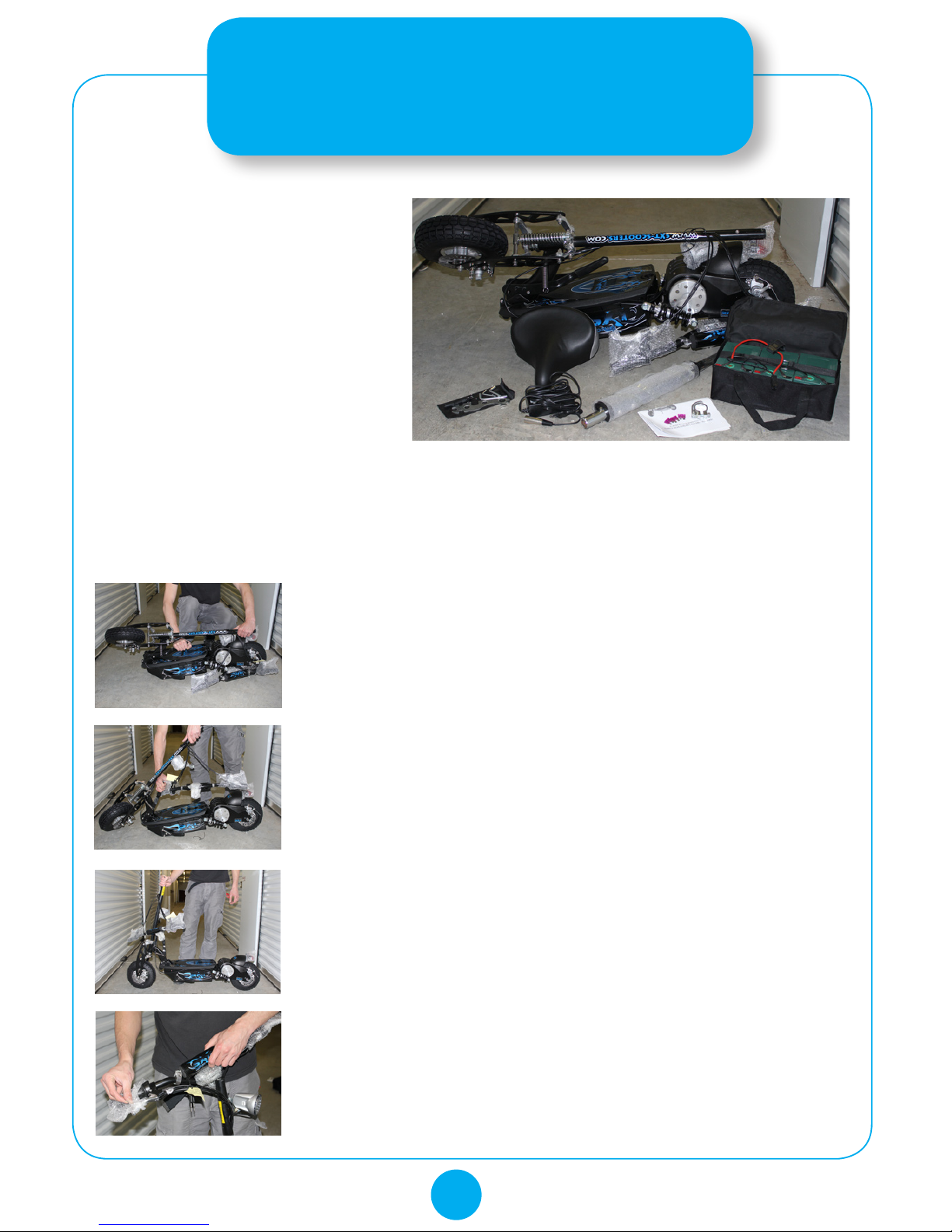

PACKAGE CONTENT / GETTING STARTED
Assembly Thank you for reading the instructions
carefully.
1. 1. Carefully remove the SXT Scooter from the box.
2. 1. To unfold the Scooter, begin by pressing down on the
FOLDING HANDLE with one hand while gently pulling up
on the handlebars with the other.
3. Fully extend the handlebars to their upright position until
you feel the mechanism lock into place.
4. Attach the handlebars by inserting the silver handlebar
clamp onto the handlebar post stopping just below the top.
Be sure to orient the bars in the correct riding position with
the throttle on the rider’s right side. Secure the handlebars
to the post by tightening the bolts on the clamp with the
enclosed Allen wrench as shown. .
5. Secure the hand brakes in place by using the provided
Allen Wrench to rst loosen the tension bolts. Adjust the
levers to a comfortable position and tighten the bolts.
* BE CAREFUL NOT TO PULL ON THE CABLES!
Your SXT scooter comes with the
following accessories:
1. 1 Scooter SXT
2. 1 36 V battery charger
3. Toolkit and fuses exchange
4. Seatpost, saddle & rearview
mirror
5. Clamp
 i n s t u c t i o n s  sxt-scooters
5

6. Remove the battery, open the protective bag
and snap the fuse into the slot. Do not hesitate to
press hard with your thumb to get the fuse.
7. Place the battery into the slot in the plastic
platform and connect.
8. Insert the seatpost into the slot and snap the
saddle and tighten the ring
clamping. IF your clamping ring seems too small,
do not hesitate to deviate a little so it ts more
easily.
9. IF you have the SXT 1000, install the light
provided.
10. Check all screws before the rst departure
SXT (screw brakes, fork, suspension ect).
GETTING STARTED
i n s t u c t i o n s  sxt-scooters
6

Your scooter comes charged out of the carton. We still recommend charging
the unit for 6-8 hours prior to it’s rst use. We also recommend charging
your scooter after each use and prior to storage.
WARNING: Do not allow your scooter to go into deep discharge, as this
will damage the batteries.
1. Make sure that all of the exposed bolts and screws are tightened.
2. This scooter model has a safety switch at the kickstand. If kickstand is
down this scooter model cannot be operated as the electricity is cut automati-
cally for safety reasons.
3. Push the on/off switch (located on the left handlebar) to the ON position.
4. Put one foot on the deck of the SXT while pushing off with the other foot,
gently rotate the THROTTLE GRIP, on the right side of the handlebars. The
scooter will begin to move on its own power.
**Your scooter has a variable speed hand throttle. You can control the
speed of your scooter by the amount of pressure you use when rotating the
hand throttle. The more you rotate, the faster you will go.
CHARGING
1. 1. Make sure unit is turned off.
2. Open the charging socket cover located on the right
side of the scooter frame, under the footplate.
3. Locate your Battery Charger. Find the charger socket
end that has a three-prong socket and plug it into the
scooter.
4. Next, plug the AC plug into a wall outlet.
When rst plugged in, the charger has one red light that
will illuminate at the same time, indicating that the char-
ging process has started. Once the light on the charger
turns red & green, you may remove the charger and close
the safety cap.
 i n s t u c t i o n s  sxt-scooters
7

*Your SXT scooter is equipped with a variable throttle. Turn the handle to accelera-
te, then release to stop the motor. When the engine shuts off your scooter will slow
automatically, use the brakes if necessary.
STOPPING & BRAKING
1. Pour ralentir lâchez l‘accélérateur, puis pressez les leviers droits et gauches.
Appliquant une pression sur les leviers de freins ceci coupera automatiquement le
moteur.
CHARGE INDICATOR, FAULT DIAGNOSIS
1. To brake, release the THROTTLE GRIP and depress the BRAKE LEVERS (on the
left/right side of the handlebars. Depressing the brake will disengage power to the
motor. When the unit feels like it is loosing power or not accelerating to full speed,
the scooter is ready to be re-charged.
NOTE: If the on/off switch is left in the ON position for more than 10-15 minutes
without moving, Smart Power will shut itself OFF. To reset, turn the unit OFF, wait a
few seconds and then switch it back ON again.
BRAKING SYSTEM
The scooter uses a pinch braking system for the front, and a disc/caliper system for
the rear They are both activated by a hand brake lever on the left and right side
of the handlebar. Squeezing the hand brake lever with your left hand activates
the rear brake. Squeezing the hand brake lever with your right hand activates
the front brake. Make sure to release the HAND THROTTLE GRIP when engaging
the brakes. Your scooter is equipped with switches on each brake lever that will
disengage power to the motor when the brake levers are depressed.
Practice braking on a smooth, dry surface to get used to the feel of the braking
system. Braking distance is affected by wet conditions and loose and uneven riding
surfaces.
GENERAL
i n s t u c t i o n s  sxt-scooters
8

ADJUSTING BRAKES
The Brakes on the scooter should come fully adjusted from the factory.
However, it may be necessary to adjust the brakes from time to time.
SQUEAKY BRAKES
The brakes may squeak before they are broken in. This is normal and will
not affect the function or performance of the brakes. With continued use the
squeak should go away.

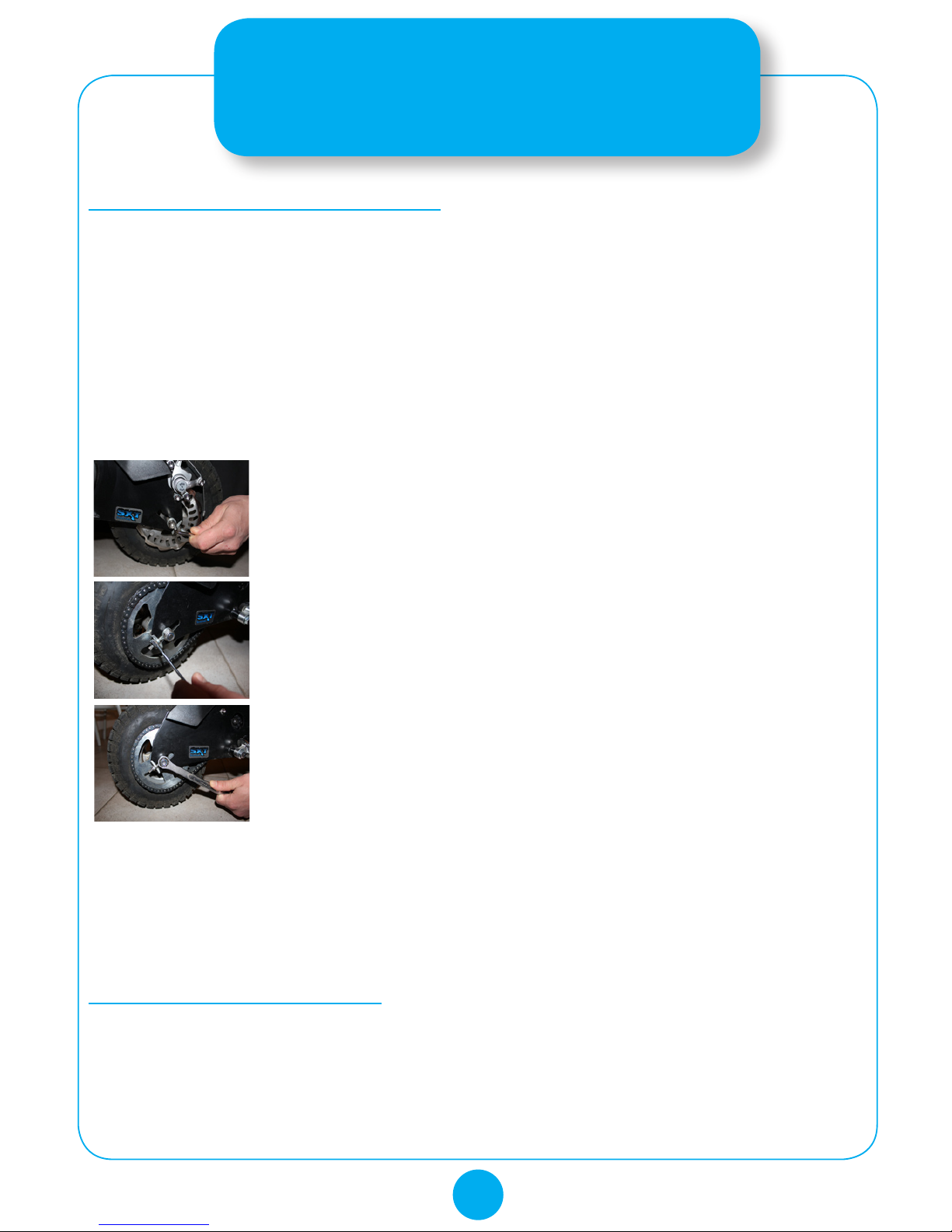

ADJUSTING BRAKES:
To adjust the rear brakes:
1. Adjust the tension screw on the right hand
brake lever by rotating it counter-clockwise until
the wheel spins freely.
For brakes that are adjusted too tight:
2. 1. Tighten the tension screw on the right hand
brake lever by rotating it clockwise until the wheel
has a slight drag.
For Further Front Brake Adjustment :
3. 1. Locate the adjustment screw on the front
brake assembly (located above the front wheel).
Tighten or loosen as necessary.
For Further Rear Brake Adjustment:
4. Locate the adjustment screw on the rear brake
assembly (located on the left side of the back
wheel. Tighten or loosen as necessary.
GENERAL
 i n s t u c t i o n s  sxt-scooters
9

TIRE PRESSURE
The tire must be inated to a maximum of 50 P.S.I. It is also recommended to use a
tube additive like Slime, available from any motorcycle shop, to avoid inconvenient
punctures.
Empty all air from the tire, prior to loosening the bolt to split the rim.
BATTERY INDICATOR
On the right handlebar is your battery indicator button. The green, orange and Red
LEDs display the loading status of your battery pack. LEDs are also used for diagnos-
tics of failures.
Charge level indicator :
TIRE PRESSURE
BATTERY INDICATOR
i n s t u c t i o n s  sxt-scooters
10

RECOMMENDED TOOLS
To adjust and service the scooter you will need the following tools:
- Allen Wrenches: 3/4/5/6 mm
- Wrenches: 10/13/13 mm Open end wrench
- Large Adjustable Crescent Wrench
- Philips Head Screwdrivers
- Oil, Grease or Lubricant
ADJUSTING THE HEAD UNIT
La tête de direction est déjà serré à la sortie de l‘usine mais vous aurez certainement
besoin de la resserrer un jour ou l‘autre avec les vibrations que la trottinette va subir.
Ceci est tout à fait normal.
ADUJSTING THE CHAIN
The head unit will come adjusted from the factory. However, riding on rough terrain
and general use may cause the head unit to become loose over time. It may be
necessary to adjust the head unit from time to time.
MAINTENANCE
ADJUSTING THE HEAD UNIT
SETTING THE CHAIN
 i n s t u c t i o n s  sxt-scooters
11

How tight should the chain be ?
• If the chain is skipping or jumping on the sprockets, this is too loose and
may be harmful.
• If the chain is making a humming sound when the wheel is turning, this is
too tight and may cause the chain to snap.
• The correct tension is achieved by adjusting the chain from its loose positi-
on to when it becomes lightly tense.
MAINTENANCE SCHEDULE
Proper care of your scooter will insure optimal performance and longer life span.
The following are a few maintenance suggestions that will keep your scooter running
in top condition.
To tighten the chains:
Slightly loosen the two axle bolts on both sides of the
rear wheel. (Fig.14). Then slowly adjust the two adjus-
ting screws on each side of the rear tire (Fig.15) until
chain reaches the proper tension.
Rotate the rear wheel to make sure the chain is alig-
ned.
Finally, lock and tighten the rear axle bolts prior to
riding.
MAINTENANCE
i n s t r u c t i o n s  sxt-scooters
12

• Perform each time you ride your scooter
• Clean the exterior of the unit with a soft, damp rag. (DO NOT WASH
WITH A HOSE)
• Check that all nuts and bolts are securely tightened.
• Lubricate the chain with any silicone spray, 3&1 oil or any good clean
motor oil.
• Check battery charger for any frayed/cut wires.
DAILY MAINTENANCE
i n s t r u c t i o n s  sxt-scooters
13

KONTAKT / TECHNISCHER KUNDENDIENST
CONTACT / TECHNIQUE
SERVICE À LA CLIENTÈLE
DANE KONTAKTOWE
Bei weiteren Fragen oder Problemen die hier nicht
aufgeführt sind wenden Sie sich an einen offiziellen
SXT Scooters Vertragshändler.
Si vous avez des questions ou des problèmes
suite à l‘utilisation de votre SXT, n‘hésitez pas à nous
contacter ou contacter votre revendeur SXT.
In case of further questions or problems
which are not mentioned here
please contact an ofcial SXT representative.
W razie jakichkolwiek pytań, zachęcamy do kontaktu
z autoryzowanym sprzedawcą SXT.
Polska i Europa Środkowo – Wschodnia
Für Deutschland, Schweiz und Österreich:
POL-Planet e.K.
Marco Schuler
Bahnhofstrasse 1 B
79539 Lörrach
Tel: +49 7621 – 169 73 53
Fax: +49 7621 – 169 73 55
Email: [e-mail]
Homepage: www.sxt-scooters.de
France, Belgique, Hollande, Angleterre:
EURL RISE-UP
6 rue de la république
94360 Bry sur marne
Tel :[phone]
Fax: [phone]
E-Mail: [e-mail]
Polska, Skandynawia i Europa Srodkowo – Wschodnia
Polska i Europa Środkowo – Wschodnia
ZAVA Group
ul. Warszawska 62, Stojadła
05-300 Mińsk Mazowiecki
tel. [phone]
fax [phone]
[email protected]
www.sxt-scooters.pl
