SXT Light GT User manual

Modell
SXT_MALGHTGT_V1.2
Manual - Version Download
Current manual
SXT LIGHT GT
MANUAL
SXT
Light GT

| 2 | MANUAL
CONTENT
Seite
Scope of delivery 3
Technical specifications 5
Important information 6
Before starting the journey 8
Vehicle parts 10
Controls on the handlebar 11
Unfold 14
Fold 16
Identifiation number 18
Before using the battery 19
Charge battery 20
Maintenance and care 26
Troubleshooting 28
Recycling batterie 29
Warranty 30
Customer Service/Repair 31

MANUAL | 3 |

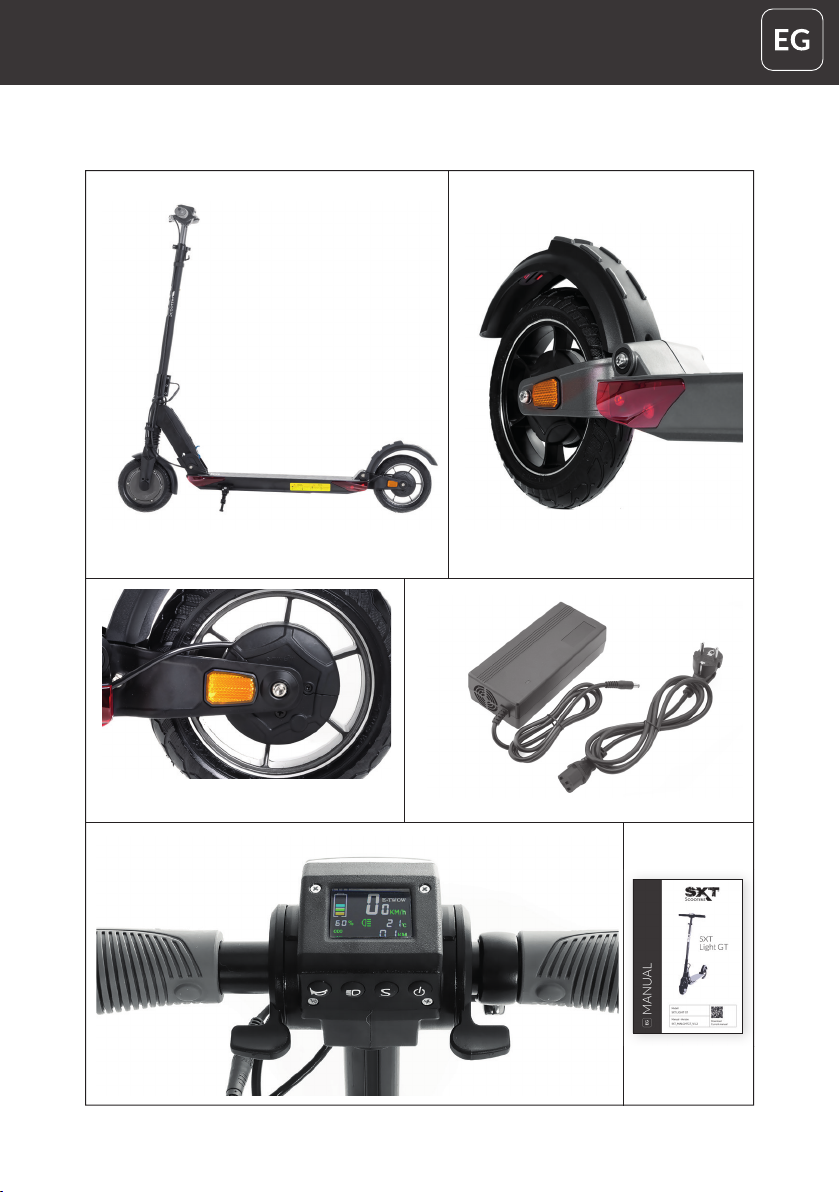

SCOPE OF DELIVERY
Scooter
Manual
Re ectors
Tires with mudguards
Charger
Display

| 4 | MANUAL

MANUAL |5 |
TECHNICAL SPECIFICATIONS
Street-legal: no
Max. range (in km - at 22°C / load capacity 70 kg): 50
Max. Speed (in km/h): 40
Rated motor power (in watts): 700
Speed levels km/h: 6 | 20 | 25 | 35-40
Drive type: Brushless hub motor
Max. Load (in kg): 125
Max. climbing slope (in degrees): 25
Length, width, height (in cm): 104x38x118
Length, width, height / folded (in cm): 104x33x14,5
Tire size in Zoll : 4,5
Weight (incl. battery) in kg: 11.9
Battery capacity in Ah: 10,5
Battery capacity in Wh: 504
Battery type: Lithium
Battery removable for charging: no
Cell type: Samsung Cells 35E
Charger: 54.6V 3A
Max. Charging time (in hours): 4,5
Suspension: Shock absorber back & front
Brake system: Dual Brake System (electromagnetic front, drum brake rear)
Tires: pressureless rubber tires
Frame: 6061 T6 aluminum
Handlebar height (in cm): 104 / 110 / 118
Operating cost per 100 km: 0,22
Scope of delivery: electric scooter, charger, manual
Kick-start function: yes
Lighting system: High Power LED in front with CPU control and LED in rear
Foldable: yes
KERS (recuperation): yes

| 6 | MANUAL
For safe and proper use, carefully read the instructions for use and other documents
accompanying the product and keep them for later use! The current version of the
operating manual can be found with the product on our homepage www.sxt-scooters.
de or via the QR code on the cover.
Why should this manual be read in detail!
This manual has been written to help you, the buyer, quickly and easily understand
how to use and maintain the SXT LIGHT GT accurately & safely. It is important that you
understand all the points and features of your new SXT LIGHT GT so that you can enjoy
riding your new electric scooter from the very rst minute. For the rst ride, you should
select a large open area to familiarize yourself with the riding habits and features of
the scooter. The SXT LIGHT GT requires a short running-in and braking phase related
to all moving parts until this has taken your exact position perfectly. Before riding,
always make sure that the folding mechanism is correctly engaged and the safety lever
is ipped.
The use of the electric scooter involves dangers. Various causes can lead to the failure
of individual components through no fault of the manufacturer. Like other electric
vehicles, the electric scooter is designed for locomotion - this automatically involves
the risk of losing control while riding, falling or getting into dangerous situations that
could not be avoided by training, practice or instruction. In such cases, despite the use
of protective equipment or other precautions, you may be injured or, in the worst case,
killed. USE AT YOUR OWN RISK. USE COMMON SENSE. This manual contains various
warnings and safety precautions concerning the consequences of improper maintenan-
ce and care or improper use. Any accident could result in serious injury or, in the worst
case, death - we do not repeat this warning regarding possible injury or, in the worst
case, death at every point where such a warning is given.
IMPORTANT INFORMATION

MANUAL |7 |
1. The SXT LIGHT GT may only be driven from 14 years and is not approved for road
trafc. Never use the vehicle with 2 people at the same time.
2. Always check the vehicle before driving it. Regular maintenance and care minimize
the risk of damage, accidents and possible injuries.
3. Always wear suitable protective equipment such as an approved helmet with chin
strap. A helmet may also be required by law in your area. We also recommend
elbow and knee protectors, long-sleeved outerwear, long pants and gloves. Always
wear sturdy footwear such as lace-up athletic shoes with rubber soles for a rm
grip. Never ride the scooter barefoot or in sandals and keep laces closed and away
from wheels/motor.
4. Practice riding in a closed off open area.
5. This scooter is not suitable for jumps, stunts or similar - likewise avoid riding with
only one hand on the handlebars. Always keep both feet on the footboard.
6. Do not drive the scooter up or down any steps / stairs larger than 3 cm - this could
irrevocably damage the vehicle due to the shocks and vibrations that occur.
7. The maximum speed is 40 km/h. Avoid using the scooter at night as visibility is much
worse than during the day. If this is unavoidable, we recommend not to exceed a
speed of 15 km/h and to switch on the lights.
8. Do not use the scooter at temperatures below 0°C.
9. Drive very slowly and carefully or best get down from the scooter if you nd bad
road conditions.
10. Do not use the scooter on oily or icy surfaces.
DISREGARDING THE ABOVE INSTRUCTIONS AND
DISREGARDING NORMAL COMMON SENSE
INCREASES THE RISK OF SERIOUS INJURY.
IMPORTANT INFORMATION

| 8 | MANUAL
BEFORE STARTING JOURNEY
Mechanical safety check:
Before using the SXT LIGHT GT: Perform a visual inspection for any loose screws
and other parts. Make sure everything is in place and no parts are missing or showing
severe wear. If you are unsure, be sure to contact your dealer or technical support
immediately!
Preparation
1. search for suitable terrain
2. unfold scooter according to instructions (p.14)
3. adjust handlebar according to body size
Driving off
Press the POWER button to switch on the scooter.
2. Place one foot on the footboard and keep the other foot on the ground.
3. slowly and carefully press down the right thumb throttle - the scooter will
immediately move slowly forward. Take the second foot off the ground and place it on
the footboard as well. The more the thumb throttle is pressed, the more the scooter
accelerates and the faster the ride.
Braking
1. Under normal conditions, the right thumb brake lever is pressed down and the
electromagnetic brake is activated and the scooter slows down immediately and the
energy ow to the motor is interrupted. The harder the brake lever is pressed down the
harder the scooter brakes. The electromagnetic brake also activates the KERS system
(kinetic energy recovery system), which feeds the braking energy back into the battery
in the same way as on a Formula 1 car.
2. The SXT LIGHT GT also has a conventional mechanical foot brake at the rear.
Through the mechanical brake, the scooter is braked at the rear axle. No matter what
situation you are in - if the rst system fails, you still have the mechanical foot brake on
the rear axle available in any case.

MANUAL |9 |
BEFORE STARTING JOURNEY
Kick start function
This function is for your safety. When the scooter is to be used, you should kick / propel
it with one foot to start the scooter moving and then press the thumb throttle rst and
the scooter will start moving with motor power. This protects the motor and prevents the
scooter from accidentally starting to move if the throttle grip is accidentally pressed.
Battery and charge
The SXT LIGHT GT is equipped with a special lithium polymer battery and a special smart
charger. These accessories, supplied with each scooter, have their own number. Please do
not use other brands of chargers.
If the battery or charger is damaged as a result, the warranty will be voided.
Battery
When you get the electric scooter for the rst time, please charge the battery fully before
using it. The battery can be charged at any time, please make sure the battery is powered.
Attention: do not use other brands battery, they will not work with SXT LIGHT GT.
Please charge the battery every three months when you are not using the scooter.
Immersion in water, collision and other abnormal factors will cause battery damage, which
is not covered by warranty.
Charger
The company provides a charger that has a charge protection function. When the battery
is 100% charged, the charger will automatically stop charging.
Submersion in water, collisions and other abnormal factors will cause damage
to the charger that is not covered by the warranty.
Quick instructions for charging the electric scooter
1. Connect the charging plug to the power outlet rst. The LED will turn green.
2. open the protective rubber cover of the charging hole, insert the plug of the charger
into the charging hole. It means it is charging when the charging indicator light is red, the
charging indicator light is green when the battery is fully charged.

| 10 | MANUAL

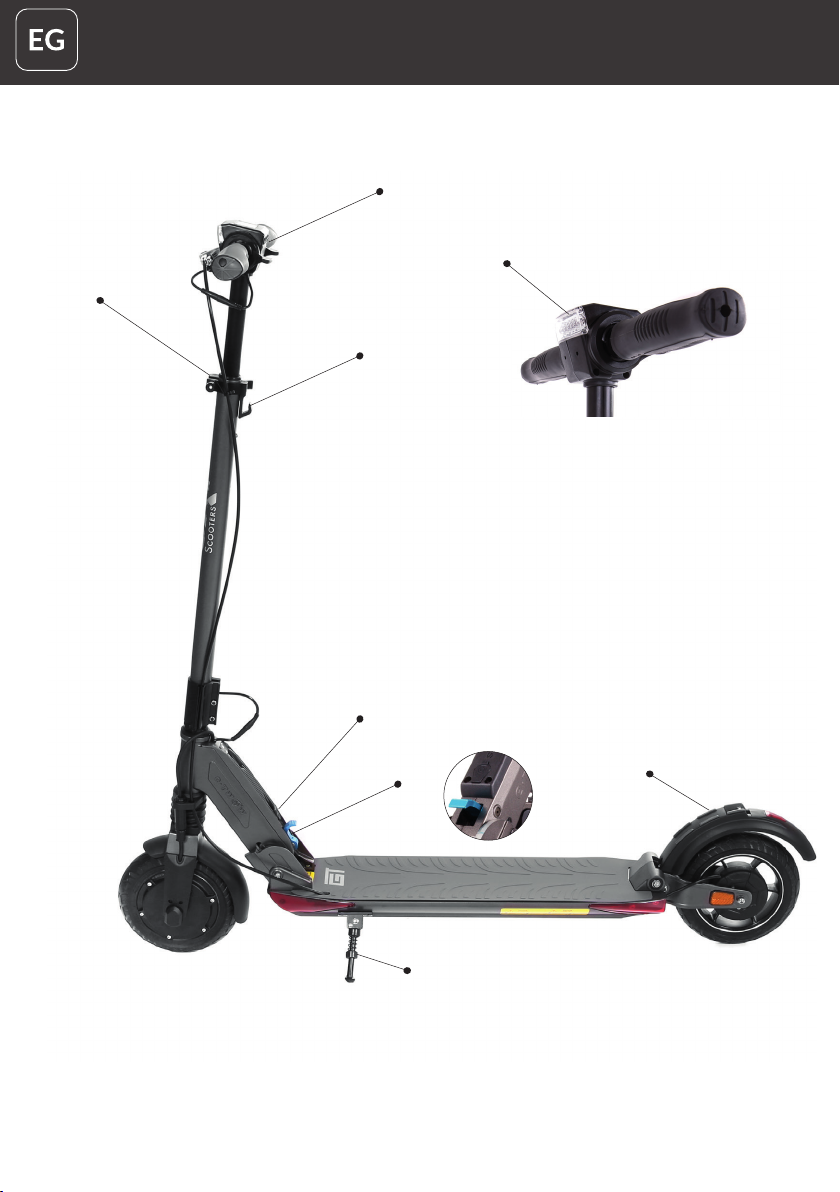

VEHICLE PARTS
UBHI (Display)
Folding hook
Battery charging socket
Folding lever Rear brake
Side stand
LED Headlight
Lock lever

MANUAL |11 |

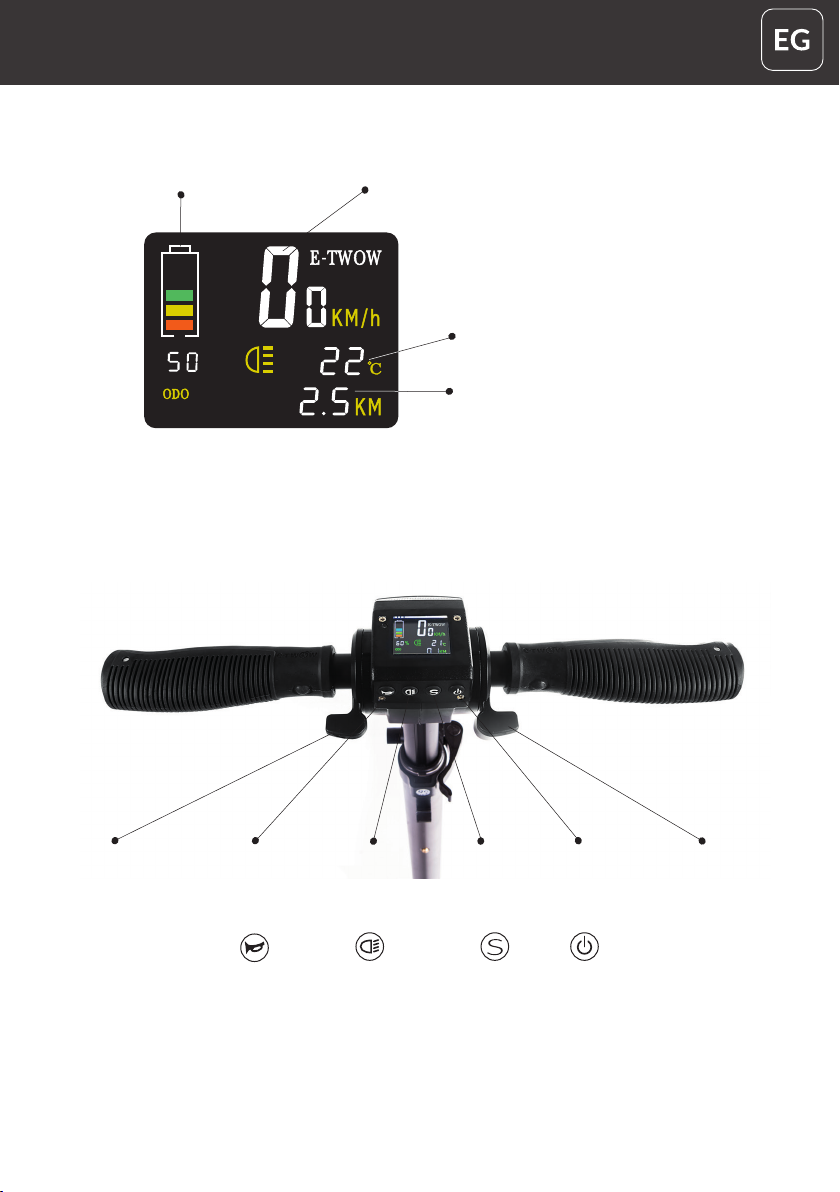

CONTROLS ON THE HANDLEBAR
%
Temperature display
Shows the total and daily trip distance
(From left to right: total, trip)
Battery charge level Speed
Horn On/Off
Light
[LIGHT]
On/Off
Switch
Memory
button
[SET]
thumb-
throttle lever
Thumb-
brake lever

| 12 | MANUAL
CONTROLS ON THE HANDLEBAR
ON/OFF
Press the switch for 1 second, the display lights up to indicate that the vehicle is
activated. Press for 3 seconds to turn off the vehicle. If the scooter is not used for 3
minutes, it will automatically turn OFF.
Speed control
Press the right thumb throttle to accelerate the scooter.
Braking control
Press the left thumb brake lever to activate the electromagnetic brake. The more the
lever is pressed, the stronger the braking effect.
Horn
Activate the vehicle and press the horn button to use the horn.
LED Headlight
Press the light switch in manual scooter mode without the engine activated. A sign in
the display indicates that the front light is activated. Press the switch again to turn the
light off.
For Example: If the weather is cloudy and Auto Light Mode is active, the light will turn
on automatically. When the clouds clear and the weather becomes brighter again, the
brightness sensor registers this and switches the light off again. In Auto Light Mode, the
display illumination is also switched on or off depending on the measured brightness.
The Auto Light Mode is terminated by pressing the Light ON/OFF switch once.
Odometer display
If the display is switched on, 2 modes are available: ODO and Trip. These can be changed
by pressing the Setting button. In “trip” mode, pressing the (S) button for 3 seconds will
clear the current data.
Emergency braking
In an emergency, it is recommended to use the rear foot brake.

MANUAL |13 |
CONTROLS ON THE HANDLEBAR CONTROLS ON THE HANDLEBAR
SET SPEED LIMIT
• Switch off the scooter (on/off switch)
• Press and hold thumb brake
• Switch on the scooter (on/off switch)
• L1” appears in the display
• Use the [LIGHT] button L1-L2-L3-L4 to switch to the menu
L1 = Limitation of the speed to 6 km/h
L2 = Limitation of the speed to 20 km/h
L3 = Limitation of speed to 25 km/h
L4 = Max. Speed
• To set up a new speed limit, press the [SET] key.
• To exit the settings, release the thumb brake.
%
ERROR CODE
E1: Overcurrent protection (motor does not move for more
than 4 seconds) - this error disappears when you release the
throttle lever.
E2/E4: Communication error (no communication for more
than 400ms) - this error clears when connection
is restored. Connection is established again.
E3: Overvoltage error (battery voltage too high).
Replace original battery, other hardware problems.
Black screen:It was too long in the sun. Please put it out of the sun for a while!
The display will be restored.
KICK START
• Switch on the scooter (on/off switch)
• Press and hold the thumb brake
• Press the on/off switch
• The display shows P1
• To turn the kick start function on or off, press [SET]
• To exit the settings, release the thumb brake.

| 14 | MANUAL

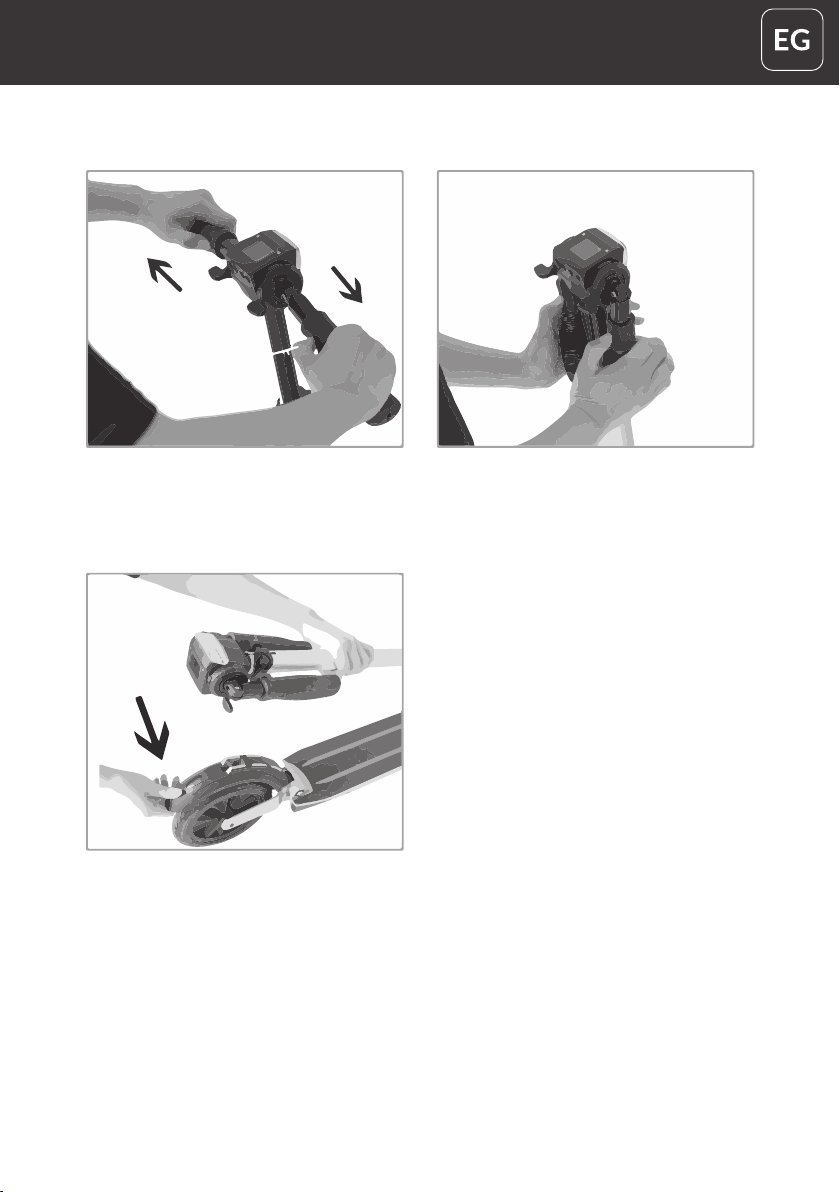

UNFOLD
Fully Unfolded
Folded handles
Completely folded

MANUAL |15 |

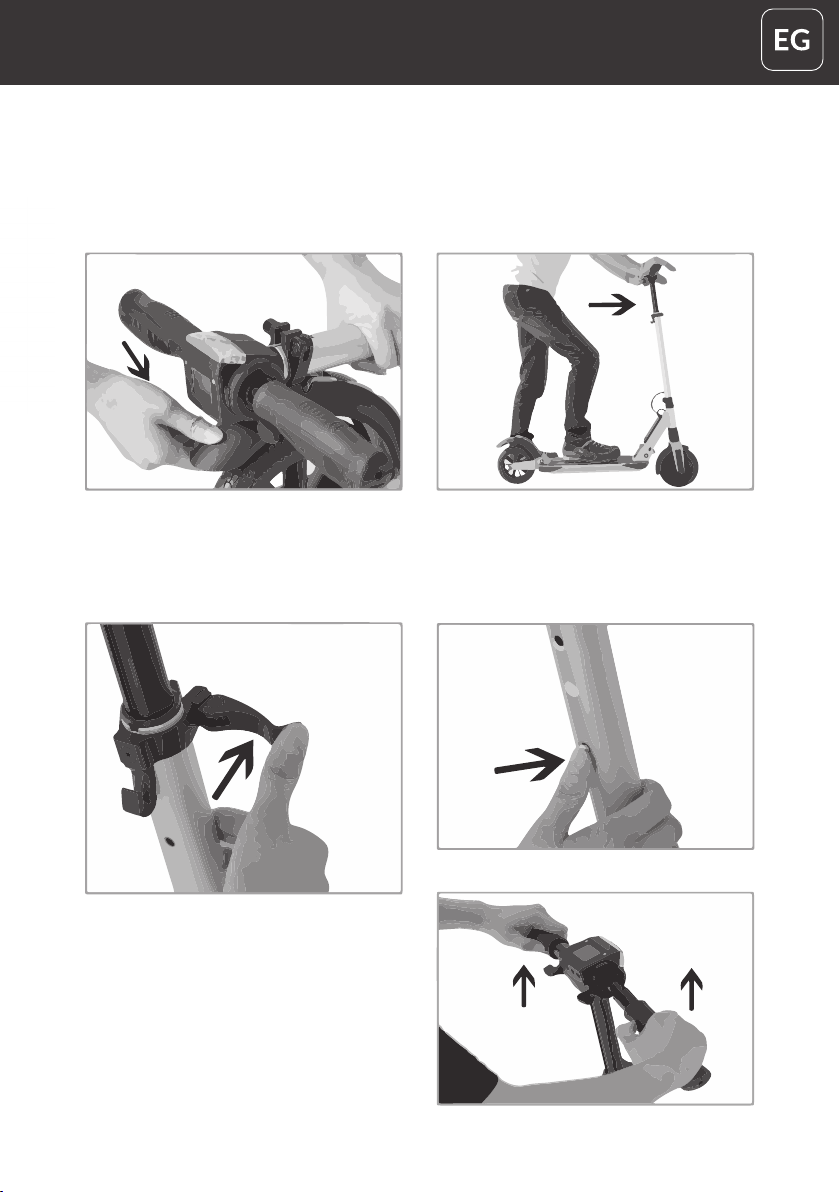

UNFOLD UNFOLD
Push down the rear mudguard in the direction of the arrow, (g. A), until the safety hook is
released from the lock. Then fully straighten the handlebar until it reaches the normal riding
position and the locking bolt engages - (g. B).
- Fig. A - - Fig. B-
2. Push the quick release in the direction of the arrow (g. C) and pull the handlebar until
it engages in one of the two holes at the desired height (g. D). Then lock the quick release
again rmly.
- Fig. C -
If the two handlebar grips are still
folded in, you can fold them up,
(g. E).
- Fig. E -
- Fig. D -

| 16 | MANUAL
FOLD
- Fig. A -
FOLDING
Push the quick release in the direction of the arrow as shown in (g. A).
2. Unlock the handlebars (g. B) and push them all the way down (g. C).
- Fig. B -
- Fig. C -
3. in order to trigger the folding process, the handlebar must be moved forward at
the same time as pressing the folding lever 1, this results in the locking mechanism
being released (g. D).
- Fig. D -
1

MANUAL |17 |
FOLD FOLD
4. Then fold the two handles down (g. E and F).
- Fig. E - - Fig. F -
- Fig. G -
5. Now push the handlebar all the way
down until the safety hook rakes into the
mudguard, (g. G).

| 18 | MANUAL
IDENTIFICATION NUMBER
Make a note of the vehicle identication number of your e-scooter.
Keep it in a safe place.
Each SXT LIGHT GT has an individual number. This can be used to clearly identify your
vehicle, e.g. in the event of theft.
This is how you can nd the frame number:
When you turn the scooter, you will nd the serial number under the footboard.

MANUAL |19 |
IDENTIFICATION NUMBER BEFORE USING THE BATTERY
Before you use the scooter, please make sure that it is the original battery of the
vehicle. Please do not use a battery of other brands or other models. Check that the
battery is in good condition externally, and make sure there is no damage, leakage,
heat generation, water ingress, smoke and other obvious phenomena. In order to
ensure the safety of transportation, the electrical quantity of the batteries from the
factory is about 30%. It is a normal phenomenon that when rst used, there is a small
amount of electricity or none at all, which is due to the consumption of electricity by
transportation and storage. Please do not worry and just charge it according to the
charging instructions.
Do not disassemble the used batteries on your own and return them to the appropria-
te departments for recycling and disposal.
At low temperatures, the available capacity of the battery is attenuated to varying
degrees. Specic reference degrees are as follows: Available capacity is 70% at -10°
C, 85% at 0° C, and 100% at 25° C. If you notice that the battery smells, heats up, de-
forms, and other abnormal conditions, stop using it immediately, stay away from the
battery, and contact the service department.
A battery is not a part that can be repaired by the user. In case of abnormal appea-
rance, please contact the after-sales service department for maintenance. Users who
disassemble the battery without permission will not benet from the warranty, and
unauthorized disassembly may cause the battery to generate heat, smoke, re or
explosion.

| 20 | MANUAL
CHARGE BATTERY
1. Connect the charger to a standard power unit, then connect the charger cable to your
SXT scooter. When everything is connected, the red indicator light on the charger will
turn on. The battery is full when the indicator light changes from red to green. At this
time, you can remove the charger and place the protective cover on charging socket.
2. Standard charging time:
The charging time is approximately 3-5 hours. The scooter should be charged in a
well-ventilated room at a normal average temperature.
