SXT Monster EEC User manual

MANUAL
Vehicle
SXT_MAMNSTREEC_V1.3
Manual - Version Download
Current manual

| 2 | MANUAL
CONTENTS
Page
Scope of delivery 3
Technical data 5
Important information 6
Before driving 8
Serial Number 9
Vehicle parts 10
Operating elements 12
Display 13
Assembly 14
Preparing to drive 22
Charging the battery 24
Maintenance, care 28
Troubleshooting 30
Recycling the battery 32
Warranty 33

MANUAL |3 |

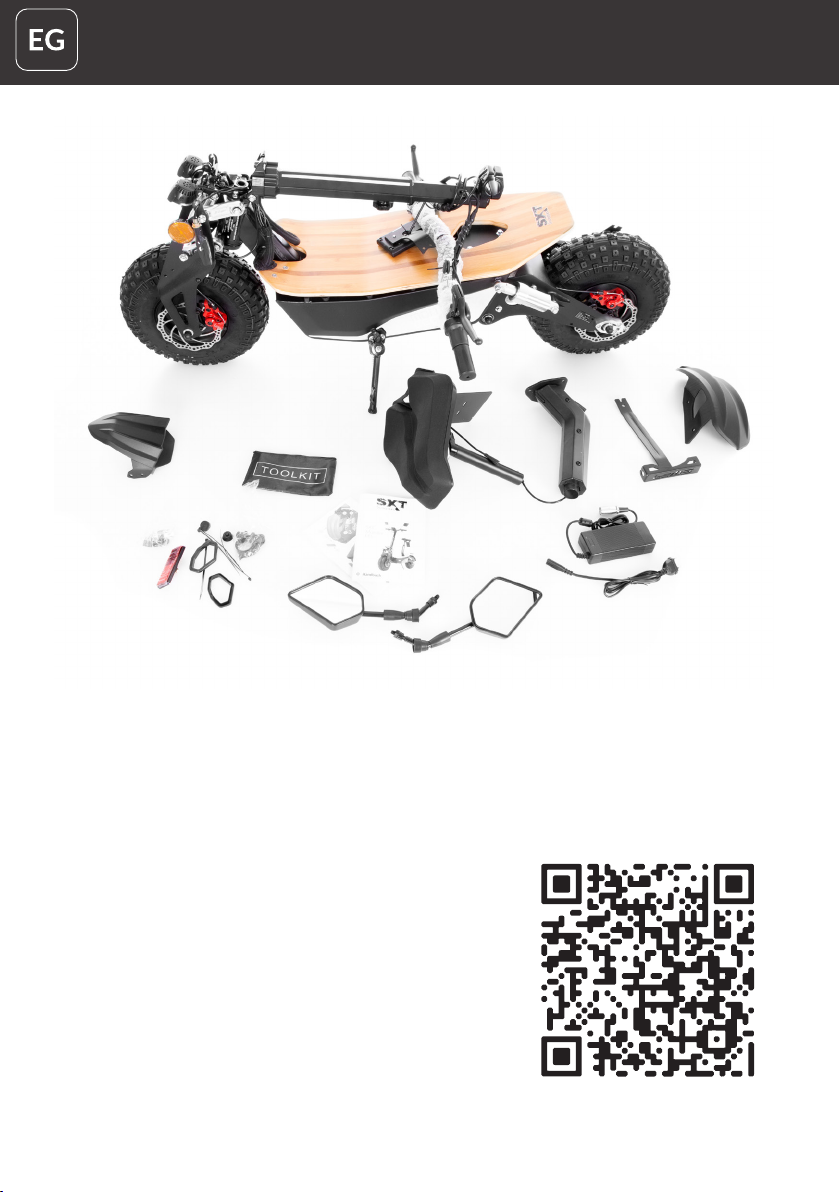

SCOPE OF DELIVERY
E-Scooter
ManualCharger Toolkit COC Paper
FusesExterior mirrors Turn signal bracket Mudguards
Saddle and seat tube
HANDBUCH
Fahrzeug
SXT_MAMNSTREEC_V1.3
Handbuch- Version Download
AktuellesHandbuch
COC

MANUAL |5 |
TECHNICAL DATA
Max. speed: 45 km/h
Type of drive: Chain
Max. payload: 134 kg
Length, width, height: 135 cm x 64 cm x 99 cm
Length, width, height / folded: 135 cm x 35 cm x 57 cm
Operating voltage: 48 Volt
Battery removable for charging: yes
Operation: Rotary throttle
Suspension: Shock absorbers front and rear
Brake: mech. disc brakes front & rearn
Tires: Qingda 145/70-6
IP protection class: 44
Vehicle frame: Steel
Wheelbase : 102 cm
Ground clearance: 16 cm
Handlebar height: 93 cm - 99 cm
Seat height: 80 cm - 87 cm
Lighting: LED front & rear
Steering wheel lock: yes
Sreet legal: yes
Foldable: yes

| 6 | MANUAL
For safe and proper use, carefully read the instructions for use and other documents
accompanying the product and keep them for later use! The current version of the
instructions for use can be found with the product on our homepage
www.sxt-scooters.de or via the QR code on the cover.
Why should this manual be read in detail!
This manual has been written to help you, the buyer, quickly and easily understand
how to operate and maintain the SXT Monster EEC accurately & safely. It is import-
ant that you understand all the points and features of your new SXT Monster EEC so
that you can enjoy riding your new electric scooter from the rst minute. For the rst
ride, you should select a large open area to familiarize yourself with the riding habits
and features of the scooter. The SXT Monster EEC requires a short break-in and bra-
king phase related to all moving parts until it has taken your exact position perfectly.
Before riding, always make sure that the folding mechanism is correctly engaged and
the safety lever is folded down.
The use of the electric scooter involves dangers. Various causes can lead to the failure
of individual components through no fault of the manufacturer. Like other electric
vehicles, the electric scooter is designed to move - this automatically involves the
risk of losing control during the ride, falling or getting into dangerous situations that
could not be avoided by training, practice or education. In such cases, despite the use
of protective equipment or other precautions, you may be injured or, in the worst
case, killed. USE AT YOUR OWN RISK. USE COMMON SENSE. This manual contains
various warnings and safety precautions concerning the consequences of improper
maintenance and care or improper use. Any accident could result in serious injury or,
in the worst case, death - we do not repeat this warning regarding possible injury or,
in the worst case, death at every point where such a warning is given.
IMPORTENT INFORMATION

MANUAL |7 |
1. The SXT Monster EEC may only be driven from the age of 16 with a driving license
class A1, AM - never use vehicle with
2. Persons at the same time. Always check the vehicle before driving. Regular main-
tenance and care will minimize the risk of damage, accidents and possible injury.
3. Always wear appropriate protective equipment such as an approved helmet with chin
strap. A helmet may also be required by law in your area. We also recommend elbow
and knee protectors, long-sleeved outerwear, long pants, and gloves. Always wear
sturdy footwear such as lace-up athletic shoes with rubber soles for rm grip. Never
ride the scooter barefoot or in sandals and keep shoelaces closed and away from
wheels, chain and drive train.
4. Road trafc - always observe the laws in force in your country.
5. Practice riding in a closed off open area.
6. This scooter is not designed for jumping, stunts or the like - likewise, avoid riding with
only one hand on the handlebars. Keep both feet on the footboard at all times. 7.
7. Do not drive the scooter up or down steps larger than 3 cm, as this may cause irrever-
sible damage to the vehicle due to shocks and vibrations.
8. The maximum speed is 45 km/h. Avoid using the vehicle at night as visibility is much
worse than during the day. If this is unavoidable, we recommend that you do not
exceed a speed of 15 km/h and turn on the lights.
9. Do not use the scooter at temperatures below 0°C.
10. Drive very slowly and carefully or get off the scooter if you nd bad road conditions.
11. Do not use the scooter on oily or icy surfaces.
DISREGARDING THE ABOVE INSTRUCTIONS AND DISREGARDING
NORMAL COMMON SENSE
INCREASES THE RISK OF SERIOUS INJURY.
IMPORTENT INFORMATION

| 8 | MANUAL
BEFORE DRIVING
Mechanical safety check:
Before using the SXT Monster EEC: Perform a visual inspection for any loose screws
and other parts. Make sure everything is in place and no parts are missing or showing
heavy wear. If you are unsure, be sure to contact your dealer or technical support
immediately!
Tires and wheels:
Ensure the necessary tire pressure, you can nd this on the tires.
Check your tires for wear - to do this, rotate them around their own axis to be able to
inspect them all around. Make sure the tires spin freely and the brakes do not lock.
If they do, please contact your dealer or technical support! Check the brakes and all
mechanical functions before each ride.
1. Get to know the SXT Monster EEC - before you ride it. Familiarize yourself with its
driving behavior. Do not make tight turns, drive slowly and pay attention to your
braking distance.
2. Do not overestimate your abilities. Learn to ride the SXT Monster EEC best on a
large at area without obstacles.
Steer:
Steering on the SXT Monster EEC is similar to steering on a bicycle, snowboard or
surng. The handlebars should always be parallel to the body. Before each change of
direction, make sure that the desired direction of travel is clear.

MANUAL |9 |
SERIAL NUMBER
Make a note of the vehicle identication number of your e-scooter. Keep it in a safe
place.
Each SXT Monster EEC has an individual number. This can be used to clearly identify
your vehicle, e.g. in the event of theft.
How to nd the frame number:
The number is located above the front tire on the left side.

| 10 | MANUAL
Exterior mirror
Front light
Running
board
Handlebars
Quick release
Clamp
Brake
Display
Mech. disc brakes
Shock
absorbers
Steering wheel
lock
Charging bucAttention:
The vehicle cannot be
started as long as the side
stand is folded out.
VEHICLE PARTS
Charging socket

MANUAL |11 |
License plate
holder
Turn signal
Handlebars
Quick release
Clamp
Taillight
Seat quick release clamp
Batterie
(inside)
Shock
absorbers
VEHICLE PARTS
Mech. disc brakes

| 12 | MANUAL
OPERATING ELEMENTS
Full battery
Half full battery
empty battery
Start switch
full
half
empty
On/Off switch
Horn
LED running direction blinker
On/Off switch
Ignition key

MANUAL |13 |
DISPLAY
km/h
km
10
20
30
40 50
60
0
Right
Turn signal lightHigh beamReady
Left
Turn signal light
Trip driven kilometers
Charge status
Speed
On-board voltage or
temperature display
Trip time
When turning the ignition key, the total kilometers driven
are displayed, then the display switches to Trip.

| 14 | MANUAL
1. Vehicle SXT Monster EEC
2. Front mudguard + 4 screws and nut clamps
3. Mudguard rear + 2 screws
4. Reector rear
5. Tool
6. saddle
7. seat post
8. Turn signal bracket rear
9. Rear view mirror
10. Fuses
11. Quick release for seat post
12. Manual
13. Charger
14. COC Paper To the construction video
ASSEMBLY

MANUAL |15 |
1. First fold the handlebar upwards and lock it in position Fig. 1.
2. Now mount the handlebar rod.
First, remove the 4 screws Fig. 2 and the cover.
In the next step, place the handlebar in the opening provided for this purpose and
fasten it with the cover removed beforehand. Fig. 3.
Make sure the handlebars are aligned correctly.
Fig. 1
Fig. 2 Fig. 3
ASSEMBLY

| 16 | MANUAL
3. To mount the LCD display, remove the two screws Fig. 4 under the handlebar.
Then screw the LCD display back on with the two screws Fig. 5.
4. In the next step, mount the two front turn signals Fig. 6 and fold up the LED lamps
Fig. 7 and tighten the screws.
Fig. 4 Fig. 5
Fig. 6 Fig. 7
ASSEMBLY

MANUAL |17 |
5. Attach the nut clamps Fig. 8 to the front mudguard and screw it to the vehicle frame
as shown in the picture Fig. 9.
6. The rear mudguard can be easily attached to the vehicle frame with 2 screws
Fig. 10, then screw the reector to the rear mudguard Fig. 11.
Fig. 8 Fig. 9
Fig. 10 Fig. 11
ASSEMBLY

| 18 | MANUAL
7. Under the footboard you will nd the rear turn signals Fig. 12.
Remove the 3 screws Fig. 13 to install the seat bracket.
Then screw this to the turn signal bracket Fig. 14. Now connect the rst connector for
the rear light together Fig. 15.
Attention: Before installing the seat bracket, rst insert the battery.
Fig. 12 Fig. 13
Fig. 14 Fig. 15
ASSEMBLY

MANUAL |19 |
8. Now plug the clamp fastener Fig. 16 for the seat onto the seat holder and then push
the seat into the opening provided for it Fig. 17.
Now connect the second plug connection for the rear light Fig. 18.
Fig. 16 Fig. 17
Fig. 18
ASSEMBLY

| 20 | MANUAL
The scope of delivery also includes fuses, which you will need when connecting the
battery. Insert them into the cable fuse holder provided for this purpose Fig. 20.
Then connect the connectors between the battery and the vehicle Fig. 21.
When inserting the battery, make sure that the cables do not lie underneath it.
To install or remove the battery, the seat holder must be dismantled.
Fig. 20
9. mount nand the two rear turn signals Fig. 19.
Please make sure that the turn signals are mounted correctly (right and left), power
up the vehicle and operate the direction indicator.
Fig. 19
Direction indicator
Attention:
The vehicle cannot be started as long as the side stand is folded out!
Fig. 21
ASSEMBLY
