Techart 097.200.840.009-01 User manual

ASSEMBLY INSTRUCTIONS
TECHART Noselift System
Part-no. 097.200.840.009-01 911 Carrera 4/4S, 911 Turbo, TECHART GTstreet/R all
Part-no. 097.200.850.009-01 911 GT2, GT2 RS, TECHART GTstreet S/RS until MY09
Part-no. 097.200.860.009-01 911 GT3/GT3 RS until MY09
Part-no. 097.200.865.009-01 911 GT3/GT3 RS starting MY10
Part-no. 087.200.840.009-01 987 Cayman all
Part-no. 087.200.841.009-01 987 Boxster all

TECHART Version 07 Page 2 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
Contents
IImportant safety information..................................................................................................................3
II Preparation...............................................................................................................................................5
III Installation............................................................................................................................................. 10
1Location of components............................................................................................................. 11
2Preparing the vehicle ................................................................................................................. 13
3Assembly of TECHART parts (front axle).................................................................................. 13
3.1 Assembly of left and right lift cylinders ....................................................................... 13
3.2 Installation of hydraulic assembly............................................................................... 15
3.3 Routing of right hydraulic line..................................................................................... 16
3.4 Routing of left hydraulic line ....................................................................................... 21
3.5 Routing of hydraulic line from distributor to hydraulic assembly ................................ 26
4Assembly of TECHART parts (rear axle, only for 997 GT3/GT3RS)......................................... 32
5Routing and connection of CAN line.......................................................................................... 34
6Installing and connecting Noselift switch to overhead control panel /center console................ 39
6.1 All 997 and 987 Boxster ............................................................................................. 40
6.2 Only for 987 Cayman.................................................................................................. 43
7Installation and connection of power supply lines...................................................................... 44
8Initial startup and operation of TECHART Noselift System ....................................................... 45
9Final inspection.......................................................................................................................... 46
10 Tightening torques ..................................................................................................................... 46
IV Further Information............................................................................................................................... 47
1Adjustment values for vehicle height ......................................................................................... 47
2Specifications............................................................................................................................. 48
3Maintenance............................................................................................................................... 48
4Notes on hydraulic fluid.............................................................................................................. 49
5Disposal information .................................................................................................................. 49

TECHART Version 07 Page 3 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
I Important safety information
All of the necessary work must be performed by qualified persons with an appropriate
level of expertise.
Vehicle lifts with an insufficient lifting capacity can collapse under the weight
of the vehicle and crush any persons standing underneath.
Compare the weight of the vehicle with the lifting capacity of your vehicle lift.
The weight of the vehicle must not exceed the lifting capacity of your vehicle
lift. The weight of the vehicle can be found in the vehicle operating manual.
Risk of injury from electric current.
Switch off the ignition and disconnect the battery when working on the vehicle
electrical/electronics systems.
Hydraulic oil can lead to heavy injuries under pressure squirting out.
Poisoning danger by swallowing hydraulic oil.
Danger of injury by irritations at contact of hydraulic oil with eyes, mucous
membrane and skin.
Protective clothing and safety goggles carry. Avoiding contact with eyes,
mucous membrane and skin.
Not eating, drinking or smoking at dealing with hydraulic oil.

TECHART Version 07 Page 4 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
Risk of injury from hands and arms being crushed, cut or lacerated when
working with sharp-edged and bulky objects.
Wear protective clothing and protective gloves. Keep limbs out of narrow and
inaccessible areas of the vehicle and/or avoid dangerous situations by using
special tools and suitable aids.
Risk of injury to back, muscles, joints, tendons and ligaments from lifting and
carrying heavy and/or bulky objects.
Lift and transport heavy and/or bulky objects with the help of other people
and/or with suitable aids.
Before starting the assembly procedure, carefully read the assembly instructions in full
and pay attention to the safety information and sequence of the individual operation steps.
All body parts must be prepared and painted in accordance with the attached painting
guide.

TECHART Version 07 Page 5 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
II Preparation
i
On the 997 Turbo and the 987 Cayman or Boxster, the standard suspension has
to be replaced with the Various Plus coil-over suspension art no.
097.200.550.009 (without PASM) or 087.200.350.009 (with PASM) before the
TECHART Noselift System can be installed (see the according assembly
instructions).
On the GT2/GT3/RS, the TECHART Noselift System can be installed with the
standard suspension.
Number of people required
For the installation of this product at least two persons are needed.
Help and support
In case of technical questions you immediately contact us: [email protected]

TECHART Version 07 Page 6 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
Check TECHART Noselift System parts kit for completeness
Item Quantity Part number Part designation
1 1 097.200.840.009-01 Noselift System for 911 Carrera 4/4S, 911 Turbo,
TECHART GTstreet/R
Consisting of:
2 1 097.200.820.100-02 Hydraulic unit incl. large battery plate
2 2 097.200.840.100-01 Large lift cylinder 45 mm for round thread M54x1/10 in
2 1 097.200.800.200 Hydraulic line assembly kit
2 2 097.200.810.100 Hydraulic line 1200 mm
2 1 097.200.800.100 Hydraulic line 2400 mm
2 1 097.200.830.100 TECHART power supply cable set
2 1 097.200.830.200 Cable set for CAN connection and TECHART integration
2 1 097.200.831.100 Noselift system switch
2 2 097.200.130.100 Noselift main spring, FA
2 2 097.200.070.100 Noselift auxiliary spring, FA
2 2 097.200.840.000 Spring adapter, FA (upper dome support)
2 2 097.200.840.005 Thrust bearing, FA
2 2 097.200.840.010 Mount, FA
2 2 097.200.840.015 Intermediate ring, FA
2 2 097.200.840.020 Threaded ring, FA
Item Quantity Part number Part designation
1 1 097.200.850.009-01 Noselift System for 911 GT2 , GT2 RS, GTstreet S/RS
Consisting of:
2 1 097.200.820.100-01 Hydraulic unit incl. large battery plate
2 2 097.200.850.100-01 Small lift cylinder 45 mm for thread M52x1.5
2 1 097.200.800.200 Hydraulic line assembly kit
2 2 097.200.810.100 Hydraulic line 1200 mm
2 1 097.200.800.100 Hydraulic line 2400 mm
2 1 097.200.830.100 TECHART power supply cable set
2 1 097.200.830.200 Cable set for CAN connection and TECHART integration
2 1 097.200.831.100 Noselift system switch
2 2 097.200.140.050 Noselift main spring, FA
2 2 097.200.080.100 Noselift auxiliary spring, FA
2 2 097.200.850.002 Noselift uniball spacer, FA
2 2 097.200.850.004 Noselift sleeve, FA
2 2 097.200.850.005 Noselift thrust bearing, FA
2 2 097.200.850.010 Noselift support plate, FA
2 2 097.200.850.015 Noselift intermediate ring, FA
2 2 097.200.850.020 Noselift threaded ring, FA

TECHART Version 07 Page 7 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
Item Quantity Part number Part designation
1 1 097.200.860.009-01 Noselift System for 911 GT3/ GT3 RS until MY 09
Consisting of:
2 1 097.200.820.100-01 Hydraulic unit incl. large battery plate
2 2 097.200.850.100-01 Small lift cylinder 45 mm for thread M52x1.5
2 1 097.200.800.200 Hydraulic line assembly kit
2 2 097.200.810.100 Hydraulic line 1200 mm
2 1 097.200.800.100 Hydraulic line 2400 mm
2 1 097.200.830.100 TECHART power supply cable set
2 1 097.200.830.200 Cable set for CAN connection and TECHART integration
2 1 097.200.831.100 Noselift system switch
2 2 097.200.140.050 Noselift main spring, FA
2 2 097.200.080.100 Noselift auxiliary spring, FA
2 2 097.200.850.002 Noselift uniball spacer, FA
2 2 097.200.850.004 Noselift sleeve, FA
2 2 097.200.850.005 Noselift thrust bearing, FA
2 2 097.200.850.010 Noselift support plate, FA
2 2 097.200.850.015 Noselift intermediate ring, FA
2 2 097.200.850.020 Noselift threaded ring, FA
2 2 097.200.120.100 Noselift main spring, RA
2 2 097.200.080.010 Noselift auxiliary spring, RA
2 2 097.200.860.215 Noselift intermediate plate, RA
2 2 097.200.860.210 Noselift spring collar, RA
2 2 097.200.860.205 Noselift support pad, RA
Item Quantity Part number Part designation
1 1 097.200.865.009-01 Noselift System for 911 GT3/ GT3 RS from MY 10
Consisting of:
2 1 097.200.820.100-01 Hydraulic unit incl. large battery plate
2 2 097.200.850.100-01 Small lift cylinder 45 mm for thread M52x1.5
2 1 097.200.800.200 Hydraulic line assembly kit
2 2 097.200.810.100 Hydraulic line 1200 mm
2 1 097.200.800.100 Hydraulic line 2400 mm
2 1 097.200.830.100 TECHART power supply cable set
2 1 097.200.830.200 Cable set for CAN connection and TECHART integration
2 1 097.200.831.100 Noselift system switch
2 2 097.200.140.050 Noselift main spring, FA
2 2 097.200.080.100 Noselift auxiliary spring, FA
2 2 097.200.850.002 Noselift uniball spacer, FA
2 2 097.200.850.004 Noselift sleeve, FA
2 2 097.200.850.005 Noselift thrust bearing, FA
2 2 097.200.850.010 Noselift support plate, FA
2 2 097.200.850.015 Noselift intermediate ring, FA
2 2 097.200.850.020 Noselift threaded ring, FA

TECHART Version 07 Page 8 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
Item Quantity Part number Part designation
1 1 087.200.840.009-01 Noselift System for 987 Cayman
2 Consisting of:
2 1 087.200.820.100-02 Hydraulic unit incl. large battery plate
2 2 097.200.840.100-01 Small lift cylinder 45 mm for thread M52x1.5
2 1 097.200.800.200 Hydraulic line assembly kit
2 2 097.200.810.100 Hydraulic line 1200 mm
2 1 097.200.800.100 Hydraulic line 2400 mm
2 1 097.200.830.100 TECHART power supply cable set
2 1 097.200.830.200 Cable set for CAN connection and TECHART integration
2 2 097.200.130.100 Noselift main spring, FA
2 2 097.200.070.100 Noselift auxiliary spring, FA
2 2 097.200.840.000 Spring adapter, FA (upper dome support)
2 2 097.200.840.010 Noselift support plate, FA
2 2 097.200.840.005 Noselift thrust bearing, FA
2 2 097.200.840.015 Noselift intermediate ring, FA
2 2 097.200.840.020 Noselift threaded ring, FA
2 1 087.200.830.100 TECHART integration cable set
2 1 087.200.831.100 Noselift system switch
2 2 097.200.250.103 Plastic pad 60mm blue
Item Quantity Part number Part designation
1 1 087.200.841.009-01 Noselift System for 987 Boxster
2 Consisting of:
2 1 087.200.820.100-02 Hydraulic unit incl. large battery plate
2 2 097.200.840.100-01 Small lift cylinder 45 mm for thread M52x1.5
2 1 097.200.800.200 Hydraulic line assembly kit
2 2 097.200.810.100 Hydraulic line 1200 mm
2 1 097.200.800.100 Hydraulic line 2400 mm
2 1 097.200.830.100 TECHART power supply cable set
2 1 097.200.830.200 Cable set for CAN connection and TECHART integration
2 1 097.200.831.100 Noselift system switch
2 1 997.613.227.02A.05 Switch
2 2 097.200.130.100 Noselift main spring, FA
2 2 097.200.070.100 Noselift auxiliary spring, FA
2 2 097.200.840.000 Spring adapter, FA (upper dome support)
2 2 097.200.840.010 Noselift Mount, FA
2 2 097.200.840.005 Noselift thrust bearing, FA
2 2 097.200.840.015 Noselift intermediate ring, FA
2 2 097.200.840.020 Noselift threaded ring, FA
2 2 097.200.250.103 Plastic pad 60mm blue

TECHART Version 07 Page 9 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
Please use the table to check whether all of the required parts are present.
Please contact us immediately if any parts should be missing: [email protected]
Once parts have been removed from their original packaging, ensure that they are
properly handled and stored.

TECHART Version 07 Page 10 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
III Installation
The TECHART Noselift System may not be connected to the power supply
before the hydraulic lines are connected.
Work may only be carried out on the hydraulic unit and suspension struts when
they are disconnected and depressurized and with the hydraulic unit switched
off. The hydraulic unit must be secured to prevent it being switched on.
Accordingly, the entire hydraulic unit including control system must be
disconnected from the battery and the connection line must be insulated against
contact with the battery.
All pressure lines and lift cylinders must be depressurized before work is
carried out on the TECHART Noselift System.
The hydraulic unit and lift cylinders can become hot if repeatedly raised and
lowered.
The relevant safety regulations must be complied with when handling hydraulic
fluid.
If the power supply fails, the vehicle drops to the normal level.
Warning! Before disconnecting the power supply (battery), observe the relevant
information supplied by the vehicle manufacturer.

TECHART Version 07 Page 11 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
1 Location of components 997 and 987 Boxster
Switch is located in the overhead control panel
1 Right TECHART lift cylinder
2 Left TECHART lift cylinder
3 TECHART hydraulic assembly
4 Distributor
5 Hydraulic line 1200 mm
connecting lift cylinder to
distributor
6 Hydraulic line 2400 mm
connecting hydraulic assembly to
distributor
7 Connection for CAN
communication between vehicle
and hydraulic assembly
8 TECHART Noselift switch (located
in overhead control panel
Homelink)
Fig. 01

TECHART Version 07 Page 12 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem

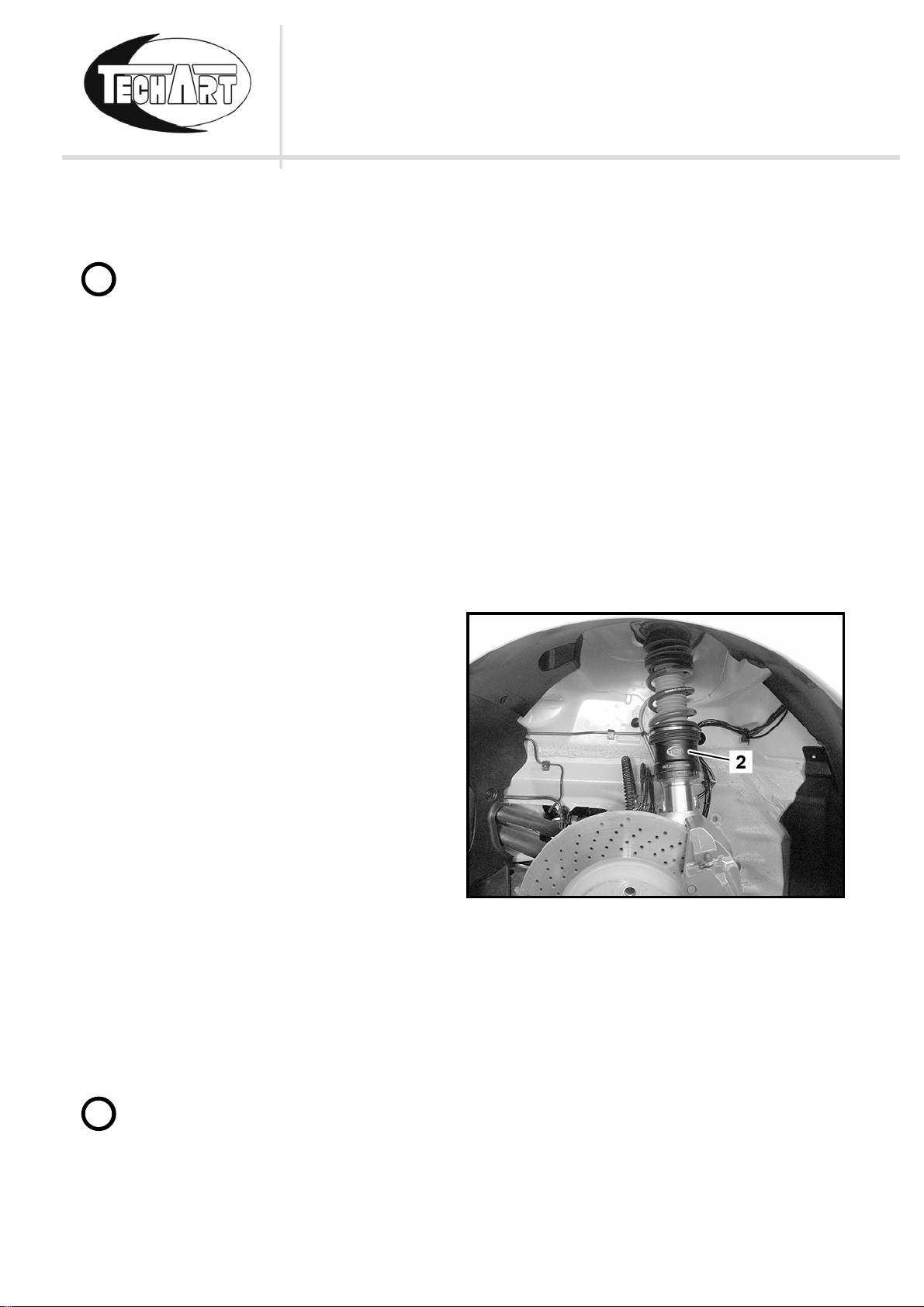

Location of components 987 Cayman
Switch is located in the center console
1 Right TECHART lift cylinder
2 Left TECHART lift cylinder
3 TECHART hydraulic assembly
4 Distributor
5 Hydraulic line 1200 mm connecting
lift cylinder to distributor
6 Hydraulic line 2400 mm connecting
hydraulic assembly to distributor
7 Connection for CAN
communication between vehicle
and hydraulic assembly
8 TECHART Noselift switch (located
in the center console)
Fig. 02

TECHART Version 07 Page 13 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
2 Preparing the vehicle
i
Before starting work, check that the vehicle is free from defects. Use the PIWIS
system tester to read out all the fault memories of the individual vehicle
components and first rectify any faults displayed.
1 Raise vehicle at the factory-fitted lift support points.
2 Detach the wheels.
3 Assembly of TECHART parts (front axle)
3.1 Assembly of left and right lift cylinders
1 Detach connector for wheel carrier
plug connection. Detach plug
connection from wheel carrier and
unclip electrical lines on
suspension strut.
2 Remove support for brake
line/brake hose on wheel carrier.
Remove brake caliper from wheel
carrier and hang up in wheel well.
3 Undo suspension gear on anti-roll
bar (counter hold using open-end
wrench). Fig. 03
4 Detach tie rod and control arm on wheel carrier and pry off the ball joints using the
puller. When undoing the lock nuts, counter hold with Torx screwdriver on ball joint
pin.
5 Undo threaded joint connecting suspension-strut supporting mount to body (3 M8
lock nuts).
i
On vehicles equipped with PASM, the damper connection cable has to be
detached.

TECHART Version 07 Page 14 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
i
6 Release clamp connection for suspension strut/wheel carrier (ball joint of
suspension gear), counter holding with an open end wrench. Withdraw
suspension strut from wheel carrier.
7 Pretighten coil spring with spring compressor far enough until the piston rod is
relieved.
8 Dismantle supporting mount.
9 Complete assembly of shock absorbers with TECHART Springs, left and right lift
cylinders and original supporting mounts. (On vehicles which do not allow the
dismantling of the lower spring collar the lift cylinder can be mounted right
on the serial spring collar!)
For the 987 models lay the supplied blue washer between the pivot bearing and
the strut bearing!
10 Use new lock nut to tighten supporting mount on piston rod.
i
On suspension struts with a PASM
system, the electrical cable is to be
attached using a plug-in cable tie
and then routed along the ABS cable
with cable ties.
Installation is in the reverse order.
Replace the lock nuts and brake
caliper fastening bolts.
Adjust height of vehicle to match
customer requirements. Front axle
adjustment range:
Shock absorber dimension x
997 C4/C4S: x = 44 – 54 mm
997 Turbo: x = 44 – 54 mm
997 GT2 until MY09: x = 23 – 30 mm
997GT2 RS from MY11: x =16-25mm
997 GT3/GT3RS until MY09:
x = 36 – 43 mm
997 GT3/ GT3RS from MY10
x = 30 – 38 mm
987 Cayman/Boxster: x = 44 – 54 mm
Fig. 04

TECHART Version 07 Page 15 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
After setting shock absorber dimension x, the vehicle height must be checked
and corrected if necessary.
See chapter IV, section 1 for the vehicle height adjustment values.
3.2 Installation of hydraulic assembly
i
Please also refer to the Porsche Driver's Manual.
1 Remove original battery.
2 Remove original battery box.
i
Original parts no longer required.
On vehicles with a battery whose
capacity is greater than 70 Ah, a
compact battery must be installed.
On the 997 GT3/GT3 RS, a compact
battery may already be installed
depending on the equipment. If this
is not the case, a compact battery
must be installed.
Fig. 05
The compact battery must be ordered separately from a specialist dealer!
Compact batteries (manufacturer, order number):
VARTA, 577 400 08
Bosch, 0 092 550 080
The following Porsche batteries can continue to be used (part number,
capacity):
999.611.060.20, 60 AH
999.611.070.20, 70 AH
The following Porsche batteries must be replaced (part number, capacity):
999.611.080.22, 80 AH
999.611.095.23, 95 AH
3 Install TECHART hydraulic assembly (3) with battery box.

TECHART Version 07 Page 16 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
3.3 Routing of right hydraulic line
i
The hydraulic lines must not be kinked or pinched. They must be routed in such
a way that they do not chafe against other parts, overextend or sag in any
driving or steering situation.
i
IMPORTANT: Move wheels to the straight-ahead position.
1 Install hydraulic line (1200 mm) (5)
on right TECHART lift cylinder (1)
with the supplied banjo bolt (9)
and 2 sealing washers.
Fig. 06
i
Position the TECHART lift cylinder in
such a way that the TECHART log
points towards the brake disk (the
left TECHART lift cylinder is shown
here).
Fig. 07

TECHART Version 07 Page 17 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem

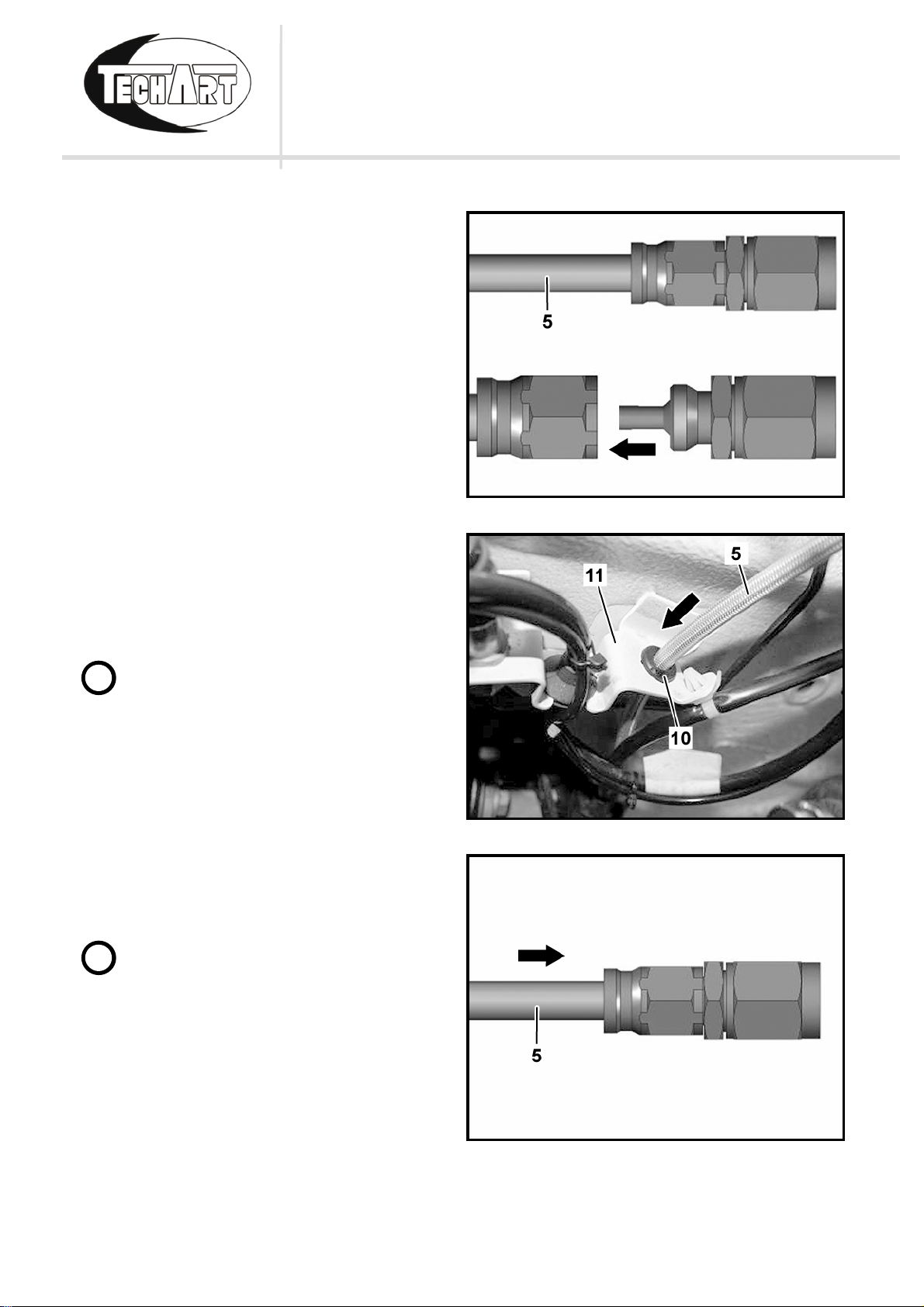

2 Unscrew the threaded connection
of the hydraulic line (1200 mm)
(5).
Fig. 08
3 Press the supplied rubber
grommet (10) into the free bracket
on the vehicle (11) and thread the
hydraulic line (1200 mm) (5)
through from above.
i
The picture shows the dual-sided
bracket (11) on the 997 Turbo. On
the 997 GT3, the front bracket
(viewed in the direction of travel) is
intended for the hydraulic line (1200
mm) (5).
Fig. 09
4 Screw threaded connection onto
hydraulic line (1200 mm) (5) and
tighten.
i
Before the hydraulic line is finally
fastened in place, it is necessary to
ensure that the size of the loop is
large enough. The size of the loop
must be chosen so that it cannot be
placed under stress or kinked
throughout the entire working range
of the suspension strut.
Fig. 10

TECHART Version 07 Page 18 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem
5 Route hydraulic line (1200 mm) (5)
along body edge using edge clips
(12).
i
Only tighten cable ties once the
entire line has been routed.
Fig. 11
6 Attach hydraulic line (1200 mm)
(5) to brake line (13) using a cable
tie (see arrow).
i
The hydraulic line (1200 mm) (5)
must be fixed in place in such a way
that it cannot chafe against other
parts.
Fig. 12

TECHART Version 07 Page 19 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem

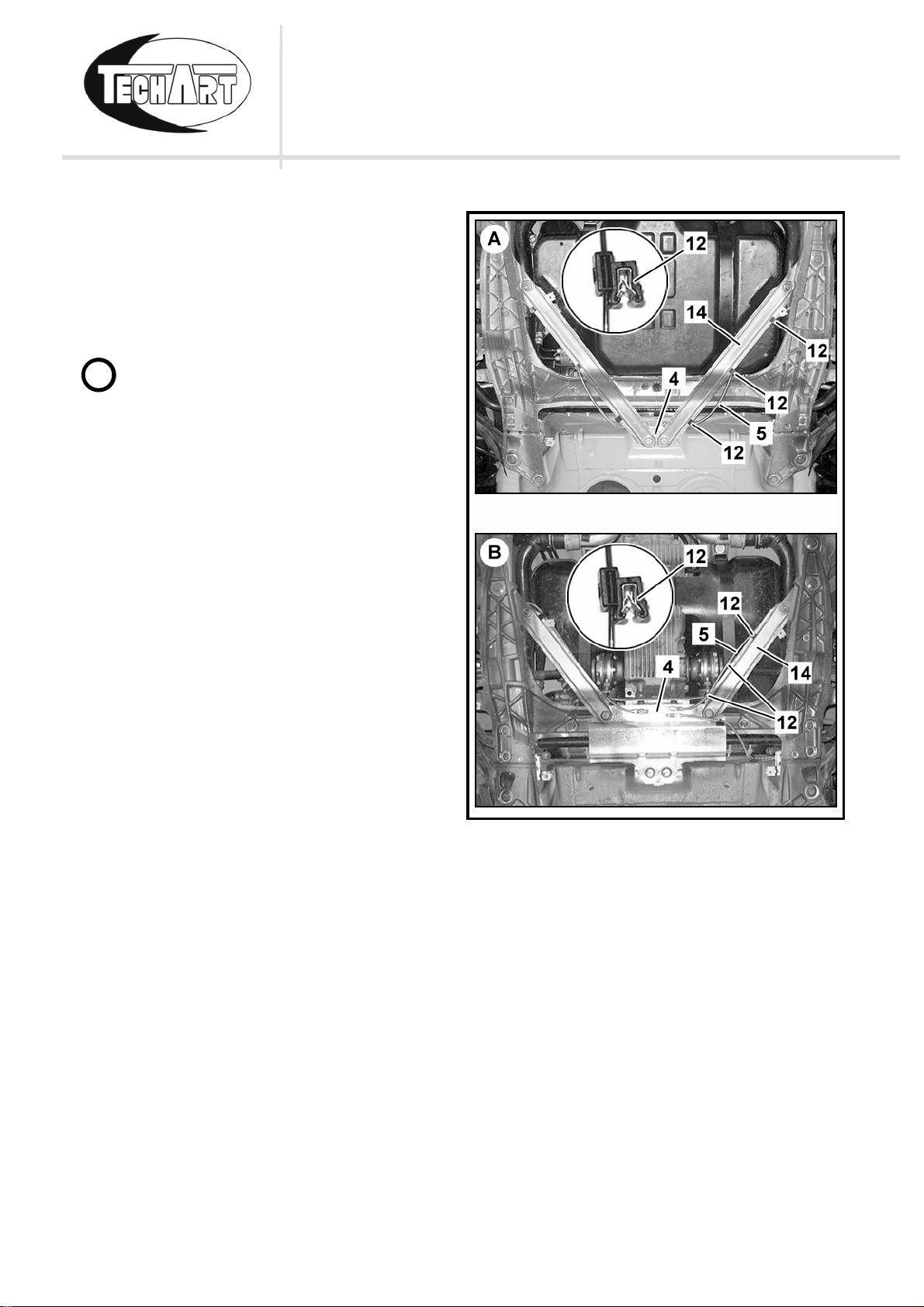

7 Connect hydraulic line (1200 mm)
(5) to distributor (4).
8 Fasten hydraulic line (1200 mm)
(5) to the right strut (14) using the
supplied edge clips (12).
i
Picture A shows the 987 and/or 997
GT2/GT3/GT3RS
Picture B shows the 997
Turbo/C4/C4S
Only tighten cable ties once the
entire line has been routed.
NOTE: Another hydraulic line has to
be fixed in place with these edge
clips (12).
Fig. 13

TECHART Version 07 Page 20 of 50
ASSEMBLY INSTRUCTIONS
TECHART Noselift S
y
stem

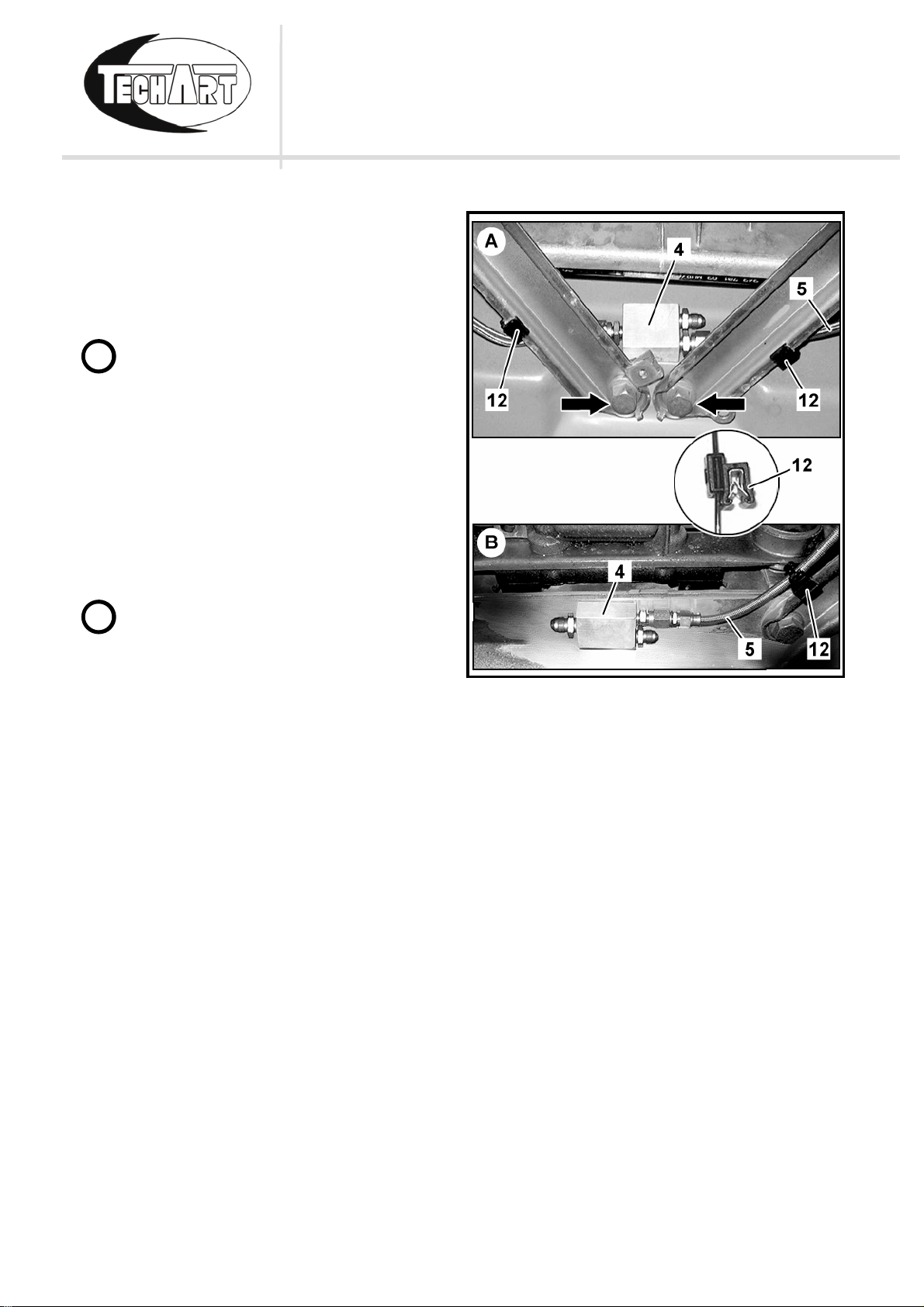

9 The distributor (4) is attached to
the mounting bolts of the left and
right struts using a bracket (on the
987, 997 GT2/GT3/GT3RS, see
arrows).
i
Picture A shows the 987, 997
GT2/GT3/GT3RS
The bracket for attaching the
distributor (4) is included with the
hydraulic line assembly kit.
10 Only stick on the distributor (4)
when the lines have been
tightened (on the 997
Turbo/C4/C4S).
i
Picture B shows the 997
Turbo/C4/C4S
IMPORTANT! Surface must be free
of dust and grease.
Fig. 14
