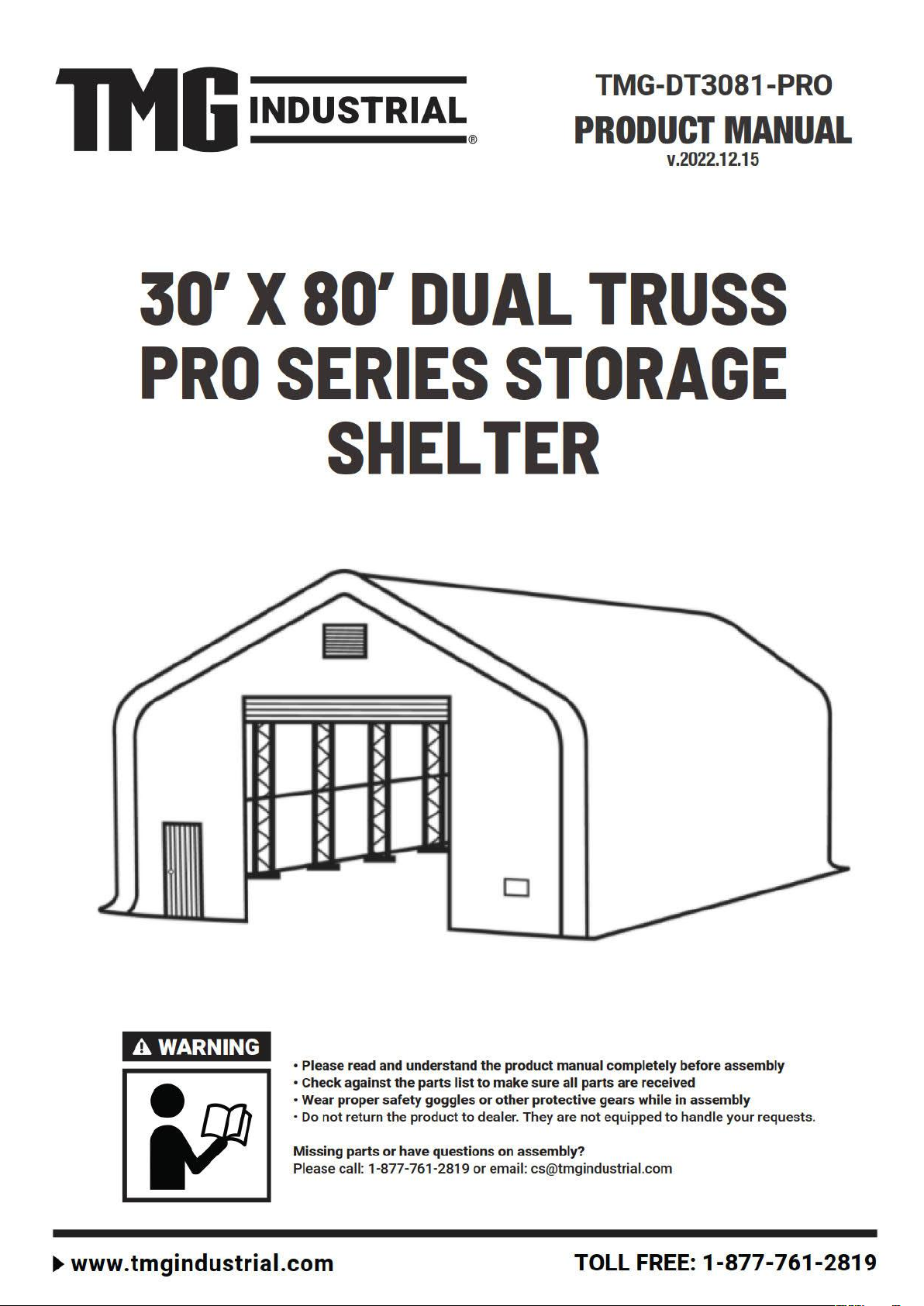

TMG TMG-DT3081-PRO User manual

►www.tmgindustrial.com 0/23TOLL FREE:1-877-761-2819

►www.tmgindustrial.com 1/23TOLL FREE:1-877-761-2819
MAIN SPECIFICATIONS :
Assembly size : W9.15 x L24 x H6 (m) / 30 x 78.7 x 19.7 (ft)
Ridge height : 6m / 19.7 ft
Peak clearance : 5.4m / 17.7 ft
Front and back door : 4.27 x 3.96 (m) / 14 x 13 (ft)
Shoulder height : 3.6 m / 11.8 ft
CONCRETE FOUNDATION SIZE SEE BELOW FIGURE.

►www.tmgindustrial.com 2/23TOLL FREE:1-877-761-2819
PRIOR TO ASSEMBLY
Please read the instructions carefully before installation. It is very important to follow your local safety regulations and
industry standards during installation. Regulations may include but are not limited to:
• Safety helmets, protective eyewear, and clothing
• Safety harnesses for all elevated workers
• Proper ladder, cage, and safety operation
Check all components and parts before installation. All parts are marked with a part number, please refer to the parts list
to ensure you have all parts.
Choose a day with low or no wind to install, it is hard to assemble with heavy wind. Do not make any alterations to the
structure. Do not hang any weight on the frame during installation, including parts. We are not responsible for any
damages or injuries caused by inappropriate installation, unauthorized modifications or extreme weather.
This building is not intended for human occupancy.
It is recommended to use heavy duty duct tapes to tape the tube connection joint spots to protect the cover from damage
and worn. It will help to extend the cover life span.
Check the parts list below to make sure all parts are received prior to assembly.

►www.tmgindustrial.com 3/23TOLL FREE:1-877-761-2819
FRAME STRUCTURE DIAGRAM

►www.tmgindustrial.com 4/23TOLL FREE:1-877-761-2819
TMG-DT3081-PRO PART LIST
PARTS
CODE
GRAPHICAL
DESCRIPTION
LENGTH
QTY
BOX
1
Peak arch tube
(for 9 middle trusses )
L2570mm
9
B
1A
Peak arch tube
(for front and rear truss)
L2570mm
2
B
2
Upper rafter tube
(for middle trusses)
L2921mm
18
A
2A
Upper rafter tube
(for front and rear truss)
L2921mm
4
A
3
Shoulder tube
(for middle trusses)
L1757mm
18
B
3A
Shoulder tube
(front and rear trusses)
L1757mm
4
B
4
Sidewall tube
(middle trusses)
L2878mm
18
A
4A
Sidewall tube
(front and rear left truss)
L2878mm
2
A
4B
Sidewall tube
(front and rear right truss)
L2878mm
2
A
5
Roof purlin
(horizontal tube)
L2440mm
90
A
5L
Baseplate for front and rear
truss left corners
W260xL520mm
2
B
5R
Baseplate for front and rear
truss right corners
W260xL520mm
2
B
6L
Left baseplate of front and
rear door frame
W150xL200mm
2
B

►www.tmgindustrial.com 5/23TOLL FREE:1-877-761-2819
6R
Right baseplate of front and
rear door frame
W150xL200mm
2
B
7
Baseplates for middle truss
W260xL480mm
18
B
7A
Ratchets
3T
50
B
7B
Expansion bolts
φ16x150mm
104
B
8
Ceiling cross bar
(front and rear truss)
L2083mm
2
B
9
Ceiling cross bar
(front and rear truss)
L2233mm
2
B
9L
Front and rear vertical door
rail
(left side upper part)
L1984mm
2
B
9R
Front and rear vertical door
rail
(right side upper part)
L1984mm
2
B
9A
Side door left tube
L2027mm
2
A
9B
Side door right tube
L2027mm
2
A
9C
Side door
L2005xW925mm
2
C
10
Door center vertical
supporting rod for cross
beam
(front and rear truss)
L1018mm
2
B
10L
Front and rear vertical door
rail (left side lower part)
L2625mm
2
B
10R
Front and rear vertical door
rail (right side lower part)
L2625mm
2
B
11
Door frame horizontal tube
(front and rear truss)
L1982mm
6
B
11C
Side door upper tube
L1980mm
2
B
12
Bottom tension bar
(front and rear truss)
L1970mm
2
B

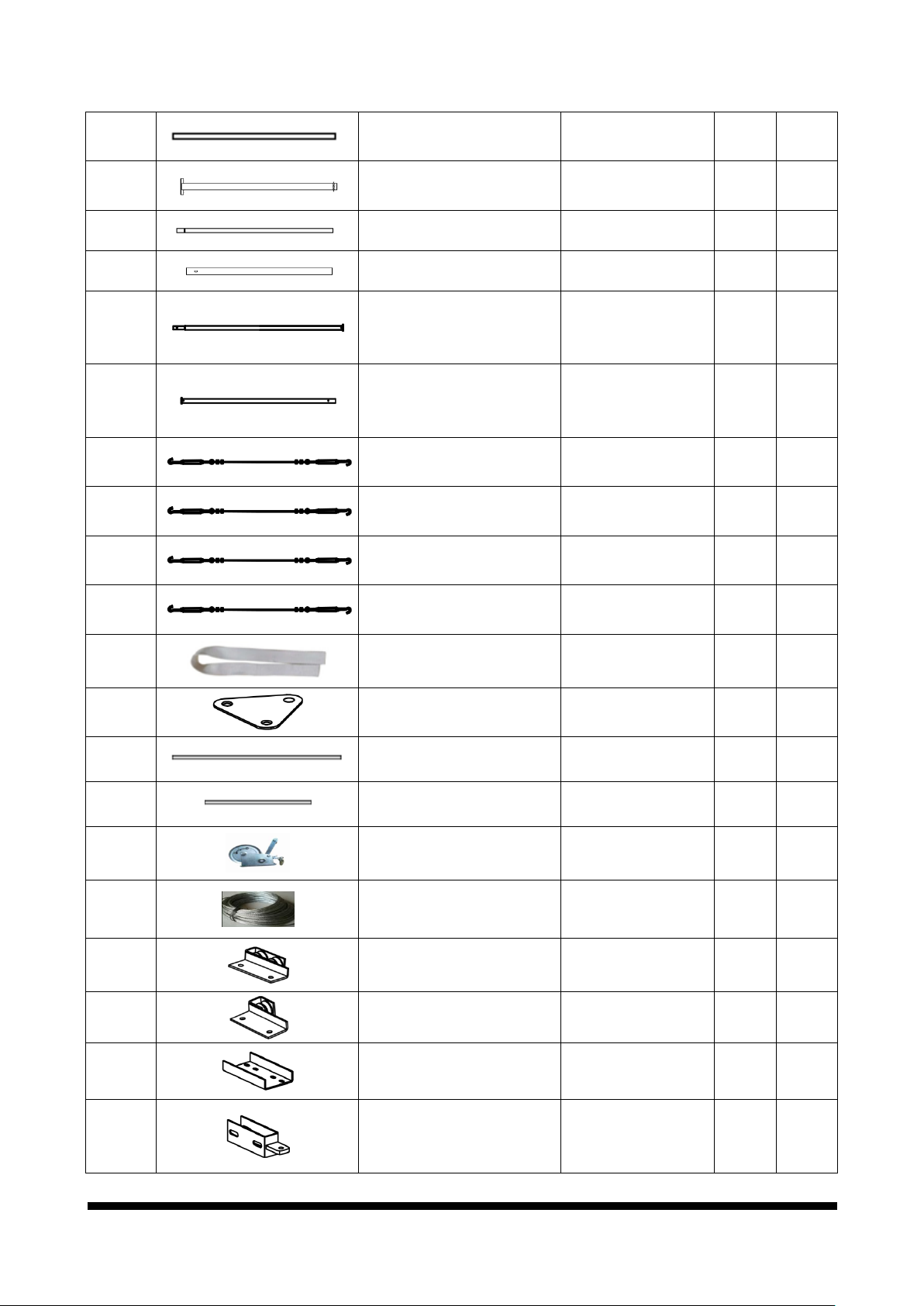

►www.tmgindustrial.com 6/23TOLL FREE:1-877-761-2819
12B
Bottom tension bar
L815mm
2
B
13
Front and rear door hand
winch crossing tube
L1984mm
2
B
14
Top cover tension tube
L1993mm
24
A
14A
Top cover tension tube
L900mm
2
A
15
Front and rear roll up door
dropping tubes (to connect
#16)
L2195mm
14
B
16
Front and rear roll up door
dropping tubes (to connect
#15)
L2192mm
14
B
17
Sidewall frame steel tension
cables
φ6xL4050mm
24
B
18
Ridge steel tension cables
(front and rear trusses)
φ6xL2800mm
24
B
19
Middle truss crossing steel
tension cables
φ6xL3990mm
9
B
20
Front and rear truss left and
right steel cables
φ6xL3900mm
4
B
21
Tie down straps
(for #7A)
W38xL800mm
50
B
22
Cable connection plate
L91mm
36
B
22A
Pressing plate
W20xL2000mm
12
B
22B
Pressing plate
W20xL2000mm
2
B
23
Roll up door hand winch
1200LB
2
B
23A
Wire rope for front and rear
door hand winch
φ4x15m
2
B
23B
Right pulley system for front
and rear doors
L150mm
2
B
23C
Left pulley system for front
and rear doors
L150mm
2
B
24
Front and rear vertical door
rail connection plate
L240mm
4
B
24A
Front and rear vertical door
rail end plate (floatable to
keep door rail straight)
L220mm
4
B

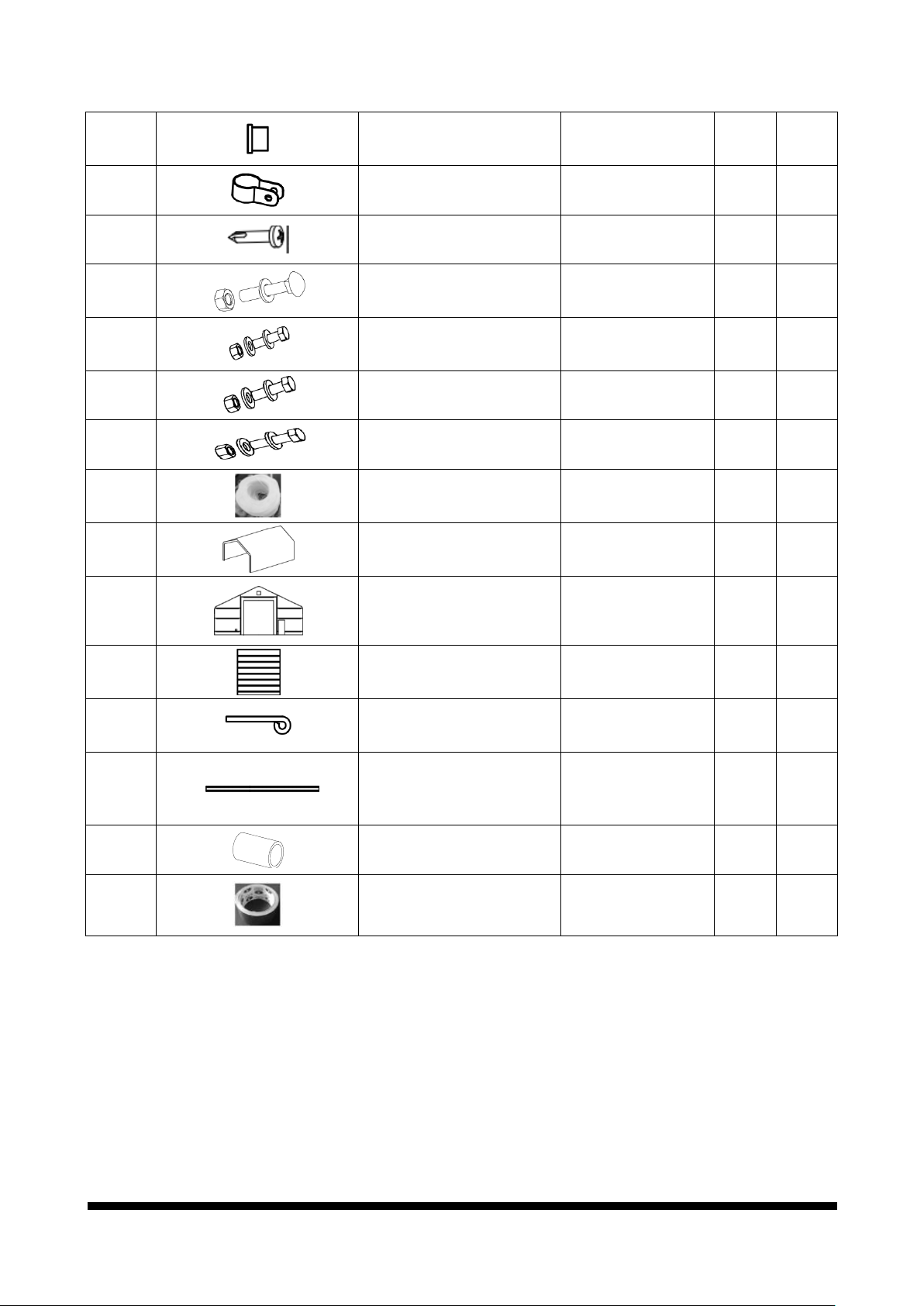

►www.tmgindustrial.com 7/23TOLL FREE:1-877-761-2819
25
Tension tube end water plug
φ32mm
12
B
26
Tube clamps
φ48mm
6
B
27
Tapping screw
#12x25mm
120
B
28
Self locking bolt
and nuts
M10x70mm
99
B
29
Strengthened bolt
and nuts
M12x30mm
352
B
30
Hex bolt and nuts
M10x50mm
14
B
31
Hex bolt and nuts
M10x70mm
68
B
32
Braided rope
L160m
1
B
33
Roof fabric tarp cover
W18.4xL24.6m
1
C
34
Front and rear truss cover
panel
W6.2xL9.1m
2
C
35
Front and rear roll up door
cover panel
W4.2xL4.6m
2
C
36
Front and rear fabric tarp
secure pin
200mm
2
B
37
Plastic hose
(in grooves at both ends of
#33)
φ25xL4m
10
C
37A
Connector
(for connection #37)
φ25mm
8
B
38
Scratch resistant tape
L10m
4
B

►www.tmgindustrial.com 8/23TOLL FREE:1-877-761-2819

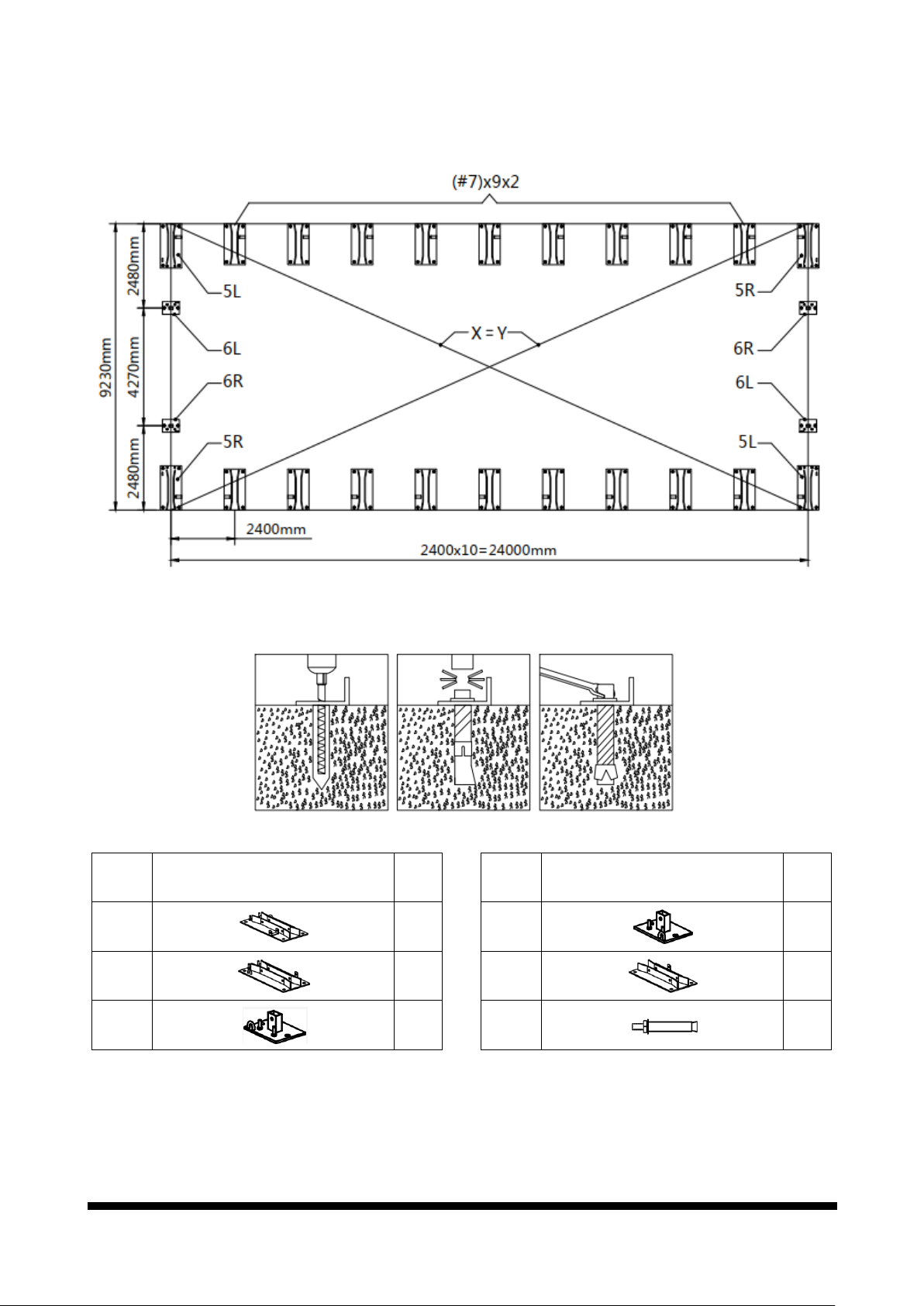

STEP 1 : BASEPLATE POSITIONING AND INSTALLATION
Installation diagram of expansion bolt.
PARTS
CODE
PART
QTY
PARTS
CODE
PART
QTY
5L
2
6R
2
5R
2
7
18
6L
2
7B
96

►www.tmgindustrial.com 9/23TOLL FREE:1-877-761-2819

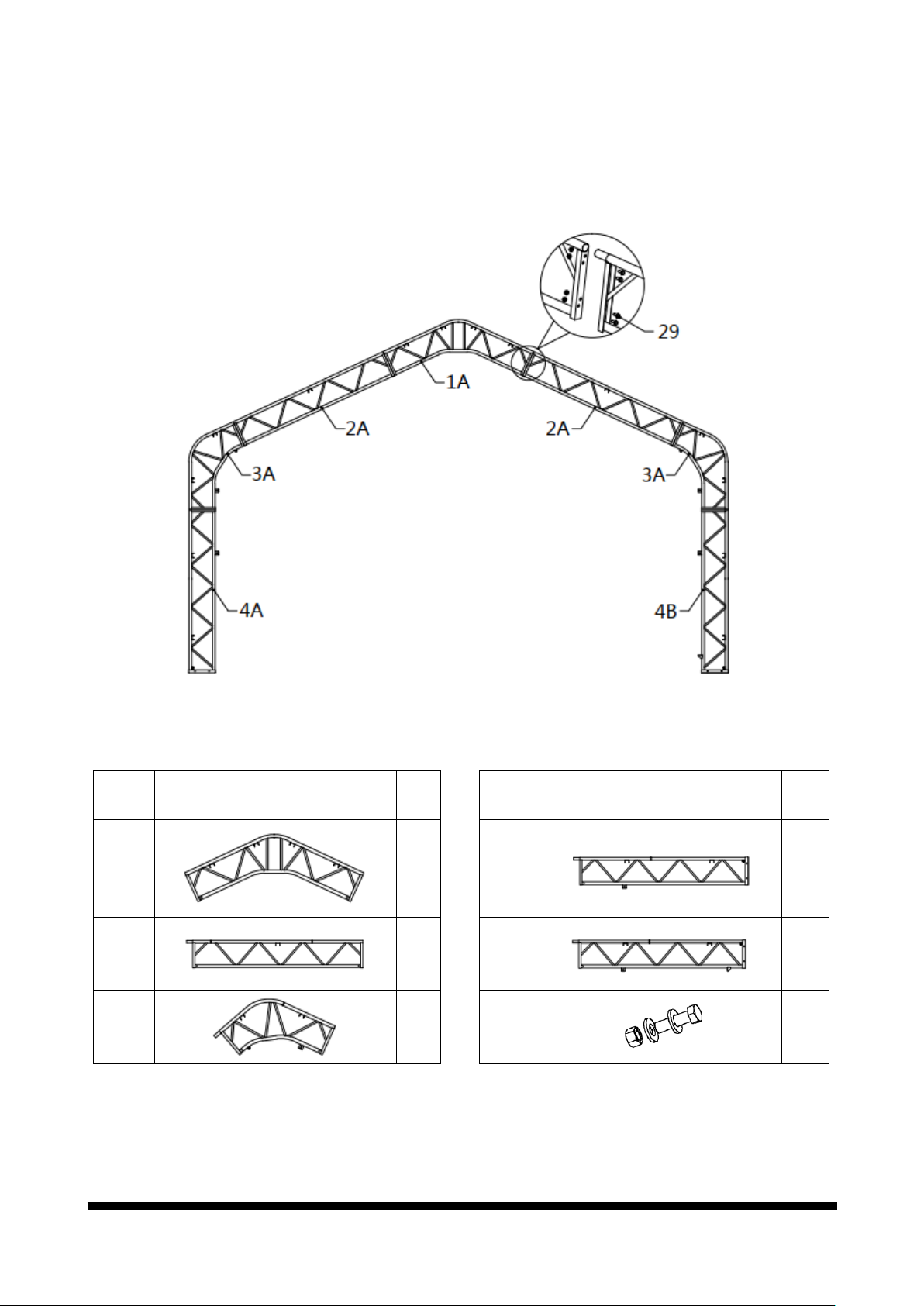

STEP 2 : ASSEMBLE ALL TRUSSES.
 Front and rear trusses.
PARTS
CODE
PART
QTY
PARTS
CODE
PART
QTY
1A
1x2
4A
1x2
2A
2x2
4B
1x2
3A
2x2
29
24x2

►www.tmgindustrial.com 10/23TOLL FREE:1-877-761-2819

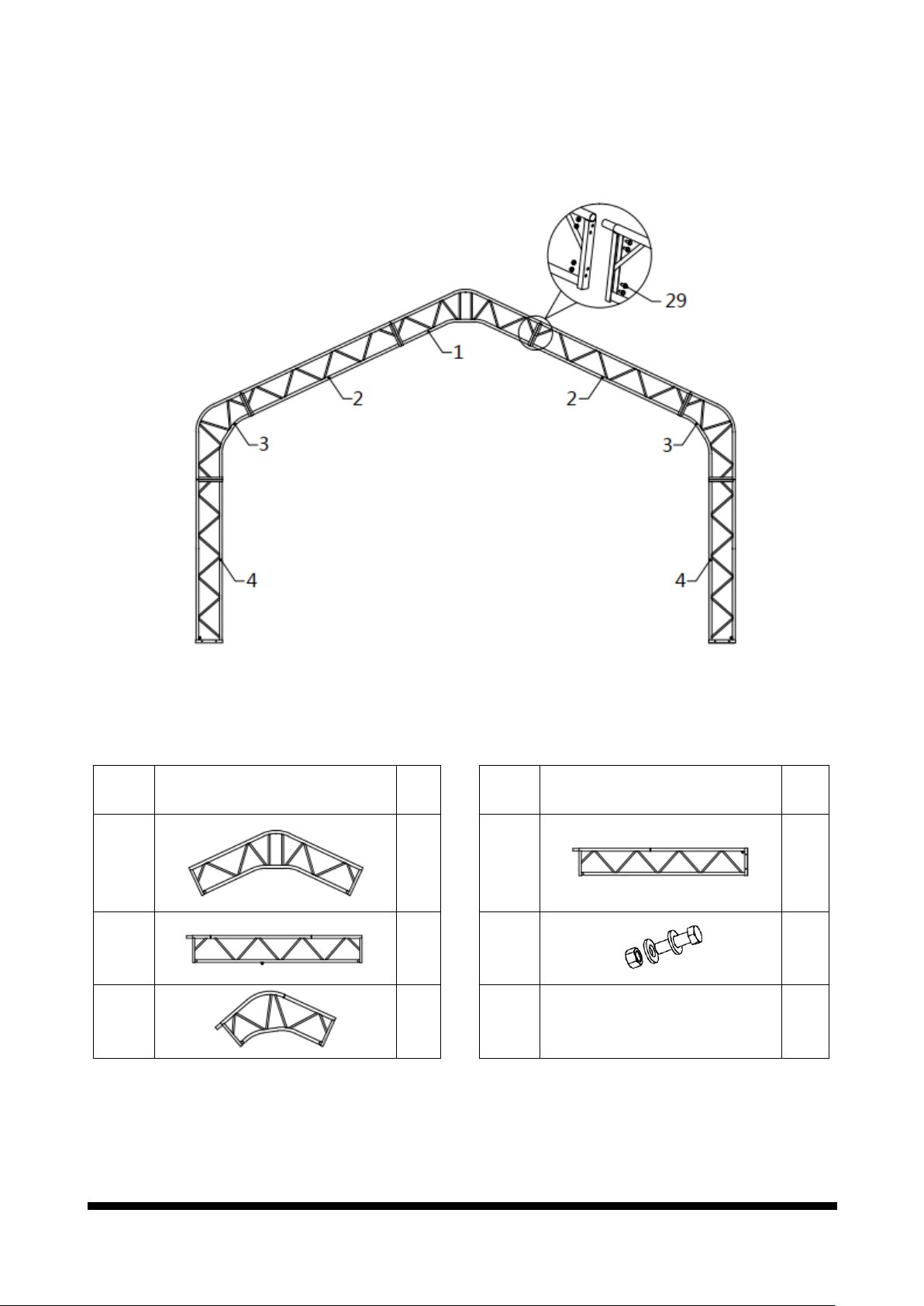

 Middle trusses. (9 trusses)
PARTS
CODE
PART
QTY
PARTS
CODE
PART
QTY
1
1x9
4
2x9
2
2x9
29
24x9
3
2x9

►www.tmgindustrial.com 11/23TOLL FREE:1-877-761-2819
 Lay down all (11) trusses on the ground when the assembly is all completed and before moving to next
step, and then wrap (#38) around the sharp points of the joint to avoid friction between the fabric and
the interface, resulting in fabric damage.
PARTS
CODE
PART
QTY
38
4

►www.tmgindustrial.com 12/23TOLL FREE:1-877-761-2819
STEP 3 : PUT UP THE FRONT TRUSS. (IT IS SUGGESTED TO USE CRANE FOR HOISTING)
PARTS
CODE
PART
QTY
29
8

►www.tmgindustrial.com 13/23TOLL FREE:1-877-761-2819
STEP 4 : PUT UP THE REST TRUSSES.
 Refer to step 3 to put up the rest trusses, connect all purlins (#5) with bolt (#28) and secure all bolts
firmly on each span before going to next truss .
PARTS
CODE
PART
QTY
PARTS
CODE
PART
QTY
5
9
29
8
28
18

►www.tmgindustrial.com 14/23TOLL FREE:1-877-761-2819

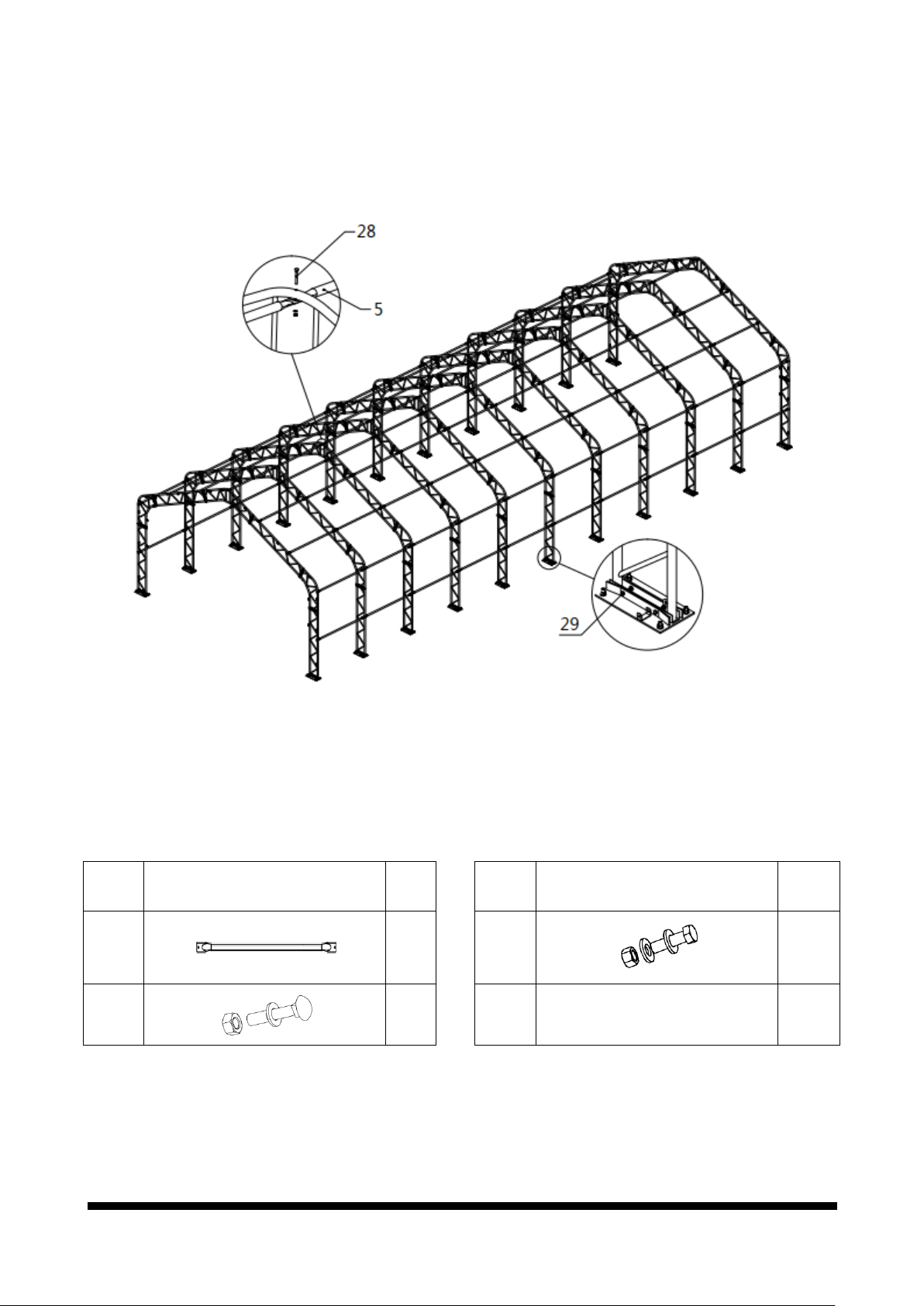

 Repeat above step to put up all other trusses (from 3rd to 11th truss), and connect all purlins.
PARTS
CODE
PART
QTY
PARTS
CODE
PART
QTY
5
81
29
72
28
81

►www.tmgindustrial.com 15/23TOLL FREE:1-877-761-2819
 Tension cable installation . All cables are diagonally installed on each side of the interval.
PARTS
CODE
PART
QTY
PARTS
CODE
PART
QTY
17
24
19
9
18
24
22
36

►www.tmgindustrial.com 16/23TOLL FREE:1-877-761-2819
STEP 5 : FRONT AND REAR TRUSSES TO COMPLETE. (2 TRUSSES)
PARTS
CODE
PART
QTY
PARTS
CODE
PART
QTY
7B
4x2
12
1x2
8
1x2
12B
1x2
9
1x2
13
1x2
9A
1x2
20
2x2
9B
1x2
23B
1x2
9C
1x2
23C
1x2
9L
1x2
24
2x2
9R
1x2
24A
2x2
10L
1x2
25
4x2
10R
1x2
26
3x2

►www.tmgindustrial.com 17/23TOLL FREE:1-877-761-2819
10
1x2
30
7x2
11
3x2
31
32x2
11C
1x2
27
8x2

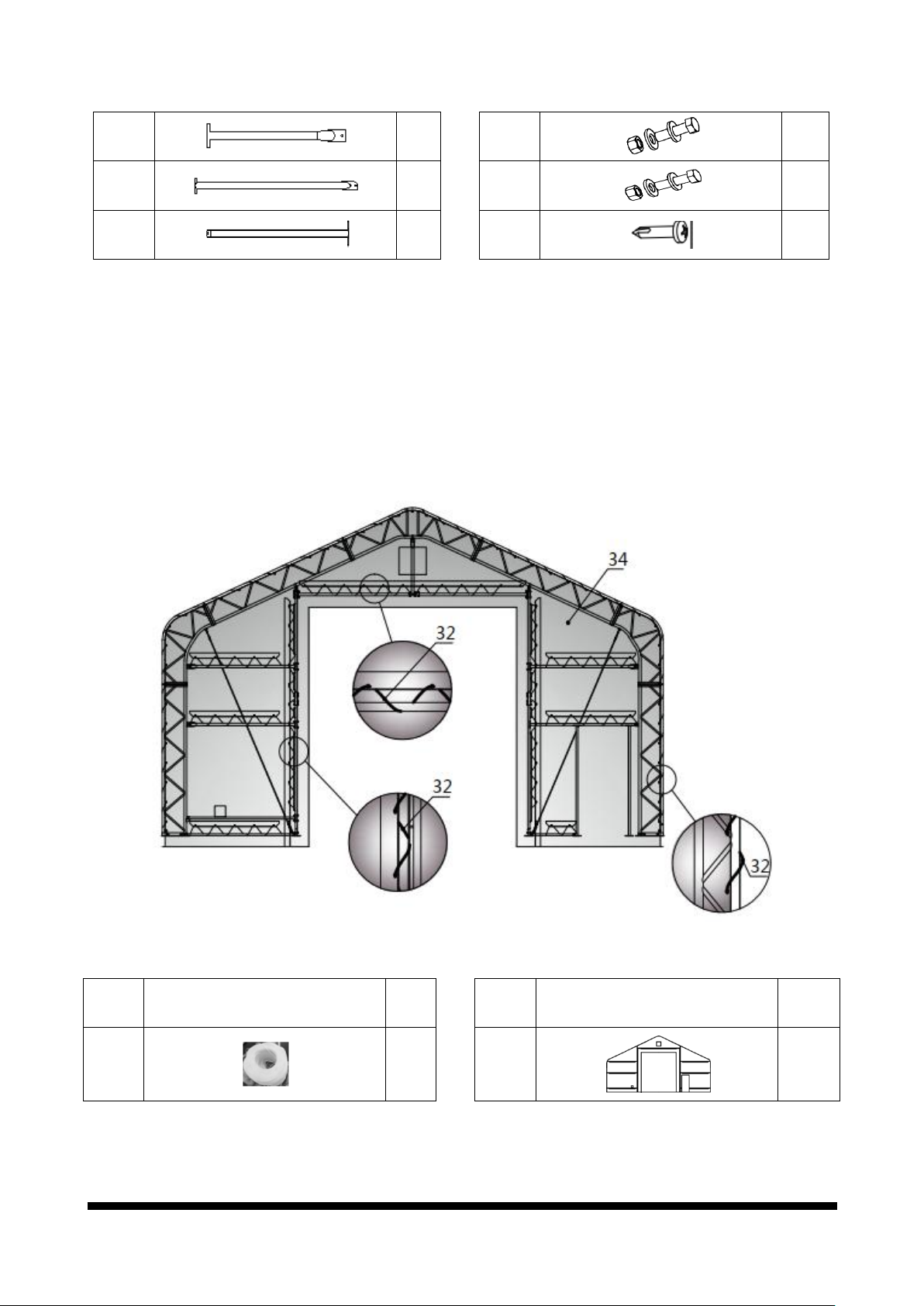

STEP 6: INSTALL FRONT AND REAR COVER PANELS.
 Lift up (#34) cover panel, starting from the center point of the frame (highest ridge point) use ropes (#32)
through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame as
shown.
PARTS
CODE
PART
QTY
PARTS
CODE
PART
QTY
32
1
34
1x2

►www.tmgindustrial.com 18/23TOLL FREE:1-877-761-2819

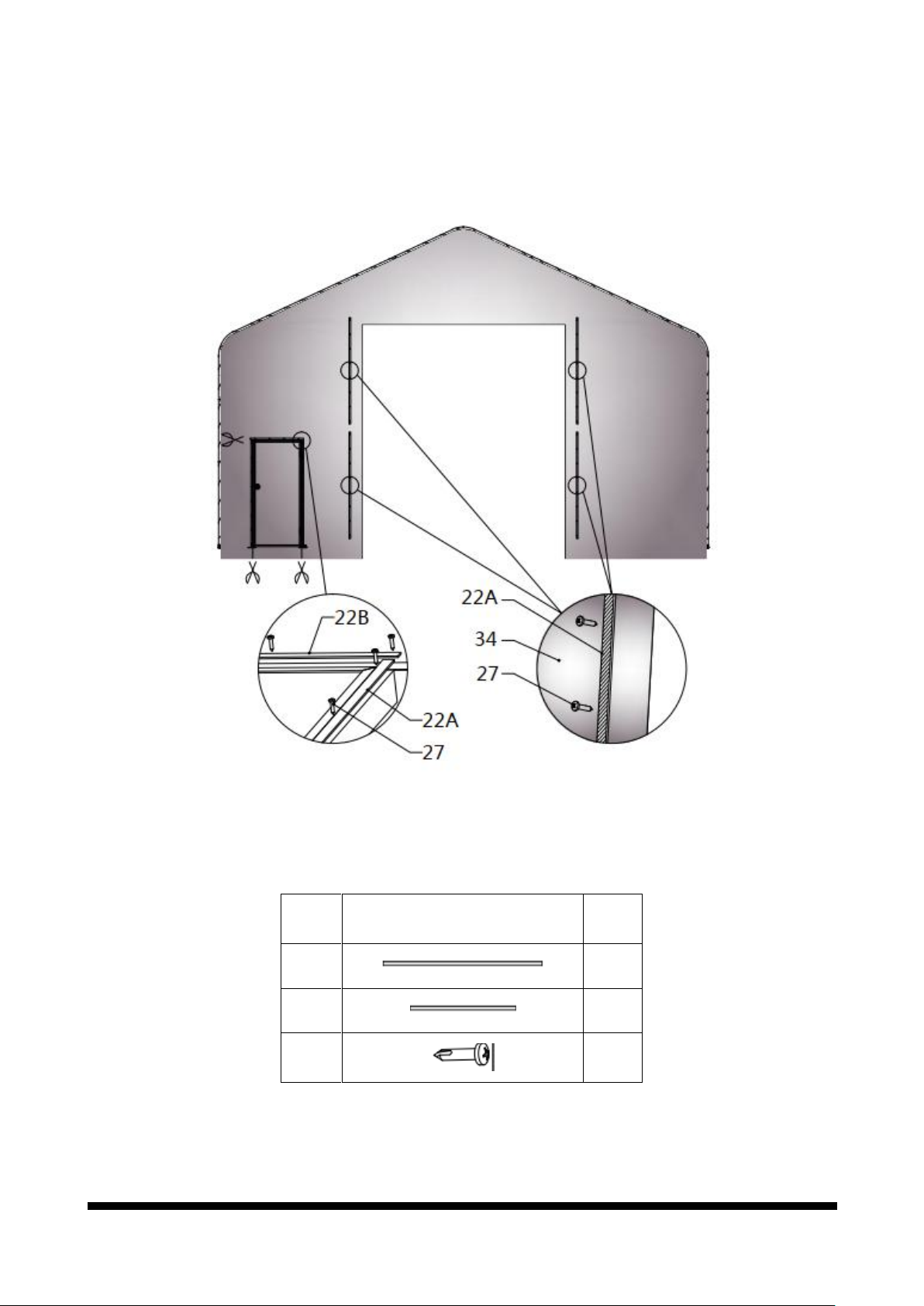

Install the front and rear door pressing plate. Trim the side door tarp.
PARTS
CODE
PART
QTY
22A
6x2
22B
1x2
27
52x2

►www.tmgindustrial.com 19/23TOLL FREE:1-877-761-2819

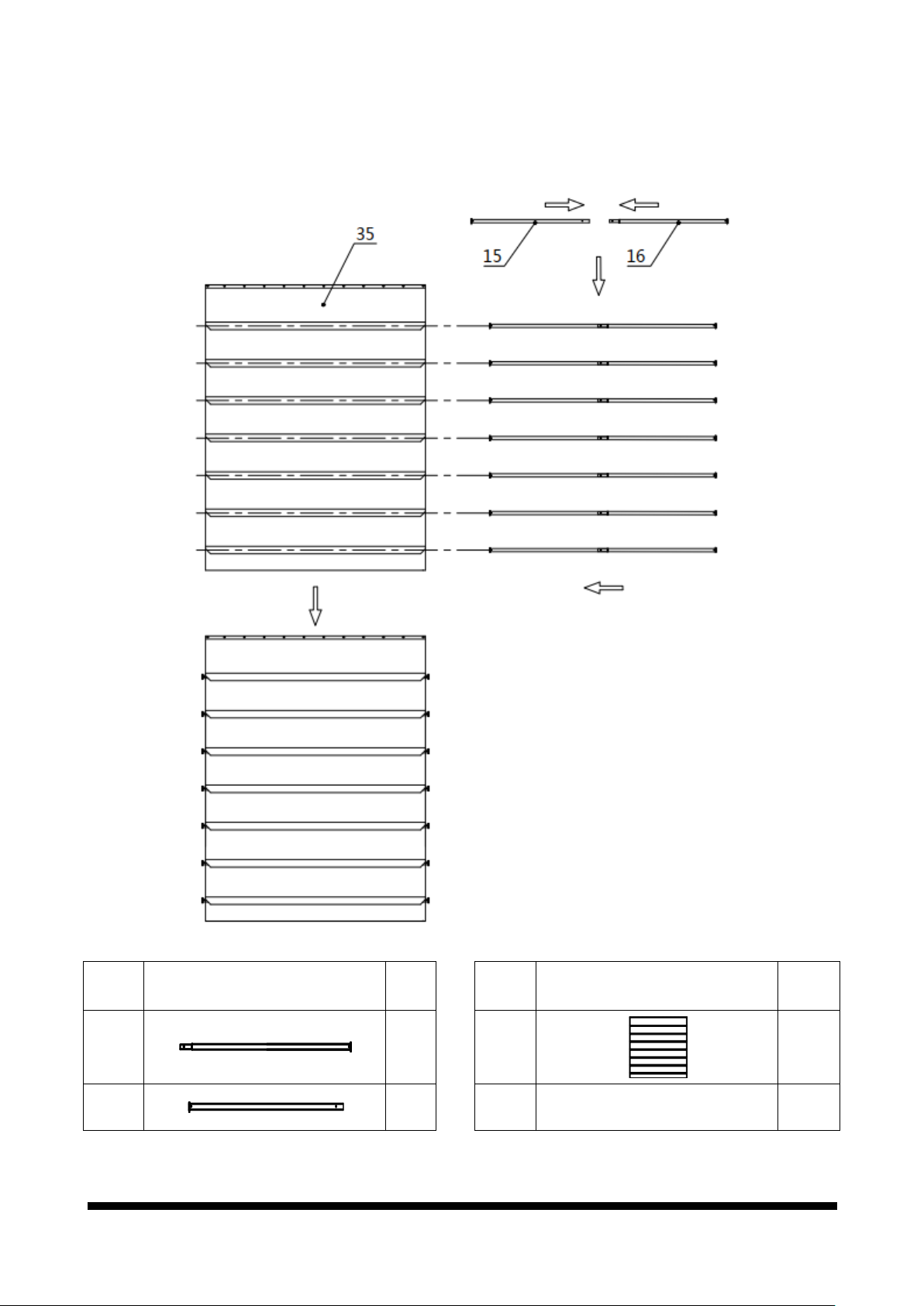

STEP 7 : INSTALL MECHANICAL ROLL UP DOORS.
 Door curtain installation.
PARTS
CODE
PART
QTY
PARTS
CODE
PART
QTY
15
7x2
35
1x2
16
7x2
