D7 Smart Diagnosis System
User Manual

I
Please read this user manual carefully before using the D7 Smart
Diagnosis System. When reading the manual, please pay
attention to the words “Note” or “Caution”, and read them
carefully for appropriate operation.
TRADEMARKS
is a registered trademark of Shenzhen Xtooltech
Intelligent CO., LTD.
In countries that the trademarks, service marks, domain names,
logos and the name of the company are not registered, Xtool
claims that it still reserves the ownership of the unregistered
trademarks, service marks, domain names, logos and the
company name. All other marks for the other products and the
company’s name mentioned in the manual still belong to the
original registered company.
You may not use the trademarks, service marks, domain names,
logo and company name of Xtool or other companies mentioned
without written permission from the trademark holder.
Xtool reserves the right for the final interpretation of this manual
content.

II
COPYRIGHT
Without the written consent of Shenzhen Xtooltech Intelligent Co.,
Ltd., any company or individual shall not copy or backup this
operation manual in any form (electronic, mechanical,
photocopying, recording or other forms).
DECLARATION
This manual is designed for the usage of D7 Smart Diagnosis
System, and provides operating instructions and product
descriptions for users of the D7 Smart Diagnostic system.
No part of this manual can be reproduced, stored in a retrieval
system or transmitted, in any form or by any means (electronic,
mechanical, photocopying, recording, or otherwise), without the
prior written permission of Xtool.
Use the device only as described in this manual. Xtool is not
responsible for any consequences of violating the laws and
regulations caused by using the product or its data information
Xtool shall not be liable for any incidental or consequential
damages or for any economic consequential damages arising
from the accidents of individual users and the third parties,

III
misuse or abuse of the device, unauthorized change or repair of
the device, or the failure made by the user not to use the product
according to the manual.
All information, specifications and illustrations in this manual are
based on the latest configurations and functions available at the
time of printing. Xtool reserves the right to make changes at any
time without notice.
OPERATION INSTRUCTIONS
For safe operation, please follow the instructions below:
⚫Keep the device away from heat or fumes when you using
it.
⚫If the vehicle battery contains acid, please keep your hands
and skin or fire sources away from the battery during testing.
⚫Exhaust gas of vehicle contains harmful chemicals, please
ensure adequate ventilation.
⚫Do not touch the cooling system components or exhaust
manifolds when engine is running due to the high
temperatures reached.
⚫Make sure the car is securely parked, Neutral is selected or
the selector is at P or N position to prevent the vehicle from
moving when engine starts.

IV
⚫Make sure the (DLC) diagnostic link connector is functioning
properly before starting the test to avoid damage to the
Diagnostic Computer.
⚫Do not switch off the power or unplug the connectors during
testing, otherwise you may damage the ECU and/or the
Diagnostic Computer.
CAUTIONS!
⚫Avoid shaking or dismantling the unit as it may damage the
internal components.
⚫Do not use hard or sharp objects to touch the LCD screen;
⚫Do not use excessive force;
⚫Do not expose the screen to strong sunlight for a long period.
⚫Please keep it away from water, moisture, high temperature
or very low temperature.
⚫If necessary, calibrate the screen before testing to ensure
the accuracy of LCD performance.
⚫Keep the main unit away from strong magnetic fields.

V
AFTERSALES-SERVICES
E-Mail: [e-mail]
Tel: [phone] or [phone] (China)
Official Website: www.xtooltech.com

i
CONTENT
TRADEMARKS................................................................................I
COPYRIGHT ...................................................................................II
DECLARATION ..............................................................................II
OPERATION INSTRUCTIONS......................................................III
CAUTIONS! .................................................................................. IV
AFTERSALES-SERVICES............................................................ V
CONTENT ........................................................................................I
1GENERAL INTRODUCTION ...................................................1
Tablet ....................................................................................2
Front View of Tablet......................................................................................2
Back View of Tablet.......................................................................................3
Host Ports.........................................................................................................4
Technical Specifications .......................................................4
Package Kit ...........................................................................6
Main Unit ..........................................................................................................6
Other Accessories..........................................................................................6
2GETTING STARTED................................................................7

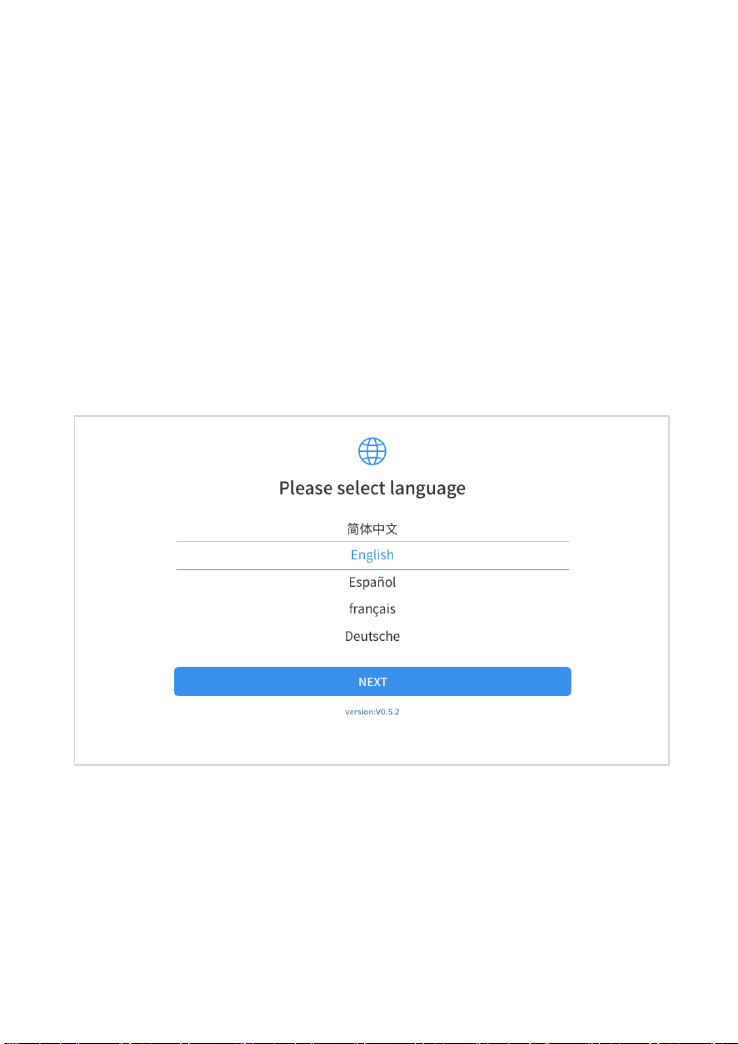

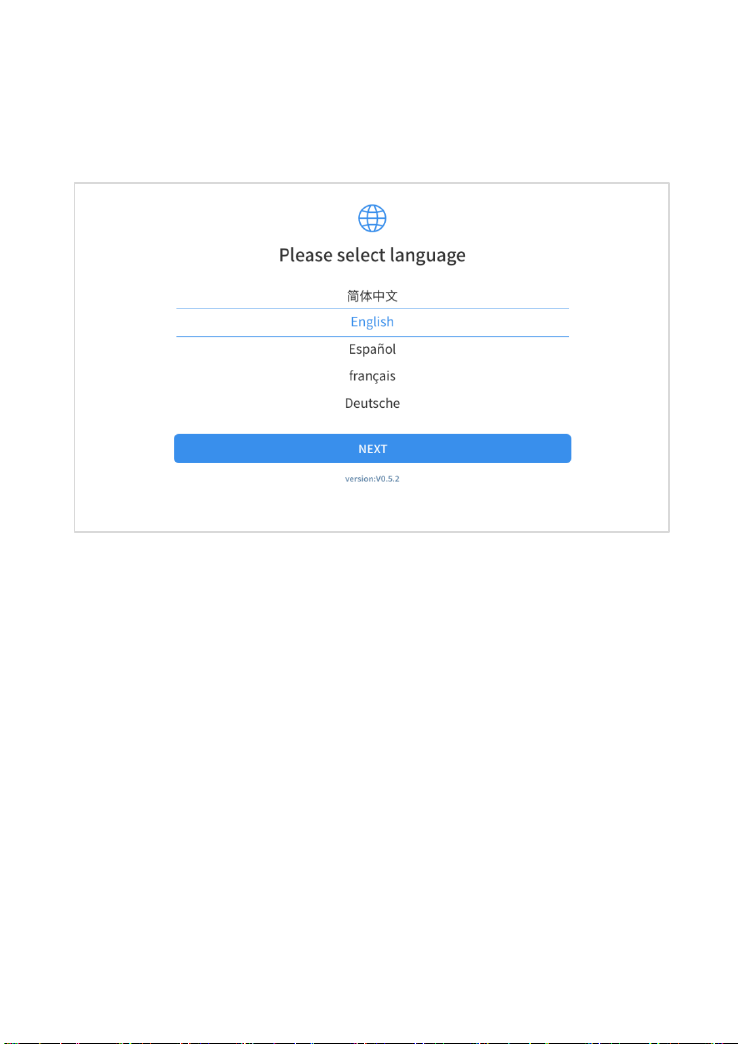

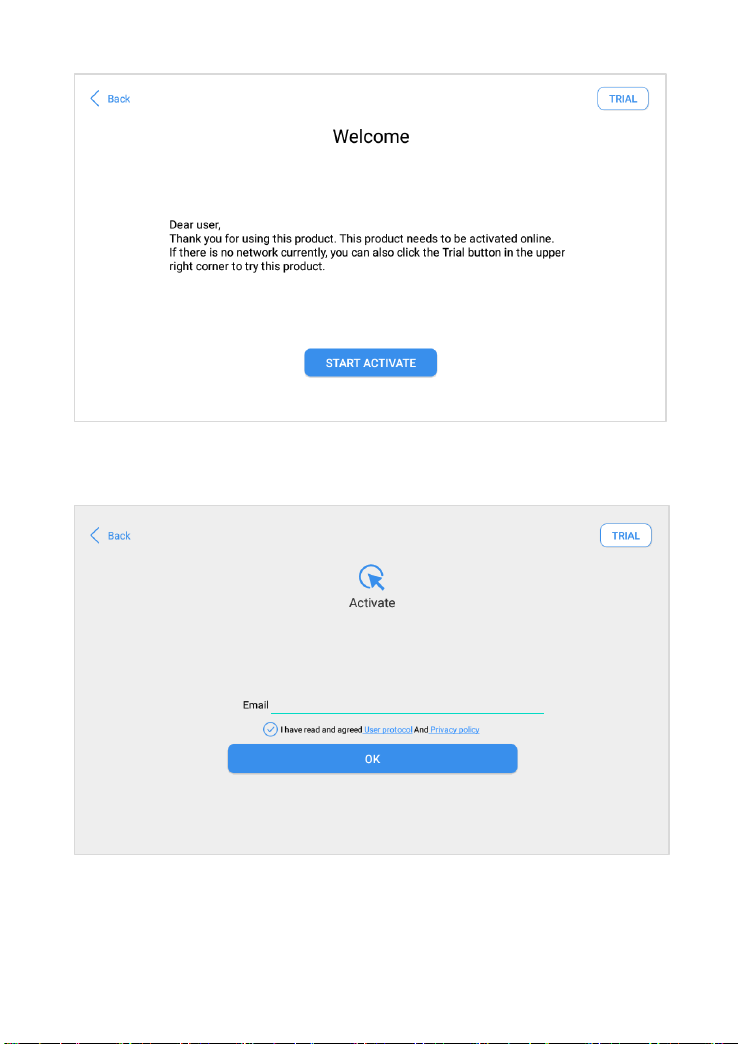

Guide to Activation ................................................................7

ii
Main Interface .....................................................................12
Operation system ....................................................................................... 12
Diagnosis system entrance...................................................................... 14
Function Buttons......................................................................................... 15
Navigation Buttons..................................................................................... 16
Notification Bar............................................................................................ 17
3UPDATE .................................................................................18
4DIAGNOSIS............................................................................19
Vehicle Connection .............................................................19
Diagnosis.............................................................................20
Vehicle Selection......................................................................................... 21
Basic functions ............................................................................................. 23
5SPECIAL FUNCTIONS ..........................................................29
Oil Light Reset.....................................................................30
ABS Bleeding ......................................................................31
SAS Reset...........................................................................32
IMMO Service .....................................................................32
EPB Reset...........................................................................34
TPS Match...........................................................................35
Injector Coding ....................................................................35
Gearbox Match....................................................................36

iii
Gear Learning .....................................................................37
SRS Reset...........................................................................37
DPF Regeneration ..............................................................38
BMS Match..........................................................................39
Air Suspension ....................................................................40
Cylinder ...............................................................................41
TPMS Reset........................................................................41
Tyre Refit.............................................................................42
Headlight Adjustment..........................................................42
Windows Initialization..........................................................42
Seat Match ..........................................................................43
Electronic Pump Activation .................................................43
Transport Mode...................................................................43
EEPROM Adapter ...............................................................44
ODO Reset..........................................................................44
6SETTINGS..............................................................................44
Language ............................................................................45
Units ....................................................................................46
My Workshop Info ...............................................................46
VCI Information ...................................................................47
About ...................................................................................48

iv
7REPORT.................................................................................50
8REMOTE ASSISTANCE ........................................................51
SHENZHEN XTOOLTECH INTELLIGENT CO., LTD ..................53

1
1GENERAL INTRODUCTION
The XTOOL D7 smart diagnostic system is an advanced flatbed
scanning tool based on the Android operating system. It supports
multi-language switching and is suitable for different countries
and regions. The advantage of this obd2 scanner is not only its
comprehensive functions, including complete system diagnosis,
all obd2 functions, various reset functions (IMMO / EEPROM
adapter / EPB (Electronic Parking Brake) reset / oil light reset /
SAS (Steering Angle Sensors) reset / TPS (Throttle Position
Sensor) matching / Injector coding / ABS (Anti-block system)
bleed / gearbox matching / gear learning / electronic pump
actuation / disable transport mode / SRS (Supplemental
Restrgint System) reset / exhaust post-processing / BMS
matching / air suspension / cylinder / TPMS reset / tire refit /
headlight adjustment / windows Initialization/seat matching/DIY
mode) can also achieve faster and more accurate diagnosis.

2
TABLET
The main unit of the D7 is the tablet, which has a built-in VCI
module, which can be directly connected to the tablet and the car
with the main test line, without the need to connect to an external
VCI box via Bluetooth.

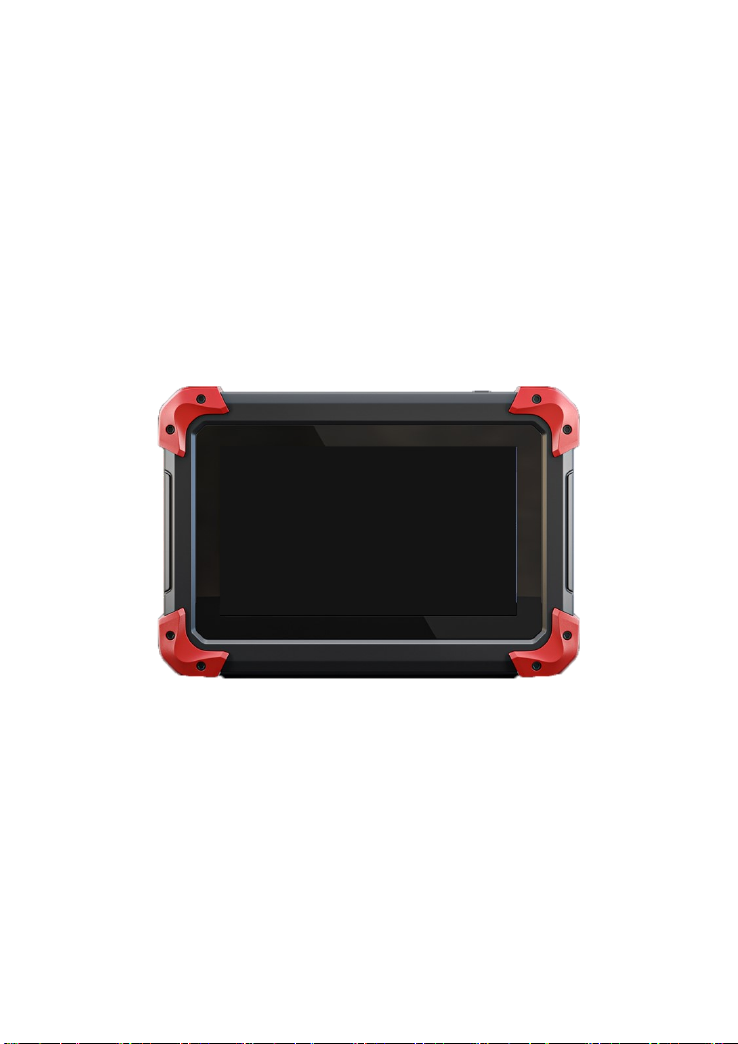

FRONT VIEW OF TABLET
Fig 1-1 Tablet Front View
The front of the main unit is a touchable display screen, you can
use your fingers to operate on the screen to complete the car
diagnosis.

3

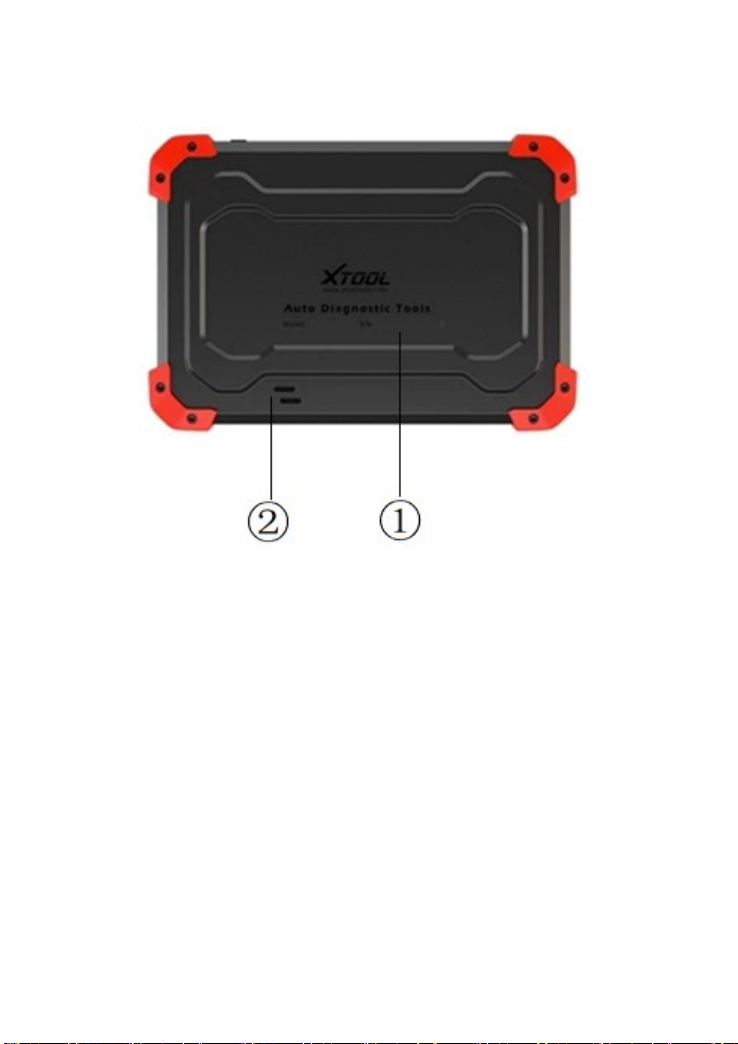

BACK VIEW OF TABLET
Fig 1-2 Tablet Back View
The product model and S/N are laser-engraved on the back of
the display tablet, and the small hole at the bottom is the
Loudspeaker.
①Nameplate: Display basic information such as S/N and
model etc.
②Loudspeaker: external sound can be played, supporting the
playback of music, etc.

4
HOST PORTS
Fig 1-3 Tablet Host Ports
①Micro USB: Battery charge or data synchronization with PC or
DC.
②DB15 Port: This port is used to connect to the main test cable.
③Power Button: Long press to power on or off. In the power-on
state, short press the button to make the device enter the sleep
mode.
TECHNICAL SPECIFICATIONS
Table 1-1 Specifications
Item
Description
Operating System
Android
Processor
Quad-core 1.6GHz Processor

5
Memory
32GB
Display
7.0-inch touch screen with 1024 ×600
resolution
Connectivity
⚫USB
⚫Wi-Fi
Sensors
Gravity sensor, light sensor
Auto Input/Output
Microphone, dual speakers, 4-band 3.5mm
stereo/standard headset jack
Power and Battery
4000mAh, 3.7V lithium-polymer battery
Power Voltage
5V
Power Consumption
8W
Operating Temperature
-20 to 60℃(-4 to 140℉)
Storage Temperature
-40 to 70℃(-40 to 158℉)
Humidity
<90%
Dimension (L*W*H)
218*150*29mm

6
PACKAGE KIT
MAIN UNIT
⚫Tablet 1 pcs
OTHER ACCESSORIES
⚫OBDⅡ-16 Connector (1 pcs)
* Used to access vehicle ECU data
⚫Main Test Cable (1 pcs)
*The main cable is used to connects the Tablet to connector.
⚫USB Cable
*Connect display table to the PC or DC power adapter
⚫Power Adapters
a) Charger DC5V AC100-300V 2A USB socket output No AC
movable feet 1 pcs
b) AC Charger Adapter 1 pcs (EU Standard)
c) AC Charger Adapter 1 pcs (US Standard)
*Used to connect a USB cable to connect the tablet to an external
DC power port for charging.
⚫User Manual
*Tool operation instructions

7
2GETTING STARTED
GUIDE TO ACTIVATION
After first time users press and hold the power button to turn on
the system, the system will automatically enter the guide process
and request the user to select the system operating language.
Fig 2-1
After selecting the system language, click Next to enter the Wi-
Fi connection page, as shown below:

8
Fig 2-2
Select a network to connect to on the Wi-Fi connection page.
After successful network connection, the automatic system will
jump to Factory mode to download the software:
Fig 2-3

9
Once the software has been downloaded, the tablet will
automatically reboot and request the system language selection
again.
Fig 2-4
After setting the system language, you will enter the activation
page, as shown in the figure below. You can also click the "Trial"
button in the upper right corner to try it out before activation.

10
Fig 2-5
Click Start Activate to enter the activation page, as shown below:
Fig 2-6
