USER MANUAL
H6 Pro Smart Diagnostics System

I
Please read this user manual carefully before using the H6 Pro Smart Diagnostics
System. When reading the manual, please pay attention to the words “Note” or
“Caution” and read them carefully for appropriate operation.
TRADEMARKS
is a registered trademark of Shenzhen Xtooltech Intelligent CO., LTD. In
countries where the trademarks, service marks, domain names, logos, and the name
of the company are not registered, Xtool claims that it still reserves the ownership of
the unregistered trademarks, service marks, domain names, logos, and the company
name. All other marks for the other products and the company’s name mentioned in
the manual still belong to the original registered company.
You may not use the trademarks, service marks, domain names, logo, and company
name of Xtool or other companies mentioned without written permission from the
trademark holder.
Xtool reserves the right to the final interpretation of this manual content.
COPYRIGHT
Without the written consent of Shenzhen Xtooltech Intelligent Co., Ltd., any company
or individual shall not copy or backup this operation manual in any form (electronic,
mechanical, photocopying, recording, or other forms).
DECLARATION
This manual is designed for the usage of the H6 PRO Smart Diagnostics System and
provides operating instructions and product descriptions for users of the H6 PRO
Smart Diagnostics System.
No part of this manual can be reproduced, stored in a retrieval system, or transmitted,
in any form or by any means (electronic, mechanical, photocopying, recording, or
otherwise), without the prior written permission of Xtool.

II
Use the device only as described in this manual. Xtool is not responsible for any
consequences of violating the laws and regulations caused by using the product or its
data information
Xtool shall not be liable for any incidental or consequential damages or for any
economic consequential damages arising from the accidents of individual users and
the third parties, misuse or abuse of the device, unauthorized change or repair of the
device, or the failure made by the user not to use the product according to the manual.
All information, specifications, and illustrations in this manual are based on the latest
configurations and functions available at the time of printing. Xtool reserves the right
to make changes at any time without notice.
OPERATION INSTRUCTIONS
For safe operation, please follow the instructions below:
⚫Keep the device away from heat or fumes when you are using it.
⚫If the vehicle battery contains acid, please keep your hands and skin or fire sources
away from the battery during testing.
⚫The exhaust gas of the vehicle contains harmful chemicals, please ensure
adequate ventilation.
⚫Do not touch the cooling system components or exhaust manifolds when the
engine is running due to the high temperatures reached.
⚫Make sure the car is securely parked, Neutral is selected or the selector is at P or
N position to prevent the vehicle from moving when the engine starts.
⚫Make sure the (DLC) diagnostic link connector is functioning properly before
starting the test to avoid damage to the Diagnostic Tablet.
⚫Do not switch off the power or unplug the connectors during testing, otherwise,
you may damage the ECU and/or the Diagnostic Tablet.
CAUTIONS!
⚫Avoid shaking or dismantling the unit as it may damage the internal components.
⚫Do not use hard or sharp objects to touch the LCD screen;
⚫Do not use excessive force;
⚫Do not expose the screen to strong sunlight for a long period.

III
⚫Please keep it away from water, moisture, high temperature, or very low
temperature.
⚫If necessary, calibrate the screen before testing to ensure the accuracy of LCD
performance.
⚫Keep the main unit away from strong magnetic fields.
⚫Please keep your device always connected to the Internet. When the device is off
the Internet for 30 days, The diagnosis APP may be locked and you need to
synchronize data with the Internet to activate it.
AFTERSALES-SERVICES
E-Mail: [email protected]
Tel: [phone] or [phone] (China)
Monday through Friday
09:00~18:30（UTC/GMT+08:00）
Official Website: www.xtooltech.com
Please provide your device serial number, VIN code, vehicle model, software version,
and other details when seeking technical support. If there are screenshots or videos, it will
better help us locate your problem.

IV
Content
TRADEMARKS ........................................................................................................................I
COPYRIGHT.............................................................................................................................I
DECLARATION .......................................................................................................................I
OPERATION INSTRUCTIONS........................................................................................... II
CAUTIONS!............................................................................................................................. II
AFTERSALES-SERVICES................................................................................................. III
1GENERAL INTRODUCTION ........................................................................................ 1
1.1. Tablet Overview ................................................................................................. 1
Front View of Tablet...........................................................................................................................................2
Back View of Tablet ........................................................................................................................................... 2
Host Ports...............................................................................................................................................................3
1.2. VCI box.................................................................................................................. 4
Front/Back View ..................................................................................................................................................4
Top/Bottom View.................................................................................................................................................5
1.3. Technical Specifications ................................................................................ 5
1.4. Packing Kit .......................................................................................................... 6
2GETTING STARTED ...................................................................................................... 7
2.1. Activation.............................................................................................................. 7
2.2. Main Interface ..................................................................................................... 9
Operation System ...............................................................................................................................................9
Main Menu ...........................................................................................................................................................11

V
Function Buttons ...............................................................................................................................................12
Navigation Buttons ...........................................................................................................................................13
Notification Bar...................................................................................................................................................14
2.3. Factory Reset ................................................................................................... 14
3UPDATE & DELETE..................................................................................................... 19
3.1. Update software............................................................................................... 19
3.2. Delete Software................................................................................................ 19
4DIAGNOSIS .................................................................................................................... 21
4.1. Vehicle Connection........................................................................................... 21
4.2. Vehicle Selection............................................................................................. 23
4.3. Diagnosis Functions ...................................................................................... 27
4.4. ECU Coding & Programming......................................................................... 37
5SPECIAL FUNCTIONS................................................................................................ 40
5.1. OIL RESET ............................................................................................................ 41
5.2. EPB........................................................................................................................ 42
5.3. SAS........................................................................................................................ 44
5.4. DPF........................................................................................................................ 47
5.5. BMS RESET.......................................................................................................... 52
5.6. THROTTLE ........................................................................................................... 54
5.7. INJECTOR CODING ........................................................................................... 56
5.8. GEARBOX MATCH............................................................................................. 59
5.9. GEAR LEARNING ............................................................................................... 60

VI
6REPORT .......................................................................................................................... 63
6.1. Report .................................................................................................................. 63
6.2. Replay .................................................................................................................. 66
6.3. File Manager ...................................................................................................... 67
7SETTINGS....................................................................................................................... 69
7.1. Language ........................................................................................................... 69
7.2. Units..................................................................................................................... 71
7.3. Bluetooth............................................................................................................ 71
7.4. My Workshop Info........................................................................................... 72
7.5. VCI Information ................................................................................................ 72
7.6. About................................................................................................................... 73
8REMOTE ASSISTANCE.............................................................................................. 74
9FAQ ................................................................................................................................... 76
Q1: Failed to generate diagnosis report.............................................................. 76
Q2: How to print diagnosis report ......................................................................... 77
Q3: Failed to extract files.......................................................................................... 78
Q4: Mailbox supported .............................................................................................. 78
Q5: How to make an appointment for remote support ................................... 78
Q6: How to generate and upload diagnostic log files..................................... 78
Q7: How to switch languages.................................................................................. 78
Q8: Failed to diagnose vehicle................................................................................ 79

VII
Q9: Failed to activate or register............................................................................ 79
Q10: Failed to turn on when charging.................................................................. 79
Q11: Failed to open the diagnosis app ................................................................ 79
Q12: Failed to enter Vehicle menu......................................................................... 80
10 WARRANTY & SERVICES...................................................................................... 81
SHENZHEN XTOOLTECH INTELLIGENT CO., LTD................................................. 82

1
1 GENERAL INTRODUCTION
The H6 PRO Smart Diagnostics System is an advanced scanning tool based on the
Android operating system. It supports multi-language switching and is suitable for
different countries and regions.
The advantage of this scanner is not only its comprehensive functions, including
complete system diagnosis, and full OBDⅡfunctions, but various reset functions can
also achieve a faster and more accurate diagnosis.
The H6 PRO Smart Diagnostics System mainly includes:
⚫Car Diagnostics Tablet
⚫Wireless Diagnostics Module
⚫Main test cable
⚫Connectors
⚫Power adapter
Before performing the diagnosis program, please make sure that the VCI box is
successfully connected to your vehicle, and connect the VCI box with Bluetooth on the
tablet.
Some old cars with non-OBD2 standard protocol need to be connected with our VCI
box through specific pin connectors.
Using the wrong connector may cause your car to be unrecognized by the diagnostic
tool.
Please confirm the OBD connector specifications configured on your car before
connecting.
1.1.TABLET OVERVIEW
The main unit of the H6 PRO Smart Diagnostics System is the tablet. It allows you to
operate all diagnosis functions, and it can also work as a normal Android tablet.

2
FRONT VIEW OF TABLET
Figure 1-1 Sample of Tablet Front View
The front of the tablet is mainly a touchable display screen, you can use your fingers
to operate on the screen to finish most of the diagnosis process.
BACK VIEW OF TABLET
Figure 1-2 Sample of Tablet Back View
③
①
②

3
①Camera: Used for taking pictures.
②Nameplate: Show the basic information about the tablet such as product name
and serial number, etc.
③Loudspeaker: It supports external sound playback.
HOST PORTS
Figure 1-3 Sample of Tablet Host Ports
①DOIP port: Supports ECU programming for vehicles with DOIP protocol
②USB 3.0 port: Used for data transfer for tablet & PC communication, and data
transfer with VCI box when working.
③VGA port: A reserved interface can be used for charging.
④DC charging port: Charging port, connected to the power adapter to charge
the device.
⑤Power button: Long press to turn the device on/off, short press to switch the
device into sleep mode. Hold for about 20 seconds to force shut down the
device.
⑥Wireless charging port: Can be used with a wireless charging base for charging
①
②
③
④
⑤
⑥

4
1.2.VCI BOX
To communicate with the vehicle via OBD, H6 PRO also comes up with a wireless
diagnostics module, also known as the VCI box. The tablet needs a Bluetooth
connection with the VCI box to get access to all software.
Although some functions (like EEPROM Adapter) will not need you to communicate to
the vehicle, please power up the VCI box using a 12V power adapter to get access to the
software.
FRONT/BACK VIEW
Front Back
Figure 1-4 Sample of VCI Box, screen 1
①Display Screen: Show status of the VCI box-like battery voltage, Bluetooth
connection, and car communication status.
②Nameplate: Show basic information about the VCI box, like the serial number.
Make sure that you’re using the VCI box that is paired with the tablet, or it will not
communicate. The serial number of the VCI box must be the same as the serial number
of the tablet.
①
②

5
TOP/BOTTOM VIEW
Top Bottom
Figure 1-5 Sample of VCI Box, screen 2
①DB15 Port: Used to connect the VCI box to the OBDII port on the vehicle.
②USB-B Port: Used to connect the VCI box to the tablet using USB-B to USB3.0
cable
1.3.TECHNICAL SPECIFICATIONS
Table 1-1 Specification
Item
Description
Processor
Quad-core processor 1.8GHz
Ram
2G
Rom
64/128G
Display
9.7-inch capacitive, 1024×768 resolution
Connectivity
⚫USB
⚫Wi-Fi
Bluetooth
Camera
⚫8-megapixel autofocus rear camera with flash
Sensor
Gravity sensor
Audio Input/ Audio Output
Microphone/ Loudspeaker
Ports
⚫USB3.0
⚫DC charging port
⚫VGA port
DOIP port
Battery
⚫10000mAh 3.7V lithium polymer battery
①
②

6
Input Voltage
12V DC
Operating Temperature
-10~50℃
Relative Humidity
< 90%
Dimensions
315.07×218.35×34.61 mm
1.4.PACKING KIT
Table 1-2 Packing List
Category
No.
Name
QTY
Test Connectors
1
OBD II-16
1
2
HONDA-3
1
3
BMW-20
1
4
TOYOTA-17
1
5
MAZDA-17R
1
6
KIA-20
1
7
HYUNDAI/KIA-10
1
8
NISSAN-14
1
9
GM/DAEWOO-12
1
10
SELFTEST
1
11
UNIVERSAL-3
1
12
SUZUKI-3
1
13
FIAT-3
1
14
CITROEN-2
1
15
AUDI-4
1
16
MITSUBISHI-12+16
1
17
Rear Test Line DB15
1
18
Battery Clips Wire
1
19
Cigar Lighter
1
20
DB9 To USB3.0 Cable
1
21
Ethernet cable
1
22
Ecu Programming Cable for BMW
1
Main Units
1
USB3.0
1
2
H6Pro
1
3
VCI Box
1
4
Charger for Tablet
1
5
Power Cable US
1
6
Power Cable EU
1
Accessories
1
Certificate of Quality
1
2
Packing List
1
3
User Manual
1
4
Tool Case
1
5
Carton
1

7
2 GETTING STARTED
2.1. ACTIVATION
After first-time users press and hold the power button to turn on the system, the
system will automatically enter the guide process and request to select the language
for the operating system.

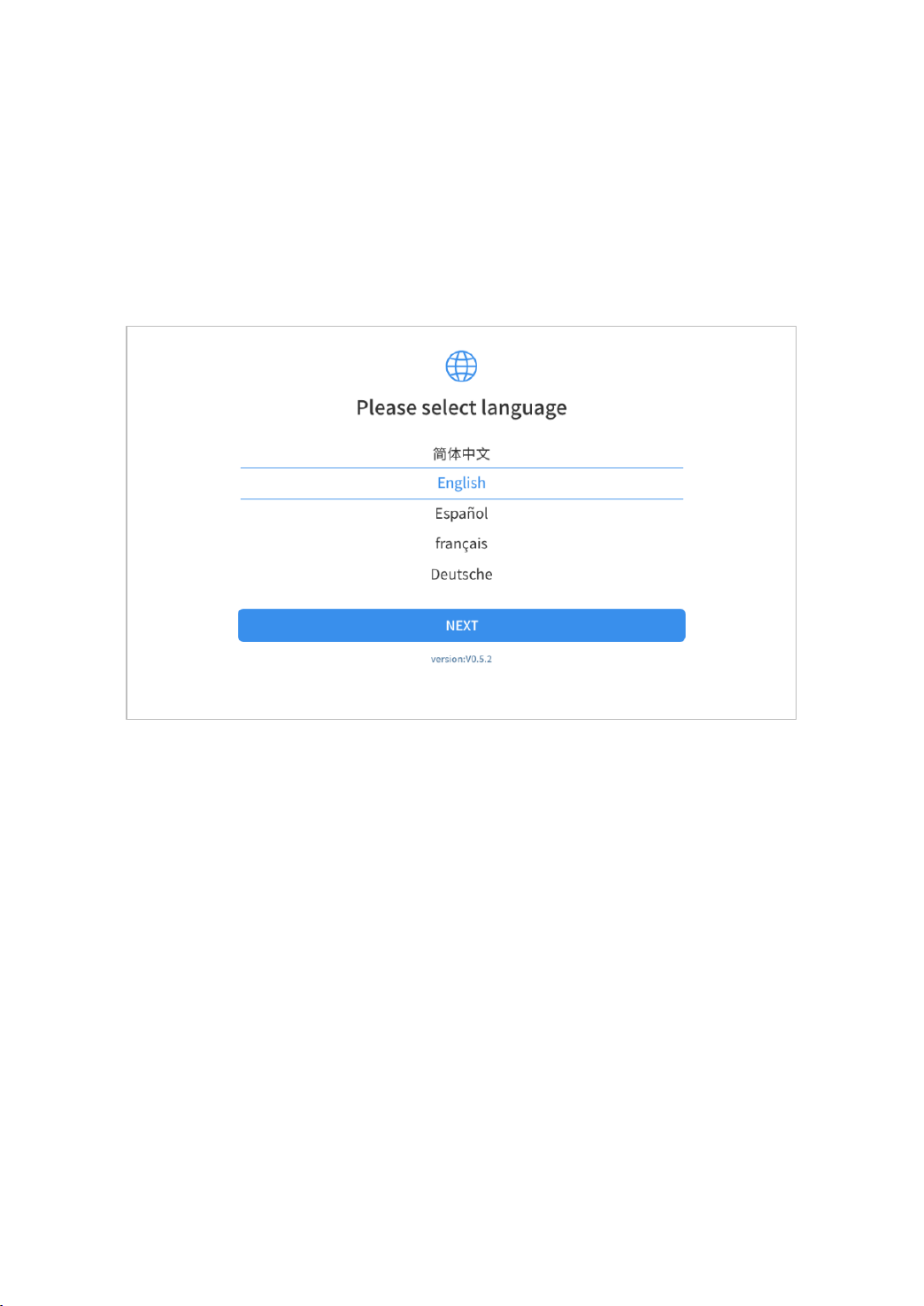

Figure 2-1 Sample of Selection Languages
After setting the system language, you will enter the activation page, as shown in the
figure below. You can also click the "Trial" button in the upper right corner to try it out
before activation.

8
Figure 2-2 Sample of Activation (Screen 1)
Click Start Activate to enter the activation page, as shown below:
Figure 2-3 Sample of Activation (Screen 2)

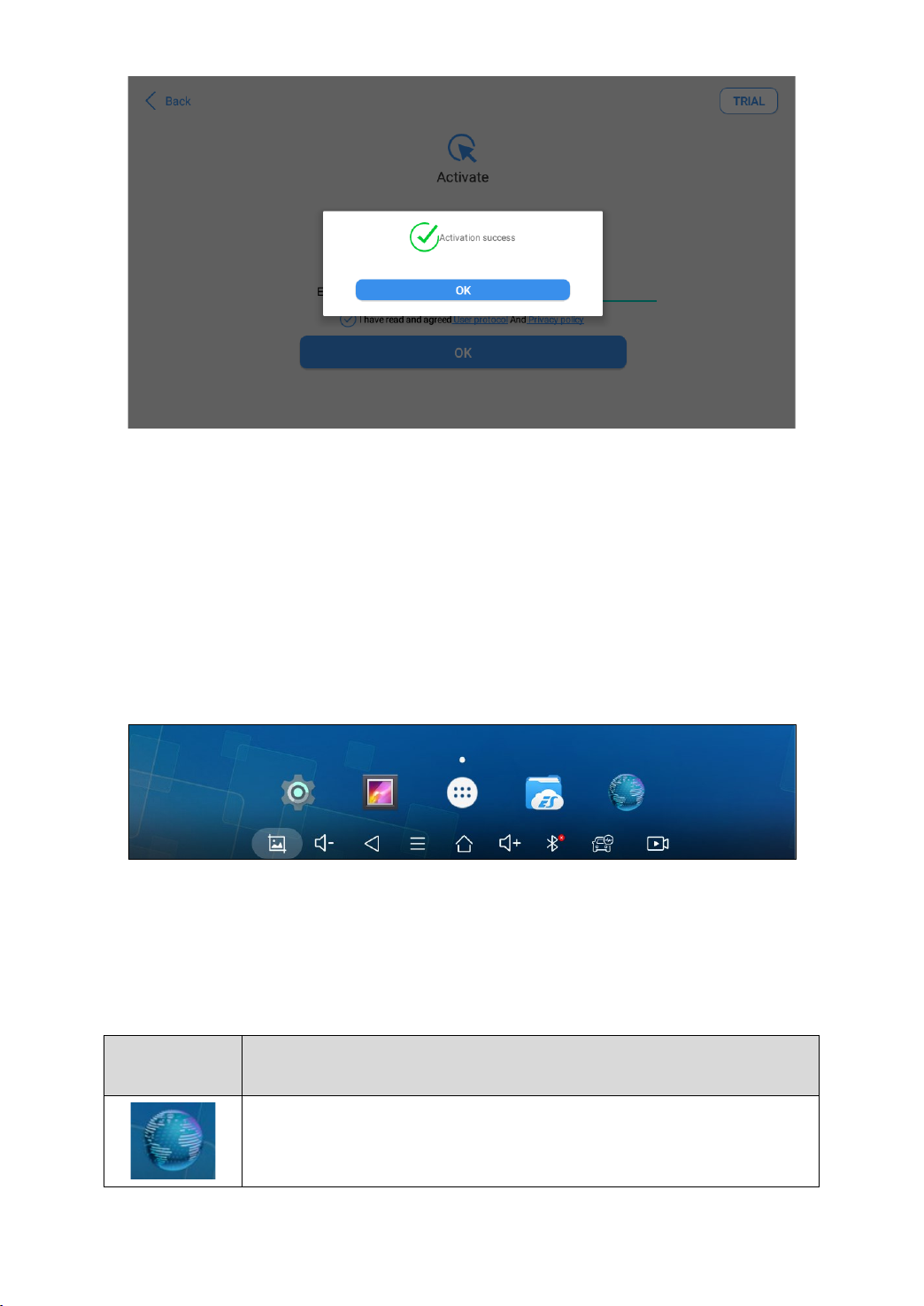

A pop-up window showing Activation Success indicates that you have completed
the first boot setup, click OK to enter the diagnostic system and start using the device.

9
Figure 2-4 Sample of Activation (Screen 3)
2.2.MAIN INTERFACE
OPERATION SYSTEM
The picture below (Fig 2-5) is the home screen of the operating system of the device.
You can also return to this interface at any time by clicking the home button on the
bottom navigation bar.
Figure 2-5 Sample of OS Main page
The app icons are as follows:
Table 2-1
Items
Descriptions
Browser

10
Gallery
Application Menu
ES File Explorer
Android Settings
H6 Pro Smart Diagnostics System
a) Browser: Click on the browser icon to enter the browser to view the official
website of Xtool or search for other information.
b) Gallery: Click the Gallery icon to enter the album and you can quickly view the
pictures or screenshots stored on the device. You can select the picture you need,
click the share button on the upper right, and send the picture to your mobile
phone or PC via Bluetooth or USB connection
c) Application Menu: Show all the apps that you have installed into the device, also
allows you to manage them.
d) ES File Explorer: You can manage APP, music, files, pictures, etc. in the device in
this function, and you can also use Local/Home/Cleaner to clean up files.
e) Android Settings: This allows you to check and change the settings of the
Android system, including network, battery status, language, device info, and
factory reset.
f) H6 Pro Smart Diagnostics System: This app provides full system diagnostic
functions and also offers a range of specialist maintenance services.
It will be referred to as the “H6 Pro Smart Diagnostics System App” later in this
manual.

11
Figure 2-6 Sample of ES File Explorer
MAIN MENU
Every time start the tablet, you will automatically enter the H6 PRO Smart Diagnostics
System app with the following main screen. Tap on the diagnosis application button
on the menu, the main menu will be shown as below:
