Xtool D7 User manual

Shenzhen Xtooltech Intelligent Co., LTD
D7 Smart Diagnosis System
User Manual

I
Please read this user manual carefully before using the D7
Smart Diagnosis System. When reading the manual, please
pay attention to the words “Note” or “Caution”, and read them
carefully for appropriate operation.
TRADEMARKS
is a registered trademark of Shenzhen Xtooltech
Intelligent CO., LTD.
In countries where the trademarks, service marks, domain
names, logos and the name of the company are not registered,
XTOOL claims that it still reserves the ownership of the
unregistered trademarks, service marks, domain names, logos
and the company name. All other marks for the other products
and the company’s name mentioned in the manual still belong
to the original registered company.
You may not use the trademarks, service marks, domain
names, logo and company name of XTOOL or other companies
mentioned without written permission from the trademark holder.
XTOOL reserves the right to the final interpretation of this
manual content.

II
COPYRIGHT
Without the written consent of Shenzhen Xtooltech Intelligent
Co., Ltd., any company or individual shall not copy or backup
this operation manual in any form (electronic, mechanical,
photocopying, recording or other forms).
DECLARATION
This manual is designed for the usage of the D7 Smart
Diagnosis System and provides operating instructions and
product descriptions for users of the D7 Smart Diagnostic
system.
No part of this manual can be reproduced, stored in a retrieval
system or transmitted, in any form or by any means (electronic,
mechanical, photocopying, recording, or otherwise), without the
prior written permission of XTOOL.
Use the device only as described in this manual. XTOOL is not
responsible for any consequences of violating the laws and
regulations caused by using the product or its data information
XTOOL shall not be liable for any incidental or consequential
damages or for any economic consequential damages arising

III
from the accidents of individual users and the third parties,
misuse or abuse of the device, unauthorized change or repair
of the device, or the failure made by the user not to use the
product according to the manual.
All information, specifications and illustrations in this manual
are based on the latest configurations and functions available at
the time of printing. XTOOL reserves the right to make changes
at any time without notice.
OPERATION INSTRUCTIONS
For safe operation, please follow the instructions below:
Keep the device away from heat or fumes when you use it.
If the vehicle battery contains acid, please keep your hands
and skin or fire sources away from the battery during
testing.
The exhaust gas of the vehicle contains harmful chemicals,
please ensure adequate ventilation.
Do not touch the cooling system components or exhaust
manifolds when the engine is running due to the high
temperatures reached.

IV
Make sure the car is securely parked, Neutral is selected
or the selector is at P or N position to prevent the vehicle
from moving when the engine starts.
Make sure the (DLC) diagnostic link connector is
functioning properly before starting the test to avoid
damage to the Diagnostic Computer.
Do not switch off the power or unplug the connectors
during testing, otherwise, you may damage the ECU and/or
the Diagnostic Computer.
CAUTIONS!
Avoid shaking or dismantling the unit as it may damage the
internal components.
Do not use hard or sharp objects to touch the LCD screen;
Do not use excessive force;
Do not expose the screen to strong sunlight for a long
period.
Please keep it away from water, moisture, high
temperature or very low temperature.
If necessary, calibrate the screen before testing to ensure
the accuracy of LCD performance.
Keep the main unit away from strong magnetic fields.

V
AFTERSALES-SERVICES
E-Mail: aftersales-services@xtooltech.com
Tel: +86 755 21670995 or +86 755 86267858 (China)
Official Website: www.xtooltech.com

i
CONTENT
TRADEMARKS..............................................................................I
COPYRIGHT................................................................................. II
DECLARATION............................................................................ II
OPERATION INSTRUCTIONS................................................. III
CAUTIONS!................................................................................. IV
AFTERSALES-SERVICES........................................................ V
CONTENT.......................................................................................I
1 GENERAL INTRODUCTION.................................................. 1
Tablet.............................................................................................. 2
Front View of Tablet.............................................................................. 2
Back View of Tablet.............................................................................. 3
Host Ports...............................................................................................4
Technical Specifications..............................................................5
Package Kit....................................................................................6
Main Unit.................................................................................................6
Other Accessories................................................................................. 6
2 GETTING STARTED................................................................ 7
Activation........................................................................................7

ii
Main Interface............................................................................. 10
Operation system................................................................................ 10
Diagnosis system entrance................................................................12
Function Buttons................................................................................. 13
Navigation Buttons.............................................................................. 14
Notification Bar.................................................................................... 15
Factory Reset..............................................................................17
3 UPDATE................................................................................... 19
4 DIAGNOSIS............................................................................. 21
Vehicle Connection.................................................................... 21
Diagnosis..................................................................................... 22
Vehicle Selection.................................................................................23
Basic functions.....................................................................................25
5 SPECIAL FUNCTIONS..........................................................33
Oil Reset...................................................................................... 34
EPB...............................................................................................35
SAS...............................................................................................36
DPF...............................................................................................37
BMS MATCH...............................................................................38
Throttle......................................................................................... 39
TPMS Reset................................................................................ 39
ABS Bleeding.............................................................................. 40

iii
Injector Coding............................................................................41
Gearbox Match........................................................................... 42
Suspension..................................................................................42
Windows Initialization................................................................ 43
Seat Match...................................................................................43
Headlight Adjustment.................................................................43
IMMO Service............................................................................. 44
Gear Learning............................................................................. 45
6 SETTINGS................................................................................47
Language..................................................................................... 47
Units..............................................................................................49
My Workshop Info...................................................................... 50
VCI Information...........................................................................51
About............................................................................................ 52
7 REPORT...................................................................................53
Report...........................................................................................54
Replay.......................................................................................... 57
File Manager............................................................................... 57
8 REMOTE ASSISTANCE........................................................58
9 FAQ........................................................................................... 60
Q1: Failed to generate diagnosis report.................................60

iv
Q2: How to print diagnosis report............................................ 62
Q3: Failed to extract files.......................................................... 62
Q4: Mailbox supported.............................................................. 63
Q5: How to make an appointment for remote support.........63
Q6: How to generate and upload diagnostic log files...........63
Q7: How to switch language.....................................................64
Q8: Failed to diagnose vehicle.................................................64
Q9: Failed to activate or register..............................................65
Q10: Failed to turn on when charging.....................................65
Q11: Failed to open the diagnosis app...................................65

1
1 GENERAL INTRODUCTION
The XTOOL D7 smart diagnostic system is an advanced flatbed
scanning tool based on the Android operating system. It
supports multi-language switching and is suitable for different
countries and regions. The advantage of this obd2 scanner is
not only its comprehensive functions, including complete
system diagnosis, all obd2 functions, various reset functions
(IMMO / EEPROM adapter / EPB (Electronic Parking Brake)
reset / oil light reset / SAS (Steering Angle Sensors) reset / TPS
(Throttle Position Sensor) matching / Injector coding / ABS
(Anti-block system) bleed / gearbox matching / gear learning /
electronic pump actuation / disable transport mode / SRS
(Supplemental Restrgint System) reset / exhaust post-
processing / BMS matching / air suspension / cylinder / TPMS
reset / tire refit / headlight adjustment / windows
Initialization/seat matching/DIY mode) can also achieve faster
and more accurate diagnosis.

2
TABLET
The main unit of the D7 is the tablet, which has a built-in VCI
module, which can be directly connected to the tablet and the
car with the main test line, without the need to connect to an
external VCI box via Bluetooth.
FRONT VIEW OF TABLET

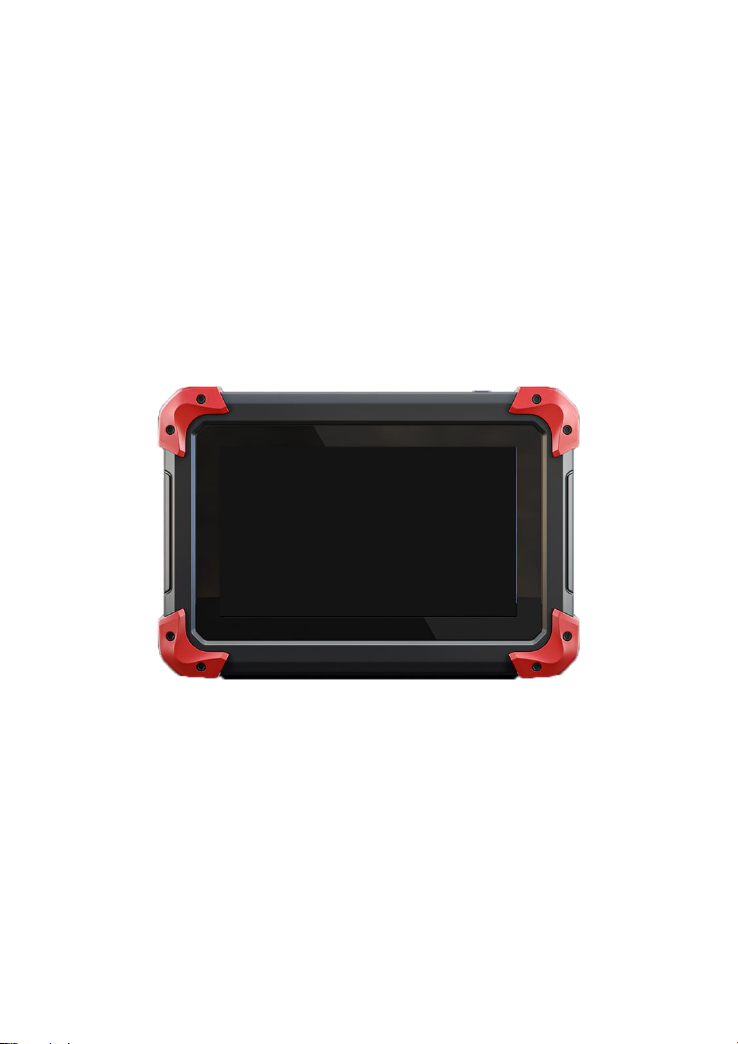

Fig 1-1 Tablet Front View
The front of the main unit is a touchable display screen, you
can use your fingers to operate on the screen to complete the
car diagnosis.

3
BACK VIEW OF TABLET
Fig 1-2 Tablet Back View
The product model and S/N are laser-engraved on the back of
the display tablet, and the small hole at the bottom is the
Loudspeaker.
1Nameplate: Display basic information such as S/N and
model etc.
2Loudspeaker: external sound can be played, supporting
the playback of music, etc.

4
HOST PORTS
Fig 1-3 Tablet Host Ports
①Micro USB: Battery charge or data synchronization with PC
or DC.
②DB15 Port: This port is used to connect to the main test cable.
③Power Button: Long press to power on or off. In the power-on
state, short press the button to make the device enter the sleep
mode.

5
TECHNICAL SPECIFICATIONS
Table 1-1 Specification
Item
Description
Operating System
Android
Processor
Quad-core 1.6GHz Processor
Memory
32GB
Display
7.0-inch touch screen with 1024 × 600
resolution
Connectivity
USB
Wi-Fi
Sensors
Gravity sensor, light sensor
Auto Input/Output
Microphone, dual speakers, 4-band
3.5mm stereo/standard headset jack
Power and Battery
4000mAh, 3.7V lithium-polymer battery
Power Voltage
5V
Power Consumption
8W
Operating
Temperature
-20 to 60℃(-4 to 140℉)
Storage Temperature
-40 to 70℃(-40 to 158℉)
Humidity
<90%
Dimension (L*W*H)
218*150*29mm

6
PACKAGE KIT
MAIN UNIT
Tablet 1 pcs
OTHER ACCESSORIES
OBDⅡ-16 Connector (1 pcs)
* Used to access vehicle ECU data
Main Test Cable (1 pcs)
*The main cable is used to connect the Tablet to the connector.
USB Cable
*Connect display table to the PC or DC power adapter
Power Adapters
a) Charger DC5V AC100-300V 2A USB socket output No AC
movable feet 1 pcs
b) AC Charger Adapter 1 pcs (EU Standard)
c) AC Charger Adapter 1 pcs (US Standard)
*Used to connect a USB cable to connect the tablet to an external
DC power port for charging.
User Manual
*Tool operation instructions

7
2 GETTING STARTED
ACTIVATION
After first-time users press and hold the power button to turn on
the system, the system will automatically enter the guide
process and request to select the language for the operating
system.
Fig 2-1
After setting the system language, you will enter the activation
page, as shown in the figure below. You can also click the

8
"Trial" button in the upper right corner to try it out before
activation.
Fig 2-2
Click Start Activate to enter the activation page, as shown
below:

9
Fig 2-3
A pop-up window showing Activation Success indicates that
you have completed the first boot setup, click OK to enter the
diagnostic system and start using the device.
Fig 2-4

10
MAIN INTERFACE
OPERATION SYSTEM

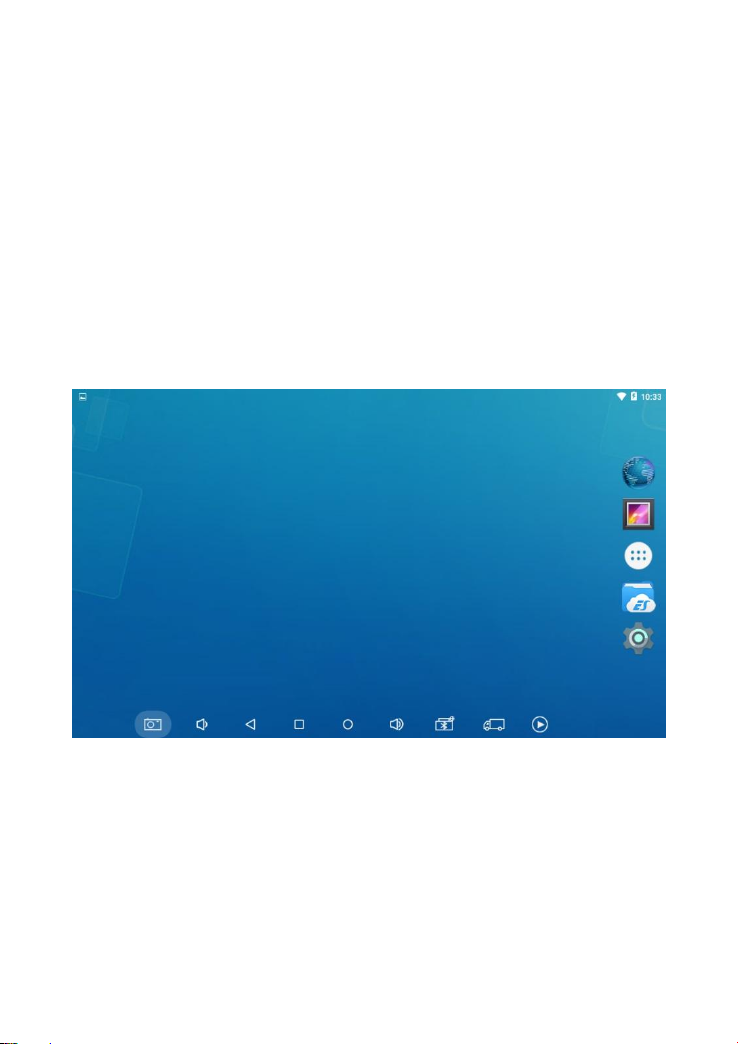

As shown in the figure below, this interface is the main page of
the operating system of the device. You can also return to this
interface at any time by clicking 【⚪】on the bottom navigation
bar.
Fig 2-5
The icons on the right, from top to bottom, are browser, photo
album, application square, file manager, system settings, as
shown below:
Other manuals for D7
2
Table of contents
Other Xtool Diagnostic Equipment manuals

Xtool
Xtool TP150 User manual

Xtool
Xtool H6PRO User manual

Xtool
Xtool AutoProPad Basic User manual

Xtool
Xtool D1 User manual

Xtool
Xtool IP819TP User manual

Xtool
Xtool X100PAD Elite User manual

Xtool
Xtool PS701 Pro User manual

Xtool
Xtool IP608 User manual

Xtool
Xtool PS80 User manual

Xtool
Xtool PS90 User manual
Popular Diagnostic Equipment manuals by other brands

EDWANZ group
EDWANZ group DEUTRONIC D-IBM2900 Operation manual

EDAN
EDAN SE-101 user manual

Herth+Buss
Herth+Buss ELPARTS AirGuard operating instructions

Extech Instruments
Extech Instruments BR200-2 user guide

FujiFilm
FujiFilm ED-580XT Operation manual

TRACER PRODUCTS
TRACER PRODUCTS Marksman II Series Operator's manual
