Xtool A30 Pro User manual

A30 Pro
Intelligent Diagnosis System

QUICK GUIDE
I
Trademarks
is a registered trademark of Shenzhen
Xtooltech Intelligent CO., LTD.
In countries that the trademarks, service marks, domain
names, logos and the name of the company are not
registered, Xtool claims that it still reserves the
ownership of the unregistered trademarks, service
marks, domain names, logo and the company name. All
other marks for the other products and the company’s
name mentioned in the manual still belong to the
original registered company.
You may not use the trademarks, service marks, domain
names, logo and company name of Xtool or other
companies mentioned without written permission from
the trademark holder.
Xtool reserves the right for the final interpretation of
this manual content.

QUICK GUIDE
II
Copyright
This manual is designed for A30 Pro Intelligent
Diagnosis System and only apply to it. Any company
or person can’t copy and backup this introduction book
in any form (Electronic, mechanical, photocopy, record
or other form) without written permission of Xtool.
This introduction book is via the product existing
configuration and function to compile, if the product
add new configuration and function, this introduction
book will be changed accordingly, without prior
notice. The right of final interpretation of this
introduction book is belong to Xtool.

QUICK GUIDE
IV
Disclaimer
This electronic control system diagnostic unit is
provided for vehicle repairing professionals, this
product has higher reliability, but not exclude the loss
and damage caused by customers technical matter,
vehicle problem or other reason, Xtool assume no
liability or responsibility for those.
To know more details, please visit official website：
http://www.xtooltech.com
Safety instruction
Keep ventilation：When the engine is
running, please keep repair zone good
ventilation or connect exhaust system of
engine and building carefully.

QUICK GUIDE
V
Caution
⚫Always keep safe condition to diagnose vehicle
⚫Wear the goggles accord with ANSI standard
⚫Keep clothes, hair hand, tool, tester etc. away from
running or calorific engine
⚫Before start engine, you should confirm parking
braking is working, put barrier in front wheels, and
put gear shift lever in neutral gear or park to avoid
hurting people on the spot when start engine,
vehicle speeds up suddenly
⚫Be extremely careful when working around the
ignition coil, distributor cap, ignition circuit and
ignition plug. The voltage generated by these
components when the engine is running is very
dangerous
⚫Equipped with special fire extinguishers for
gasoline, chemical, electrical fires in the working

QUICK GUIDE
VI
area
⚫When the ignition switch is turned on or the
engine is running, don’t connect or disconnect the
diagnostic equipment
⚫Keep the diagnostic device dry and clean, away
from gasoline, water and grease. If necessary, use
a clean cloth coated with a mild detergent to clean
the surface of the device
⚫Don’t operate the diagnostic equipment while
driving the vehicle to avoid distractions and cause
accidents
⚫Please refer to the repair manual when servicing
the vehicle and strictly follow the diagnostic
procedures and precautions. Otherwise, it may
cause personal injury or damage to the diagnostic
device
⚫To avoid damaging the diagnostic device or

QUICK GUIDE
VII
generating incorrect data, please ensure that the
vehicle battery is sufficiently charged and the
connection of the vehicle diagnostic socket is
clean and safe
⚫Don’t put the diagnostic device on the vehicle
distributor. Strong electromagnetic interference
will cause damage to the device
Aftersales-services
E-Mail: [e-mail]
Tel: [phone] or [phone]
Official Website: www.xtooltech.com
*Please kindly provide your product S/N, VIN code and software
version when seeking technical support, which will help us
locate your problem.

QUICK GUIDE
i
Content
Trademarks....................................................................................... I
Copyright.........................................................................................II
Disclaimer...................................................................................... IV
Safety instruction ......................................................................... IV
Caution ............................................................................................ V
Aftersales-services.........................................................................7
Content .............................................................................................. i
1. Product Brief..........................................................................1
2. Product Specification...........................................................2
2.1. Appearance ....................................................................2
2.2. Ports and Button ...........................................................4
2.3. Parameter........................................................................6
2.4. Packing list.....................................................................7
2.5. Connection.....................................................................8

QUICK GUIDE
ii
3. Start Diagnosis ................................................................... 10
3.1. Activation.................................................................... 10
3.2. Main Interface............................................................ 11
3.3. Diagnosis..................................................................... 13
VIN Identification ............................................................. 14
Vehicle Selection............................................................... 15
Demo .................................................................................... 16
Basic Function.................................................................... 18
3.4. Upgrade ....................................................................... 28
3.5. Settings ........................................................................ 30
3.6. Report........................................................................... 40
3.7. Quick Guide................................................................ 41
Shenzhen Xtooltech Intelligent Co., Ltd ............................ 42

QUICK GUIDE
1
1. Product Brief
A30 Pro intelligent diagnosis system is a professional
vehicle diagnosis device for Japanese automobile. It
supports the detection and bi-directional control test
for vehicle drive, chassis and body system. It has basic
diagnostic functions such as reading fault code,
clearing fault code, reading live data, freezing frame,
and etc. At the same time, user could experience the
complete OBD Ⅱ function and full system diagnosis. It
can help maintenance staff locate faults for vehicle and
improve work efficiency.

QUICK GUIDE
2
2. Product Specification
2.1. Appearance
A30 Pro series Intelligent Diagnosis System.

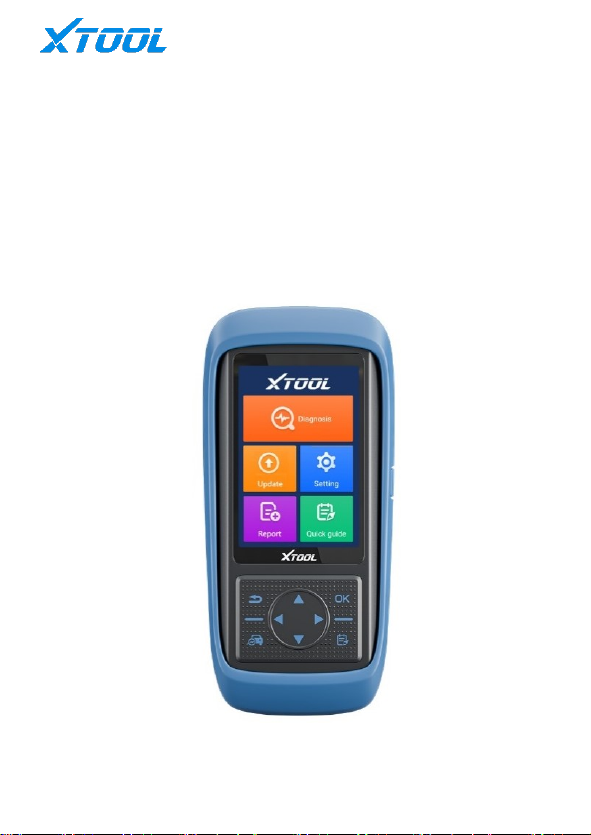

Front view
Back view

QUICK GUIDE
3
The design with blue and black color is simple and
terse; the body adopts a streamlined design and a large
curvature frame for better grip; the back of the product
adopts a protruding design that is more non-slip and
safer. A30 Pro products are equipped with VCI as
standard, and the host and VCI are connected via
Bluetooth, which is convenient for connection.

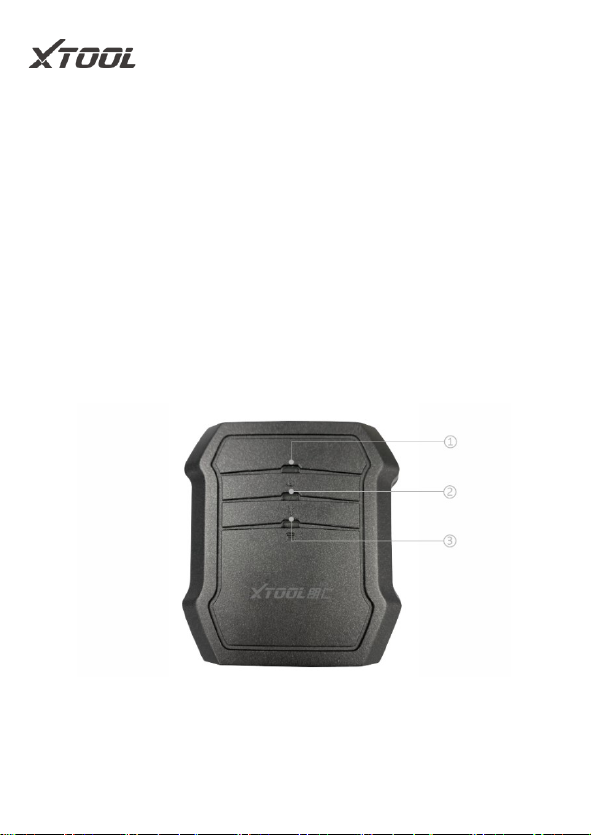

VCI Front view

QUICK GUIDE
4
2.2. Ports and Button
No.
Items
Description
1
Charge Lamp
Display status of charge

QUICK GUIDE
5
2
LCD display
Display function menu of
product
3
Back
Cancel selection (Or operation)
or return to previous menu
4
Direction key
Via direction key to move
choosing appoint menu
5
Vehicle
diagnosis
Open/switch vehicle diagnosis
function
6
DB15
connector
Only for charging
7
Speedy guide
Open/switch introduction book
8
OK
Confirm selection
9
USB interface
Connect device to PC to update
software or battery charging, a
Type-c
10
Power switch
Long press can power on/Power
off, short press can turn on/turn
off screen

QUICK GUIDE
6
2.3. Parameter
Note: The working temperature and storage temperature are
verified in a laboratory environment, which are for reference only
Items
Description
System
Android
CPU
ARM Cortex A7 Quad-Core，Basic
frequency 1.2GHz
GPU
Mali-400 MP2 GPU
RAM
1GB
ROM
16GB
Display screen
4-inch 320x480 Color touch display screen
Working voltage
9~18V
Battery
3000mAh built-in lithium battery
Working temperature
-20℃-60℃
Storage temperature
-30℃-70℃

QUICK GUIDE
7
2.4. Packing list
Category
No.
Name
QTY
Test
Connectors
& Cables
1
OBD II-16
1
2
HONDA-3
1
3
NISSAN-14
1
4
Main Cable
1
5
USB Type-C Cable
1
Adaptor
1
Charger DC5V AC (100-300V) 2A
1
2
US plug adapter
1
3
EU plug adapter
1
4
UK plug adapter
1
Main Units
1
F401
1
2
VCI box
1
Accessories
1
Certificate of Quality
1
2
Packing List
1
3
Carton
1

QUICK GUIDE
8
2.5. Connection
Please connect your vehicle to A30 Pro follows below steps:
1. First open the A30 Pro host;
主测试线
Vehicle
VCI
A30Pro
Main test line

QUICK GUIDE
9
2. Connect the host and VCI via Bluetooth;
3. Connect the VCI to the car with the main test line;
4. Start the diagnosis.
*Note
The DB15 port on bottom only reserved for charging. Please do
not connect directly the A30Pro to vehicle by main test line,
which could lead to a communication failure

QUICK GUIDE
10
3. Start Diagnosis
3.1. Activation
Please follow below steps to activate your device:
Step 1: Long press power button to boot up and connect
Wi-Fi,
Step 2: Input valid phone number in activation page to
verify, after receiving message authentication code,
submit the code and the activation is done.
Note
1.Generally, A30 Pro will be activated in advance when it
leaves the factory, but if you do a factory reset of the device,
then you need to activate it again.
2. Software will be released new version for fixing bugs,
please upgrade it in time for a better user experience.

QUICK GUIDE
11
3.2. Main Interface
After booting, the main interface as shown below.
