Xtool X100 PAD User manual

X100 PAD
Diagnosis System
User Manual

X100 PAD
1
Declaration
1. This manual is designed for the usage of X100 PAD, applying to X100 PAD
automotive diagnosis platform.
No part of this manual can be reproduced, stored in a retrieval system or
transmitted, in any form or by any means (electronic, mechanical, photocopying,
recording, or otherwise), without the prior written permission of Xtool.
2. Use the device only as described in this manual. The user will be responsible
solely for the after-effects of violating the laws and regulations caused by using the
product or its data information; in this case Xtool will not bear any legal
responsibility.
3. Xtool shall not be liable for any incidental or consequential damages or for
any economic consequential damages arising from the accidents of individual users
and the third parties, misuse or abuse of the device, unauthorized change or repair
of the device, or the failure made by the user not to use the product according to
the manual.
4. All information, specifications and illustrations in this manual are based on
the latest configurations and functions available at the time of printing. Xtool
reserves the right to make changes at any time without notice.
5. is the registered trademark of SHENZHEN XTOOLTECH
CO., LTD.
6. In countries that the trademarks, service marks, domain names, logos and
the name of the company are not registered, Xtool claims that it still reserves the
ownership of the unregistered trademarks, service marks, domain names, logos and
the company name. All other marks for the other products and the company’s name
mentioned in the manual still belong to the original registered company.
You may not use the trademarks, service marks, domain names, logos and
company name of Xtool or other companies mentioned without written permission
from the trademark holder.
7. Please visit www.xtooltech.com for more information on the X100 PAD.
8. Xtool reserves the right for the final interpretation of this manual content.

X100 PAD
2
Xtool X100 PAD User Manual Instructions
Please read this user manual carefully before using the X100 PAD.
When reading the manual, please pay special attention to the words “Note”,
“Caution” or “Warning”, read them carefully for appropriate operation.
Xtool X100 PAD Main Unit
Avoid shaking or dismantling the unit as it may damage the internal
components.
Do not use hard or sharp objects to touch the LCD screen; do not use excessive
force; do not expose the screen to strong sunlight for a long period.
Caution: keep it away from water, moisture, high temperature or very low
temperature.
If necessary, calibrate the screen before testing to ensure the accuracy of LCD
performance.
Keep the main unit away from strong magnetic fields.
Operation Instructions
For safe operation please follow the instructions below:
Keep the scanner away from heat or fumes when using it.
If the vehicle battery contains acid, please keep your hands and skin or fire
sources away from the battery during testing.
Exhaust gas of vehicle contains harmful chemicals, please ensure adequate
ventilation.
Do not touch the cooling system components or exhaust manifolds when
engine is running due to the high temperatures reached.
Make sure the car is securely parked, Neutral is selected or the selector is at P
or N position to prevent the vehicle from moving when engine starts.
Make sure the (DLC) diagnostic link connector is functioning properly before
starting the test to avoid damage to the Diagnostic Computer.
Do not switch off the power or unplug the connectors during testing, otherwise
you may damage the ECU and/or the Diagnostic Computer.

X100 PAD
3
Content
CHAPTER ⅠABOUT X100 PAD....................................................... 4
1. FEATURES........................................................................................... 4
1.1. Advantages ............................................................................................... 4
1.2. Durability.................................................................................................. 4
2. LAYOUT OF X100 PAD...................................................................... 4
2.1. X100 PAD................................................................................................. 4
3. HARDWARE TECHNICAL PARAMETERS...................................... 5
CHAPTER ⅡHOW TO USE THE X100 PAD .................................. 6
1. X100 PAD ACTIVATION..................................................................... 6
2. X100 PAD MAIN INTERFACE AND FUNCTIONAL BUTTONS
DESCRIPTIONS ...................................................................... 7
2.1. Main Interface........................................................................................... 7
2.2. Sub-menus and Function Buttons ............................................................. 7
2.3. Toolbar Function Buttons ......................................................................... 7
3. SPECIAL FUNCTIONS ....................................................................... 8
4. SETTING.............................................................................................. 9
4.1. Languages................................................................................................. 9
4.2. Units. ........................................................................................................ 9
4.3. Device Self-test....................................................................................... 10
4.4. My Workshop Info.................................................................................. 10
5. DIAGNOSTIC REPORT .................................................................... 11
6. ONE CLICK UPDATE ....................................................................... 11
7. XCLOUD SYSTEM ........................................................................... 12
8. REMOTE DIAGNOSIS...................................................................... 12

X100 PAD
4
④
CHAPTER ⅠAbout X100 PAD
1. Features
1.1. Advantages
●Multi-language. Can be used in different countries and districts.
●Mainframe system, adopts ARM high-speed chip, has a speedy response,
strong capacity of anti-interference and stable operation
●Supports one-click update. You can update the software at any time via WIFI.
●Modern appearance design and HD LCD Panel. It realizes the integration of
automobile industry and electronic information technology, and makes vehicle
diagnosis more convenient, more practical and more economical.
1.2. Durability
●One piece structure design: crash-proof, seismic-proof, durable.
●Industrialized design: ensure stable working condition of the product under the
harsh working environment (high or low temperature environment).
2. Layout of X100 PAD
2.1. X100 PAD
①
①Micro USB: Battery charge or data synchronization with PC
②DB15 Port: Supports wired connection with car by the cable
③Power Button: Power on or power off
④Microphone
②
③

X100 PAD
5
①
①Dual speakers
3. Hardware Technical Parameters
Operating System: Android
Processor: Quad-core 1.6GHz Processor
Memory: 1G RAM, 16G FLASH
Display: 7.0 inch touch screen with 1024×600 resolution
Sensors: Gravity sensor, light sensor
Auto Input/Output: Microphone, dual speakers, 4-band 3.5mm stereo/standard
headset jack
Power and Battery: 4000mAh, 3.7V lithium-polymer battery
Power Voltage: 5V
Power Consumption: 8W
Operating Temperature: -20 to 50℃(-4 to 126℉)
Humidity: <90%
Dimension (L*W*H): 218*150*29mm

X100 PAD
6
CHAPTER ⅡHow to Use the X100 PAD

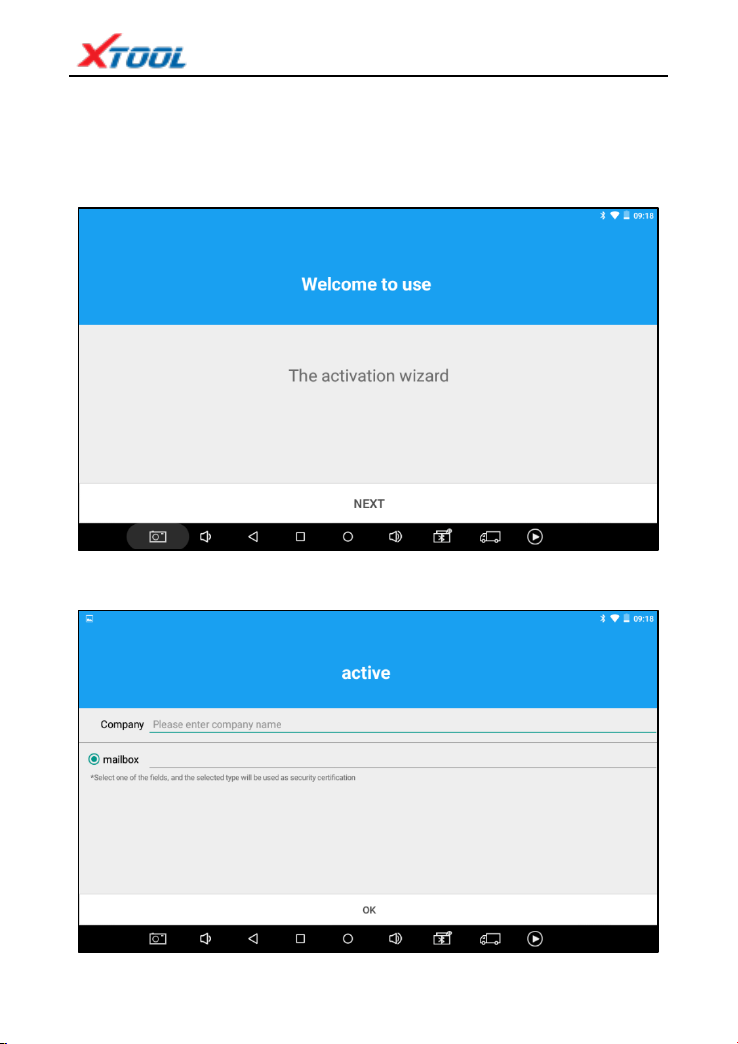

1. X100 PAD Activation
1.1. Please activate X100 PAD before you use it to test vehicles.
1.2. Connect to Wi-Fi first. Please fill in the company name and mailbox, then
click OK to complete the activation.

X100 PAD
7
2. X100 PAD Main Interface and Functional Buttons
Descriptions
2.1. Main Interface
Tap on X100 PAD application icon, the main interface and sub-menus will be
shown as below. ▼
2.2. Sub-menus and Function Buttons
Diagnosis: Open the X100 PAD diagnostic application. It can read diagnostic
information and perform special functions.
Settings: Users can access the language setting and other system related to settings.
XCloud: Online Communication Platform for X100 PAD users. (Coming soon)
Update: After connected to the internet, you can download the latest diagnostic
software directly to the X100 PAD.
Report: Users can view all the diagnostic reports and diagnostic data generated in
the diagnosis process.
Remote: Users can get remote assistance from Xtool Technical Assistance Center.
2.3. Toolbar Function Buttons

X100 PAD
8
Function Button Descriptions
Back to previous interface
Back to the main interface of Android system
Shows (recently used) applications
Press for screenshot
decrease volume
Click this button to return to the diagnostic vehicle
interface
increase volume
3. Special Functions
After the cable and OBDII-16 connector is connected to the vehicle, diagnosis
can be performed. The special functions interface is shown as below:

X100 PAD
9
4. Setting
By selecting Setting users can set the language, unit and other system related
options:

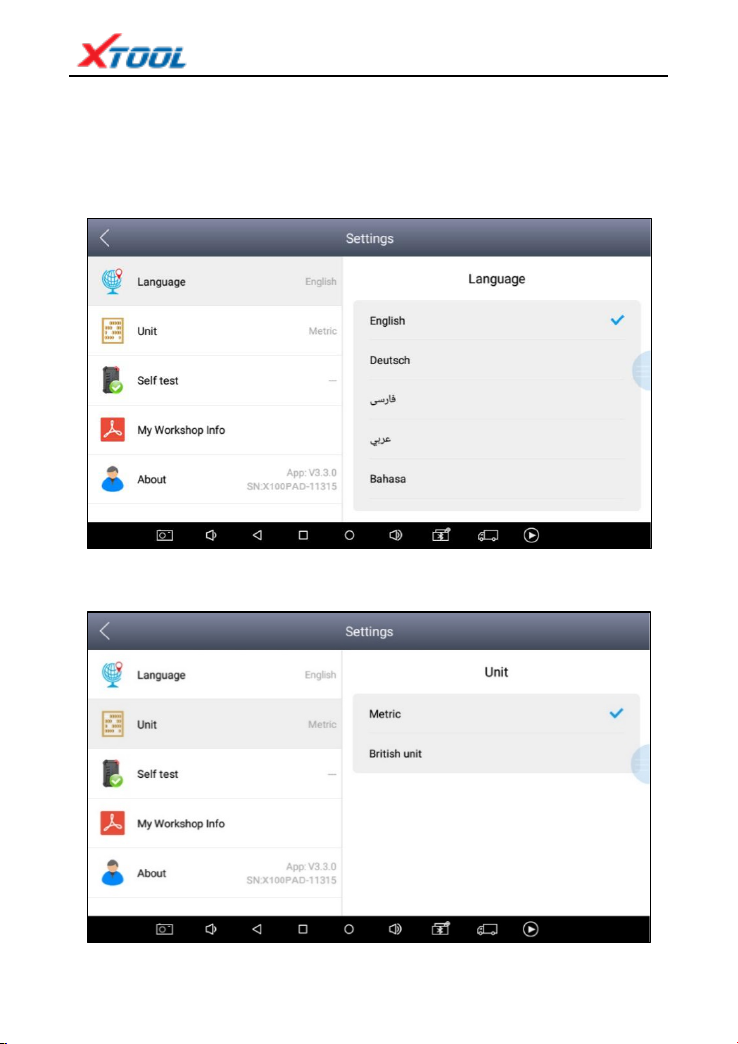

4.1. Languages: select the language. Please tick the required option from the
multi-language options on the right.
4.2. Units: Select unit of measurement. Users can select METRIC or BRITISH
UNIT.

X100 PAD
10

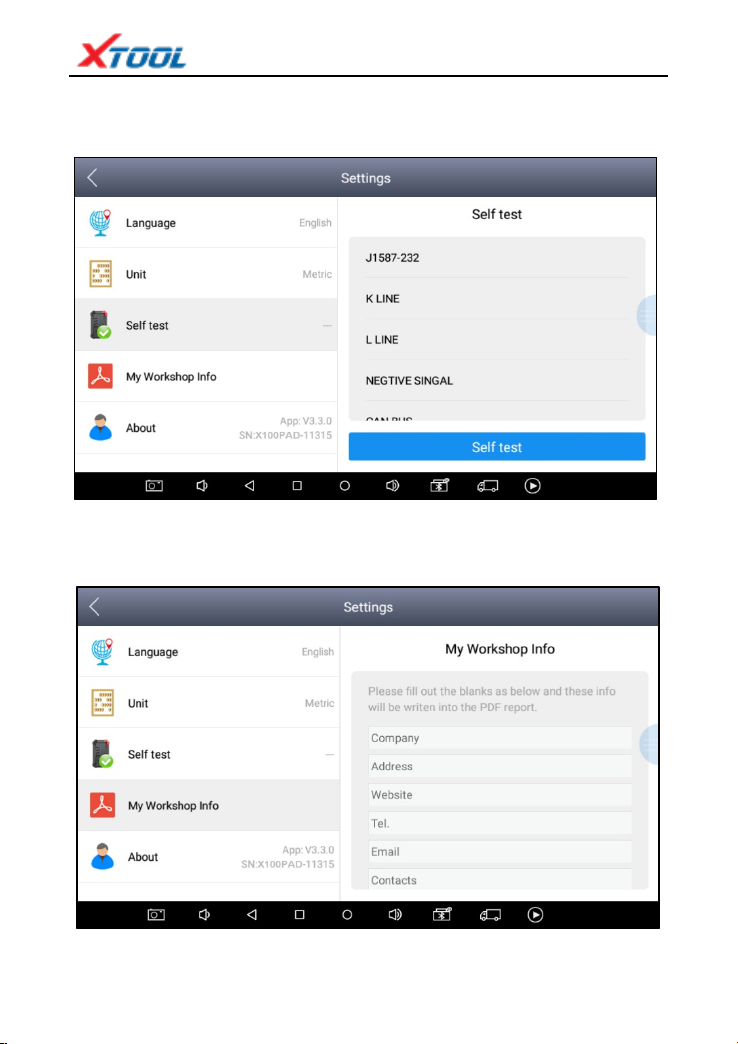

4.3. Device Self-test
Self-test the tablet. Please send X100 PAD back to our factory for repair if
Self-test fails.
4.4. My Workshop Info
You can input your workshop info here. When generate PDF report it will
show your workshop info.

X100 PAD
11
5. Diagnostic Report
Diagnostic Report is used for viewing and printing the saved files, such as
Live Data, Trouble Codes or pictures generated in the process of diagnosis, users
also can view a record of which cars have been previously tested. It includes three
parts: PDF Files, Replay and File Management.
6. One Click Update
X100 PAD updates directly via the Internet. To access the update application,
open the X100 PAD application and click UPD AT E , shown below:

X100 PAD
12
7. XCloud System (English Version is coming soon)
The Xtool cloud service platform allows X100 PAD users to look up
maintenance information, share and access diagnosis test results and fault finding
solutions, communicate with other X100 PAD users in our forum, and also access
various online databases of maintenance and diagnostic skills and vehicle
maintenance plans.
8. Remote Diagnosis
If users encounter problems and are not able to solve them, they can open this
application and ask for remote assistance.
How to get remote assistance from Xtool Technical Assistance Center:
a. Open X100 PAD
b. Click Remote Diagnosis and open the TeamViewer interface. Generate and
display device ID.
c. Your partner will also need to download and install TeamViewer.
d. Inform your partner of your TeamViewer ID and password to enable them to
begin remote access of X100 PAD.

Shenzhen Xtooltech Co., Ltd
Company address: 2nd Floor, Building No.2, Block 1, Excellence City, No.128,
Zhongkang Road, Shangmeilin, Futian District, Shenzhen, China
Factory address: 2/F, Building 12, Tangtou Third Industrial Zone, Shiyan Street,
Baoan District, Shenzhen, China
Service Hotline: [phone]
Email: [email protected]
Fax: [phone]
Website: www.xtooltech.com
