Xtool X100PAD Elite User manual

X100PADELITE
Auto Key Programmer
User
Manual

X100PAD Elite Diagnosis System
Declaration
1. This manual is designed for the usage of X100PAD Elite, applying to X100PAD Elite
smart automotive diagnosis platform.
No part of this manual can be reproduced, stored in a retrieval system or
transmitted, in any form or by any means (electronic, mechanical, photocopying,
recording, or otherwise), without the prior written permission of Xtool.
2. Use the device only as described in this manual. The user will be responsible
solely for the after-effects of violating the laws and regulations caused by using the
product or its data information; in this case Xtool will not bear any legal
responsibility.
3. Xtool shall not be liable for any incidental or consequential damages or for any
economic consequential damages arising from the accidents of individual users and
the third parties, misuse or abuse of the device, unauthorized change or repair of
the device, or the failure made by the user not to use the product according to the
manual.
4. All information, specifications and illustrations in this manual are based on the
latest configurations and functions available at the time of printing. Xtool reserves
the right to make changes at any time without notice.
5. is the registered trademark of SHENZHEN XTOOLTECH CO.,LTD.
6.In countries that the trademarks, service marks, domain names, logos and the
name of the company are not registered, Xtool claims that it still reserves the
ownership of the unregistered trademarks, service marks, domain names, logos and
the company name. All other marks for the other products and the company’s name
mentioned in the manual still belong to the original registered company.
You may not use the trademarks, service marks, domain names, logos and company
name of Xtool or other companies mentioned without written permission from the
trademark holder.
7. Please visit www.xtooltech.com for more information on the X100PAD Elite.
8. Xtool reserves the right for the final interpretation of this manual content.
Xtool X100PAD Elite User Manual
Inst r u c tions
Please read this user manual carefully before using the scanner.
When reading the manual, please pay special attention to the words “Note”,
“Caution”or “Warning”, read them carefully for appropriate operation.

X100PAD Elite Diagnosis System
Xtool X100PAD Elite Diagnosis System Main Unit M aint e nan ce
Avoid shaking or dismantling the unit as it may damage the internal components.
Do not use hard or sharp objects to touch the LCD screen; do not use excessive force;
Do not expose the screen to strong sunlight for a long period.
Caution: keep it away from water, moisture, high temperature or very low
temperature.
If necessary, calibrate the screen before testing to ensure the accuracy of LCD
Performance.
Keep the main unit away from strong magnetic fields.
Operation Instructions For
safe operation please follow the instructions below: Keep
the scanner away from heat or fumes when using it.
If the vehicle battery contains acid, please keep your hands and skin or fire sources
away from the battery during testing.
Exhaust gas of vehicle contains harmful chemicals, please ensure adequate
ventilation.
Do not touch the cooling system components or exhaust manifolds when engine is
running due to the high temperatures reached.
Make sure the car is securely parked, Neutral is selected or the selector is at P or N
Position to prevent the vehicle from moving when engine starts.
Make sure the (DLC) diagnostic link connector is functioning properly before starting
the test to avoid damage to the Diagnostic Computer.
Do not switch off the power or unplug the connectors during testing, otherwise you
may damage the ECU and/or the Diagnostic Computer.

X100PAD Elite Diagnosis System
Contents
C ha pt er I X100PAD Elite ................................................................................. 1
1. Appearance................................................................................................................ 1
1.1. Front View ............................................................................................................... 1
1.2. Back View................................................................................................................ 1
2. Layout of X100PAD Elite Tablet.................................................................................. 2
2.1. Top View of X100PAD Elite Tablet........................................................................... 2
2.2. Side View of X100PAD Elite Tablet.......................................................................... 2
3. X100PAD Elite Technical Parameters .......................................................................... 3
C ha pt er How to Use X100PAD Elite ...................................................................... 4
1. X100PAD Elite Activation ............................................................................................ 4
2. X100PAD Elite Main Interface and Functional Buttons Descriptions ......................... 5
2.1. Main Interface ......................................................................................................... 5
2.2. Sub-menu and Functional Buttons ........................................................................ 5
2.3. Toolbar Functional Buttons ..................................................................................... 6
3. Vehicle Connection Diagnosis.................................................................................... 7
3.1. Vehicle Connection Test.......................................................................................... 7
3.2. Precautions before Use ........................................................................................... 8
4. Special function and Dia g nosis................................................................................... 9
4.1. Menu Options......................................................................................................... 9
4.2. Test Fun ct ions........................................................................................................ 10
4.3. Read ECU ............................................................................................................. 12
4.4. Read DTCs.............................................................................................................. 13
4.5. Clear DTCs............................................................................................................. 13
5. S ett in g s..................................................................................................................... 14
6. XCloud...................................................................................................................... 15
7. U pda te ...................................................................................................................... 15
8. Re po rt ....................................................................................................................... 16
9. Remote ..................................................................................................................... 17
CHAPTER ⅢHow to Use KC100
..................................................................................
18
CHAPTER Ⅳ Lo c ation o fD ia g nosti c Link Connectors on Different Ve hi c l eModels.............. 2 1
1. Diagnostic Link Connectors Locations of Various Vehicle Models ........................... 21
2. Location Diagram of Vehicle Diagnostic Link Connectors........................................ 24
3. Diagnostic Link Connectors Terminal Definition and Communication Pr o t o c ols..... 24

. . . ..
.
.
.
.
CHAPTER I about XlOOPAD Elite
1.
Appearance
1.1. Front View
1.2. Back
View
-
-
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

X100PAD Elite Diagnosis System
2
2. Layout of X100PAD Elite Tablet
2.1. Top View of X100PAD Elite Tablet
1 ②③④⑤
①USB3.0 interface: Wired data transmission
②Mini HDMI interface: Audio and video transfer
③DB15 interface: Extended reservation port
④DC charging port: Device Charging
⑤Power Button: Power on / off
2.2. Side View of X100PAD Elite Tablet
①
①Charger Interface:A reserved charger interface

X100PAD Elite Diagnosis System
3
3. X100PAD Elite Technical Parameters
Operating System
Android
Processor
Quad-core 1.8GHz Processor
Memory
2G RAM, 64G FLASH
D i s pl ay
8 inch IPS LCD with 1024x768p resolution
Camera
Rear camera, 5.0 Megapixel,AF with Flashlight
Sensors
Gravity Sensor, Ambient Light Sensor
Interface
USB3.0,DC charging port,DB15 interface,MINI HDMI
Audio Input / Output
Microphone,Dual Speakers, 3-Band 3.5mm
stereo/standard headset jack
Battery
10000 mAh 3.7V lithium polymer battery
Power Consumption
-20 to 50℃(-4to126℉)
Working Temperature
-20℃to 50℃(-4℉to 126℉)
Relative humidity
<90%
Dimension(L×W×H)
240×177×30mm

X100PAD Elite Diagnosis System
4
CHAPTER ⅡHow to Use the X100PAD Elite
1. X100PAD Elite Activation
1.1. Please activate X100PAD Elite before you use it to test vehicles. And please
connect Wi-Fi first.
1.2. Please fill in the company name and mailbox, (no need to fill in Phone number
cause overseas phone number cannot receive the auth code.), then click OK to
complete the activation.

TOOL XlOOPAD Elite Diagnosis System
2.XlOOPAD Elite Main Interface and Functional Buttons Descriptions
2.1. Main Interface
Tap on XlOOPAD Elite application icon, the main interface and sub-menus will be
shown as below.

X100PAD Elite Diagnosis System
6
2.2. Sub-menus and Function Buttons
Functional Buttons
Functional Descriptions
【Diagnosis】Read vehicle diagnosis
information
【Diagnose report】Read vehicle report
【Setting】Language, unit, Bluetooth
【Xtool cloud】Online chatting
【One-click upgrade】Upgrade software
【Remote control】Xtooltech support
center and function keys

X100PAD Elite Diagnosis System
7
Interface Taskbar
F un c t i ona l
B uttons
D
e s cri pt i ons
【Return to the previous interface】
【Decrease the volume】
【Increase the volume】
【Return to the main interface of Android】
【Show recently used programs】
【Screenshot】
【Back to the diagnosis model interface】
【Screen recording】
3. Vehicle Connection Diagnosis
3.1. Vehicle Connection Test
a. Turn on X100PAD Elite tablet

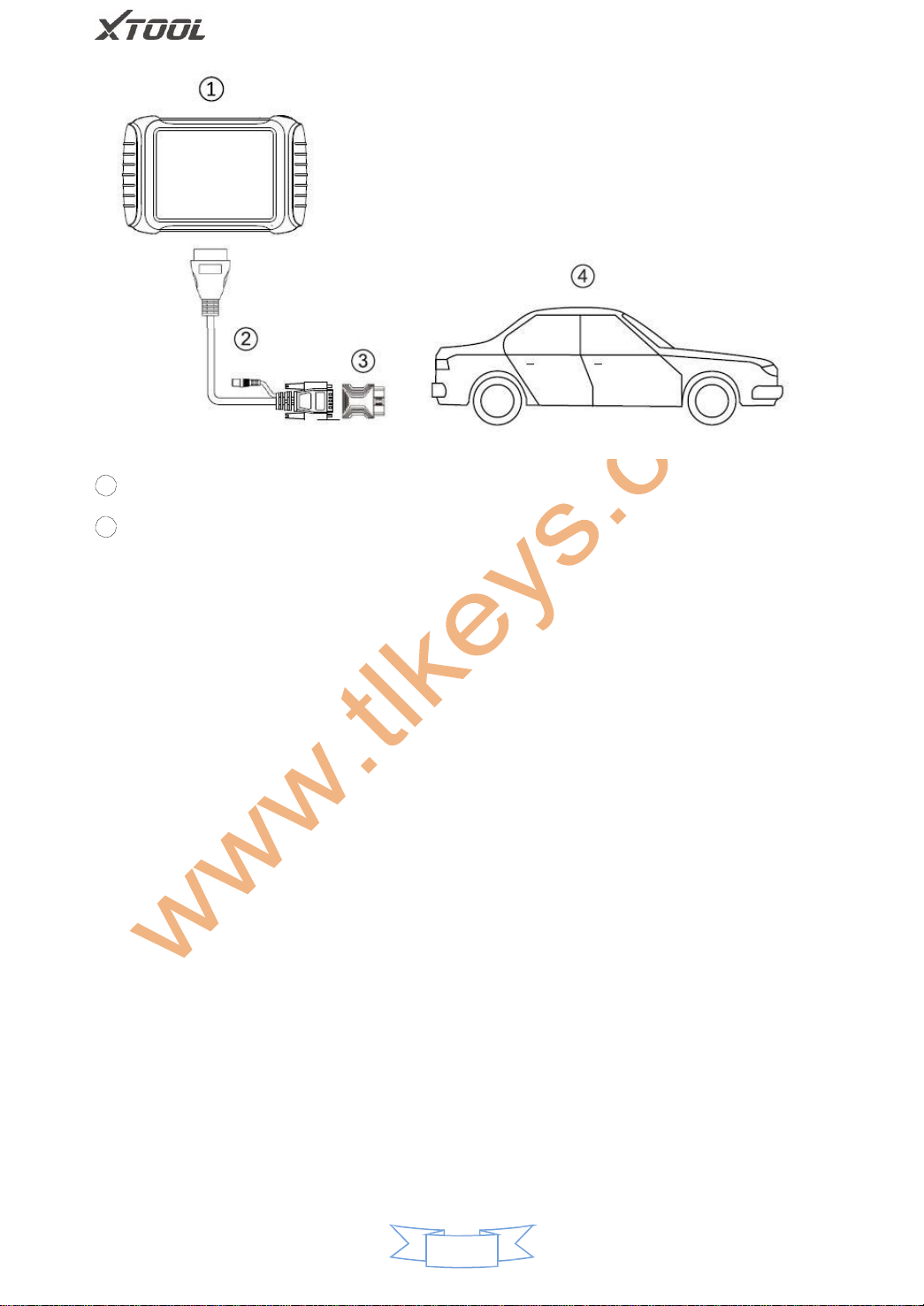

b. Connect cables and X100PAD Elite in following order: ①→②→③→④
c. Switch on the ignition and tap on X100PAD Elite application to test vehicles.
(Shown as follows)

X100PAD Elite Diagnosis System
8
1 X100PAD Elite Tablet
2 Main cable
③ OBDII-16 Adapter (Select other adapters if needed)
④ Measured vehicle
3.2. Precautions before Use
3.2.1. The vehicle power supply has to meet the normal voltage limits DC 9-15V
3.2.2. Users should check the position of the DLC port and ensure the OBDII 16pin
connector and the DLC port are correctly aligned before attempting to connect.
3.2.3. When taking some special functions tests, users are required to operate the
device according to operating instructions. For vehicle, it has to strictly meet the
requirements, for example, the conditions that some vehicle models need to be
Reached are as follows: engine temperature 80℃/105℃, turn off the loads (such as
Headlights, air-conditioner, etc.), put accelerator pedal in released position, etc.
3.2.4. If users cannot find the tested vehicle model or electronic control system in
the X100PAD Elite test menu, they may need to update the software or consult Xtool
technical service department.
3.2.5. Please ensure that only official XTOOL cables and connectors are used to
prevent damage to the unit.
3.2.6. Before powering off the unit, please ensure that you cancel or complete the
current task or function and return to the main interface, then power off.
3.2.7. Do not use excessive force to operate the touch screen.
3.2.8. During long period of non-use, please disconnect the power and turn off the
X100PAD Elite unit.

X100PAD Elite Diagnosis System
9
4. Special function and Diagnosis
4.1. Menu Options
4.1.1. After the X100PAD Elite mainframe is connected to the vehicle via main test
cable, Immobilization can be performed. The Immobilization interface is shown as
below:
4.1.2. X100PAD Elite lists Instrument Cluster is adjust the historical data of the
instrument and perform repair operations. The Instrument Cluster interface is shown
as below:

10
4.1.3. Users can choose the relevant menu for the vehicle being tested: selection for
Europe will enter the European cars menu, selection for Asia will enter the Asian cars
menu, and selection for America will enter the American cars menu.
4.1.4. Besides the usual system diagnostic functions, XTOOL also has developed a
series of special diagnostic functions for certain vehicles as follows:
4.2. Test Functions: it can read and clear faults codes for all systems of vehicles.
4.2.1. Using BMW as an example, select Common Diagnosis, then select EUROPE. Choose the
B MW word. I f t h e w o r disno t showingont h e s cree n , pleasesw ip e upo r do w n t o display it.

11
PLEASE NOTE: Different vehicles have different menus and systems.
Common main function menu includes the following options:
Read ECU: This function is to read the ECU version information, which is the
equivalent of “System Identification”or “System Information”in some electronic
control systems.
This will allow you to read ECU related software and hardware versions, models and
production date of diesel engine, part number, etc.
Read DTCs: read the trouble codes that are stored in the ECU.
Clear DTCs: clear current and historical trouble codes memory in ECU. The trouble
codes cannot be erased without eliminating the fault that the code relates to. TIP:
Save or print the currently stored fault codes before clearing them to provide help in
the case of an intermittent fault.
4.2.2. Toolbar function buttons descriptions
Function Buttons
Descriptions
Return to previous interface
Print test data
Click to record the data, click again to send your
feedback to XTOOL service center
After clicking the data record button the second time the data feedback page will
appear as shown below, showing diagnostic software version, vehicle being tested,
and the steps performed in the diagnostic process. Users can then enter the nature
of the problem and any other relevant information and send the form to the Xtool
engineering department.

XlOOPADElite Diagnosis System
4.3. Read ECU
This function is used to read ECU version information, which is the equivalent of
"System Identification" or "System Information" in some electronic control systems.
This will allow you to read ECU related software and hardware versions,models and
production date of diesel engine, part number, etc. shown below:
Version: EU_LL

X100PAD Elite Diagnosis System
13
4.4. Read DTCs
Select Read Fault Codes to read the trouble codes stored in the ECU. The screen will
show the trouble codes and their definition, shown below:
Tip: In the process of diagnosis, if the device shows “System is OK”or “No Trouble
Code”, it indicates that the ECU has not detected a fault in any of the circuits that it
monitors. If there is a fault which is not being recorded it may be that the fault is
with a part of the system not under the control of ECU, such as a mechanical system
fault. It is also possible that the signal of a system sensor may be incorrect but still
within the ECUs stored limits, this can be verified in Live Data.
4.5. Clear DTCs
4.5.1. Return to the previous step, select Clear Fault Codes to clear the current and
historical trouble codes memory in ECU. Performing this function will clear all the
current and historical trouble codes. Please ensure that the trouble codes have been
recorded before clearing, shown below:

X100PAD Elite Diagnosis System
14
4.5.2. Click YES to confirm the operation, if the communication is normal, it will
show “Trouble Codes has been Cleared Successfully”or “Trouble Codes Cleared”.
Generally, users will need to re-read trouble codes after clearing them to confirm
that the trouble codes have been cleared.
5. Settings
ByselectingSettings users can set the language, unit and other systemrelatedoptions.
Languages: select the language. Please tick the required option from the
multi-language options on the right.
Units: Select unit of measurement. Users can select Metric or British Unit.

X100PAD Elite Diagnosis System
6. XCloud (English version is coming soon)
All the auto maintenance technicians who use our products can not only look up the
Maintenance information that we put on our cloud service platform conveniently,
And combine the diagnosis result to query, and communicate with other Xtool users
In our forum, but can also access various online databases of maintenance and
Diagnostic skills and vehicle maintenance plans.
7. Update
X100PAD Elite updates directly via the Internet using Wi-Fi or wired connection. To access
The update application open the X100PAD Elite application and click UPDATE, shown
Below.
15

X100PAD Elite Diagnosis System
8. Report
Report is used for viewing and printing the saved files, such as Live Data, Trouble Codes or
pictures generated in the process of diagnosis, users also can view a record of which cars
havebeen previouslytested.It includes threeparts: PDF Files,Picturesand DataPlayback.
8.1. PDF Files:
8.1.1. PDF files are the diagnostic reports of Live Data or Trouble Codes that have been
saved during diagnosis. EnteringPDF will allow you to view andprint these reports.
8.1.2 Click PDF icon to generate PDF when you want to savethe trouble code report
8.2. Data Replay:
With Data Playback you can play back recorded Data.
16
