Xtool IP819TP User manual

Shenzhen Xtooltech Intelligent Co., LTD
User Manual
IP819TP TPMS Diagnosis System
Version 1.0
Revise date 2022/11

I
Please read this user manual carefully before using the IP819 Smart Diagnostic System, referred to as the “Scan Tool”
throughout this document. When reading the manual, please pay attention to the words “Note” or “Caution”, and read them
carefully for appropriate operation.
OPERATION INSTRUCTIONS
For safe operation, please follow the instructions below:
Keep the device away from heat or fumes when in use.
If the vehicle battery contains acid, please keep your hands and skin or fire sources away from the battery during
testing.
The exhaust gas of the vehicle contains harmful chemicals. Please ensure adequate ventilation.
Do not touch the vehicle cooling system components or exhaust manifolds when the engine is running due to the
high temperatures reached.
Make sure the car is securely parked, Neutral is selected or the selector is at the P or N position to prevent the
vehicle from moving when the engine starts.
Make sure the (DLC) Diagnostic Link Connector is functioning properly before starting the test to avoid damage to
the Diagnostic Computer.
Do not switch off the power or unplug the connectors during testing. Doing so may damage the ECU (Electronic
Control Unit) and/or the Diagnostic Computer.
CAUTIONS!
Avoid shaking, dropping or dismantling the scan tool as it may damage the internal components.
Use only your fingertips to touch the LCD screen. Hard or sharp objects may damage the scan tool.
Do not use excessive force;
Do not expose the screen to strong sunlight for a long period.
Please keep the scan tool away from water and moisture.
Store and use the scan tool only within the temperature ranges identified in the Technical Specifications section.
Keep the unit away from strong magnetic fields.
AFTERSALES-SERVICES
XTOOL strives to provide best-in-class support!
E-Mail: [email protected] (for Amazon) | [email protected] (for Ali-Express, eBay and others)
Tel: [phone] or [phone] (China)
Official Website: www.xtooltech.com |www2.xtooltech.com (Alternate sites)

i
CONTENT
OPERATION INSTRUCTIONS ............................................................................................................................. I
CAUTIONS! ...........................................................................................................................................................I
AFTERSALES-SERVICES ................................................................................................................................... I
CONTENT ............................................................................................................................................................. I
1. GENERAL INTRODUCTION ......................................................................................................................4
2. GETTING STARTED ..................................................................................................................................5
Connecting Power ............................................................................................................................................................. 5
Activation ...........................................................................................................................................................................5
2. DIAGNOSTIC ........................................................................................................................................... 26
Vehicle Connection .............................................................................................................................错误！未定义书签。
Beginning Diagnostic Testing ..........................................................................................................................................26
Vehicle Selection.................................................................................................................................................................................. 26
Diagnosis functions ............................................................................................................................................................................. 28
3. SPECIAL FUNCTIONS ............................................................................................................................ 34
5.1 ABS BLEEDING ........................................................................................................................................................34
5.2 OIL RESET ................................................................................................................................................................37
5.3 EPB ........................................................................................................................................................................... 39
5.3 SAS ........................................................................................................................................................................... 40
5.5 BMS RESET ..............................................................................................................................................................41
5.6 INJECTOR CODING .................................................................................................................................................43
5.7 DPF REGENERATION ............................................................................................................................................. 45
5.8 TPMS RESET ...............................................................................................................................错误！未定义书签。
6. SETTINGS ................................................................................................................................................ 47
Language ........................................................................................................................................................................ 48
Units ................................................................................................................................................................................ 48
My Workshop Info ........................................................................................................................................................... 49

ii
Firmware Information ...................................................................................................................................................... 49
About ............................................................................................................................................................................... 50
7. REPORT ................................................................................................................................................... 50
Report ..............................................................................................................................................................................52
Replay ............................................................................................................................................................................. 54
File Manager ................................................................................................................................................................... 54
8. UPDATE & FACTORY RESET ................................................................................................................55
Update .............................................................................................................................................................................55
Factory Reset .................................................................................................................................................................. 55
9. FAQ ...........................................................................................................................................................57
Q1: Failed to generate Diagnostic report ........................................................................................................................ 57
Q2: How to print a Diagnostic report ............................................................................................................................... 57
Q3: Failed to extract files .................................................................................................................................................57
Q4: Mailbox supported .................................................................................................................................................... 57
Q5: How to make an appointment for remote support .................................................................................................... 58
Q6: How to generate and upload diagnostic log files ...................................................................................................... 58
Q7: How to switch language ............................................................................................................................................58
Q8: Failed to diagnose vehicle ........................................................................................................................................ 58
Q9: Failed to activate or register ..................................................................................................................................... 58
Q10: Failed to turn on when charging ............................................................................................................................. 58
Q11: Failed to open the Diagnostic app .......................................................................................................................... 58
Q12: Can’t receive the email after sharing the diagnostic report .................................................................................... 59
10. WARRANTY & SERVICES ...................................................................................................................... 59
11. REMOTE ASSISTANCE .......................................................................................................................... 59
12. APPENDIX ................................................................................................................................................61
Trademarks ..................................................................................................................................................................... 61
Copyright ......................................................................................................................................................................... 61
Button Description ........................................................................................................................................................... 61

iii
Function Buttons .................................................................................................................................................................................. 61
Navigation Buttons..............................................................................................................................................................................62
Notification Bar ..................................................................................................................................................................................... 62
Compliance Information .................................................................................................................................................. 64
FCC Compliance ................................................................................................................................................................................... 64
CE ............................................................................................................................................................................................................... 64
UKCA .........................................................................................................................................................................................................64

4
1. GENERAL INTRODUCTION
The XTOOL IP819TP TPMS diagnosis system (referred to as the “IP819TP” in the rest of the manual) is an advanced
automotive scanning tool based on the Android operating system. It supports multiple languages and is suitable for
different countries and regions. The advantage of this OBD-II (On-Board Diagnostics, Gen.2) scanner is its comprehensive
functions and its ability to quickly provide the user with more accurate diagnostic information. IP819TP also offers full
TPMS System diagnosis, allows you to get sensor data quick and easy. Some of the diagnostic functions include:
Full system Diagnostics function
Full OBD-II functions
TPMS system diagnosis / sensor activation / XTool sensor programming / sensor relearn
Maintenance /Reset functions: such as ABS (Anti-block system) bleed/ Oil light reset / EPB (Electronic Parking
Brake) reset / SAS (Steering Angle Sensors) reset / BMS matching / Injector coding / DPF Regeneration/ TPMS
reset, etc.
MAIN UNITS
Tablet
VCI box
1) RF Sensing Area
2) USB 3.0 Port
3) DB15 VGA Port
4) DC Power Supply Port
5) Power Button
6) Nameplate
7) Speaker
8) OBD2-16 Port
9) Bluetooth Indicator
10) Power Indicator
11) Communication Indicator
12) USB Type-B Port
13) Nameplate

5
2. GETTING STARTED
CONNECTING POWER
The scan tool may need to be charged before
first use. Confirm the proper power adapter
(either 120 VAC North American or 240 VAC
European version) is attached to the AC/DC
charger.
Plug the AC/DC charger into a wall outlet
Plug the USB cable into the AC/DC charger and
also into the scan tool’s USB charging port.
Note: a fully discharged battery will take
approximately 6hours to fully charge. The scan
tool can be used while charging.
ACTIVATION
After first-time users press and hold the power button to turn on the system, the system will automatically enter the guided
process and request the user to select the language for the operating system.
After setting the system language, click Next to enter the Wi-Fi connection page, as shown below:

6
Select a network to connect to on the Wi-Fi connection page. You need to enter the Wi-Fi password to establish Wi-Fi
connectivity and the activation page, as shown in the figure below. You can also click the "Trial" button in the upper right
corner to try it out before activation. However, activation is highly recommended to take advance of any new online
software updates.
Click Start Activation to enter the activation page, as shown below:

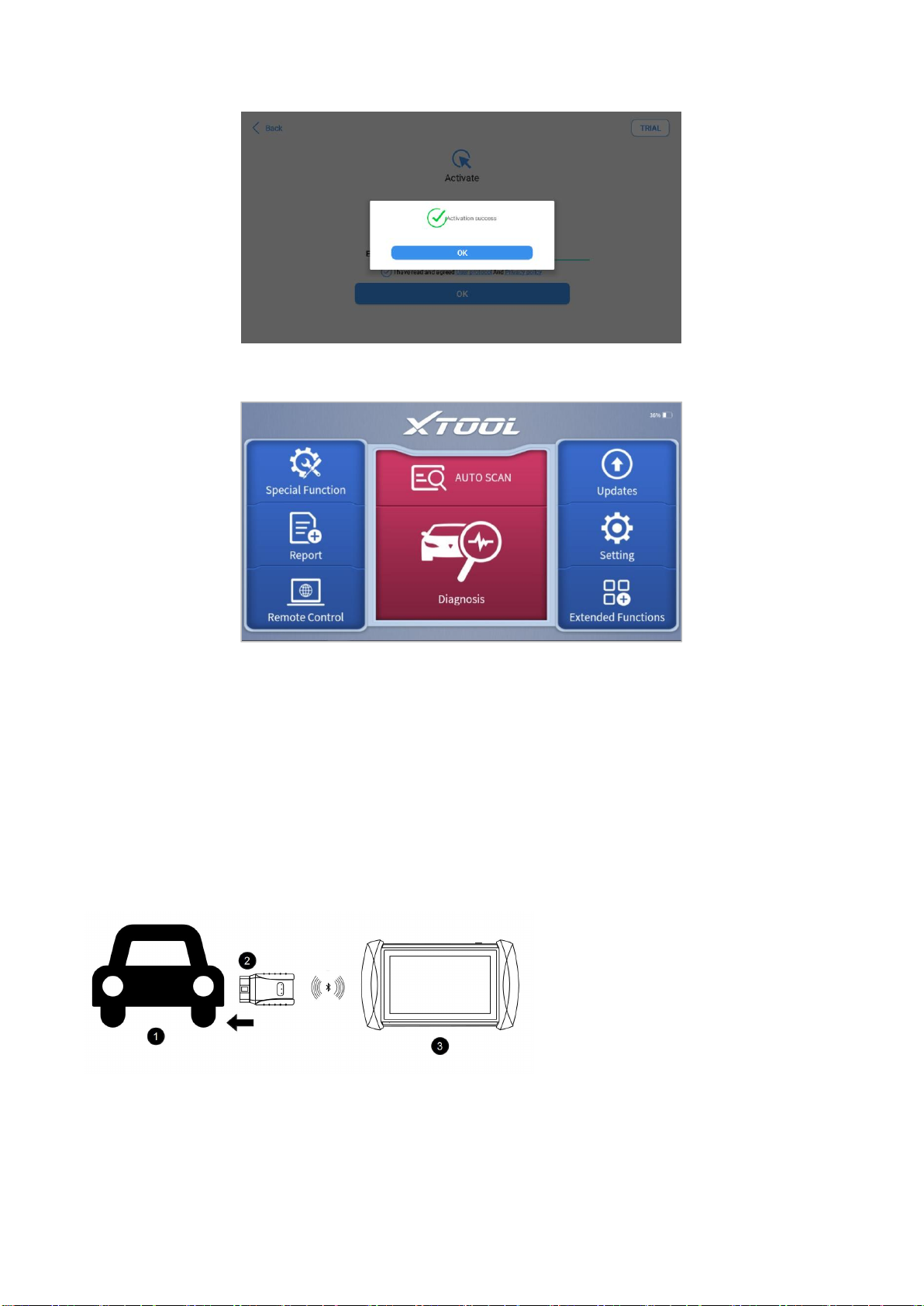

A pop-up window showing Activation Success indicates that you have completed the first boot setup,

7
Click OK to enter the diagnostic system and start using the device.
VEHICLE CONNECTION
IP819TP must be connected to the vehicle’s OBD-II port so that the tablet can establish correct vehicle communication
when doing diagnosis process. Please perform the following steps:
Connecting via Bluetooth:
1 Turn on the tablet and make sure the Bluetooth is on
2 Take the VCI box and plug it in the OBD2 port of the vehicle
3 Switch on the ignition and tap on the Diagnostic application to start processing.
The connection method is shown in the figure below:
Connecting via cable:
1 Turn on the tablet
2 Take the VCI box and plug it in the OBD2 port of the vehicle
3 Connect the VCI box and the tablet with the USB Type-B to USB 3.0 cable
1. Vehicle
2. VCI
box
3. Tablet

8
4 Switch on the ignition and tap on the Diagnostic application to start processing.
The connection method is shown in the figure below:
1. Vehicle
2. VCI box
3. USB
Cable
4. Tablet
⚠ Note: 1. Please make sure all the cables are connected tightly; The vehicle’s DLC is not always located
under the dash; for the location of the DLC, please refer to the vehicle’s user manual.
2. We suggest using wired connection when working on processes which require large and stable
data flow (like programming modules). Please refer to the actual prompts shown on device when
processing.
3. When checking or programming TPMS sensors, VCI connection is unnecessary.
Precautions when processing
1. The voltage range on the car: +9~+18V DC;
2. When testing some special functions, the operator must operate according to the prompts and meet the test conditions.
For some models [special functions], the conditions that need to be met are: engine water temperature 80 ℃~105 ℃, turn
off headlights and air conditioners, keep the accelerator pedal in the released position, etc.;
3. The electronic control systems of different models are very complicated. If you encounter situations where it is
impossible to test or a large amount of test data is abnormal, you can search for the ECU of the vehicle and select the
menu for the model on the ECU nameplate;
4. If the vehicle type or electronic control system to be tested is not found in the diagnostic function, please upgrade the
vehicle diagnostic software to the latest version using the Updates menu or consult the XTOOL technical service
department;
5. Only wiring harnesses provided by XTOOL and designed for the scan tool are permitted to be used with this scan tool to
avoid damage to the vehicle or the scan tool;
6. When running a Diagnostics function, it is forbidden to shut down the scan tool directly. You should cancel the task
before returning to the main interface and then shutting down the scan tool.
3. TPMS MODIFICATIONS
By clicking “TPMS” button on the main menu, IP819TP allows you to diagnosis the TPMS (Tire-Pressure Monitoring
System) of the vehicle, as well as activating (checking) the tire pressure sensor, searching for OEM tire sensor info,
relearn sensors, program XTool universal TPMS sensors, and perform special functions inside TPMS (available soon).
BEGINNING TPMS DIAGNOSIS
When doing TPMS activation/relearn/sensor programming, VCI connection is unnecessary. For diagnosis/special
functions, please make sure the VCI box is connected to the OBD port.

9

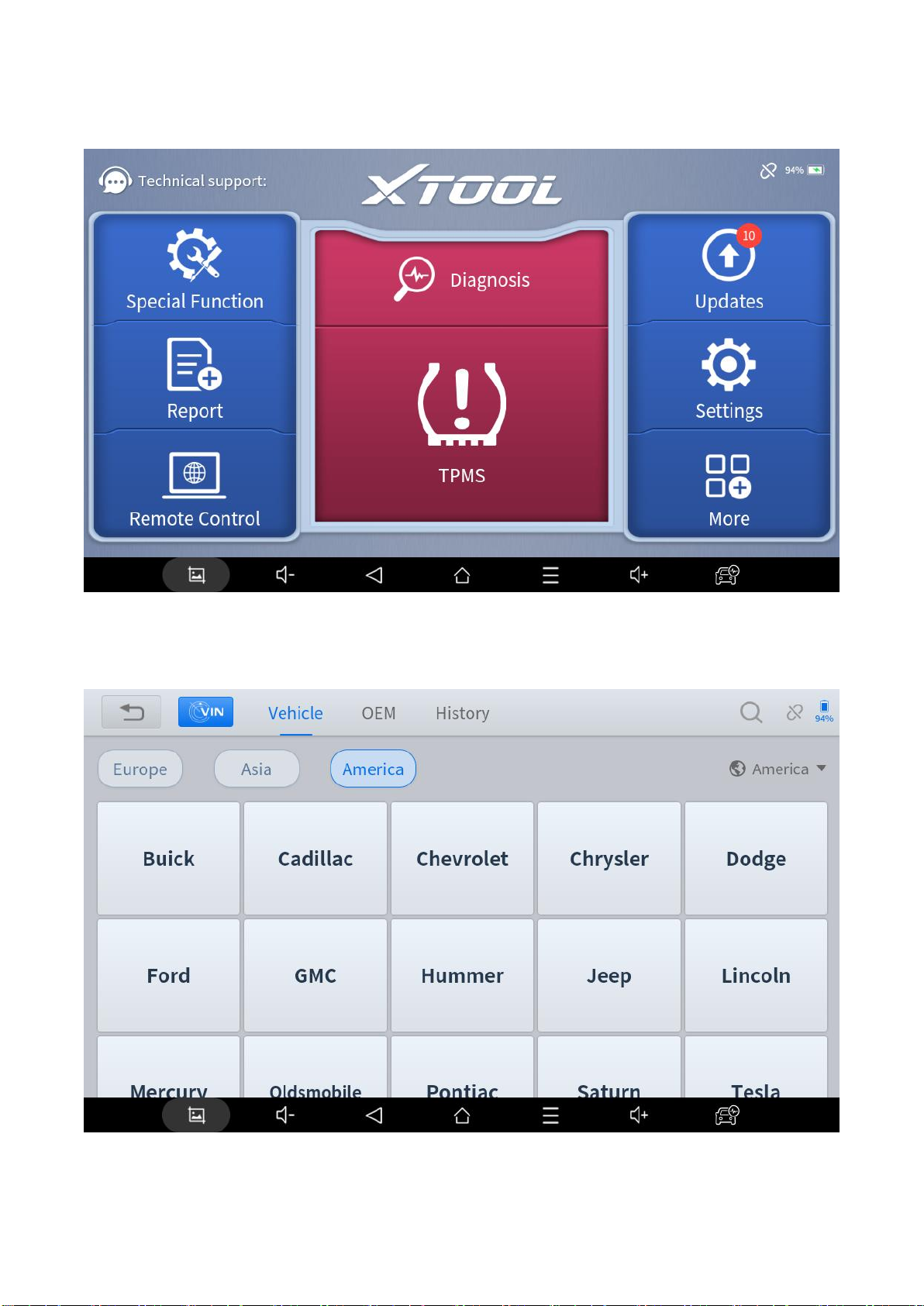

To begin TPMS testing, select “TPMS” menu on the center of the main screen.
The following menu allows you to select the system via those methods:
Vehicle: Select the manufacturer and the model of the car and get into the menu for that specific vehicle.

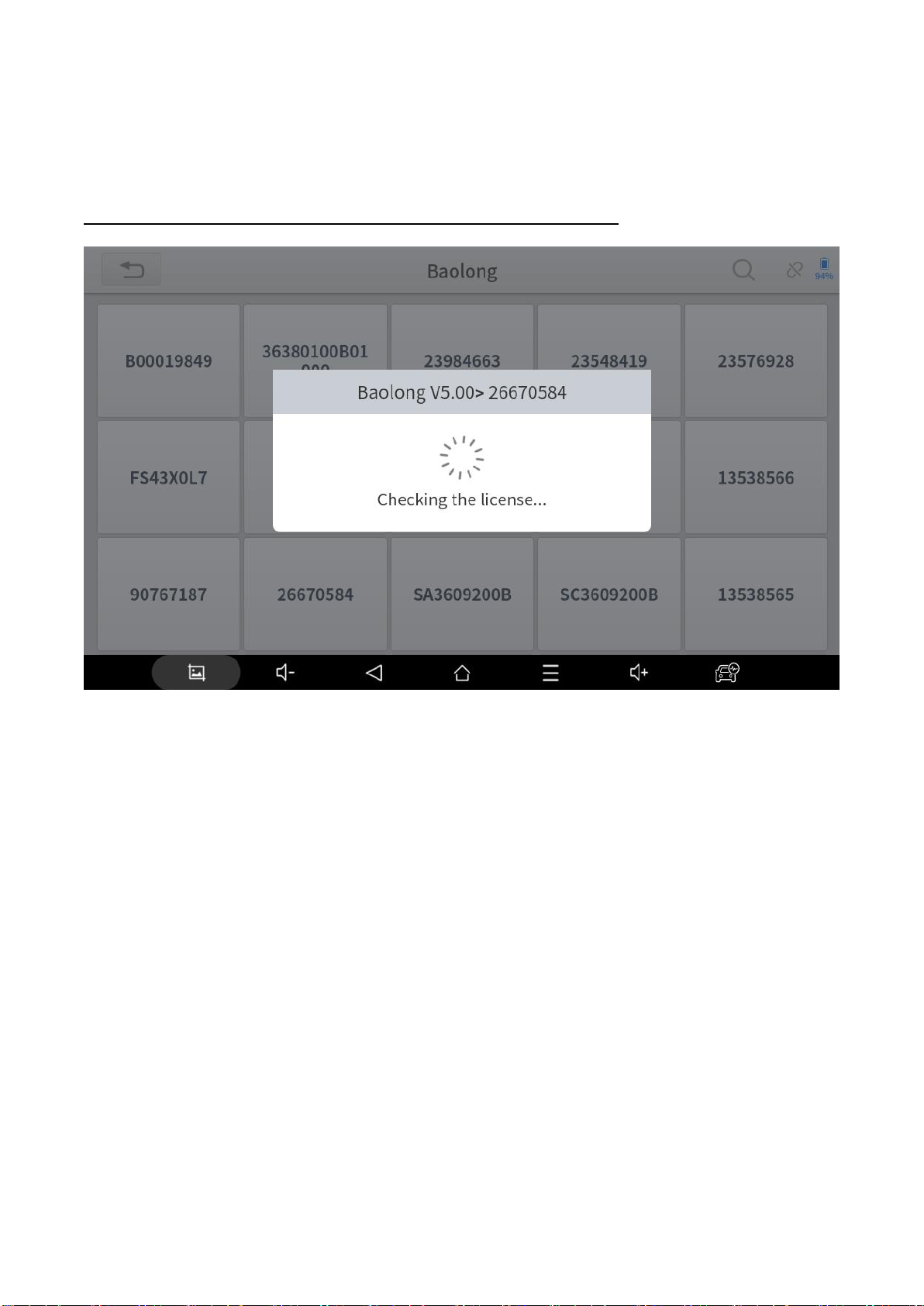

OEM: Choose the manufacturer and the part number of the OEM TOMS sensor and get into the menu for specific sensors.

10
⚠
Diagnosis and relearn menu are not supported via selecting menu via OEM sensor. Please select by vehicle if
necessary.
Auto detect VIN: Automatically choose the manufacturer by scanning the VIN code of the vehicle. Please connect the
VCI box to do so.
Manually Input VIN: Automatically choose the manufacturer by recognizing the VIN code that you have manually input.

11

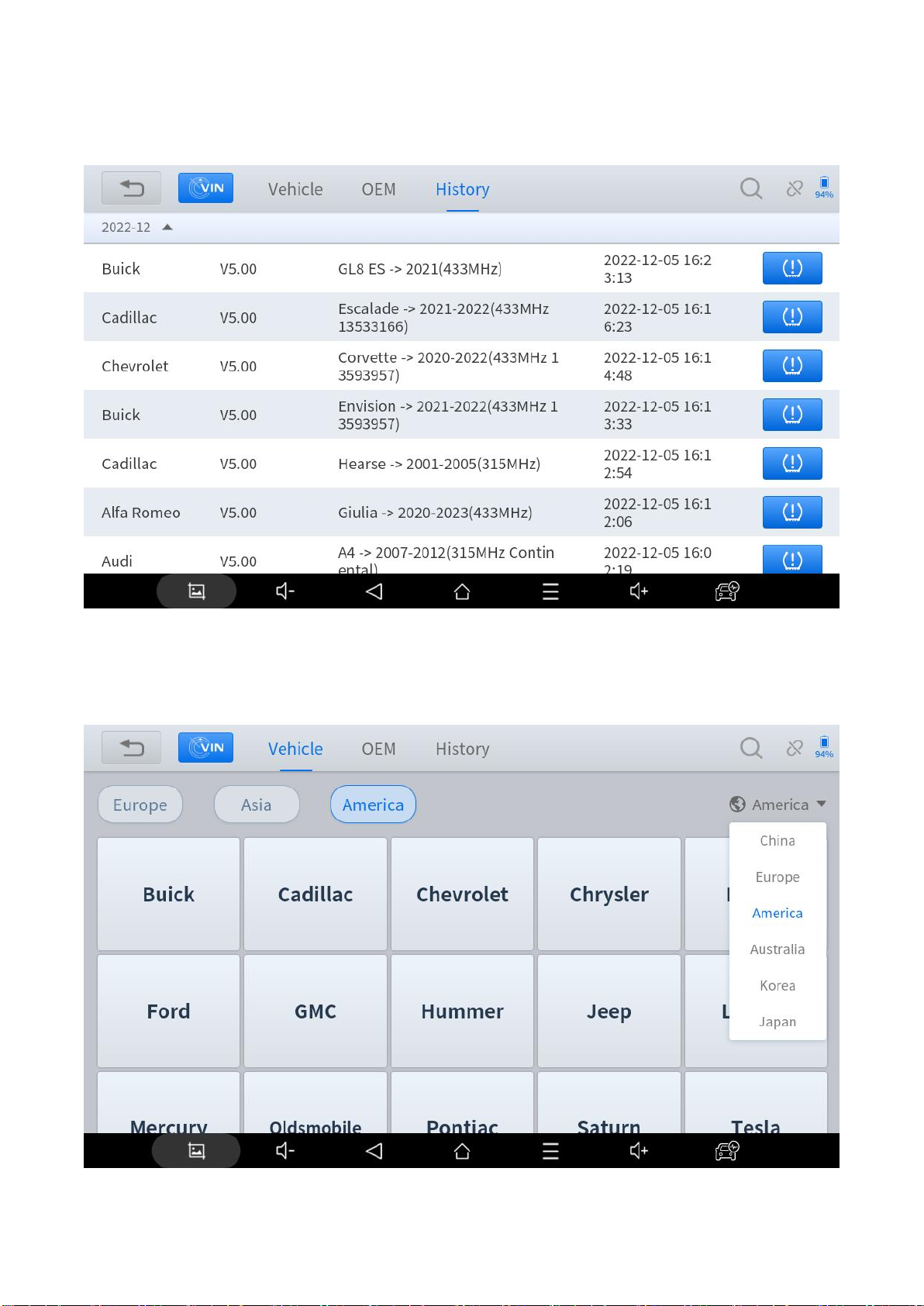

History: Check the vehicles that you have done before. You can also check TPMS Diagnosis Report here (see Report
section for details).
SELECT BY VEHICLE
To select the vehicle that you are going to do TPMS diagnosis, please select the region first. Normally the region should
match the area where you are in. For some of the imported vehicles, select the area where the vehicle is manufactured.

12
After that, select the region on the left (the region where the brand is originated) to find the manufacturer you need.
Click the brand, find the model, and select the model year to continue.
⚠
Sometimes there are multiple menus with the same model year, The menu will also show the frequency and
the part number of the sensor for you to recognize which one to choose.

13
SELECT BY OEM SENSOR P/N
To activate and program sensors based on the OEM sensors, select “OEM” menu on the top of the screen to continue.
Find the manufacturer for the sensor first, then search the correct part number for that specific sensor.
⚠
The part number of the OEM sensor will be printed on the shell of the sensor.
TPMS CHECK FUNCTIONS
After you select the vehicle, this screen will show up, showing you all the functions available for that model (or sensor).

14
Here is the screen when you select the menu by sensor P/N:
Here are all the functions available on the TPMS diagnosis system.
SENSOR ACTIVATION
TPMS SYSTEM DIAGNOSIS
XTOOL SENSOR PROGRAMMING
SENSOR RELEARN

15
OEM/XTOOL SENSOR INFORMATION CHECK
We will introduce these functions on the following parts of the manual.
⚠
Sometimes not all functions are shown on the menus. It may because of:
1. Only activation and programming menus will be shown on the menus when you select the
menu via searching by sensors. This menu will also have links to its supported vehicles so
you can go to the corresponding model to unlock more functions.
2. For indirect TPMS systems (without sensors), activation, program and relearn will be
inaccessible as there are no sensors equipped on the car when it is out from factory.
SENSOR ACTIVATION
When activating the TPMS sensors that are installed on the vehicle, please follow the steps below:
1) Click the tire icon on the left or the form on the right to select the tire that you want to check. We will start from the LF
tire, going clockwise by default.
2) Click “Trigger” button and put the top-right corner of the device close to the stem valve of the tire (where the TPMS
sensor is located). When activating, the tire icon will flicker.

16
3) The device will show the TPMS sensor ID, tire pressure, temperature and the battery status if the sensor is
successfully triggered. If not, a failed sign will show up like the picture below.
4) After activated one of the sensors, go clockwise and check other tires, and go through the entire vehicle. Sometimes
there are also sensor inside the spare tire, and you can activate that if necessary.
TPMS DIAGNOSIS

17

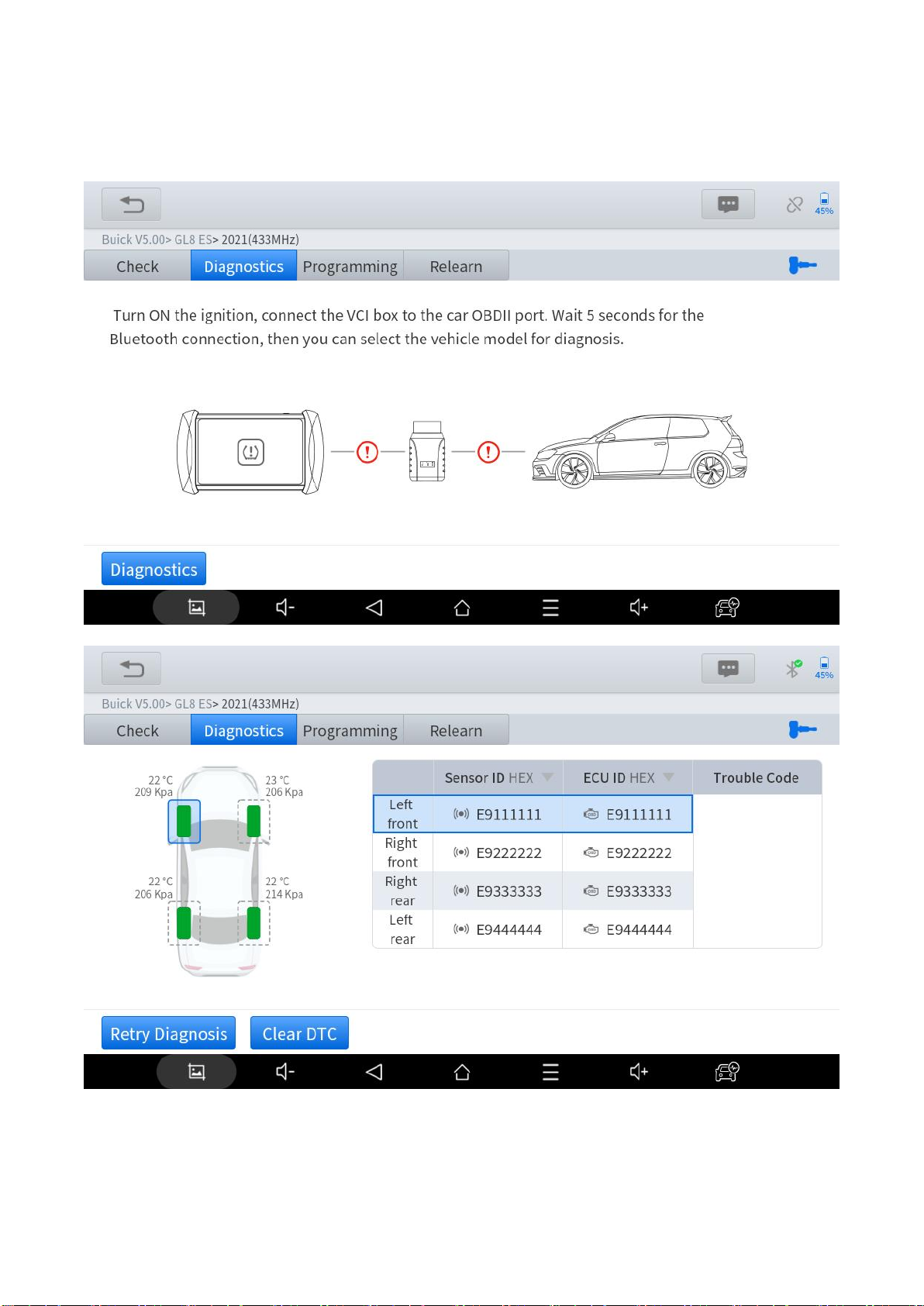

With the VCI box, IP819 TP can communicate with the vehicle and get information on TPMS system like the sensor ID
written inside the system, the fault codes (DTCs) recorded in the system and so on. Before doing this, make sure that you
have the VCI box connected to the OBD port of the vehicle.
XTOOL SENSOR PROGRAMMING
IP819 TP can write specific IDs into XTOOL Tire Pressure Sensors before they are applied into the tires. There are
several options to program the sensors, we will introduce them one by one in the following sections.

18

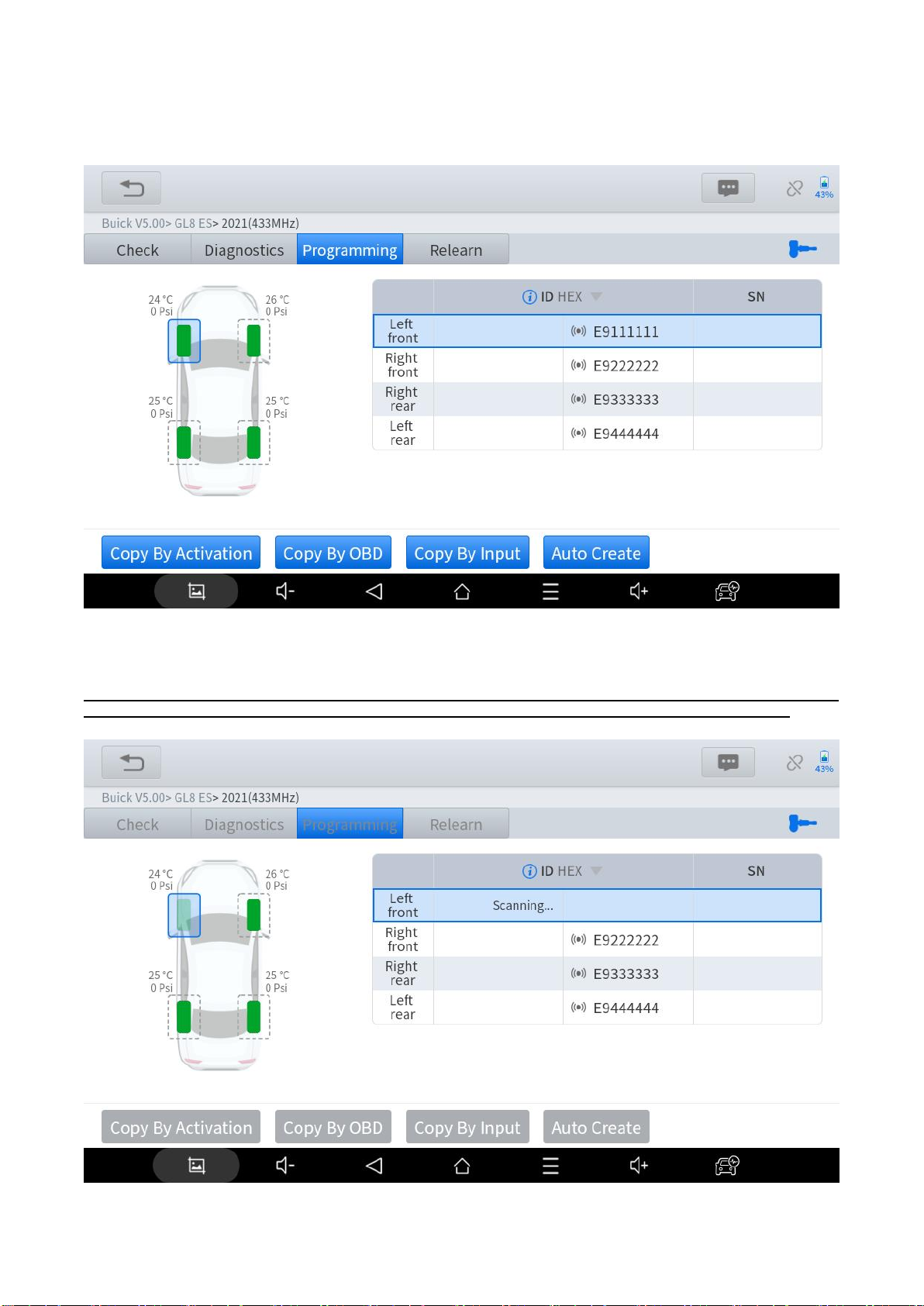

COPY ID BY ACTIVATION: Before doing this, make sure that you have activated all 4 sensors on the car. Do not exit, go
to “Program” section and select the tire position that you want to program.
Put the sensor close to the top-right corner of the device. Click “Copy by Activation” and the device will automatically scan
the sensor close to the device.
⚠ When programming, please put all the sensors that you don’t want to program over 2 meters (6 feet) away to
avoid interference. For the sensor(s) that you need to program, don’t take it away for over 10cm (4 inches).
