Xtool D9 Smart User manual

Shenzhen Xtooltech Intelligent Co., LTD
USER MANUAL
D9 Smart Diagnosis System

I
Please read this user manual carefully before using the D9 Smart
Diagnosis System. When reading the manual, please pay attention to
the words “Note” or “Caution” and read them carefully for appropriate
operation.
TRADEMARKS
is a registered trademark of Shenzhen Xtooltech Intelligent
CO., LTD.
In countries that the trademarks, service marks, domain names, logos,
and the name of the company are not registered, Xtool claims that it
still reserves the ownership of the unregistered trademarks, service
marks, domain names, logos, and the company name. All other marks
for the other products and the company’s name mentioned in the
manual still belong to the original registered company.
You may not use the trademarks, service marks, domain names, logo,
and company name of Xtool or other companies mentioned without
written permission from the trademark holder.
Xtool reserves the right to the final interpretation of this manual
content.
COPYRIGHT
Without the written consent of Shenzhen Xtooltech Intelligent Co., Ltd.,
any company or individual shall not copy or backup this operation
manual in any form (electronic, mechanical, photocopying, recording,
or other forms).

II
DECLARATION
This manual is designed for the usage of the D9 Smart Diagnosis
System and provides operating instructions and product descriptions
for users of the D9 Smart Diagnosis System.
No part of this manual can be reproduced, stored in a retrieval system,
or transmitted, in any form or by any means (electronic, mechanical,
photocopying, recording, or otherwise), without the prior written
permission of Xtool.
Use the device only as described in this manual. Xtool is not
responsible for any consequences of violating the laws and
regulations caused by using the product or its data information
Xtool shall not be liable for any incidental or consequential damages
or for any economic consequential damages arising from the
accidents of individual users and the third parties, misuse or abuse of
the device, unauthorized change or repair of the device, or the failure
made by the user not to use the product according to the manual.
All information, specifications, and illustrations in this manual are
based on the latest configurations and functions available at the time
of printing. Xtool reserves the right to make changes at any time
without notice.
OPERATION INSTRUCTIONS
For safe operation, please follow the instructions below:
Keep the device away from heat or fumes when you are using it.
If the vehicle battery contains acid, please keep your hands and
skin or fire sources away from the battery during testing.

III
The exhaust gas of the vehicle contains harmful chemicals, please
ensure adequate ventilation.
Do not touch the cooling system components or exhaust manifolds
when the engine is running due to the high temperatures reached.
Make sure the car is securely parked, Neutral is selected or the
selector is at P or N position to prevent the vehicle from moving
when the engine starts.
Make sure the (DLC) diagnostic link connector is functioning
properly before starting the test to avoid damage to the Diagnostic
Tablet.
Do not switch off the power or unplug the connectors during testing,
otherwise, you may damage the ECU and/or the Diagnostic Tablet.
CAUTIONS!
Avoid shaking or dismantling the unit as it may damage the internal
components.
Do not use hard or sharp objects to touch the LCD screen;
Do not use excessive force;
Do not expose the screen to strong sunlight for a long period.
Please keep it away from water, moisture, high temperature, or
very low temperature.
If necessary, calibrate the screen before testing to ensure the
accuracy of LCD performance.
Keep the main unit away from strong magnetic fields.
Please keep your device always connected to the Internet. When
the device is off the Internet for 30 days, The diagnosis APP may

IV
be locked and you need to synchronize data with the Internet to
activate it.
AFTERSALES-SERVICES
E-Mail: [e-mail]
Tel: [phone] or [phone] (China)
Official Website: www.xtooltech.com
Please provide your device serial number, VIN code, vehicle model, software version,
and other details when seeking technical support.
If there are screenshots or videos, it will better help us locate your problem.

V
Content
TRADEMARKS.................................................................................................I
COPYRIGHT.....................................................................................................I
DECLARATION...............................................................................................II
OPERATION INSTRUCTIONS.................................................................... II
CAUTIONS!.....................................................................................................III
AFTERSALES-SERVICES..........................................................................IV
1 GENERAL INTRODUCTION.....................................................................1
Tablet........................................................................................................... 2
Front View of Tablet.................................................................................. 2
Back View of Tablet...................................................................................3
Host Ports....................................................................................................4
VCI box........................................................................................................ 5
Front/Back View of VCI BOX...................................................................5
Top/Bottom View of VCI BOX..................................................................6
Technical Specifications........................................................................... 7
Packing Kit.................................................................................................. 8
2 GETTING STARTED.................................................................................. 9
Main Interface.............................................................................................9
Operation System...................................................................................... 9
Main Menu................................................................................................ 12
Function Buttons......................................................................................13
Navigation Buttons.................................................................................. 14

VI
Notification Bar.........................................................................................15
Activation Guide.......................................................................................16
3 UPDATE......................................................................................................19
4 DIAGNOSIS................................................................................................21
Vehicle Selection..................................................................................... 23
Diagnose Functions................................................................................ 25
5 SPECIAL FUNCTIONS............................................................................ 32
Oil Reset....................................................................................................33
EPB............................................................................................................ 33
SAS............................................................................................................ 34
DPF............................................................................................................ 35
BMS Reset................................................................................................36
Throttle.......................................................................................................36
TPMS Reset............................................................................................. 37
ABS Bleeding........................................................................................... 37
Injector Coding......................................................................................... 38
Gearbox Match.........................................................................................38
Suspension............................................................................................... 39
Windows Initialization..............................................................................39
Seat Calibration....................................................................................... 40
Headlight................................................................................................... 40
ECU Configuration...................................................................................40
6 REPORT..................................................................................................... 41
Report........................................................................................................ 42

VII
Replay........................................................................................................44
File Manager.............................................................................................44
7 SETTINGS..................................................................................................45
Language.................................................................................................. 46
Units........................................................................................................... 47
Bluetooth................................................................................................... 48
My Workshop Info....................................................................................48
VCI Information........................................................................................ 49
About..........................................................................................................50
8 REMOTE ASSISTANCE..........................................................................52

1
1 GENERAL INTRODUCTION
The D9 smart diagnosis system is an advanced scanning tool based
on the Android operating system. It supports multi-language switching
and is suitable for different countries and regions.
The advantage of this scanner is not only its comprehensive functions,
including complete system diagnosis, full OBDⅡfunctions, various
reset functions can also achieve a faster and more accurate diagnosis.
The D9 intelligent diagnosis system mainly includes:
Tablet
VCI box
Main test cable
Connectors
Power adapter
Before performing the diagnosis program, please make sure that the
VCI box is successfully connected to your vehicle, and connect the
VCI box with Bluetooth on the tablet.
Some old cars with non-OBD2 standard protocol need to be
connected with our VCI box through specific pin connectors.
Using the wrong connector may cause your car to be unrecognized by
the diagnostic tool.
Please confirm the OBD connector specifications configured on your
car before connecting.

2
TABLET
The main unit of the D9 Smart Diagnosis System is the tablet. It allows
you to operate all diagnosis functions, and it can also work as a
normal Android tablet.
FRONT VIEW OF TABLET
Fig 1-1 Tablet Front View
The front of the tablet is mainly a touchable display screen, you can
use your fingers to operate on the screen to finish most of the
diagnosis process.

3
BACK VIEW OF TABLET
Fig 1-2 Tablet Back View
1Camera: Used for taking pictures.
2Tablet Holder: Used to support the tablet, hold the tablet on the
steering wheel or adjust the tablet height as needed.
3Nameplate: Show the basic information about the tablet such as
product name and serial number, etc.
4Loudspeaker: It supports external sound playback.
③
1
④
②

4
HOST PORTS
Fig 1-3 Tablet Host Ports
1DOIP port: Supports ECU programming for vehicles with DOIP
protocol. (Doesn’t support in D9 Smart Diagnosis System)
2USB 3.0 port: Used for data transfer for tablet & PC
communication, and data transfer with VCI box when working on
immobilizer reset process.
3VGA port: Diagnostic communication port, which can be used for
OBD connection.
4DC charging port: Charging port, connected to the power adapter
to charge the device.
5Power button: Long press to turn the device on/off, short press to
switch the device into sleep mode. Hold for about 20 seconds to
force shut down the device.
1
②
③
④
⑤

5
VCI BOX
To communicate with the vehicle via OBD, D9 also comes up with a
VCI box. The tablet needs a Bluetooth connection with the VCI box to
get access to all the immobilizer & diagnosis software.
Although some functions (like EEPROM Adapter) will not need you to communicate to
the vehicle, please power up the VCI box using a 12V power adapter to get access to the
software.

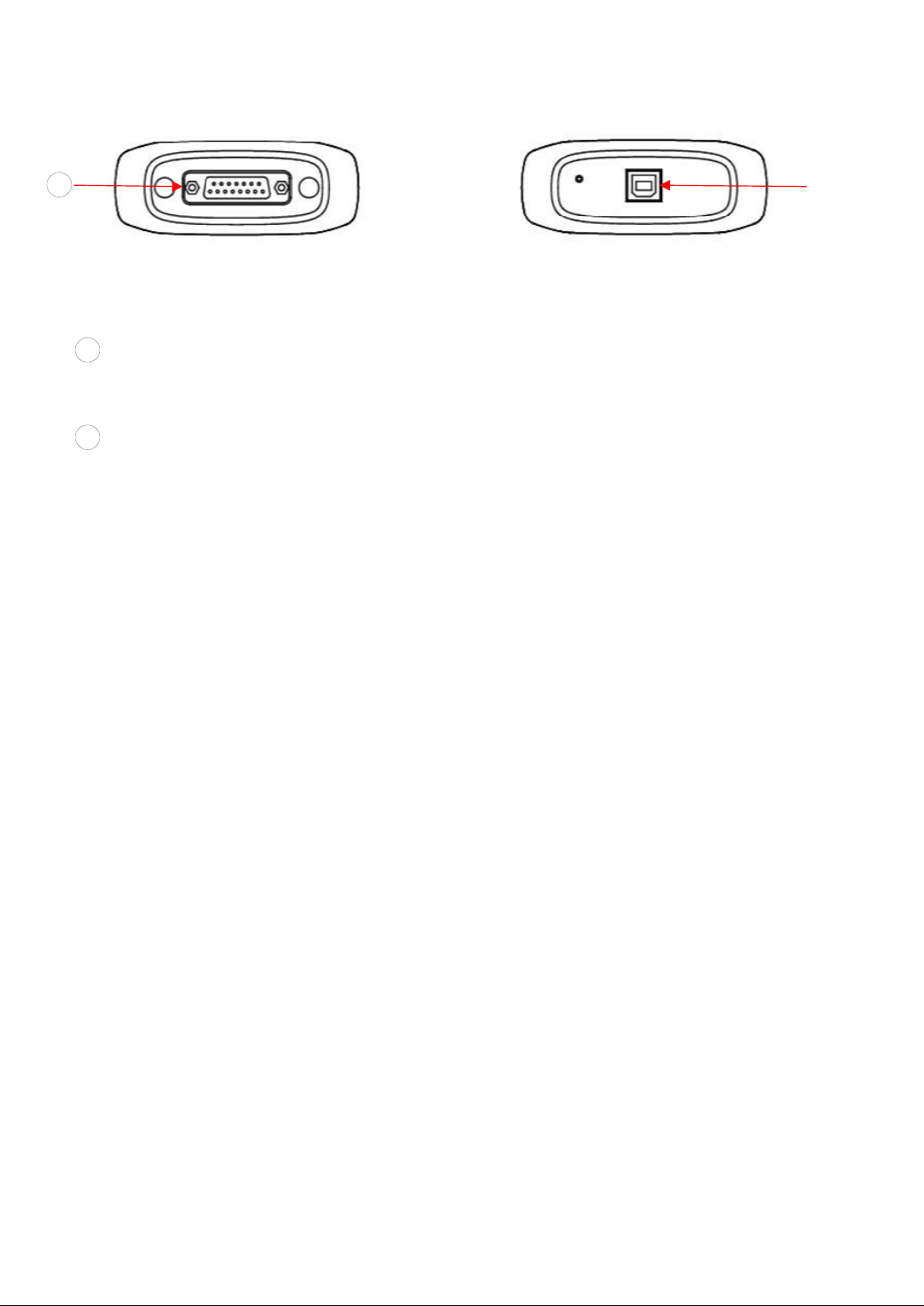

FRONT/BACK VIEW OF VCI BOX
Front Back
Fig 1-3/1-4 VCI box front/back View
1Display Screen: Show status of the VCI box-like battery voltage,
Bluetooth connection, and car communication status.
2Nameplate: Show basic information about the VCI box, like the
serial number.
Make sure that you’re using the VCI box that is paired with the tablet, or it will not
communicate. The serial number of the VCI box must be the same as the serial
number of the tablet.
①
②

6
TOP/BOTTOM VIEW OF VCI BOX
Top Bottom
Fig 1-5/1-6 VCI box top/bottom View
1DB15 Port: Used to connect the VCI box to the OBDII port on the
vehicle.
2USB-B Port: Used to connect the VCI box to the tablet using USB-
B to USB3.0 cable
1
②

7
TECHNICAL SPECIFICATIONS
Table 1-1 Specification
Item
Description
OS
Android 5.1
Processor
Quad-core processor 1.8GHz
Ram
2G
Rom
64G
Display
9.7-inch capacitive, 1024×768 resolution
Connectivity
USB
Wi-Fi
Bluetooth
Camera
8-megapixel autofocus rear camera with
flash
Sensor
Gravity sensor
Audio Input/ Audio
Output
Microphone/ Loudspeaker
Ports
USB3.0
DC charging port
VGA port
DOIP port
Battery
10000mAh 3.7V lithium polymer battery
Input Voltage
12V DC
Operating
Temperature
-10~50℃
Relative Humidity
< 90%
Dimensions
315.07×218.35×34.61 mm

8
PACKING KIT
Category
No.
Name
QTY
Test connector
1
HONDA-3
1
2
TOYOTA-17
1
3
BMW-20
1
4
KIA-20
1
5
MAZDA-17R
1
6
NISSAN-14
1
7
GM/DAEWOO-12
1
8
SUZUKI-3
1
9
FIAT-3
1
10
HYUNDAI/KIA-10
1
11
AUDI-4
1
12
MITSUBISHI-12+16
1
13
UNIVERSAL-3
1
14
CITROEN-2
1
15
BENZ-38
1
16
BENZ-14
1
17
SELFTEST
1
18
OBD II-16
1
19
DB15 Main Cable
1
20
Battery Cable
1
21
Cigar Lighter Cable
1
Host group
1
Tablet PC
1
2
VCI Box
1
3
USB3.0 To Type_B Main Cable
1
4
Charger for Tablet
1
5
Power Cable US
1
6
Power Cable EU
1
7
USB3.0 Data Cable (Connect to
PC)
1
Accessories
1
Color Carton
1
2
Packing List
1
3
Certificate of Quality
1
4
Tool Case
1
5
Desiccant
4
6
User Manual
1

9
2 GETTING STARTED
MAIN INTERFACE
OPERATION SYSTEM
The picture below (Fig 2-8) is the home screen of the operating
system of the device. You can also return to this interface at any time
by clicking home button the bottom navigation bar.
Fig 2-1

10
The app icons are as follows:
Table 2-1
Items
Descriptions
Browser
Gallery
Application Menu
ES File Explorer
Android Settings
D9 SMART DIAGNOSIS SYSTEM
a) Browser: Click on the browser icon to enter the browser to view
the official website of Xtool or search for other information.
b) Gallery: Click the Gallery icon to enter the album and you can
quickly view the pictures or screenshots stored on the device. You
can select the picture you need, click the share button on the
upper right, and send the picture to your mobile phone or PC via
Bluetooth or USB connection
c) Application Menu: Show all the apps that you have installed into
the device, also allows you to manage them.

11
d) ES File Explorer: You can manage APP, music, files, pictures, etc.
in the device in this function, and you can also use
Local/Home/Cleaner to clean up files.
If you need to check the files inside the D9 Smart Diagnosis System app (not
recommended), please use the file explorer inside the D9 Smart Diagnosis System app.
Fig 2-2
e) Android Settings: This allows you to check and change the
settings of the Android system, including network, battery status,
language, device info, and factory reset.
f) D9 Smart Diagnosis System: This app provides full system
diagnostic functions and also offers a range of specialist
maintenance services.
It will be referred to as the “D9 Smart Diagnosis System App” later in this manual.

12
MAIN MENU
Every time you start the tablet, you will automatically enter the D9
Smart Diagnosis System app with the following main screen. Tap on
the diagnosis application button on the menu, the main menu will be
shown as below:
Fig 2-3
This main menu contains Function Buttons and Navigation Buttons.
The touch screen navigation is made up of several menus, and you
can quickly access functions by clicking on the icons. A detailed
description of the menu structure can be found in the next section
Function Buttons.
