AEG Voxtel R300 User manual

PMR
Voxtel R300/R320
QUICK START GUIDE
UK DE FR NL IT SW PL GR CZ
AEG R300_V1.indd 1 29/06/2012 21:56:49

2
P1
8
10
9
11
1
2
3
4
5
6
7
P2
MIC
P5
P4
P3
AEG R300_V1.indd 2 29/06/2012 21:56:50

3
UK
1 BECAUSE WE CARE
Thank you for purchasing this product. This product has been designed
and assembled with utmost care for you and the environment. This is
why we supply this product with a quick installation guide to reduce the
number of paper (pages) and therefor save trees to be cut for making
this paper. Thank you for supporting us to protect our environment.
2 GETTING TO KNOW YOUR PMR
2.1 Handset overview (see P1)
# Meaning
1Antenna
2
Power / volume switch
•Rotate clockwise / counter clockwise to turn the
unit on or off.
3Earphone/microphone/charge jack
4
LCD screen
•Displays the current channel selection and other
radio symbols.
5Transmit LED
6Menu button
•Press to switch between modes.
7 MIC Microphone
8 PTT PTT (push to talk) button
•Press and hold to transmit.
9Call button
•Press to send ringing tone to other PMR units.
AEG R300_V1.indd 3 29/06/2012 21:56:51

4
10 /
Up / down buttons
•Press to change channels, volume and to select
settings during programming.
11 Speaker
2.2 LCD screen (see P2)
Meaning
Channel number.
Changes from 1 to 8 as selected by the user.
CTCSS code.
Changes from 1 to 38 as selected by the user.
Displays the battery change level. When the bars are
reduced, the battery needs recharging.
TX
Displayed when transmitting a signal.
RX
Displayed when receiving a signal.
DCM
Displayed when the dual watch function is turned on.
DCS
Displayed when the Digital Code System is turned
on.
VOX
Displayed when the VOX feature is enabled.
SCAN
Displays when the PMR is scanning all channels.
Displayed when the key lock feature is activated.
Displays the current speaker volume level.
AEG R300_V1.indd 4 29/06/2012 21:56:53

5
UK
3 INSTALLATION

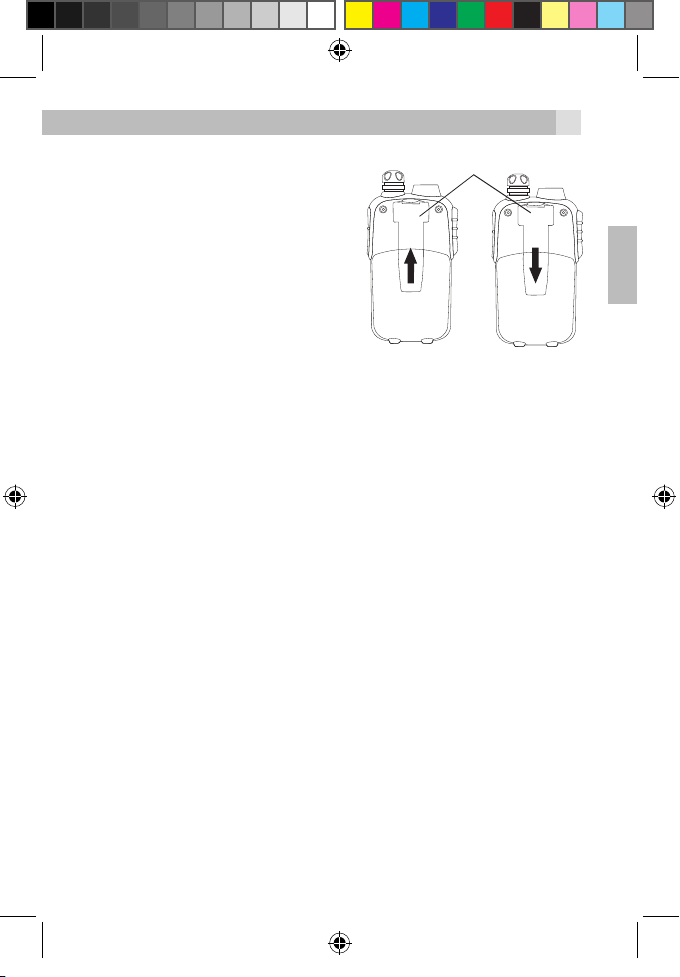

3.1 Removing the belt clip
•Pull the belt clip latch forward
(away from the PMR).
•While pulling the belt clip latch,
push up the belt clip as shown in
Fig. 1.
3.2 Installing the belt clip
•Slide the belt clip into the slot as
shown in Fig. 2.
>A “click” indicates the belt clip
is locked into its position.
3.3 Installing the batteries (see P3)
Caution:
Observe the proper battery polarity orientation when installing
batteries. Incorrect positioning can damage both the batteries and
the unit.
•Slide down the battery compartment cover.
•Insert the rechargeable batteries following the orientation as shown
in P3.
•Replace the battery compartment cover.
Important:
Read these safety warnings before you charge the batteries.
•When placing the PMR in the charger, use only the power supplies
listed in the user instructions supplied with the devices
•Don’t try to recharge non-rechargeable batteries.
•Make sure the battery compartment cover is securely locked in place
when you are charging the batteries.
•Dispose of used batteries safely and in a way that will not harm the
environment, never try to burn them or put them anywhere, they
could get burnt or punctured.
•Don’t leave dead batteries in your PMR units. They might leak if you
do and damage the PMR.
Fig. 1 Fig. 2
Belt clip latch
AEG R300_V1.indd 5 29/06/2012 21:56:53

6
3.4 Charging the batteries
3.4.1 Using the desktop charger (model R320) (see P4)
•Insert the small plug on the end of the mains adaptor into the power-
in connection jack at the back of the desktop charger.
•Plug the mains adaptor into a 240 V AC, 50 Hz main socket.
•Place the PMR units in the charge cradle in an upright position. The
charge LED indicators will light up.
•It takes about 10 hours to fully recharge the batteries if they are
completely run down. New batteries take up to 14 hours to fully
charge.
Important:
•The unit must be charged using the mains adaptor provided. Using
any other adaptor will result in non-compliance with EN60950-1 and
will invalidate any approvals and warranty.
•Always turn off the PMR units when charging. This will shorten the
charging time.
3.4.2 Using the adapter (model R300/ R320) (see P5)
•Lift the charge socket cover located on the right side of the PMR.
•Insert the round connector of the 9V DC / 200 mA adaptor into the
charge jack.
•Plug the mains adaptor into a 240 V AC, 50 Hz main socket.
Important:
•Use only power supplies listed in this user instruction. Csec AC
Adaptor brand ; Model -CSD0900200G power supply.
3.5 Battery meter
The battery meter is located in the left corner of the LCD screen. It
appears like a battery with three bars inside. These indicate the amount
of power available. When the battery level reaches it minimum level
in PMR on mode, the unit will emit two beep tones and automatically
the unit will power off.
The unit can detect the battery charge in 4 levels:
Battery charge at high level.
AEG R300_V1.indd 6 29/06/2012 21:56:53

7
UK
Battery charge at medium level.
Battery charge at low level. At this level, the unit will
emit a “beep” sound for every 10 seconds in normal
mode.
Important: Charge the unit for 10-14 hours.
Battery charge at very low level. When the battery
level reach its minimum level in on mode, the unit
will emit two beep tone and automatically turn off the
power and proceeds to watch mode.
3.6 Battery life
The unit has a built in power saver to make the batteries last longer.
But when you are not using the units, turn them off to conserve battery
power.
4 OPERATION
4.1 Transmitting range
The talk range depends on the environmental and terrain. It will be
reach up to about 10 km in wide open spaces, without obstructions
such as hills or buildings. Don’t try to use two PMR units which are less
than 1,5 m apart. Otherwise, you may have experience interference.
Important safety warning:
•To reduce radio frequency exposure when you are using your PMR,
hold the unit at least 5 cm away from your face.
•Never use your unit outdoors during a thunderstorm.
•Don’t use the unit in the rain.
•If your unit gets wet, turn it off and remove the batteries. Dry the
battery compartment and leave the cover off for a few hours. Don’t
use the unit until it is completely dry.
•Keep the unit out of reach for babies and young children.
AEG R300_V1.indd 7 29/06/2012 21:56:54

8
4.2 Turning the unit on/off
To turn on:
•Rotate the power button clockwise until the LCD screen turns on
and displays the current channel.
To switch off:
•Rotate the power button counter clockwise until the LCD screen
turns blank.
Note:
Every time you rotate the power button to turn on, the volume will
also open. The volume level will increase or decrease by rotating the
power button .
4.3 Changing channels
The unit has 8 available channels, to communicate with other PMR
users within a range, you must all have your PMR tuned to the same
channel.
•Press the menu button once, the current channel number flashes
on the LCD screen.
•Press the up or down button to select the desired channel.
>The channel changes from 1 to 8, or vice versa.
•Press the PTT button to confirm the channel setting.
Note:
Refer to the “Channel frequency table“ section of this owner’s manual
for detailed frequency listing.
4.3.1 Setting the CTCSS sub-channel
Each channel also has 38 sub-channels to let you set up group of users
within the same channel for more private communication. If you have
set the sub-channel, you can only communicate with other PMR users
tuned to the same channel and sub-channel.
To turn the sub-channel function off, simply set the sub- channel to
0 (zero). You can communicate with any PMR user set to the same
channel who also turns off the sub-channel operation.
AEG R300_V1.indd 8 29/06/2012 21:56:54

9
UK
•Press the menu button twice, the current CTCSS sub-channel
number flashes on the LCD screen.
•Press the up or down button to select one of the 38 CTCSS
sub-channels.
•Press the PTT button to confirm the sub-channel setting.
4.3.2 Setting the DCS advanced digital code
Each channel also has 83 digital codes to let you set up group of users
for more secured private communication.
•Press the menu button 3 times. DCS code is blinking on the LCD
screen.
•Press the up or down button to select the desired DCS code.
•Press the PTT button to confirm the DCS channel setting.
!
Transmitting and receiving
•The PMR transmission is “one way-at-a-time.” While you
are speaking, you can not receive a transmission.
•The PMR is an open-license band. Always identify yourself
when transmitting on the same channel.
4.4 Receiving
The unit is continuously in the receive mode when the unit is turned on
and not transmitting. When a signal is received on the current channel,
RX
icon will be displayed on the LCD screen and the receiver LED
lights up.
4.5 Transmitting (sending a speech)
•Press and hold the PTT (push to talk) button to transmit your voice.
TX
icon will be displayed on the LCD screen.
•Hold the unit in a vertical position with the microphone 5 cm away
from the mouth. While holding the PTT button, speak into the
microphone in a normal tone of voice.
•Release the PTT button when you have finished speaking.
4.6 Monitor
You can use the monitor feature to check for weak signals on the
current channel.
AEG R300_V1.indd 9 29/06/2012 21:56:54

10
•Press and hold the menu and down buttons at the same time.
RX
icon will be displayed on the LCD screen. Your PMR will pick up
signals on the current channel, including background noise.
•Press the menu button to stop the channel monitoring.
4.7 Setting the VOX (voice activated) sensitivity
In VOX mode, the unit will transmit a signal only when it is activated by
your voice or other sounds around you. The unit will transmit further
for 2 seconds even if you stop talking.
The level of VOX sensitivity is shown by a number on the LCD screen.
At the highest level, the units will pickup softer noise (including
background noise); at the lowest level, it will pick up only louder noise.
•Press the menu button 4 times,
VOX
icon will be displayed and
“OF” flashes on the LCD screen.
•Press the up button to set the VOX sensitivity into maximum level
(the maximum level is 3.)
•To deactivate the VOX function, press the down button until “OF”
appears on the LCD screen.
•Press the PTT button to confirm your setting.
VOX
will steady
appear on the LCD screen as along as the VOX feature is activated.
Note:
VOX operation is not recommended if the unit will be used in a noisy
or windy environment.
4.8 Activating the auto channel scan
Channel scan perform searches for active signals in an endless loop for
all 8 channels, 38 CTCSS codes and all 83 DCS codes.
•Press the menu button 5 times,
SCAN
icon will display on LCD
screen.
•Press the up or down button to begin scanning channels when
an active signal is detected, channel scan pauses on the active
channel.
•Press the menu button six times, CTCSS flashes on the LCD
screen press the up or down button to begin scanning the
CTCSS from 1-38.
AEG R300_V1.indd 10 29/06/2012 21:56:54

11
UK
•Press the menu button seven times, DCS flashes on the LCD
screen. Press the up or down button to begin scanning DCS
code 1-83.
•Press the PTT button to confirm your setting.
4.9 Call alert
Your PMR can alert you to incoming signal by emitting an audible call
tone.
4.9.1 Call-ring tone
You can send a call-ring tone to other PMR users to give an alert that
you want to communicate with them.
•Press the call button .
You will hear a ring tone for about two seconds;
TX
icon appears on
the LCD screen. Any other units within the transmitting range and
tuned to the same channel and sub-channel (if applicable) will hear
the call-ring tone.
4.9.2 Selecting a call- ring tone
The unit is equipped with15 different types of call-ring tones.
•Press the menu button 8 times, the “C 1” icon will display and is
blinking on the LCD screen.
•Press the up or down button to select the desired call-ring
tone.
>The respective call- ring tone sound will be played when changing
from one tone to another.
•Press the PTT button to confirm your setting.
4.10 Setting the Roger beep
The Roger beep is a tone which is automatically transmitted whenever
the PTT button is released. This alerts the receiving party to inform
that you have intentionally ended the transmission and you are now
in receive mode.
•Press the menu button 9 times, the “R0” icon will be displayed
while the “ON” icon is blinking on the LCD screen.
•Press the up or down button to select the roger beep on/off.
•Press the PTT button to confirm your setting.
AEG R300_V1.indd 11 29/06/2012 21:56:55

12
4.11 Setting the key tone on or off
This feature allows the unit to emit a confirmation tone on pressing a
button.
•Press the menu button 10 times, the “T0” icon will be displayed
while “ON” icon is blinking on the LCD screen.
•Press the up or down button to select the key tone on/off.
•Press the PTT button to confirm your setting.
4.12 Setting the dual watch mode
Your unit is capable of monitoring two channels, the current and
another (dual watch) channel. If the unit detects a signal on either
channel, it will stop and receive the signal.
•Press the menu button 11 times, “DCM” icon will be displayed
while “OF ” flashes on the LCD screen.
•Press the up or down button to select the dual watch channel
(1-8, except the current channel).
•Continue pressing the menu button to change the CTCSS code.
•Press the up or down button to select the desired CTCSS code
(1-38)
•Continue pressing the menu button to change the DCS code.
•Press the up or down button to select the desired DCS code
(1-83)
•Press the PTT button to confirm your setting.
5 AUXILIARY FEATURES
5.1 Key lock
The key lock feature allows user to disable the up or down and
menu buttons so that the PMR settings could not be changed
accidentally.
•To activate the key lock feature, press and hold the menu button
until key lock icon appears on the LCD screen.
•To deactivate the key Lock feature, press and hold the menu button
until key lock icon disappears on the LCD screen.
AEG R300_V1.indd 12 29/06/2012 21:56:55

13
UK
Note:
The PTT, call and power buttons will remain functional even if
the key lock feature is activated.
5.2 LCD screen back Light
Every time a button is pressed (except PTT and call button), the
LCD screen back light will illuminate for 5 seconds
5.3 Microphone/earphone/charge jack
The unit is equipped with an auxiliary microphone, earphone, and
charge jack located at the opposite side of the PTT button. For more
information check www.aegtelphones.eu
6 SPECIFICATIONS
Channels available 8 channels
CTCSS sub-channel 38 for each channel
Output power (TX) 0,5 W (Max)
Range up to 10 km
Channel frequency table
Channel Frequency (MHz) Channel Frequency (MHz)
1446.00625 5446.05625
2446.01875 6446.06875
3446.03125 7446.08125
4446.03125 8446.09375
AEG R300_V1.indd 13 29/06/2012 21:56:55

14
7 SAFETY
!
Damaged antenna
Do not use any PMR that has a damaged antenna. If a
damaged antenna comes in contact with the skin, a minor
burn may result.
!
Rechargeable batteries
All batteries can cause property damage and/or bodily
injury such as burns if conductive material such as jewelry,
keys, or beaded chains touches exposed terminals. The
material may complete an electrical circuit (short circuit) and
become quite hot. Exercise care in handling any charged
battery, particularly when placing it inside a pocket, purse
or other container with metal objects.
!
Warning for vehicles with an air bag
Do not place your unit in the area over an air bag or in the
air bag deployment area. Air bags inflate with great force.
If a unit is placed in the air bag deployment area and the air
bag inflates, the device may be propelled with great force
and cause serious injury to the occupants of the vehicle.
!
Potentially explosive atmospheres
Turn your unit off when in any area with a potentially
explosive atmosphere, unless it is a type especially qualified
for such use (for example, factory mutual approved). Sparks
in such areas could cause an explosion or fire resulting in
injury or even death.
!
Batteries
Do not replace or charge batteries in a potentially explosive
atmosphere. Contact sparking may occur while installing or
removing batteries and cause an explosion.
!
Blasting caps and areas
To avoid possible interference with blasting operations,
turn your device off near electrical blasting caps or in a
“blasting area” or in areas posted: “Turn off the two way
radio.” Obey all signs and instructions.
AEG R300_V1.indd 14 29/06/2012 21:56:56

15
UK
NOTE:
Areas with potentially explosive atmospheres are often, but not always
clearly marked. They include fueling areas such as below deck on
boats; fuel or chemical transfer or storage facilities; areas where the air
contains chemicals or particles, such as grain, dust, or metal powders;
and any other area where you would normally be advised to turn off
your vehicle engine.
8 CE DECLARATION
This product is in compliance with the essential requirements and
other relevant provisions of the R&TTE directive 1999/5/EC.
The Declaration of conformity can be found on:
www.aegtelephones.eu
9 DISPOSAL OF THE DEVICE
(ENVIRONMENT)
At the end of the product lifecycle, you should not throw this
product into the normal household garbage but bring the product
to a collection point for the recycling of electrical and electronic
equipments. The symbol on the product, user guide and/or box
indicate this. Some of the product materials can be re-used if you bring
them to a recycling point. By reusing some parts or raw materials from
used products you make an important contribution to the protection
of the environment. Please contact your local authorities in case you
need more information on the collection points in your area.
Batteries must be removed before disposing of the device.
Dispose of the batteries in an environmental manner according to
your country regulations.
AEG R300_V1.indd 15 29/06/2012 21:56:56

16
10 CLEANING AND CARE
Do not clean any part of your unit with benzene, thinners or other
solvent chemicals as this may cause permanent damage which is not
covered by the guarantee.
When necessary, clean it with a damp cloth.
Keep your unit away from hot, humid conditions or strong sunlight,
and don‘t let it get wet.
11 GUARANTEE AND SERVICE
The unit is guaranteed for 24 months from the date of purchase
shown on your sales receipt. This guarantee does not cover any
faults or defects caused by accidents, misuse, fair wear and tear,
neglect,tampering with the equipment, or any attempt at adjustment
or repair other than through approved agents.
Please keep your sales (till) receipt this is your proof of guarantee.
11.1 While the unit is under Guarantee
•Pack up all parts of your unit, using the original package.
•Return the unit to the shop where you bought it, making sure you
take your sales receipt.
•Remember to include the mains adapter. (if applicable)
11.2 After the Guarantee has expired
If the unit is no longer under Guarantee, contact us via
www.aegtelephones.eu
AEG R300_V1.indd 16 29/06/2012 21:56:56

17
DE
1 UNSER EINSATZ FÜR DIE UMWELT
Vielen Dank, dass Sie sich für dieses Produkt entschieden haben. Dieses
Gerät wurde mit größter Sorgfalt entwickelt und zusammengebaut,
um Ihnen ein exzellentes Produkt zu bieten und gleichzeitig die
Umwelt zu schonen. Deshalb liegt diesem Produkt eine Kurzanleitung
bei, um die Papiermenge zu reduzieren. So müssen weniger Bäume
für die Herstellung von Papier abgeholzt werden. Vielen Dank, dass
Sie uns beim Umweltschutz unterstützen.
2 EINFÜHRUNG
2.1 Übersicht über Ihr Funkgerät (siehe P1)
# Symbol- und Zeichenerklärung
1Antenne
2
Ein-/Aus- bzw. Lautstärkeknopf
•Drehen im bzw. gegen den Uhrzeigersinn, um
das Gerät ein- bzw. auszuschalten.
3Kopfhörer, Mikrofon, Ladebuchse
4
LCD-Anzeige
•Zeigt den derzeitig ausgewählten Kanal und
andere Funksymbole an.
5LED für Übertragung
6
Menütaste
•Drücken, um zwischen den einzelnen Modi hin
und her zu schalten.
7 MIC Mikrofon
8 PTT PTT (push to talk)-Taste
•Gedrückt halten, um senden zu können.
9
Ruftaste
•Drücken, um einen Rufton an andere PMR-Geräte
zu senden.
AEG R300_V1.indd 17 29/06/2012 21:56:56

18
10 /
Aufwärts-/Abwärtstaste
•Drücken, um Kanäle zu wechseln oder um
die Lautstärke oder Einstellungen beim
Programmieren auszuwählen.
11 Lautsprecher
2.2 LCD-Anzeige (siehe P2)
Symbol- und Zeichenerklärung
Kanalnummer.
Je nach Auswahl von1bis8.
CTCSS-Code.
Je nach Auswahl von1bis38.
Zeigt den Batteriezustand an. Wenn die Balken
nicht vollständig sind, muss die Batterie aufgeladen
werden.
TX
Wird angezeigt, wenn ein Signal gesendet wird.
RX
Wird angezeigt, wenn ein Signal empfangen wird.
DCM
Wird angezeigt, wenn die Zweikanalüberwachungs-
funktion eingeschaltet ist.
DCS
Wird angezeigt, wenn das digitale Codesystem
(DCS) eingeschaltet ist.
VOX
Wird angezeigt, wenn die VOX-Funktion aktiviert ist.
SCAN
Wird angezeigt, wenn das PMR-Gerät alle Kanäle
absucht (Scan-Funktion).
Wird angezeigt, wenn die Tastensperrfunktion
aktiviert ist.
Zeigt die derzeitige Lautstärke an.
AEG R300_V1.indd 18 29/06/2012 21:56:56

19
DE
3 INSTALLATION
3.1 Den Gürtelclip entfernen
•Ziehen Sie an der Gürtelclip-
halterung des PMR-Geräts.
•Während des Ziehens an der
Gürtelcliphalterung drücken Sie
gleichzeitig den Gürtelclip nach
oben, siehe Abb.1.
3.2 Den Gürtelclip anbringen
•Schieben Sie den Gürtelclip in den dafür vorgesehenen Einschub,
sieheAbb.2.
>Durch ein Klicken wird angezeigt, dass der Gürtelclip in seiner
Position eingerastet ist.
3.3 Die Batterien einlegen (siehe P3)
Achtung:
Achten Sie beim Einlegen der Batterien auf die richtige Ausrichtung
der Polarität. Durch ein falsches Einlegen können sowohl die Batterien
als auch das Gerät beschädigt werden.
•Schieben Sie die Batteriefachabdeckung nach unten.
•Legen Sie die aufladbaren Batterien entsprechend der in P3
gezeigten Ausrichtung ein.
•Schließen Sie die Batterieabdeckung wieder.
Wichtig:
Lesen Sie vor dem Aufladen der Batterien diese Sicherheits-
warnungen durch.
•Wenn Sie das PMR-Gerät in der Ladestation aufladen, benutzen Sie
dazu nur die Netzteile, die in der mitgelieferten Bedienungsanleitung
aufgeführt sind.
•Unterlassen Sie den Versuch, nicht-wiederaufladbare Batterien
aufzuladen.
•Stellen Sie sicher, dass beim Laden der Batterien die Abdeckung
des Batteriefachs sicher eingerastet ist.
Fig. 1 Fig. 2
Gürtelcliphalterung
Abb. 1 Abb. 2
AEG R300_V1.indd 19 29/06/2012 21:56:57

20
•Entsorgen Sie leere Batterien ordnungsgemäß und so, dass sie die
Umwelt nicht belasten, versuchen Sie nie, sie zu verbrennen und
lassen Sie sie nicht an Orten, wo sie verbrannt oder beschädigt
werden könnten.
•Lassen Sie die leeren Batterien nicht in Ihren PMR-Geräten. Sie
könnten auslaufen und das PMR-Gerät beschädigen.
3.4 Die Batterien aufladen
3.4.1 Die Batterien mit dem Desktop-Ladegerät aufladen
(Modell R320) (siehe P4)
•Stecken Sie den schmalen Stecker des Netzteils in die
Stromanschlussbuchse hinten am Desktop-Ladegerät.
•Stecken Sie das Netzteil in eine Netzsteckdose (240 V WS, 50 Hz).
•Stellen Sie die Geräte senkrecht in die Auflade-Basisstationen. Die
LED-Anzeige für das Aufladen leuchtet auf.
•Wenn die Batterien völlig leer sind, dauert die vollständige
Wiederaufladung ca. 10 Stunden. Neue Batterien brauchen bis
zu14Stunden, um sie vollständig aufzuladen.
Wichtig:
•Das PMR-Gerät muss mit dem mitgelieferten Netzteil aufgeladen
werden. Die Verwendung eines anderen Netzteils bedeutet
ein Verstoß gegen die Norm EN60950-1 und führt dazu, dass
Zulassungen und Garantien ungültig werden.
•Schalten Sie beim Aufladen die PMR-Geräte immer aus. Dadurch
wird die Ladezeit verkürzt.
3.4.2 Den Adapter benutzen (Modell R300/ R320) (siehe P5)
•Nehmen Sie die Abdeckung der Ladebuchse auf der rechten Seite
Ihres PMR-Geräts ab.
•Stecken Sie den Rundanschluss des Netzteils (9 V GS,200 mA) in die
Ladebuchse.
•Stecken Sie das Netzteil in eine Netzsteckdose (240 V WS, 50 Hz).
Wichtig:
•Benutzen Sie nur die Netzteile, die in dieser Anleitung aufgeführt
werden. (Csec AC (WS)-Adaptor brand; Model -CSD0900200G,
Stromversorgung).
AEG R300_V1.indd 20 29/06/2012 21:56:57
