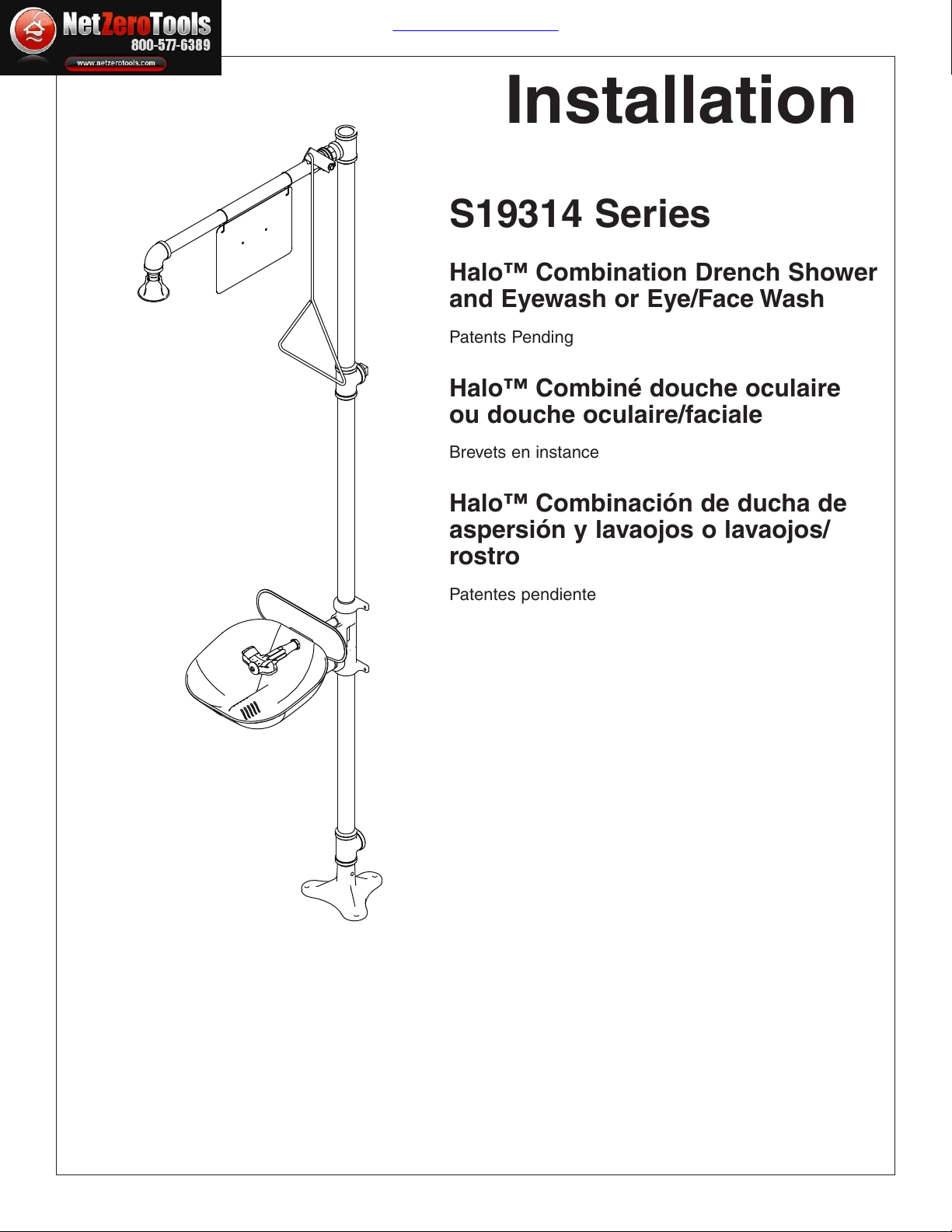

Bradley s19314 series User manual

Installation
S19314 Series
Halo™ Combination Drench Shower
and Eyewash or Eye/Face Wash
Patents Pending
Halo™ Combiné douche oculaire
ou douche oculaire/faciale
Brevets en instance
Halo™ Combinación de ducha de
aspersión y lavaojos o lavaojos/
rostro
Patentes pendiente
netzerotools.com
netzerotools.com
netzerotools.com

netzerotools.com
netzerotools.com
Bradley S19314ew Halo Eye Wash Safety Drench Shower
Bradley S19314gg Eye-Face Wash Plastic Showerhead
Bradley S19314sb Eyewash Stainless Steel Bowl
Bradley S19314p Eyewash Plastic Bowl Showerhead
Bradley S19314ll Eyewash Stainless Steel Bowl
Bradley S19314f Eyewash Plastic Showerhead Stainless Bowl
Bradley S19314pdc Eyewash Plastic Bowl Dust Cover
Bradley S19314uu Eyewash Stainless Steel Bowl
Bradley S19314dc Eyewash Stainless Steel Bowl
Bradley S19314fw Eye Face Wash Plastic Bowl
Bradley S19314ac Eye Face Wash Stainless Steel Bowl
Bradley S19314sbfw Eye Face Wash Stainless Bowl
Bradley S19314tt Eye Face Wash Plastic Showerhead
Bradley S19314spr Eye Face Wash Stainless Bowl
Bradley S19314bf Eye Face Wash Stainless Steel Bowl
Bradley S19314pdcfw Eye Face Wash Plastic Bowl
Bradley S19314dcfw Eye Face Wash Plastic Bowl
Bradley S19314dcbf Eye Face Wash Stainless Steel Bowl

2
S19314 Installation
7/8/2013

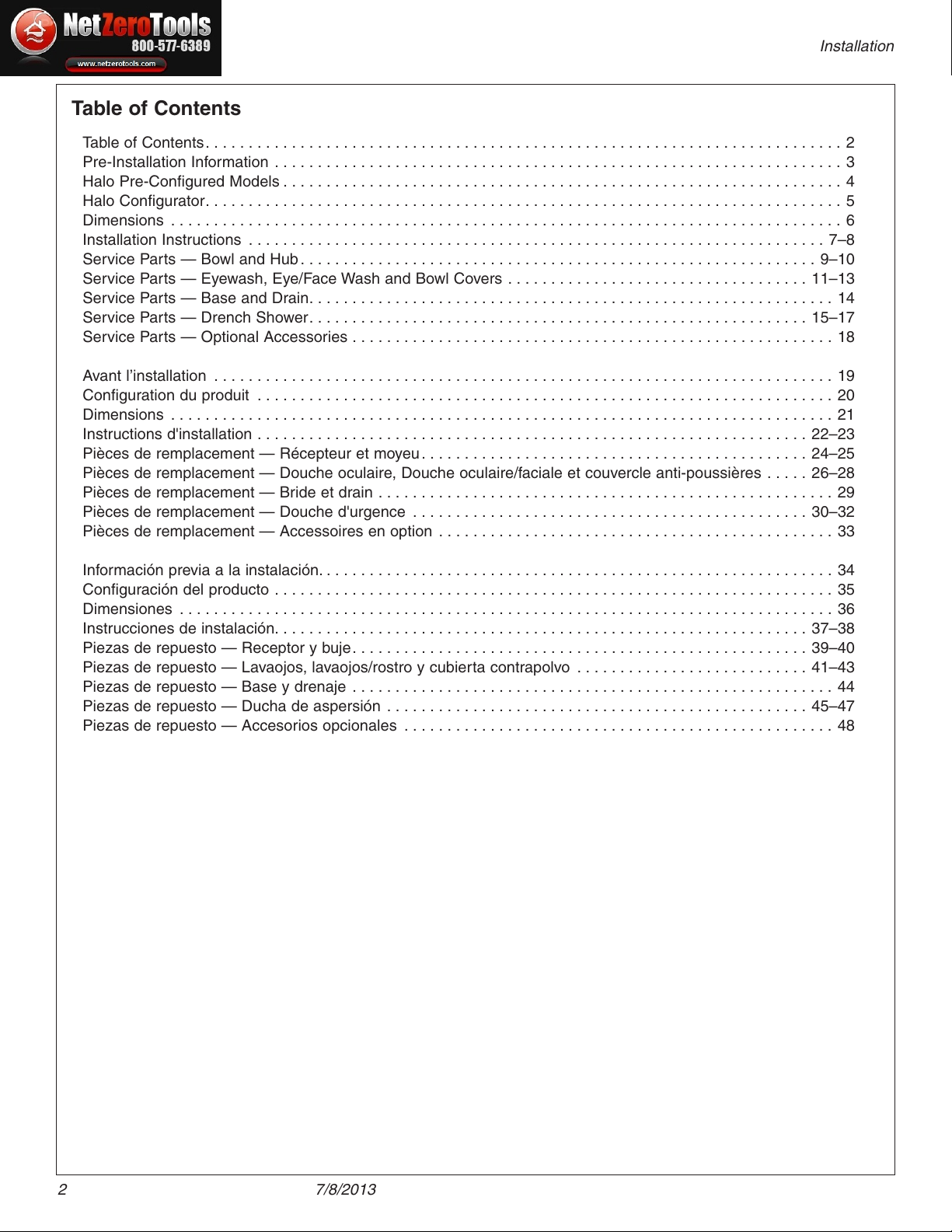

Table of Contents
Table of Contents..........................................................................2
Pre-Installation Information ..................................................................3
Halo Pre-Configured Models .................................................................4
Halo Configurator..........................................................................5
Dimensions ..............................................................................6

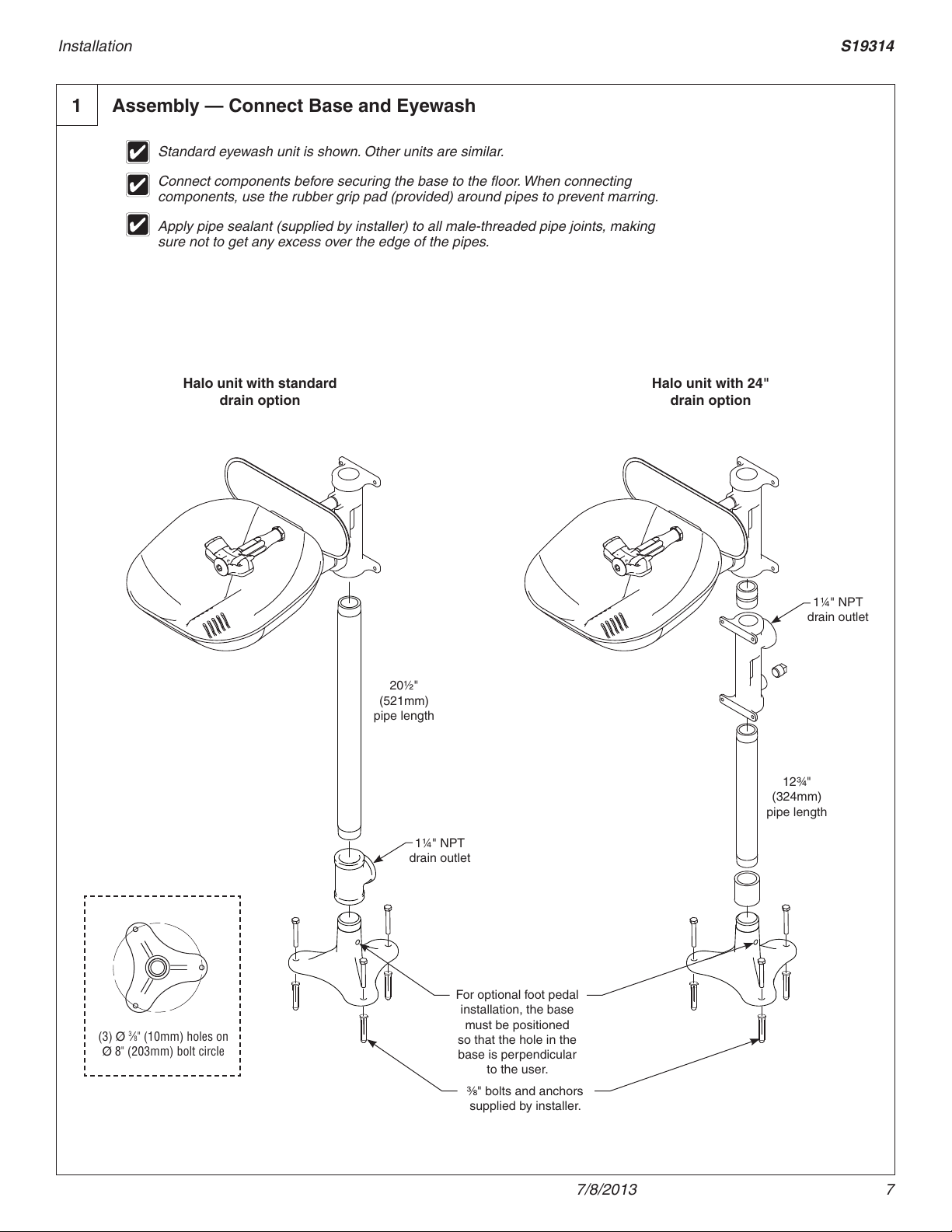

Installation Instructions ...................................................................7–8

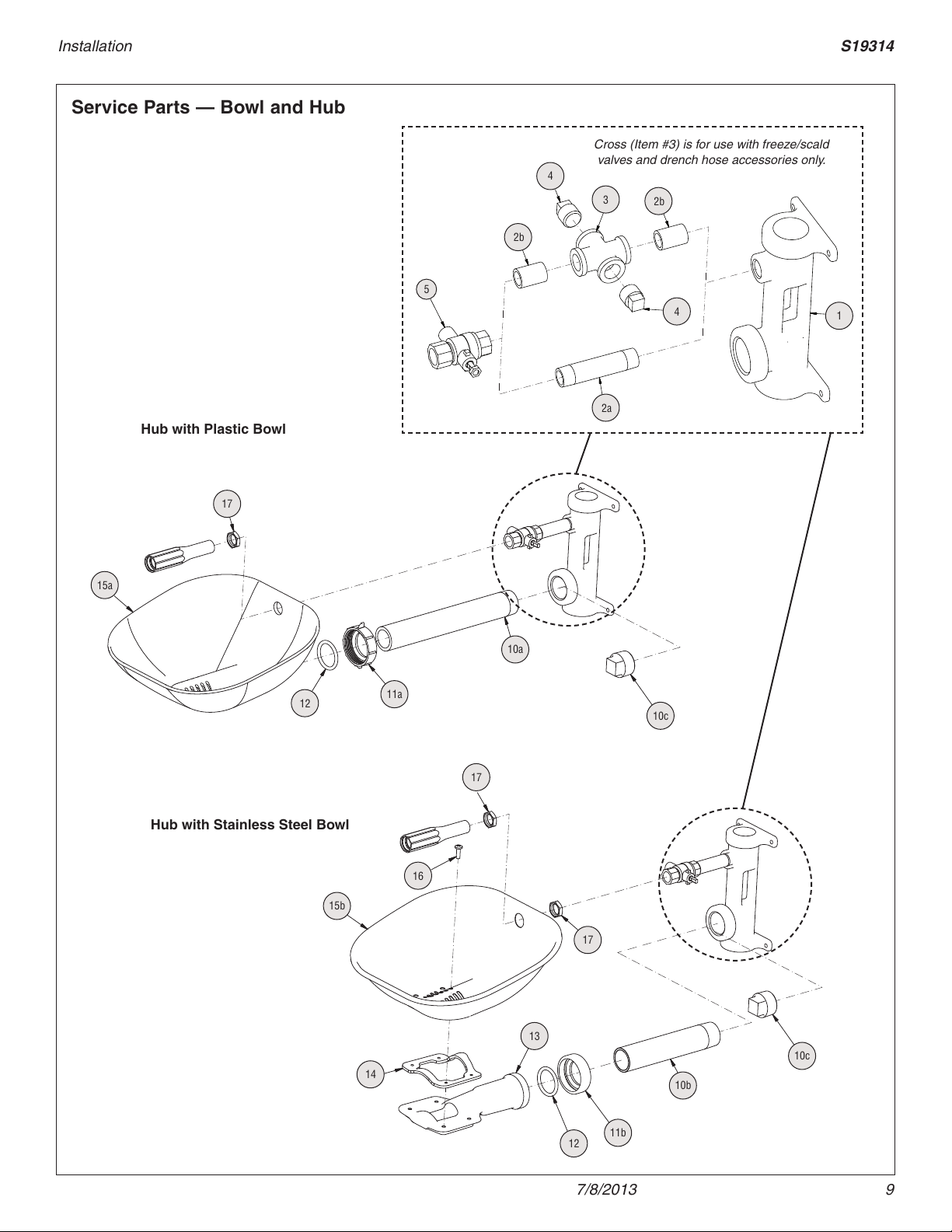

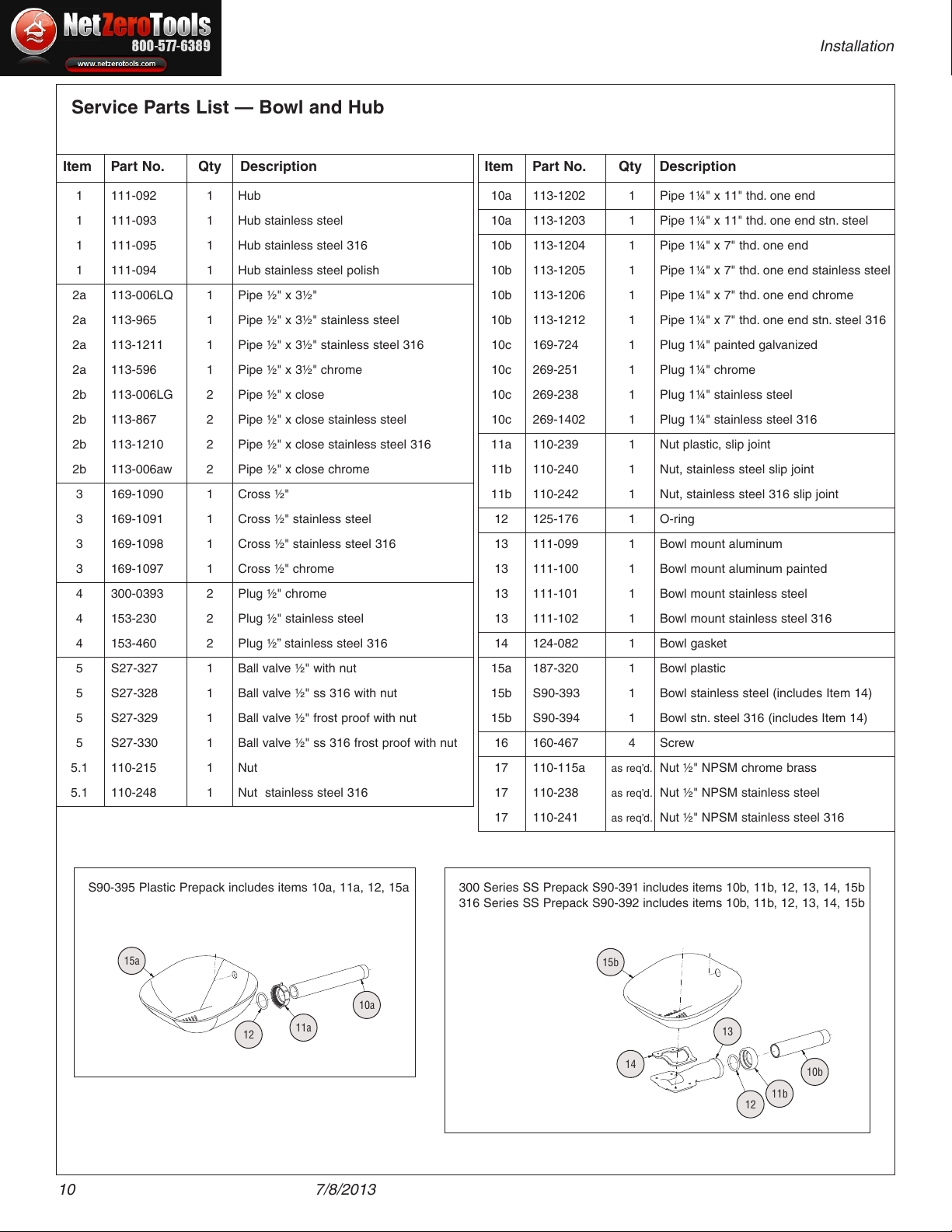

Service Parts — Bowl and Hub............................................................9–10

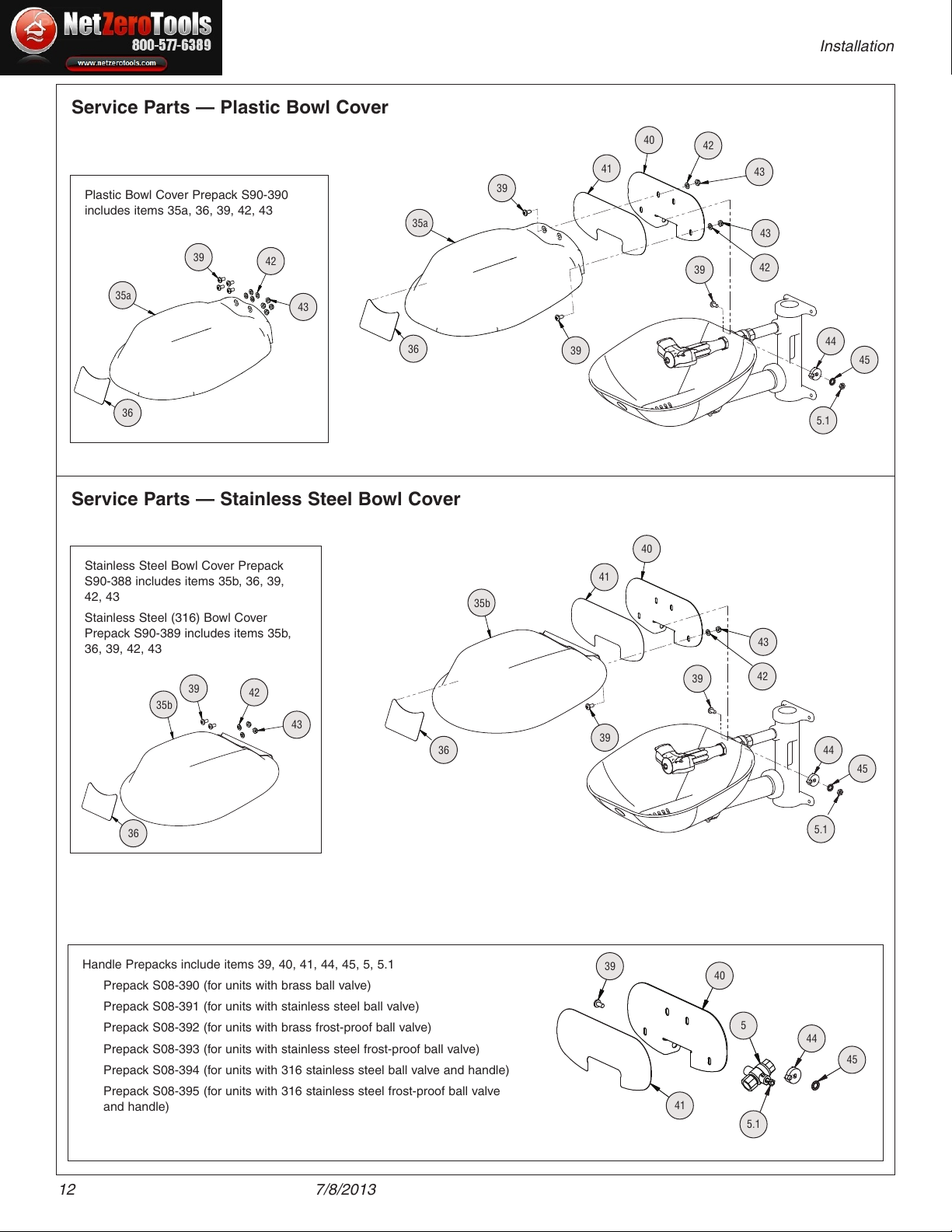

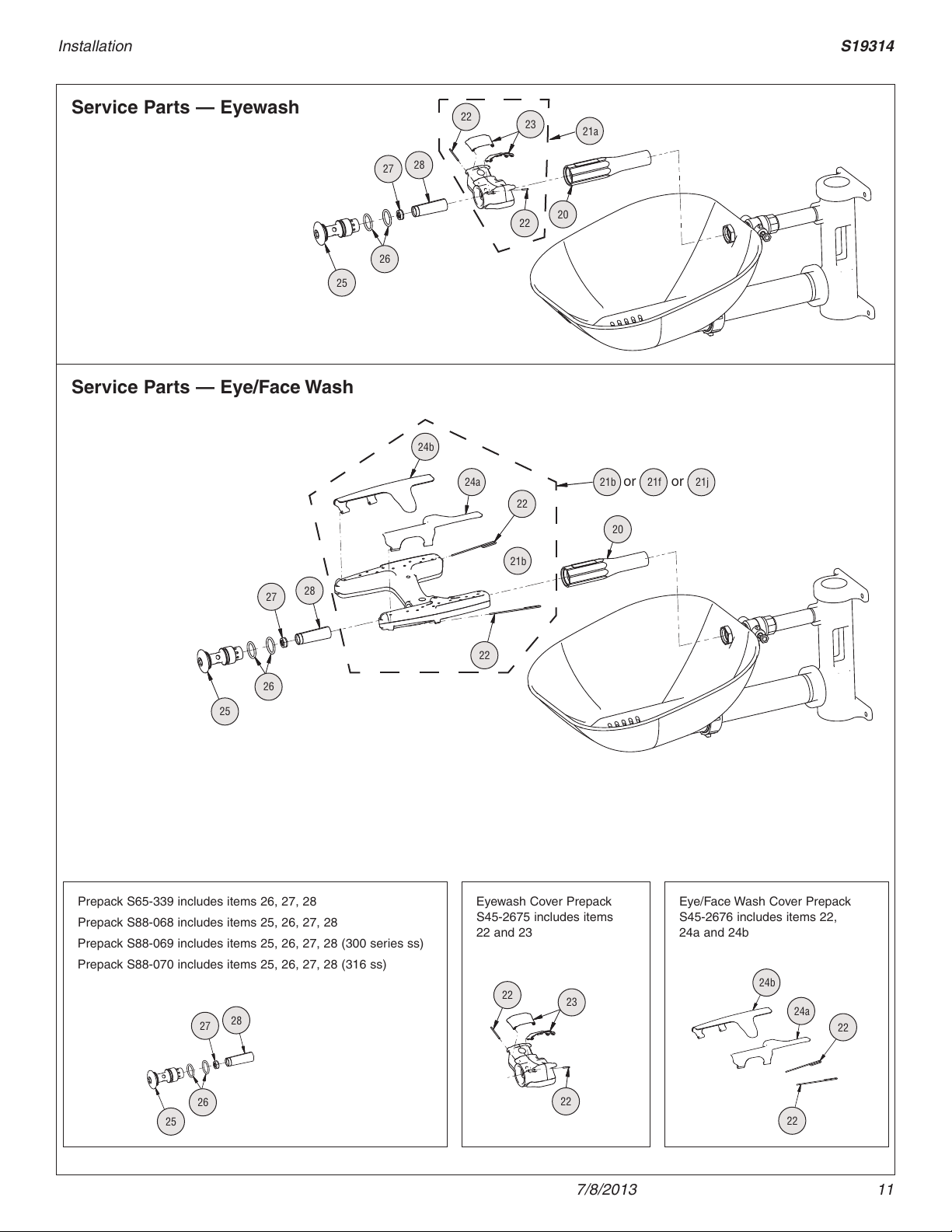

Service Parts — Eyewash, Eye/Face Wash and Bowl Covers ...................................11–13
Service Parts — Base and Drain.............................................................14
Service Parts — Drench Shower..........................................................15–17
Service Parts — Optional Accessories ........................................................18

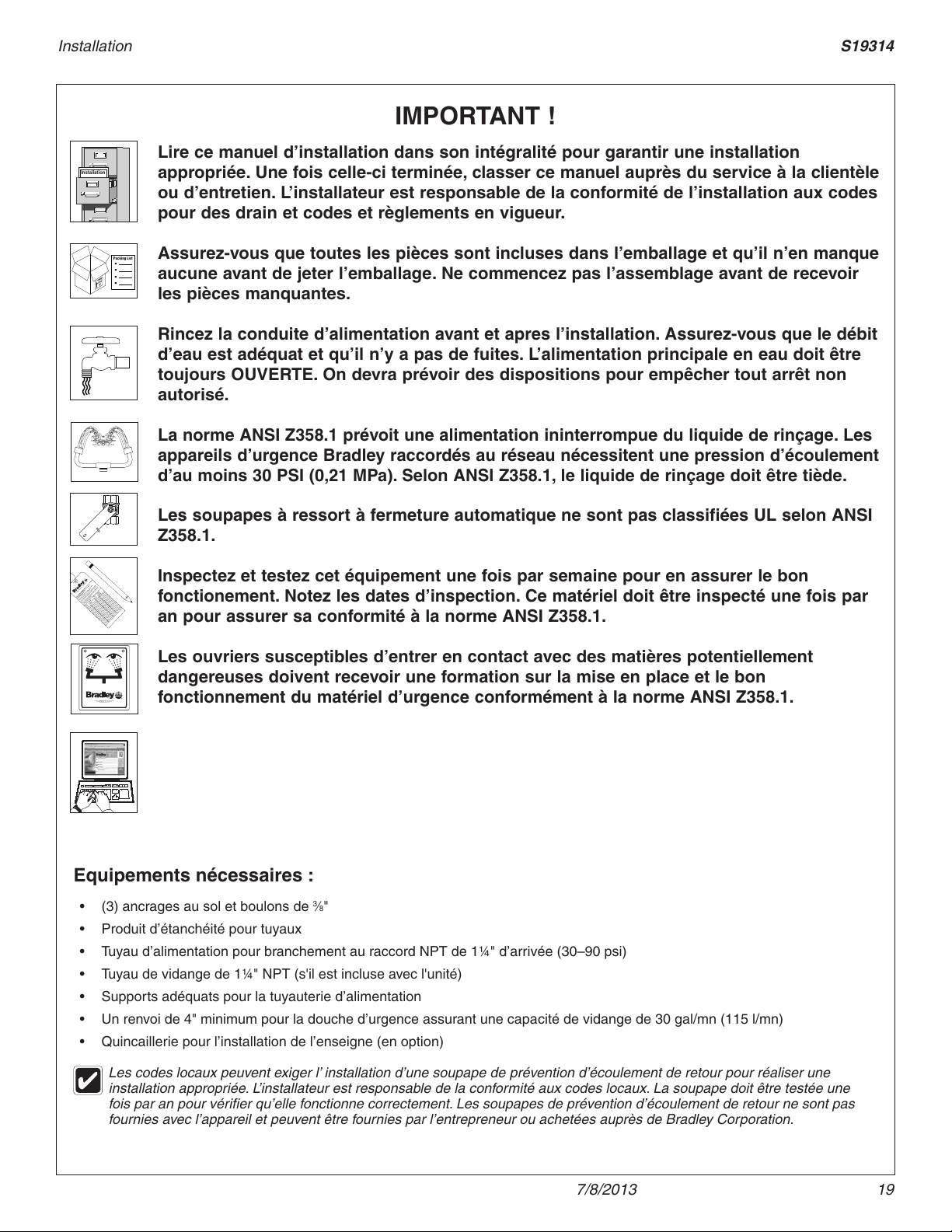

Avant l’installation ........................................................................19
Configuration du produit ...................................................................20
Dimensions .............................................................................21
Instructions d'installation ................................................................22–23
Pièces de remplacement — Récepteur et moyeu.............................................24–25
Pièces de remplacement — Douche oculaire, Douche oculaire/faciale et couvercle anti-poussières .....26–28
Pièces de remplacement — Bride et drain .....................................................29
Pièces de remplacement — Douche d'urgence ..............................................30–32
Pièces de remplacement — Accessoires en option ..............................................33
Información previa a la instalación. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Configuración del producto .................................................................35
Dimensiones ............................................................................36
Instrucciones de instalación. .............................................................37–38
Piezas de repuesto — Receptor y buje.....................................................39–40
Piezas de repuesto — Lavaojos, lavaojos/rostro y cubierta contrapolvo ...........................41–43
Piezas de repuesto — Base y drenaje ........................................................44
Piezas de repuesto — Ducha de aspersión .................................................45–47
Piezas de repuesto — Accesorios opcionales ..................................................48
netzerotools.com
netzerotools.com

3
Installation S19314
7/8/2013

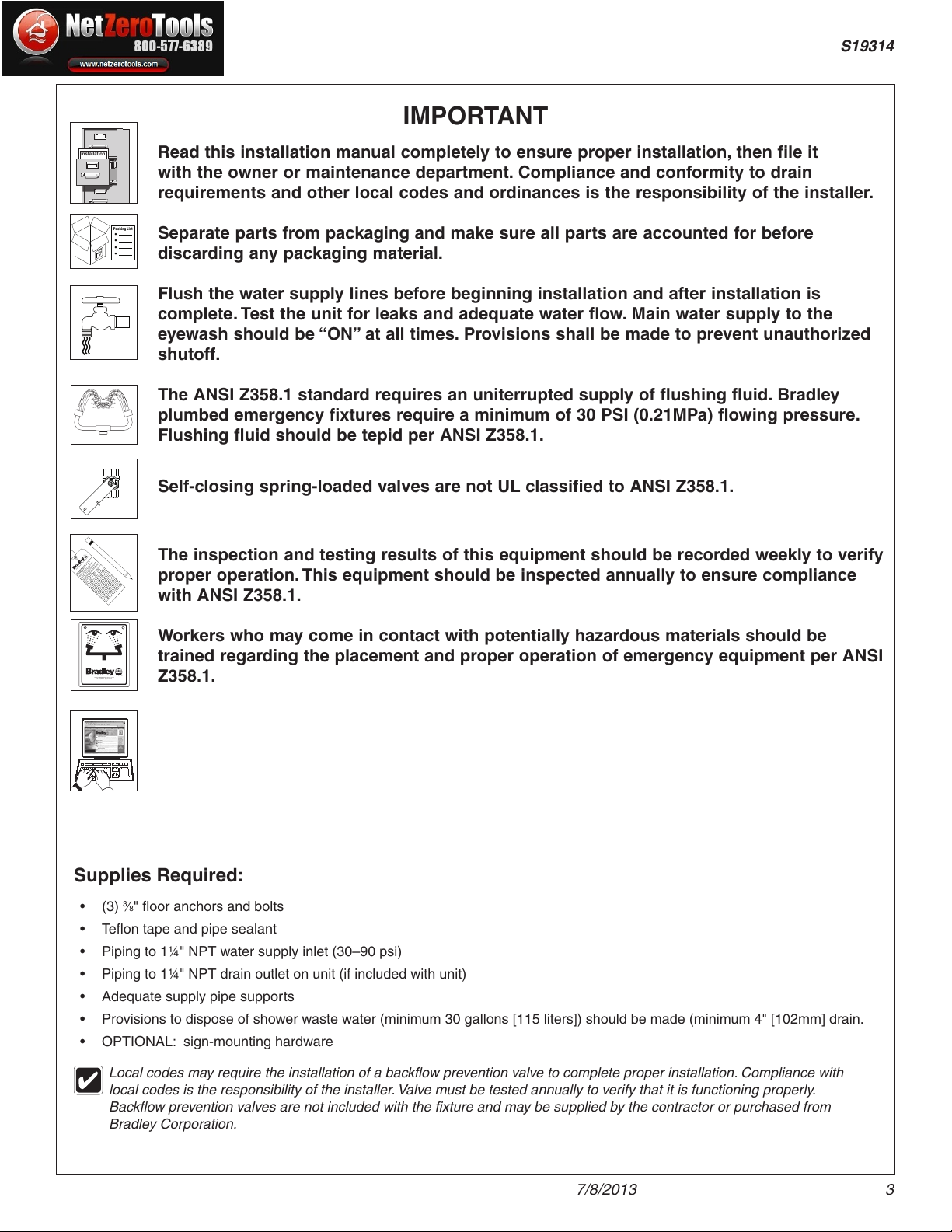

IMPORTANT
Read this installation manual completely to ensure proper installation, then file it
with the owner or maintenance department. Compliance and conformity to drain
requirements and other local codes and ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before
discarding any packaging material.
Flush the water supply lines before beginning installation and after installation is
complete. Test the unit for leaks and adequate water flow. Main water supply to the
eyewash should be “ON” at all times. Provisions shall be made to prevent unauthorized
shutoff.
The ANSI Z358.1 standard requires an uniterrupted supply of flushing fluid. Bradley
plumbed emergency fixtures require a minimum of 30 PSI (0.21MPa) flowing pressure.
Flushing fluid should be tepid per ANSI Z358.1.
Self-closing spring-loaded valves are not UL classified to ANSI Z358.1.
The inspection and testing results of this equipment should be recorded weekly to verify
proper operation. This equipment should be inspected annually to ensure compliance
with ANSI Z358.1.
Workers who may come in contact with potentially hazardous materials should be
trained regarding the placement and proper operation of emergency equipment per ANSI
Z358.1.
Installation
THIS
SIDE
UP
Packing List

P.O.Box309, Menomonee Falls, WI 53051
R
TESTTHISUNIT EACHWEEK
Test-operatevalve(s) each week and sign below.
Reportany malfunctionsimmediately.
Ventil(e)wöchentlich imTestbetrieb prüfen, bestätigt
durchUnterschrift. Jegliche Störung sofort melden.
Date
Datum
Date
Signed
Unterschrift
Signe
Date
Date
Date Signed
Signed
Signed
DIESESGERÄT1ST WÖCHENTLICH ZU PRÜFEN.
ESSAIHEBDOMADAIRE
Testle fonctionnement desvalveschaquesemaine et
signeen bas. S'il y à quelquechosequi ne va pasfait
unrapport immédiatement.
P.O.BOX309, MENOMONEE FALLS,WI 53052-0309 USA
TEL:1-800-BRADLEY FAX:[phone])
http://www.bradleycorp.com
114-051
Supplies Required:
฀฀3⁄8" floor anchors and bolts
฀Teflon tape and pipe sealant
฀Piping to 1¼" ฀฀฀฀฀฀Piping to 1¼" ฀฀฀฀฀฀฀฀฀Adequate supply pipe supports
฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀sign-mounting hardware
Local codes may require the installation of a backflow prevention valve to complete proper installation. Compliance with
local codes is the responsibility of the installer. Valve must be tested annually to verify that it is functioning properly.
Backflow prevention valves are not included with the fixture and may be supplied by the contractor or purchased from
Bradley Corporation.
netzerotools.com
netzerotools.com

4
S19314 Installation
7/8/2013
Halo Pre-Configured Models
Halo Model
Number Description
Eyewashes
FS19314EW* Halo Eyewash, plastic showerhead & bowl
FS19314P* Halo Eyewash, plastic showerhead & bowl w/ hose spray
FS19314SB* Halo Eyewash, plastic showerhead, stainless steel bowl
FS19314LL* Halo Eyewash, plastic showerhead, stainless steel bowl, hand/foot activated
FS19314F* Halo Eyewash, plastic showerhead w/ stainless steel shroud & bowl
FS19314UU* Halo Eyewash, plastic showerhead w/ stainless steel shroud & bowl, hand/foot operated eyewash
Eyewashes with Dust Cover
FS19314PDC* Halo Eyewash, plastic showerhead & bowl w/ dust cover
FS19314DC* Halo Eyewash, plastic showerhead, stainless steel bowl & hinged dust cover
Eye-Face Washes
FS19314FW* Halo Eye/face wash, plastic showerhead & bowl
FS19314SBFW* Halo Eye/face wash, plastic showerhead, stainless steel bowl
FS19314AC* Halo Eye/face wash, plastic showerhead, stainless steel bowl, hand/foot operated eyewash
FS19314TT* Halo Eye/face wash, plastic showerhead w/ stainless steel shroud & bowl
FS19314SPR* Halo Eye/face wash, stainless steel showerhead & bowl, hand/foot operated eyewash
FS19314BFPB* Halo Eye/face wash, barrier-free, plastic showerhead & bowl
FS19314BF* Halo Eye/face wash, barrier-free, plastic showerhead, stainless steel bowl
Eye-Face Washes with Dust Covers
FS19314PDCFW* Halo Eye/face wash, plastic showerhead & bowl w/ dust cover
FS19314DCFW* Halo Eye/face wash, plastic showerhead, stainless steel bowl & hinged dust cover
FS19314DCBF* Halo Eye/face wash, barrier-free, plastic showerhead, stainless steel bowl w/ dust cove
Eye-Face Washes without Eyewash Bowl
FS19314GG* Halo Eye/face wash, plastic showerhead, no bowl
All Stainless Steel Eye-Face Wash
FS19314BFSS Halo stainless steel eye/face wash and showerhead, barrier free
FS19314FSS Halo stainless steel eye/face wash and showerhead
FS19314SC Halo stainless steel eye/face wash, bowl, cover and showerhead
FS19314SS Halo stainless steel eye/face wash and showerhead with foot activation
FS19314SS16 Halo 316 stainless steel eye/face wash and showerhead with foot activation
* European models available. For European model number, add a Z to end of existing part number. For example,
S19314EW will be S19314EWZ.
netzerotools.com
netzerotools.com

5
Installation S19314
7/8/2013

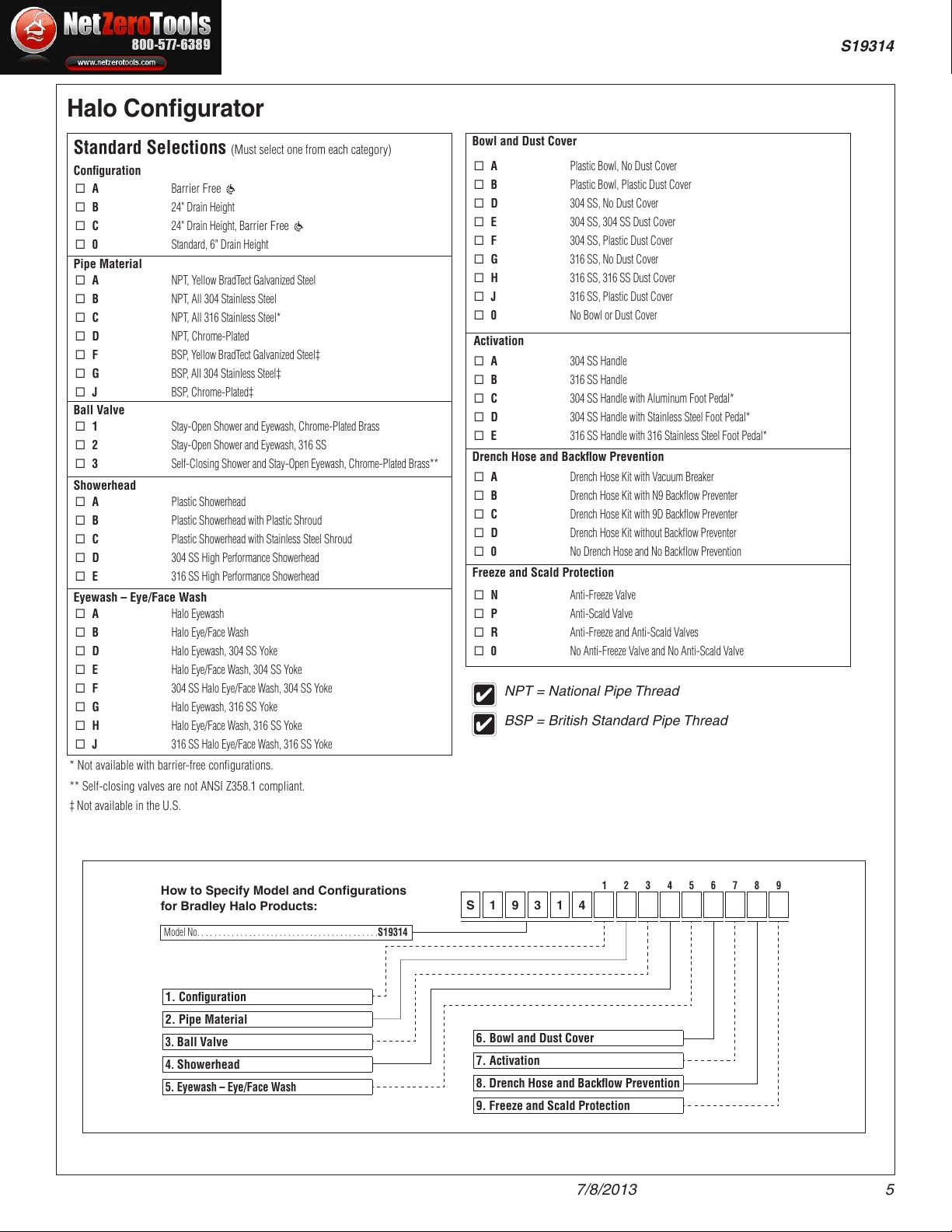

Standard Selections (Must select one from each category)
Configuration
A
B
C
0
B arrier Free
24" Drain Height
24" Drain Height, B
arrier Free
Standard, 6" Drain Height
Pipe Material
A
B
C
D
F
G
J
NPT, Yellow BradTect Galvanized Steel
NPT, All 304 Stainless Steel
NPT, All 316 Stainless Steel*
NPT, Chrome-Plated
BSP, Yellow BradTect Galvanized Steel‡
BSP, All 304 Stainless Steel‡
BSP, Chrome-Plated‡
Ball Valve
1
2
3
Stay-Open Shower and Eyewash, Chrome-Plated Brass
Stay-Open Shower and Eyewash, 316 SS
Self-Closing Shower and Stay-Open Eyewash, Chrome-Plated Brass**
Showerhead
A
B
C
D
E
Plastic Showerhead
Plastic Showerhead with Plastic Shroud
Plastic Showerhead with Stainless Steel Shroud
304 SS High Performance Showerhead
316 SS High Performance Showerhead
Eyewash – Eye/Face Wash
A
B
D
E
F
G
H
J
Halo Eyewash
Halo Eye/Face Wash
Halo Eyewash, 304 SS Yoke
Halo Eye/Face Wash, 304 SS Yoke
304 SS Halo Eye/Face Wash, 304 SS Yoke
Halo Eyewash, 316 SS Yoke
Halo Eye/Face Wash, 316 SS Yoke
316 SS Halo Eye/Face Wash, 316 SS Yoke
* Not available with barrier-free configurations.
** Self-closing valves are not ANSI Z358.1 compliant.
‡ Not available in the U.S.
Model No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S19314
How to Specify Model and Configurations
for Bradley Halo Products: 3 1 4
3421 789
9
6. Bowl and Dust Cover
7. Activation
8. Drench Hose and Backflow Prevention
9. Freeze and Scald Protection
1. Configuration
2. Pipe Material
3. Ball Valve
4. Showerhead
5. Eyewash – Eye/Face Wash
1
S
5 6
Bowl and Dust Cover
A
B
D
E
F
G
H
J
0
Plastic Bowl, No Dust Cover
Plastic Bowl, Plastic Dust Cover
304 SS, No Dust Cover
304 SS, 304 SS Dust Cover
304 SS, Plastic Dust Cover
316 SS, No Dust Cover
316 SS, 316 SS Dust Cover
316 SS, Plastic Dust Cover
No Bowl or Dust Cover
Activation
A
B
C
D
E
304 SS Handle
316 SS Handle
304 SS Handle with Aluminum Foot Pedal*
304 SS Handle with Stainless Steel Foot Pedal*
316 SS Handle with 316 Stainless Steel Foot Pedal*
Drench Hose and Backflow Prevention
A
B
C
D
0
Drench Hose Kit with Vacuum Breaker
Drench Hose Kit with N9 Backflow Preventer
Drench Hose Kit with 9D Backflow Preventer
Drench Hose Kit without Backflow Preventer
No Drench Hose and No Backflow Prevention
Freeze and Scald Protection
N
P
R
0
Anti-Freeze Valve
Anti-Scald Valve
Anti-Freeze and Anti-Scald Valves
No Anti-Freeze Valve and No Anti-Scald Valve
Halo Configurator
NPT = National Pipe Thread
BSP = British Standard Pipe Thread
netzerotools.com
netzerotools.com

6
S19314 Installation
7/8/2013
Plastic Ø 10" (254mm)
Stainless Steel Ø 10¾" (273mm)
S19314 shown with Plastic Bowl and Plastic Showerhead
Dust Cover
Eyewash Bowl
Plastic Showerhead with Plastic
or Stainless Steel Shroud
6"
(152mm)
13"
(330mm)
62¼"
(1581mm)
to bottom
of base
Ø 3.1"
(78.7mm)
941⁄8"
(2391mm)
to bottom
of base
Type 304 and 316 Stainless Steel
Showerheads
34¾"
(883mm)
to bottom
of base
2613⁄16"
(681mm)
677⁄8"
(1724mm)
to bottom
of base
923⁄16"
(2342mm)
to bottom
of base
47"
(1193mm)
to bottom
of base for
barrier free
option
1½"
(38mm)
Dimensions
All dimensions assume standard thread engagement. Variations in manufacturing allow for +/- 1⁄8"
(3mm) per threaded joint. To find the tolerance of a dimension, add the number of thread joints
across the length of the dimension and multiply it by 1⁄8" (3mm).
24½"
(622mm)
to Bottom
of Base
13¼"
(337mm)
Standard
drain
outlet
Optional
drain
outlet
Optional
barrier free
pull rod
18½"
(470mm)
861⁄8"
(2188mm)
to bottom
of base
Water Flow Rate
Showerhead 20–26 gpm
Eyewash 4–5¼ gpm
Eye/Face Wash 4–5¼ gpm
Body Wash 2–8 gpm
19¾"
(502mm)
netzerotools.com
netzerotools.com

7
Installation S19314
7/8/2013
1Assembly — Connect Base and Eyewash
Standard eyewash unit is shown. Other units are similar.
Connect components before securing the base to the floor. When connecting
components, use the rubber grip pad (provided) around pipes to prevent marring.
Apply pipe sealant (supplied by installer) to all male-threaded pipe joints, making
sure not to get any excess over the edge of the pipes.
1¼" NPT
drain outlet
For optional foot pedal
installation, the base
must be positioned
so that the hole in the
base is perpendicular
to the user.
20½"
฀pipe length
Halo unit with 24"
drain option
Halo unit with standard
drain option
12¾"
฀pipe length
1¼" NPT
drain outlet
³⁄₈" bolts and anchors
supplied by installer.
(3) Ø3⁄8" (10mm) holes on
Ø8" (203mm) bolt circle
netzerotools.com
netzerotools.com

8
S19314 Installation
7/8/2013
1¼" NPT below supply inlet,
or 1¼" BSP
2Assembly — Connect Drench Shower Components
Use teflon
tape only.
Alternate 1¼" NPT below
supply inlet, or 1¼" BSP
Standard eyewash unit is shown. Other units are similar.
Apply pipe sealant (supplied by installer) to all male-threaded pipe
joints, making sure not to get any excess over the edge of the pipes.
BSP = British Standard Pipe Thread (not available in the U.S.) ฀฀pipe length
If this tee is used as the
supply inlet, use the plug
on the top supply inlet.
1" outlet
for shower ฀฀pipe length
Showerhead with
stainless steel
shroud option
Stainless steel
tee with reducer
netzerotools.com
netzerotools.com

9
Installation S19314
7/8/2013
1
4
3
5
Cross (Item #3) is for use with freeze/scald
valves and drench hose accessories only.
2b
4
2a
2b
15a
10a
10c
11a
12
17
14
13
16
17
15b
10b
11b
12
17
10c
Service Parts — Bowl and Hub
Hub with Plastic Bowl
Hub with Stainless Steel Bowl
netzerotools.com
netzerotools.com

10
S19314 Installation
7/8/2013
Service Parts List — Bowl and Hub
1 111-092 1 Hub
1 111-093 1 Hub stainless steel
1 111-095 1 Hub stainless steel 316
1 111-094 1 Hub stainless steel polish
2a 113-006LQ 1 Pipe ½" x 3½"
2a 113-965 1 Pipe ½" x 3½" stainless steel
2a 113-1211 1 Pipe ½" x 3½" stainless steel 316
2a 113-596 1 Pipe ½" x 3½" chrome
2b 113-006LG 2 Pipe ½" x close
2b 113-867 2 Pipe ½" x close stainless steel
2b 113-1210 2 Pipe ½" x close stainless steel 316
2b 113-006aw 2 Pipe ½" x close chrome
3 169-1090 1 Cross ½"
3 169-1091 1 Cross ½" stainless steel
3 169-1098 1 Cross ½" stainless steel 316
3 169-1097 1 Cross ½" chrome
4 300-0393 2 Plug ½" chrome
4 153-230 2 Plug ½" stainless steel
4 153-460 2 Plug ½” stainless steel 316
5 S27-327 1 Ball valve ½" with nut
5 S27-328 1 Ball valve ½" ss 316 with nut
5 S27-329 1 Ball valve ½" frost proof with nut
5 S27-330 1 Ball valve ½" ss 316 frost proof with nut
5.1 110-215 1 Nut
5.1 110-248 1 Nut stainless steel 316
10a 113-1202 1 Pipe 1¼" x 11" thd. one end
10a 113-1203 1 Pipe 1¼" x 11" thd. one end stn. steel
10b 113-1204 1 Pipe 1¼" x 7" thd. one end
10b 113-1205 1 Pipe 1¼" x 7" thd. one end stainless steel
10b 113-1206 1 Pipe 1¼" x 7" thd. one end chrome
10b 113-1212 1 Pipe 1¼" x 7" thd. one end stn. steel 316
10c 169-724 1 Plug 1¼" painted galvanized
10c 269-251 1 Plug 1¼" chrome
10c 269-238 1 Plug 1¼" stainless steel
10c 269-1402 1 Plug 1¼" stainless steel 316
11a 110-239 1 Nut plastic, slip joint
11b 110-240 1 Nut, stainless steel slip joint
11b 110-242 1 Nut, stainless steel 316 slip joint
12 125-176 1 O-ring
13 111-099 1 Bowl mount aluminum
13 111-100 1 Bowl mount aluminum painted
13 111-101 1 Bowl mount stainless steel
13 111-102 1 Bowl mount stainless steel 316
14 124-082 1 Bowl gasket
15a 187-320 1 Bowl plastic
฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀16 160-467 4 Screw
17 110-115a as req’d. Nut ½" NPSM chrome brass
17 110-238 as req’d. Nut ½" NPSM stainless steel
17 110-241 as req’d. Nut ½" NPSM stainless steel 316
Item Part No. Qty Description Item Part No. Qty Description
S90-395 Plastic Prepack includes items 10a, 11a, 12, 15a
15a
10a
11a
12
300 Series SS Prepack S90-391 includes items 10b, 11b, 12, 13, 14, 15b
316 Series SS Prepack S90-392 includes items 10b, 11b, 12, 13, 14, 15b
14
13
15b
10b
11b
12
netzerotools.com
netzerotools.com

11
Installation S19314
7/8/2013
Service Parts — Eyewash
Service Parts — Eye/Face Wash
20
25
26
27 28
23
22
21a
22
Prepack S65-339 includes items 26, 27, 28
Prepack S88-068 includes items 25, 26, 27, 28
฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀25
26
27 28
20
25
26
27 28
21b
22
22
24a
24b
Eyewash Cover Prepack
S45-2675 includes items
22 and 23
23
22
22
Eye/Face Wash Cover Prepack
S45-2676 includes items 22,
24a and 24b
22
22
24a
24b
21b 21f 21j
or or
netzerotools.com
netzerotools.com

12
S19314 Installation
7/8/2013
Service Parts — Plastic Bowl Cover
Service Parts — Stainless Steel Bowl Cover
40
44
45
36
41
35b
39
39 42
43
5.1
39
40 42
43
44
45
36
41
35a
39
39 42
43
5.1
Handle Prepacks include items 39, 40, 41, 44, 45, 5, 5.1
฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀39 40
41
44
45
5.1
5
Plastic Bowl Cover Prepack S90-390
includes items 35a, 36, 39, 42, 43
39 42
43
36
35a
Stainless Steel Bowl Cover Prepack
S90-388 includes items 35b, 36, 39,
42, 43
฀฀฀฀฀Prepack S90-389 includes items 35b,
36, 39, 42, 43
39 42
43
36
35b
netzerotools.com
netzerotools.com

13
Installation S19314
7/8/2013
Service Parts List — Eyewash, Eye/Face Wash and Bowl Covers
Item Part No. Qty Description
20
20
20
20
171-001
171-002
171-003
171-004
1
1
1
1
Body
Body stainless steel
Body stainless steel 316
Body polished
21a
22
23
S05-190
in service kit
in service kit
1
2
2
Sprayhead ass’y. eyewash
(includes)
Pivot pin
Flip cover eyewash
21b
22
24a
24b
S05-192
in service kit
in service kit
in service kit
1
2
1
1
Sprayhead ass’y. eye/face wash
(includes)
Pivot pin
Flip cover right
Flip cover left
21f
22
24a
24b
S05-204
in service kit
in service kit
in service kit
1
2
1
1
Sprayhead stainless steel 304
ass'y. eye/face (includes)
Pivot pin
Flip cover right
Flip cover left
21j
22
24a
24b
S05-205
in service kit
in service kit
in service kit
1
2
1
1
Sprayhead stainless steel 316
ass'y. eye/face (includes)
Pivot pin
Flip cover right
Flip cover left
25
25
25
25
115-158
115-159
115-164
115-165
1
1
1
1
Cap
Cap stainless steel
Cap stainless steel 316
Cap polished
Item Part No. Qty Description
26 125-157 2 O-ring
27 125-175 1 Flow control
28 S65-340 1 Screen (incl. 3 per pack)
35a
35b
35b
in service kit
in service kit
in service kit
1
1
1
Bowl cover plastic
Bowl cover stainless steel
Bowl cover stainless steel 316
36 114-097 1 Bowl cover decal
39
39
160-389
160-469
as req'd.
as req'd.
Screw ¼-20 x ½" stn. steel
Screw ¼-20 x ½" stn. steel 316
40
40
S08-385
S08-388
1
1
Handle ss (incl. items 41, 44,
45, 5.1)
Handle ss 316 (incl. items 41,
44, 45, 5.1)
41 114-096 1 Decal
42 142-002AV as req'd. Bowl cover washer
43
43
161-060
161-062
as req'd.
as req'd.
Nut stainless steel
Nut stainless steel 316
44 153-372R 1 Adapter ball valve
44
153-
372R316
1 Adapter ball valve stainless steel
316
45 142-002DA 1 Lockwasher
netzerotools.com
netzerotools.com

14
S19314 Installation
7/8/2013
Foot Pedal kits
฀฀฀฀฀฀฀foot pedal kit฀฀฀฀foot pedal kitBase and Drain Kits for 24" Drains include
items 1, 4, 301b, 302b, 303
฀฀฀฀฀฀฀Service Parts and Parts List — Base and Drain
14
301a
303
304
302a
302b
305a
305b
301b
1 111-092 1 Hub
1 111-093 1 Hub stainless steel
1 111-095 1 Hub stainless steel 316
1 111-094 1 Hub stainless steel polish
4 300-0393 2 Plug ½" chrome
4 153-230 2 Plug ½" stainless steel
4 153-460 2 Plug ½" stainless steel 316
301a 113-1197 1 Pipe 1¼" x 20½"
301a 113-1198 1 Pipe 1¼" x 20½" chrome
301a 113-541 1 Pipe 1¼" x 20½" stainless steel
301a 113-1213 1 Pipe 1¼" x 20½" stainless steel 316
301b 113-1217 1 Pipe 1¼" x 12¾"
301b 113-1218 1 Pipe 1¼" x 12¾" chrome
301b 113-1219 1 Pipe 1¼" x 12¾" stainless steel
301b 113-1220 1 Pipe 1¼" x 12¾" stainless steel 316
302a 169-727 1 Tee 1¼" painted galvanized
302a 269-237 1 Tee 1¼" stainless steel
302a 269-1398 1 Tee 1¼" stainless steel 316
302a 269-253 1 Tee 1¼" chrome
302b 169-853 1 Coupling 1¼" galvanized
302b 269-257 1 Coupling 1¼" chrome
302b 269-1048 1 Coupling 1¼" stainless steel
302b 269-2016 1 Coupling 1¼" stainless steel 316
303 113-006NA 1 Pipe 1¼" x close painted galvanized
303 113-865 1 Pipe 1¼" x close stainless steel
303 113-1223 1 Pipe 1¼" x close stainless steel 316
304 S06-189 1 Plug chrome solid
305a 131-059 1 Base painted
305a 131-062 1 Base stainless steel
305a 131-079 1 Base stainless steel 316
305b 131-044 1 Base chrome
326 169-724 1 Plug 1¼" painted galvanized
326 269-251 1 Plug 1¼" chrome
326 269-238 1 Plug 1¼" stainless steel
326 269-1402 1 Plug 1¼" stainless steel 316
Item Part No. Qty. Description Item Part No. Qty. Description
14
303
302b
301b
326
netzerotools.com
netzerotools.com

15
Installation S19314
7/8/2013
P.O. Box 309, Menomonee Falls, WI 53051
R
TESTTHIS UNIT EACH WEEK
Test-operateva lve(s)each week and sign below.
Report any malfunctionsimmediately.
Ventil(e) wöchentlich imTestbetrieb prüfen, bestätigt
durch Unterschrift.Jegliche Störung sofort melden.
Date
Datum
Date
Signed
Unterschrift
Signe
Date
Date
Date Signed
Signed
Signed
DIESES GERÄT 1ST WÖCHENTLICH ZU PRÜFEN.
ESSAI HEBDOMADAIRE
Test le fonctionnement desvalveschaque semaine et
signe en bas. S'il y à quelque chose qui ne vapasfait
un rapport immédiatement.
P.O.BOX 309, MENOMONEE FALLS, WI 53052-0309 USA
TEL:1-800-BRADLEY FAX:[phone])
http://www.bradleycorp.com
114-052
Service Parts — Drench Shower
360a
362
362
331
330
343
341
360b
360a
360a
361a
361b
342
netzerotools.com
netzerotools.com

16
S19314 Installation
7/8/2013
Service Parts — Drench Shower
351
351
352
353
344a
325
329
326
328
302
327
340
325
344b
350a
350c
350b.2
354a
354b
355a
350b.1
354a
355a
350a.1
350b
350a.1
302
Self-Closing Valve Prepacks
฀฀฀฀฀฀฀฀includes items 350c, 351, 353, 354a, 355a
351
353
350c
355a
354a
350a.1
Stainless Steel Valve Prepacks include items
350b, 354b, 355b
฀฀฀฀฀฀฀฀฀฀฀฀฀฀350b.2
354b
355b.1
350b
Brass Valve Prepacks include items 350a, 351, 353,
354a, 355a
฀฀฀฀฀฀฀฀351
352
350a
354a
355a 350a.1
netzerotools.com
netzerotools.com

17
Installation S19314
7/8/2013

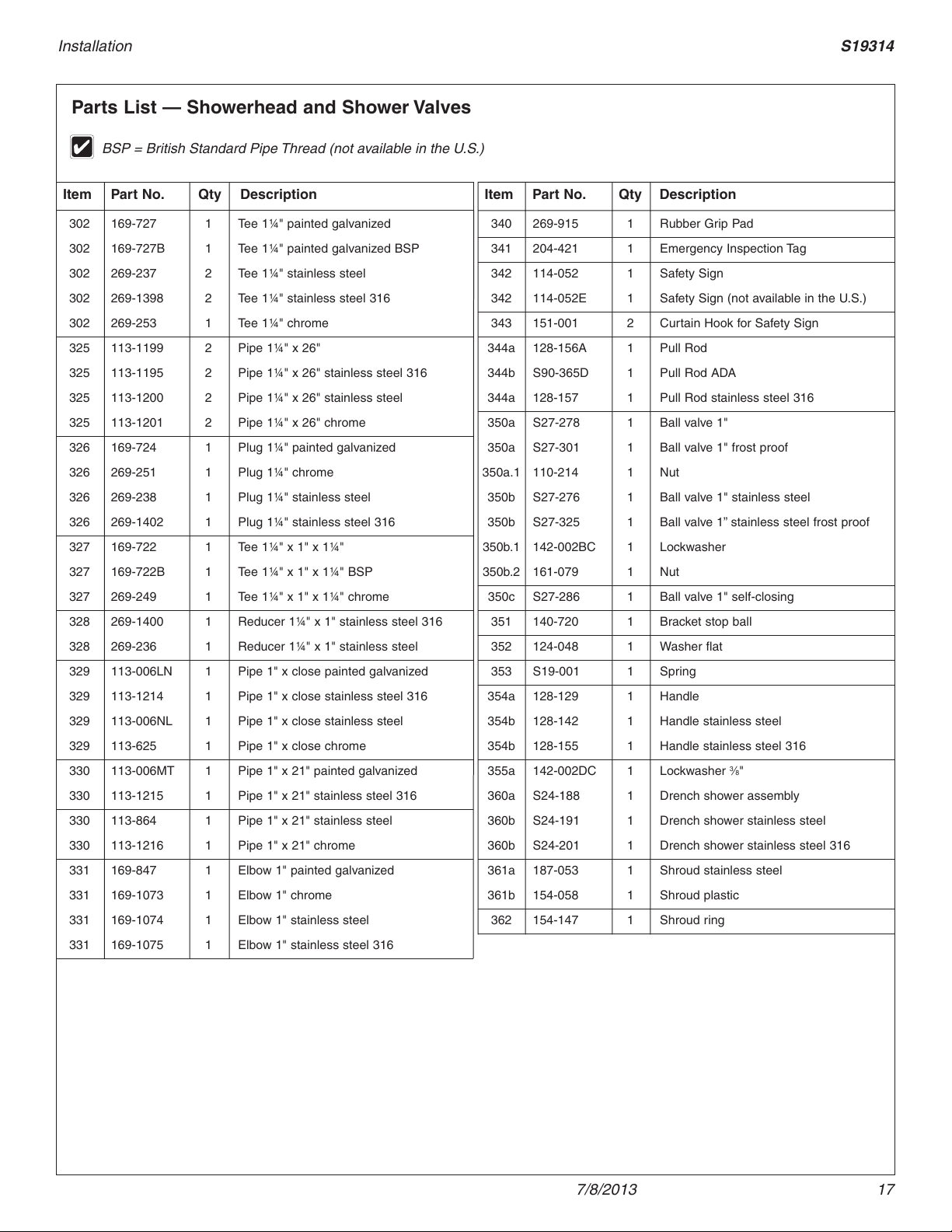

Parts List — Showerhead and Shower Valves
302 169-727 1 Tee 1¼" painted galvanized
302 169-727B 1 Tee 1¼" painted galvanized BSP
302 269-237 2 Tee 1¼" stainless steel
302 269-1398 2 Tee 1¼" stainless steel 316
302 269-253 1 Tee 1¼" chrome
325 113-1199 2 Pipe 1¼" x 26"
325 113-1195 2 Pipe 1¼" x 26" stainless steel 316
325 113-1200 2 Pipe 1¼" x 26" stainless steel
325 113-1201 2 Pipe 1¼" x 26" chrome
326 169-724 1 Plug 1¼" painted galvanized
326 269-251 1 Plug 1¼" chrome
326 269-238 1 Plug 1¼" stainless steel
326 269-1402 1 Plug 1¼" stainless steel 316
327 169-722 1 Tee 1¼" x 1" x 1¼"
327 169-722B 1 Tee 1¼" x 1" x 1¼" BSP
327 269-249 1 Tee 1¼" x 1" x 1¼" chrome
328 269-1400 1 Reducer 1¼" x 1" stainless steel 316
328 269-236 1 Reducer 1¼" x 1" stainless steel
329 113-006LN 1 Pipe 1" x close painted galvanized
329 113-1214 1 Pipe 1" x close stainless steel 316
329 113-006NL 1 Pipe 1" x close stainless steel
329 113-625 1 Pipe 1" x close chrome
330 113-006MT 1 Pipe 1" x 21" painted galvanized
330 113-1215 1 Pipe 1" x 21" stainless steel 316
330 113-864 1 Pipe 1" x 21" stainless steel
330 113-1216 1 Pipe 1" x 21" chrome
331 169-847 1 Elbow 1" painted galvanized
331 169-1073 1 Elbow 1" chrome
331 169-1074 1 Elbow 1" stainless steel
331 169-1075 1 Elbow 1" stainless steel 316
340 269-915 1 Rubber Grip Pad
341 204-421 1 Emergency Inspection Tag
342 114-052 1 Safety Sign
฀฀฀฀฀฀฀฀฀฀343 151-001 2 Curtain Hook for Safety Sign
344a 128-156A 1 Pull Rod
344b S90-365D 1 Pull Rod ADA
344a 128-157 1 Pull Rod stainless steel 316
350a S27-278 1 Ball valve 1"
350a S27-301 1 Ball valve 1" frost proof
350a.1 110-214 1 Nut
350b S27-276 1 Ball valve 1" stainless steel
350b S27-325 1 Ball valve 1” stainless steel frost proof
350b.1 142-002BC 1 Lockwasher
350b.2 161-079 1 Nut
350c S27-286 1 Ball valve 1" self-closing
351 140-720 1 Bracket stop ball
352 124-048 1 Washer flat
353 S19-001 1 Spring
354a 128-129 1 Handle
354b 128-142 1 Handle stainless steel
354b 128-155 1 Handle stainless steel 316
355a 142-002DC 1 Lockwasher
3⁄8"
360a S24-188 1 Drench shower assembly
360b S24-191 1 Drench shower stainless steel
360b S24-201 1 Drench shower stainless steel 316
361a 187-053 1 Shroud stainless steel
361b 154-058 1 Shroud plastic
362 154-147 1 Shroud ring
Item Part No. Qty Description Item Part No. Qty Description
BSP = British Standard Pipe Thread (not available in the U.S.)
netzerotools.com
netzerotools.com

18
S19314 Installation
7/8/2013
Service Parts and Parts List — Optional Accessories
Item Part No. Description
376 S45-1986 Freeze Valve kit
377 S45-1989 Scald Valve kit
387a
387b
387c
Drench Hose
Backflow
Preventers for
Drench Hose
Item Part No. Qty. Description
370 169-025 as req’d. Elbow ½"
370 269-241 as req’d. Elbow ½" stainless steel
370 269-1396 as req’d. Elbow ½" stainless steel 316
370 169-862 as req’d. Elbow ½" chrome
371 113-006LG 1 Pipe ½" x close
371 113-867 1 Pipe ½" x close stainless steel
371 113-1210 1 Pipe ½" x close stainless steel 316
371 113-006AW 1 Pipe ½" x close chrome
372 169-838 1 Tee ½"
372 169-1100 1 Tee ½" stainless steel
372 269-280 1 Tee ½" chrome
372 169-1099 1 Tee ½" stainless steel 316
376
377
Freeze/Scald
Valves
Item Part No. Qty. Description
387a S27-303 1Vacuum breaker in-line 3⁄8"
387b S45-2309 1Backflow preventer N9
387c S45-2310 1Backflow preventer 9D
390 S19-430EH 1 Spray Kit
390
370 370
370
370
371
372
Accessory
Mounting (for
units with three
accessories)
to
freeze
valve
to
drench
hose
to
scald
valve
370
370
Accessory
Mounting (for
units with two
accessories)
to
accessory
to
accessory
netzerotools.com
netzerotools.com

19
Installation S19314
7/8/2013
IMPORTANT !
Lire ce manuel d’installation dans son intégralité pour garantir une installation
appropriée. Une fois celle-ci terminée, classer ce manuel auprès du service à la clientèle
ou d’entretien. L’installateur est responsable de la conformité de l’installation aux codes
pour des drain et codes et règlements en vigueur.
Assurez-vous que toutes les pièces sont incluses dans l’emballage et qu’il n’en manque
aucune avant de jeter l’emballage. Ne commencez pas l’assemblage avant de recevoir
les pièces manquantes.
Rincez la conduite d’alimentation avant et apres l’installation. Assurez-vous que le débit
d’eau est adéquat et qu’il n’y a pas de fuites. L’alimentation principale en eau doit être
toujours OUVERTE. On devra prévoir des dispositions pour empêcher tout arrêt non
autorisé.
La norme ANSI Z358.1 prévoit une alimentation ininterrompue du liquide de rinçage. Les
appareils d’urgence Bradley raccordés au réseau nécessitent une pression d’écoulement
d’au moins 30 PSI (0,21 MPa). Selon ANSI Z358.1, le liquide de rinçage doit être tiède.
Les soupapes à ressort à fermeture automatique ne sont pas classifiées UL selon ANSI
Z358.1.
Inspectez et testez cet équipement une fois par semaine pour en assurer le bon
fonctionement. Notez les dates d’inspection. Ce matériel doit être inspecté une fois par
an pour assurer sa conformité à la norme ANSI Z358.1.
Les ouvriers susceptibles d’entrer en contact avec des matières potentiellement
dangereuses doivent recevoir une formation sur la mise en place et le bon
fonctionnement du matériel d’urgence conformément à la norme ANSI Z358.1.
Installation
THIS
SIDE
UP
Packing List

P.O.Box309, Menomonee Falls, WI 53051
R
TESTTHISUNIT EACH WEEK
Test-operatevalve(s) each week and sign below.
Reportany malfunctionsimmediately.
Ventil(e)wöchentlich im Testbetrieb prüfen, bestätigt
durchUnterschrift. Jegliche Störung sofort melden.
Date
Datum
Date
Signed
Unterschrift
Signe
Date
Date
Date Signed
Signed
Signed
DIESESGERÄT1ST WÖCHENTLICH ZU PRÜFEN.
ESSAIHEBDOMADAIRE
Testle fonctionnement desvalveschaquesemaine et
signeen bas. S'il y à quelquechosequi ne va pasfait
unrapport immédiatement.
P.O.BOX309, MENOMONEE FALLS,WI 53052-0309 USA
TEL:1-800-BRADLEY FAX:[phone])
http://www.bradleycorp.com
114-051
Equipements nécessaires :
฀฀฀฀฀฀฀฀3⁄8"
฀Produit d’étanchéité pour tuyaux
฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀Les codes locaux peuvent exiger l’ installation d’une soupape de prévention d’écoulement de retour pour réaliser une
installation appropriée. L’installateur est responsable de la conformité aux codes locaux. La soupape doit être testée une
fois par an pour vérifier qu’elle fonctionne correctement. Les soupapes de prévention d’écoulement de retour ne sont pas
fournies avec l’appareil et peuvent être fournies par l’entrepreneur ou achetées auprès de Bradley Corporation.
netzerotools.com
netzerotools.com
