DITEC DAB305 User manual

Swing Door Operator
Ditec DAB305
User Manual
Original instructions

Backtrack information: folder:Workspace Main, version:a588, Date:2020-04-02 time:04:18:10, state: Frozen
1020517-DImulti-2.0Issue 2020-04-022

Swing Door Operator
Ditec DAB305
User Manual
Original instructions
3Issue 2020-04-021020517-DImulti-2.0
EI

CONTENTS - Original instructions
5Instructions for safe operation .......................................................................................................
6Congratulations on your new automatic door! ........................................................................
6Electronic equipment reception interference ...........................................................................
6Environmental requirements ..........................................................................................................
6Product liability ...................................................................................................................................
7Service .....................................................................................................................................................
7Intended use .........................................................................................................................................
7Technical specification ......................................................................................................................
8How the Ditec DAB305 works .......................................................................................................
9Regular safety checks .........................................................................................................................
12General accessories ............................................................................................................................
12Safety accessories ................................................................................................................................
12Troubleshooting ..................................................................................................................................
12Other products from Entrematic Group .....................................................................................
13Declaration of incorporation ..........................................................................................................
© All rights in and to this material are the sole property of Entrematic Group AB. Copying, scanning, alterations
or modifications are expressly forbidden without the prior written consent of Entrematic Group AB. Rights
reserved for changes without prior notice.
1020517-DImulti-2.0Issue 2020-04-024

Instructions for safe operation
•Failure to observe the information in this manual may
result in personal injury or damage to equipment.
•To reduce the risk of injury to persons - use this oper-
ator with single or double pedestrian swinging or
folding doors only.
•Do not use the equipment if repair or adjustment is
necessary.
•Disconnect supply when cleaning or other mainten-
ance is to be carried out.
•The operator can be used by children over 8 years of
age if they have been instructed by a person in charge
of their safety.
•The operator can be used by children 8 years of age
or younger if they are supervised by a person respons-
ible for their safety.
•The operator can be used by persons with impaired
physical, sensory or mental capacity if they have been
instructed by a person in charge of their safety.
•Cleaning and user maintenance shall not be made by
children.
•Do not let anyone climb on or play with the door or
the fixed/remote controls.
•The doorset can be operated automatically by sensors
ormanuallybyactivators.Itcanalsobeusedmanually
as a door closer.
5Issue 2020-04-021020517-DImulti-2.0
EI

Congratulations on your new automatic door!
Entrematic Group AB has developed automatic doors for more than 50 years. State-of-the-art tech-
nology and carefully tested materials and components provide you with a superior product.
As with all other technical products, your automatic door requires periodic maintenance and service.
It is essential that you know your automatic door (system) and that you recognize the importance
of maintaining it in compliance with applicable standards for safety.
Your local Entrematic Group-authorized representative is familiar with these standards, as well as
all applicable local codes and Entrematic Group recommendations for power-operated pedestrian
doors. Service and adjustments performed by your Entrematic Group-authorized representative,
will ensure safe and proper operation of your automatic door unit.
Electronic equipment reception interference
The equipment may generate and use radio frequency energy and if not installed and used properly,
it may cause interference to radio, television reception or other radio frequency type systems.
If other equipment does not fully comply with immunity requirements interference may occur.
There is no guarantee that interference will not occur in a particular installation. If this equipment
does cause interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Re-orient the receiving antenna.
•Relocate the receiver with respect to the equipment.
•Move the receiver away from the equipment.
•Plug the receiver into a different outlet so that equipment and receiver are on different branch
circuits.
•Check that protective earth (PE) is connected.
If necessary, the user should consult the dealer or an experienced electronics technician for additional
suggestions.
Environmental requirements
Entrematic Group products are equipped with electronics and may also be equipped with batteries
containing materials which are hazardous to the environment. Disconnect power before removing
electronics and battery and make sure it is disposed of properly according to local regulations (how
and where) as was done with the packaging material.
Product liability
According to regulations, the following are the responsibility of the owner or caretaker of the
equipment
•that the equipment operates correctly, so that it gives sufficient protection in regard to safety
and health
•that the equipment is operated and regularly maintained, inspected and serviced by someone
with documented competence in the equipment and in applicable regulations
•that the provided “Service Log Book”and “Site Acceptance Test and Risk Assessment”documents
are kept available for maintenance and service records
•that inspection covers the emergency opening function (when applicable)
•that the closing force is appropriate for the door size on fire-approved door systems (when ap-
plicable)
1020517-DImulti-2.0Issue 2020-04-026

Service
Inspections should be done regularly by a trained and qualified person. The frequency of these in-
spections should be according to national regulations (or according to industry standard if there
are no national regulations). This is especially important when the installation concerns a fire-ap-
proved door or a door with an emergency-opening function. To extend the life of your investment
and ensure safe and reliable operation of the door, we recommend a minimum of 2 visits per year
or more, depending on usage and operating conditions. Environmental aspects shall also be con-
sidered.
Talk to your Entrematic Group representative to learn more about our service offering.
Intended use
The Ditec DAB305 is an automatic swing door operator developed to make life easier for everyone
whocanbenefitfromautomaticdoors.TheDitecDAB305isalow-energyoperatorusingaDCmotor
and a gear-reduction system to drive an arm system, which opens the door. It is to be installed indoors
where it is suitable for almost all types of external and internal swing doors. This widely-used oper-
ator can be found in applications in health care, residential, office and public buildings.
The door is designed to offer continuous use, a high degree of safety and maximum lifetime. The
system is self-adjusting to the effects caused by normal variations in the weather conditions and to
minor friction changes caused by e.g. dust and dirt.
For escape in emergency situations the doorset is opened manually.
For installation and maintenance see Installation and Service manual 1020527.
Save these instructions for future reference.
Technical specification
Entrematic Group ABManufacturer:
Lodjursgatan 10, SE-261 44 Landskrona, SwedenAddress:
Ditec DAB305Type:
100-240 V AC +10/-15%, 50/60 HzMains power supply:
Max. 300 WPower consumption:
IP20Class of protection:
Sound pressure:
Third party approvals from established certification organizations valid
for safety in use, see Declaration of Incorporation.
Approvals:
7Issue 2020-04-021020517-DImulti-2.0
EI

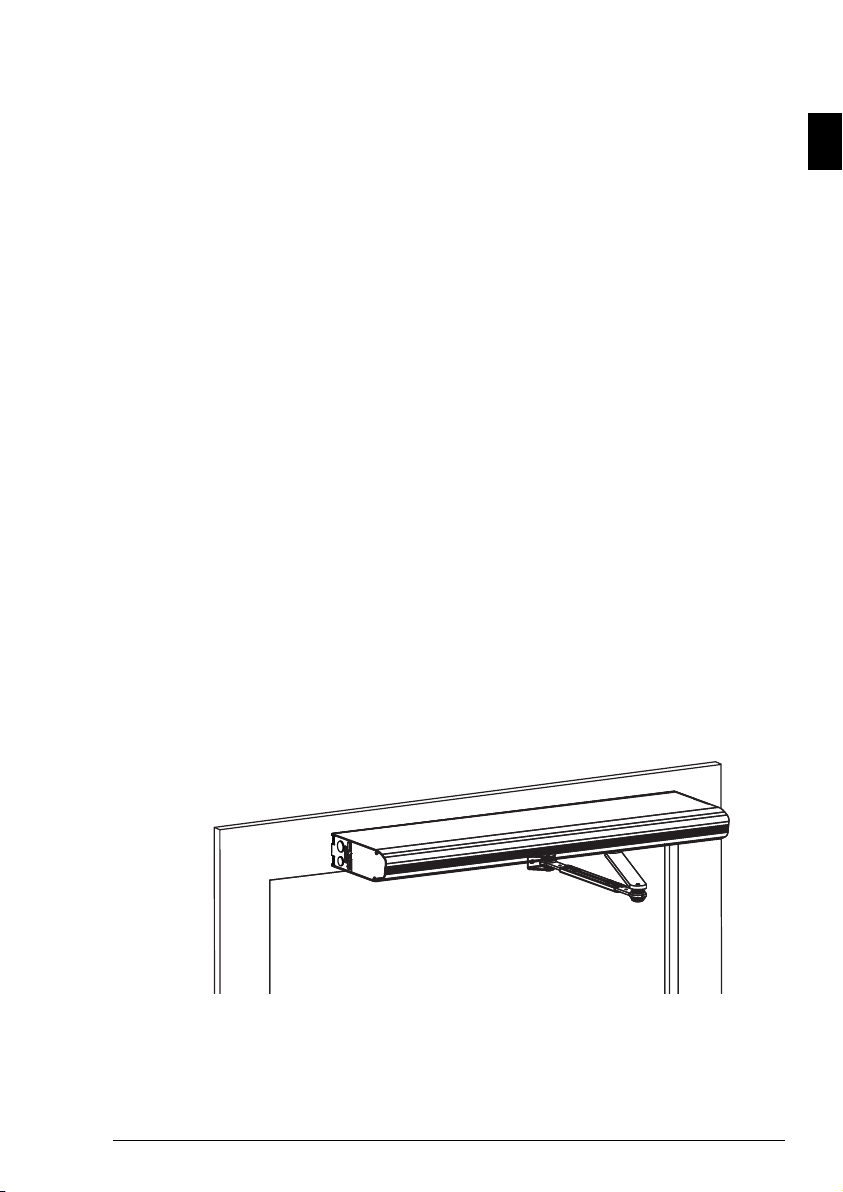

How the Ditec DAB305 works
The swing door operator Ditec DAB305 uses a DC motor and a gear-reduction system to drive an
arm system which opens the door. Closing power is provided by a motor and a closing spring. A
highly sophisticated electronic control unit uses a motor encoder and a microprocessor to control
the door’s movement.
To activate the operator you can use a manual activator (elbow switch) or an automatic activator
(radar device). It is also possible –where local standards allow –to activate the operator by just
pushing the door, if Push & Go is selected.
After the door has been activated it will open and stay open for a specified Hold Open Time (HOT).
When the HOT has elapsed the door will close.
The Ditec DAB305 can be set in three or four different modes, depending on programme selector
type, see table below.
In fully manual use (or in case of a power failure) the Ditec DAB305 acts as a normal door closer.
FunctionPosition
The door can be opened with the inner and outer manual and/or automatic ac-
tivators. The electric strike, if fitted, is open.
AUTO
Normal
position
The door is closed. The door cannot be opened with inner and outer activation
units. The door is locked if an electromechanical locking device has been fitted.
The door can be opened with a key switch (if fitted).
OFF
The door is held permanently open by the motor.OPEN
Passage from inside only. The door is normally locked if an electromechanical
locking device has been fitted. The door can only be opened with the inner activ-
ation unit and with a key switch (if fitted).
EXIT
1020517-DImulti-2.0Issue 2020-04-028

Regular safety checks
To help you fulfill the national/international requirements and to avoid malfunction and risk for in-
juries, we have provided the following checklist.
Do not use the operator if repair or adjustment is necessary.
Disconnect supply
14
when cleaning or other maintenance is to be carried out.
If problem
occurs
Daily Action
Activate your operator and check visually, fastening and any damage of
•operator
1
•arm system
2
•cables
3
•hinges
5
•door and glass
6
Also inspect your operator and check visually for
•sharp edges on the door leaf and door frame (if any)
7
•condition of door seals
8
•finger protection
9
•and finally that the complete door runs properly and closes slowly in a smooth way
Set the mode selector to OFF and check that the operator and electromechanical lock (if fitted)
work together. Also check that the lock
10
really secures the door.
Activate the manual activation units
11
, if any, and walk towards the door. Check that the door
has opened appropriately while you pass the entrance/exit.
Then proceed with the automatic activation units
12
in the same way.
Check the safety sensors
13
if any, by standing in the swing path and activate the operator. The
door must not hit you when opening nor when closing.
If you are unsure of which type of sensor you have, please contact your Entrematic Group rep-
resentative.
Set the programme selector in AUTO mode. Push the door manually
in escape direction and make sure that no object or function will
prevent the door from opening. Also make sure the escape route is
free for use.
By law, these tests must be performed regularly by trained personnel.
Escape
doors
Let the door close after an impulse ensuring nothing prevents the
door from closing and locking (if regulations require it).
Fire
doors
Take appropriate measures.=
Contact your Entrematic Group representative.=
9Issue 2020-04-021020517-DImulti-2.0
EI

FUNCTION AND VISUAL INSPECTION
6
7
10
12
8
3
3
3
11
13
9
5
2
3
14
4
1
4
CLEANING
The best way to remove dust and dirt from the Ditec DAB305 is to use water and a soft cloth or a sponge.
Agentledetergentmay beused. To maintain the quality of the surface treatment, the surfaces should be cleaned
once/four months period. The cleaning should be documented. To avoid damages to the profiles the
brushes/weather stripping must be vacuum-cleaned weekly.
•Do not expose windows, doors or profiles to alkalis. Both aluminium and glass are sensitive to alkalis.
•Do not clean with high pressure water. Operator, mode selector and sensor may be damaged and water
may enter the profiles.
•Do not use polishing detergent.
•Do not scrub with materials like Scotch-brite, as this will cause mechanical damage.
1020517-DImulti-2.0Issue 2020-04-0210

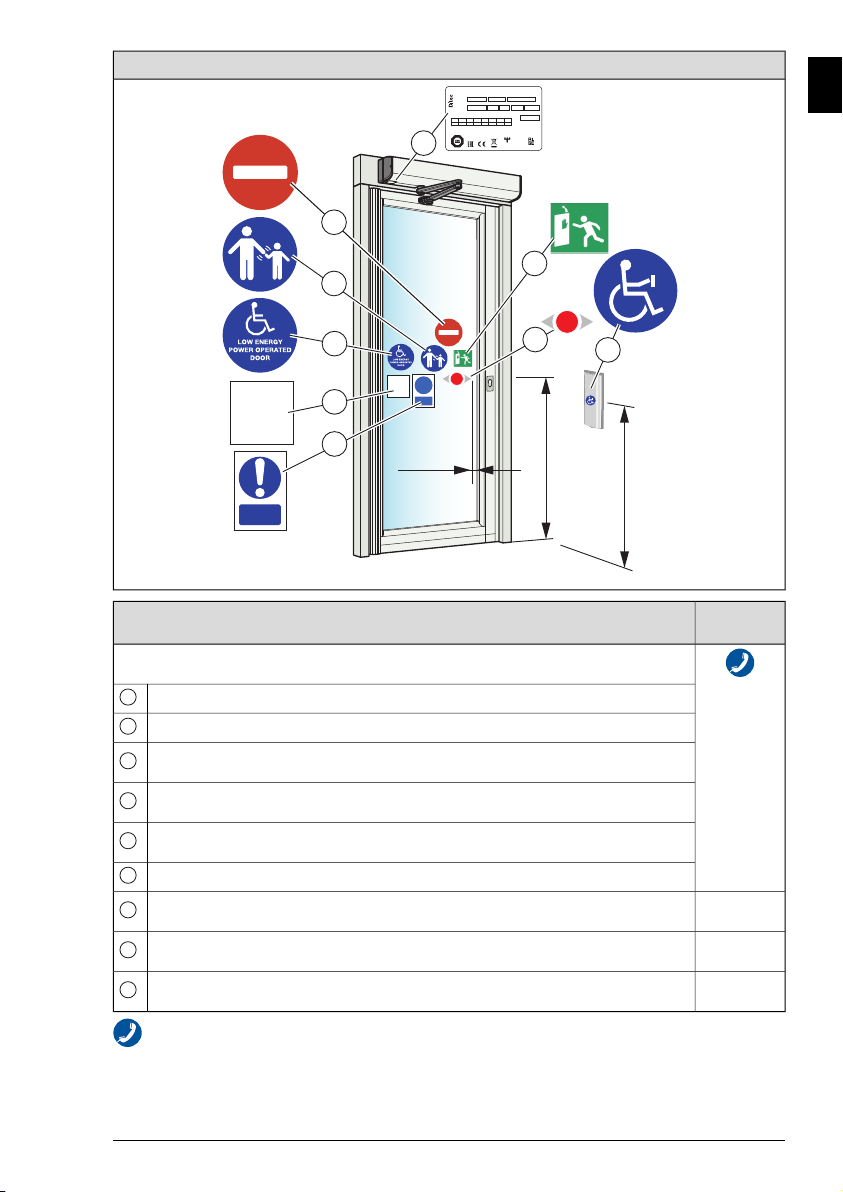

SIGNAGE
Entrematic Group AB Lodjursgatan 10 Landskrona Sweden Factory No. X Made in XXX
DESIGNATIONART.NO.
YEAR+MONTH
1008458
TYPE
TEMPERATURE
XXXXXXXXXXXXXXX
LOAD
XXXXX
PROD.VERSION
XXXXXXX
XXXXXX
XX/XX
Hz
PROJECT/SERIALNO.
XXX
1 2 3 4 5 6 7 8
XXXXXXX
W
XXXX
AVAC
SÜD
CLASSIFICATION DIN 18650-1:2010
1002
CERTIFIERING
KONTROLL
xxxxxxx
xxxxxxx
Keep clear
Automatic
door
Click!
Click!
800 mm
F
B
No entry
1100 mm
No entry
E
D
H
C
40 mm
G
K
A
If problem
occurs
Action
Check that all required signage is applied and intact. Mandatory indicates that the signage is re-
quired by European directives and equivalent national legislation outside the European Union.
Product label: Mandatory
A
Emergency break-out: Mandatory, if approved for escape route.
B
Door sticker. Mandatory, if applicable to highlight the presence of the glass (applied to all
glass sections that are moving).
C
Supervision of child (applied to both sides of the door): Mandatory according to national
regulations. Recommended, if the risk analysis shows use by children.
D
Operator designed for disabled people:
Recommended, if applicable (applied to both sides of the door).
E
Activation by disabled people: Recommended, if applicable.
F
Automatic door.
Only mandatory in GB.
G
No entry, identifying one-way traffic: Mandatory in GB and US, if applicable, not included
in the product.
H
Keep clear.
Only mandatory in GB.
I
Contact your Entrematic Group service representative.=
11Issue 2020-04-021020517-DImulti-2.0
EI

General accessories
Your Ditec DAB305 can be further improved with the following add-ons (please contact your local
Entrematic Group dealer for detailed description).
•Position switch
4
,see page 10
•Electrical lock
10
,see page 10
•Key switch
11
,see page 10
•Elbow switch
11
,see page 10
•Radar
12
,see page 10
•Wireless transmitters (not illustrated)
•Access control (not illustrated)
•Door stop (not illustrated)
Safety accessories
•Safety sensors
13
,see page 10.
•Finger protection
9
,see page 10.
Troubleshooting
RemediesWhat´s wrong?
The door does not open
Change the setting of the mode selector.
(See page 8).
The motor does not start
Check that there are no objects in the detection zone if a sensor is
fitted.
Check the mains switch and fuse in the building.
Unlock the mechanical locks.The motor starts but door(s)
will not open Check that nothing is jammed beneath the door.
Change the setting of the mode selector.
(See page 8).
The door does not close
Check that there are no objects in the detection zone if a sensor is
fitted.
Check that nothing is jammed beneath the door.
Check that there are no moving objects within 1-1.5 m (39"-59")
from the door if an automatic activation unit is fitted.
The door opens and closes
continuously
If the problem continues, please contact your Entrematic Group representative.
Other products from Entrematic Group
•Door Systems
•Sliding doors
•Automatic and manual activation units
1020517-DImulti-2.0Issue 2020-04-0212

We
Entrematic Group AB
Lodjursgatan 10
SE-261 44 Landskrona
Sweden
declare under our sole responsibility that the type of equipment:
Ditec DAB305
complies with the following directives:
2014/30/EU ElectroMagnetic Compatibility Directive (EMCD)
2006/42/EC Machinery Directive (MD) the following essential health and safety requirements:
1.1.2, 1.2.1, 1.2.2, 1.2.3, 1.2.4.2, 1.2.6, 1.3.9, 1.4.3, 1.7.2, 1.7.4, 1.7.4.1, 1.7.4.2. Technical documentation for
safe integration is provided.
2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(RoHS)
Harmonized European standards which have been applied:
EN 60335-2-103:2015EN 60335-1:2012+A11:2014
EN 61000-6-3:2007+A1:2011EN 61000-6-2:2005
EN 16005:2012/AC:2015EN ISO 13849-1:2015
Other standards or technical specifications, which have been applied:
BVLBBR
IEC 60335-1:2010 ed. 5DIN 18263-4:1997
EN 1158:1997+A1:2002+AC:2006IEC 60335-2-103:2002 ed. 1/2011 ed. 2.1
EN 1634-1:2008
EC type examination or certificate issued by a notified or competent body (for full address, please contact Entrematic
Group AB) concerning the equipment:
C900020
The manufacturing process ensures the compliance of the equipment with the technical file. The manufacturing
process is regularly assessed by 3rd party.
The equipment must not be used until the final installed automatic door system has been declared in compliance
with the machinery directive 2006/42/EC.
The CE mark was first applied 2020-03-17.
Compilation of technical documentation applicable to the listed essential health and safety requirements:
Email: [email protected]Matteo Fino
Entrematic Group AB
Lodjursgatan 10
SE-261 44 Landskrona
Sweden
PositionSignatureDatePlace
Entrance Automation PresidentMatteo Fino2020-03-16Landskrona
Declaration of incorporation
DoI 1020516-en-1.0
13Issue 2020-04-021020517-DImulti-2.0
EI

1020517-DImulti-2.0Issue 2020-04-0214

Automatismoperporteabattente
DitecDAB305
Manuale dell'utente
Istruzioni originali
15Issue 2020-04-021020517-DImulti-2.0
IT

SOMMARIO
17Istruzioni per un funzionamento sicuro ......................................................................................
19Congratulazioni per l'acquisto della vostra nuova porta automatica!! .............................
19Ricezione di interferenze da apparecchi elettronici ...............................................................
19Requisiti ambientali ...........................................................................................................................
19Responsabilità del prodotto ............................................................................................................
20Assistenza ..............................................................................................................................................
20Destinazione d'uso .............................................................................................................................
20Specifiche tecniche ............................................................................................................................
21Come funziona il Ditec DAB305 ....................................................................................................
22Controlli di sicurezza regolari .........................................................................................................
25Accessori generali ...............................................................................................................................
25Accessori di sicurezza ........................................................................................................................
25Risoluzione dei problemi .................................................................................................................
25Altri prodotti di Entrematic Group ................................................................................................
26Declaration of incorporation ..........................................................................................................
© Tutti i diritti su e a questo materiale sono di esclusiva proprietà di Entrematic GroupAB. Copie, scansioni,
ritocchi o modifiche sono espressamente vietate senza preventivo consenso scritto di Entrematic GroupAB.
Ci riserviamo il diritto di apportare eventuali modifiche senza preavviso.
1020517-DImulti-2.0Issue 2020-04-0216

Istruzioni per un funzionamento sicuro
•La mancata osservanza delle informazioni contenute
nel presente manuale può dare luogo a infortuni per-
sonali o danni all'apparecchio.
•Per ridurre i rischio di infortuni - utilizzare questo au-
tomatismo esclusivamente per porte pedonali singole
o doppie, a battente o a soffietto.
•Non utilizzare l'apparecchiatura se sono necessarie
regolazioni o riparazioni.
•Scollegare l'alimentazione durante la pulizia o altri la-
vori di manutenzione.
•L'automatismo può essere utilizzato da bambini di età
superiore a 8 anni, se adeguatamente istruiti da un
responsabile della loro sicurezza.
•L'automatismo può essere utilizzato da bambini di età
anche inferiore a 8 anni, se adeguatamente tenuti
sotto controllo da un responsabile della loro sicurezza.
•L'automatismo può essere utilizzato da persone con
capacità fisiche, sensoriali o mentali ridotte se adegua-
tamenteistruitedaunresponsabiledellalorosicurez-
za.
•La pulizia e la manutenzione a cura dell'utente non
devono essere eseguite da bambini.
•Non consentire a nessuno di arrampicarsi sulla porta,
né di giocare con essa o con i comandi fissi o a distanza.
17Issue 2020-04-021020517-DImulti-2.0
IT

•Il gruppo di porte può essere attivato automaticamen-
te dai sensori o manualmente dagli organi d'impulso.
Può anche essere utilizzato manualmente come chiu-
diporta.
1020517-DImulti-2.0Issue 2020-04-0218

Congratulazioni per l'acquisto della vostra nuova porta automatica!!
Entrematic Group AB costruisce porte automatiche da oltre 50 anni. La combinazione tra tecnologia
allo stato dell'arte e materiali e componenti testati accuratamente offre un prodotto di qualità su-
periore.
Comequalsiasialtroprodotto tecnico, una porta automatica necessita periodicamente di manuten-
zione e assistenza. È fondamentale conoscere la propria porta automatica (sistema) e riconoscere
l'importanza della sua manutenzione in conformità agli standard applicabili in materia di sicurezza.
Il rappresentante autorizzato Entrematic Group locale conosce tali standard, nonché tutte le norma-
tive applicabili a livello locale e le raccomandazioni di Entrematic Group per porte pedonali ad
azionamento elettrico. Gli interventi di assistenza e regolazione eseguiti dal centro di assistenza
autorizzato Entrematic Group garantiscono un funzionamento corretto e sicuro della porta automa-
tica.
Ricezione di interferenze da apparecchi elettronici
L'apparecchio utilizza e può generare radiofrequenze; pertanto, se non viene installato e utilizzato
correttamente, può interferire con la ricezione di segnali radio e televisivi.
Se le altre apparecchiature non sono pienamente conformi ai requisiti di immunità, possono verifi-
carsi interferenze.
Non è possibile garantire l'assenza di interferenze in una particolare installazione. Se il dispositivo
provoca interferenze alla ricezione di segnali radio o televisivi, determinabili accendendo e spegnendo
il dispositivo, è opportuno provare a eliminarle adottando una o più delle seguenti misure:
•Riorientare l'antenna di ricezione.
•Riposizionare il ricevitore rispetto all'apparecchio.
•Allontanare il ricevitore dall'apparecchio.
•Collegare il ricevitore a una presa differente in modo che il dispositivo e il ricevitore siano colle-
gati a diramazioni differenti del circuito.
•Verificare che la protezione di messa a terra (PE) sia collegata.
Se necessario, rivolgersi al proprio rivenditore oppure a un tecnico elettronico esperto per ulteriori
suggerimenti.
Requisiti ambientali
Entrematic GroupI prodotti sono dotati di componenti elettronici ed eventualmente di batterie
contenenti materiali pericolosi per l'ambiente. Scollegare l'alimentazione prima di rimuovere i
componenti elettronici e la batteria, e verificare che lo smaltimento venga eseguito come previsto
dalle normative locali (in termini di luogo e modalità), analogamente a quanto fatto per il materiale
d'imballaggio.
Responsabilità del prodotto
Conformemente alle normative, le seguenti responsabilità sono a carico del proprietario o dell'uti-
lizzatore dell'apparecchio:
•che l’apparecchiatura funzioni correttamente in modo tale da garantire una sufficiente prote-
zione in materia di salute e sicurezza
•che l’apparecchiatura sia utilizzata, ispezionata, oggetto di regolare manutenzione e assistenza
da parte di qualcuno che vanti una competenza documentata in relazione all’apparecchiatura
e alle normative applicabili
•che i documenti "Registro di assistenza" e "Prova di accettazione e Valutazione dei rischi" sono
tenuti a disposizione per la registrazione degli interventi di manutenzione ed assistenza,
•l'ispezione deve comprendere l'apertura di emergenza (quando applicabile);
19Issue 2020-04-021020517-DImulti-2.0
IT

•la forza di chiusura deve essere appropriata per le dimensioni della porta sui sistemi di porte
antincendio (quando applicabile)
Assistenza
Le ispezioni devono essere eseguite regolarmente a cura di un addetto addestrato e qualificato. La
frequenza di tali ispezioni deve essere quella specificata dalle normative in vigore a livello nazionale
(o quella standard del settore, se non esistono normative a livello nazionale). Questo è particolar-
mente importante quando l'installazione riguarda una porta antincendio o una porta con funzione
di apertura di emergenza. Per migliorare la durata funzionale dell'investimento e garantire un fun-
zionamento sicuro e affidabile della porta, raccomandiamo almeno 2 o più ispezioni annuali, a se-
conda delle condizioni d'uso e funzionamento. È inoltre necessario tenere conto degli aspetti am-
bientali.
Rivolgetevi al rappresentante Entrematic Group per saperne di più sulla nostra offerta di assistenza.
Destinazione d'uso
Il Ditec DAB305 è un automatismo per porte automatiche a battente sviluppato per facilitare l'uso
delle porte automatiche. L'automatismo per porte a battente Ditec DAB305 è del tipo a basso con-
sumo energetico e utilizza un motore in CC e un sistema di riduzione ad ingranaggi per azionare un
sistema di bracci che apre la porta. La sua installazione è prevista in interni, dove è adatto a quasi
tutti i tipi di porte a battente interne ed esterne. Questo automatismo viene ampiamente utilizzato
nelle strutture sanitarie, residenziali e per uffici, nonché negli edifici pubblici.
La porta è progettata per l’uso continuo con un elevato livello di sicurezza e la massima durata. Il
sistema compensa automaticamente gli effetti dovuti alle normali variazioni delle condizioni meteo-
rologiche e le piccole variazioni di attrito dovute, ad esempio, alla polvere e alla sporcizia.
In caso di fuga per situazioni di emergenza, il gruppo porte viene aperto manualmente.
Per l'installazione e la manutenzione, vedere il Manuale d'Installazione e manutenzione 1020527.
Conservate le presenti istruzioni per futuri riferimenti.
Specifiche tecniche
Entrematic GroupProduttore:
Lodjursgatan 10, SE-261 44 Landskrona, SwedenIndirizzo:
Ditec DAB305Tipo:
100-240 V CA +10/-15%, 50/60 HzAlimentazione di rete:
Max. 300 WConsumo di corrente:
IP20Classe di protezione:
Pressione sonora:
Autorizzazioni per conto terzi concesse da organizzazioni di certificazione
valide per la sicurezza generale, vedere la Dichiarazione di incorporazione.
Omologazioni:
1020517-DImulti-2.0Issue 2020-04-0220
