SERVICE MANUAL
ESM 2
V 1.0.x
HYDROSURGERY

SERVICE MANUAL
ESM 2

Registered trademarks of Erbe Elektromedizin GmbH: autoCUT®, BiCision®, BiClamp®, CleverCap®, CleverView®,
endoCUT®, endoCOAG®, Erbe®, erbe power your performance.®, ERBECRYO®, ERBEFLO®, ERBEJET®, ERBOKRYO®,
eTip®, FiAPC®, forcedCOAG®, HybridKnife®, HybridTherm®, HYDRON®, IES VACpen®, KYRON®, NESSY®, NESSY Ω®,
PLURA®, preciseAPC®, Preflow®, pulsedAPC®, ReMode®, softCOAG®, sprayCOAG®, swiftCOAG®, thermoSEAL®,
twinCOAG®, VIO®.
Registered trademark of Erbe, USA, Inc.: CleverCap®.
For an up-to-date list of all Erbe trademarks, please visit www.erbe-med.com/IP.
All rights to this manual, in particular rights of duplication, dissemination and translation, are reserved. No part of this man-
ual may be reproduced in any form (by photocopying, microfilming or other methods) or processed, duplicated or dissem-
inated by the use of electronic systems without the written consent of Erbe Elektromedizin GmbH.
The information contained in this manual may be amended or supplemented without prior notice and represents no obli-
gation on the part of Erbe Elektromedizin GmbH.
The display illustrations in these instructions may deviate from one another depending on the software version. The display
illustrations used in these instructions are generally taken from the latest software version. Display illustrations from older
software versions will only be used if necessary due to service activities; these will be specifically labeled.
Printed by Erbe Elektromedizin
Printed in Germany
Copyright © Erbe Elektromedizin GmbH, Tübingen 2022

5 / 24
Table of Contents
80116-294_V24157  2022-07
Table of Contents
1Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Classification of the safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Knowledge of the User Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Protection from the risk of electric shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Electrostatically sensitive components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Liability and warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Controls at the front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Controls at the rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4Setup and Service settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5Remedying malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Other faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6Maintenance and servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Who is allowed to perform servicing and maintenance work? . . . . . . . . . . . . . 19
What is a technical safety check? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
How often does a technical safety check have to be performed?. . . . . . . . . . . 19
Testing and measuring equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Technical safety check – step by step. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
User manual and visual inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Tests to be conducted in accordance with the national specifications
and regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Performance tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Footswitch activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Activation via ECB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Test for the pressure control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Table of Contents
6 / 24
80116-294_V24157  2022-07

7 / 24
1 •Safety information
80116-294_V24157  2022-07
CHAPTER 1
Safety information
Classification of the safety information
Knowledge of the User Manual
The User Manual for this unit constitutes an integral part of this Service
Manual. For performing servicing activities it is assumed that the reader
has knowledge of the User Manual, especially procedures for installation,
putting into operation, and handling.
Protection from the risk of electric shock
WARNING! The WARNING! safety indication refers to a risk of personal injury.
CAUTION! The CAUTION! safety indication refers to a risk of damage to property.
ATTENTION! The ATTENTION! safety indication refers to a risk which can cause
equipment to become unserviceable.
IMPORTANT! The IMPORTANT! designation indicates application information and
other particularly important information.
WARNING! The supply voltage must match the voltage specified on the rating
plate. Connect the unit / the equipment cart to a properly installed
grounded outlet. Please use the Erbe power cord only; you can find the
REF Numbers in the User Manual of the unit.
For safety reasons, multiple outlets and extension cords should not be
used. If their use is unavoidable, they also must be provided with proper
grounding.
WARNING! Unplug the power cord from the outlet before exchanging parts of the
unit or cleaning it.
WARNING! Do not plug a wet power cord into the unit or into an outlet.
WARNING! Do not touch any unprotected wires or conductive surfaces while the
unit is opened and under voltage.

1 •Safety information
8/ 24
80116-294_V24157  2022-07
Electrostatically sensitive components
Liability and warranty
WARNING! Blown line fuses may only be replaced by a competent technician. Only
replacement fuses of the rating specified on the unit's name plate may
be used. Before resuming operation on the unit have a performance
test conducted by a competent technician (see Service Manual, chapter
"Maintenance and servicing", section "Performance tests").
CAUTION! This unit contains electrostatically sensitive components. Work at an
anti-static workplace while repairing the unit. Wear a grounding arm-
band while working with electrostatically sensitive components. Hold
the circuit boards by their non-conducting corners. Use an anti-static
container for transporting electrostatically sensitive components and
the circuit boards.
ATTENTION! Adjustments, tests, modifications, maintenance and repair work may
only be performed by Erbe or persons trained by Erbe. If the work is not
performed by trained persons, Erbe accepts no liability and warranty
rights become void.
It is recommended that the technical safety check also be performed by
Erbe or persons trained by Erbe.
ATTENTION! Only use original Erbe spare parts. The manufacturer accepts no liability
and the warranty rights becomes void if original spare parts are not
used.

9 / 24
2 •Controls
80116-294_V24157  2022-07
CHAPTER 2
Controls
Controls at the front
Fig. 2-1
IMPORTANT! This chapter contains an overview of the controls of the unit(s). The rel-
evant User Manual for the unit(s), knowledge of which is assumed for
servicing work, provides detailed information about how to use the
unit(s).
ESM 2
1
2 3
1Power Switch
2Power LED
3Ready LED

2 •Controls
10 / 24
80116-294_V24157  2022-07

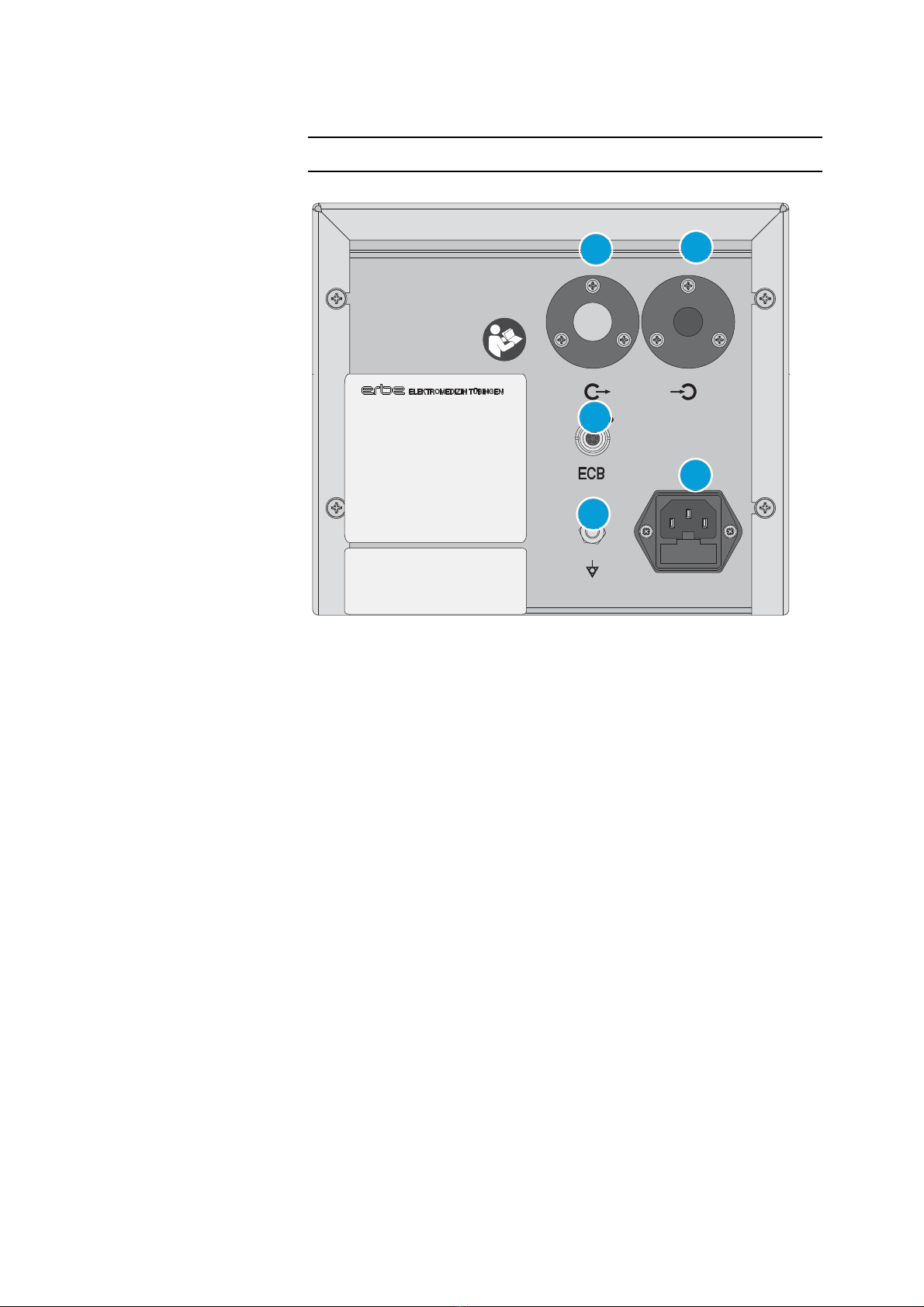

Controls at the rear
Fig. 2-2
12
3
4
5
1Silencer
2Vacuum connection
3Power supply module with fuses
4Potential equalization terminal
5ECB socket (Erbe Communication Bus)

11 / 24
3 •Technical Data
80116-294_V24157  2022-07
CHAPTER 3
Technical Data
Power connection
Rated supply voltage 100 V to 240 V (± 10 %)
Rated supply frequency 50 / 60 Hz
Line current 0.4 A to 0.8 A
Power input in standby mode 25 watts
Maximum power consumption 100 watts
Terminal for grounding (potential equalization) Yes
Power fuses T 3.15 A H / 250 V
Operating mode
Continuous duty Yes
Dimensions and weight
Width x height x depth 205 x 175 x 275 mm
Weight 6.3 kg
Ambient conditions for transport and storage of unit
Temperature -25 °C to +50 °C
Relative humidity 15 % – 80 %
Ambient conditions for operation of unit
Temperature +10 °C to +40 °C
Relative humidity 15% – 80%, non-condensing
Air pressure 54 kPa – 106 kPa

3 •Technical Data
12 / 24
80116-294_V24157  2022-07
Maximum operating altitude 5000 m above sea level
Note: The operating conditions may be limited by the suction accessories. Note the operating conditions for
the suction accessories.
Acclimatizing
If the unit has been stored or transported at temperatures below +10 °C or above +40 °C, the unit will
require approx. 3 hours to acclimatize at room temperature.
Standards
Classification according to EC Directive 93/42/EEC IIa
Classification according to Regulation (EU) 2017/
745
IIa
Protection class as per EN 60 601-1 I
Type as per EN 60 601-1 Defibrillation-proof type CF applied part
Suction parameters
Maximum vacuum Adjustable from -100 to -800 mbar (± 50 mbar), at
sea level
Suction capacity (for air, directly at the unit inlet) Depending on the set maximum vacuum. 
Maximum 25 l/min ± 10 %
Suction category as per ISO 10079-1 High vacuum/high flow
Suction accessories
Suction container volume Art. No. 20340-102: 1.5 l
Art. No. 20340-103: 2.5 l
Suction bag volume Art. No. 20340-012: 1.5 l
Art. No. 20340-013: 2.5 l
Suction hose Integrated in applicator of the ERBEJET 2. Material:
PVC. Inside diameter: 5.6 mm
Ambient conditions for operation of unit

13 / 24
4 •Setup and Service settings
80116-294_V24157  2022-07
CHAPTER 4
Setup and Service settings
The Setup and service settings for the ESM 2 are called up and modified
via the ERBEJET 2 water jet surgical unit. They are described in the Service
Manual of the ERBEJET 2.

4 •Setup and Service settings
14 / 24
80116-294_V24157  2022-07

15 / 24
5 •Remedying malfunctions
80116-294_V24157  2022-07
CHAPTER 5
Remedying malfunctions
Safety information
Error messages
Displays for the error messages
on the ERBEJET 2
Errors messages are displayed on the unit as follows:
•as a combination of error code and text
•only as text
Display for the error messages
in the service setting "Error
lists"
All relevant error messages are only saved with error code in the "Error
list" setting (see Service level).
Regarding the ERROR list The error messages are only entered with error code in the ERROR list of
this section. Status messages are not a component of these instructions.
They are described in the User Manual for the unit.
ATTENTION! Adjustments, technical tests, modifications, maintenance and repair
work may only be performed by Erbe or persons trained by Erbe. If the
work is not performed by trained persons, Erbe accepts no liability and
warranty rights become void.
Recognizing module: S = ESM 2
Recog-
nizing
module
Error code Description Remedy
ERBE-
JET 2
Suction:
activation
inter-
rupted.
The ESM 2 is switched off during
activation.
Switch device on again.
The ECB connection is disconnected
from the ERBEJET 2 activating the
ESM 2.
Restore ECB connection to the
ERBEJET 2.
Fault in the ECB connection. Repalce ECB cable. If the error remains
inform Erbe Service.

5 •Remedying malfunctions
16 / 24
80116-294_V24157  2022-07
S04 CRC error. Switch the device off and on again. If
the error remains inform Erbe Service.
Inform Erbe Service if this occurs fre-
quently.
S05 Motor runs without activation, actua-
tion transistor fails.
Switch the device off and on again. If
the error remains inform Erbe Service.
Inform Erbe Service if this occurs fre-
quently.
S14 Device temperature too high, ventila-
tor defective.
Allow device to cool down.
If the error occurs more than once,
inform Erbe Service.
S16 The suction accessory is not con-
nected or incorrectly connected.
Connect suction accessory or check for
correct connection of the suction
accessory.
Pressure sensor does not measure
any change in vacuum upon activa-
tion.
Switch the device off and on again. If
the error remains inform Erbe Service.
S17 Value of the pressure sensor deviates
from the value of the redundant
pressure sensor.
Switch the device off and on again. If
the error remains inform Erbe Service.
Inform Erbe Service if this occurs fre-
quently.
S21 The device must suck against greater
resistance. Possible causes: Vacuum
hose or suction hose is kinked, suc-
tion bag is full, bacteria filter has
absorbed moisture.
Check suction accessory.
Valve does not open. Switch the device off and on again. If
the error remains inform Erbe Service.
Inform Erbe Service if this occurs fre-
quently.
S22 Motor current too high. Switch the device off and on again. If
the error remains inform Erbe Service.
Inform Erbe Service if this occurs fre-
quently.
Recognizing module: S = ESM 2
Recog-
nizing
module
Error code Description Remedy

17 / 24
5 •Remedying malfunctions
80116-294_V24157  2022-07
S23 Motor current too low. Switch the device off and on again. If
the error remains inform Erbe Service.
Inform Erbe Service if this occurs fre-
quently.
S24 No current can be measured at the
valve (error cannot occur at
800 mbar, as the valve is completely
closed here).
Switch the device off and on again. If
the error remains inform Erbe Service.
Inform Erbe Service if this occurs fre-
quently.
S28 Both temperature sensors defective. Switch the device off and on again. If
the error remains inform Erbe Service.
The message can also occur if the
device temperature is below the tem-
perature range permissible for oper-
ation.
Acclimatize device according to the
specifications of the technical data.
S65 CAN error (Timeout). Inform Erbe Service if this occurs fre-
quently.
S66 CAN error (failure to comply with ECB
protocol).
Inform Erbe Service if this occurs fre-
quently.
S67 Operating error: Vacuum for activa-
tion too great.
Wait several seconds before the next
activation.
S70 Operating error: Device not yet ini-
tialized.
Wait several seconds before the next
activation.
S82 Temperature critical. Allow device to cool down.
If the error occurs more than once,
inform Erbe Service.
S88 A temperature sensor is defective. Inform Erbe Service if this occurs fre-
quently.
The message can also occur if the
device temperature is below the tem-
perature range permissible for oper-
ation.
Acclimatize device according to the
specifications of the technical data.
S92 Device must be recalibrated. Inform Erbe Service.
S95 Operating error: Vacuum too high. Wait several seconds before the next
activation.
Ensure that the applicator is free of tis-
sue residues or other impurities.
Recognizing module: S = ESM 2
Recog-
nizing
module
Error code Description Remedy

5 •Remedying malfunctions
18 / 24
80116-294_V24157  2022-07
Other faults
S96 A current flows at the valve even
though none should flow. The tran-
sistor for the valve control has failed.
Switch the device off and on again. If
the error remains inform Erbe Service.
Inform Erbe Service if this occurs fre-
quently.
Recognizing module: S = ESM 2
Recog-
nizing
module
Error code Description Remedy
Problem Possible cause Remedy
Red Ready LED does not go
out.
ERBEJET 2 is switched off. Switch on ERBEJET 2.
No ECB connection to the ERBEJET 2. Check ECB connection.
Device has detected an internal error. Read off error message on the dis-
play of the ERBEJET 2, and rectify
error corresponding to the instruc-
tions there.
ESM 2 does not suck or
sucks too weakly (pump
noises are audible how-
ever).
Changeover valve is set to the wrong
suction container.
Set changeover valve to the suction
container which is connected with
the suction hose.
Suction accessory is incorrectly con-
nected.
Check correct connection of the suc-
tion accessory.
Incorrect suction accessory. Then use the suction accessory
described in the Operating Instruc-
tions.
Vacuum tube or suction tubing is
plugged, kinked or crimped.
Check vacuum tube or suction tub-
ing.
The overflow protection of the suc-
tion bag has absorbed moisture.
Use another suction bag.
The bacteria filter has absorbed
moisture.
Replace the bacteria filter.
Maximum vacuum is set too low. Set a higher maximum vacuum.

19 / 24
6 •Maintenance and servicing
80116-294_V24157  2022-07
CHAPTER 6
Maintenance and servicing
Who is allowed to perform servicing and maintenance
work?
What is a technical safety check?
How often does a technical safety check have to be
performed?
ATTENTION! Adjustments, tests, modifications, maintenance and repair work may
only be performed by Erbe or persons trained by Erbe. If the work is not
performed by trained persons, Erbe accepts no liability and warranty
rights become void.
It is recommended that the technical safety check also be performed by
Erbe or persons trained by Erbe.
IMPORTANT! The technical safety check is a preventive measure to examine whether
the device is safe and ready for operation. In order to perform the vari-
ous tests the current specifications and regulations of the particular
country and the instructions in this service manual must be observed.
IMPORTANT! A technical safety check must be performed every time after mainte-
nance, but at least once per year.

6 •Maintenance and servicing
20 / 24
80116-294_V24157  2022-07
Testing and measuring equipment
IMPORTANT! The following list contains the testing and measuring equipment rec-
ommended by Erbe for servicing. Where Erbe article numbers are spec-
ified, only original Erbe testing and measuring equipment should be
used.
Erbe Art. No. Description
–Pressuring measuring instrument, 0 to -1000 mbar ±1%
20150-101 Single-pedal footswitch for ERBEJET 2
20340-004 Vacuum hose (2 vacuum hoses are required for the Safety check)
20340-012
or
20340-013
Suction bag, 1.5 liters
or
Suction bag, 2.5 liters
20340-102
or
20340-103
Suction container, 1.5 liters
or
Suction container, 2.5 liters
51700-252 Silicone hose (40 cm)
55701-082 Hose adapter
