Description
Installation manual
Extension module
DeviceNet
761726
1201NH
Extension module
CMGA-E1-DN

CMGA-E1-DN
2 Festo – GDCP-CMGA-E1-DN-EN – 1201NH
Translation of the original instructions
GDCP-CMGA-E1-DN-EN
DeviceNet
®
and RSNetWorx
®
are registered trademarks of the respective trademark owners in certain
countries.
Status: HB-37350-810-57-01E-DE
Identification marking of dangers and instructions on how to avoid them:
Warning
Dangers which can lead to death or serious injuries.
Caution
Dangers which can lead to light injuries or to serious material damage.
Other symbols:
Note
Material damage or loss of function.
Recommendation, tip, reference to other documentation
Necessary or useful accessories
Information on environmentally friendly use
Text designation:
• Activities which can be carried out in any sequence.
1. Activities which should be carried out in the specified sequence.
– General lists

CMGA-E1-DN
Festo – GDCP-CMGA-E1-DN-EN – 1201NH 3
Table of contents – CMGA-E1-DN
1 Important note 4...........................................................
2 Safety regulations 4........................................................
2.1 Installation and commissioning 4..............................................
2.2 User instructions 4..........................................................
2.3 Intended utilization 4........................................................
2.4 Operation and service 4......................................................
2.5 Scope of delivery 5..........................................................
3 Description of function 5.....................................................
4 Commissioning 6...........................................................
4.1 Procedure 6...............................................................
4.2 Project engineering 6........................................................
4.2.1 Linking in the electronic data sheet file 6...................................
4.2.2 Linking into the network diagram 7.......................................
4.2.3 Setting CMGA-E1-DN 8.................................................
4.2.4 Configuration of the DeviceNet scanner 9..................................
4.2.5 Linking into RSLogix 5000 10.............................................
4.2.6 Validation of the CMGA-E1-DN data 11.....................................
4.3 Device settings 12...........................................................
4.3.1 Address switch 12......................................................
4.3.2 Coding switch 13.......................................................
4.4 Diagnostics 13..............................................................
4.5 Configuration of the user data 14...............................................
4.6 Modification / handling changes to the device 14..................................
5 Maintenance 14.............................................................
5.1 Replacement of a module 14...................................................
6Technicaldata 15............................................................
6.1 Environmental conditions 15...................................................
6.2 Characteristic data 15........................................................
7 Pin allocation 15............................................................

CMGA-E1-DN
4 Festo – GDCP-CMGA-E1-DN-EN – 1201NH
1 Important note
Definition of individual target groups
– Project engineers for safe drive systems: engineers and technicians
– Assembly, electrical installation, maintenance and replacement of devices: company electricians
and service technicians
– Commissioning, operation and configuration: technicians and engineers
2 Safety regulations
2.1 Installation and commissioning
– Do not install or operate damaged products. Please report any damage immediately to the forward-
ing agent responsible.
– Installation work, commissioning and service work on the device may only be performed by qualified
electrical personnel with relevant knowledge of the accident prevention regulations.
– The applicable regulations, and any other special safety regulations relevant to the particular ap-
plication, must be strictly observed.
2.2 User instructions
– Only install the module and put it into operation if you are fully familiar with the applicable regula-
tions on working safety and with the operating instructions of the CMGA-B1 basic modules.
2.3 Intended utilization
– The module may only be used as a “slave” module in a DeviceNet environment in accordance with
the EN 50170 standard.
– CMGA-E1-DN is not permitted to be used for safety-related reactions.
2.4 Operation and service
– The module must always be de-energized before installation and removal, or before disconnecting
signal lines or power supply cables.
– When installing or removing the module, appropriate measures must be taken to prevent electro-
static discharge to the externally arranged terminal and plug connections.

CMGA-E1-DN
Festo – GDCP-CMGA-E1-DN-EN – 1201NH 5
2.5 Scope of delivery
The scope of delivery includes:
– Extension module CMGA-E1-DN
The EDS file with CMGA icon and the installation handbooks can be found on the CD ROM
GSPF-CMGA-BS... or under www.festo.com.
3 Description of function
The CMGA-E1-DN enables the user to transmit telegrams (diagnostic telegram such as
CMGA-B1-M2-L2-A0) via DeviceNet. A maximum of 2 CAN telegrams can be forwarded.
The module should be parametrised as a DeviceNet participant (slave).
The DeviceNet baud rates of 125 kbps, 250 kbps and 500 kbps can be set via the front address switch.
The size of the output information is 16 byte.
The CMGA-E1-DN must must be connected with one or several basic modules (CMGA-B1-M...) via a
plug-in connector on the back wall.
The DeviceNet plug connection must be made in accordance with the installation regulations of the
ODVA.
CMGA-B1-M1-L1-A0 CMGA-E1-DN
Fig. 1 Example of a configuration of CMGA-B1-M2-L2-A0 with CMGA-E1-DN

CMGA-E1-DN
6 Festo – GDCP-CMGA-E1-DN-EN – 1201NH
4 Commissioning
4.1 Procedure
Commissioning must only be performed by qualified personnel! Strictly follow the safety regulations
when commissioning!
The following example shows a commissioning with RSNetWorx.
4.2 Project engineering
First copy the supplied electronic data sheet file with icon into the corresponding Rockwell program
directory.
4.2.1 Linking in the electronic data sheet file
Electronic data sheet files can be linked in, removed or assigned to icons in the menu Tools > Electronic
Data Sheet Wizard.
Fig. 2 Electronic Data Sheet Wizard

CMGA-E1-DN
Festo – GDCP-CMGA-E1-DN-EN – 1201NH 7
4.2.2 Linking into the network diagram

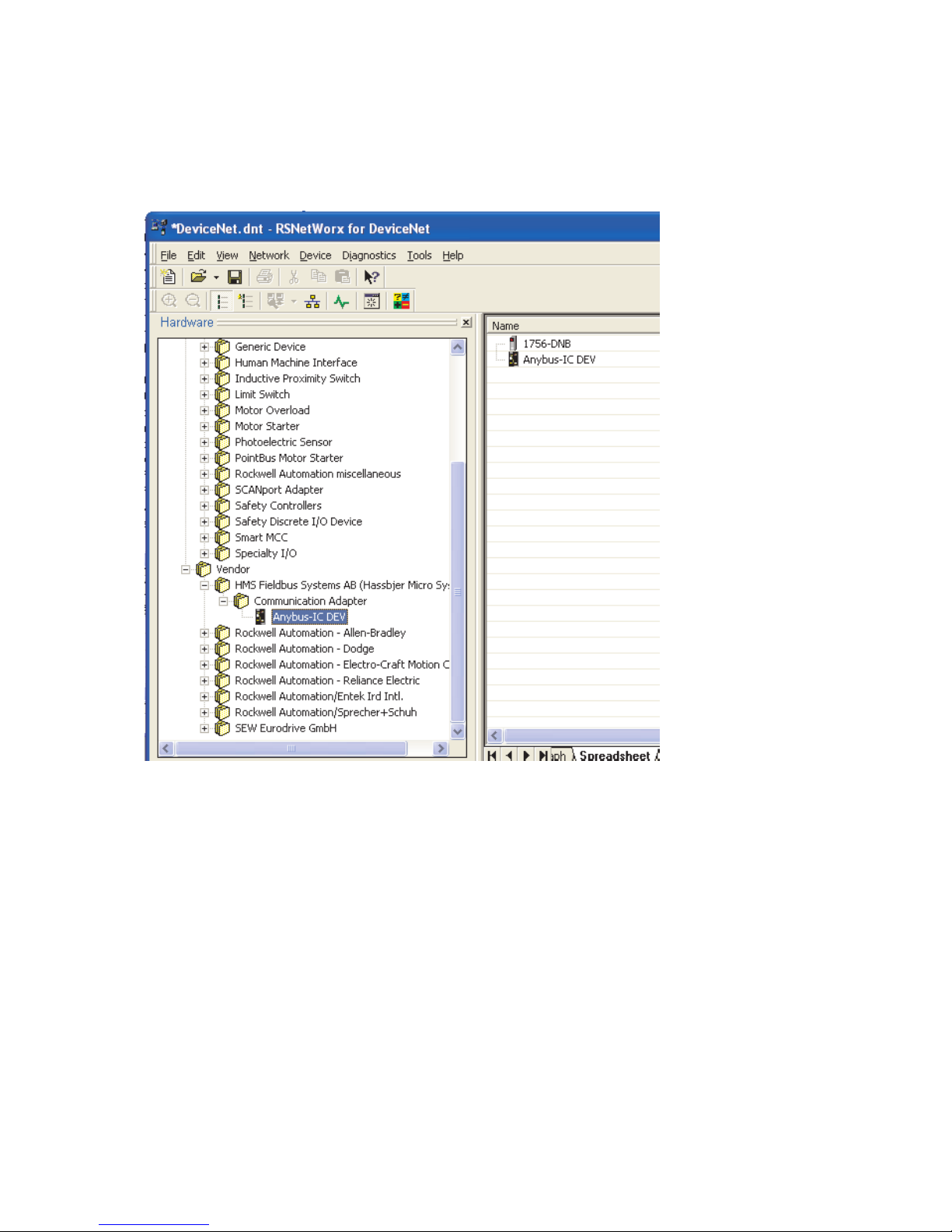

Thedevice“Anybus-IC DEV” can be dragged into the diagram by “drag and drop” in the hardware menu
under Vendor.
Fig. 3 Linking into the network diagram

CMGA-E1-DN
8 Festo – GDCP-CMGA-E1-DN-EN – 1201NH
4.2.3 Setting CMGA-E1-DN
By double clicking on “Anybus-IC DEV”, the following information can be displayed.
The only setting which must be made here is the issuing of the bus address (node).
Fig. 4 Settings

CMGA-E1-DN
Festo – GDCP-CMGA-E1-DN-EN – 1201NH 9
4.2.4 Configuration of the DeviceNet scanner
The following settings must be made by selecting the scanner (here: 1756-DNB).
The I/O parameters must be selected in the Scanlist menu.
Fig. 5 Configuration of the DeviceNet scanner scanlist
In the Input menu the input information (16 byte cyclic) must be “mapped” in the address range of the
scanner.
Fig. 6 Configuration of the DeviceNet scanner address range
When all settings have been made, the network diagram can be saved.

CMGA-E1-DN
10 Festo – GDCP-CMGA-E1-DN-EN – 1201NH
4.2.5 Linking into RSLogix 5000
In order to be able to validate the scanner data (1756-DNB), the scanner must be linked into the
“I/O configuration”.
By selecting the module the saved network diagram can be loaded in the “Module Properties” window
in the RSNetWorx menu.
Fig. 7 Linking into RSLogix 5000

CMGA-E1-DN
Festo – GDCP-CMGA-E1-DN-EN – 1201NH 11
4.2.6 Validation of the CMGA-E1-DN data
One can enable the Controller Tags window in the Logic menu.
Before the data can be validated, the DeviceNet scanner must be set in the “RUN” mode. This is done
by setting the bit “Local:4:O.CommandRegister.Run”.
Fig. 8 Validation of the CMGA-E1-DN data

CMGA-E1-DN
12 Festo – GDCP-CMGA-E1-DN-EN – 1201NH
4.3 Device settings

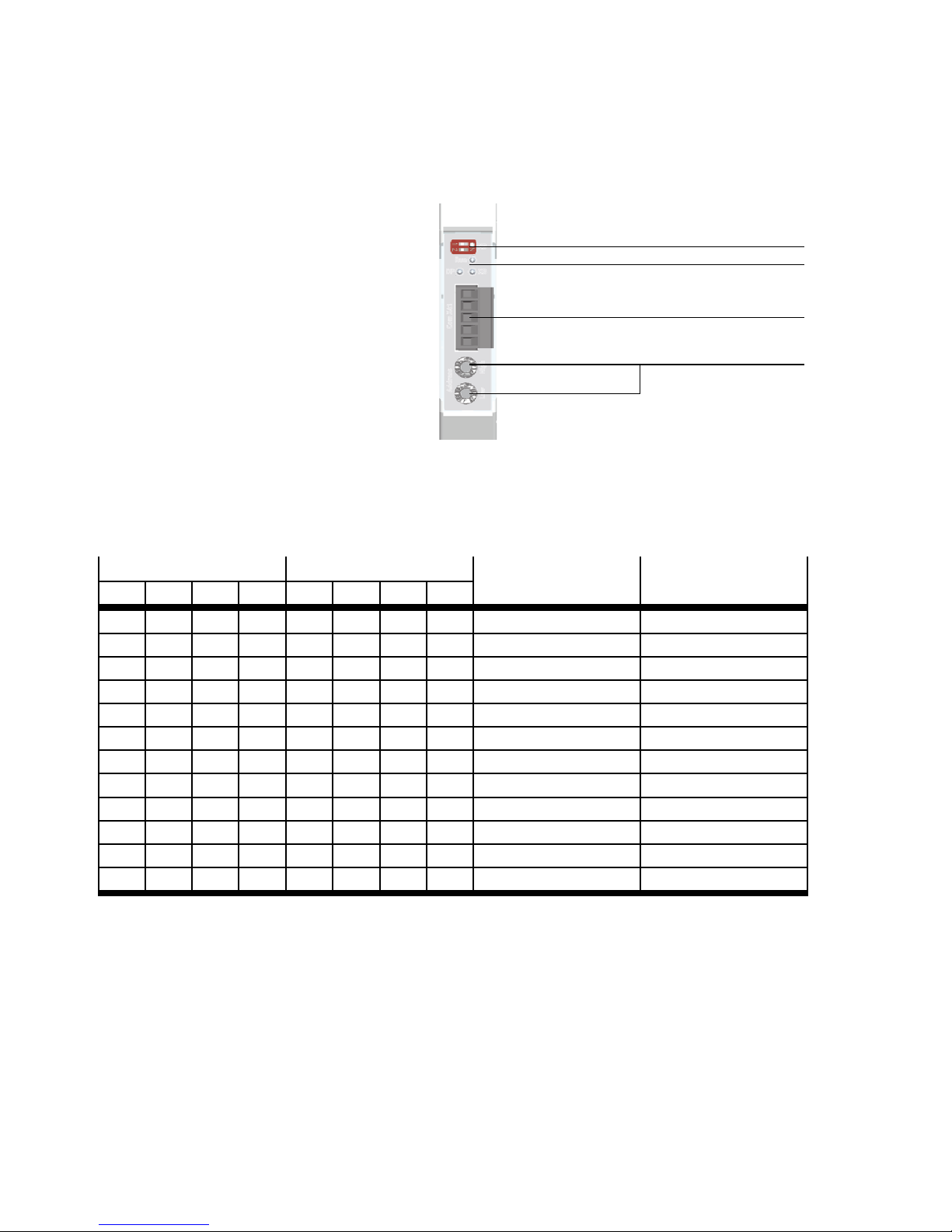

Thefollowingcanbesetonthefrontofthemodule:
1Coding switch for Bus
termination
2Diagnostics LEDs
3Fieldbus plug connector
4DeviceNet address switch
1
2
3
4
Fig. 9 Front of CMGA-E1-DN
4.3.1 Address switch
With these switches one can set the bus address (up to max. 63) and the DeviceNet baud rate.
The entry is made in hexadecimal.
Address HIGH Address LOW Baud rate Node ID
B7 B6 B5 B4 B3 B2 B1 B0
– – 0 0 0 0 0 0 – 0
– – 0 0 0 0 0 1 – 1
– – 0 0 0 0 1 0 – 2
– – 0 0 0 0 1 1 – 3
– – … … … … … … – …
– – 1 1 1 1 0 1 – 61
– – 1 1 1 1 1 0 – 62
– – 1 1 1 1 1 1 – 63
0 0 – – – – – – 125 kbps –
0 1 – – – – – – 250 kbps –
1 0 – – – – – – 500 kbps –
1 1 – – – – – – Auto baud Not supported
Tab. 1 DeviceNet address and baud rate

CMGA-E1-DN
Festo – GDCP-CMGA-E1-DN-EN – 1201NH 13
e.g. baud rate 125 kbps:
– e.g. baud rate address: 5: ADDR HIGH = “0”
ADDR LOW = “5”
– e.g. baud rate address: 46: ADDR HIGH = “2”
ADDR LOW = “E”
e.g. baud rate 250 kbps:
– e.g. baud rate address: 5: ADDR HIGH = “4”
ADDR LOW = “5”
– e.g. baud rate address: 46: ADDR HIGH = “6”
ADDR LOW = “E”
4.3.2 Coding switch
Terminating resistor for CANbus connection:
Coding switch Description
12
ON
switch 1 120 Ohm terminating resistor on back wall of CAN
switch 2 120 Ohm terminating resistor on 2nd CAN interface via SUB-D socket
Tab. 2 Coding switch terminating resistor
Note:
• If DeviceNet is being used, both switches are to be set to “OFF”.
4.4 Diagnostics
LED Colour Mode Description
RUN Green “flashing” Module OK
DP Green “permanent” DeviceNet connection active
Green “flashing” Bus in IDLE mode
Red “flashing”??? Fault in the device (contact manufacturer)
Red “flashing” Time out connection
24V bus supply voltage is missing
Faulty setting of bus address or baud rate
Red/green “alternating” In self test mode
XB Green “permanent” Processing OK
Green “flickering” Missing CAN telegram
Green “flashing” AutoBaud processing
Red “permanent” Fault in the device (contact manufacturer)
Red “flashing” Resettable error message
Red “alternating” In self test mode
Tab. 3 LED display

CMGA-E1-DN
14 Festo – GDCP-CMGA-E1-DN-EN – 1201NH
4.5 Configuration of the user data
Configuration of the internal data frame, see installation handbook for
GDSP-CMGA-E1-G2 CAN messages.
Byte
15 14 13 12 11 10 987654321
Data telegram CAN ID2 Data telegram CAN ID1
Tab. 4 User da t a
4.6 Modification / handling changes to the device
Repair
Repair work on the device can only be performed in the factory.
Warranty
The warranty is invalidated if the module is opened without permission.
5 Maintenance
5.1 Replacement of a module
Note
• No plug-in connection of the CMGA module must under any circumstances be discon-
nected or reconnected if it is live. There is a danger of sensor damage, particularly
with connected position or speed sensors.
The following must be observed when replacing a module:
1. Remove the power supply
2. Remove DeviceNet connecting cable
3. Take the module from the top-hat rail and pack it in accordance with EMC regulations.
4. Attach the new module on the top-hat rail.
5. Set the DeviceNet address (see address of the previously installed module)
6. Plug in the DeviceNet connecting cable
7. Activate the power supply via the bus connector on the back wall

CMGA-E1-DN
Festo – GDCP-CMGA-E1-DN-EN – 1201NH 15

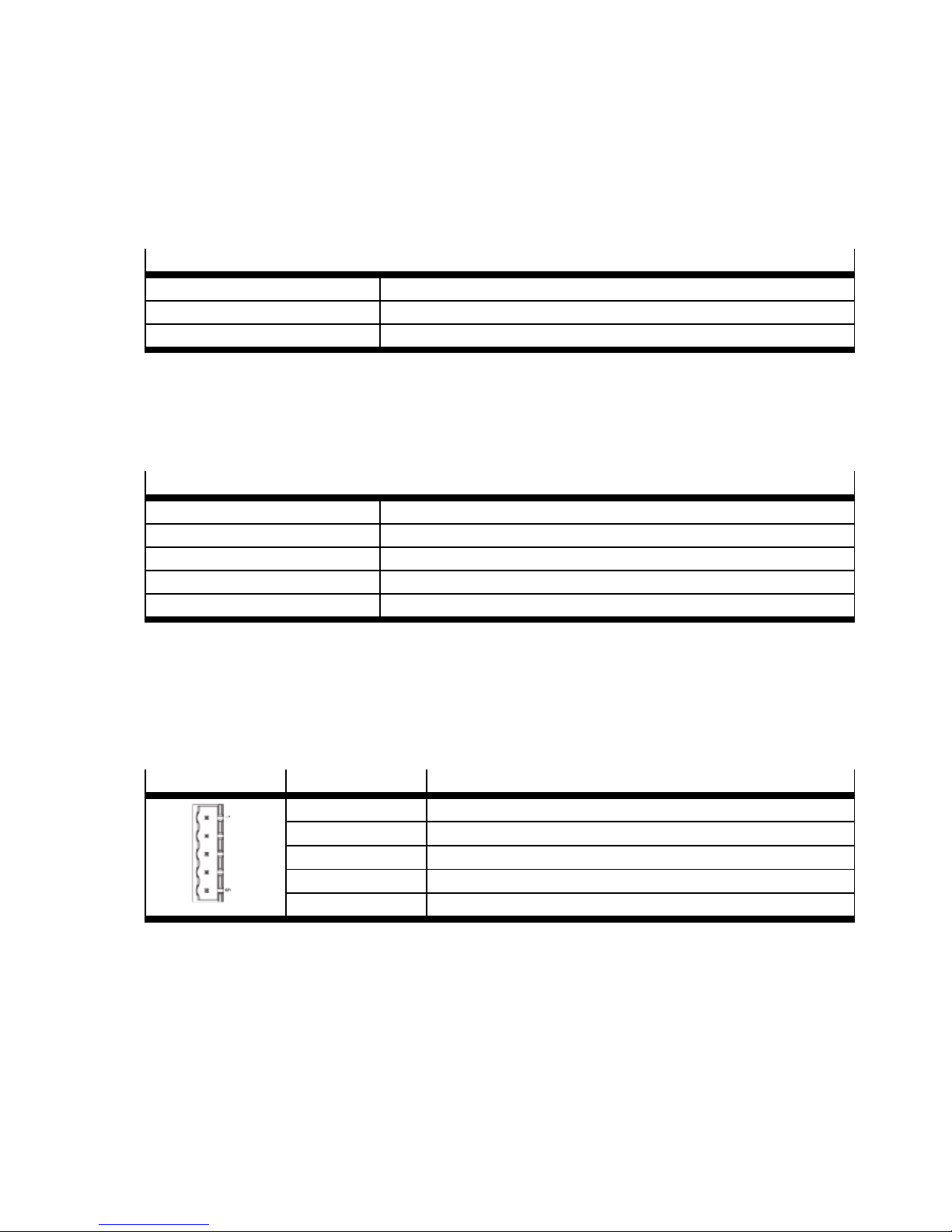

6 Technical data
6.1 Environmental conditions
Module CMGA-...
Protection class IP 20
Ambient temperature 0 °C ... 50 °C
Service life 90000 hours at 50 °C ambient
Tab. 5 Technical data of the environmental conditions
6.2 Characteristic data
Module CMGA-E1-DN
System running time 20 ms
Number of CAN objects 2
Size of CAN telegrams 8bytes
CAN ID telegram 1 192
CAN ID telegram 2 193
Tab. 6 Technical data of characteristic data
7 Pin allocation
DeviceNet allocation: 5 pin R5.08 plug
Pin Allocation
1V-
2CAN_L
3SHIELD
4CAN_H
5V+
Tab. 7 Pin allocation

CMGA-E1-DN
16 Festo – GDCP-CMGA-E1-DN-EN – 1201NH
Reproduction, distribution or sale of this document or communica-
tion of its contents to others without express authorization is
prohibited. Offenders will be liable for damages. All rights
reserved in the event that a patent, utility model or design patent
is registered.
Copyright:
Festo AG & Co. KG
Postfach
D-73726 Esslingen
Phone:
[phone]
Fax:
[phone]
e-mail:
[e-mail]
Internet:
www.festo.com
Original: de
Version: 1201NH
