GE Druck DPI 880 User manual

Druck DPI 880
Multi-function calibrator
User manual - K405
GE Industrial
Sensing

K405 Issue 1
A1
A2
A3
A
3
10
1
3
4
2
5
6
7
9
8
A 2
A 3
11
B1
12
14
1513
19
20
21
24
1718 16
22
23
25
B1
Customer service
Visit our web site: www.gesensing.com

[EN] English - 1
K405 Issue 1
Table of Contents
Introduction ......................................................................... 1
Safety .................................................................................... 1
Safety - Marks and symbols on the instrument .............. 2
To start .................................................................................. 2
To start - Location of items ........................................................ 2
To start - Items on the display ................................................. 2
To start - Prepare the instrument ........................................... 3
To start - Power on or off ............................................................ 3
To start - Set up the basic operation ..................................... 3
To start - Select a task (Measure and/or supply) ............. 3
To start - Set up the settings ..................................................... 4
Operation .............................................................................. 5
Operation - Electrical connections ......................................... 5
Operation - Communications port connections .............. 5
Operation - Change the output values ................................. 5
Operation - Measure/supply mA ............................................. 6
Operation - Measure/supply Volts or mV ............................ 6
Operation - Measure/supply Hz or pulses .......................... 7
Operation - RTD/Ohms connections ...................................... 7
Operation - Measure/simulate an RTD or Ohms ............. 7
Operation - Thermocouple (TC) connections ..................... 8
Operation - Measure/simulate a Thermocouple ............. 8
Operation - Transmitter calibration ....................................... 9
Operation - Switch test ................................................................ 9
Operation - UPM Pressure measurements ...................... 10
Operation - Error indications .................................................. 10
Maintenance ..................................................................... 11
Maintenance – Clean the unit ................................................ 11
Maintenance – Replace the batteries ................................ 11
Calibration ......................................................................... 11
Calibration - Before you start ................................................ 11
Calibration - Procedures: mA input ..................................... 12
Calibration - Procedures: mA output .................................. 12
Calibration - Procedures: mV/Volts input ......................... 12
Calibration - Procedures: mV/Volts output ...................... 13
Calibration - Procedures: Hz input/output ....................... 13
Calibration - Procedures: CJ input ....................................... 13
Calibration - Procedures: RTD (Ohms) input .................... 14
Calibration - Procedures: RTD (Ohms) output ................. 14
Calibration - Procedures: TC (mV) input/output ............. 14
Calibration - Procedures: IDOS UMM .................................. 14
Specification data ............................................................ 15
Specification - General .............................................................. 15
Specification - Electrical (A1 - Item 10) .............................. 15
Specification - Electrical connectors (A2) ......................... 15
Specification - Temperature ranges (RTD) ....................... 15
Specification - Resistance ranges (Ohms/RTD) .............. 15
Specification - Temperature ranges (TC) .......................... 16
Specification - mV (TC) range ................................................. 16
Specification - Frequency ........................................................ 16
Customer service ............................................... Back cover
Introduction
The DPI 880 Multi-function Calibrator is part of the
Druck DPI 800 series of hand held instruments.
The DPI 800 series uses Intelligent Digital Output Sensor
(IDOS) technology to give instant plug and play
functionality with a range of Universal Measurement
Modules (UMM). Example: the Universal Pressure Module
(UPM).
The DPI 880 includes these functions:
Safety
Before you use the instrument, make sure that you read
and understand all the related data. This includes: all local
safety procedures, the instructions for the UMM (if
applicable), and this publication.
WARNING
• It is dangerous to ignore the specified limits for the
instrument or to use the instrument when it is not in
its normal condition. Use the applicable protection
and obey all safety precautions.
• Do not use the instrument in locations with explosive
gas, vapor or dust. There is a risk of an explosion.
Continued
© 2005 General Electric Company. All rights reserved.
Trademarks
All product names are trademarks of their respective companies.
Function
* Measure mA, Volts/mV, Hz/pulse count
* Refer to “Specification data”.
** Optional item
* Supply mA, Volts/mV, Hz/pulse count
* Measure/simulate:
- a Resistance Temperature Detector (RTD): Ωor °C/°F
- a thermocouple (TC): mV or °C/°F
- Ohms (Ω)
Cold Junction (CJ) compensation: Automatic/Manual
Step/Ramp functions: Automatic/Manual
Communications port: IDOS or RS232
Language selection
** Measure pressure/Leak test: External IDOS UPM
** Snapshot: Up to 1000 displays with a date/time stamp
250Ω series resistor. Use this instrument together with a HART®
communicator to set up and calibrate HART®devices.
Switch test
Other functions: Hold, Backlight

2- [EN] English K405 Issue 1
Safety (Continued)
• To prevent electrical shocks or damage to the
instrument, do not connect more than 30V between
the terminals, or between the terminals and the
ground (earth).
• UPM only. To prevent a dangerous release of
pressure, isolate and bleed the system before you
disconnect a pressure connection.
Before you start an operation or procedure in this
publication, make sure that you have the necessary skills
(if necessary, with qualifications from an approved
training establishment). Follow good engineering practice
at all times.

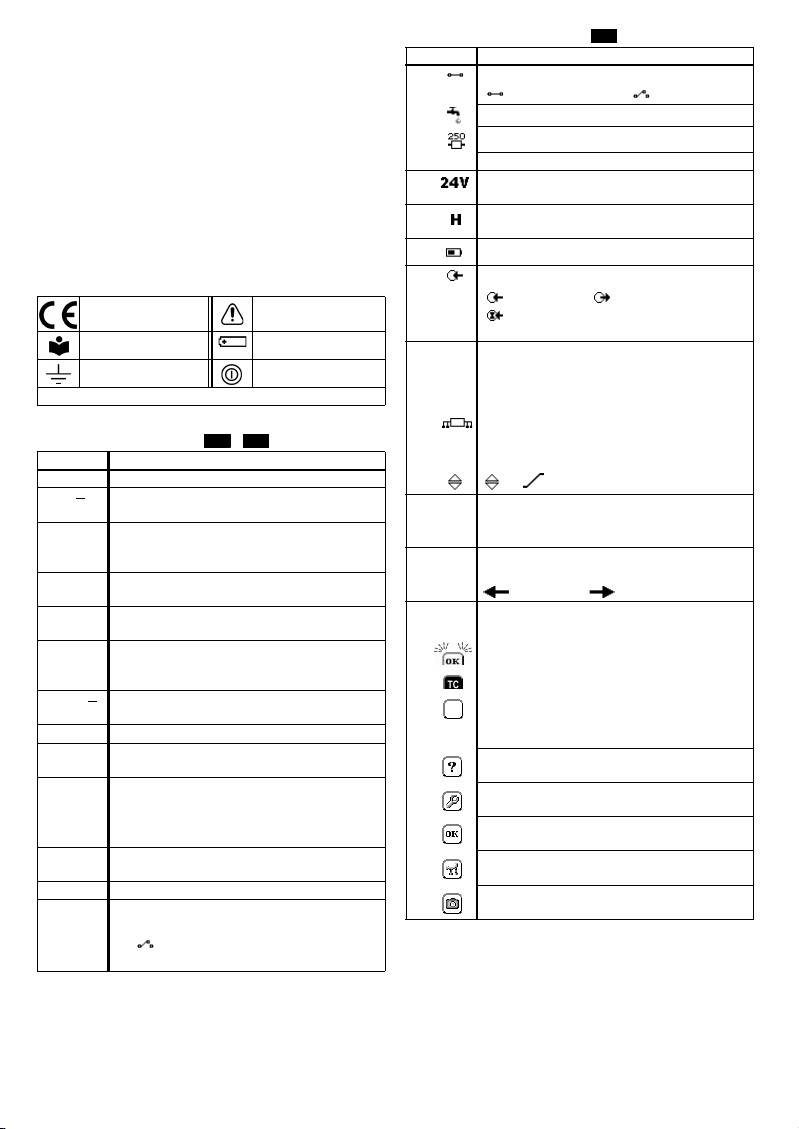

Safety - Marks and symbols on the instrument
To start
To start - Location of items …
To start - Items on the display
Complies with European
Union directives
Warning - refer to the
manual
Read the manual Battery
Ground (Earth) ON/OFF
More marks and symbols are specified in “To start”.
Item Description
1. ❍On or off button.
2. ■■Left-hand soft-key. Selects the function above it on
the display (Item 24). Example: Edit
3.
ESC
Moves back one menu level.
Leaves a menu option.
Cancels the changes to a value.
4. ▲
▼Increases or decreases a value.
Highlights a different item.
5. HOLD Holds the data on the display. To continue, press the
HOLD button again.
6. MENU
OK
Shows the task selection menu (Item 25).
Selects or accepts an item or value.
Selects [✓] or cancels [ ] a selection.
7. ■■Right-hand soft-key. Selects the function above it on
the display (Item 24). Example: Settings
8. Display. Refer to A3
9. SENSOR
/ PC Communications port. Use to connect a Universal
Measurement Module (UMM) or a RS232 cable.
10. Connectors to measure or supply the specified
values. Refer to “Operation”.
COM Common connector
3W, 4W 3-wire, 4-wire RTD input
11. Connection point for some of the optional
accessories. Refer to the datasheet.
12. Battery compartment. Refer to B1.
13. 14. 15 (Dual Function) Connectors to measure or supply the
specified values. Refer to “Operation”.
Vin, Volts input or switch
24Vo 24V loop power supply
A1 A2
Item Description
16. Task indication for the switch test.
= switch closed = switch open
UPM only. Task indication for the leak test.
There is a 250Ω series resistor in the mA circuit.
Refer to: Table 2/3
17. The loop power supply is on.
Refer to: Table 2/3
18. The data on the display is on hold. To continue, press
the HOLD button again.
19. Shows the battery level: 0 to 100%.
20. Identifies the type of data.
= Input = Output
= IDOS input
Refer to: Table 2/3
21. to 22. The settings applied to the input or output:
21. KThe thermocouple type (K, J, T ... ) - (Table 4/5).
CJ= ... The cold junction temperature (Table 1)
Pt... The RTD type (Pt50, ...) - (Table 4/5).
RTD input connections: 2, 3, or 4 (Figure 7)
5.0V ...V The input trigger level (Table 4) or the output
amplitude (Table 5).
22. , ... , = Output operation (Table 5)
23. 13.400
55mA
The measured values applicable to the task
selections in item 25, area ➀and ➁
+ the measurement range and units.
24. Sk1/2 A soft-key function. To select an available function,
press the soft-key below it. Example:
= Move left = Move right
25. The task selection menu. One task selection is
permitted in each area (➀and ➁).
= cursor position (flashes on/off)
= a button or task selection is set in area ➀or ➁.
Sets the Dual Function, area ➁selections to off. This
saves the battery power.
Refer to: Table 2/3
Help: Shows a connection diagram for the task
selections you have set.
Set Up: Shows the Set Up menu to set up the basic
operation. Refer to Table 1.
OK: Accepts the selections on the menu.
Note: MENU/OK also does this.

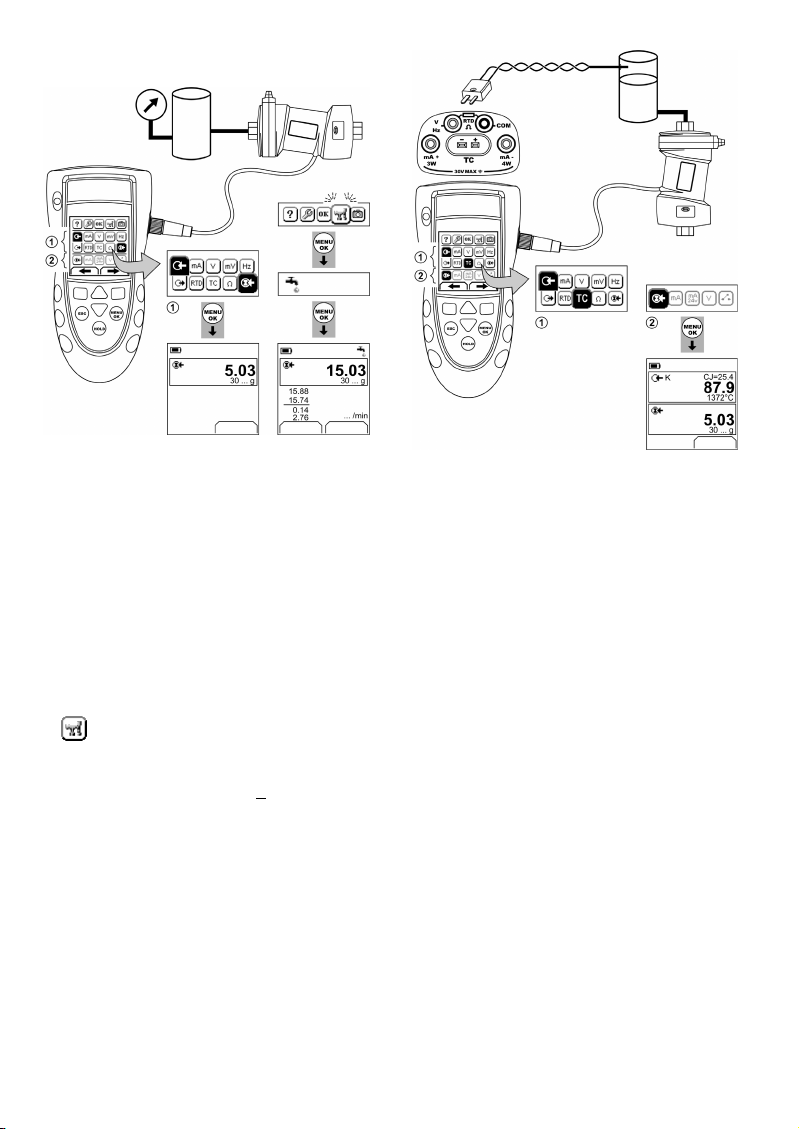

Utilities:Leak Test. Use this function with a UPM. Refer
to Figure 13.
Snapshot: Optional item - To use this facility, install
the data logging upgrade kit . Refer to K397
A3

[EN] English - 3
K405 Issue 1
To start - Prepare the instrument
Before you use the instrument for the first time:
• Make sure that there is no damage to the instrument,
and that there are no missing items.
• Remove the plastic film that protects the display. Use
the tag (◗) in the top right-hand corner.
• Install the batteries (refer to B1). Then re-attach the
cover.
To start - Power on or off
To turn the instrument on or off, press ❍(A1 - item [1]). The
instrument does a self test and then shows the applicable
data.
When the power is off, the last set of configuration options
stays in memory. Refer to “Maintenance”.
To start - Set up the basic operation
Use the Set Up menu to set up the basic operation of the
instrument.
If there is additional data for a menu option, select
Settings (■■
) to see the values that are set up. If
necessary, adjust the values.
Table 1: Menu options - Set Up

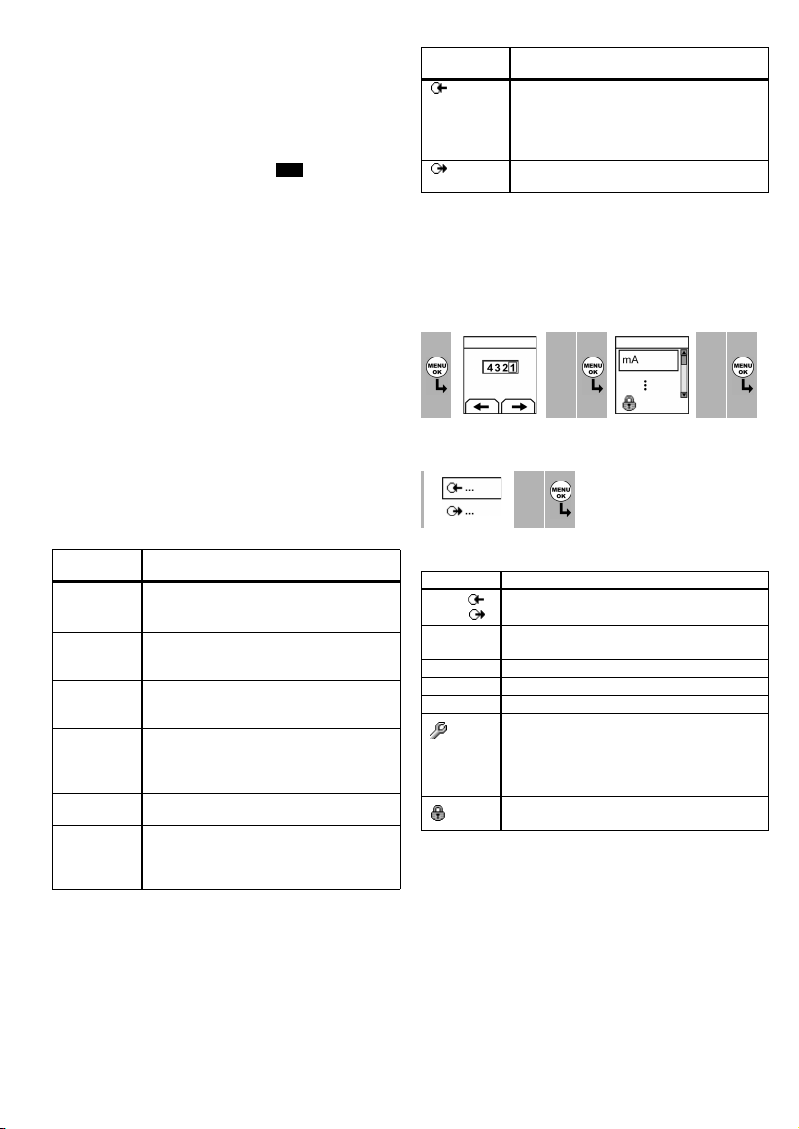

To start - Select a task (Measure and/or supply)
When the instrument is set up (Table 1), use the task
selection menu to select the applicable task.
In Table 2/3, IDOS is a Universal Measurement Module
(UMM). If you attach a UMM to the communications port
(A1 - item [9]), the task selection menu shows the
applicable IDOS options.
Make the necessary selections from each area (➀and ➁).
One task is permitted in each area.
Note: Use the Dual Function area (➁) to do two operations
at the same time. If the area ➁selection is not necessary,
set this area to off (■). This saves the battery power.
Table 2: Menu options - Task selections (Area ➀)
12
Task selection
menu: 3Menu: Set Up 45
▲
▼
+
■■
▲
▼
(Table 2) (Table 1) [✓]/[ ]
Options Description
... Scale To select the applicable international temperature
scale: IPTS 68 or ITS 90.
To add a 250Ωseries resistor into the mA circuit.
You can then use this instrument together with a
HART®communicator to set up and calibrate
HART®devices.
To select and set up the backlight facility + timer.
Additional data: Select Settings (■■)
To select and set up the power off facility + timer.
Additional data: Select Settings (■■)
To show the battery level (%).
To set the display contrast (%).
▲ Increases %, ▼ decreases %
To set the time + date. The calibration facility uses
the date to give service and calibration messages.
To set the language option.
To calibrate the instrument.
Additional data: Refer to “Calibration”.
To select and show the applicable status data.
(Software Build, Calibration Due date, Serial
Number, IDOS Information).
1Task selection
menu: 2345
▲
▼
+
■■
▲
▼
+
■■
(Table 2/3) Task = mA output
Task selection
menu: 6Display: mA output
(Table 2/3) Sk1 = Edit
Sk2 = Settings
Options
(If applicable)
Description
Input measurement tasks:
mA Measure ±55 mA
V Measure ±30V
mV Measure ±120mV
Hz Measure the frequency (Units: Table 4)
RTD Measure RTD temperature
ΩMeasure RTD resistance or Ω
TC Measure thermocouple temperature OR mV
Only when an IDOS UMM is attached. An IDOS
measurement task.
Output tasks:
mA Supply 0 to 24 mA
V Supply 0 to 12V
mV Supply 0 to 120mV
Hz Supply an output frequency (Units: Table 4)
RTD Simulate RTD temperature
ΩSimulate RTD resistance or Ω
TC Simulate thermocouple temperature OR mV

4- [EN] English K405 Issue 1
Table 3: Menu options - Task selections
(Dual Function, area ➁)
To start - Set up the settings
When the task is set up (Table 2/3), use the Settings menu
to adjust the input and/or output operation.
If there is additional data for a menu option, select
Settings (■■
) to see the values that are set up. If
necessary, adjust the values.
Table 4: Menu options - Settings (Input)
Table 5: (Part of table) Menu options - Settings (Output)
Options
(If applicable)
Description
White button = A Dual Function is set.
Black button = Dual Function, area ➁is set to off.
Input measurement tasks:
mA Measure ±55 mA
V Measure ±30V
mA/24V Measure ±55 mA (24V loop power is on)
A switch test
Only when an IDOS UMM is attached. An IDOS
measurement task.
Display: Task
Hz + mA 1Settings selection (If applicable) 23
■■▲
▼
Sk1 = Start/Stop
Sk2 = Settings
Menu:
Settings 4A 5A Display: ... units 6A 7A
▲
▼▲ ▼
(Table 4) (Table 4) [●]
Menu:
Settings 4B 5B
▲
▼
(Table 5) [●]
... Units
Pa
bar
Options
(If applicable)
Description
... Units Pressure Units (UPM only). If you select an IDOS task
(Table 2/3). Select one of the fixed units of
measurement (psi, mbar ... ).
Temperature Units (RTD or TC only). To select the
temperature units (°C or °F).
Frequency Units (Hz only). To select one of these
units:
Hz: Range <1000Hz kHz: Range 0 to 50kHz
counts/minute (cpm) counts/hour (cph)
... (TC only). Change the measurement operation:
Temperature to mV OR
mV to Temperature
CJ ... (TC only). To select the type of cold junction (CJ)
compensation.
Automatic: The instrument monitors the CJ
temperature and applies the necessary CJ
compensation.
Manual: Measure the CJ temperature and set the
applicable value. The instrument uses this value to
apply the necessary CJ compensation.
... type Select RTD Type (RTD only). To select an applicable
RTD type (Pt50, Pt100 ... )
Select TC Type (TC only). To select an applicable
thermocouple type (K, J, T ... )
Trigger level (Hz only). To set the amplitude at which the
instrument senses a frequency signal. Default = 5V.
Auto Detect [✓]/[ ]: Set this option to make the
instrument calculate the value from the available
signal.
(UPM only).Gage sensors or sensors with
differential operation. A zero correction that makes
the instrument read zero at local pressure.
(Leak Test only). To set an applicable period for the
leak test (Hours:Minutes:Seconds).
Options
(If applicable)
Description
... Units Pressure/Temperature: Refer to Table 4.
Frequency Units (Hz only). To select one of these
units:
Hz: Range <1000Hz kHz: Range 0 to 50kHz
pulses/minute (ppm) pulses/hour (pph)
... (TC only). Change the output operation:
Temperature to mV OR
mV to Temperature
CJ ... (TC only). Refer to Table 4.
... type Refer to Table 4.
Amplitude (Hz only). To set the amplitude of the output signal.
Amplitude = 5V (Default).
To select and set up a value for the “Nudge” output.
Example: 1.000 mA increments.
Additional data: Select Settings (■■)

[EN] English - 5
K405 Issue 1
Table 5: (Part of table) Menu options - Settings (Output)
Table 6: Additional data for Settings (Output):
Operation
This section gives examples of how to connect and use the
instrument. Before you start:
• Read and understand the “Safety” section.
• Do not use a damaged instrument.
Operation - Electrical connections
To prevent instrument errors, make sure that the electrical
connections (A1-item [10] and/or A2) are correct.
Operation - Communications port connections
Use the communications port (A1 - item [9]) to attach an
IDOS Universal Measurement Module (UMM).
When you attach the cable from a UMM (Figure 13/14), the
instrument automatically changes the menus to give you
all the applicable options (Table 2/3).
Operation - Change the output values
When the output operation is set up (Table 5), use one of
these procedures to change the output values:
Table 7: Procedures to change the output
Example procedure (“Nudge” output):
Options
(If applicable)
Description
To select and set up values for the “Span Check”
output. Example output cycle:
This cycle repeats
automatically.
Additional data (Table 6): Select Settings (■■)
% Step To select and set up values for the “% Step” output.
Example output cycle:
Auto Repeat - Optional
Additional data (Table 6): Select Settings (■■)
... Step To select and set up values for the “Defined Step”
output. Example output cycle:
Auto Repeat - Optional
Additional data (Table 6): Select Settings (■■)
To select and set up values for the “Ramp” output.
Example output cycle:
Auto Repeat - Optional
Additional data (Table 6): Select Settings (■■)
Item Value
Span Check
Low (0%) Set the 0% value.
High (100%) Set the 100% value.
Dwell (d) Set the period (Hours:Minutes:Seconds) between
each change in value.
% Step Low (0%), High (100%), Dwell (d): As above.
Step Size (s) ...
%
Set the change in value for each step as a
percentage of the full-scale range (High - Low).
Defined Step Low (0%), High (100%), Dwell (d): As above.
Step Size (s) Set the change in value for each step.
Example: 1.000 mA steps.
Ramp Low (0%), High (100%), Dwell (d): As above.
Travel (t) Set the period (Hours:Minutes:Seconds) to go from
the Low (0%) value to the High (100%) value.
Auto Repeat If applicable, select this item to repeat a cycle
continuously.
The Help button (A3 - Item 25) shows a connection
diagram for the task selections you have set.
Output Procedure
Select Edit (■■) and/or use the ▲▼buttons.
See the example below.
, Select Start/Stop (■■) or use the ▲▼buttons
to make the step changes manually.
Select Start/Stop (■■).
Display:
mA output 1Edit 23Edit 4
■■ ■ ■▲
▼+01.000
Sk1 = Edit
Sk2 = Settings
Display:
mA output 56
▲
▼2.000 ▲ ▼3.000
Increment = 1.000
(Table 5)

6- [EN] English K405 Issue 1
Operation - Measure/supply mA
To measure/supply a current:
1. Connect the instrument (Figure 1, 2 or 3) and, if
necessary, adjust the Set Up (Table 1).
2. Select the task from the task selection menu
(Table 2/3).
Note: Use the Dual Function area (➁) to do two operations
at the same time. If the area ➁selection is not necessary,
set this area to off (■). This saves the battery power.
3. If necessary, adjust the Settings (Table 4/5) and/or the
output values to the system (Table 7).
Figure 1: Example configuration - To measure/supply mA
with external loop power (Area ➀)
Figure 2: Example configuration - To supply mA with internal
loop power (Area ➀)
Figure 3: Example configuration - To measure mA (Dual
Function, area ➁)
Operation - Measure/supply Volts or mV
To measure/supply Volts or mV:
1. Connect the instrument (Figure 4/5) and, if necessary,
adjust the Set Up (Table 1).
2. Select the task from the task selection menu
(Table 2/3).
Note: Use the Dual Function area (➁) to do two operations
at the same time. If the area ➁selection is not necessary,
set this area to off (■). This saves the battery power.
3. If necessary, adjust the Settings (Table 4/5) and/or the
output values to the system (Table 7).
Figure 4: Example configuration - To measure/supply Volts
or mV (Area ➀)
Edit Settings
Maximum: 30V
a) Measure b) Supply
Edit Settings
a) with external loop
power
b) with internal loop
power
Maximum: 30V
0 to ±30V OR
0 to ±120mV
Edit Settings
a) Measure
b)
Supp
l
y
0 to 12V OR
0 to 120mV

[EN] English - 7
K405 Issue 1
Figure 5: Example configuration - To measure Volts (Dual
Function, area ➁)
Operation - Measure/supply Hz or pulses
To measure/supply Hz or pulses:
1. Connect the instrument (Figure 6) and, if necessary,
adjust the Set Up (Table 1).
2. Select the task from the task selection menu (Table 2):
3. If necessary, adjust the Settings (Table 4/5) and/or the
output values to the system (Table 7).

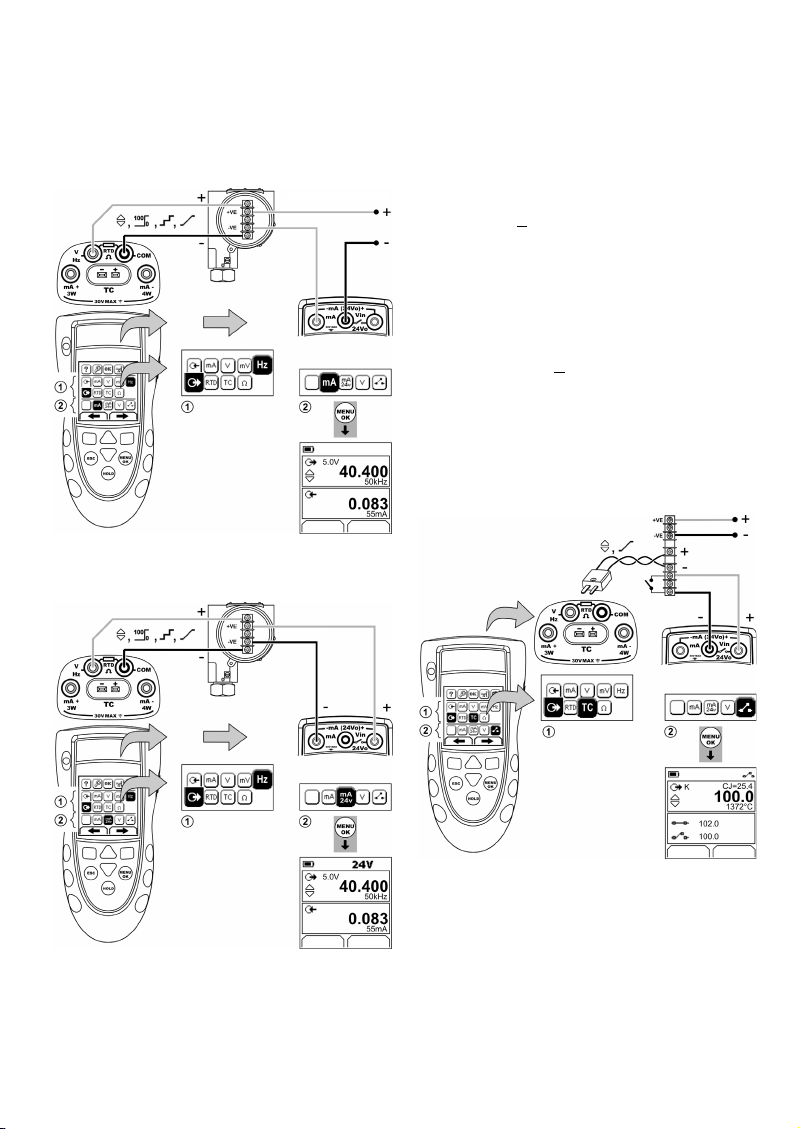

Figure 6: Example configuration - To measure/supply Hz
or Pulses
For an input, the display shows the condition of the
frequency gate:
Operation - RTD/Ohms connections
In the examples that follow 2W, 3W, and 4W identify the 2,
3, and 4-wire connections for a RTD or resistance.
Operation - Measure/simulate an RTD or Ohms
To measure/simulate RTD values or Ohms:
1. Connect the instrument (Figure 7/8) and, if necessary,
adjust the Set Up (Table 1).
2. Select the task from the task selection menu (Table 2):
3. If necessary, adjust the Settings (Table 4/5) and/or the
output values to the system (Table 7).
Figure 7: Example configuration - To measure the
temperature or resistance
For an input, the display shows the number of RTD or
resistance connections.
If this symbol does not agree with the number of
connections:
• Make sure that the connections are correct.
• Make sure that the wires and the sensor are
serviceable.
0 to ±30V
SettingsEditSettings
a) Input b) Output
= Gate open (measurement starts)
= Gate closed (measurement is waiting for the next
rising edge of the cycle)
= Fast cycle
= Four-wire RTD attached.
a) RTD °C or °F b) Ohms (Ω)
Settings
°C
Pt100

8- [EN] English K405 Issue 1
Figure 8: Example configuration - To simulate the
temperature or resistance
Operation - Thermocouple (TC) connections
Attach the TC wires to the applicable TC mini-connector
(Figure 9). The wider blade is the negative. Then attach the
connector to the instrument.
Operation - Measure/simulate a Thermocouple
To measure/simulate the TC values:
1. Connect the instrument (Figure 9) and, if necessary,
adjust the Set Up (Table 1).
2. Select the task from the task selection menu (Table 2).
3. Select Settings (■■) to change the operation from
Temperature to mV or mV to Temperature.
4. If necessary, adjust the Settings (Table 4/5) and/or the
output values to the system (Table 7).
Figure 9: Example configuration - To measure/simulate the
temperature (°C/°F) or mV values of a TC
Edit Settings Edit Settings
a) RTD °C or °F b) Ohms (Ω)
SettingsSettings
°C
K
a) °C or °F (Input) b) mV (Input)
Settings
Edit Settings Edit Settings
c) °C or °F (Output) d) mV (Output)
Settings

[EN] English - 9
K405 Issue 1
Operation - Transmitter calibration
To calibrate a transmitter:
1. Connect the instrument (Figure 10/11) and, if
necessary, adjust the Set Up (Table 1).
2. Select the applicable calibration task from the task
selection menu (Table 2/3) and, if necessary, adjust the
Settings (Table 4/5).
3. Supply the output values to the system (Table 7).
Figure 10: Example configuration - Transmitter calibration
with external loop power
Figure 11: Example configuration - Transmitter calibration
with internal loop power
Operation - Switch test
To do tests on a switch:
1. Connect the instrument (Figure 12) and, if necessary,
adjust the Set Up (Table 1).
2. Select the applicable switch test from the task
selection menu (Table 2/3) and, if necessary, adjust the
Settings (Table 5). The display shows the switch
condition (open or closed) in the top right-hand corner.
3. Supply the output values to the system (Table 7).
• Example - “Nudge” output.
a. Use Edit (■■) to set a value less than the switch
value.
b. Use the ▲▼buttons to change the value in small
increments.
• Example - “Ramp” output.
a. Set “High” and “Low” values that are applicable to
the switch value (Table 6). Then, to get an accurate
switch value, set a long “Travel” period.
b. Use Start/Stop (■■) to start and stop the “Ramp”
cycle.
4. If necessary, supply the output values in the opposite
direction until the switch changes condition again.
The display shows the applicable values to open and
close the switch.
5. To do the test again, press ESC to reset the values.
Figure 12: Example configuration - Switch test
Edit Settings
Maximum: 30V
Edit Settings
Edit Settings

10 - [EN] English K405 Issue 1
Operation - UPM Pressure measurements
Read all the instructions supplied with the UPM and then
use the specified procedures to connect it (Figure 13/14).
Figure 13: Example configuration - Pressure measurement
with a UPM
When the connections are complete, make the necessary
IDOS selections (Table 2/3).
If you re-attach a UPM, the instrument uses the same
measurement units that you used before. The instrument
keeps a record for the last 10 modules.
UPM - Measure the pressure/leak test
To measure the pressure with or without a leak test
(Figure 13):
1. Select the applicable pressure task from the task
selection menu (Table 2/3) and, if necessary, adjust the
Set Up (Table 1), and the Settings (Table 4/5).
2. If applicable, set the period for the leak test (Table 4).
3. If necessary, do a zero correction (Table 4).
4. To start the leak test, select Start (■■). When the test is
finished, the instrument calculates the leak rate in the
applicable units/minute.
To measure pressure with another operation (Figure 14),
use the same procedure.
Figure 14: Example configuration - To measure pressure
and temperature
Operation - Error indications
If the display shows <<<< or >>>> :
• Make sure that the range is correct.
• Make sure that all the related equipment and
connections are serviceable.
Utilities function: Use this function to include the
Leak Test option.
Settings
a) Pressure b) Leak test
Start Settings
Settings

[EN] English - 11
K405 Issue 1
Maintenance
This section gives procedures to maintain the unit in a
good condition. Return the instrument to the supplier for
all repairs.
Maintenance – Clean the unit
Clean the case with a moist, lint-free cloth and a weak
detergent. Do not use solvents or abrasive materials.
Maintenance – Replace the batteries
To replace the batteries, refer to B1. Then re-attach the
cover.
Make sure that the time and date are correct. The
calibration facility uses the date to give service and
calibration messages.
All the other configuration options stay in memory.
Calibration
Note: GE can provide a calibration service that is traceable
to international standards.
We recommend that you return the instrument to the
manufacturer or an approved service agent for
calibration.
If you use an alternative calibration facility, make sure that
it uses these standards.
Calibration - Before you start
To do an accurate calibration, you must have:
• the calibration equipment specified in Table 8.
• a stable temperature environment: 70 ± 2°F (21 ± 1°C)
Table 8: (Part of table) Calibration equipment
Table 8: (Part of table) Calibration equipment
Before you start the calibration, make sure that the time
and date on the instrument are correct (Table 1).
Selection sequence:
➤ Task selection menu ➤ Set Up (Table 1) ➤ Calibration ➤
Table 9: Calibration options
When you select a channel/function, the display shows
the applicable instructions to complete the calibration.
When the calibration is complete, select Calibration Due
and set the new calibration date for the instrument.
Function Calibration equipment
(ppm = parts per million)
mA OR
mA (Dual ... )
mA calibrator.
Accuracy - mA input/output: Table 10/11
Accuracy - mA (Dual Function): Table 10
mV OR
TC (mV)
mV calibrator.
Accuracy - mV input/output: Table 12/14
Accuracy - TC (mV): Table 19
Volts OR
Volts (Dual ... )
Volts calibrator.
Accuracy - Volts input/output: Table 13/ 15.
Accuracy - Volts (Dual Function): Table 13
Hz 1) Frequency meter
Total error: 7 ppm or better
Resolution: 8 digits (minimum)
2) Signal generator
IDOS UMM only. Refer to the user manual for the IDOS
UMM.
CJ - Standard RTD probe
Accuracy: 50 mK for 23 to 82.4°F (-5 to 28°C)
- Digital thermometer
Accuracy: 10 mK
B1
Function Calibration equipment
(ppm = parts per million)
RTD Ohms
- Standard 0Ωresistor
- *Standard resistor (Ω): 100, 200, 300
Tolerance: 50 ppm + 0.6 ppm/°C + 5 ppm/year
* Or an equivalent resistance simulator
- *Standard resistor (Ω): 400, 1k, 2k, 4k
Tolerance: 10 ppm + 0.6 ppm/°C + 5 ppm/year
RTD Ohms
An ohmmeter or an RTD measurement system
with the specified excitation currents (Table 18).
1Display: Enter
Calibration PIN 23 Menu: Select Channel 45
▲
▼
+
■■
▲
▼
Factory PIN = 4321 (Table 9)
Select Function
(If applicable) 5a 5b
▲
▼
(Table 9)
Options Description
... ➤...
...
To calibrate the specified input/output:
... = mA, mV, Volts, Hz, RTD (Ohms), TC (mV)
IDOS UMM only. To calibrate the specified IDOS UMM.
Refer to the user manual for the IDOS UMM.
CJ To calibrate the cold junction channel.
mA (Dual ... ) To calibrate the mA (Dual Function) input.
Volts (Dual ... ) To calibrate the Volts (Dual Function) input.
Calibration Due: To set the date of the next
calibration for the instrument.
After the specified calibration date, there is a
warning message. There is a selection box to stop
the warning.
To change the calibration PIN (Personal
Identification Number).

12 - [EN] English K405 Issue 1
Calibration - Procedures: mA input
1. Connect the instrument to the calibration equipment
(Figure 3).
2. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
3. Use the calibration menu (Table 9) to do a three-point
calibration (-FS, Zero and +FS). The display shows the
applicable instructions to complete the calibration.
4. To make sure that the calibration is correct, select the
applicable mA input task (Table 2) and apply these
values:
• mA: -55, -40, -24, -18, -12, -6, 0 (short circuit)
Then mA: 0, 6, 12, 18, 24, 40, 55.
5. Make sure that the error is in the specified limits
(Table 10).
Table 10: mA input error limits
Calibration - Procedures: mA output
1. Connect the instrument to the calibration equipment
(Figure 1).
2. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
3. Use the calibration menu (Table 9) to do a two-point
calibration (Zero and +FS). The display shows the
applicable instructions to complete the calibration.
4. To make sure that the calibration is correct, select the
applicable mA output task (Table 2) and set these
output values:
• mA: 0 (short circuit), 4, 12, 20, 24
5. Make sure that the error is in the specified limits
(Table 11).
Table 11: mA output error limits
Calibration - Procedures: mV/Volts input
1. Connect the instrument to the calibration equipment
(Figure 4).
2. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
3. Use the calibration menu (Table 9) to do a three-point
calibration (-FS, Zero and +FS). The display shows the
applicable instructions to complete the calibration.
4. To make sure that the calibration is correct, select the
applicable mV or Volts input task (Table 2).
5. Then apply the input values that are applicable to the
calibration:
• mV: -120, -60, -30, 0 (short circuit)
Then mV: 0, 30, 60, 120
OR
• Volts (V): -30, -15, -5, 0 (short circuit)
Then volts (V): 0, 5, 15, 30
6. Make sure that the error is in the specified limits
(Table 12 or Table 13).
Table 12: mV input error limits
Table 13: Volts (V) input error limits
Applied
mA
Calibrator
error
(mA)
Permitted
DPI 880 error
(mA)
±55 0.0022 0.005
±40 0.0018 0.004
±24 0.0014 0.003
±18 0.0004 0.003
±12 0.0003 0.002
±6 0.0002 0.002
0 (Short circuit) - 0.001
Output
mA
Calibrator
error
(mA)
Permitted
DPI 880 error
(mA)
0 (Short circuit) - 0.001
4 0.00020 0.001
12 0.0014 0.001
20 0.002 0.002
24 0.0023 0.002
Applied
mV
Calibrator
error
(mV)
Permitted
DPI 880 error
(mV)
±120 0.0013 0.03
±60 0.0008 0.02
±30 0.0006 0.02
0 (Short circuit) - 0.01
Applied
V
Calibrator
error
(V)
Permitted
DPI 880 error
(V)
±30 0.00058 0.004
±15 0.00011 0.002
±5 0.00006 0.001
0 (Short circuit) - 0.001

[EN] English - 13
K405 Issue 1
Calibration - Procedures: mV/Volts output
1. Connect the instrument to the calibration equipment
(Figure 4).
2. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
3. Use the calibration menu (Table 9) to do a two-point
calibration (Zero and +FS). The display shows the
applicable instructions to complete the calibration.
4. To make sure that the calibration is correct, select the
applicable mV or Volts output task (Table 2).
5. Then set the output values that are applicable to the
calibration:
• mV: 0 (short circuit), 30, 60, 90, 120
OR
• Volts (V): 0 (short circuit), 3, 6, 9, 12
6. Make sure that the error is in the specified limits
(Table 14 or Table 15).
Table 14: mV output error limits
Table 15: Volts (V) output error limits
Calibration - Procedures: Hz input/output
1. Connect the instrument to the calibration equipment
(Figure 6).
2. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
3. Set up the equipment with these conditions:
4. Use the calibration menu (Table 9) to do the calibration.
The display shows the applicable instructions to
complete the calibration.
5. To make sure that the calibration is correct, set up the
equipment to do one of these calibration checks:
• Hz input calibration check (Figure 6):
• Hz output calibration check (Figure 6):
6. Measure or supply the specified values (Table 16): Hz
then kHz. Make sure that the error is in the specified
limits.
Table 16: Hz error limits (Measure/Supply)
Calibration - Procedures: CJ input
1. Connect the instrument to the calibration equipment
(Figure 9).
2. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
3. Use the calibration menu (Table 9) to do a one-point
calibration (+FS). The display shows the applicable
instructions to complete the calibration.
4. To make sure that the calibration is correct, select the
applicable T1 input task (Table 2).
5. Make sure that the DPI 880 gives a probe temperature
that agrees with the temperature on the digital
thermometer ±0.2°F (0.1°C).
Output
mV
Calibrator
error
(mV)
Permitted
DPI 880 error
(mV)
0 (Short circuit) - 0.01
30 0.000425 0.02
60 0.0008 0.03
90 0.001175 0.03
120 0.00098 0.04
Output
V
Calibrator
error
(V)
Permitted
DPI 880 error
(V)
0 (Short circuit) - 0.001
3 0.0000175 0.002
6 0.00003 0.002
9 0.00005 0.002
12 0.000134 0.002
Frequency meter: Gate time = one second
Signal generator: Output = 10V, unipolar,
square wave
Frequency = 990 Hz
DPI 880: Input units = Hz (Table 4)
Input trigger level = 5V (Table 4)
Frequency meter: Gate time = one second
Signal generator: Output = 10V, unipolar,
square wave
DPI 880: Input trigger level = 5V (Table 4)
Units (Table 4): Hz or kHz as
specified in Table 16.
Frequency meter: Gate time = one second
DPI 880: Units (Table 5): Hz or kHz as
specified in Table 16.
Measure/
Supply
Permitted
DPI 880
error (Hz)
Measure/
Supply
Permitted
DPI 880
error (kHz)
Hz kHz
25 0.002 0.0014 2.5000 0.0002 0.000042
100 0.002 0.0021 10.0000 0.0002 0.000112
250 0.004 0.0035 20.0000 0.0003 0.000205
500 0.006 0.0058 30.0000 0.0004 0.000298
990 0.011 0.0104 50.0000 0.0006 0.000483

14 - [EN] English K405 Issue 1
Calibration - Procedures: RTD (Ohms) input
1. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
2. Use the calibration menu (Table 9) to do a two-point
calibration for each range.
• Range: 0-399.9Ω
a. Nominal zero ohms: Make a 4 wire connection to
the 0Ωresistor (Figure 7).
b. Nominal positive full-scale ohms: Make a 4 wire
connection to the 400Ωresistor (Figure 7).
•Range:400Ω-4kΩ
a. Nominal zero ohms: Make a 4 wire connection to
the 400Ωresistor (Figure 7).
b. Nominal positive full-scale ohms: Make a 4 wire
connection to the 4kΩresistor (Figure 7).
The display shows the applicable instructions to
calibrate each range.
3. To make sure that the calibration is correct, select the
applicable ohms input task (Table 2).
4. Make a 4 wire connection to the applicable standard
resistor (Table 17) and measure the value (Figure 7).
5. Make sure that the error is in the specified limits
(Table 17).
Table 17: RTD (Ohms) input error limits
Calibration - Procedures: RTD (Ohms) output
1. Connect the instrument to the calibration equipment
(Figure 8).
2. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
3. Use the calibration menu (Table 9) to do a two-point
calibration for each range.
• Range: 0-399.9Ω
•Range:400Ω-1999.9Ω
•Range:2kΩ-4kΩ
The display shows the applicable instructions to
calibrate each range.
4. To make sure that the calibration is correct, select the
applicable ohms output task (Table 2).
5. Supply the specified values (Table 18). Make sure that
the error is in the specified limits.
Table 18: RTD (Ohms) output error limits
Calibration - Procedures: TC (mV) input/output
1. Connect the instrument to the calibration equipment:
• TC (mV) input = Figure 9b
• TC (mV) output = Figure 9d
2. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
3. Use the calibration menu (Table 9) to do the calibration:
• TC (mV) input = three-point calibration
(-FS, Zero and +FS).
• TC (mV) output = two-point calibration (Zero and +FS).
The display shows the applicable instructions to
complete the calibration.
4. To make sure that the calibration is correct, select the
applicable TC (mV) input or output task (Table 2) and
apply the necessary values:
• TC (mV) input: -10, 0 (short circuit)
Then TC (mV): 25, 50, 75
• TC (mV) output: -10, 0, 25, 50, 75
5. Make sure that the error is in the specified limits
(Table 19).
Table 19: TC (mV) input/output error limits
Calibration - Procedures: IDOS UMM
Refer to the user manual for the IDOS UMM.
When the calibration is complete, the instrument
automatically sets a new calibration date in the UMM.
Standard
Resistor*
(Ω)
* Or an equivalent resistance simulator
Resistor
error
(Ω)
Permitted
DPI 880 error
(Ω)
0 (Short circuit) - 0.05
100 0.008 0.05
200 0.013 0.05
300 0.018 0.05
400 0.007 0.05
1k 0.042 0.25
2k 0.052 0.25
4k 0.072 0.50
Ohms
(Ω)
Excitation
(mA)*
* Refer to “Specification data”
Calibrator
error
(Ω)
Permitted
DPI 880 error
(Ω)
0 0.50 to 3.0 0.003 0.05
100 0.50 to 3.0 0.004 0.06
200 0.50 to 3.0 0.005 0.06
300 0.50 to 3.0 0.007 0.07
400 0.50 to 3.0 0.008 0.07
1000 0.05 to 0.8 0.015 0.30
2000 0.05 to 0.4 0.026 0.40
4000 0.05 to 0.3 0.049 0.80
Input
or output
Calibrator error
TC (mV)
Permitted DPI 880 error
TC (mV)
TC (mV) mV mV mV mV
-10 0.0005 0.00018 0.08 0.08
0 - 0.00005 0.06 0.06
25 0.0006 0.00036 0.010 0.010
50 0.0008 0.00068 0.014 0.014
75 0.0010 0.00099 0.018 0.018

[EN] English - 15
K405 Issue 1
Specification data
All accuracy statements are for one year.
Specification - General
Specification - Electrical (A1 - Item 10)
Specification - Electrical connectors (A2)
Specification - Temperature ranges (RTD)
Specification - Resistance ranges (Ohms/RTD)
Languages English [Default]
Operating
temperature
14 to 122°F (-10 to 50°C)
Storage
temperature
-4 to 158°F (-20 to 70°C)
Humidity 0 to 90% without condensation
(Def Stan 66-31, 8.6 cat III)
Shock/Vibration BS EN 61010:2001; Def Stan 66-31, 8.4 cat III
EMC BS EN 61326-1:1998 + A2:2001
Safety Electrical - BS EN 61010:2001; CE Marked
Size (L: W: H) 7.1 x 3.3 x 2.0 in
(180 x 85 x 50 mm)
Weight 15 oz (425 g)
Power supply 3 x AA alkaline batteries
Duration
(Measure)
mV, Volts: ≈ 60 hours
Hz, pulses: ≈ 60 hours
TC, mV: ≈ 70 hours
RTD, Ω: ≈ 70 hours
mA: ≈ 25 hours
Duration
(Supply)
mV, Volts: ≈ 50 hours
Hz, pulses: ≈ 20 hours
TC, mV: ≈ 70 hours
RTD, Ω: ≈ 65 hours
mA: ≈ 10 hours (24 V Source at 12 mA)
Range (Measure): 0 to ±55 mA
0 to 4000Ω*
* Refer to “Specification - Resistance ranges (Ohms/RTD)”
0 to ±120 mV
0 to ±30 V
Accuracy: Measure mA 0.02% of reading + 3 counts
Accuracy: Measure mV 0.02% of reading + 2 counts
Accuracy: Measure V 0.03% of reading + 2 counts
Range (Supply): 0 to 24 mA
0 to 4000Ω*
0 to 120 mV
0 to 12 V
Accuracy (Supply):
mA, mV, V
0.02% of reading + 2 counts
Temperature coefficient
(Measure or supply)
14 to 50°F, 86 to 122°F
(-10 to 10°C, 30 to 50°C)
0.0017% FS / °F
(0.003% FS / °C)
Connectors (A1 - Item 10) Four 0.16 in (4 mm) sockets
One TC mini-connector socket
Range (Measure) 0 to ±55 mA
0 to ±30 V
Accuracy: Measure mA 0.02% of reading + 3 counts
Accuracy: Measure V 0.03% of reading + 2 counts
Temperature coefficient
14 to 50°F, 86 to 122°F
(-10 to 10°C, 30 to 50°C)
0.0017% FS / °F
(0.003% FS / °C)
Switch detection Open and closed. 2 mA current.
Loop power output 24 V ± 10% (Maximum: 35 mA)
HART®resistor 250 Ω
Connectors (A2) Three 0.16 in (4 mm) sockets
RTD type Standard Range °F Range °C Accuracy °F * Accuracy °C *
Pt50 (385) IEC 751 -328 to 1562 -200 to 850 0.90 0.50
Pt100 (385) IEC 751 -328 to 1562 -200 to 850 0.45 0.25
Pt200 (385) IEC 751 -328 to 1562 -200 to 850 1.08 0.60
Pt500 (385) IEC 751 -328 to 1562 -200 to 850 0.72 0.40
Pt1000 (385) IEC 751 -328 to 752 -200 to 400 0.36 0.20
D 100 (392) JIS 1604-1989 -328 to 1202 -200 to 650 0.45 0.25
Ni 100 DIN 43760 -76 to 482 -60 to 250 0.36 0.20
Ni 120 MINCO 7-120 -112 to 500 -80 to 260 0.36 0.20
*Temperature coefficient:
14 to 50°F, 86 to 122°F = 0.0028% FS / °F
(-10 to 10°C, 30 to 50°C = 0.005% FS / °C)
Range (Ω) Excitation (mA) Accuracy (Ω)*
Measure Supply
0 to 400 0.1 to 0.5 - 0.15
0 to 400 0.50 to 3.0 0.10 0.10
400 to 1500 0.10 to 0.8 0.50 0.50
1500 to 3200 0.05 to 0.4 1.00 1.00
3200 to 4000 0.05 to 0.3 1.30 1.30
*Temperature coefficient:
14 to 50°F, 86 to 122°F = 0.0028% FS / °F
(-10 to 10°C, 30 to 50°C = 0.005% FS / °C)

16 - [EN] English K405 Issue 1
Specification - Temperature ranges (TC)
Specification - mV (TC) range
Specification - Frequency
cpm = counts/minute, cph = counts/hour
Thermocouple type Standard Range °F Range °C Accuracy °F * Accuracy °C *
K IEC 584 -454 to -328 -270 to -200 3.6 2.0
K IEC 584 -328 to 2502 -200 to 1372 1.1 0.6
J IEC 584 -346 to 2192 -210 to 1200 0.9 0.5
T IEC 584 -454 to -292 -270 to -180 2.5 1.4
T IEC 584 -292 to -94 -180 to -70 0.9 0.5
T IEC 584 -94 to 752 -70 to 400 0.6 0.3
B IEC 584 32 to 932 0 to 500 7.2 4.0
B IEC 584 932 to 2192 500 to 1200 3.6 2.0
B IEC 584 2192 to 3308 1200 to 1820 1.8 1.0
R IEC 584 -58 to 32 -50 to 0 5.4 3.0
R IEC 584 32 to 572 0 to 300 3.6 2.0
R IEC 584 572 to 3214 300 to 1768 1.8 1.0
S IEC 584 -58 to 32 -50 to 0 4.5 2.5
S IEC 584 32 to 212 0 to 100 3.4 1.9
S IEC 584 212 to 3214 100 to 1768 2.5 1.4
E IEC 584 -454 to -238 -270 to -150 1.6 0.9
E IEC 584 -238 to 1832 -150 to 1000 0.7 0.4
N IEC 584 -454 to -4 -270 to -20 1.8 1.0
N IEC 584 -4 to 2372 -20 to 1300 1.1 0.6
L DIN 43710 -328 to 1652 -200 to 900 0.6 0.3
U DIN 43710 -328 to 212 -200 to 100 0.9 0.5
U DIN 43710 212 to 1112 100 to 600 0.6 0.3
C 32 to 2732 0 to 1500 1.8 1.0
C 2732 to 3632 1500 to 2000 2.5 1.4
C 3632 to 4199 2000 to 2315 3.4 1.9
D 32 to 3092 0 to 1700 1.8 1.0
D 3092 to 3992 1700 to 2200 2.9 1.6
D 3992 to 4514 2200 to 2490 6.5 3.6
*Cold Junction (CJ) error (Maximum):
Range 50° to 86°F (10 to 30°C) = 0.4°F (0.2°C)
Add 0.01° CJ error / ° ambient temperature change for ranges: 14 to 50°F, 86 to 122°F (-10 to 10°C, 30 to 50°C)
Range
(mV)
Impedance Accuracy
(Measure/Supply)
-10 to 75 < 0.2 Ω0.02% of reading + 2 counts
Range (Measure): Accuracy:
0 to 999.999 Hz
0 to 50.0000 kHz
cpm: 0 to 999999
cph: 0 to 999999
For all the ranges:
0.003% of reading + 2 counts
ppm = pulses/minute, pph = pulses/hour
Range (Supply): Accuracy:
0 to 999.99 Hz
0 to 50.000 kHz
ppm: 0 to 59999
pph: 0 to 99999
0.003% of reading + 0.0023 Hz
0.003% of reading + 0.0336 Hz
0.003% of reading + 0.138 cpm
0.003% of reading + 0.5 cph
Temperature coefficient
14 to 50°F, 86 to 122°F
(-10 to 10°C, 30 to 50°C)
0.0017% FS / °F
(0.003% FS / °C)
Output waveform Square, bipolar
Voltage input 0 to 30 V
Trigger level 0 to 12 V, Resolution: 0.1 V
Output amplitude 0.1 to 12 V dc ± 1% (≤10 mA)
0.1 to 12 V ac* ± 5% (≤10 mA)
*PeaktoPeak

Customer Service
Visitour web site:www.gesensing.com
