GETTING STARTED
1

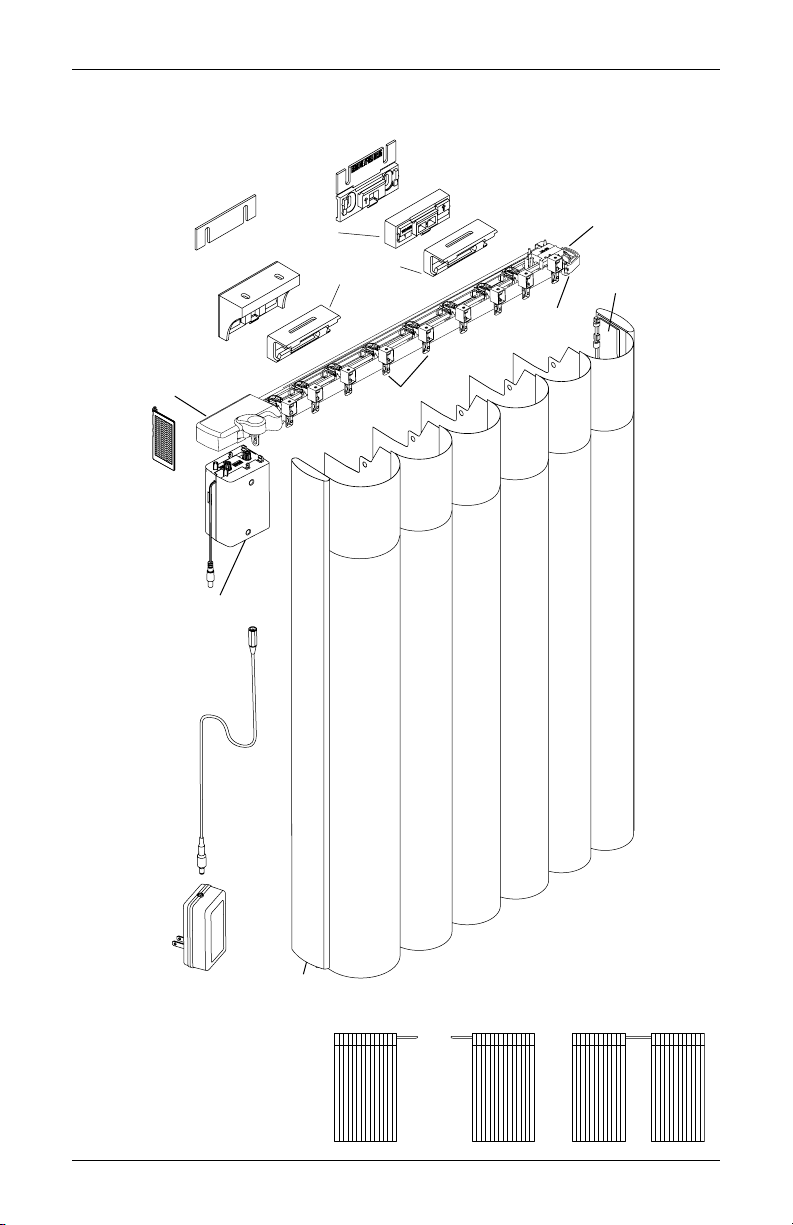

Product View

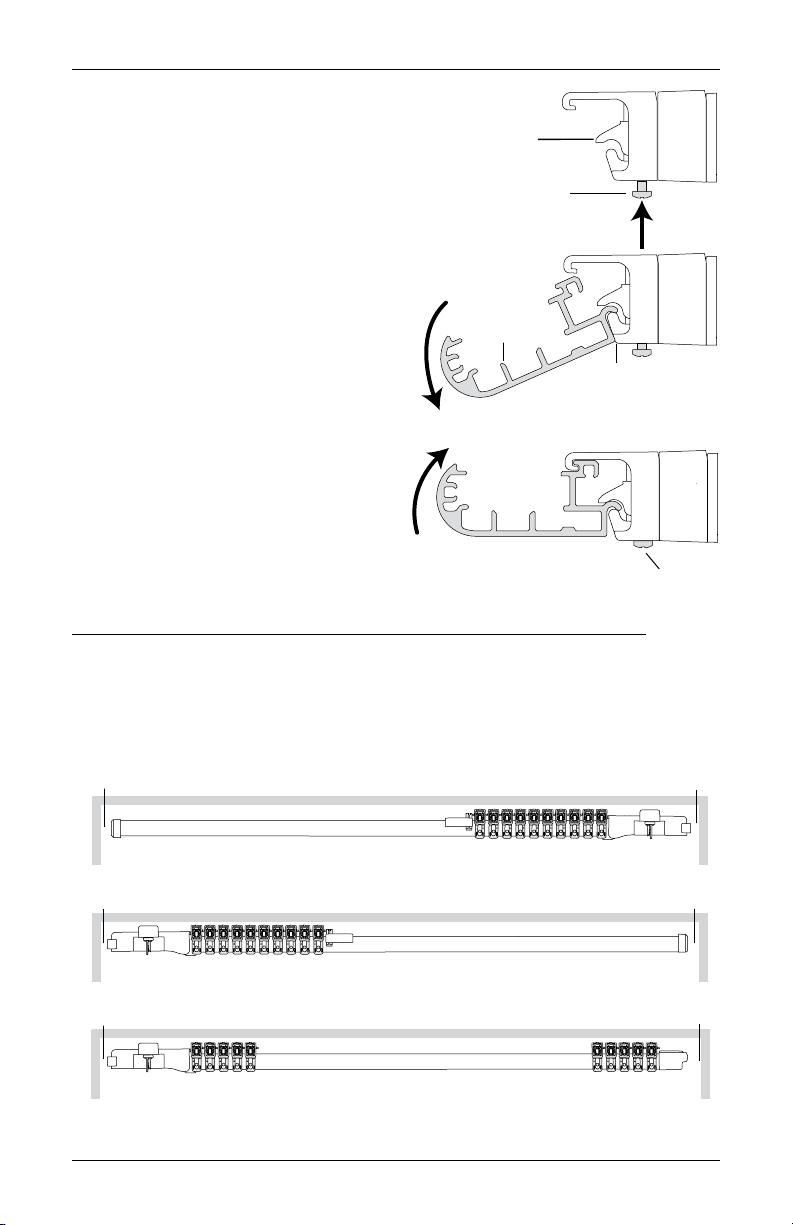

Left Stack Right Stack Split Stack
Swivel
Plate
Left Stack Shown
End
Treatment
Headrail
Swivel
Arm
Modular
Motor
Assembly
Control
Button
Drive Assembly Tilt
Clips
Swivel
Plate
Inside/Ceiling
Adapter
Installation
Bracket
Outside Wall
Adapter
with Shim
Spacer
Block
Universal
Shim
18V DC
Power
Supply
18V DC
Power
Supply
Cable

2
GETTING STARTED
Thank you for purchasing Luminette®Privacy Sheers with PowerView®Gen 3 Automation.
With proper installation, operation, and care, your new sheers will provide years of beauty
and performance.
Please thoroughly review this instruction booklet and the packing list included with your order
before beginning the installation.
Tools and Fasteners Needed
■
1
⁄ 4 " hex and flat blade screwdrivers ■ Level (laser level is recommended)
■ Measuring tape and pencil ■ Needlenose pliers
■ Power drill,
3
⁄ 32 " drill bit,
and
1
⁄ 4 " hex driver
■ Utility knife and scissors
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■ #6 Hex Head Screws (Provided). Two 1
1
⁄ 2 " screws are provided per installation bracket.
■ Speed Nuts and Screws (Provided). Extension brackets come with screws and
speed nuts.
■ Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Unpack the Components
■ Make sure you have clean hands or wear disposable gloves when handling Luminette
fabric. To avoid wrinkling the fabric, do not fold it or drape it over furniture.
■ One or more fabric panels may be packaged in a carton.
■ The fabric panels are rolled around a cardboard tube. Do not remove the protective
wrapping until starting the “Attach the Fabric Panel(s)” on page 18.
■ Remove the headrail system and installation hardware from inside the carton.
■ Remove the foam supports from the tilt shaft
inside the headrail. Rotate the supports in either
direction until they can be pulled off.
IMPORTANT: With wider fabrics, the headrail may
be shipped separately.
Speed Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 1
1
⁄ 2 "
Hex Head Screw
(Provided)
Remove
Foam Supports

GETTING STARTED
3
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■ For proper operation, the fabric must clear all obstructions, including window cranks,
handles, and moldings.
➤ Replace protruding window cranks with T-cranks, as needed.
Collectively, the sill and
jambs are called the
“window casement.”
Molding (or Wall)
Head Jamb
Sill (or Floor)
Jamb Jamb
Inside Mount
Sheer fits
within window
or door opening.
Outside Mount
Sheer mounts
outside window
or door opening.

INSTALLATION
4

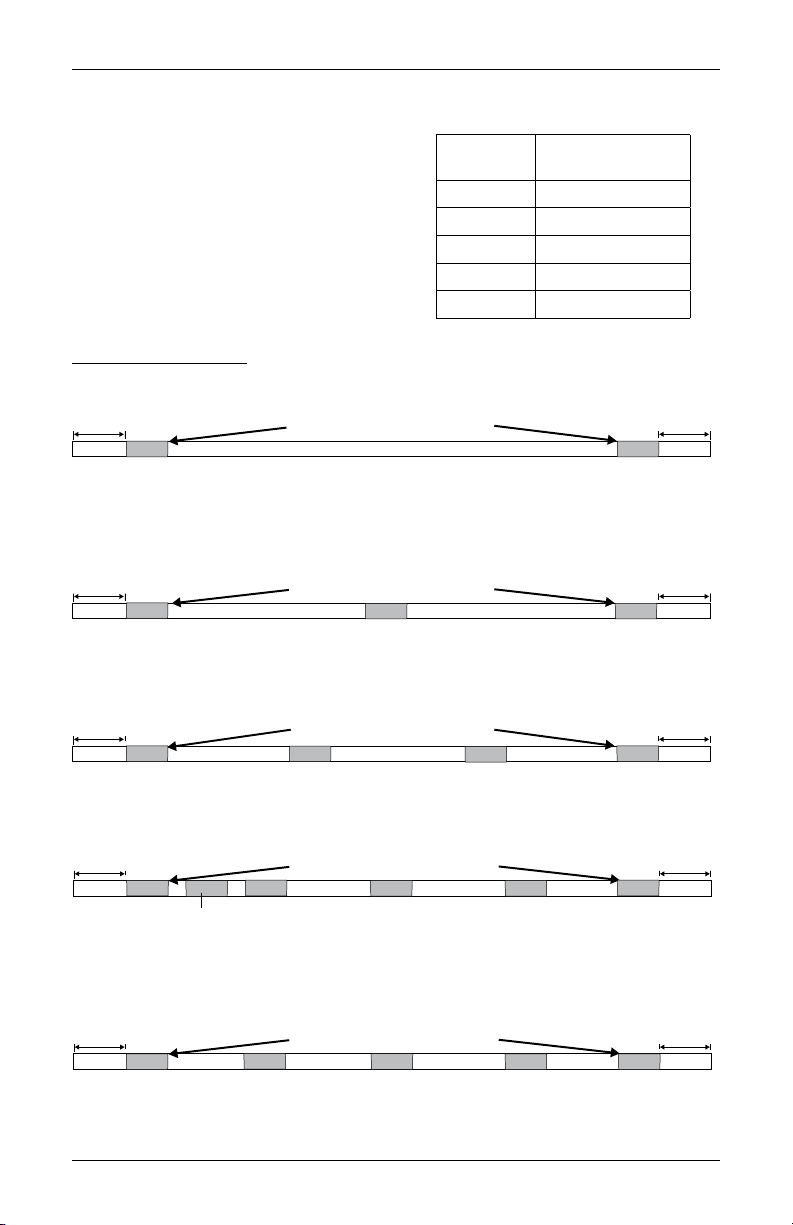

Mark the Installation Bracket Location
■ Your order will include the appropriate number
of installation bracket assemblies. The number
of assemblies required varies with headrail
width, as shown in the table.
Bracket Locations
Headrail
Width
Brackets Assemblies
Required
Up to 46" 2
46
1
⁄ 8 " to 82" 3
82
1
⁄ 8 " to 118" 4
118
1
⁄ 8 " to 154" 5+1
154
1
⁄ 8 " to 192" 6+1
Place 3 Additional Brackets Spaced Evenly
Headrail Width: 118
1
/8" to 154" — Side Stack
Place Bracket 5" From Each End
5" 5"
Control End
Place the reserved bracket evenly
between the first two brackets on the
control end of the rail.
Reserved
Bracket
5"
Headrail Width: 46
1
/8" to 82"
Place Bracket 5" From Each End
Place Additional Bracket In The Center
Place 2 Additional Brackets Spaced Evenly
Headrail Width: 82
1
/8" to 118"
Place Bracket 5" From Each End
5" 5"
5"
Place 3 Additional Brackets Spaced Evenly
Headrail Width: 118
1
/8" to 154" — Split Stack
Place Bracket 5" From Each End
5" 5"
Control End
(Reserved bracket is optional for Split Stack.)
Control End
Control End
Headral Width: 12" to 46"
Place Bracket 5" From Each End
5" 5"
Control End
Control End Place 4 Additional Brackets Spaced Evenly
Headrail Width: 1541
/8" to 192" — Side Stack
Place Bracket 5" From Each End
5" 5"
Reserved
Bracket Place the reserved bracket evenly
between the first two brackets on the
control end of the rail.
Note:
For sheers with ordered width 18" or less, space the bracket on the control end as recommended
and the remaining bracket anywhere in headrail space available.
Place 4 Additional Brackets Spaced Evenly
Headrail Width: 1541
/8" to 192" — Split Stack
Place Bracket 5" From Each End
5" 5"
(Reserved bracket is optional for Split Stack.)

INSTALLATION
5

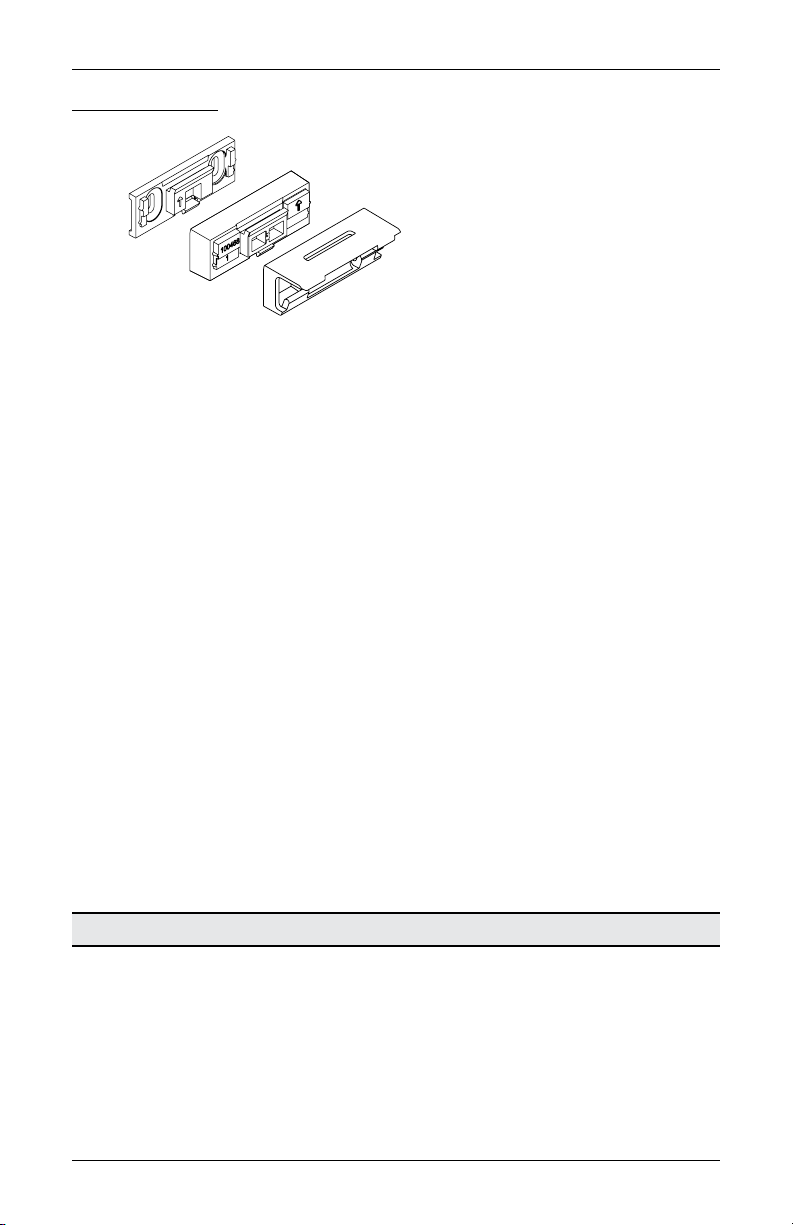

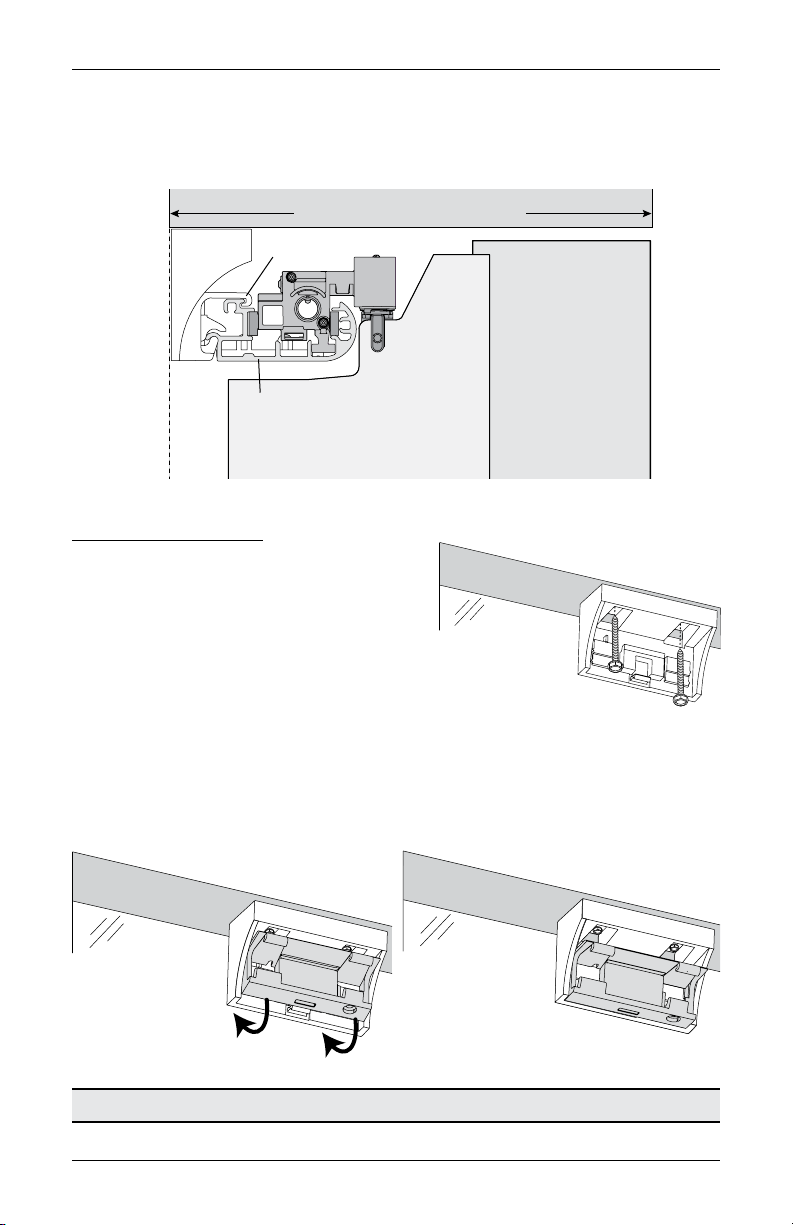

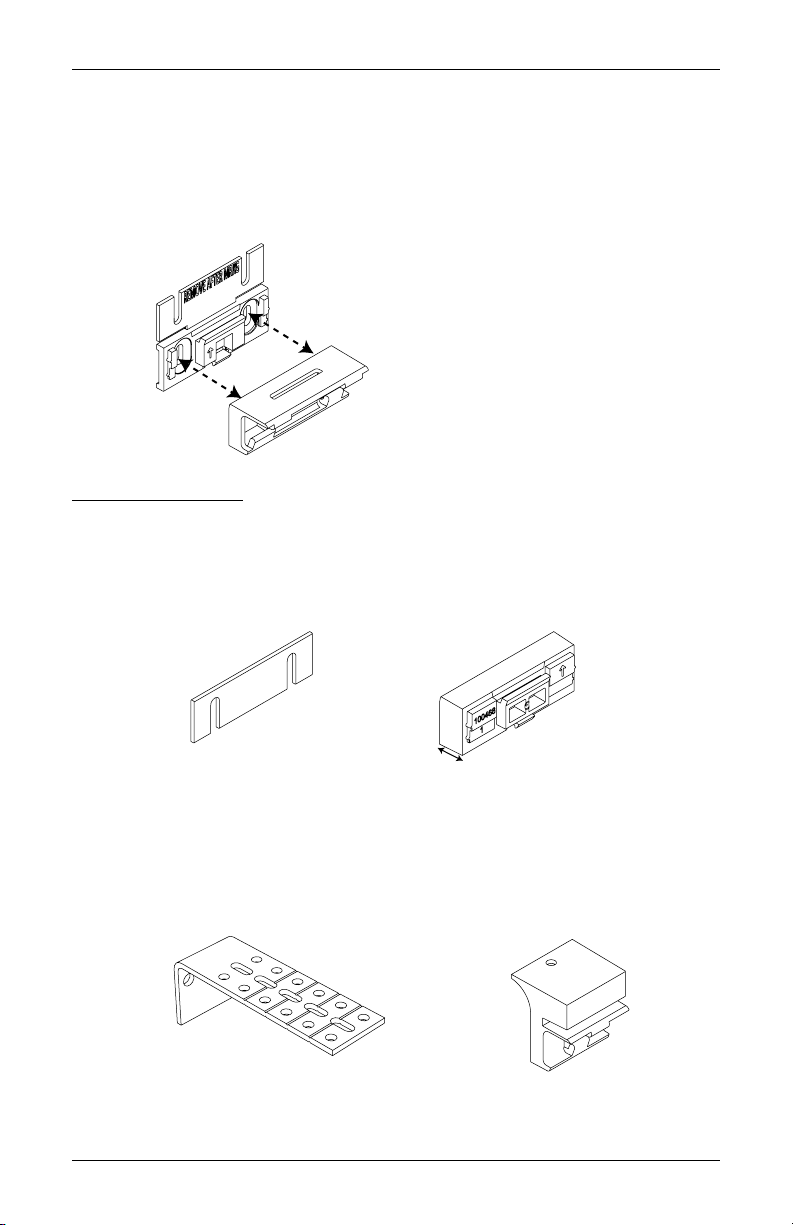

Inside Mount/Ceiling Mount
■ Mark 5" from each jamb on the mounting surface.
➤ If more than two installation brackets are required (see table on page 4), mark the
locations of additional bracket(s) and space them evenly between the two
end brackets.
NOTE: For sheers 118
1
⁄ 8 " and above in width, different bracket spacing will be
used. One bracket should be reserved, while the others are spaced as shown. The
additional/reserved bracket should be spaced evenly between the first two brackets on
the control side of the rail. The additional bracket is optional for split stack sheers.
CAUTION: Installation brackets should be fastened into wood whenever possible. Use
drywall anchors when mounting into drywall. When attaching brackets into drywall, additional
brackets may be required to keep the headrail level after the fabric is attached.
Proceed to “Mount the Installation Brackets — Inside/Ceiling Mount” on
page 7.
Adapter
Installation
Bracket
Inside Mount
Place 3 Additional Brackets Spaced Evenly
Headrail Width: 1181
/8" to 154" — Side Stack
Place Bracket 5" From Each End5" 5"
Control End
Place the reserved bracket evenly
between the first two brackets on the
control end of the rail.
Reserved
Bracket
5"
Headrail Width: 461
/8" to 82"
Place Bracket 5" From Each End
Place Additional Bracket In The Center
Place 2 Additional Brackets Spaced Evenly
Headrail Width: 821 /8" to 118"
Place Bracket 5" From Each End
5" 5"
5"
Place 3 Additional Brackets Spaced Evenly
Headrail Width: 1181
/8" to 154" — Split Stack
Place Bracket 5" From Each End
5" 5"
Control End
(Reserved bracket is optional for Split Stack.)
Control End
Control End
Headral Width: 12" to 46"
Place Bracket 5" From Each End
5" 5"
Control End
Control End
Place 4 Additional Brackets Spaced Evenly
Headrail Width: 154
1
/8" to 192" — Side Stack
Place Bracket 5" From Each End
5" 5"
Reserved
Bracket Place the reserved bracket evenly
between the first two brackets on the
control end of the rail.
Note: For sheers with ordered width 18" or less, space the bracket on the control end as recommended
and the remaining bracket anywhere in headrail space available.
Place 4 Additional Brackets Spaced Evenly
Headrail Width: 154
1
/8" to 192" — Split Stack
Place Bracket 5" From Each End
5" 5"
(Reserved bracket is optional for Split Stack.)

INSTALLATION
6

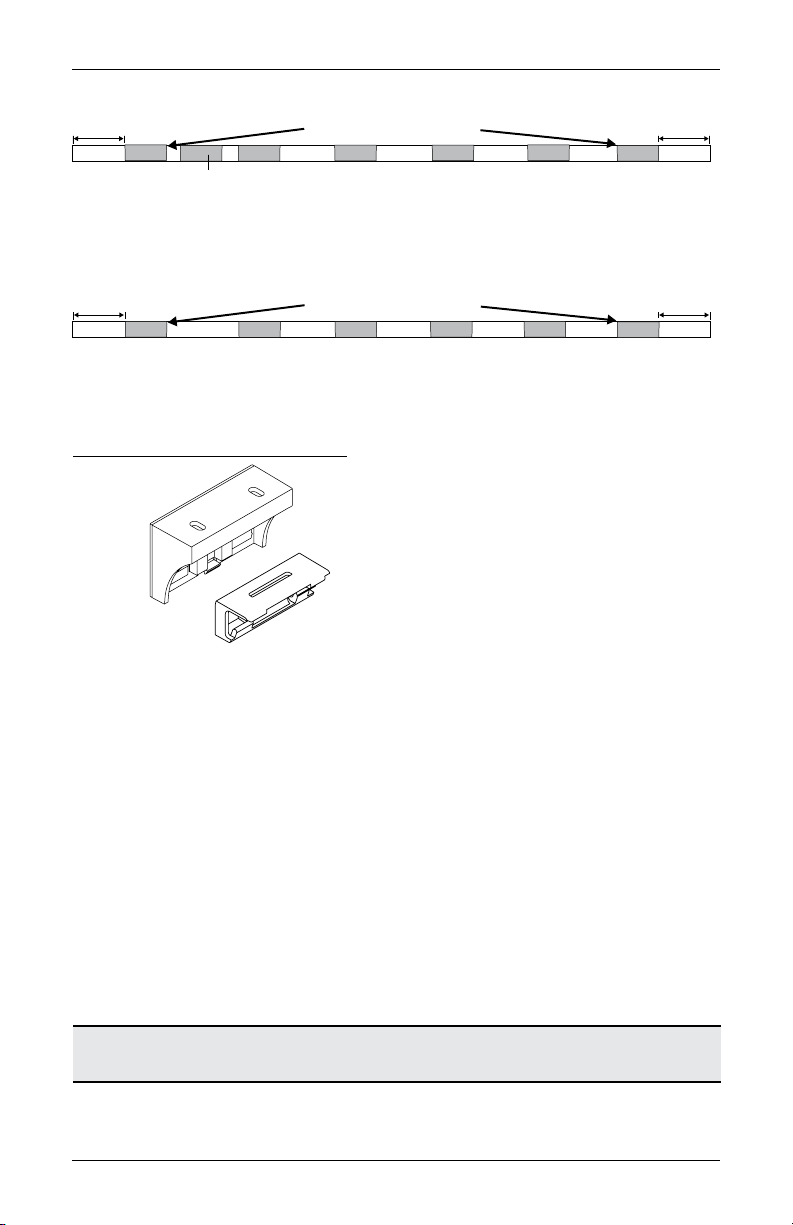

Outside Mount
■ Position the headrail over the window or door opening at the ordered height, found on the
headrail label. Use a pencil to lightly mark each end of the headrail.
NOTE: Refer to “Bracket Locations” on page 4 and 5.
➤ Alternatively, measure the width of the headrail and use that width to mark the
headrail end points over the opening.
IMPORTANT: Typically, split stack designs are centered over the opening. However, side
stack designs may be offset to one side if the fabric was intended to stack partially or
completely off the window or door opening. The intended stackback must be taken into
account when marking the headrail end points.
■ Mark 5" from each end of the headrail.
➤ If more than two installation brackets are required (see table on page 4), mark the
locations of additional bracket(s) spaced evenly between the two end brackets.
NOTE: For sheers 118
1
⁄ 8 " and above in width, different bracket spacing will be
used. One bracket should be reserved, while the others are spaced as shown. The
additional/reserved bracket should be spaced evenly between the first two brackets on
the control side of the rail. The additional bracket is optional for split stack sheers.
CAUTION: Wall adapters and installation brackets should be fastened into wood whenever
possible. Use drywall anchors when mounting into drywall. When attaching wall adapters
and brackets into drywall, additional wall adapters and brackets may be required to keep the
headrail level after the fabric is attached.
Proceed to “Mount the Installation Brackets — Outside Mount” on page 9.
Spacer
Block
Installation
Bracket
Wall
Adapter
Outside Mount

INSTALLATION
7
■ Mark the bracket mounting height to allow proper floor clearance for the fabric when
attached to the headrail. This method provides a minimum of
1
⁄ 2 " floor clearance.
➤ Locate the ordered height on the
headrail label.
➤ Wall Adapter: Measure the
ordered height minus -
1
⁄ 2 " from
the floor surface. Mark this
height at each bracket location.
➤ Extension Brackets: Measure
the ordered height plus
1
⁄ 4 " from
the floor surface. Mark this
height at each bracket location.
IMPORTANT: Mount the
screws at the height indicated,
or higher for additional floor
clearance. Be sure to clear all floor obstructions such as carpet, vents, rugs, etc.

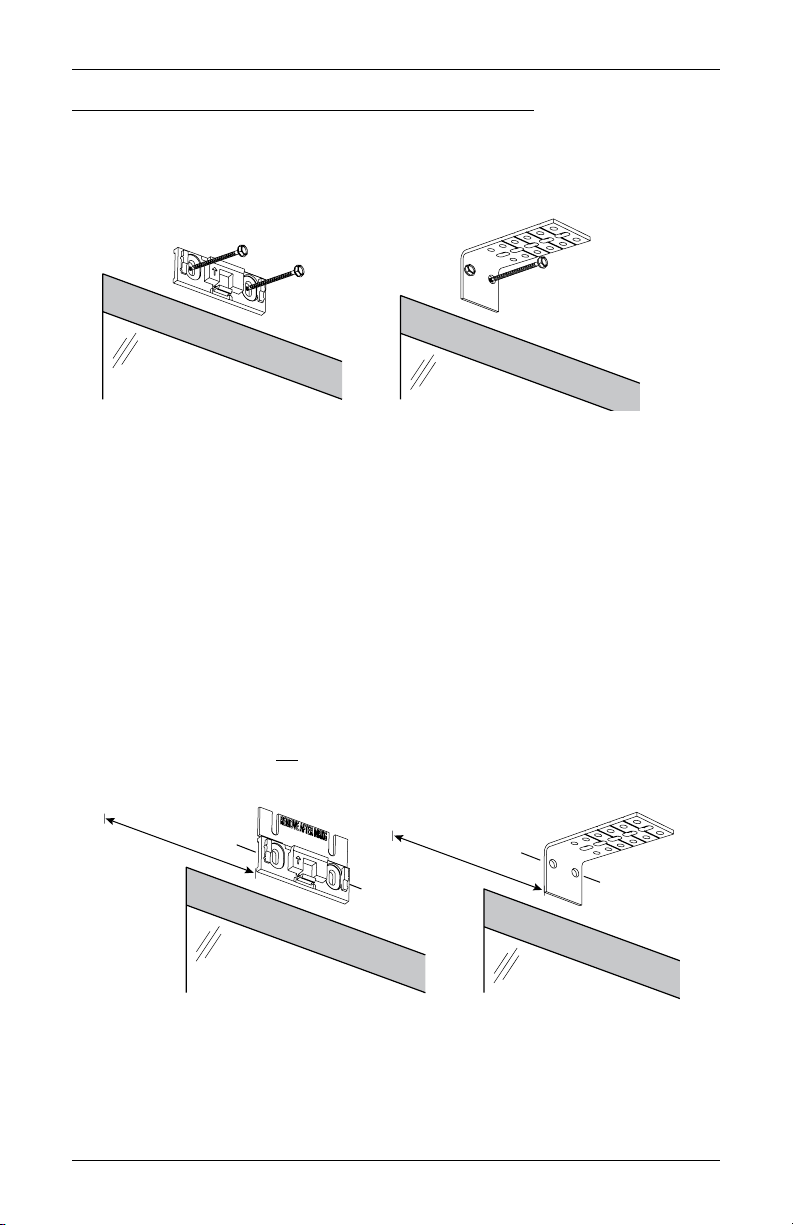

Mount the Installation Brackets — Inside/Ceiling Mount
If you are mounting on corner or bay windows, refer to “Bracket Locations — Corner and Bay
Windows” on page 13 for specific bracket locations. Return to this page after identifying
the location.
NOTE: The spacer block cannot
be used with the inside mount
adapter.
■ Mark the drill holes for the screws.
IMPORTANT: The front edges of the
brackets must align to each other.
■ Align the outside edge of the end
brackets on your marks, then mark
each of the screw holes. Center any
additional brackets on the marks and
mark their screw holes.
■ The minimum mounting depth required
is 1
1
⁄ 8 ".
Floor Surface
Ordered
Height –
1
∕ 2 "
Ordered
Height +
1
∕ 4 "
Wall
Adapter
Extension
Bracket
Installation
Bracket
Inside/Ceiling Mount
Adapter
1
1
∕ 8 " Minimum
5" Inside/Ceiling
Mount
Adapter
See fully recessed
mount on page 8.

INSTALLATION
8
■ To fully recess the fabric in the window casement, mounting depth required is 6
1
⁄ 2 ". See
the illustration below.
Mount the Brackets
■ Drill the screw holes using a
3
⁄ 32 " drill bit.
CAUTION: Use drywall anchors when
mounting into drywall.
■ Attach the inside/ceiling mount adapter
brackets using the screws provided.
IMPORTANT: For proper operation, the
headrail must be mounted level. Use a level
to check that the installation brackets are level and aligned.
■ Attach the installation bracket to the inside/ceiling mount adapter by aligning the top of
the installation bracket and rotate the installation bracket down on the mount adapter and
snap the installation bracket into place.
Proceed to “Install the Headrail” on page 14.
6
1
∕ 2 " Minimum Fully Recessed Depth
Inside Mount
Fully Recessed Mounting Depth
Window
Side
Vane
Stacked
Fabric
Headrail
Bracket
Mount
Adapter

INSTALLATION
9
Mount the Installation Brackets — Outside Mount
If you are mounting on corner or bay windows, refer to “Bracket Locations — Corner and Bay
Windows” on page 13 for specific bracket locations. Return to this page after identifying
the bracket locations.
Adding Clearance
■ Use spacer blocks to add additional clearance. Spacer blocks add
1
⁄ 2 " increments.
➤ The wall mount adapter is for standard installation. Three additional spacer blocks may
be added for an extra 1
1
⁄ 2 " clearance.
➤ The shim can be added for an extra
1
⁄ 16 " clearance.
■ Use optional extension brackets to add more clearance.
➤ Extension brackets can provide up to 3
1
⁄ 2 " clearance.
➤ Indentations are stamped into the extension brackets between each set of holes. Using
the indentations as a guide, you may cut off any unneeded length before mounting the
extension brackets. Each two-hole section is
1
⁄ 2 " in length.
Installation
Bracket
Shim
W
all Mount
Adapter
Outside Mount
Bracket Assembly
Extension
Bracket
Adapter
Spacer
Block
Extension
Bracket
Shim
1
/ 2 "
1
/ 16 "
Extension
Bracket
Adapter
Spacer
Block
Extension
Bracket
Shim
1
/ 2 "
1
/ 16 "

INSTALLATION
10
Mount the Wall Adapters or Extension Brackets
■ Drill the screw holes using a
3
⁄ 32 " drill bit.
IMPORTANT: Use drywall anchors when mounting into drywall.
■ Attach the wall adapters or extension brackets using the screws provided.
IMPORTANT: For proper operation, the headrail must be mounted level. Use a level
to check that the spacer blocks or extension brackets are level and aligned. Shim the
brackets if necessary. The brackets may also need to be shimmed if the mounting surface
is heavily textured.
■ Mark where to drill holes for the installation screws.
➤ A minimum of 1" flat vertical surface is required for spacer block installation and 1
3
⁄ 8 "
flat vertical surface is required for installation with extension brackets.
➤ Align the spacer blocks or extension brackets on your height marks.
➤ Align the outside edge of the end spacer blocks or extension brackets on your bracket
location marks, then mark each of the screw holes. Center any additional brackets on
the bracket location marks to mark their screw holes.
CAUTION: The rear of the spacer blocks or extension brackets must be flush against a
flat mounting surface. Do not mount blocks/brackets oncurved molding.
5"
Headrail
End Mark
Headrail
End Mark
Screw
Height
Mark
Screw
Height
Mark
5"
6
1
∕ 2 " Minimum Fully Recessed Depth
Outside Mount
Fully Recessed Mounting Depth
Window
Side
Vane
Stacked
Fabric
Headrail
Bracket
Wall
Adapter

INSTALLATION
11
■ Break off the top part of the wall adapter, which can be
used as a shim. See “To Shim the Brackets:” on page 11
below.
To Shim the Brackets:
■ Loosen the installation screws securing the
wall adapter.
■ Insert one or more shims between the wall
adapter and the mounting surface. Tighten
the installation screws.
Attach the Installation Brackets
If using spacer blocks or extension brackets refer to "If Using Spacer Blocks..." or “If Using
Extension Brackets...” on page 12.
■ Attach the installation bracket to the wall mount adapter by aligning the top of the
installation bracket and rotate the installation bracket down on the wall mount adapter
and snap the installation bracket into place.
Remove
Shim
from
Wall
Adapter
Shim
Wall
Adapter
Mount the Wall Adapters or Extension Brackets
■ Drill the screw holes using a
3
⁄ 32 " drill bit.
IMPORTANT: Use drywall anchors when mounting into drywall.
■ Attach the wall adapters or extension brackets using the screws provided.
IMPORTANT: For proper operation, the headrail must be mounted level. Use a level
to check that the spacer blocks or extension brackets are level and aligned. Shim the
brackets if necessary. The brackets may also need to be shimmed if the mounting surface
is heavily textured.
■ Mark where to drill holes for the installation screws.
➤ A minimum of 1" flat vertical surface is required for spacer block installation and 1
3
⁄ 8 "
flat vertical surface is required for installation with extension brackets.
➤ Align the spacer blocks or extension brackets on your height marks.
➤ Align the outside edge of the end spacer blocks or extension brackets on your bracket
location marks, then mark each of the screw holes. Center any additional brackets on
the bracket location marks to mark their screw holes.
CAUTION: The rear of the spacer blocks or extension brackets must be flush against a
flat mounting surface. Do not mount blocks/brackets oncurved molding.
5"
Headrail
End Mark
Headrail
End Mark
Screw
Height
Mark
Screw
Height
Mark
5"
6
1
∕ 2 " Minimum Fully Recessed Depth
Outside Mount
Fully Recessed Mounting Depth
Window
Side
Vane
Stacked
Fabric
Headrail
Bracket
Wall
Adapter

INSTALLATION
12
If Using Spacer Blocks...
■ Align the top of the spacer block with the
wall adapter and then rotate the spacer
block down until the spacer block snaps
onto the wall adapter.
■ Add any additional spacer blocks required.
IMPORTANT: A maximum of three spacer
blocks can be used.
■ Align the spacer block onto the wall adapter.
■ Rotate from the top to bottom until the spacer
block snaps onto the wall adapter.
■ After the spacer blocks are installed attach
the installation bracket to the spacer block.
➤ Align the installation bracket onto the
spacer block.
➤ Rotate from the top to bottom until the
installation bracket snaps onto the wall adapter.
If Using Extension Brackets...
■ Slide the base covers onto each extension bracket.
■ If necessary, use scissors to trim the flat bracket cover to length. Slide a cover onto
each bracket.
■ Attach the extension bracket adapters using the screws and speed nuts provided.
Proceed to “Install the Headrail” on page 14.
Spacer
Block
Installation
Bracket
Wall
Adapter
Extension
Bracket
Cover
Extension
Bracket
Extension Bracket
Base Cover
Extension
Bracket
Adapter
Speed
Nut
Screw

INSTALLATION
13
Bracket Locations — Corner and Bay Windows
■ Mount the first installation bracket with one spacer block 8" from the corner.
IMPORTANT: The ends of the headrails should be located 3" from
the corner.
➤ If additional spacer blocks or extension brackets are used, the
installation brackets must be moved further away from the corner
by the amount of added clearance.
➤ The ends of the headrail must be moved further away from the
corner by the same amount.
NOTE: Refer to “Bracket Locations” on page 4.
■ For bay windows, first center and mount the middle sheer headrail.
➤ Then mount the side sheers so that the abutting ends of the
headrails are the same distance from the bay window angle as
the ends of the middle sheer headrail.
NOTE: For sheers with ordered width 18" or less, space the bracket on the control
side as recommended and the remaining bracket anywhere in the headrail space
available, while keeping the headrail 3" from the corner.
8"
Brackets
5"
8" 5"
Motor
Motor
3"
Brackets

INSTALLATION
14
Install the Headrail
■ Push up on the locking screws. This raises the locking
tab and makes the headrail easier to install.
■ The grooves on the back of the headrail are designed
to snap into the locking tab on the bracket.
➤ Tilt the front of the headrail down so the bottom
groove fits into the locking tab on each
installation bracket.
NOTE: Match the back of the headrail to
the bottom of the installation bracket.
■ With the bottom groove in place on all
bracket, tilt the headrail up so the top
groove fits into the top tabs on the
installation brackets.
IMPORTANT: Make sure the headrail
snaps into place and is secure in each
installation bracket.
■ Position/center the headrail and tighten the
locking screws until snug. Do not overtighten.
Inside Mount and Wall-To-Wall Outside Mount Installations
■ After the headrail is installed into the installation brackets, check the clearance at
eachend and make any necessary adjustments.
IMPORTANT: The recommended amount of clearance varies according to the motor end
and stack design, as shown below.
Tilt Down
Tighten
Locking
Screw
Locking
Tab
Tilt Up
Headrail
Match Back of
Headrail to Bottom of
Installation Bracket
Split Stack — Minimum Clearances*
5
∕ 8 "
Non-Motor End*
5
∕ 8 "
Right Stack Design — Minimum Clearances
7
∕ 8 "
Non-Motor End
5
∕ 8 "
Left Stack Design — Minimum Clearances
5
∕ 8 "
Non-Motor End
7
∕ 8 "
*Split Stack Design: Motor can be on the right or left, as ordered.
Motor End*
Motor End
Motor End

INSTALLATION
15
Side-by-Side/Abutted Installations (Simulated Split Stack)
A simulated split stack (the fabric opens
in the center) is two side stack systems
installed with the non-control ends side-
by-side.
■ Adjust the headrails according to
the illustration for proper swivel arm
operation.
IMPORTANT: Be sure to measure
the spacing from end cap to end cap,
not from the swivel arms.
1
1
∕ 2 "
Non-Control
End Cap
Non-Control
End Cap
Swivel
Plates Swivel
Arm
Swivel
Arm
Proper Installation
Simulated Split Stack

INSTALLATION
16
Connect PowerView®Gen 3 Components
Connect the Motor Assembly
NOTE: Your drive assembly may look different
from what is shown here.
■ Align the pins with the holes in the drive
assembly, as shown below. Press the
motor up into the drive assembly until it
clicks into place.
Connect the 18V DC Power Supply
NOTE: When power is connected to the motor, a blue LED
inside the control button housing will flash to indicate the
sheer is ready for operation.
■ Plug the power cable from the motor into the
extensioncable.
■ Plug the other end of the extension cable into the 18V
DC Power Supply.
■ Plug the 18V DC Power Supply into the power source.
Power Cable
from Motor
Extension
Cable
18V DC
Power
Supply
Modular
Motor
Assembly

INSTALLATION
17
Calibrate the Motor and Test Headrail Operation
Before beginning the sheer setup process, a calibration reset must be performed in the
PowerView® App. See page 21 for more information on setup with the PowerView App. The
calibration reset is used to recalibrate the sheer's travel limits.
Calibrate the Motor
■ Select Calibrate Shade in the Advanced Options section of the Shade Settings menu in the
PowerView App. The sheer/carriers will move to the traversed closed position and then
the vanes/tilt clips will tilt closed. When the vanes/tilt clips stop moving, calibration is
complete.
IMPORTANT: Remove the sticker after calibration has been completed.
Test Headrail Operation
■ Use the control button to test the sheer and ensure that the motor and power source are
working correctly. Press and release the control button to begin movement. Then press
and release the button one more time to stop the sheer.
■ The control button can also be used in combination with the PowerView App for control of
advanced shade functions and home access. Simply open the app and then press and hold
the control button to see a list of available functions. See page 21 for more information
on setup with the PowerView App.

INSTALLATION
18
Attach the Fabric Panel(s)
Preparations
■ If necessary, use the control button to rotate the fabric clips to the fully stacked position.
■ Stand the tube on end on a clean surface with the valance end at the top. Position the
tube at the end of the headrail where the fabric stacks.
■ If the tube is too long to stand on end, carefully and safely use a utility knife to trim the
tube to an appropriate length. Do not unroll the fabric until you begin attaching the vanes
to the pinion clips.
CAUTION: Be very careful when trimming the tube to avoid damaging the fabric in
any way.
■ Remove the protective wrapping from the fabric.
Attach the Vanes to the Tilt Clips
■ Unroll the fabric to gain enough slack to attach the first vane to the pinion clip on the
motor drive assembly.
■ To attach vanes, insert the vane attachment hole into the clip until it snaps securely
in place.
➤ Pull down gently on each vane to ensure that it is seated properly.
■ Unroll the fabric as you clip the rest of the vanes into the pinion clips in sequence.
Be careful not to skip any tilt clips orvanes.
Fabric
Panel
Valance
End Tube
Tilt
Clip Installed
Vane
Swivel
Plate
Vane Attachment
Swivel
Plate
