OSIM uCozy 3D Plus User manual

uCozy 3D Plus
OS-2222 Operation Manual
Design and Developed in Singapore by OSIM International Pte Ltd. (A subsidiary of V3 Group) Rev A
© 2022 All rights reserved. www.OSIM.com

1) English
2) Simplified Chinese 简体中文
3) Traditional Chinese 繁體中文

1
Thank you for purchasing the OSIM uCozy 3D Plus. Please read the
operation manual thoroughly for the correct methods of usage and
take special notice of the safety section before you start.
This manual should be kept on hand for easy reference. It is your
guide to a safe and efficient operation.
OS-2222 uCozy 3D Plus
ENGLISH
Contents | Safety 2
Names of parts and functions 6
Operation 7
Product care and storage 9
Troubleshooting 10
Specifications 11

2
IMPORTANT SAFETY INSTRUCTIONS
When using the product, please TAKE SPECIAL NOTICE of the following basic
precautions:
Read all instructions before using the product:
DANGER – To reduce the risk of electric shock:
Always unplug this product from the electrical outlet /USB cable immediately after
use and before cleaning.
WARNING – To reduce the risk of fire, burns, electric shock, or injury to
persons:
1) Use this product only for its intended use as described in this manual.
Do not use attachments not recommended by the manufacturer.
2) The product should never be left unattended when plugged in. Unplug from
electrical outlet /power source when the product is not in use, and before putting
on or taking off parts.
3) Do not operate the product under a blanket or pillow. Excessive heating may occur
and cause fire, burns, electric shock, or injury to persons.
4) Do not use the product if the electrical outlet /power source is loose.
5) Do not connect or disconnect the power plug /USB cable from the electrical outlet
/power source with wet hands.
6) When disconnecting the power plug /USB cable, remove it by holding the plug /
USB cable head, and not by the cord /cable.
7) Do not operate the product if it has a damaged cord or plug /USB cable, a
malfunction, a power failure, or it is dropped into the water. Injury may occur
when power is restored unexpectedly. Return the product to OSIM Service Centre
for examination and repair.
8) If the power plug /USB cable or power cord is damaged, it must be replaced
by OSIM Service Centre or its authorized service agents.
9) Do not carry this product by the power cord /USB cable or use the power cord /USB
cable as a handle.
10) Keep the product power cord /USB cable away from heated surfaces.
11) Do not place the power cord /USB cable under the product or any other
heavy objects.

3
12) Do not wind the power cord /USB cable around the product.
13) Do not operate the product with the air openings blocked. Keep the air
openings free of lint, hair, and the like.
14) Remove power plug /USB cable from the electrical outlet /power source
immediately should liquid be spilled onto the product as this may result
in electric shock.
15) Do not operate where aerosol (spray) products are being used or where oxygen
is being administered.
16) To stop using the product, turn off all controls and remove the power plug /USB
cable from the electrical outlet /power source.
17) Do not drop or insert any object or flammable material into any openings of the
product. This may result in electric shock, malfunction or risk of fire.
18) Children should be supervised to ensure that they do not play with the product.
19) This product can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Keep children away when the product is in operation.
20) Cleaning and user maintenance of the product shall not be made by children.
21) Do not use or operate the product when your body or hands are wet.
22) Do not use this product outdoors.
23) Do not use the product in an excessively humid or dusty environment as it may
result in malfunction.
24) Do not use the product in temperatures higher than 40˚C.
25) Do not expose the product to heaters, stoves or direct sunlight.
26) Do not cover the product during operation. This may result in a rise in
motor temperature and subsequent malfunction or fire.
27) Do not use the product in the event of a lightning storm.
28) If you should use the product in a cold room, do not increase the room
temperature abruptly. It is recommended that you increase the temperature
gradually to a normal level.
29) If the product is brought into a warm environment from a cold place where
it was stored, wait for an hour before use as there may be water droplets on
mechanical parts due to condensation. Using the product under such condition
may result in malfunction.

4
30) Do not stand on or in product. Use only while seated.
31) Do not dismantle, drop, or subject the product to shock or vibration.
32) Do not use the product in combination with other therapeutic equipment or
electric blanket, etc., as this may result in ineffectiveness or injury.
33) Do not rest or place heavy objects on the product as this may result in malfunction.
34) The product must only be serviced or repaired by the OSIM Service Centre.
Do not attempt to disassemble or repair the product.
35) Some noise may be heard from the product while in use. This is due to the
structure of the product and is normal.
36) Please do not use the product if you are not feeling well or under the influence
of alcohol.
37) Stop using immediately should you experience discomfort and consult your
doctor if you experience any abnormal or severe pain.
38) The product has a heated surface. People who are insensitive to heat must be
careful when using the product.
39) This product is not intended for self-diagnosis or self-treatment of conditions
that should be managed by a qualified health care provider.
40) If you are under any medication or have any medical conditions, please consult
your health care provider first before use.
41) Avoid food intake for at least an hour before massage /usage.
42) This product contains lithium battery that is only replaceable by a skilled
technician. Do not attempt to assemble or repair the product. Contact OSIM
service centre for any repair.
43) The battery must be removed from the product before it is discarded.
The product must be powered off when the battery is removed, and the
battery should be safely disposed of. To remove the battery:
1. Get the OSIM service personnel to remove the battery case.
2. Remove the fixing screws from the battery case.
3. Open the battery case and remove the battery.
4. The battery must be recycled by an OSIM Service Center or disposed of
in accordance with local waste management regulations.
44) Do not overcharge otherwise it may damage the battery and affect usage.

5
WARNING: For the purposes of recharging the battery, only use the
detachable supply (model: IVP1280-2000B ,
GQ24-128200-AB) unit provided with this appliance.
SAVE THESE INSTRUCTIONS
This product is intended for household use only.
Warranty is subjected to cancellation if the product is used for commercial
purposes.

6

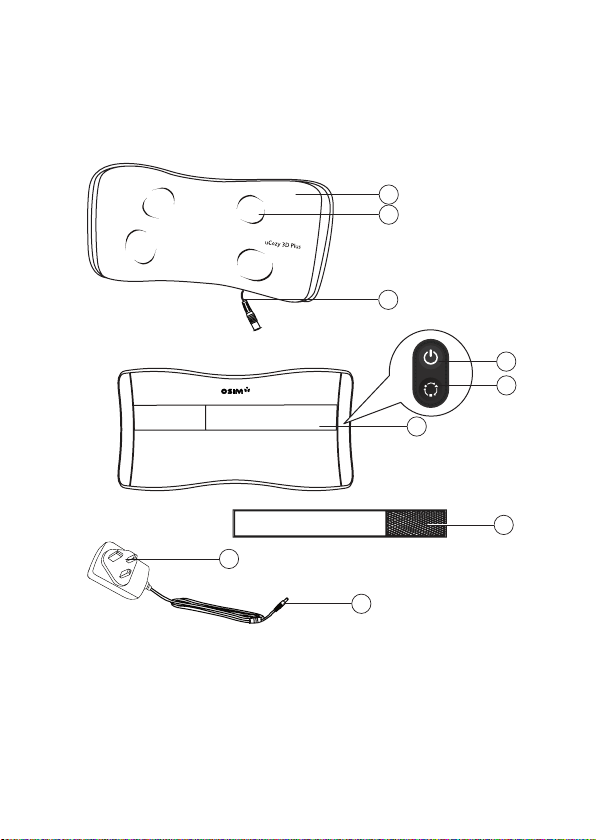

Names of parts and functions
1. Main unit
2. Kneading nodes
(concealed under fabric)
3. Adapter jack connector
4. On/Off button
5. Heat On/Off selection button
Back view
Front view
* Power adapter will vary according to country
6. Securing strap
7. Detachable elastic strap
8. Power adapter *
9. Adapter jack
1
8
*Product images are for illustrative purposes only and are not drawn to scale.
2
3
9
6
7
5
4

7
Operation
Caution
•Connect the adapter jack into the adapter jack connector.
•Connect the power adapter plug to the electrical outlet. Turn on the main
switch.
•When the product is operating while connected to power adapter, uCozy
3D Plus will not be charging.
•Do not apply more than 13 kg load on product as it may cause significant
overheating and subsequent damage to the product.
•Do not attempt to stop the kneading nodes with your hand.
• Avoid prolonged direct skin contact with the product during operation.
• Do not use the product while lying down.
•Do not apply any skincare products such as cream, lotion, gel and essence
on the skin area that comes in contact with the product. If users need to
apply skincare products on skin, please ensure there are sufficient layers of
clothing or fabric between the product and the skin area.
•Check the fabric on product for any tear or damage before usage.
•Do not use the product if fabric is torn or damaged.
•Do not remove the fabric cover to use the product.
Use with power adapter

8
Operation
•Press the [ ] button to turn on the uCozy 3D Plus and white LED indicator
will light up with 1 “Beep” .
•Heat function is automatically activated when uCozy 3D Plus is turned on
and the lights at the kneading nodes will be illuminated.
•Press the [ ] button with 1 “beep” sound to turn on/off heat function.
•Press and hold the [ ] button around 1.5 seconds to turn off the uCozy
3D Plus.
Turning the power on/off
•Product must be fully charged for the first time (approximately 4 hours)
prior to using it.
•LED indictor will blink while it is charging. Each full charge is approximately
4 hours. After charging, LED light will be turned off.
•Each full charge allows for about 60 min of usage on average (Usage time
varies based on the function selected).
•Product can only be charged when it is turned off.
•The red LED indicator will light up when battery level is low.
Use without power adapter

9
Product care and storage
Product placement and storage
Environmental factors can strongly affect the product physically and mechanically.
Do not expose the product to direct sunlight or in places with extreme heat or air-
conditioning vents. These can cause the upholstery to crack or the color to fade.
If the product is not to be used for a long period of time, cover it with a dust cover
and disconnect the power adapter from the electrical outlet.
Clean the product using a dry cloth regularly
Before cleaning, ensure that the main switch is turned off and the power adapter is
disconnected from the electrical outlet.
The upholstery of the product may be exposed to the natural body oils of users. The
main unit structure and fabric can be cleaned thoroughly with a piece of soft, dry
cloth. The common micro-fiber cleaning materials or gloves are very well suited for
this routine maintenance process. Such materials and gloves are available for sale
in most DIY shops.
Do NOT use wet elements for cleaning
The product is made up of electrical components and mechanical parts, which
are all very sensitive to moisture. Under no circumstances should they be exposed
to any form of water or moisture. If you use water (eg. a wet cloth) to clean the
upholstery, the coating may be eroded and the protection for the product will be
diminished.
As for the power button, it may result in malfunction if you use a wet cloth to clean.
Do NOT use cleaning solvents and abrasive cleaners
Under no circumstances should you use any cleaning agents, like benzene or
thinner to clean the product. This may cause the color of fabric to fade.
Do NOT attempt to repair your product
Under no circumstances should you attempt to repair the product, for safety
reason.
If you suspect a malfunction, always call the OSIM Service Center for further
assistance and information.

10
Troubleshooting
If you encounter problems with the operation of the uCozy 3D Plus, please
check the following points to see if they can be rectified. If the uCozy 3D Plus
still malfunctions or does not work, please turn off the uCozy 3D Plus and
remove the power adapter from the electrical outlet. Contact OSIM Service
Center* for servicing.
Do not dismantle or attempt to repair the uCozy 3D Plus yourself.
Doing so will void the warranty and OSIM will not bear any
responsibility for any subsequent consequences.
* Please visit us at www.OSIM.com for information on the nearest service center.
Product warranty is valid only in the country of purchase.
•The battery level is low. Recharge the
battery before attempting to use the
uCozy 3D Plus again.
•Ensure that the power adapter is securely
connected to the electrical outlet.
•Ensure that the main switch is turned on.
•Check that the voltage at the electrical
outlet is adequate.
Problem Possible causes / actions
•The uCozy 3D Plus will
not start.
•The massage stops
midway.
•The battery level is low. Recharge the
battery before attempting to use the
uCozy 3D Plus again.
•Check that the adapter jack has not been
disconnected from the uCozy 3D Plus.
•The auto timer of 20 minutes may have
lapsed.
•The overheat protection device may have
been activated. Turn off the main switch
and allow the uCozy 3D Plus to cool down
for at least 60 minutes before using it
again.

11
Model name OSIM uCozy 3D Plus
Model number OS-2222
Power adapter 100-240V ~ 50/60Hz (Input)
12.8V
2A (Output)
(Kindly ensure that the local Alternating Current
(AC) voltage corresponds with product specified voltage)
Power consumption 25.6W
Auto timer 20 minutes
Dimension: L 370 x W 200 x H 150 (mm)
Gross weight Approx. 2.35 kg
Net weight Approx. 1.6 kg
Specifications

12
Notes

1
感谢您购买 OSIM uCozy 3D Plus 按摩器（傲胜无线 3D 暖摩
枕）。使用前请仔细阅读操作手册，并特别注意安全事项，以
便正确操作和使用本产品。
本手册提供使用者安全及有效的操作方式，请在阅毕后妥为
收藏，以便日后参考查询。
OS-2222 uCozy 3D Plus
简体中文
目录 | 安全事项 2
配件名称与功能 5
操作方式 6
产品保养及收纳 8
故障排除 9
规格说明 10

2
重要安全事项说明
使用本产品时，请特别注意并遵守下列安全事项：
使用本产品前，请先详阅所有的说明。
危险 - 为降低触电风险，请遵照下列指示：
使用完毕后或清洁前，请将电源线插头/USB 电缆由插座中拔除。
警告 - 为降低火灾、灼伤、触电、或是造成他人受伤的风险，
请遵照下列指示：
1） 请务必依照使用手册中所叙述的用途使用本产品。请勿使用非制造商
所推荐的零配件。
2) 接通电源后，请看顾好产品。不使用产品时或组装和拆卸配件前，
请切断电源。
3) 请勿在毯子或枕头下使用产品。过热可能会造成火灾、灼伤、触电或
人员受伤。
4) 如果电源接口松动，请勿使用产品。
5) 手上潮湿时，请勿开关电源或碰触电源插头/USB 电缆与电源插座/电源。
6) 切断电源后，请握住插头/USB 电缆接头将其拔出，请勿拉扯电源线/电缆。
7) 如果产品的电源线或插头/USB电缆出现损坏故障、电源故障或掉入水中，
请勿使用产品。电源意外恢复时，可能会造成人员伤害。请将产品退回
OSIM 傲胜服务中心进行检查和维修。
8) 如果电源插头/USB 电缆或电源线出现损坏，必须由 OSIM 傲胜服务
中心或其授权服务代理更换。
9) 请勿拉扯或把电源线/USB 电缆当作握把使用。
10) 请勿将电源线/USB 电缆放在加热表面上。
11) 请勿将电源线/USB 电缆放在产品或任何重物下方。
12) 请勿将电源线 /USB 电缆缠绕在产品上。
13) 若产品出气口阻塞，请勿使用产品。请保持出气口通畅无阻，
不被棉屑，毛发等阻塞。
14) 若产品沾到液体时，请立刻从插座中拔除电源线插头 /USB 电缆，
以免触电。
15) 在使用喷雾产品后或氧气不足的场所时，请勿使用产品。

3
16) 若要停止使用产品，请将所有的操作控制关闭，将电源线插头/USB
电缆从电源插座中拔除，切断电源。
17) 请勿将任何物件或易燃物品掉入或插入产品的任何开口中。这可能会
导致触电、故障或火灾风险。
18) 请务必督导孩童不将产品视为游乐器材使用，以确保安全。
19) 在得到负责安全的人员监护下或接受过监护人员的产品使用指导并了
解到存在危险时，8 岁及以上的儿童和身体、感官或精神上有缺陷或
缺乏经验与知识的人员才可使用产品。
20) 儿童不得为产品进行清洗或维护。
21) 当身体或手潮湿时，请勿使用或操作产品。
22) 请勿在室外使用产品。
23) 请勿在过度潮湿或灰尘密集的环境下使用产品，以免导致机件故障。
24) 请勿在室温超过摄氏 40 度之处使用产品。
25) 请勿将产品置于电热器旁、炉具附近或阳光直射处。
26) 操作过程中不要盖住产品。这可能导致电机温度升高并引起故障或
火灾风险。
27) 雷电气候时，请勿使用产品。
28) 在室温偏低使用产品时，切勿骤然调升温度。建议将温度逐步调至
正常范围后再使用。
29) 将产品由低温储存处移至温热环境使用时，温差可能导致水分在机件
内部凝结，影响机器正常运作或造成机件故障。建议在移动后，先将
产品在正常室温放置1小时后再开始使用。
30) 切勿站立在产品上，必须坐在座位上才能使用产品。
31) 请勿拆卸、掉落或使产品受到冲击或振动。
32) 为避免按摩效果减低或造成伤害，请勿将产品与其它具有疗效的设备
或电毯等同时使用。
33) 请勿将重物堆放于产品上，以免造成意外伤害或是机件故障。
34) 产品仅可由 OSIM 傲胜服务中心修理。请勿自行尝试拆卸或维修。
35) 由于产品结构关系，使用产品时会听到一些声音，属于正常情况。
36) 请勿在饮酒后或身体不适时使用产品。
37) 按摩时若身体不适，请立即停止操作。身体产生不正常或严重疼痛时，
请寻求医疗咨询。

4
38) 产品在启动时会产生热度。对热度不敏感的人使用产品时必须小心谨慎。
39) 产品非自我诊断或治疗之用；若需诊断或治疗时，应由专业医疗人员处理。
40) 如果您正接受任何药物治疗或有任何疾病，请在使用前寻求医疗咨询。
41) 请避免在按摩前 /使用产品前的1小时内进食。
42) 本产品包含锂电池，只能由技术人员更换。请勿尝试组装或修理产品。
联系 OSIM 傲胜服务中心进行维修。
43) 在产品被报废前，必须将电池从产品中取出。取出电池时，产品必须
断电，然后安全地处置电池。
取出电池的步骤 ：
1. 请 OSIM 傲胜维修人员拆卸电池盒。
2. 卸下电池盒的固定螺丝。
3. 打开电池盒，将电池取出。
4. 电池必需由OSIM维修中心回收或依据各县市废弃物管理规定
处置。
44) 不要过度充电，否则可能会损坏电池并影响使用。
警告：给电池充电时，只能使用产品自带的电源适配器
（中规电源适配器型号：IVP1280-2000A，GQ22-128200-AC）。
请妥善保管此份安全事项说明书
本产品仅适于家用
如果产品用于商业目的，保修将被取消

5
配件名称与功能
1. 主体
2. 揉捏滚轮（被布料覆盖）
3. 适配器接口
4. 开/关按钮
5. 温热开/关按钮
后视图
前视图
*电源适配器的样式将根据各国家的要求而有所不同
6. 固定带
7. 可拆卸松紧带
8. 电源适配器*
9. 适配器插头
*产品图片仅供说明用途，并不按比例绘制。
1
8
2
3
6
7
5
4
9

6
产品操作
使用电源适配器
•将适配器插头插入适配器接口。
•将电源适配器连接至电源插座。开启总电源开关。
•通过连接电源适配器操作产品时，uCozy 3D Plus 不会充电。
•请勿在产品上施加超过 13 kg 的重量，否则会造成机件的运作变慢
或停止，并可能导致机件过热，最终损坏产品。
•请勿用手自行强制停止揉捏滚轮。
•在使用过程中，避免产品长时间与皮肤直接接触。
•请勿躺着使用本产品。
•请勿在与产品接触的皮肤部位涂抹任何护肤品，如乳霜、乳液、凝胶
和精华液。如果用户需要在皮肤上涂抹护肤品，请确保产品与皮肤区
域之间有隔衣物或织物。
•在使用前检查产品的布料是否有撕裂或损坏。
•请勿在布料撕裂或损坏的情况下使用产品。
•请勿取下布料套来使用产品。
小心
