Roger Access Control System
LRT-1 reader Operating Manual
Product version: v1.0
Document version: Rev. A

LRT-1 Operating Manual.doc
2018-09-06
2/13
Design and application
LRT-1 is a long range proximity card reader. The reader is offered in a set with MCI-1 interface which
enables connection of the reader both to MC16 series access controllers (RACS 5 system ) and
PRxx1/PRxx2 series access controllers (RACS 4 system). In all scenarios the reader sends 32bit card
number. LRT-1 enables EM125kHz proximity card reading in distance of 1 m. The reader can be installed
outdoors.
Power supply
LRT-1 and MCI-1 require 11-15VDC power supply. Devices can be supplied directly from the access
controller (e.g. TML output) or from dedicated power supply. Due to relatively high supply current (300mA),
wire diameter must be selected in such way that voltage drop between supply output and the reader is less
than 1V. The proper wire diameter is especially critical when reader is located in long distance from the
supply source. In such a case the use of dedicated power supply located close to the reader should be
considered. When local power supply is used then its negative terminal should be connected to COM
terminal of MCI-1 by means of signal wire with any diameter.
Note: Interferences in supply voltage may reduce reading range. In case of LRT-1 it is recommended to use
power supplies which generate low level interferences, preferably analogue power supply units.

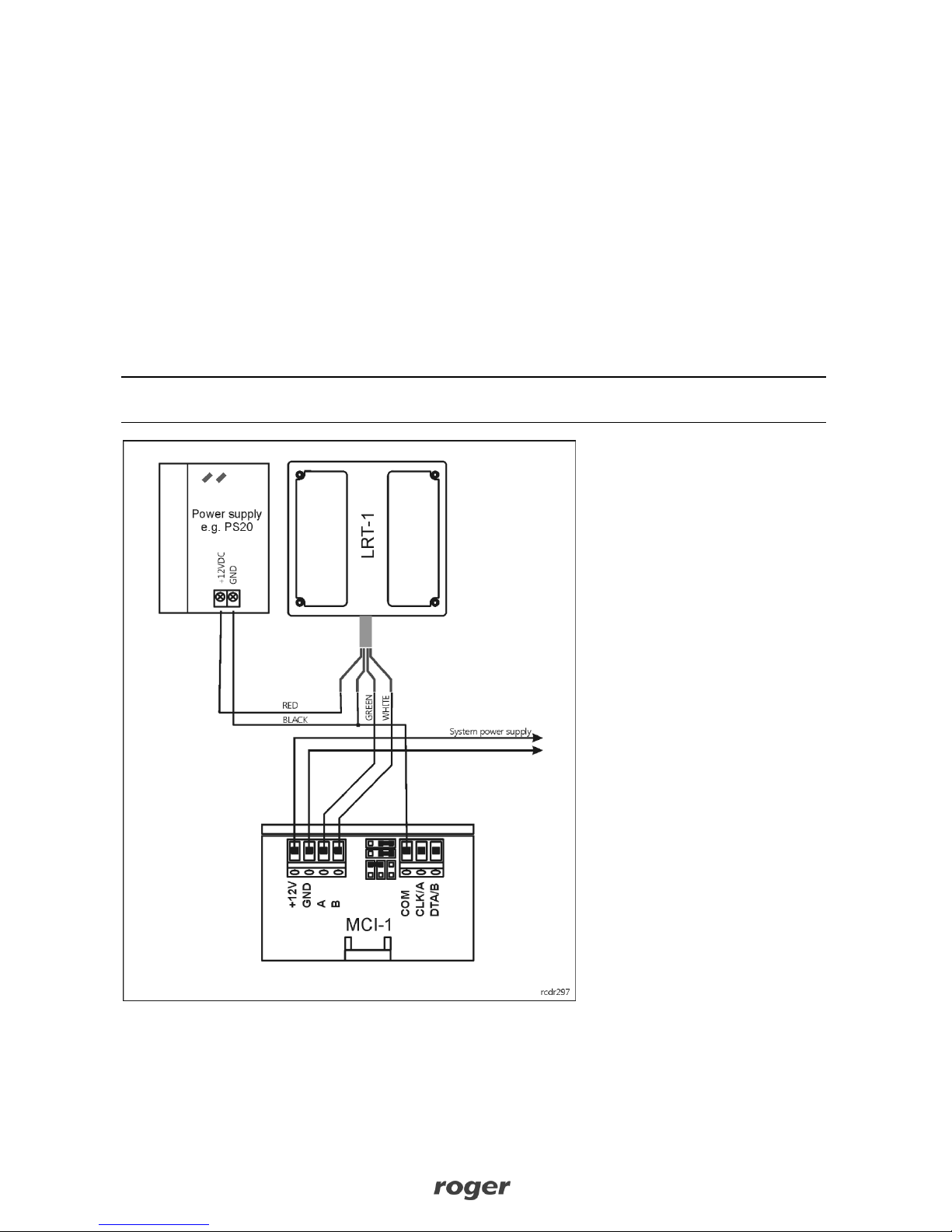

Fig. 1 LRT-1 power supply from local PSU (e.g. PS20)

LRT-1 Operating Manual.doc
2018-09-06
3/13

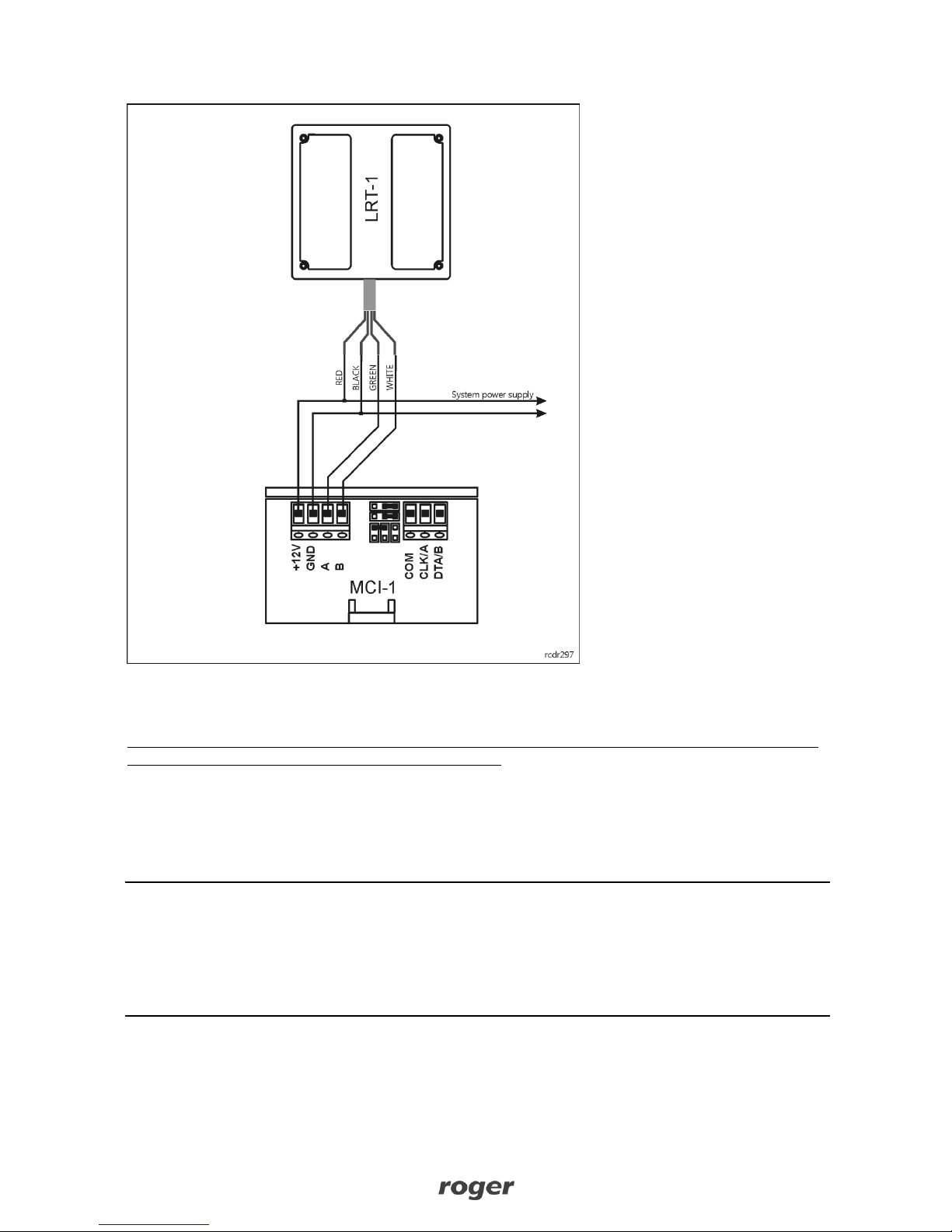

Fig. 2 LRT-1 power supply from system (e.g. from controller)
Reading range
In optimal conditions, the LRT-1 enables reading of EM125kHz proximity cards from the distance of 95cm.
Such range is possible for ISO card of EMC-3 type (Roger) and for optimal orientation of card at the reader
and without electrical interference in vicinity of the reader. Metal objects close to the reader and electrical
interferences may reduce reading range. Metal objects are irrelevant if located in distance of more than 1m
from the reader. In case of LRT-1 installed in distance of 15 cm from metal wall the reading range is
approximately reduced by 50%. If the distance is 25cm then the range is reduced approximately by 15%. If
the reader is installed in a distance lower than 15 cm from metal wall then card reading might be not
possible at all. If the LRT-1 is mounted on metal pole with maximal cross section of 10x10 cm then reading
range is reduced by 15%.
Note: Reading range may be slightly reduced (approx. by 5%) if supply voltage is in range of 11-12V. Such
reduction results from device design.
Note: Every time the LRT-1 power supply is restored, the device calibrates its antenna circuit to adapt to
metal object in its vicinity. If metal objects size or location is changed during the operations of LRT-1 then
the reading range may be reduced. Therefore in such situation it is recommended to restart the reader to
perform automatic calibration procedure.
Service contacts
MCI-1 interface is equipped with service contacts which are used for device programming and servicing.

LRT-1 Operating Manual.doc
2018-09-06
4/13

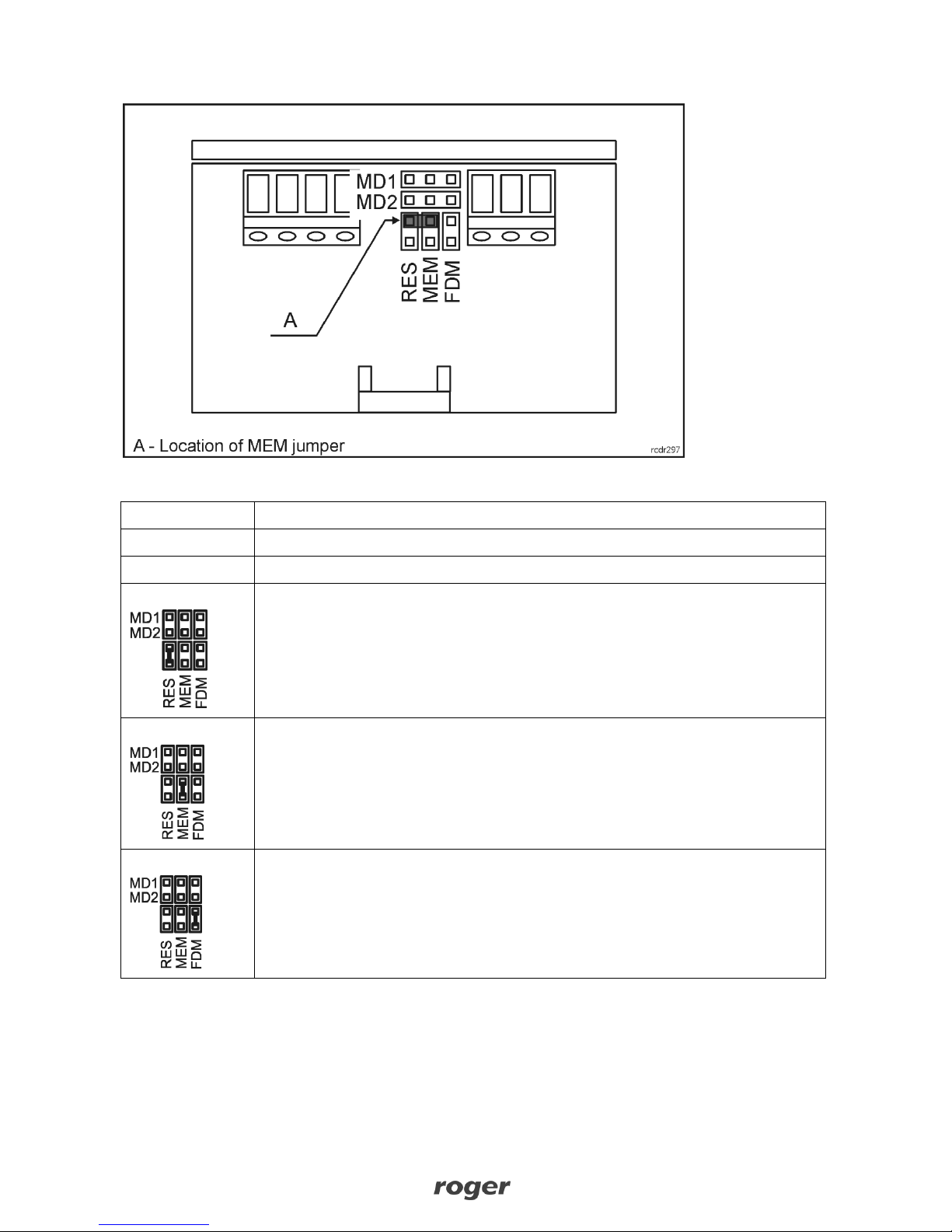

Fig. 3 Arrangement of service contacts
Contacts
Function
MD1
The first contact for selection of operating mode (RACS 4 or RACS 5)
MD2
The second contact for selection of operating mode (RACS 4 or RACS 5)
RES
Restart. When contacts are shorted for a moment then interface restarts. After
restart, LED_SY (orange) indicator is pulsing for 2s.
MEM
Service mode. When contacts are shorted then low level configuration can be started.
The contact is used both for manual address programming and configuration with
RogerVDM.
FDM
Firmware download. When contacts are shorted then firmware download mode is
started and new firmware can be uploaded with RogerVDM.
Tab. 1 Service contacts

LRT-1 Operating Manual.doc
2018-09-06
5/13
LED indicators
LED indicators are located inside the enclosure of MCI-1 and they are visible from the top of the interface.
LED indicators are used to signal various states both in programming and normal modes. Communication
loss with controller is signalled with synchronic pulsing of all indicators.

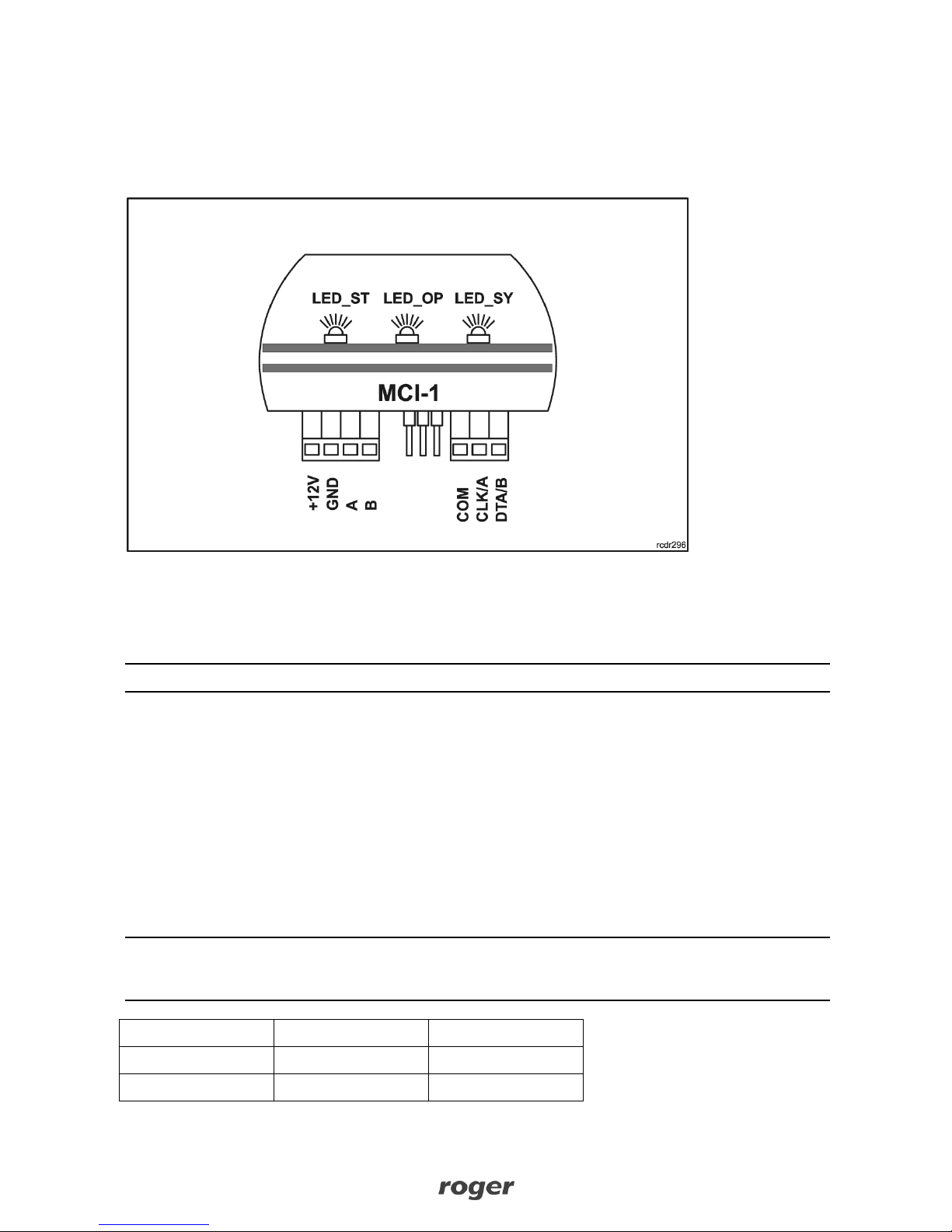

Fig. 4 LED indicators
Address programming
The address of MCI-1 interface must be configured both for operation in RACS 4 and RACS 5 system. The
address can be programmed manually (without computer) or with RogerVDM software. In case of operation
in RACS 4 system the address range is 0-3 while in RACS 5 the address range is 100-115.
Note: In case of manual address programming for operation in RACS 5, the first digit of address is skipped.
Manual address programming:
Switch power supply off
Place jumper on MEM contacts
Select RACS 4 operating mode on MD1 and MD2 contacts (table 2)
Connect CLK/A terminal with DTA/B terminal
Switch power supply on
LED_ST (red) indicator will pulsate
Disconnect CLK/A and DTA/B terminals
Count the number of LED_SY (orange) pulses and switch power supply off when the number of
pulses equals to desired address
Remove jumper from MEM contacts
Switch power supply on and connect the interface to controller
Note: The address 100 (for RACS 5) or 0 (for RACS 4) is programmed with 16 pulses of LED_SY (orange)
indicator. After 16 pulses, LED_SY lights steady on and LED_ST (red) pulsates. Remove jumper from MEM
contacts then and restart power supply.

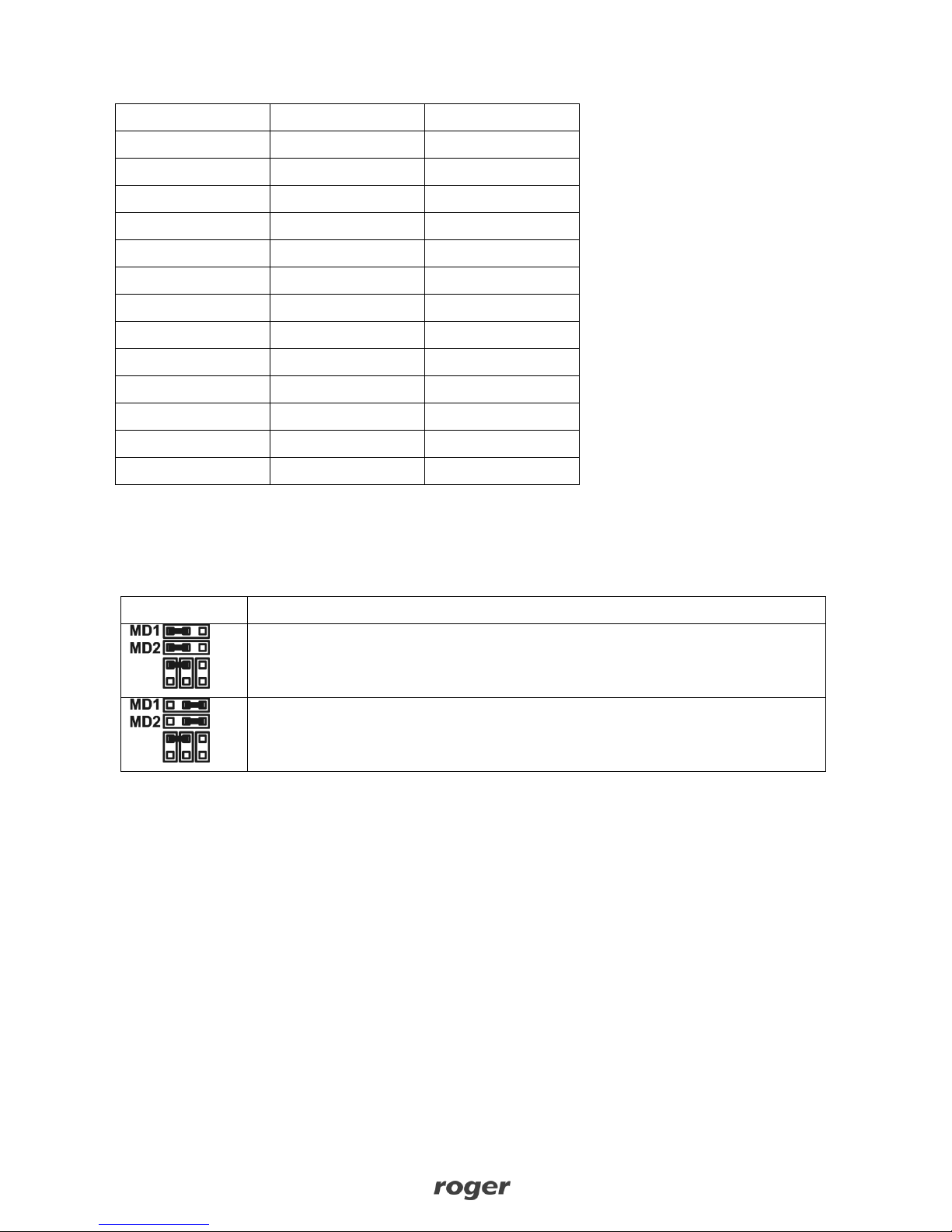

Number of pulses
RACS 4 address
RACS 5 address
1
1
101
2
2
102

LRT-1 Operating Manual.doc
2018-09-06
6/13
3
3
103
4
4
104
5
5
105
6
6
106
7
7
107
8
8
108
9
9
109
10
10
110
11
11
111
12
12
112
13
13
113
14
14
114
15
15
115
16
0
100
Tab. 2 Number of pulses corresponding to RACS 4 and RACS 5 address
MCI-1 operating mode
LRT-1 reader can be used both in RACS 4 and RACS 5 systems. The selection of operating mode is done
with MD1 and MD2 contacts.
Contacts
Function
RACS 4 operating mode. The MCI-1 interface is connected to RACS CLK/DTA bus (CLK
and DTA terminals) of PRxx1 or PRxx2 access controller
RACS 5 operating mode. The MCI-1 interface is connected to RS485 bus (A and B
terminals) of MC16 access controller
Tab. 3 Selection of MCI-1 operating mode
The reader when operated in RACS 4 and RACS 5 system returns 32bit proximity card number (instead of
typical 40bit number). Therefore some additional configuration steps are necessary to adapt both RACS
systems to operation with LRT-1.
In RACS 4 system it is necessary to select the option 24 bit (reduced card number) in PR Master software
(PRMaster/Tools/Options/Cards). In RACS 5 system it is necessary to additionally define and assign 32bit
type Authentication Factor for each user who will identify at LRT-1. Alternatively all Authentication Factors
used in the system could be defined as 32-bit type and then no additional factors for LRT-1 are necessary.

LRT-1 Operating Manual.doc
2018-09-06
7/13
Configuration with RogerVDM software
The address and other settings can be programmed with RogerVDM program (Windows). The connection to
computer requires RUD-1 USB-RS485 interface.
Procedure for programming with computer:
Make connections as in fig. 5
Place jumper on MEM contacts
Connect RUD-1 to computer USB port
Start RogerVDM software
Select MCI-1 interface and RS485 communication channel.
In the field Serial port select serial COM port with RUD-1 interface
The program will establish connection with the device and it will display its current settings
Configure MCI-1 as required
Select Send to Device to upload new settings
Optionally select Send to File… to backup your settings in file
In the top menu select Device and Disconnect
Connect device to your system

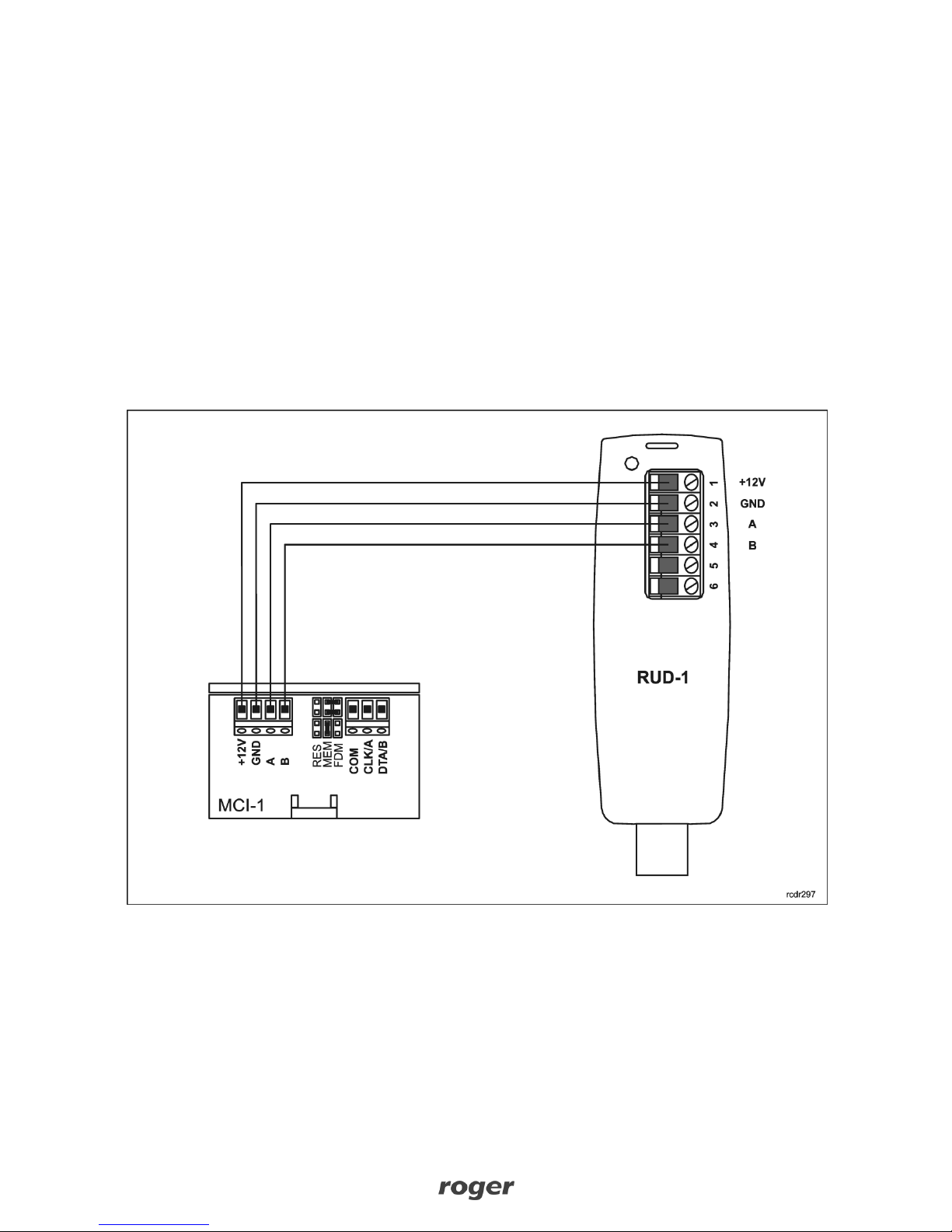

Fig. 5 Connection of MCI-1 to RUD-1 interface (configuration)

LRT-1 Operating Manual.doc
2018-09-06
8/13
MCI-1 configuration parameters
MCI-1 settings are presented in the table below. All these parameters are configured with RogerVDM
software within low level configuration of the device. RS485 and RACS CLK/DTA addresses can also be
configured manually without computer.
Parameter
Function
RS485 address
Parameter defines device address on RS485 bus.
Range: 100-115. Parameter concerns RACS 5 system
only.
RACS CLK/DTA address
Parameter defines device address on RACS CLK/DTA
bus. Range: 0-3. Parameter concerns RACS 4 system
only.
RS485 communication timeout
Parameter defines delay after which device will signal
lost communication with controller. When set to 0 then
signalling is disabled. Parameter concerns RACS 5
system only.
RS485 encryption
Parameter enables encryption at RS485 bus.
RS485 encryption key
Parameter defines key for encryption of
communication at RS485 bus. Range: 4-16 ASCII
characters.
AF Type
Parameter defines authentication factor type returned
by reader. Parameter concerns RACS 5 system only.
AF Class
Parameter defines authentication factor class returned
by reader. Parameter concerns RACS 5 system only.
DEV
Parameter defines any text or comment which
corresponds to the object. It is later displayed in VISO
program.
CDI
Parameter defines any text or comment which
corresponds to the object. It is later displayed in VISO
program.
Tab. 4 MCI-1 configuration parameters

LRT-1 Operating Manual.doc
2018-09-06
9/13
Firmware update
Device firmware can be updated with RogerVDM (Windows) software. RUD-1 interface is necessary for such
update.
Firmware update procedure:
Make connections as in fig. 6
Place jumper on FDM contacts
Connect RUD-1 to computer USB port
Start RogerVDM program
In the top menu select Tools and then Update Firmware
Proceed according to displayed messages
After firmware upload remove jumper from FDM contacts
Restart the interface by switching power supply off/on or with jumper on RES contacts
Fig. 6 Connection of MCI-1 to RUD-1 interface (firmware update)

LRT-1 Operating Manual.doc
2018-09-06
10/13
Connection to access controller
Select operating mode with MD1 and MD2 contacts and define address prior to connection of MCI-1
interface to access controller. The address must be in range of 100-115 (RACS 5) or 0-3 (RACS 4). The
address can be programmed manually while all low level settings can be configured with RogerVDM
software. LRT-1 reader must be connected to MCI-1 interface with UTP cable. Unused wires of the UTP
cable can be used for power supply.

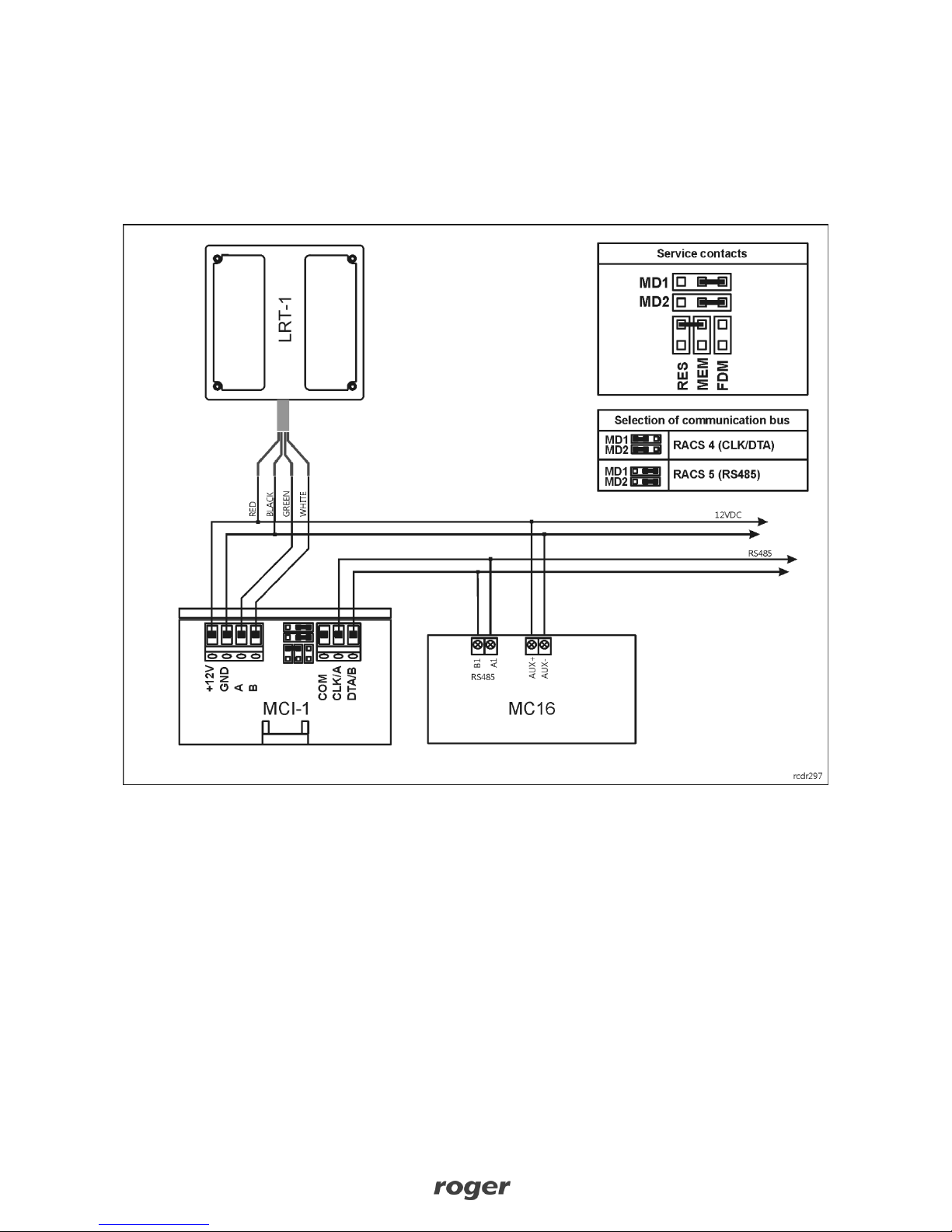

Fig. 7 Connection of LRT-1 reader to MC16 access controller

LRT-1 Operating Manual.doc
2018-09-06
11/13

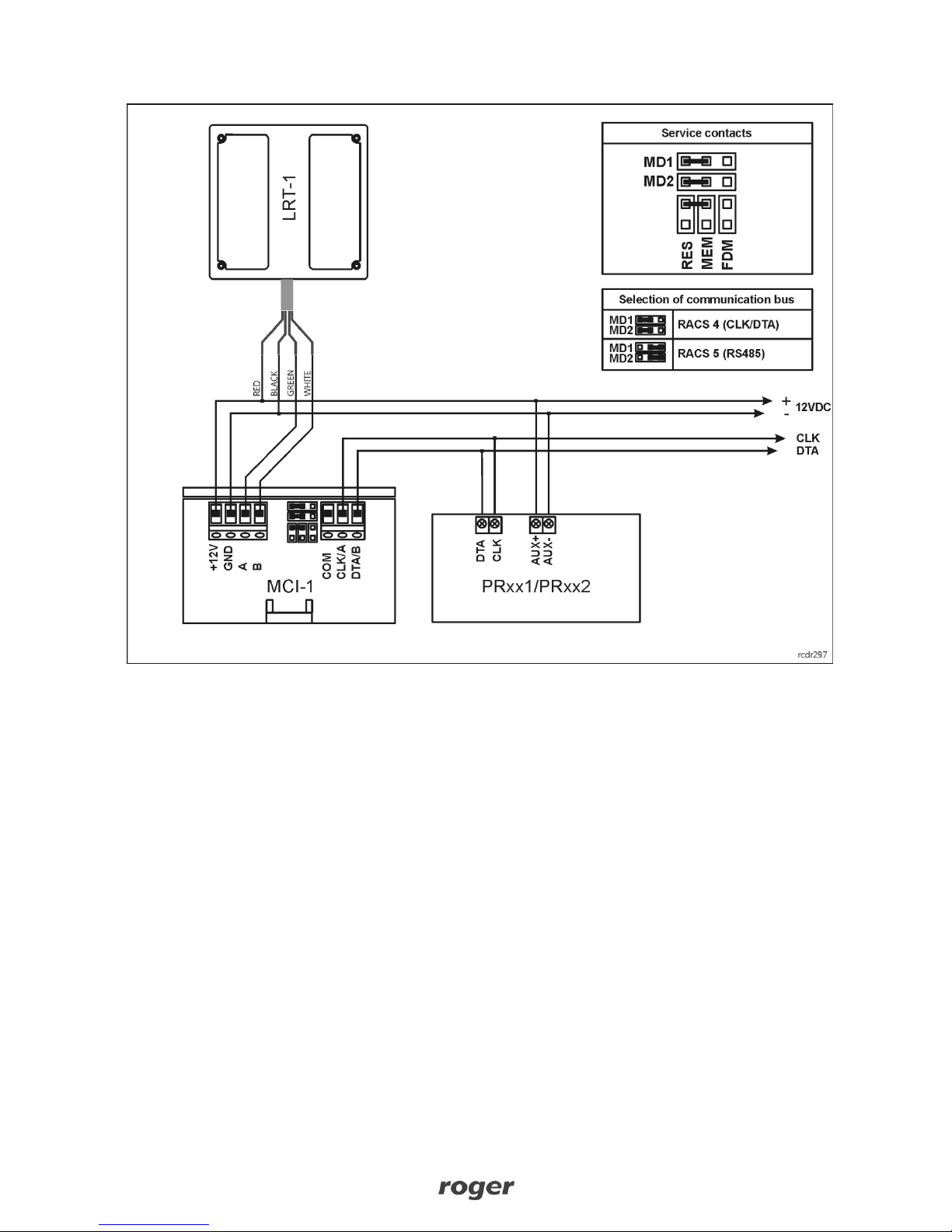

Fig. 8 Connection of LRT-1 reader to PRxx1 or PRxx2 access controller
Installation
1. LRT-1 reader must be installed on vertical structure (wall, pole) in a place which is free from strong
electromagnetic interferences and possibly far from metal objects.
2. Configure MCI-1 interface prior to connection.
3. The address of MCI-1 interface can be configured manually for both RACS 4 and RACS 5 operating
modes without connection of MCI-1 to computer.
4. Full configuration of MCI-1 interface can be done only with RogerVDM program ad it requires
connection of RUD-1 interface.
5. MCI-1 interface must be installed indoors, preferably in the same metal enclosure as access controller.
6. MCI-1 interface can be mounted on flat surface with two screws or on DIN rail with included holder.
7. All electrical connections must be made with switched off power supply.
8. Start and verify the operation of devices when electrical connections are finished.

LRT-1 Operating Manual.doc
2018-09-06
12/13

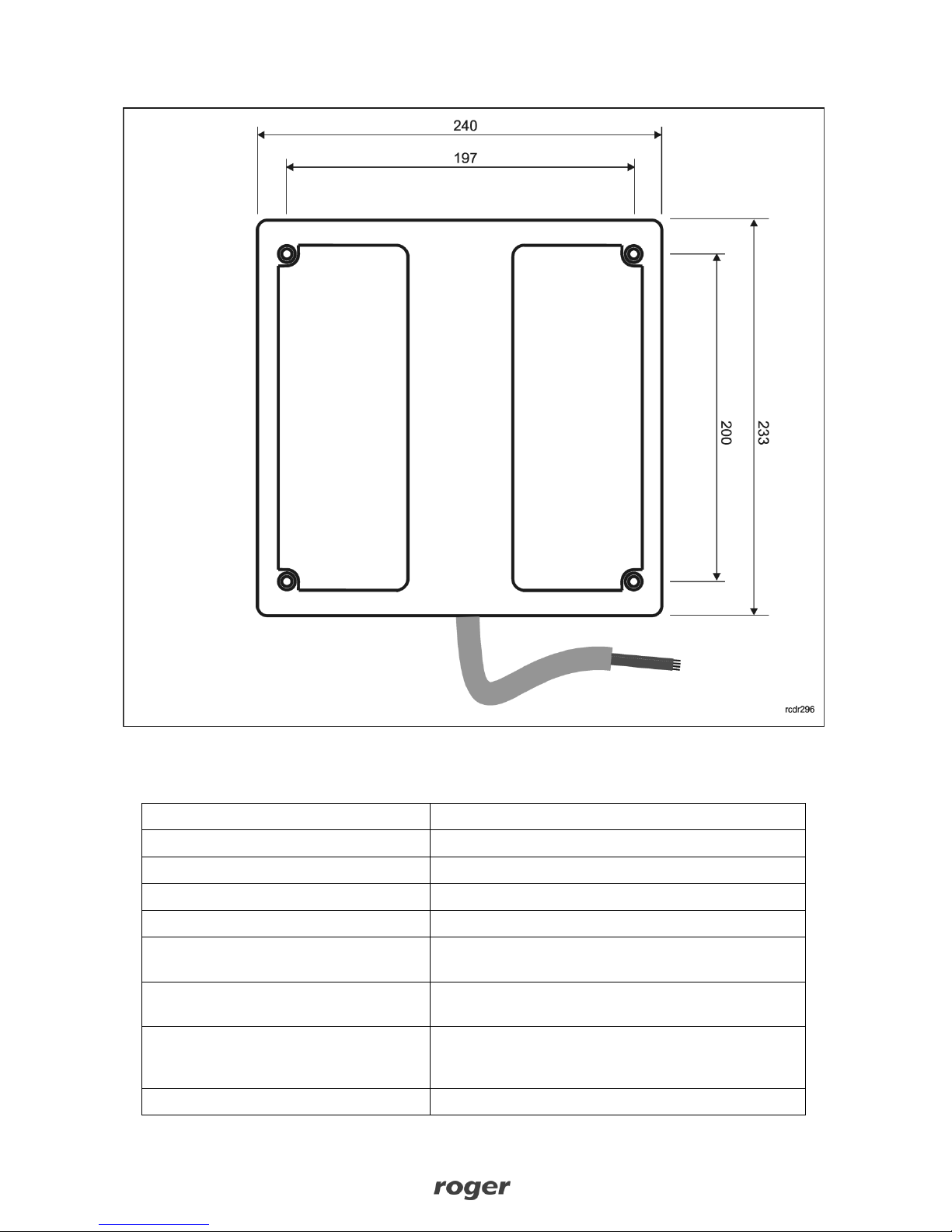

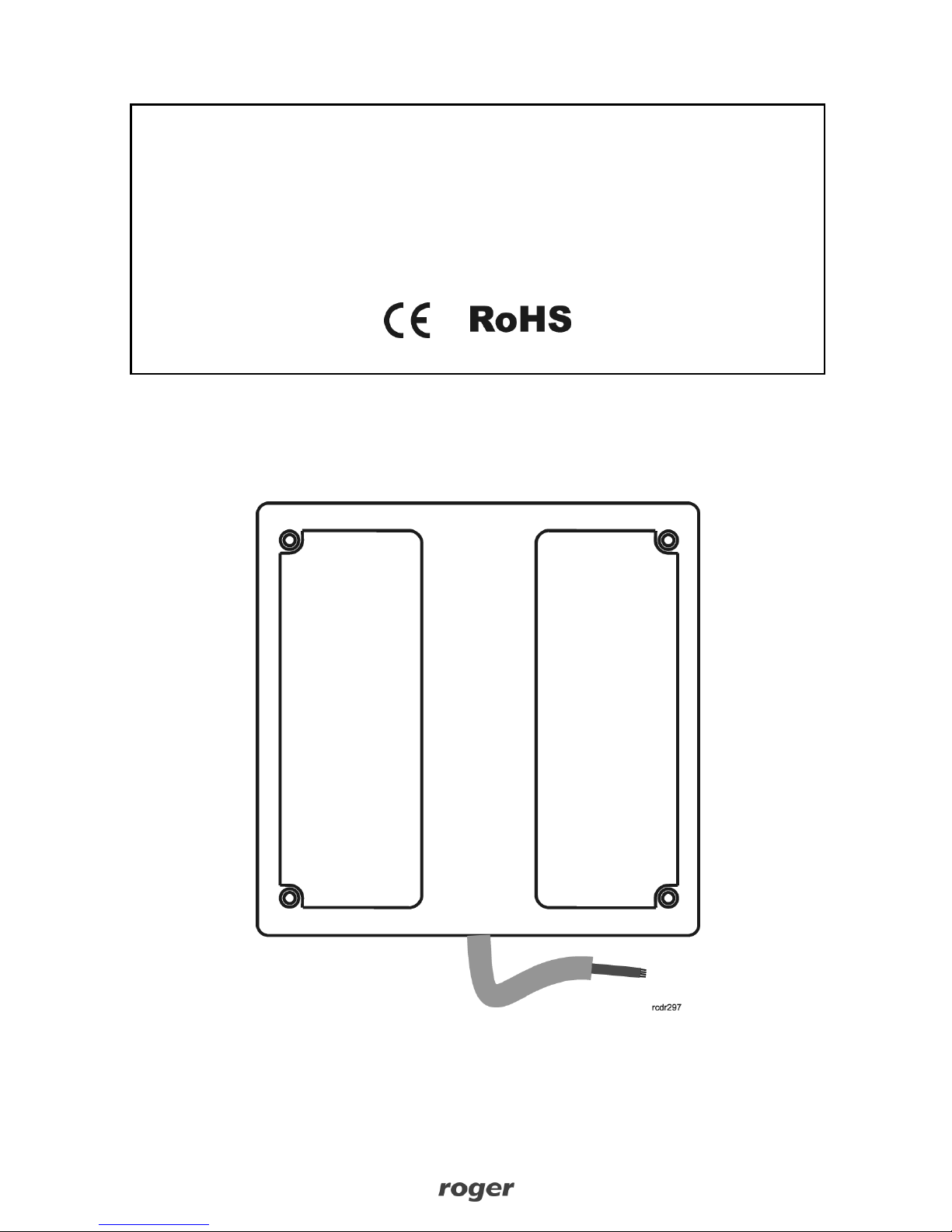

Fig. 9 LRT-1 dimensions
Specification
Parameter
Value
Power supply
11-15VDC
LRT-1 current consumption (average)
290mA
MCI-1 current consumption (average)
40mA
Cable length between MCI-1 and LRT-1
max. 1200m
Cable length between MCI-1 and MC16
controller
max. 1200m
Cable length between MCI-1 and PRxx1
or PRxx2 controller
max. 150m
LRT-1 environmental conditions
Class IV, outdoor general conditions, temperature: -
25°C to +60°C, relative humidity: 10 to 95% (no
condensation)
MCI-1 environmental conditions
Class II, indoor general conditions, temperature: -10°C

LRT-1 Operating Manual.doc
2018-09-06
13/13
to +50°C, relative humidity: 10 to 95% (no
condensation)
IP Code
IP65 (LRT-1 reader)
Dimensions (H x W x D.)
240 x 233 x 40mm
Weight
0,93 kg
Certificates
CE
Ordering information
Product
Description
LRT-1
Long range reader
MCI-1
Communication interface
Product history
Version
Date
Description
LRT-1 v1.0
08/2017
The first commercial version of product
This symbol placed on a product or packaging indicates that
the product should not be disposed of with other wastes as
this may have a negative impact on the environment and
health. The user is obliged to deliver equipment to the
designated collection points of electric and electronic waste.
For detailed information on recycling, contact your local
authorities, waste disposal company or point of purchase.
Separate collection and recycling of this type of waste
contributes to the protection of the natural resources and is
safe to health and the environment. Weight of the equipment
is specified in the document.
Contact:
Roger sp. z o.o. sp.k.
82-400 Sztum
Gościszewo 59
Tel.: [phone]
Fax: [phone]
Tech. support: [phone]
E-mail: [email protected]
Web: www.roger.pl
