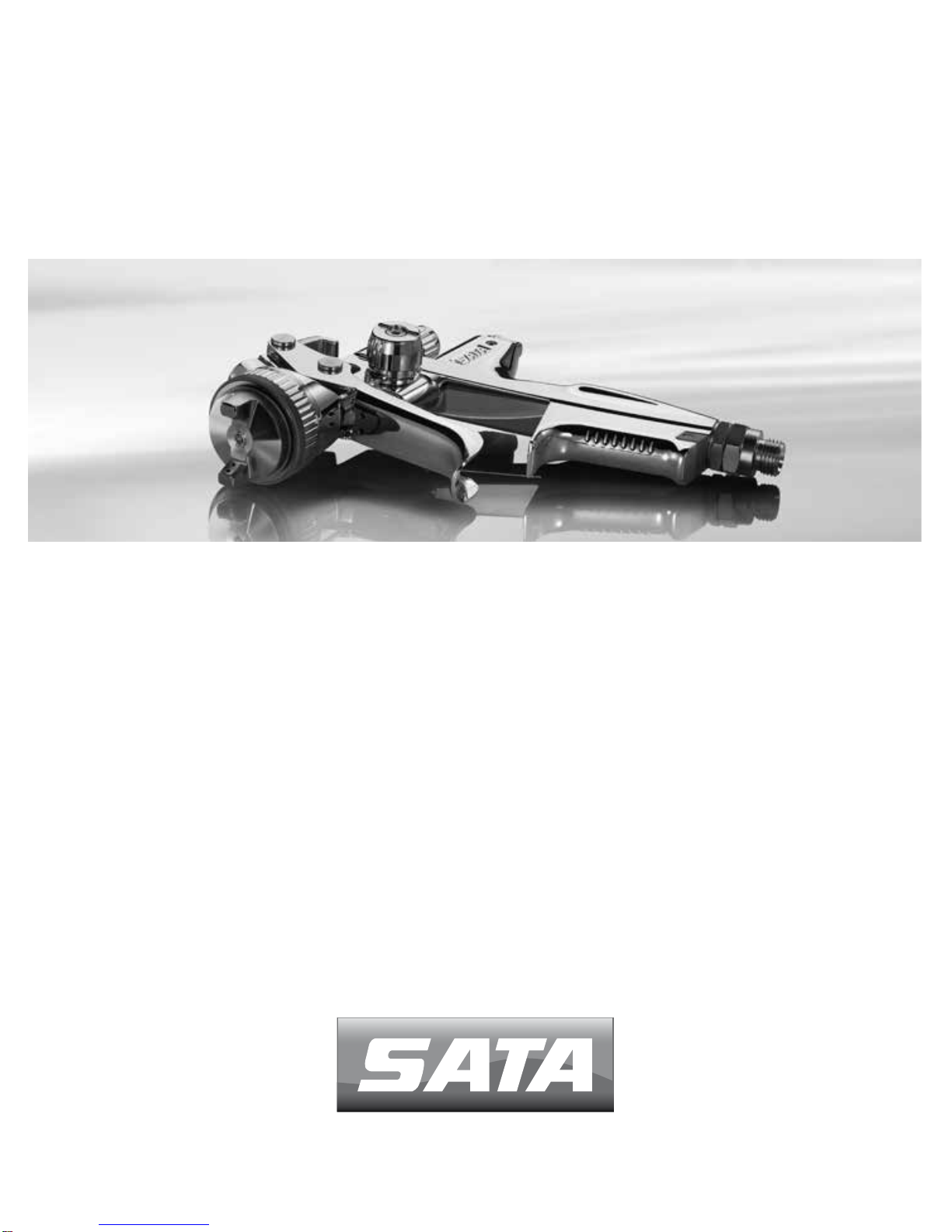

SATA SATAjet 4000 B User manual

SATAjet 4000 B
Betriebsanleitung | Упътване за работа | 使用说明书 | Návod k použití
Betjeningsvejledning|Kasutusjuhend|Operating Instructions | Instrucciones
de servicio | Käyttöohje | Mode d'emploi | Οδηγίες λειτουργίας| Üzemeltetési
utasítás | Istruzione d'uso Naudojimo instrukcija | Lietošanas instrukcija |
Gebruikershandleiding | Bruksveiledning | Instrukcja obsługi | Instruções
de funcionamento | Manual de utilizare | Руководство по эксплуатации
Bruksanvisning | Navodilo za obratovanje | Návod na | Kullanım talimatı
Operating Instructions

[1]
[1-7]
[1-9]
[1-3] [1-11]
[1-12]
[1-13]
[1-14]
[1-15]
[1-1]
[1-2]
[1-4]
[1-8]
[1-18]
[1-19]
[1-5]
[1-10]
[1-16]
[1-17]
[1-6]
Design:
US D644,716S

[2]
[2-2] [2-1]
[2-4]
[2-3]
[2-5]
[2-7] [2-8]
[2-9]
[2-6]
[2-10]
[2-11] [2-12]
[2-13]
[2-14]
Design:
US D644,716S

113
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
Content [Original Version: German]
1. Symbols................................ 113
2. Technical Data...................... 113
3. Scope of Delivery ................. 114
4. Design of the Spray Gun...... 115
5. Intended Use........................ 115
6. Safety Instructions................ 115
7. Use....................................... 118
8. Cleaning of the Spray Gun...120
9. Maintenance.........................121
10. Troubleshooting....................124
11. Disposal................................126
12. After Sale Service.................127
13. Warranty / Liability................127
14. Spare Parts ..........................127
15. EC Declaration of
Conformity............................128
1. Symbols
Warning! Risk which could cause serious injuries or death.
Warning! Risk which could cause damage.
Explosion risk! Warning against risk which could cause
serious injuries or death.
Notice! Useful tips and recommendations
2. Technical Data
Recommended spray gun inlet pressure
RP 2.0 bar - 2.2 bar
HVLP 2.0 bar
Compliant > 2.0 bar (air cap pressure > 0.7 bar)
Compliant legislation Lom-
bardy/Italy
< 2.5 bar (air cap pressure < 1.0 bar)
Recommended spraying distance
RP 17 cm - 21 cm
HVLP 10 cm - 15 cm
HVLP Lombardy/Italy 10 cm - 15 cm
Max. spray gun inlet pressure
10.0 bar
[EN] Operating Instructions | english

114
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
Air consumption at 2.0 bar spray gun inlet pressure
RP 285 Nl/min
HVLP 430 Nl/min
Max. material temperature
50 °C
Weight | Version Standard DIGITAL
without cup 440 g 462 g
with 0.6 l RPS cup 491 g 513 g
with 0.6 l reusable cup 612 g 634 g
with 1.0 l aluminium reusable cup 636 g 658 g
with 0.6 l RPS cup and digital
gauge
531 g (with adam
2)
513 g
additional weight of swivel joint
version
11 g 8 g
Compressed air connection
G 1/4
Capacity of PVC gravity flow cup
600 ml
Optional: electronic pressure gauge
On/Off threshold 0.2 bar
Display accuracy ± 0.05 bar
Maximum display value 9.5 bar
Battery Renata CR1632
(Art. No. 165993)
3. Scope of Delivery
• Spray gun with nozzle set and
gravityowcup
• Operating Instructions
• Tool kit
• CCS clips
Alternative versions with:
• Swivel joint
• GravityowcupsmadeofPVCor
aluminium with different capacities
• Electronic pressure gauge

115
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
4. Design of the Spray Gun [1]
[1-1] Spray gun handle
[1-2] Trigger
[1-3] Nozzle set consisting of air
cap,uidtip(notvisible),
paint needle (not visible)
[1-4] Spray gun connection with
QCC
[1-5] Gravityowcupconnection
with QCC
[1-6] Paint strainer (not visible)
[1-7] Gravityowcup
[1-8] Gravityowcuplid
[1-9] Anti-drip device
[1-10] Round/atspraycontrol
[1-11] Materialowcontrolscrew
[1-12] Materialowcontrolcounter
nut
[1-13] Airmicrometer(airow
control knob)
[1-14] Airmicrometer(airowcon-
trol) locking screw
[1-15] Air piston (not visible)
[1-16] Compressed air connection
[1-17] ColorCode-System (CCS)
[1-18] Front cover of the pressure
display (only with DIGITAL)
[1-19] Pressure display (only with
DIGITAL)
5. Intended Use
The paint spray gun has been designed for the application of paint, lac-
quer and other sprayable media by means of compressed air on suitable
substrates and surfaces.
6. Safety Instructions
6.1. General Safety Instructions
Warning! Attention!
• Before using the spray gun, please read all safety and the operating
instructions carefully. Safety instructions and indicated safety meas-
ures are mandatory.
• Please keep all enclosed documents and make sure that the spray
gun is handed over only together with these documents.

116
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
6.2. Specic Safety Instructions for Spray Guns
Warning! Attention!
• Local safety, accident prevention, work and environment protection
regulations are mandatory!
• Never direct a paint spray gun at human beings or animals!
• Use, cleaning and maintenance by skilled personnel only!
• People whose ability to react is impaired by drugs, alcohol, medication
or for other reasons are not allowed to use a spray gun!
• Never use a spray gun when damaged or when components are
missing!Useonlywhenlockingscrewisrmlytightened[1-14]!
• Before use, the spray gun should always be checked and repaired, if
necessary!
• Put spray gun immediately out of operation when damaged, discon-
nect it from the compressed air circuit!
• Never manipulate or technically modify the spray gun!
• Use original SATA spare parts and accessories only!
• Exclusively use spray gun cleaning machines recommended by SATA!
Please observe the operating instructions!
• Never spray materials containing acid, lye or benzine!
• Alyways keep the spray gun away from ignition sources, such as open
re,burningcigarettesornon-explosion-proofelectronicdevices!
• When working with the spray gun, always limit solvents, paints or
other coating media to the quantities which are required for the paint
job! Excessive material must be returned to the designated storage
areas afterwards!
6.3. Personal Protection Equipment
Warning!
• When using, cleaning or maintaining the spray gun, always wear
approved breathing and eye protection equipment as well as suitable
protective gloves, overalls and safety boots!
• When using the spray gun, noise levels of 85 dB(A) may be exceed-
ed. Wear suitable hearing protection!

117
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
The painter is not exposed to vibrations while using the spray gun. Recoil
forces are minimal.
6.4. Use In Explosive Areas
Ex-sign Equipment cat-
egory
Device category Gas category Temperature level
6.4.1 General
The spray gun is approved for the use / storage in explosive areas of Ex-
Zone 1 and 2.
Warning! Risk of explosion!
• The following applications and operations lead to the loss
of the explosion protection and are, therefore, prohibited:
• Use of the spray gun in explosive areas belonging to ex-zone 0!
• Do not use solvents and cleaning agents based on halogenised
hydrocarbons! Chemical reaction which may occur when using these
substances may be explosive!
6.4.2 Additional Information on the Electronic
Pressure Gauge
The electronic pressure gauge has passed a design examination. It has
been developed, constructed and manufactured in accordance with the
EUdirective94/9EU.IthasbeenclassiedaccordingtoExiaIICT4Ga
or Ex ia IICT4 Gb. It may be used and stored in the explosive zones 1 and
2 up to 60°C ambient temperature. Inspection authority: KEMA 05 ATEX
1090 X.
Warning! Risk of explosion!
The following applications and operations lead to the loss of
the explosion protection and are, therefore, prohibited:
• Battery replacement in explosive areas!
• Removal of the front cover of the pressure display!

118
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
Warning! Risk of explosion!
• Installation of a battery other than the CR 1632 Renata!
When exchanging the battery, it is recommended to also replace the
sealing of the battery compartment!
7. Use
Warning! Risk of explosion!
• Useonlysolvent-resistant,antistatic,undamagedandtechnicallyaw-
less compressed air hoses with a permanent pressure resistance of
minimum 10 bar, e.g. Art. No. 53090!
Notice!
The following requirements must be fulfilled:
• Use a compressed air connection G 1/4 a or a suitable SATA connec-
tion nipple.
• Ensure minimum compressed air volume (air consumption) and pres-
sure (recommended spray gun inlet pressure) according to chapter 2.
• Usecleancompressedair,e.g.byinstallingtheSATAlter484,Art.
No. 92320
• Use an air hose with minimum 9 mm internal diameter (see warnings),
e.g. Art. No. 53090.
1. Check if all screws [2-1], [2-2], [2-3], [2-4] and [2-5] have been
tightenedrmly.Tightenuidtip[2-1]rmlybyhand(14Nm)accord-
ing to [7-4]. Check if locking screw [2-5]hasbeenrmlytightened
according to [10-1]. Tighten, if necessary.
2. Rinse material passages with suitable cleaning solution [2-6], ob-
serve chapter 8.
3. Adjust air cap: vertical spray fan [2-7], horizontal spray fan [2-8].
4. Insert paint strainer [2-9]andinstallgravityowcup[2-10].
5. Fillgravityowcup(max.20mmbelowupperedge),closewiththelid
[2-11] and insert anti-drip device [2-12].
6. Screw connection nipple [2-13] (not included in delivery) onto the air
inlet.

119
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
7. Connect compressed air hose [2-14].
7.1. Adjustment of the Spray Gun Inlet Pressure
Notice!
• Pull the trigger fully and adjust the spray gun inlet pressure (see
chapter 2) following instructions of one of the followig sections ([3-1],
[3-2], [3-3], [3-4] bis [3-5]), then release the trigger.
• With [3-3], [3-4] and [3-5], the air micrometer [1-13] must be fully
opened/in vertical position.
• If the required spray gun inlet pressure is not reached, the pressure
at the compressed air circuit has to be increased; too high pressure
results in too high trigger forces.
[3-1] Paint spray gun with digital pressure display (accurate
method).
[3-2] SATA adam 2 (accessory / accurate method).
[3-3] Separate gauge with control device (accessory).
[3-4] Separate gauge without control device (accessory).
[3-5] Pressure regulation at the compressed air circuit (most
inaccurate method): rule of thumb: pressure at the pressure re-
ducer must be set 0.6 bar higher than the recommended spray gun
inlet pressure per every 10 m of air hose (inner width 9 mm).
7.2. Adjustment of the Material Flow [4-1], [4-2], [4-3]
und [4-4] - material flow control fully opened
Notice!
Withthematerialowcontrolfullyopened,thewearoftheuidtipand
paint needle is reduced to a minimum. Please select the correct nozzle
size depending on the material to be applied and the required applica-
tion speed.
7.3. Adjustment of the Spray Fan Pattern
• Adjustatfan(factorysetting)[5-1].
• Adjust round fan [5-2].

120
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
7.4. Painting
Fully pull trigger for painting [6-1]. Operate spray gun according to [6-2].
Maintain spray distance as described in chapter 2.
8. Cleaning of the Spray Gun
Warning! Attention!
• Prior to cleaning, please disconnect the spray gun from the compressed air
circuit!
• Risk of injury due to unexpected leakage of compressed air or mate-
rial!
• Emptyspraygunandgravityowcupcompletely,disposeofpaint
material appropriately!
• Disassemble and install components very carefully! Exclusively use
included special tools!
• Use neutral cleaning solution (pH value 6 to 8)!*
• Do not use acids, lyes, bases, pickling agents, unsuitable
regenerates or other aggressive cleaning solutions!*
• Do not soak spray gun in cleaning solution! *Cleaning solution
should never penetrate the air passages!
• Do not clean cover plate of the electronic pressure display with
pointed, sharp or rough objects!
• Drillings are to be cleaned with SATA cleaning brushes or SATA nozzle
cleaning needles only. The use of other tools may cause damage or
may affect the spray pattern. Recommended accessory: cleaning kit
Art. No. 64030.
• Exclusively use spray gun cleaning machines recommended by SATA!
Please observe the operating instructions!
• The air passages have to be pressurised with clean compressed air dur-
ing the entire cleaning process!
• Nozzle head has to point downwards!
• Remove the spray gun from the cleaning machine after the
cleaning process!*,**
• Never use ultrasonic cleaning devices -leads to damage of noz-
zle set and gun surface!**

121
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
Warning! Attention!
• After cleaning, the spray gun, the material passages, the air
cap including thread as well as the gravity flow cup have to
be blown dry with clean compressed air!*
* otherwise risk of corrosion
** otherwise damage of the electronic components of DIGITAL
spray guns
Notice!
• Check spray pattern after cleaning the nozzle set!
• Further tips concerning cleaning can be found at www.sata.com/TV.
9. Maintenance
Warning! Attention!
• Prior to maintenance, disconnect spray gun from the compressed air
circuit!
• Disassemble and install components very carefully! Exclusively use
included special tools!
9.1. Replacing the Nozzle Set [7-1], [7-2], [7-3], [7-4], [7-5]
and [7-6]
Every SATA nozzle set consists of "paint needle" [7-1], "air cap" [7-2]
and"uidtip"[7-3] and has been hand-adjusted to provide a perfect
spray pattern. Lubricate both paint needle [7-1] in the paint needle area
(approx. 3 cm in front of the needle sleeve, paint needle spring) and ma-
terialowcontrolscrew[1-11]. Therefore, always exchange the complete
nozzleset.Afterinstallation,pleaseadjustmaterialowaccordingto
chapter 7.2.

122
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
9.2. Replacing the Air Distribution Ring Steps: [7-1],
[7-2], [7-3], [8-1], [8-2] [8-3], [7-4], [7-5] und [7-6]
Attention!
• Remove air distribution ring with SATA extraction tool only.
• Do not apply force to avoid damage of sealing surfaces.
Notice!
Check sealing surfaces inside the spray gun [8-2] after disassembly,
clean them, if required. Should the sealing surfaces be damaged,
please contact your SATA dealer. Align new air distribution ring with the
help of the marking [8-3], (pin must be located in the drilling) and press
inwithevenforce.Adjustmaterialowaccordingtochapter7.2after
installation.
9.3. Replacing the Paint Needle Sealing Steps: [9-1],
[9-2] und [9-3]
When paint material leaks from the self-tensioning paint needle packing, it
needs to be replaced. Remove trigger according to [9.2]. After disassem-
bly, check if paint needle is damaged or replace the nozzle set, if required.
Adjustmaterialowaccordingtochapter7.2afterinstallation.
9.4. Replacing the Air Piston, Air Piston Spring
and Air Micrometer Steps: [10-1], [10-2] and [10-3]
Warning!
• Disconnect paint spray gun from the compressed air circuit!
When air leaks from the air cap or the air micrometer without the trigger
being pulled, they need to be replaced. After disassembly, grease the air
micrometer sleeve with SATA high performance grease (Art. No. 47173),
insert it together with the air piston and tighten the locking screw [10-1].
Adjustmaterialowaccordingtochapter7.2afterinstallation.

123
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
Warning!
• Checkiflockingscrewhasbeenrmlytightened!Otherwiseairmi-
crometer could shoot out from the spray gun uncontrolled!
9.5. Replacing the Sealing (air side)
Warning!
• Disconnect paint spray gun from the compressed air circuit!
Steps: [9-1], [9-2], [10-1], [10-2], [10-3], [10-4] and [10-5]
Replacing the self-tensioning sealing [10-5] is required when air leaks
from under the trigger.
1. After disassembly, please check air piston rod [10-4] and clean it, if
required. If damaged (e.g. if scratched or bent), replace it and grease
with SATA high performance spray gun grease (Art. No. 48173) and
insert. Please observe correct order of installation!
2. Lubricate air micrometer sleeve as well, insert together with air piston
and tighten the locking screw.
Afterinstallation,pleaseadjustmaterialowaccordingtochapter7.2.
Warning!
• Checkiflockingscrewhasbeenrmlytightened!Otherwiseairmi-
crometer could shoot out from the spray gun uncontrolled!
9.6. Replace CCS (ColorCode-System)
The CCS for the individual marking of the spray gun can be exchanged
according to [10-6].
9.7. Replace spindle of round/flat spray control
steps: [11-1], [11-2], [11-3]
The spindle has to be replaced when air leaks from the spray control or
when the spray control does not work.
1. Removal of the old spindle [a]
• Remove screw [11-1] (Torx T20)
• Remove knob [11-2]
• Unscrew spindle [11-3] with wrench (size 14)

124
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
• Make sure that spindle pick-up is free of material and paint residues,
remove residues and clean with solvent, if necessary
2. Installation and positioning of the new spindle [a, b]
• Screw in spindle [11-3]
• Turn spindle nut [11-3] to position 6 o’clock using a wrench (size 6)
[11-4]
3. Positioning and assembly of control knob [c]
• Position of knob [11-2] has to be according to illustration (line in the
knob has to be in vertical position)
• Hand-tighten screw [11-1] (Torx T20) in the knob – hold knob in the
position while tightening
9.8. Replacing the Battery (DIGITAL) [12-1] and [12-2]
Warning! Risk of explosion!
• Replace the battery outside of explosive areas only!
• Strictly observe the safety instructions in chapter 6.4.2!
According to the intensity of use, the battery will last between 1 to 3 years.
When the battery symbol appears on the pressure display, the battery has
to be exchanged within the next 2 to 3 weeks. The battery is empty when
no pressure is indicated with the spray gun inlet pressure exceeding 0.2
bar / 3 psi (trigger fully pulled). Tighten new battery lid with pre-assembled
sealing (Art. No. 165993 including battery) and check functionality.
10. Troubleshooting
Malfunction Cause Corrective Action
Fluttering/spitting
spray fan or air bub-
bles appearing in the
gravityowcup
Fluid tip has not been
properly tightened
Tightenuidtip[2-1]
with universal spanner
Air distribution ring is
damaged or clogged.
Replace air distribu-
tion ring, as it will be
damaged during disas-
sembly

125
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
Malfunction Cause Corrective Action
Air bubbles appearing
inthegravityowcup
Loose air cap Tighten air cap [2-2]
by hand
Gap between air cap
anduidtip("aircir-
cuit") is clogged
Clean air circuit, ob-
serve chapter 8
Nozzle set is clogged
or damaged
Clean nozzle set,
chapter 8, or replace,
respectively, chapter
9.1
Not enough paint ma-
terialinthegravityow
cup
Rellgravityowcup
[1-6]
Defective paint needle
sealing
Replace the paint nee-
dle sealing, chapter
9.3
Spray pattern is too
small, crooked, lop-
sided or splitting
Clogged air cap drill-
ings
Clean air cap, observe
chapter 8
Damageduidtip(uid
tip aperture)
Checkifuidtipis
damaged, replace the
nozzle set, if neces-
sary, chapter 9.1
No function of round/
atspraycontrol-con-
trol knob can still be
turned
Air distribution ring has
not been positioned in
correct location (pin is
not located in the drill-
ing) or damaged
Replace air distribution
ring making sure it has
been positioned cor-
rectly when inserting it,
chapter 9.2
Round/atspraycon-
trol cannot be regu-
lated
Regulation valve dirty Removeround/at
spray control, repair or
replace it, chapter 9.7
Spray gun does not
shut-off air
Clogged air piston seat
or worn air piston.
Clean air piston seat
and/or replace air pis-
ton, air piston packing,
chapter 9.4

126
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
Malfunction Cause Corrective Action
Corrosion on air cap
thread, inside material
passages (cup con-
nection) or on spray
gun body
Cleaning solution
(water-based) remains
inside/on the spray
gun for too long.
Cleaning, observe
chapter 8, get a
replacement spray
gun body.
Unsuitable cleaning
solutions
Black digital display Spray gun has re-
mained in cleaning
solution for too long.
Cleaning, observe
chapter 8, Replace-
ment digital device
required.
Wrong positionining of
the spray gun inside
the gun washing ma-
chine
Material leaks from
behind the paint nee-
dle sealing
Defective or missing
paint needle sealing.
Replace / insert paint
needle sealing, chap-
ter 9.3
Clogged or damaged
paint needle.
Replace nozzle set,
chapter 9.1; replace
paint needle sealing, if
necessary, chapter 9.3
Spray gun leaks from
theuidtip("uidtip
aperture")
Contamination be-
tween paint needle tip
anduidtip
Cleanuidtipand
paint needle, observe
chapter 8
Damaged nozzle set. Replace nozzle set,
chapter 9
11. Disposal
Recycle the completely empty spray gun. To protect the environment, bat-
teries and residual paint have to be disposed in an appropriate way and
separately from the spray gun. Please observe local legislation!

127
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
12. After Sale Service
Accessories, spare parts and technical support may be obtained from
your SATA dealer.
13. Warranty / Liability
The SATA General Conditions of Sale and Delivery and further contractual
agreements, if applicable, as well as the valid legislation at the time apply.
SATA cannot be held responsible especially in the following
cases:
• When the operating instructions are disregarded.
• When the product is used in other than the intended ways of usage.
• When untrained staff are employed.
• When no personal protection equipment is worn.
• When no original accessories and spare parts are used.
• When the product is manipulated, tampered with or technically modi-
ed.
• In case of normal wear and tear.
• In case when the product has been exposed to untypical shockloads
and impacts during usage.
• Assembly and disassembly
14. Spare Parts [13]
Art.
No. Description
1826 Packof4anti-dripdevicesfor0.6lPVCgravityowcup
3988 Single pack of 10 paint strainers
15438 Paint needle sealing
16162 Swivel joint G 1/4 a for DIGITAL spray guns
19745 Swivel joint G 1/4 a x M15 x 1 for non-DIGITAL spray guns
27243 0.6lQCCquickchangePVCgravityowcup
49395 Screw-onlidfor0.6lPVCgravityowcup
76018 Pack of 10 x 10 paint strainers
76026 Pack of 50 x 10 paint strainers
86843 Air piston rod
133934 Packof3sealingsforspindleround/atspraycontrol
133942 Seal retainer (air side)

128
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
Art.
No. Description
133959 Spring set consisting of 3x paint needle and 3x air piston
springs each
133967 Pack of 3 locking screws for SATAjet 4000 B air micrometer
(airowcontrolknob)
133991 Pack of 3 air piston heads
134098 Air connecting piece G 1/4 - M15 x 1
140582 Packof5sealingelementsforuidtip
165928 Pack of 4 CCS clips (green, blue, red, black)
165936 Tool kit
165944 Spindleforround/atspraycontrol
165951 Pack of 3 air distribution rings
165977 Trigger kit for SATAjet 4000 B
165985 Seal retainer with sleeve for SATAjet 4000 B DIGITAL
165993 Battery kit with closing screw and sealing for DIGITAL device
166009 Trigger sleeve kit
166017 Airmicrometer(aifowcontrolknob)
166025 Materialowcontrolwithcounternut
166033 Control knob and screw (2 pieces each)
166116 Air connection for SATAjet 4000 B DIGITAL with sleeve
Included in repair kit (Art No. 166058)
Included in air piston service unit (Art. No. 82552)
Included in spring set (Art No. 133959)
Included in sealing kit (Art. No. 136960)
15. EC Declaration of Conformity
Manufacturer:
SATA GmbH & Co. KG
Domertalstrasse 20
D-70806 Kornwestheim
We hereby declare that the product named in the following, on the basis of
its conception, construction and type of construction in the model we have
brought on the market, corresponds to the fundamental safety requirements
of the 94/9/EC guideline, EC Directive 2014/34/EC including the changes

129
EN
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL)
applicable at the time of this declaration and can be used according to
EC-Directive 94/9/EC, EC Directive 2014/34/EC in explosion hazard areas
(ATEX), appendix X, B.
Product description: ................................................................. spray gun
Type description: .............................SATAjet 4000 B RP/HVLP / DIGITAL
ATEX classication: ...................................................... II 2 G Ex ia IIC T4
Inspection facility: 0344
KEMA 05 ATEX 1090
IECEx KEM 09.0075X
DEKRACerticationB.V.
Meander 1051
6825 MJ Arnhem
Type name: ...................................................... SATAjet 5000 B RP/HVLP
ATEX classication: ........................................................... II 2G T60°C X
Relevant EU directives:
• EN 60079-0:2013, EN 60079-11:2012, EN 60079-26:2007
• EU machinery directive 2006/42/EG
• EC Directive 94/9/EC Devices and protection systems for intended use in
explosion hazard areas, valid until 19.04.2016
• EC Directive 2014/34/EC Devices and protection systems for intended
use in explosion hazard areas, valid from 20.04.2016
Applied harmonised norms:
• DIN EN 1127-1:2011 "Explosion control part 1: Basics and methodology"
• DIN EN 13463-1:2009 "Non-electronic devices for the use in explosive
areas - Part 1: Basics and Requirements"
• DIN EN ISO 12100:2011; "Machine safety, general requirements"
• DIN EN 1953:2013 "Spray and application devices for coating materials -
safety requirements"
Applied national norms:
• DIN 31000:2011 "General guidelines for the safety-compliant design of
technical products"
The documents required according to guideline 2014/34/EC appendix VIII
areledfor10yearsinthenamedlocationnumber0123withthedocument
number 70023722.
