Warning
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Install in accordance with the IEE Wiring regulations and current Building Regulations.
Check the pack and make sure you have all the parts listed.
To prevent electrocution switch off at the mains supply before installing or maintaining this fitting. Ensure other persons cannot
restore the electrical supply without your knowledge.
This light fitting should be connected to a circuit with a 30mA RCD fitted.
If replacing an existing fitting, make a careful note of the connections.
This product is unsuitable for immersion in water.
This product is not suitable for location in or near a marine environment.
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your local authority or retailer for recycling advice.
Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory
operation of this product. Please retain these instructions for future reference.
Installation
Exising fittings must be completely removed before installation of a new product. Before removing the existing fitting, carefully
note the position of each set of wires.
Note that the power needs to be isolated/switched off at the fuse board.
Ensure that the screws and cable entry points are sealed to maintain the IP rating of the product.
Layout
Plan the desired layout of these fittings carefully, ensuring the cables will reach the distances between the junction box and
each light fitting.
Avoid locating any cables in positions that would cause a hazard. Position cables and outdoor rated junction boxes
(not supplied) away from areas where they may be at risk from being cut, trapped or damaged.
The mains supply cable must have a minimum cross section area of 1.0mm2.
Cables must be protected using suitable conduit or plastic trunking.
Take care not to drill into any pipes or mains cables beneath the surface during mounting holes preparation.
• The Minimum wall void depth is 40mm. When more than one wall light is installed, the minimum distance between units
is 500mm. The unit must be located a minimum distance of 50mm from a joist.
• Ensure free movement of air by removing void insulation from at least 150mm from around the hole. Under no circumstances
must these fittings be covered with insulating matting or similar material.

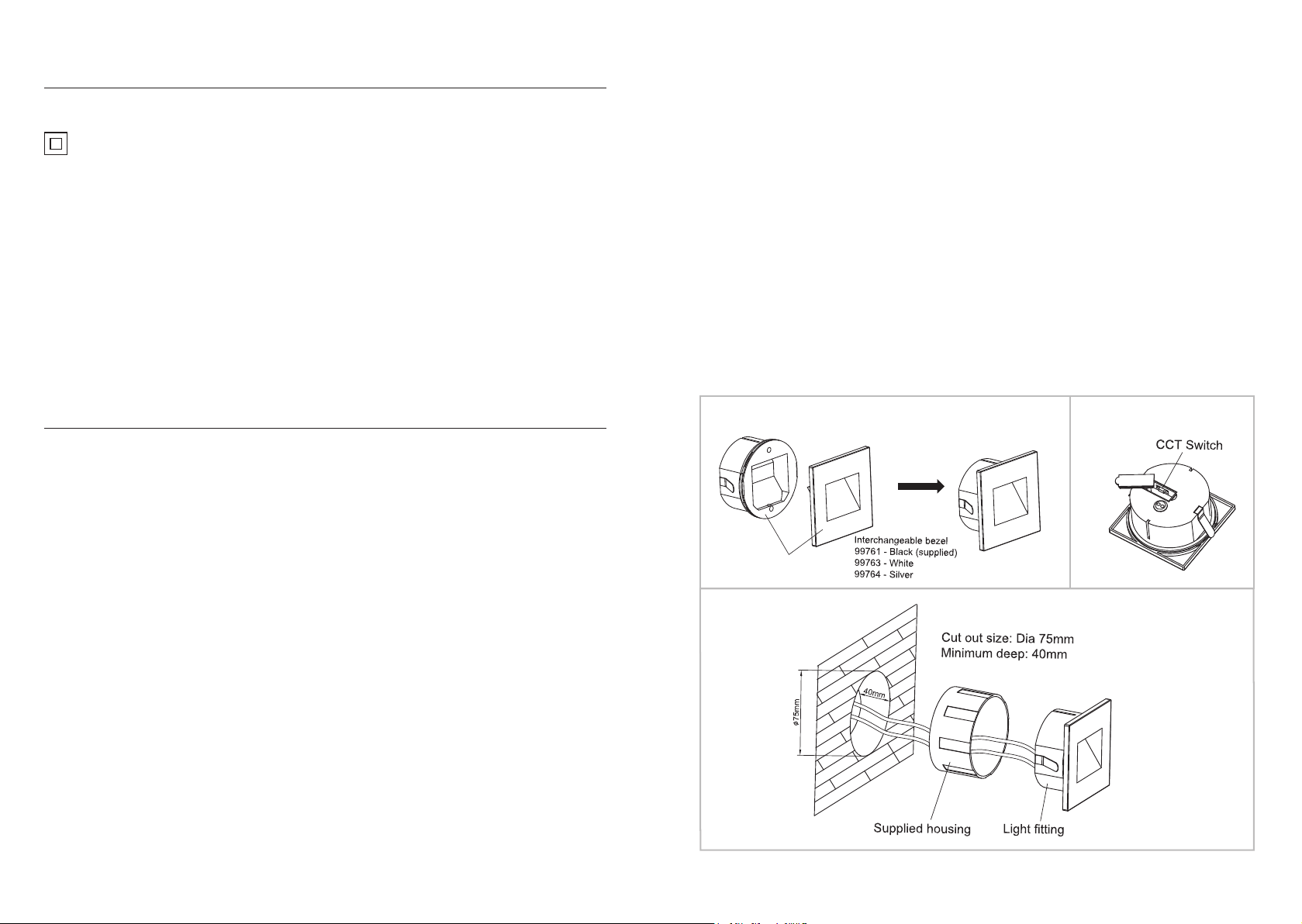

• See Fig. 3.Select a mounting location for the product and cut a mounting hole 75mm diameter in the wall care not to foul
any pipes, mains cables or joists beneath the surface. It is always recommended to cut the hole slightly smaller than the size
specified, and then file the hole until the recessed unit fits snugly.
• Pass the incoming supply cable through the cut out and through the housing supplied. Wire as detailed wiring.
• Ensure that the product is sitting properly in the hole.
• Switch on. Your light is now ready for use.
• There colour bezels can be replaced, purchase your preferred bezel colour according to the product model. black color bezel
is supplied in 99761 product, 99763--- White bezel, 99764----Silver bezel, see Fig. 1.
Fig. 1
Fig. 3
Fig. 2
• This product is colur changing and can be either warm white (3000K) or cool white (4000K) or daylight white (6500K).
Choose your preferred colour before installing by using the CCT switch. see Fig. 2.
This light fitting is double insulated and does
not require connection to an Earth circuit.
